Clarke DLS360 User guide

3600PSI DIESEL POWER WASHER

MODEL NO: DLS360

PART NO: 7330376

OPERATION & MAINTENANCE

INSTRUCTIONS

ORIGINAL INSTRUCTIONS DL 0124

INTRODUCTION

Thank you for purchasing this CLARKE Diesel Power Washer.

Before attempting to use this product, please read this manual thoroughly and
follow the instructions carefully. In doing so you will ensure the safety of yourself
and that of others around you, and you can look forward to your purchase
giving you long and satisfactory service.

GUARANTEE

This product is guaranteed against faulty manufacture for a period of 12
months from the date of purchase. Please keep your receipt which will be
required as proof of purchase.

This guarantee is invalid if the product is found to have been abused or
tampered with in any way, or not used for the purpose for which it was
intended.

Faulty goods should be returned to their place of purchase, no product can
be returned to us without prior permission.

This guarantee does not effect your statutory rights.

UNPACKING

Unpack your power washer and check to ensure the following items are
present. Contact your CLARKE dealer immediately if any parts are missing or
damaged.

1 x Diesel Power Washer 1 x Pressure Washer Hose

1 x Delivery Hose c/w Fittings 1 x Hose/Lance Storage Bracket

1 x Suction Hose c/w Fittings 4 x Wheel/Pneumatic Tyres

1 x Detergent Hose c/w Fittings 4 x Wheel Axles and Fittings

1 x Lance/Nozzle Assembly 1 x Engine Manual

1 x Gun Assembly 1 x Tool Kit: Multi-Head Screwdriver,

10/12 Spanner, 14/17 Spanner

2

Parts & Service: 020 8988 7400 / E-mail: [email protected] or [email protected]

GENERAL SAFETY RULES

WARNING: WATER AT HIGH PRESSURE CAN BE DANGEROUS AND CAN
CAUSE DAMAGE TO PERSONS OR PROPERTY IF THE OPERATOR IS
CARELESS. NEVER ALLOW ANYONE TO OPERATE THIS EQUIPMENT UNLESS
THEY ARE THOROUGHLY RELIABLE, AND FAMILIAR WITH THE SAFETY
PRECAUTIONS.

1. DO NOT point the spray at other people, animals, electrical equipment or
the machine itself.

2. DO NOT hold your finger over the high pressure nozzle.

3. DO NOT let children or untrained personnel use this machine.

4. DO NOT operate the machine with any of the covers removed.

5. DO NOT try to repair this machine. Always refer to your CLARKE service
department for all repairs.

6. DO NOT supply any liquid other than water to the water inlet.

7. DO NOT use the detergent pickup facility to introduce flammable liquids/
solvents, e.g. paint thinners, petrol, oil, as there is a risk of explosion.

8. ALWAYS release the remaining pressure in the system; turn off the water
supply and operate the trigger before you remove hoses or accessories.

9. ALWAYS keep the machine dry and away from the water spray.

10. ALWAYS use protective clothing and safety goggles. Loose particles and
other items can be propelled at high speed by the water spray.

11. ALWAYS hold the gun securely & expect it to ‘kick’ when you pull the trigger.

12. ALWAYS respect the requirements of the local water company. Pressure
washers may only be connected to the mains water supply if a system
separator (also known as a backflow preventer) is installed in the supply
hose.

13. ALWAYS disconnect from the water supply, and make sure that you drain
the system when not in use. Keep in a cool dry location.

14. ONLY use detergents that are suitable for pressure washers, we recommend
that you use CLARKE Traffic Film Remover or CLARKE Wash and Wax
(available from your CLARKE dealer).

15. WAR NI NG : high pressure water jets can be dangerous, the jet must not be
directed at a person or anything that they are wearing.

16. WAR NI NG : high pressure hoses, fittings and couplings are important for the
safety of the machine. Use only hoses, fittings and couplings recommended
by the manufacturer.

17. WAR NI NG : water that passes through a system separator (also known as a
backflow preventer) is not safe to drink.

18. DO NOT use the pressure washer if there is damage to the inlet/outlet hose
or the machine.

3

Parts & Service: 020 8988 7400 / E-mail: [email protected] or [email protected]

SAFETY SYMBOLS

ALWAYS: Read this

manual and make sure
that all warnings and
instructions are clear
before use.

ALWAYS: Use protective
gloves, footwear and
waterproof clothing.

DANGER: Risk to
breathing. Engine
exhaust fumes. For
outdoor use only.

WAR NI NG : Risk of
chemical burn. NEVER
spray corrosive or
toxic chemicals. Use
only cleaners
formulated for power
washers.

ALWAYS: Wear eye
protection

ALWAYS: Wear ear
protection.

WARNING: Risk of
severe injury. DO NOT
directly discharge
stream at persons or
animals. Keep clear of
nozzle.

WARNING: Risk of
electrocution. NEVER
direct the spray
toward any electrical
device or electrical
outlet.

DANGER: Risk of fire or
explosion.DO NOT spray
flammable liquids.

WAR NI NG : Risk of hot
surfaces. Avoid
contact with hot
engine exhaust
components. DO NOT
allow hoses to
contact the engine
muffler during or after
use.

4

Parts & Service: 020 8988 7400 / E-mail: [email protected] or [email protected]

WARNING: Risk of
unsafe operation.
Gun kicks back. Hold
with both hands.

SPECIFICATIONS

Model DLS360

Engine

Engine Model G390FD

Power (HP) 9hp/6.6kW/3600rpm

Engine type Diesel

Starting systems Key & Recoil

Battery 12V, 20AH

Fuel Tank Capacity (L) 5.5

Water supply

Max. feed temperature

30

o

C

Min. feed volume (l/min.) 17

Water Inlet Pressure 3-6 Bar

Water Pump

Maximum pressure 248 Bar/3600 Psi

Working pressure 228 Bar/3300 Psi

Max. water flow (l/min.) 17 (Mains supply)

15.3 (Barrel supply)

Measured sound power level LWA dB 93.62

Guaranteed sound power level LWA dB 107.53

Vibration - Main Handle

2.073m/s

2

Dimensions

Length/Width/Height - Handle Raised (mm) 900/1610/1100

Weight (kg) 96

5

Parts & Service: 020 8988 7400 / E-mail: [email protected] or [email protected]

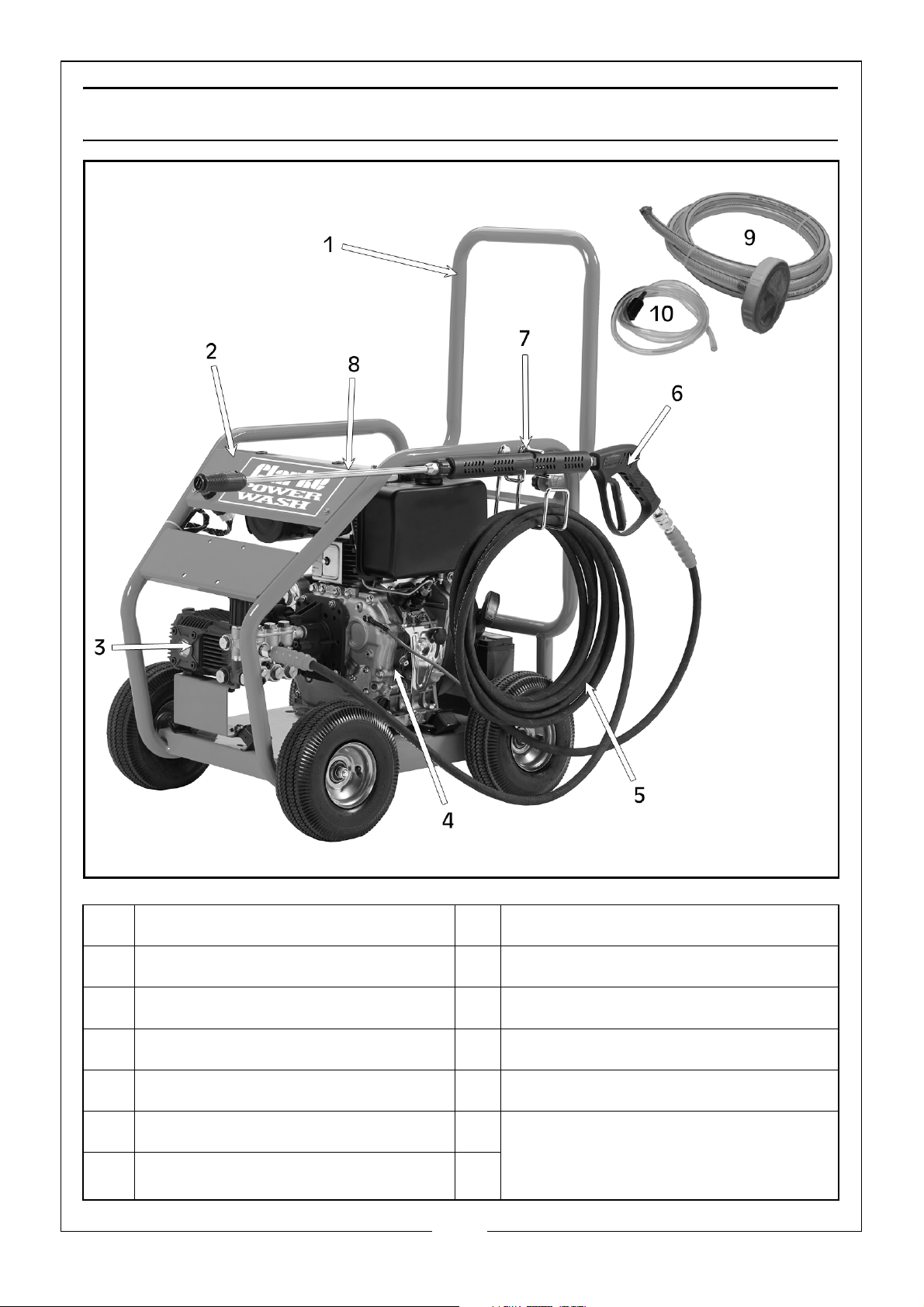

GENERAL OVERVIEW

NO DESCRIPTION NO DESCRIPTION

1 Foldable Handle 7 Wand/Lance & Hose Bracket

2 Frame 8 Spray Wand/Lance

3 Pump 9 Water Inlet Hose with Filter

4 Engine 10 Detergent Hose

5 10m High Pressure Hose 11 Tool Kit: Multi-Head Screwdriver,

10/12 Spanner, 14/17 Spanner

6Gun

6

Parts & Service: 020 8988 7400 / E-mail: [email protected] or [email protected]

(Not Shown)

PARTS IDENTIFICATION AND FEATURES

7

Parts & Service: 020 8988 7400 / E-mail: [email protected] or [email protected]

PARTS IDENTIFICATION AND FEATURES

8

Parts & Service: 020 8988 7400 / E-mail: [email protected] or [email protected]

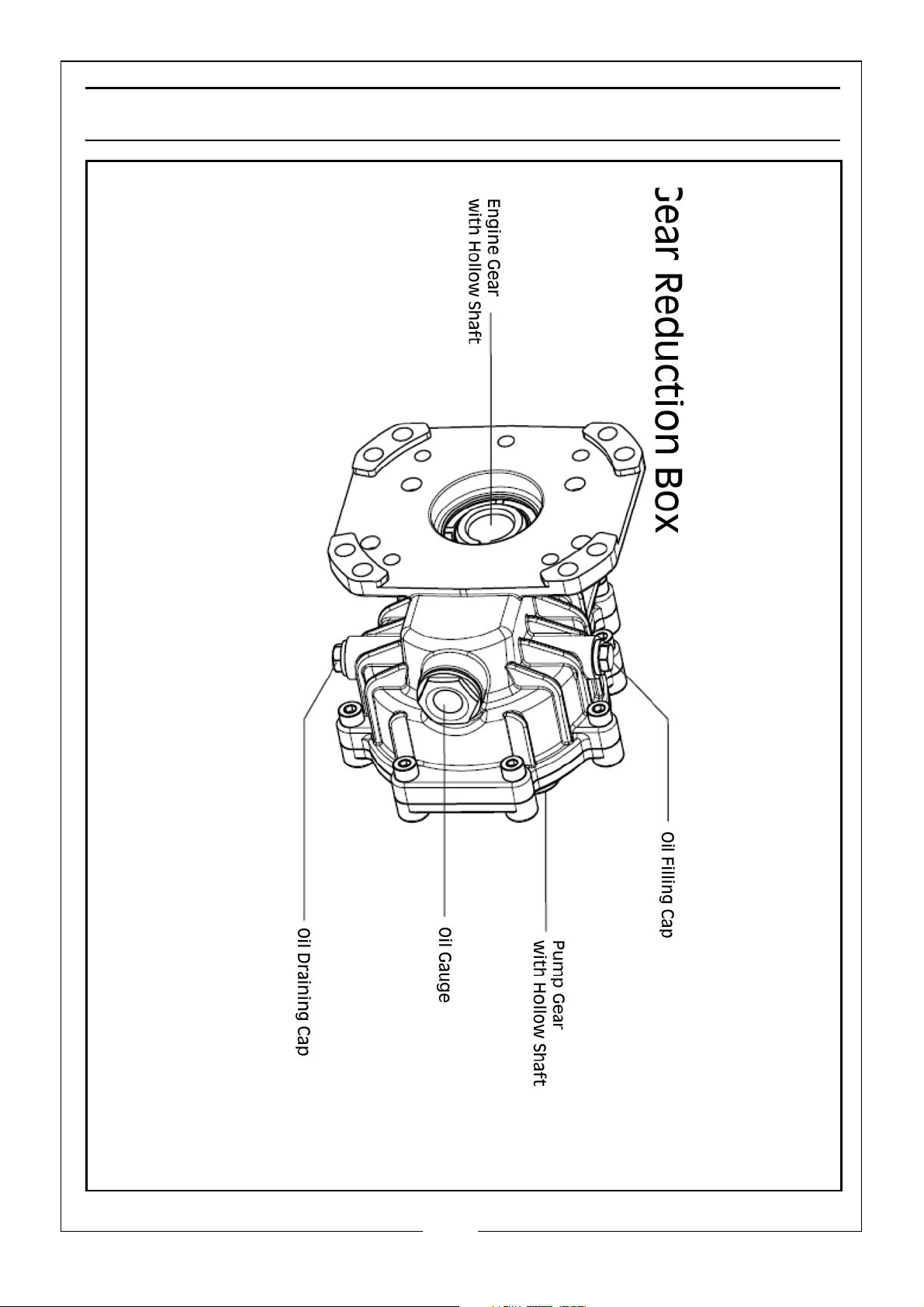

PARTS IDENTIFICATION AND FEATURES

9

Parts & Service: 020 8988 7400 / E-mail: [email protected] or [email protected]

GENERAL TECHNOLOGY

• PSI: Pounds per square inch - Common unit measure used for water
pressure, air pressure, hydraulic pressure and pounds of force.

• LPM: Litres per minute - common unit measure used for flow rate of
water.

• Bypass Mode: In bypass mode, the high pressure pump recirculates
water because the spray gun trigger has not been pressed.

DIESEL ENGINE

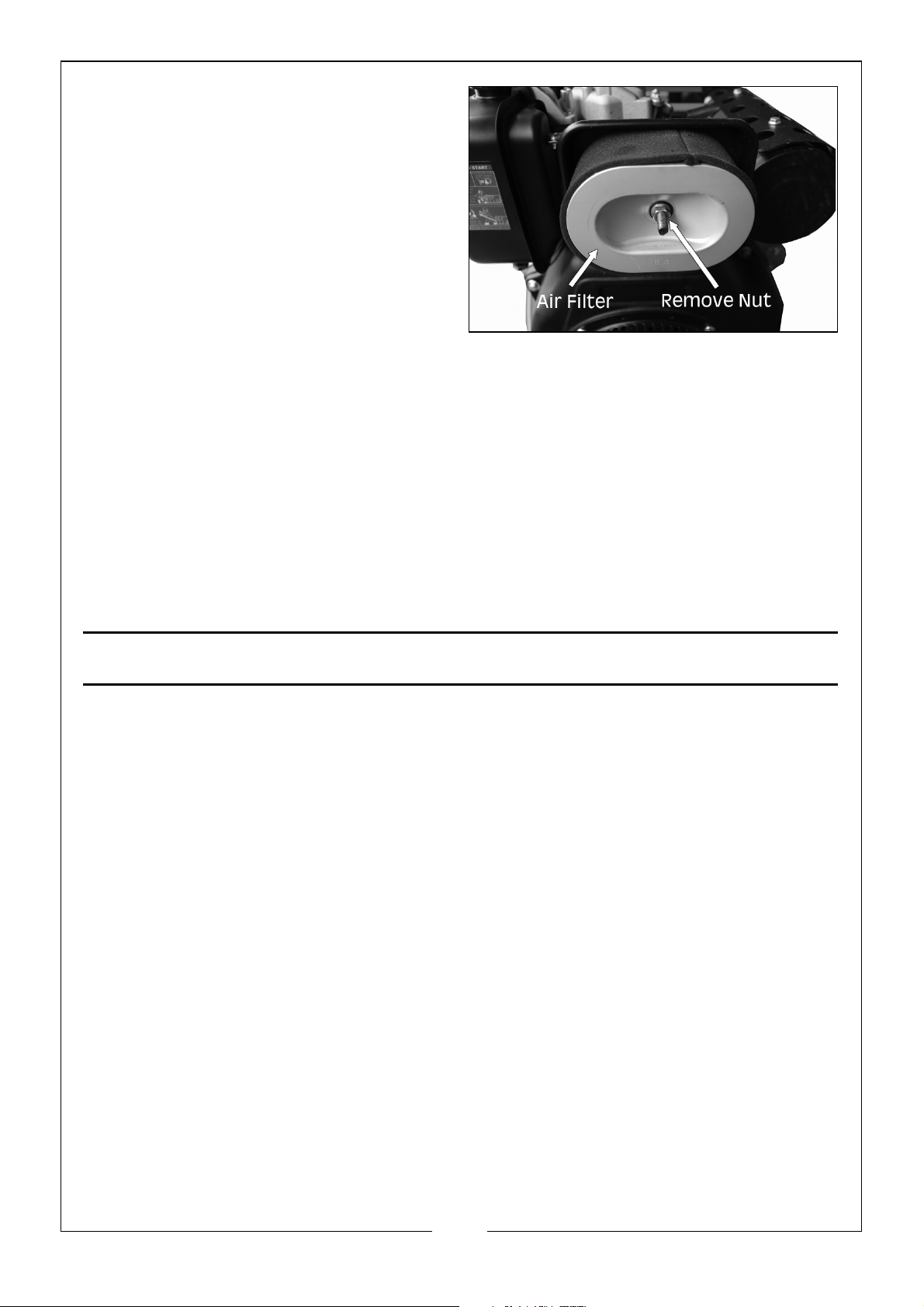

1. Air Filter: The air filter prevents airborne contaminants from entering the
engine.

2. Fuel Tank: The fuel tank is a reservoir that holds the diesel fuel.

3. Start Motor: It is powered by the battery and engages the flywheel in
motion to start the engine.

4. Fuel Switch: To turn ‘ON’ or ‘OFF’ the fuel supply to the injection pump.

5. Recoil Starter: Use for starting the engine manually.

6. Decompression Lever: This helps to start the engine by reducing the effort
needed to pull the recoil starter handle.

HIGH PRESSURE WATER PUMP

1. Pump Model & Serial Number: It contains the year, month and day of
production, and can track the batch of materials, assembler and tester.
Please provide the serial no. along with the pump model and version when
ordering spare parts and reporting any issues of concern.

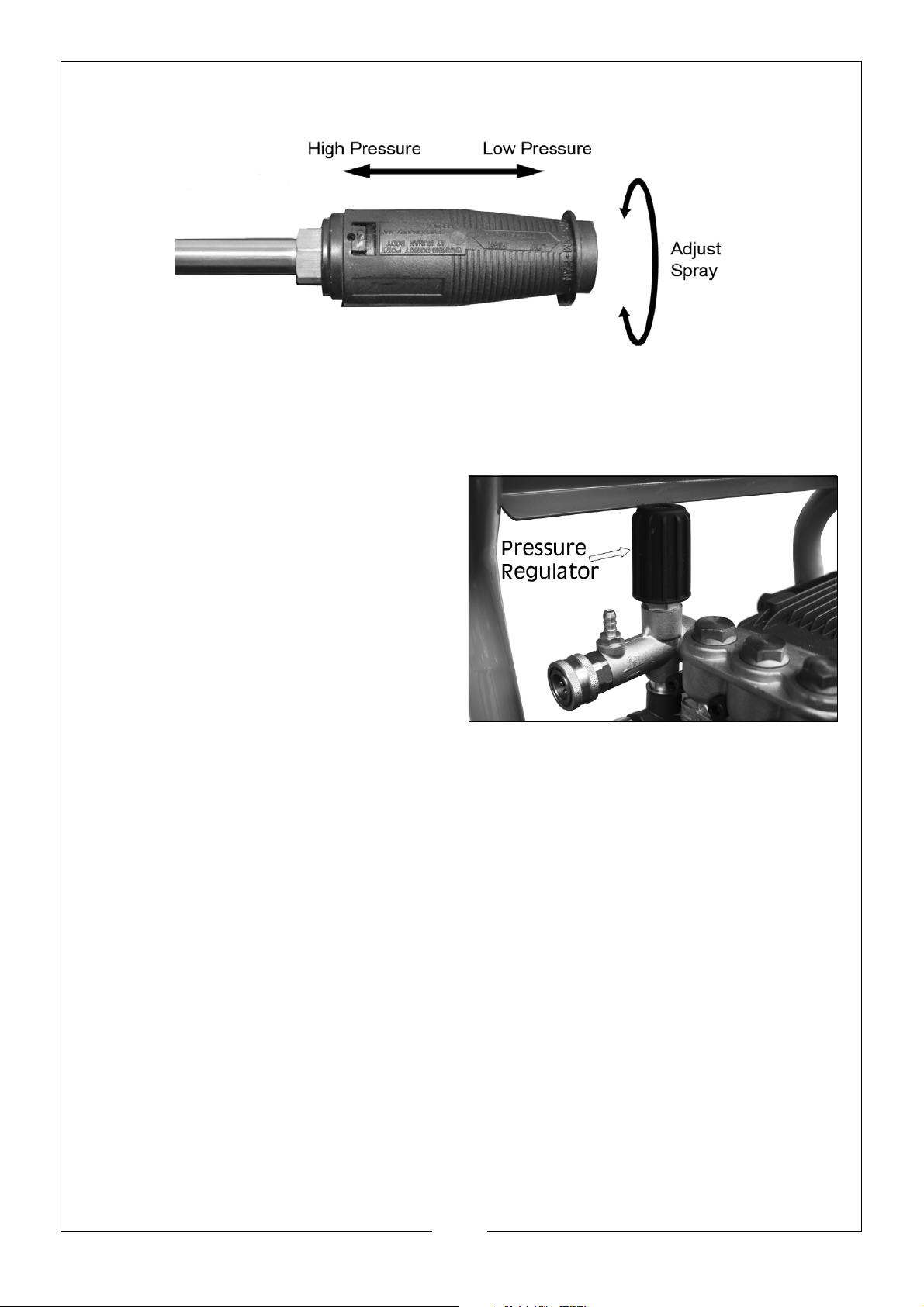

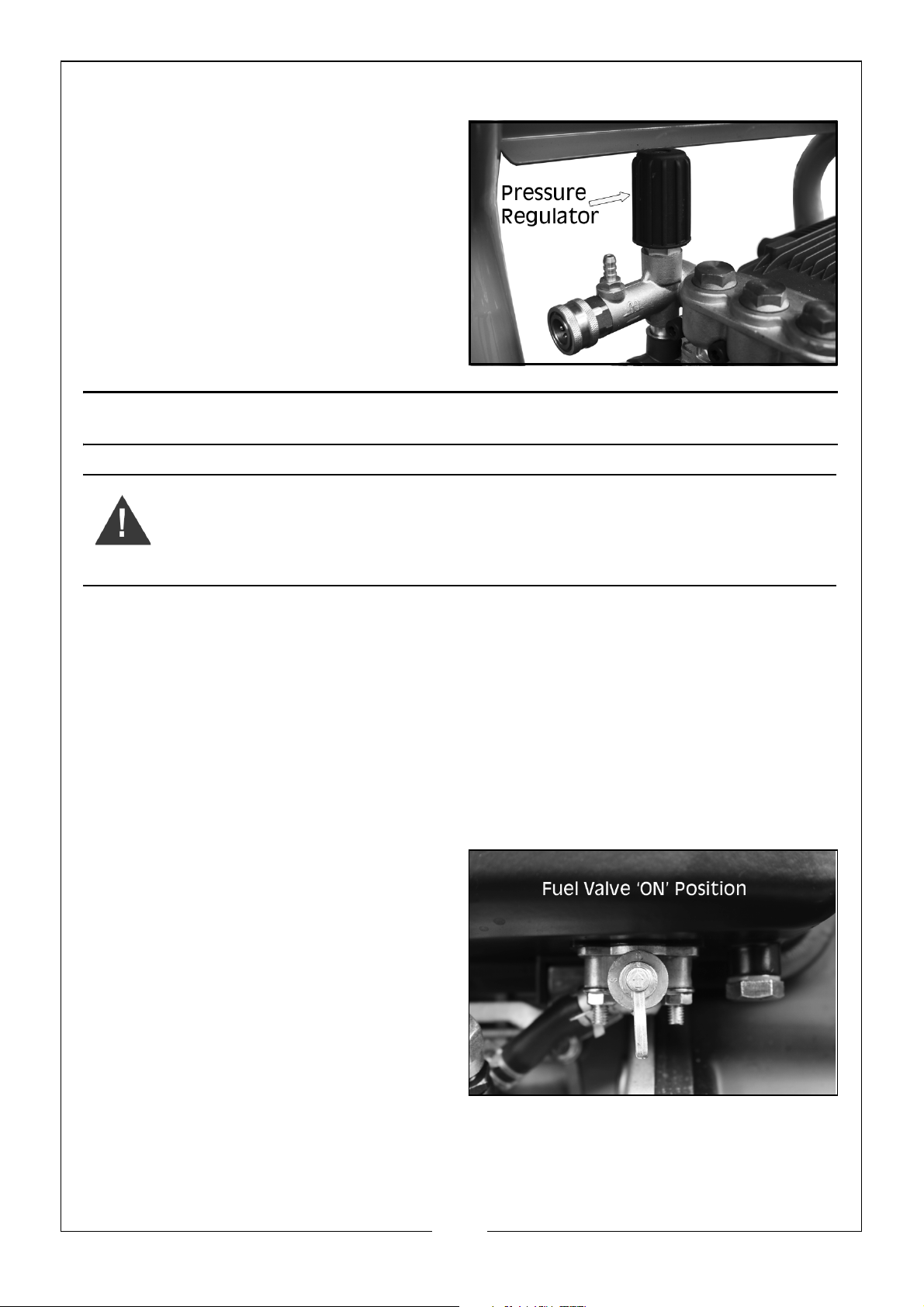

2. Pressure Adjusting Knob: Used to raise or reduce the pressure by turning the
knob.

3. Detergent Injector: Use to siphon detergent or other pressure washer
chemicals into the low pressure stream.

4. Water Outlet Connector: To connect the high pressure hose.

5. Water Inlet with Filter Screen: Used to connect a garden hose to the
washer. ALWAYS have the filter screen present when in use.

6. Red Shipping Plug Attached with Vent Plug: The pump is shipped with a
RED SHIPPING PLUGS to prevent oil leaking during transportation. ALWAYS
replace with the attached vent plugs before using.

7. Thermal Relief Valve: Cycles water through the pump when the water
reaches 125-155

onto the ground. This valve can prevent internal pump damage (see page

14).

Parts & Service: 020 8988 7400 / E-mail: [email protected] or [email protected]

o

F / 50-68oC. Warm water will discharge from the pump

10

8. High Pressure Turning Valve: This is a valve that can discharge the air in the
pump and water in-take pipeline, enhance pump sucking ability, and
allow to suck from a barrel of 1m deep.

9. Easy Start Valve: Releases the head build up pressure which will build when
pull starting the engine, and help it easier to start.

ASSEMBLY

FITTING THE WHEELS

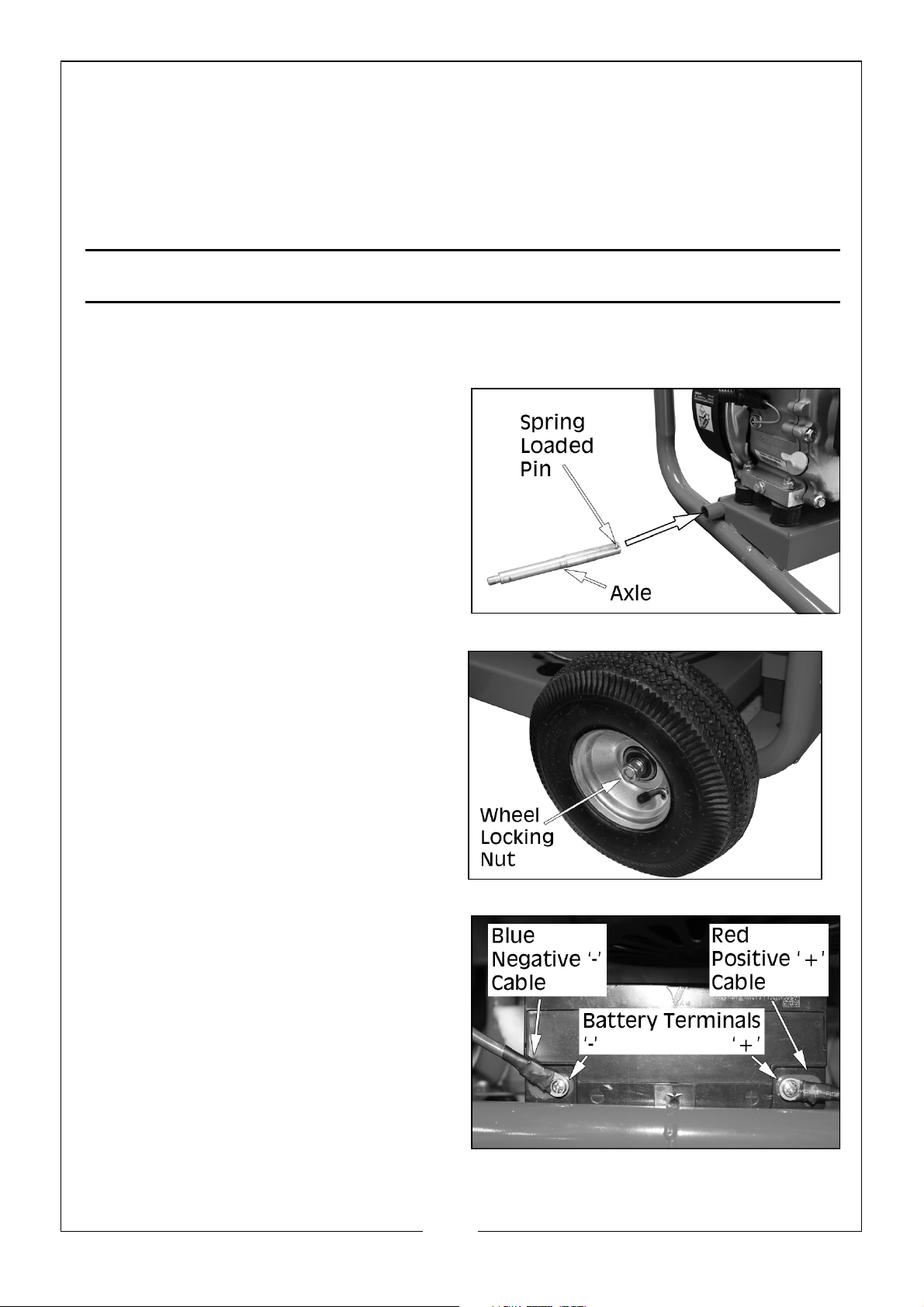

1. Insert the axle into the frame as
shown.

• Rotate the axle so that the

spring loaded pin pops through
the hole on the frame.

2. Fit the wheels to the axles and
secure with the washers and
locking nuts supplied.

NOTE: DO NOT overtighten the

locking nuts, the wheels
must be able to rotate
freely.

CONNECTING THE BATTERY

NOTE: The power washer comes with

the battery disconnected. The
battery is mounted on the rear
of the frame in its own chassis

1. Unscrew the blue negative ‘-’
terminal and attach the blue
negative cable, reconnect and
tighten the terminal.

2. Unscrew the red positive ‘+’
terminal and attach the red
positive cable, reconnect and tighten the terminal.

11

Parts & Service: 020 8988 7400 / E-mail: [email protected] or [email protected]

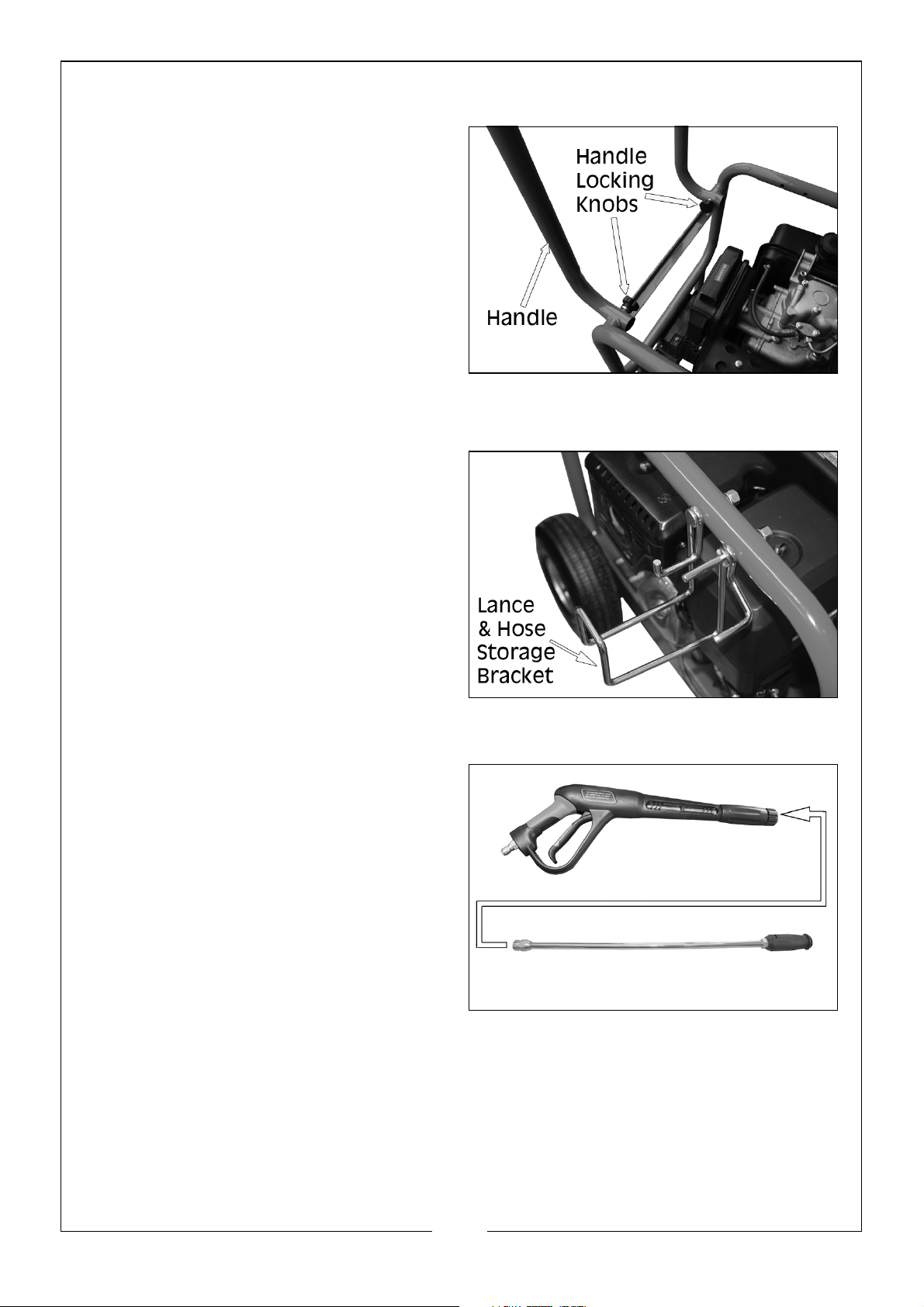

FOLDING HANDLE

1. Lift the handle into the raised
open position.

2. Secure in place using the handle
locking knobs shown.

LANCE & HOSE STORAGE BRACKET

1. Fit the bracket into the position
shown and secure using the
washers and nuts supplied.

ASSEMBLE THE LANCE

1. Connect the spray wand to the
gun and tighten securely by
pushing together and turning the
M22 swivel fitting.

12

Parts & Service: 020 8988 7400 / E-mail: [email protected] or [email protected]

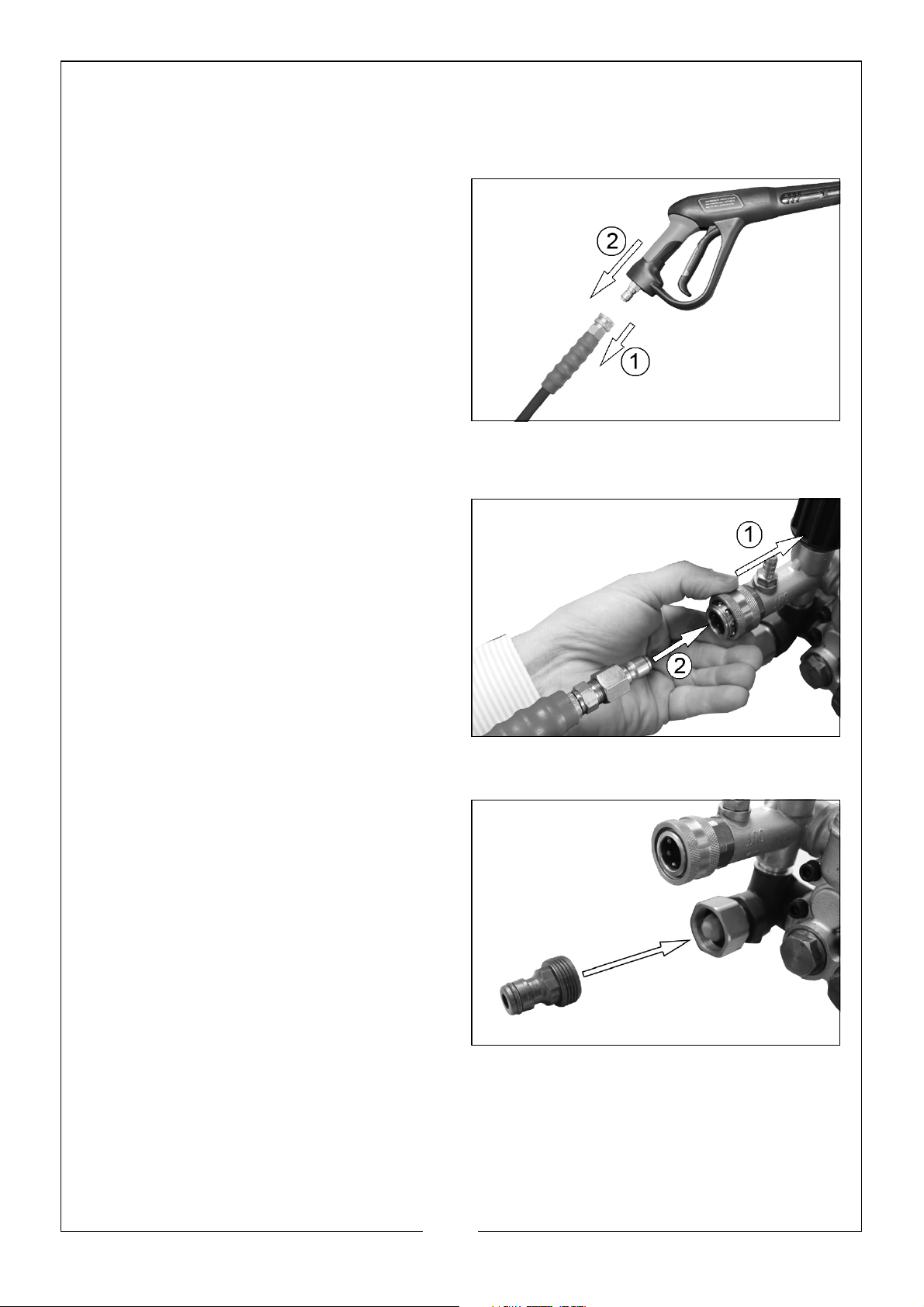

THE HIGH PRESSURE HOSE

CONNECT THE HOSE TO THE GUN

1. Slide the connector collar on the
hose backwards.

2. Push the gun into the connector.

3. Release the connector collar.

NOTE: Make sure the connection is

secure.

CONNECT THE HOSE TO THE POWER WASHER

1. Slide the connector collar on the
power washer towards the
machine.

2. Push the hose into the connector.

3. Release the connector collar.

NOTE: Make sure the connection is

secure.

CONNECT WATER INLET HOSE

1. Remove the travel cap if fitted.

2. Fit the hose adaptor as shown.

3. Connect the water supply hose to
the hose adaptor.

NOTE: The water source must

provide a minimum of 17
litres per minute @ 20 PSI.

NOTE: Make sure the water inlet

hose is screwed on tightly.

13

Parts & Service: 020 8988 7400 / E-mail: [email protected] or [email protected]

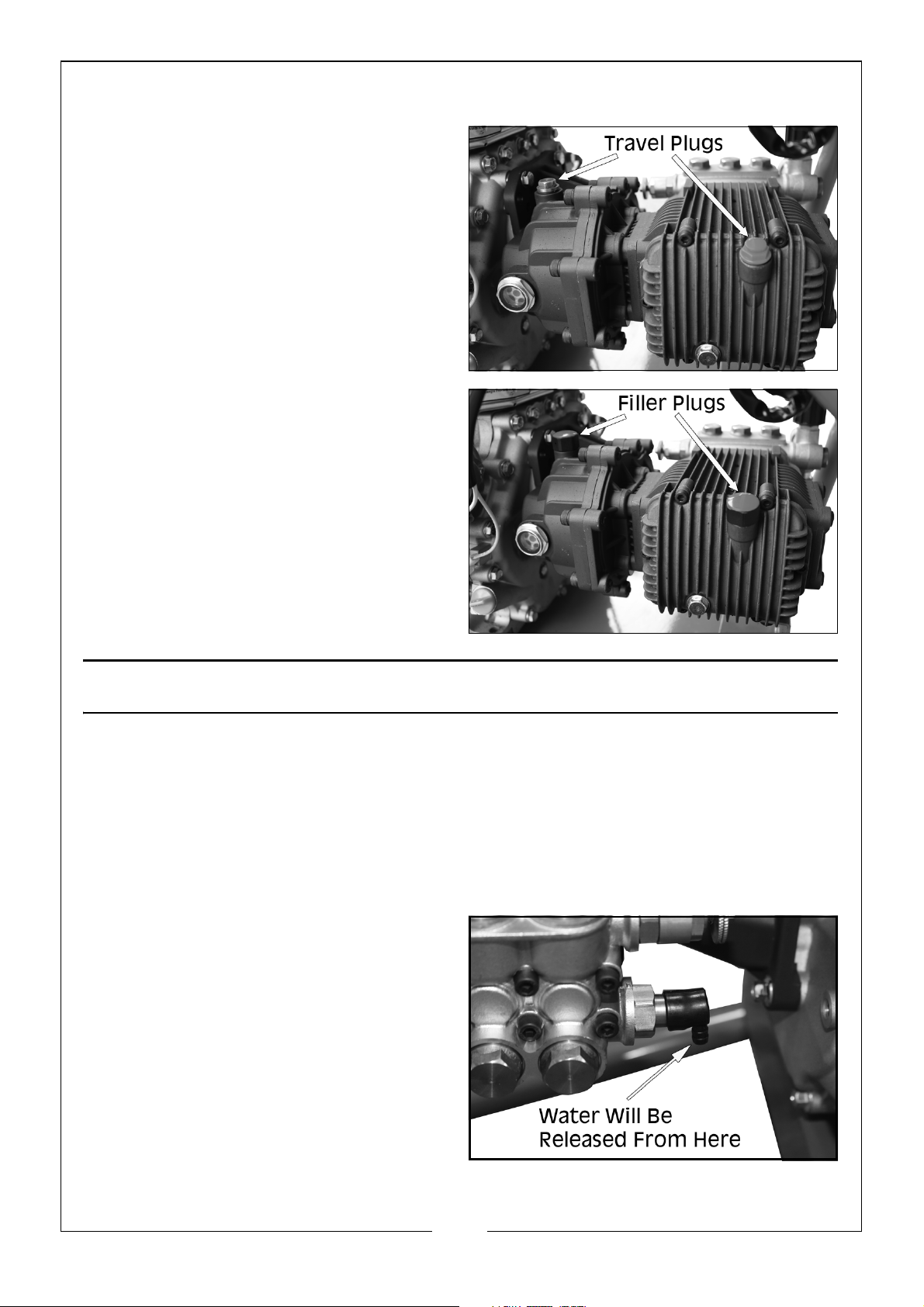

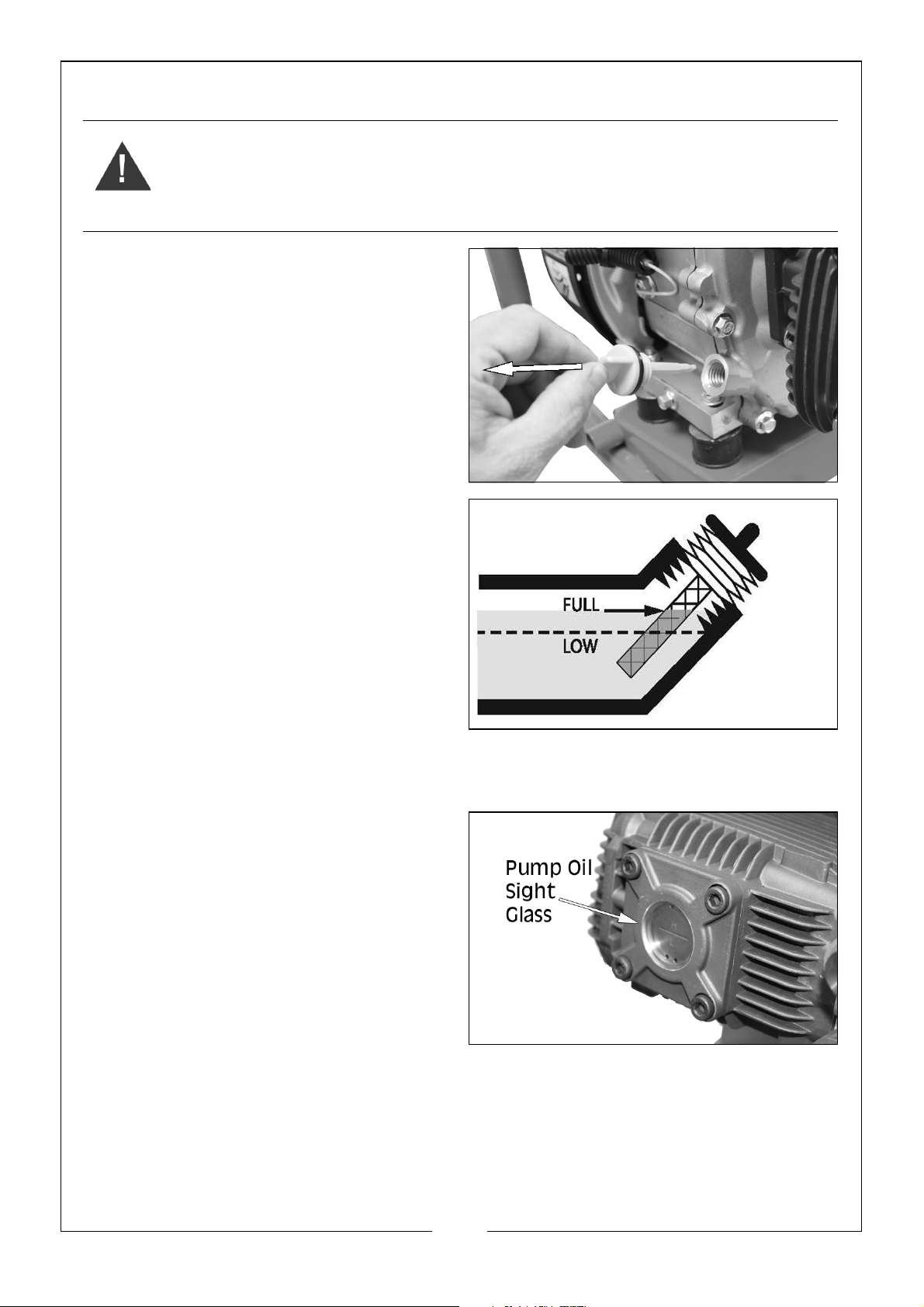

REMOVE THE TRAVEL PLUGS BEFORE USE.

1. Using the 17mm spanner, remove
the travel plugs, as shown.

2. Take from the small bag attached
the two red topped black
breather filler plugs which need to
be fitted in their place, as shown.

• The breather filler plugs must

only be inserted finger tight.

SAFETY FEATURES

Bypass mode: In bypass mode, the pump recirculates the water because the

trigger of the spray gun is not being pulled. If the unit is left unused for more
than two minutes, the water temperature will rise to a dangerous level and
could damage internal components of the pump. If this is the case, the
Thermal Relief Valve will automatically engage. If the gun will not be used for a
longer period or the thermal relief valve does not operate, switch off the
engine.

Thermal Relief Valve: In an effort to
prevent damage, pumps are
equipped with a thermal relief valve.
This valve will open when the
temperature inside the pump
becomes too high. The valve will then
release a gush of water in an effort to
lower the temperature inside the
pump. Immediately after this occurs,
the valve will close.

14

Parts & Service: 020 8988 7400 / E-mail: [email protected] or [email protected]

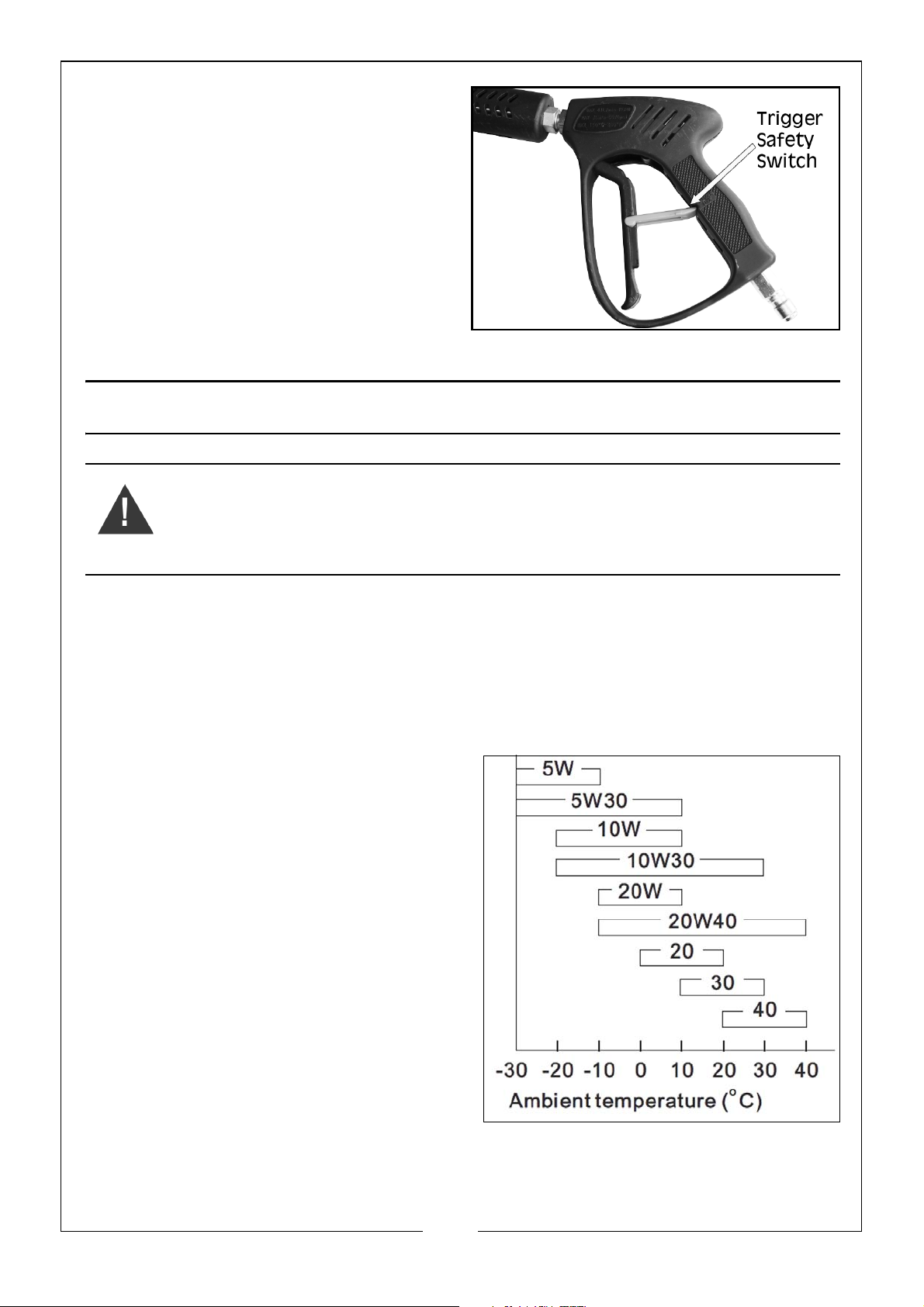

Trigger Safety Switch: The trigger on
the gun has a safety switch to protect
against accidental activation of the
washer. To deactivate the switch,
push the switch down into the trigger.
ALWAYS move the switch back into
the safe up position when not in use
or while being stored.

BEFORE USE

WARNING: TO CARRY OUT THIS CHECK, PLACE THE POWER WASHER ON
LEVEL GROUND WITH THE ENGINE SWITCHED OFF.

IMPORTANT: The engine is supplied without any oil in it and must be filled to
the correct level before use, see below.

NOTE: All oil levels should be checked when the engine is cold, as you may

get a false reading with a hot engine.

ENGINE OIL RECOMMENDATIONS

SAE 10W-30 oil is recommended for
general use, other viscosities shown in
the chart may be used when the
average temperature in your area is
within the indicated range.

NOTE: Below 40

SAE 30 oil will result in hard
starting.

NOTE: Above 80

10W30 may cause increased oil
consumption.

o

F (4oC), the use of

o

F (27oC), the use of

15

Parts & Service: 020 8988 7400 / E-mail: [email protected] or [email protected]

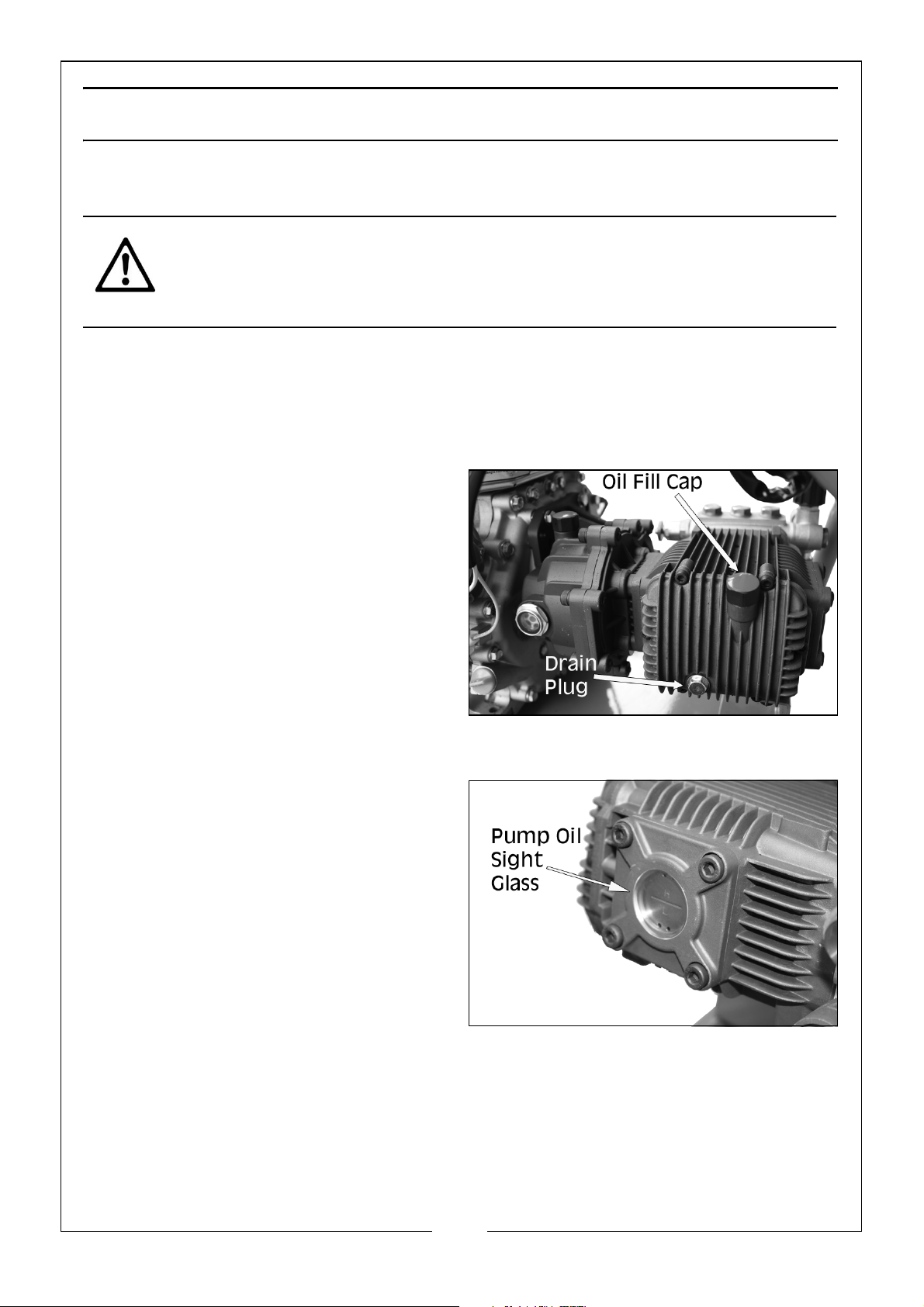

CHECKING THE ENGINE OIL LEVEL

WARNING: RUNNING THE ENGINE WITH INSUFFICIENT OIL WILL CAUSE

ENGINE DAMAGE.

1. Turn the oil filler cap/dipstick anti­clockwise and remove it from the
oil filler tube.

2. Wipe the oil filler cap/dipstick with
a clean cloth.

3. Insert the oil filler cap/dipstick
back into the oil filler tube and
then remove it again. DO NOT
screw it in when doing this.

4. If the oil is low, fill the oil reservoir to
the edge of the oil filler hole, as
shown.

• We recommend the use of

SAE10W/30 oil in the engine.

5. Replace the oil filler cap.

CHECKING THE PUMP & GEARBOX OIL LEVEL

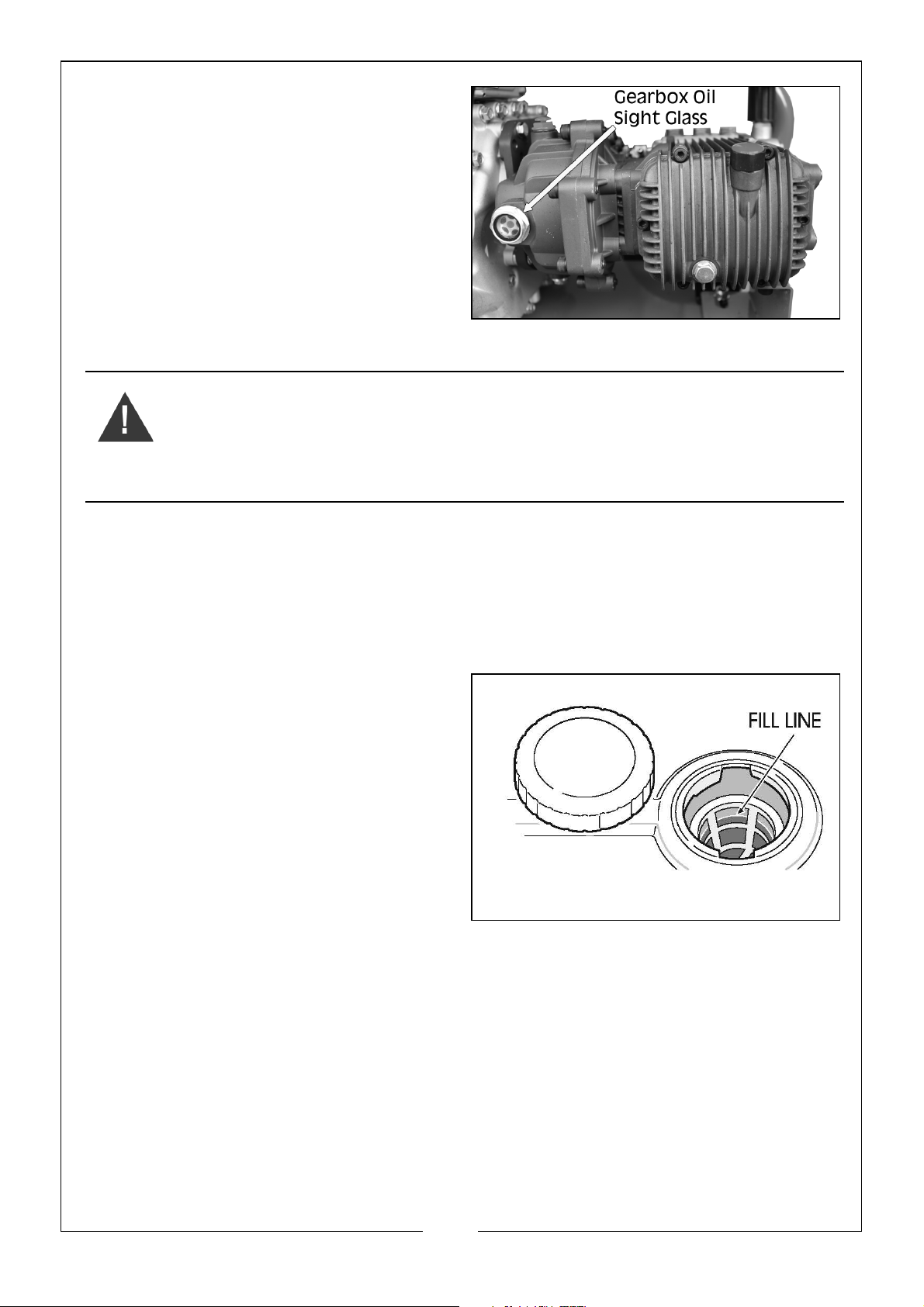

1. Look at the sight glass on the
pump and gearbox to check the
oil levels inside.

• The oil should be half way up

the sight glass.

16

Parts & Service: 020 8988 7400 / E-mail: [email protected] or [email protected]

2. If required, top up with oil.

• We recommend the use of
SAE10W/30 oil.

CHECKING THE FUEL LEVEL

WARNING: ALWAYS REFUEL IN A WELL VENTILATED AREA AWAY FROM
ANY SOURCES OF IGNITION AND HEAT.

WARNING: ALLOW THE UNIT TO COOL DOWN BEFORE REFUELLING.

WARNING: DO NOT LEAVE FUEL WITHIN THE REACH OF CHILDREN.

NOTE: Always check the fuel level before use. Never run the engine when fuel

level is near empty, as this may damage the engine.

1. To check the fuel level, remove the fuel tank cap.

2. Just inside the fuel tank is a fuel strainer. Check this filter periodically and
remove any contaminants which may have accumulated.

3. Refuel in a well-ventilated area
before starting the engine. If the
engine has been running, allow it
to cool. Refuel carefully to avoid
spilling fuel. DO NOT fill above the
fuel strainer shoulder.

4. After refueling, replace the fuel
filler cap securely.

RECOMMENDED FUEL

Use Ultra Low Sulfur Diesel (ULSD). DO
NOT overfill.

17

Parts & Service: 020 8988 7400 / E-mail: [email protected] or [email protected]

PRESSURE REGULATOR

When purchased, the pressure
regulator may be set to minimum.

Turn the pressure regulator on the
pump fully clockwise to allow water
pressure to increase when the
pressure washer is running.

If you find the pressure is too high, you
can adjust this later by turning the
regulator anti-clockwise.

STARTING YOUR POWER WASHER

WARNING: FAILURE TO TURN ON THE WATER COULD CAUSE DAMAGE TO
THE PUMP.

ELECTRIC START

Prior to starting, refer to your engine manual for the starting procedures for
your engine type.

1. Make sure the engine has sufficient fuel. See page 17.

2. Check the engine, pump & gearbox oil levels. See page 15-16.

3. Connect the high pressure hose and water inlet hoses. See page 13.

4. Turn water supply on.

5. Set the fuel valve lever to the ‘ON’
position.

18

Parts & Service: 020 8988 7400 / E-mail: [email protected] or [email protected]

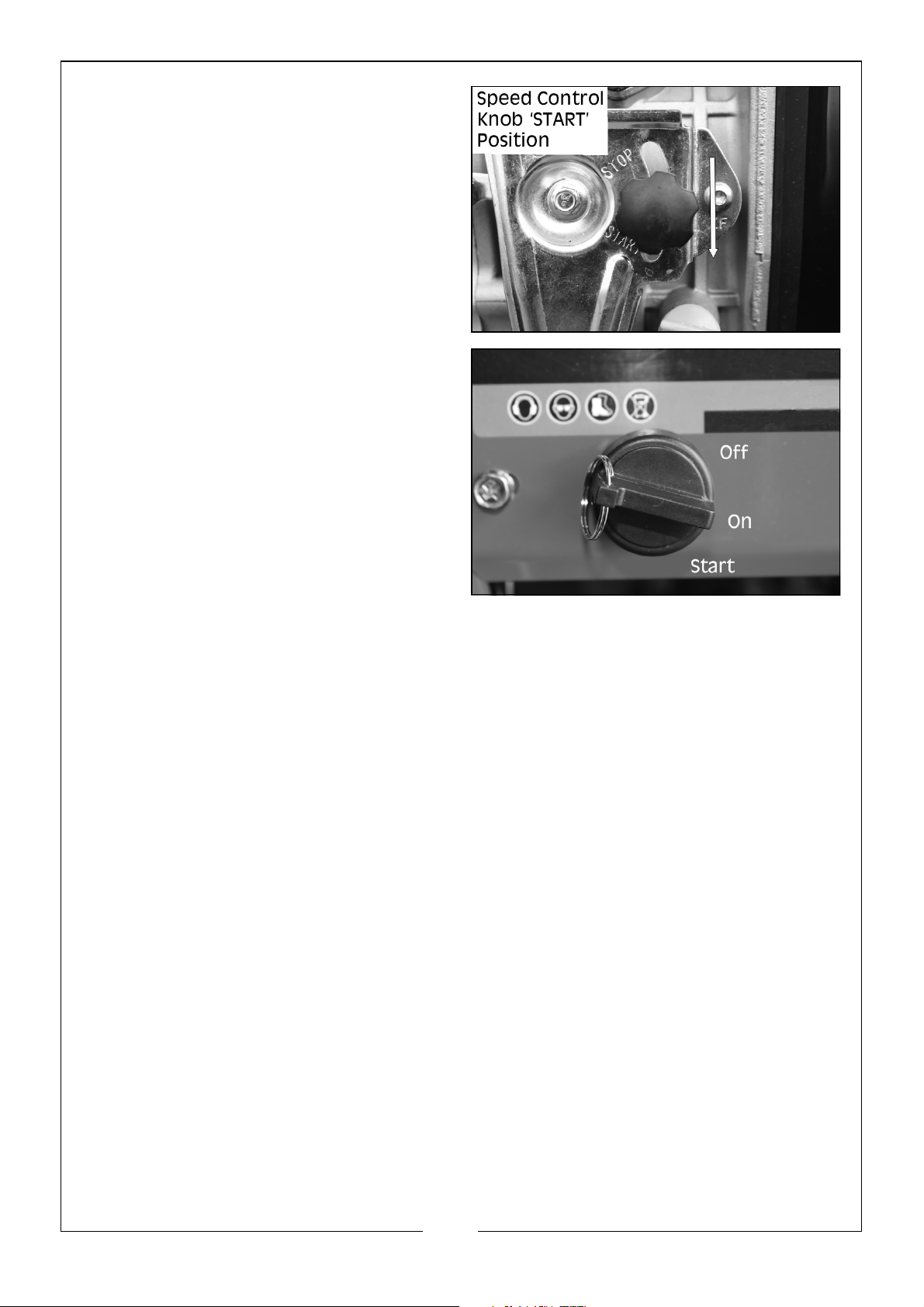

6. Loosen the engine speed control
knob anti-clockwise and slide the
engine speed control knob down
to the ‘START’ position and tighten
in position.

7. Turn the key clockwise to the
‘START’ position. Release the key
as soon as the engine starts. It will
return to the ‘ON’ position.

NOTE: If the engine fails to start:

1. Wait until the engine completely stops. Engaging the starter while the
engine is rotating may cause damage to the starter motor and flywheel.

2. Wait at least 30 seconds before you attempt to restart the engine again.

IMPORTANT: Allow the engine to run at no load for five minutes after each
start up so the engine can stabilise.

RECOIL START

1. Make sure the engine has sufficient fuel. See page 17.

2. Check the engine, pump & gearbox oil levels. See page 15-16.

3. Connect the high pressure hose and water inlet hoses. See page 13.

4. Turn water supply on.

19

Parts & Service: 020 8988 7400 / E-mail: [email protected] or [email protected]

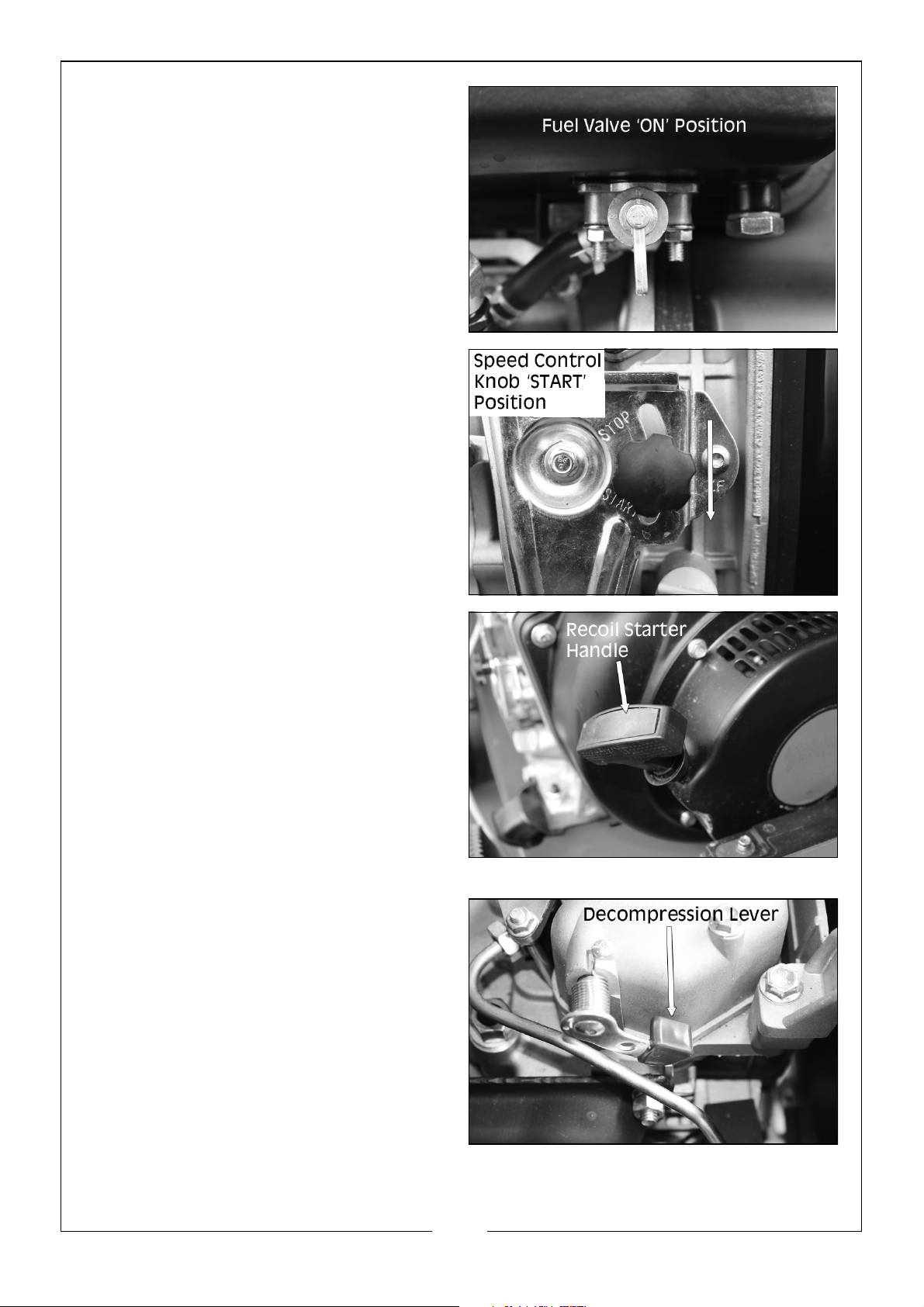

5. Set the fuel valve lever to the ‘ON’
position.

6. Loosen the engine speed control
knob anti-clockwise and slide the
engine speed control knob down
to the ‘START’ position and tighten
in position.

7. Hold the Recoil Starter handle
firmly. Slowly pull the handle until
you feel resistance, then let it
return to its start position.

8. Push the green Decompression
Lever (located on top of the
engine) into the down position.

9. Take hold of the Recoil Starter
handle again and pull it hard and
fast all the way out, using two
hands if necessary.

20

Parts & Service: 020 8988 7400 / E-mail: [email protected] or [email protected]

COLD START IN WINTER

If the engine is difficult to start in winter, see the engine manual for instructions
on how to cold start.

Different oil grades may be required to help start in colder weather. See page
15 for more information.

USING THE POWER WASHER

1. Pull the trigger on the gun to start water flow.

• Stand on a stable surface and grip the gun/spray wand firmly with
both hands.

• Expect the gun to kick when the trigger is pulled.

2. Release the trigger to stop water flow.

NOTE: The power washer will automatically go into bypass mode when

the trigger is not being pressed. See Safety Features section on
page 14-15 for more information.

WARNING: DO NOT ALLOW THE UNIT TO OPERATE IN BYPASS MODE FOR
MORE THAN TWO MINUTES AT ANY TIME.

ADJUSTING THE SPRAY

The nozzle is adjustable to allow you to change the spray from a narrow jet of
water to a wide spray.

To adjust the nozzle, proceed as follows.

1. Hold the shaft of the spray wand in one hand.

2. Twist the nozzle with the other hand.

3. To vary the spray between narrow and wide, turn the nozzle counter­clockwise through a half-of-a-turn.

21

Parts & Service: 020 8988 7400 / E-mail: [email protected] or [email protected]

• Slide the nozzle forward for low pressure and backwards for high
pressure.

ADJUSTING THE PRESSURE

There are 4 ways to adjust the pressure.

1. Adjust the pressure regulator on
the pump. Turn the pressure
regulator knob counter clockwise
to lower pressure. Once you have
finished using your power washer,
return the pressure regulator to its
original position.

2. Back away from the surface to be
cleaned. The further away you
are, the less the pressure will be on
the surface being cleaned.

3. Reduce the speed of the engine (RPM). Slow the engine down and the
water pressure will also go down.

4. Adjust the spray to a wider angle.

• Slide the nozzle forward for low pressure and backwards for high

pressure.

APPLYING DETERGENTS AND CLEANING SOLVENTS

NOTE: Use only detergents designed for pressure washers; household

detergents, acids, alkalines, bleach, solvents, flammable material or
industrial grade solutions can damage the pump. Many detergents
may require mixing prior to use. Prepare the cleaning solution as
instructed on the solution bottle.

22

Parts & Service: 020 8988 7400 / E-mail: [email protected] or [email protected]

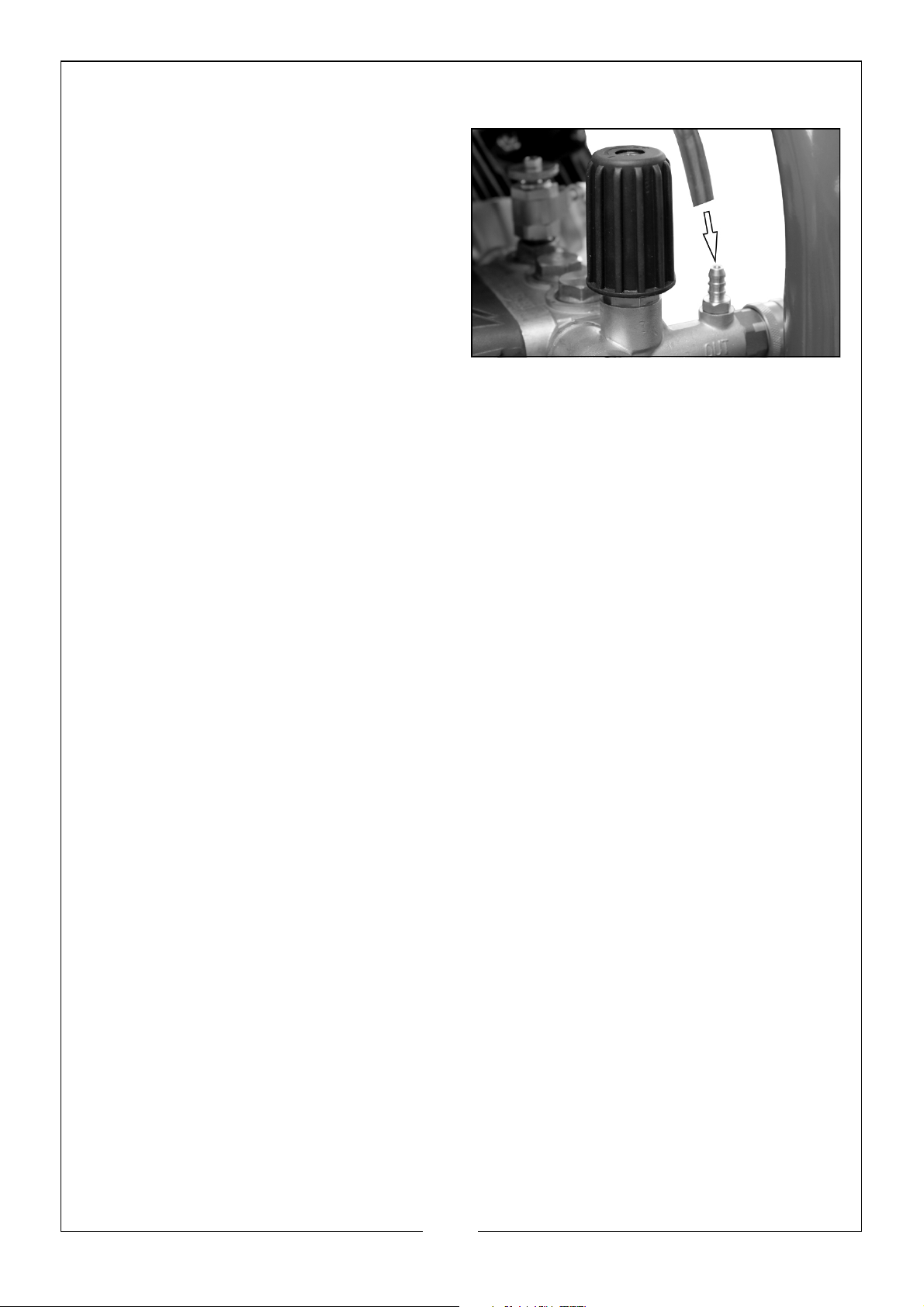

SET UP PROCEDURE

1. Push the detergent hose onto the
ribbed fitting as shown.

2. Place the other end of the
detergent hose with the filter on it,
into a container holding the
chemical/cleaning solution.

3. Slide the nozzle forward for low
pressure operation.

NOTE: See page 28 for detergent

and cleaning products available from your CLARKE dealer.

CHEMICAL CLEANING

1. Spray the chemicals onto a dry surface using the procedures outlined
above. Start at the lower portion of the cleaning area and working
upwards, using long, even, overlapping strokes.

2. Always ensure that the filter is fully submerged in the cleaning solution at all
times.

3. Allow the detergent to soak in for 3-5 minutes before washing and rinsing.

4. Re-apply as needed to prevent the surface from drying. DO NOT allow the
detergent to dry on to the cleaning surface to prevent streaking.

AFTER CHEMICAL CLEANING

IMPORTANT: You will need to flush the detergent siphoning system after
each use by placing the filter into a bucket of clean water, then run the
pressure washer in low pressure for 1-2 minutes.

1. After using chemicals, soaps or detergents, it is necessary to thoroughly
clean the pressure washer.

2. Place the chemical hose in a container of clean water.

3. Start the pressure washer and hold the trigger on the spray gun to draw
clean water through the system to clean it thoroughly.

23

Parts & Service: 020 8988 7400 / E-mail: [email protected] or [email protected]

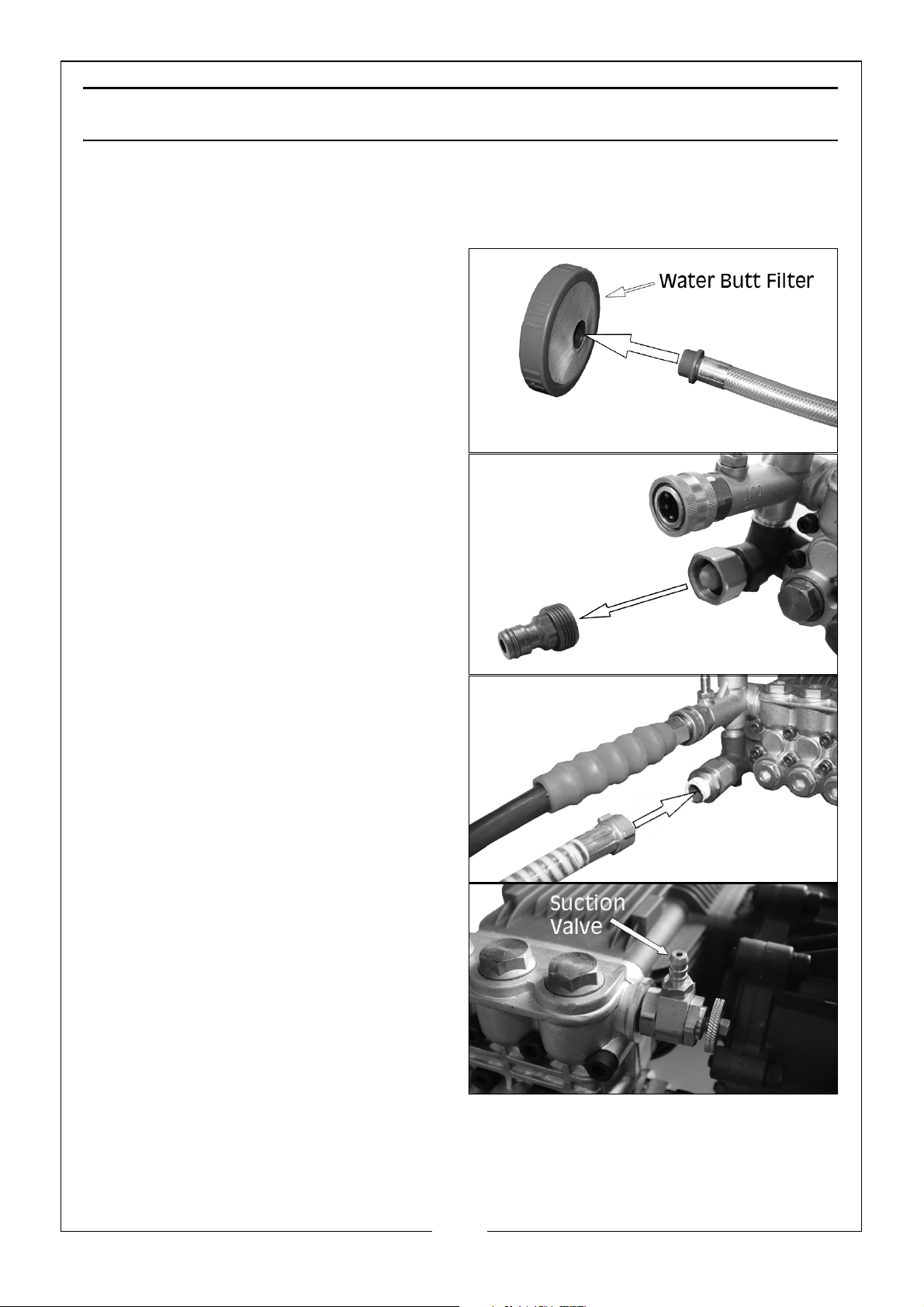

WATER BUTT CONNECTION

This machine has the ability to draw its own water, meaning you can use water
not under pressure, such as rainwater collected in a water butt. To do this you
must carry out the following procedure.

1. Attach the filter to the end of the
pipe supplied.

2. Place the filter into the water butt.

3. Remove the hose adaptor and
replace it with the inlet connector
supplied.

4. Connect the pick-up pipe to the
pressure washer as shown.

• Tighten securely

5. Twist open the suction valve
shown.

6. Start the power washer. See
Starting your Power Washer on
page 18 onwards.

• Water is ejected from the

nozzle.

7. When the water spray being
ejected is consistent and at high pressure, close the suction valve.

8. Use the pressure washer as normal.

24

Parts & Service: 020 8988 7400 / E-mail: [email protected] or [email protected]

NOTE: DO NOT LET THE PRESSURE WASHER RUN DRY.

SHUTTING DOWN

1. Release the spray gun trigger and allow the engine to run unloaded for 3
minutes before shutting down.

2. Loosen the engine speed control
knob anti-clockwise and slide the

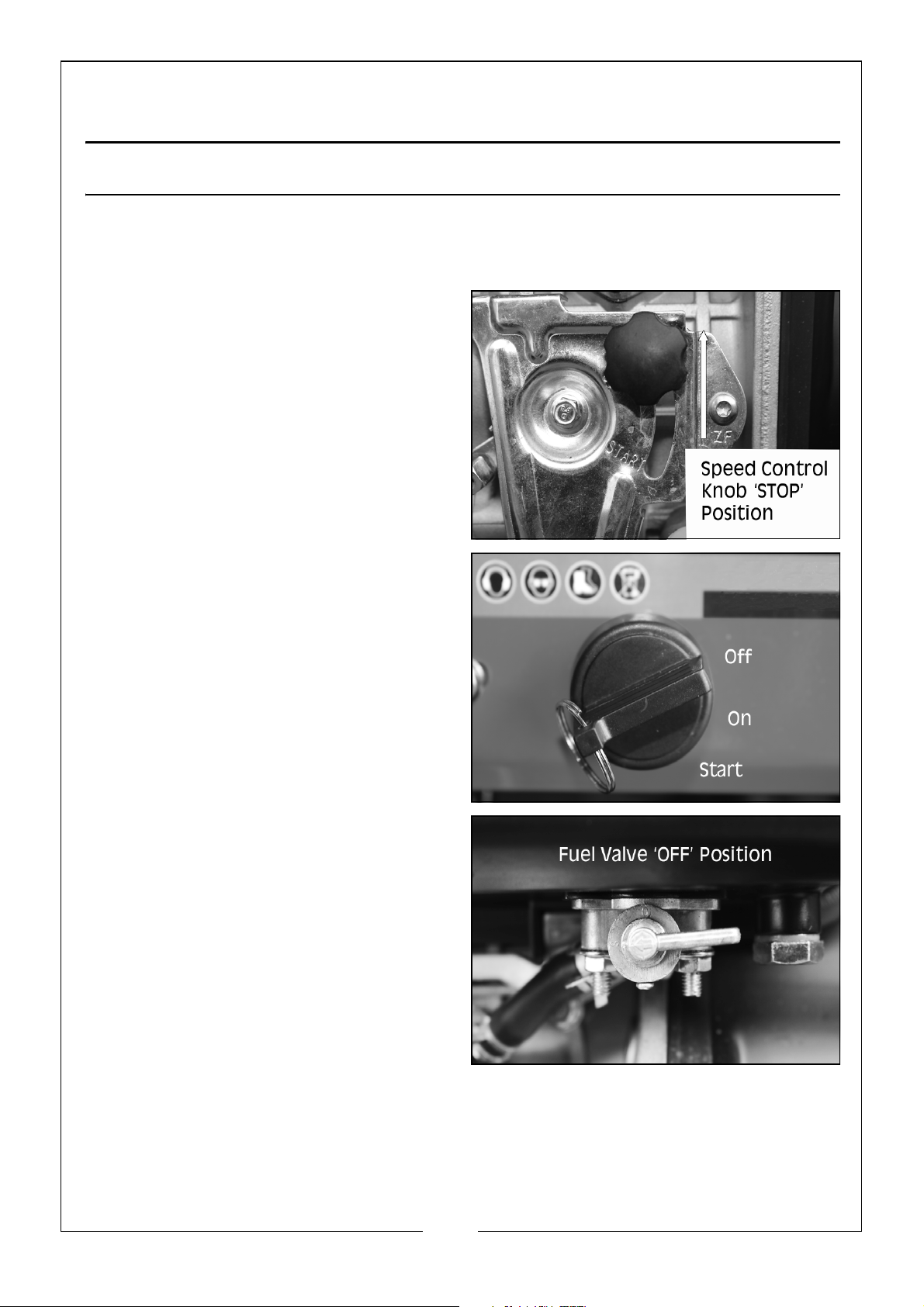

knob up to the ‘STOP’ position.
Tighten the knob clockwise in the
‘STOP’ position.

3. Turn the engine switch key to the
‘OFF’ position and remove the
key.

4. Rotate the fuel valve to the ‘OFF’
position.

5. Turn the water supply off.

6. Pull the trigger on the spray gun to
release any water pressure.

7. Engage the gun trigger safety
switch.

8. See storage section on page 29
for proper storage procedures.

NOTE: NEVER TURN THE WATER OFF WITH THE ENGINE RUNNING.

25

Parts & Service: 020 8988 7400 / E-mail: [email protected] or [email protected]

MAINTENANCE

CHANGING THE PUMP OIL

CAUTION: PROLONGED EXPOSURE TO USED OIL IS DANGEROUS,
ALWAYS WASH YOUR HANDS THOROUGHLY AFTER HANDLING USED OIL.

Change the pump oil regularly. You should change the oil after the first 50 hours
of use and successively every 200 hours or 3 months, whichever occurs first. In
either case ensure that the oil is changed at least once a year.

1. Unscrew and remove the oil filler
cap.

2. Place an oil collection tray (not
supplied) under the drain plug.

3. Unscrew the drain plug, and allow
the used oil to drain from the
crankcase into the oil collection
tray.

NOTE: It is best to drain the oil when

the engine is warm, this will
ensure the oil flows out quicker.

4. Replace the drain plug and its ring
seal.

5. With the power washer on a
level surface, fill to the centre
of the sight-glass with the
recommended oil.

6. Replace the oil filler cap.

RECOMMENDED OIL

• See page 15 for more

information on types of oil.

ENVIRONMENTAL PROTECTION

One of the most damaging sources of pollution is oil. DO NOT throw away used
oil with your domestic rubbish or down drains and sinks. Place it in a leak proof
container and take it to you local waste disposal site.

26

Parts & Service: 020 8988 7400 / E-mail: [email protected] or [email protected]

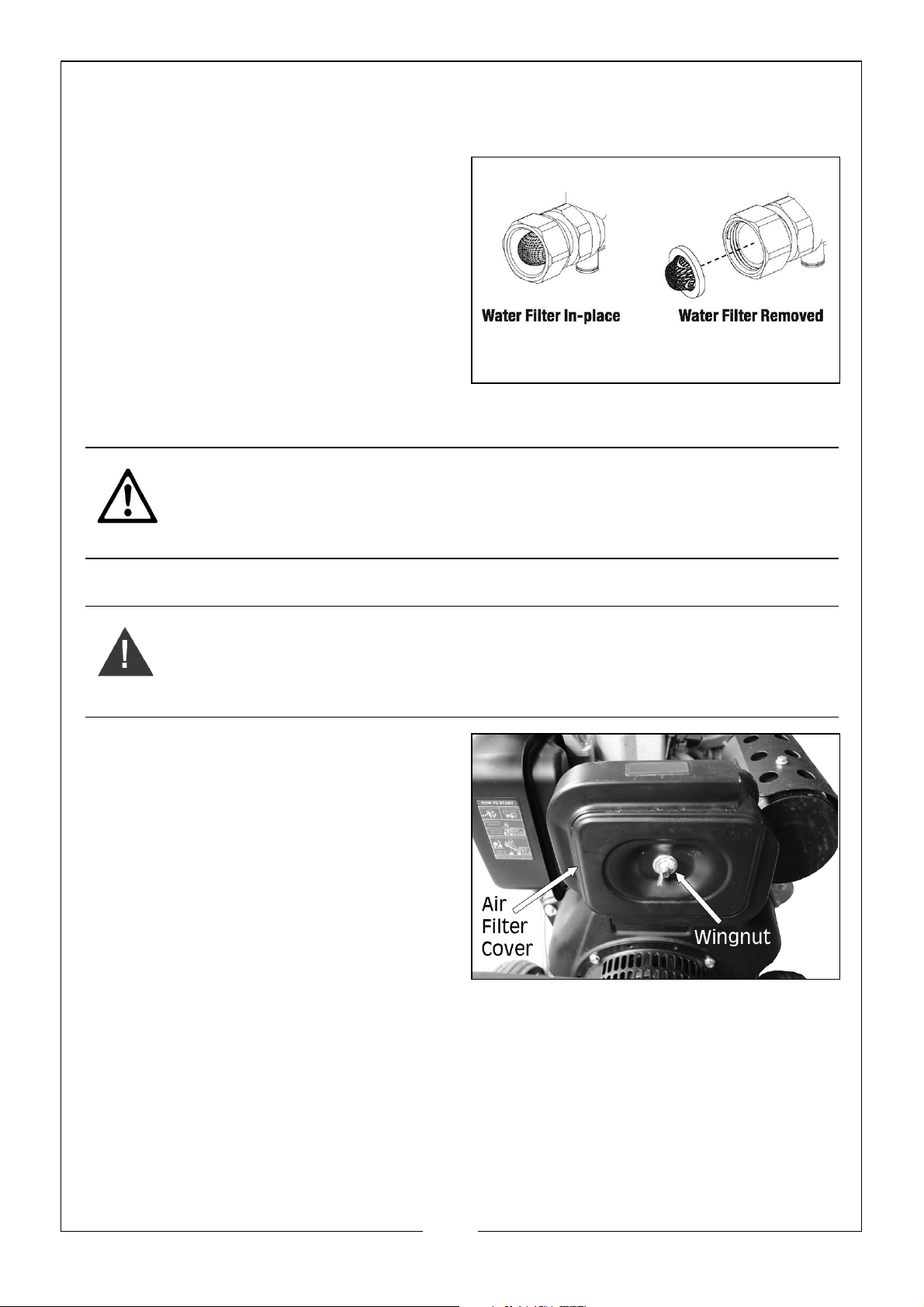

CLEANING THE WATER INLET

The water filter should be checked regularly and cleaned if necessary.

1. Remove any fittings to the water
inlet.

2. Remove the water filter from the
water inlet.

3. Clean the filter by flushing it with
water on both sides

4. Replace the water filter.

CHECKING THE AIR FILTER

CAUTION: DO NOT USE THE PRESSURE WASHER WITHOUT THE AIR FILTER
FITTED, THIS CAN DAMAGE THE ENGINE.

WARNING: DO NOT USE FLAMMABLE SOLVENTS OR PETROL TO CLEAN THE
AIR FILTER.

1. Remove the wingnut and the air
filter cover.

27

Parts & Service: 020 8988 7400 / E-mail: [email protected] or [email protected]

2. Remove the second nut shown
and remove the filter.

3. Make sure that the air filter is clean and not damaged.

• If the air filter is damaged contact CLARKE parts department for a

replacement.

• If the filter is dirty, wash it in a solution of warm water and mild

detergent and rinse thoroughly. Leave the filter to dry completely;
before immersing the filter in clean engine oil and squeeze the filter
to remove excess oil.

4. Replace the filter and the air filter cover.

STORAGE

ENGINE

See the separate engine manual supplied for information regarding the
storage procedure.

PUMP

1. Drain all water from the high pressure hose, coil it and store it on the hose
holder, located on the side of the power washer.

2. Drain all water from the spray gun and spray wand by holding the gun/
wand vertically with the nozzle pointing down, and pulling the trigger. Store
in the gun holder on the side of the power washer.

3. Store all other parts so that they are protected from damage.

4. Protect the power washer from freezing conditions to prevent damage to
the hoses, valves and pump.

28

Parts & Service: 020 8988 7400 / E-mail: [email protected] or [email protected]

STORAGE PROCEDURE

For long term storage, the fuel tank should be drained. Ensure that the engine
is cold before draining the tank. Remove the fuel tank cap and use a pump
type syphon to drain the fuel into an appropriate, clean container.

5. Dispose of excess fuel in an environmentally safe way. Your local recycling
centre can advise you on the best method of disposal. After the fuel tank
has been drained, start the engine and allow it to use any fuel that may
remain in the engine or fuel pipe. Make sure that the power washer has
been thoroughly cleaned before storing it in a clean dry place.

ASSOCIATED CLARKE PRODUCTS

Wash & Wax Car Shampoo -

PWWS2L

•2 Litre

•Can be used with a power washer
or by hand

•Part No. 3050817

Traffic Film Remover - 5 Litre

•5 Litre

•Makes up to 3000L of cleaner

•Part No. 3050821

29

Parts & Service: 020 8988 7400 / E-mail: [email protected] or [email protected]

TROUBLESHOOTING

If the following does not solve your problem, please contact the CLARKE service
department.

PROBLEM PROBABLE CAUSE SOLUTION

Engine shuts
down when
running

Engine will not
start; or starts and
runs rough (see
engine manual
for further engine
troubleshooting)

1) Out of fuel

2) Low engine oil

1) Rocker switch set to
‘OFF’ position

2) Fuel valve is in ‘OFF’
position

3) Dirty air filter

4) Out of fuel

5) Stale fuel

6) Water in fuel

7) Flooded

8) Excessively rich fuel/
air mixture

9) Intake valve stuck
open or closed

10) Engine has lost
compression

11) Low engine oil

12) Wrong fuel

13) Engine is too hot

14) Pressure build up
after 2 pulls on recoil
starter or after initial
use

1) Fill fuel tank

2) Add oil

1) Set switch to ‘ON’ position

2) Turn fuel valve to ‘ON’ position

3) Clean or replace air filter

4) Fill fuel tank

5) Drain fuel tank and carburetor;
fill with fresh fuel

6) Drain fuel tank and carburetor;
fill with fresh fuel

7) Wait 5 minutes and re-crank
engine

8) Contact CLARKE service
department

9) Contact CLARKE service
department

10) Contact CLARKE service
department

11) Add oil

12) Use recommended fuel (Diesel)

13) Allow engine to cool

14) Squeeze gun trigger to relieve
pressure

Engine lacks
power

Parts & Service: 020 8988 7400 / E-mail: [email protected] or [email protected]

1) Cylinder pressure is
low

2) Dirty air filter

30

1) Contact CLARKE service
department

2) Replace air filter

PROBLEM PROBABLE CAUSE SOLUTION

Starter motor
operates but
engine does not
start

Starter motor
does not operate
or rotates too
slowly

Black exhaust
smoke

1) No fuel

2) Improper fuel

3) Clogged fuel filter

4) Poor fuel injection

5) Compressed air
leakage from the
intake/exhaust valves

1) Battery low or out of
charge

2) Faulty cable
connection at battery
terminals

3) Faulty starter switch

4) Faulty starter motor

1) Engine overloaded

2) Clogged air filter
element

3) Improper fuel

4) Faulty spraying of
fuel injection

5) Excessive intake/
exhaust valve
clearance

1) Refuel system

2) Replace with diesel fuel

3) Replace fuel filter

4) Contact CLARKE service
department

5) Contact CLARKE service
department

1) Battery needs charging

2) Clean battery terminals,
retighten

3) Contact CLARKE service
department

4) Contact CLARKE service
department

1) Reduce load

2) Clean element and/or replace

3) Replace with diesel fuel

4) Contact CLARKE service
department

5) Contact CLARKE service
department

White exhaust
smoke

1) Improper fuel

2) Faulty spray pattern
of fuel injection

3) Fuel injection timing
delay

4) Engine burning oil

1) Replace with diesel fuel

2) Contact CLARKE service
department

3) Contact CLARKE service
department

4) Contact CLARKE service
department

31

Parts & Service: 020 8988 7400 / E-mail: [email protected] or [email protected]

PROBLEM PROBABLE CAUSE SOLUTION

No pressure or
low pressure

1) Spray wand not set
to high pressure

2) Low water supply

3) Hose fitting leaks
during high pressure

4) Water filter screen
obstructed

5) Defective thermal
relief valve

6) Air in hose

7) Throttle control lever
is not in fast position

8) High pressure hose
too long

1) See ‘Adjusting the Spray’ section
(page 21-22)

2) Water supply must be 19 LPM @
20PSI

3) Tighten hose fittings. Use thread
sealant tape if necessary

4) Remove and clean filter (see
page 27)

5) Contact CLARKE service
department

6) Stop engine and water source.
Disconnect water source from
pump inlet and turn water source
to ON to remove all air from the
hose. When steady stream of water
is present, turn water source to OFF.
Reconnect water source to pump
inlet and turn on water source.
Squeeze trigger to remove
remaining air

7) Move throttle control lever from
fast position

8) Use high pressure hose under
100ft (30m)

No or low
pressure - after
period of normal
use

1) Worn seal or piston
packing

2) Worn or obstructed
valves

3) Worn unloader
piston

4) Worn E-Z start valve

1-4) Have parts cleaned or
replaced by an authorised CLARKE
dealer

32

Parts & Service: 020 8988 7400 / E-mail: [email protected] or [email protected]

PROBLEM PROBABLE CAUSE SOLUTION

Pump will not
draw chemicals

Water leaking at
pump

1) Spray wand not set
to low pressure

2) Chemical filter
clogged

3) Chemical screen
not in chemical

4) Chemical solution
too thick

5) Pressure hose too
long

6) Chemical build up
in chemical injector

1) Loose connections

2) Piston packings
worn

3) Worn or broken O
rings

4) Pump head or
tubes damaged from
freezing

1) See ‘Adjusting the Spray’ section
(page 21-22)

2) Clean filter

3) Ensure end of chemical hose is
fully submerged into chemicals

4) Dilute chemical. Chemical
solutions should have same
consistency as water

5) Lengthen water supply hose
instead of pressure hose

6) Have parts cleaned or replaced
by an authorised CLARKE dealer

1) Tighten hose connections

2) Have parts cleaned or replaced
by an authorised CLARKE dealer

3) Check and replace O ring

4) Have parts cleaned or replaced
by an authorised CLARKE dealer

Water leaking at
spray gun/spray
wand
connection

Oil leaking at
pump

1) Worm or broken O
ring

2) Loose hose
connection

1) Oil Seals worn

2) Loose drain plug

3) Worn drain plug O
ring

4) Worn fill plug O ring

5) Pump overfilled

6) Incorrect oil used

7) Vent plug clogged

1) Check and replace O ring

2) Tighten hose connections

1) Have parts cleaned or replaced
by an authorised CLARKE dealer

2) Tighten drain plug

3) Inspect and replace O ring

4) Inspect and replace O ring

5) Check for correct oil amount

6) Drain and refill with correct type
and amount of oil

7) Clean vent plug. Use a blast of
air to free it of blockage. If problem
persists, replace vent plug

33

Parts & Service: 020 8988 7400 / E-mail: [email protected] or [email protected]

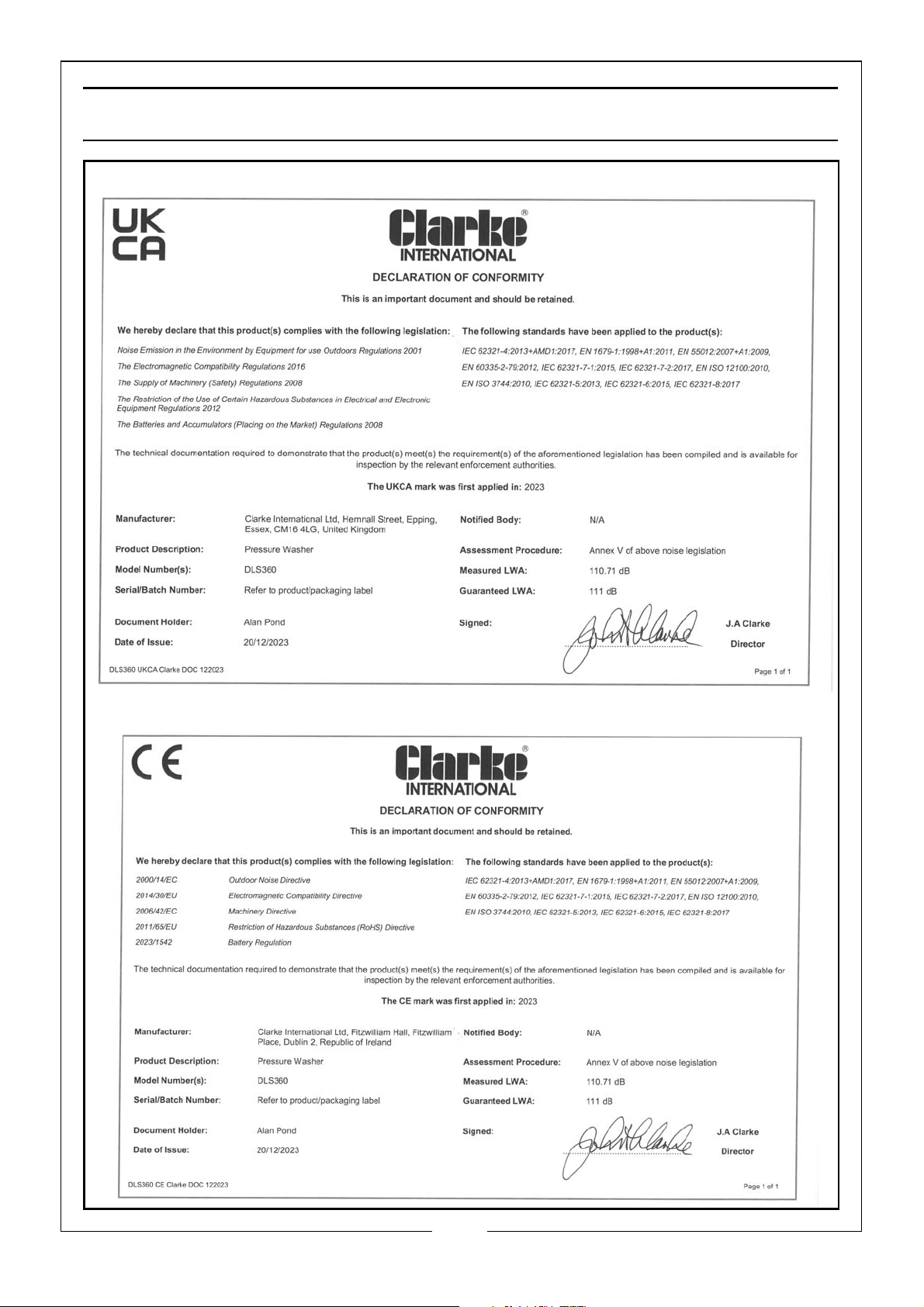

DECLARATION OF CONFORMITY

34

Parts & Service: 020 8988 7400 / E-mail: [email protected] or [email protected]

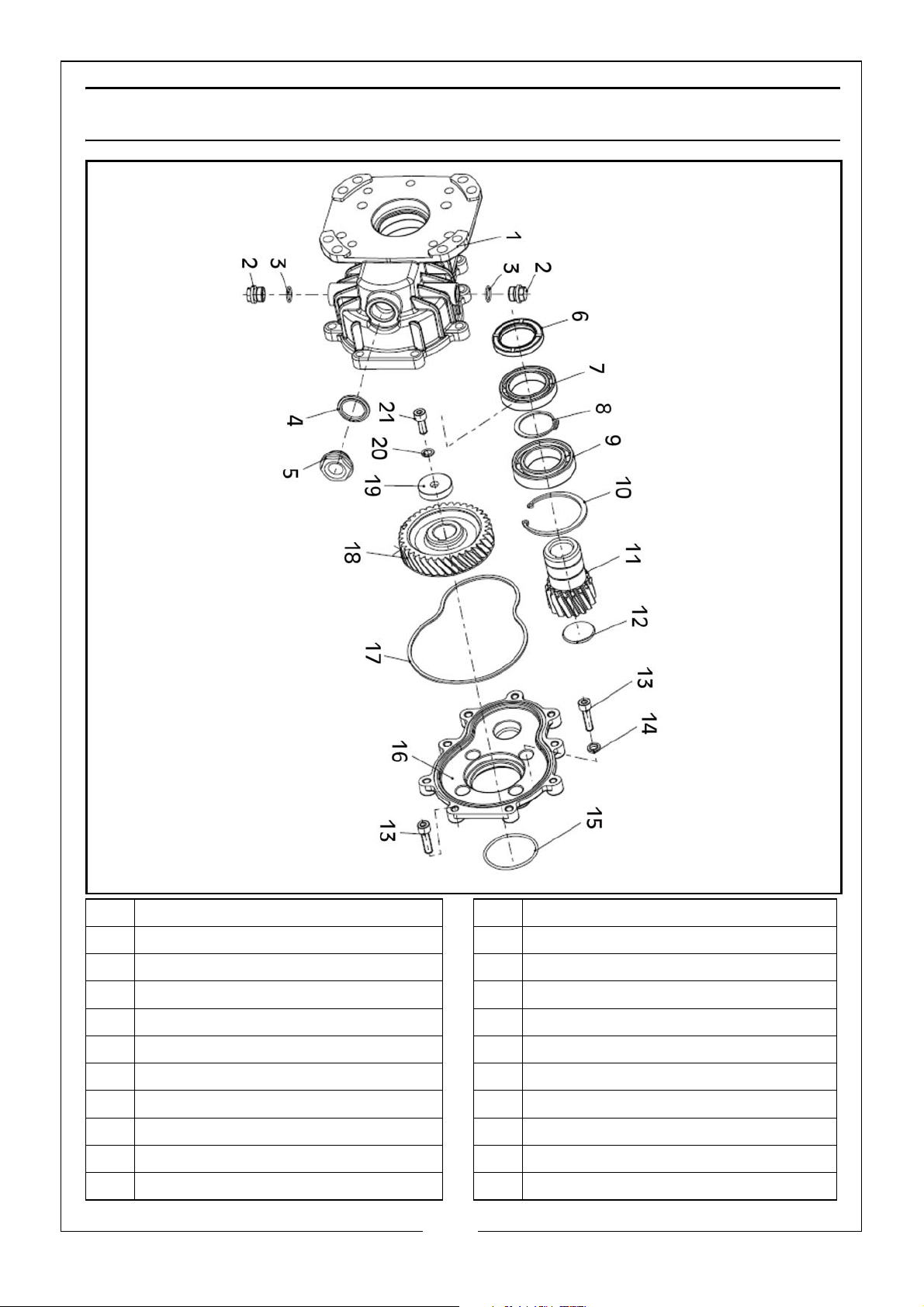

EXPLODED DIAGRAM & PARTS LIST- GEAR BOX

1 Gearbox Case 12 Blocking Flake
2 Oil Plug 13 Bolt M8*30
3 O Ring 14.2*1.9 14 Combine Washer
4 Gasket, Oil gauge 15 O Ring 55.25*2.62
5 Sight Gauge 16 Gearbox Cover
6 Oil Seal 17 Gasket Cover
7 Ball Bearing Casing 61908 18 Pump Gear
8 Snap Ring D40 19 Ring

9 Ball Bearing Casing 6008 20 Washer 08
10 Snap Ring D68 21 Bolt M8*20
11 Engine Gear

35

Parts & Service: 020 8988 7400 / E-mail: [email protected] or [email protected]

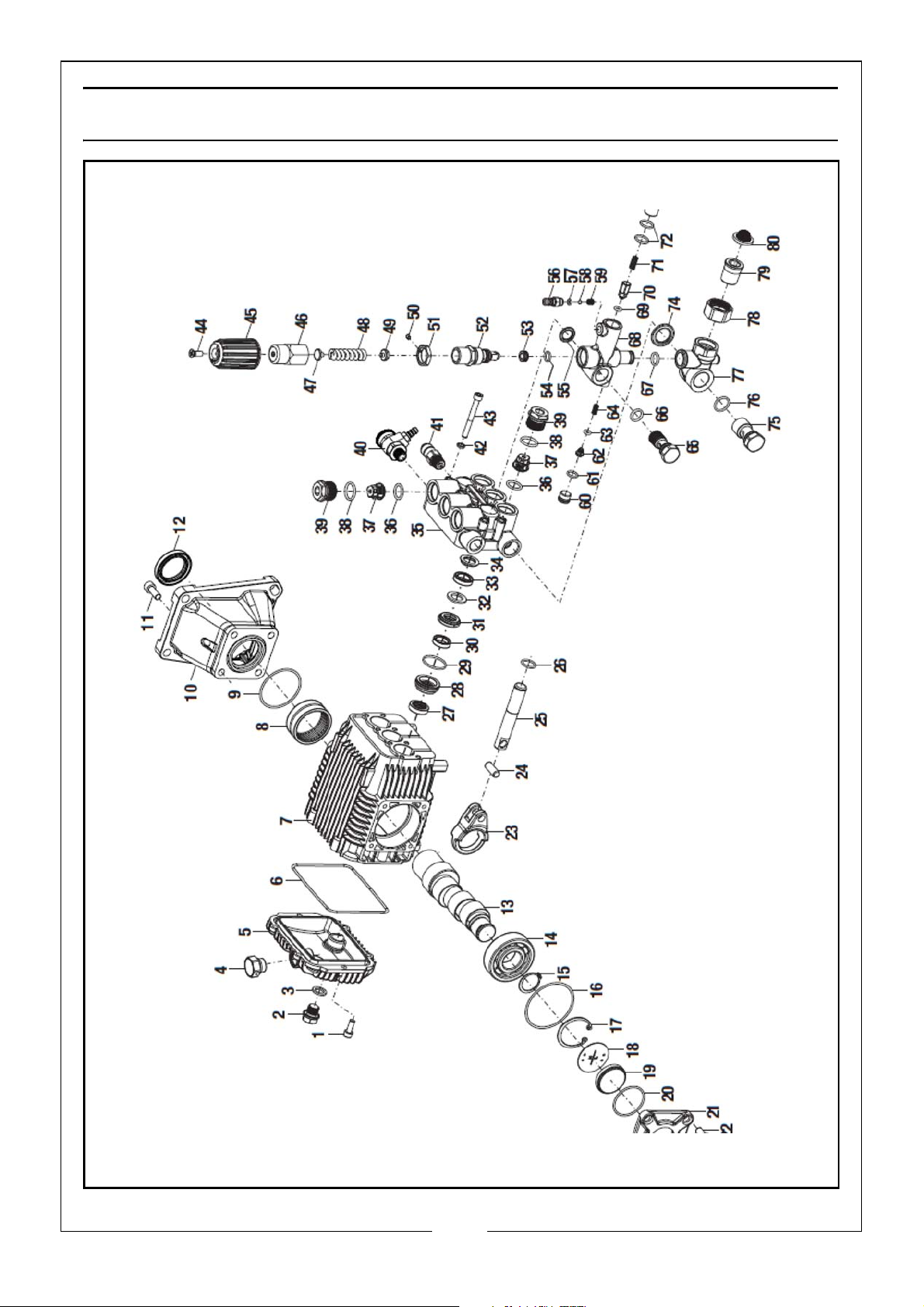

EXPLODED DIAGRAM & PART LIST - PUMP

36

Parts & Service: 020 8988 7400 / E-mail: [email protected] or [email protected]

1 Bolt, Crankcase Cover 41 Thermal Relief Valve

2 Oil Drain Plug 42 Washer

3 O Ring, Oil Drain Plug 43 Bolt, Manifold

4 Vented Oil Cap 44 Screw, Knob Cap

5 Crankcase Cover 45 Plastic Knob Cap

6 Gasket, Crankcase Cover 46 Pressure Adjusting Knob

7 Crankcase 47 Upper Seat, Adjusting Spring

8 Needle Bearing 48 Pressure Adjusting Spring

9 O Ring, Flange 49 Spring Seat
10 Flange 50 Screw, Jam Nut
11 Bolt, Flange 51 Pressure Jam Nut
12 Oil Seal, Flange 52 Unloader Valve Assembly
13 Crankshaft 53 Valve Seat
14 Ball Bearing 54 O Ring, Valve Seat
15 Scrap Ring 55 Gasket, Unloader Valve Housing
16 O Ring, Crankshaft Cover 56 Detergent Injector Fitting
17 Retain Ring 57 O Ring, Injector Fitting
18 Oil Level Plate 58 Ball Bearing, Injector Fitting
19 Oil Sight Glass 59 Spring, Injector Fitting
20 O Ring, Oil Sight Glass 60 Plug, Easy Start
21 Crankshaft Cover 61 O Ring, Plug, Easy Start
22 Bolt, Crankshaft Cover 62 Valve Core, Easy Start
23 Connecting Rod 63 O Ring, Valve Core, Easy Start
24 Pin 64 Spring, Easy Start
25 Ceramic Coating Plunger 65 Water Outlet Banjo Bolt
26 O Ring 66 O Ring, Outlet Banjo Bolt
27 Oil Seal, Plunger 67 O Ring, Unloader Valve Housing
28 Locating Ring 68 Unloader Valve Housing
29 O Ring, Locating Ring 69 O Ring, Outlet Checking Valve
30 Low Pressure Water Seal 70 Outlet Checking Valve
31 Compression Ring 71 Spring, Outlet Checking Valve
32 Compression Flake 72 O Ring, Outlet Fitting
33 High Pressure Water Seal 73 Quick Disconnect Outlet Fitting
34 Supporting Ring 74 Gasket, Bypass Housing
35 Manifold 75 Water Inlet Banjo Bolt
36 O Ring, Checking Valve 76 O Ring, Inlet Banjo Bolt
37 Checking Valve Assembly 77 Bypass Housing
38 O Ring, Valve Cap 78 Swivel Nut, Inlet Connector
39 Checking Valve Cap 79 Body, Inlet Connector
40 Outlet Plug, Manifold 80 Filter Washer, Inlet Connector

37

Parts & Service: 020 8988 7400 / E-mail: [email protected] or [email protected]

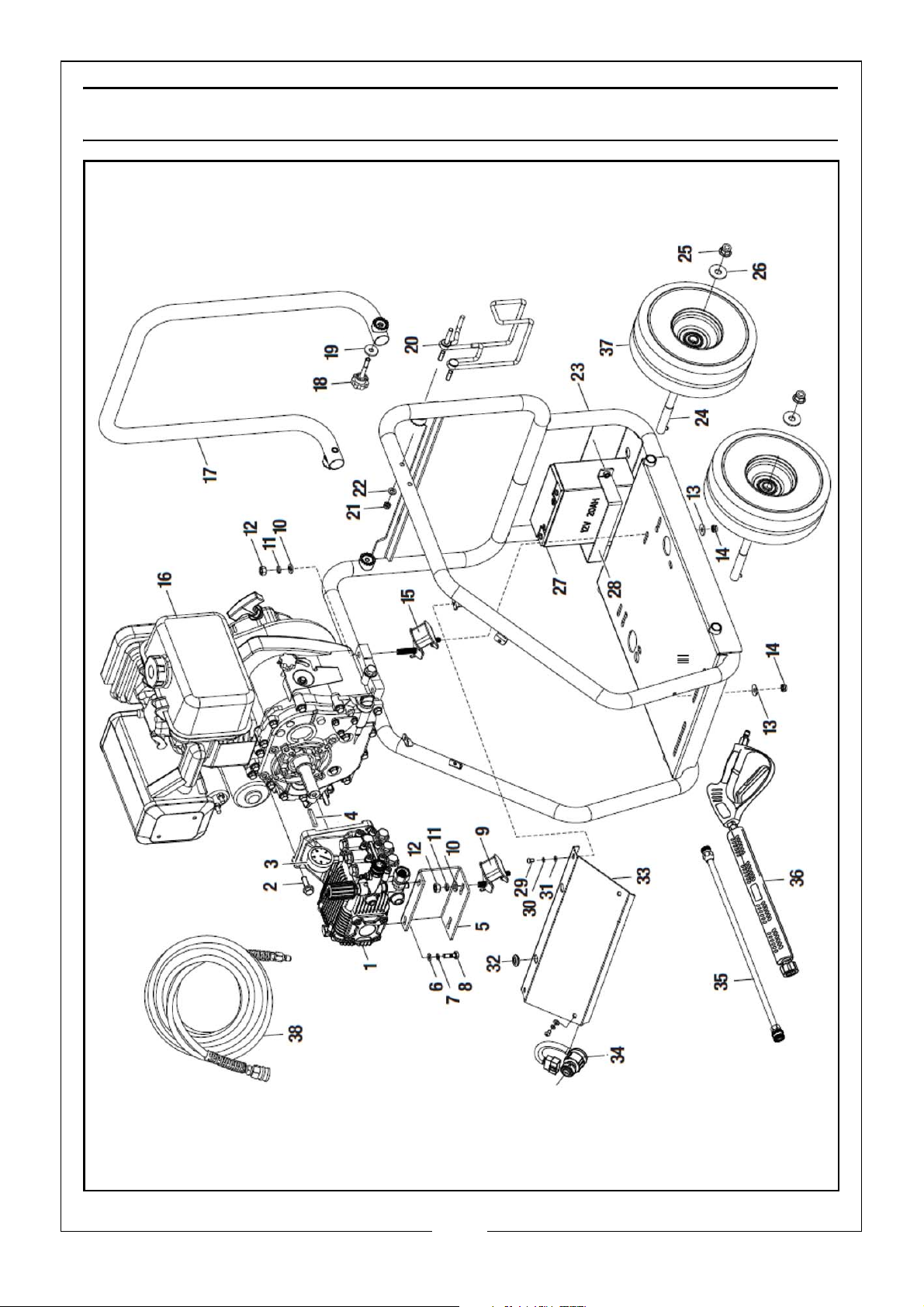

EXPLODED DIAGRAM & PARTS LIST- FRAME

38

Parts & Service: 020 8988 7400 / E-mail: [email protected] or [email protected]

1Pump 21Screw Nut

2 Bolt 22 Plain Washer

3Pressure Gauge

23 Frame Body

(Not Fitted on This Model)
4Key 24Axle
5 Anti Vibration Holder 25 Wheel Fix Lock Nut
6 Plain Washer 26 Plain Washer
7 Spring Washer 27 Battery
8Bolt 28Case
9 Rubber Feet (Pump) 29 Bolt

10 Plain Washer 30 Spring Washer
11 Spring Washer 31 Plain Washer
12 Screw Nut 32 Grommet
13 Plain Washer 33 Frame Face Plate
14 Screw Nut 34 Key Start
15 Rubber Feet (Engine) 35 Wand/Lance
16 Engine 36 Gun
17 Handle 37 Wheel
18 Handwheel Bolt 38 High Pressure Hose
19 Plain Washer
20 Hose & Lance Storage Bracket

39

Parts & Service: 020 8988 7400 / E-mail: [email protected] or [email protected]
