Page 1
Only suitable for well insulated areas and not designed
to be the primary heat source
15KW ELECTRIC FAN HEATER
MODEL NO: DEVIL 7015
PART NO: 6935456
OPERATION & MAINTENANCE
INSTRUCTIONS
ORIGINAL INSTRUCTIONS
DL0422 - Rev 9
Page 2
INTRODUCTION
Thank you for purchasing this CLARKE product.
Before attempting to use this product, please read this manual thoroughly and
follow the instructions carefully. In doing so you will ensure the safety of yourself
and that of others around you, and you can look forward to your purchase
giving you long and satisfactory service.
GUARANTEE
This product is guaranteed against faulty manufacture for a period of 12
months from the date of purchase. Please keep your receipt which will be
required as proof of purchase.
This guarantee is invalid if the product is found to have been abused or
tampered with in any way, or not used for the purpose for which it was
intended.
Faulty goods should be returned to their place of purchase, no product can
be returned to us without prior permission.
This guarantee does not effect your statutory rights.
LIST OF PACK CONTENTS
1 x Heater 1 x Axle c/w Circlips (2)
1 x R/H & 1 x L/H Support Frames 2 x Wheel
1 x Upper Handle 1 x Fixings Pack
ENVIRONMENTAL RECYCLING POLICY
Through purchase of this product, the customer is taking on the
obligation to deal with the WEEE in accordance with the WEEE
regulations in relation to the treatment, recycling & recovery and
environmentally sound disposal of the WEEE.
In effect, this means that this product must not be disposed of with general
household waste. It must be disposed of according to the laws governing
Waste Electrical and Electronic Equipment (WEEE) at a recognised disposal
facility.
2
Parts & Service: 020 8988 7400 / E-mail: [email protected] or [email protected]
Page 3
THE FOLLOWING TABLE ADDRESSES THE INFORMATION
REQUIREMENTS OF REG.2015/1188
Item Symbol Value Unit
Heat output
Measured seasonal space heating energy efficiency 36%
Nominal heat output P
Minimum heat output (indicative) P
Maximum continuous heat output P
nom
min
max
15 kW
0kW
15 kW
Auxiliary electricity consumption
At nominal heat output el
At minimum heat output el
In standby mode el
max
min
SB
n/a kW
n/a kW
0kW
Type of heat input for electric storage local heaters only
Manual heat charge control with integrated thermostat No
Manual heat charge control with room and/or outdoor temperature
No
feedback
Electronic heat charge control with room and/or outdoor temperature
No
feedback
Fan assisted output No
Type of heat output/room temperature control (select one)
Single stage heat output, no temperature control No
Two or more manual stages, no temperature control No
With mechanical thermostat temp control Yes
With electronic temperature control No
Electronic temperature control with day timer No
Electronic temperature control with week timer No
Other control options (multiple selections possible)
Room temperature control with presence detection No
Room temperature control with open window detection No
Room temperature control with distance control option No
Room temperature control with adaptive start control No
Room temperature control with working time limitation No
Room temperature control with black bulb sensor No
3
Parts & Service: 020 8988 7400 / E-mail: [email protected] or [email protected]
Page 4

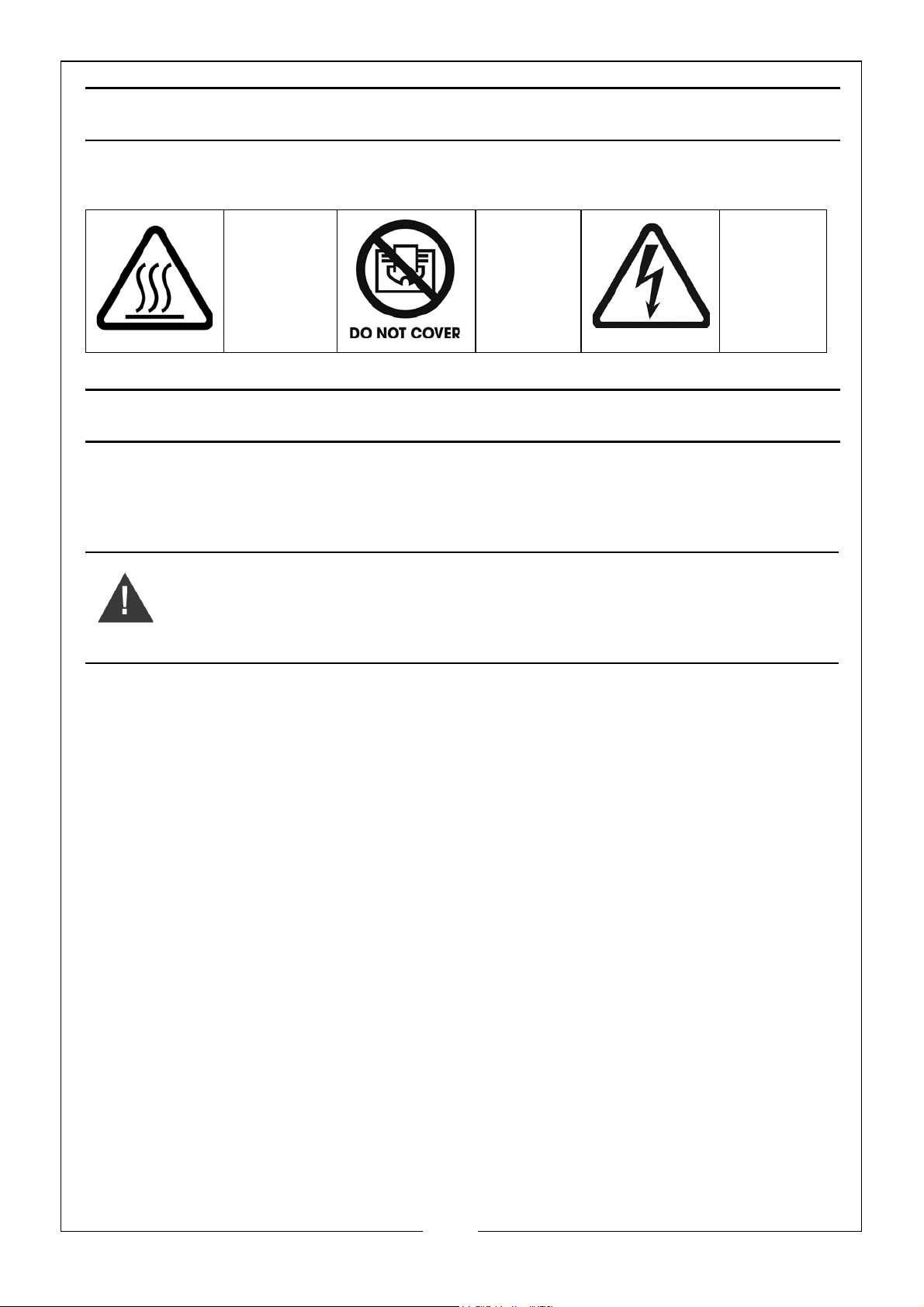

SAFETY SYMBOLS
The following symbols appear on the unitt.
Hot
Surface,
Do Not
Touch
Do Not
Cover
SAFETY RULES
Make sure that you read, understand and comply with the following.
ELECTRICAL SAFETY
WARNING: THIS HEATER MUST BE FITTED WITH A SUITABLE SUPPLY CABLE
AND PLUG. CLARKE PART NUMBER 6925237
WARNING: THIS HEATER MUST BE EARTHED
High
Voltage
• Regularly inspect the power cable / plugs and all electrical connections
for signs of damage/looseness. Do not use the heater it the power cable
is damaged.
• Minimise the risk of electric shock by installing a RCCB (Residual Current
Circuit Breaker) and a suitable 3-phase isolator into the main distribution
board.
• Make sure that the voltage on the rating plate is the same as the
voltage of the power supply. If in doubt, consult a qualified electrician.
• Do not abuse the electrical cable. Never use the cable for pulling or
unplugging the heater.
• Keep the cable away from sources of heat, oil, sharp edges or moving
parts. Damaged or tangled cables increase the risk of electric shock.
• Do not use extension cables with this heater.
4
Parts & Service: 020 8988 7400 / E-mail: [email protected] or [email protected]
Page 5
MAINTENANCE.
WARNING: DISCONNECT THE HEATER FROM THE POWER SUPPLY, BEFORE
SERVICING OR PERFORMING ANY MAINTENANCE. SERVICING OR
MAINTENANCE MUST ONLY BE CARRIED OUT BY THE CLARKE SERVICE
DEPARTMENT.
• Check that the heater is in good working order. Take immediate action
to repair or replace damaged parts.
• Do not allow the heating elements to become covered with dust which
could become a fire hazard. If used in a dusty workplace it should be
cleaned as described under Cleaning and Maintenance.
• Use recommended parts only. Unapproved parts may be dangerous
and will invalidate the warranty.
• DO NOT attempt to repair a damaged heater, contact the Clarke
service department.
POSITIONING
WARNING: DO NOT USE THE HEATER NEAR FLAMMABLE MATERIAL,
LIQUIDS, SOLIDS, GASES OR COMPRESSED GAS CYLINDERS ETC.
• Heater is designed for indoor use only.
• DO NOT place the heater close to a bath, wash basin, shower, swimming
pool or any other water-filled area or wet surface. DO NOT place the
heater up against any surface such as a wall, door or furniture etc.
• DO NOT place the heater immediately below any electrical outlet.
• NEVER place the heater near combustible materials such as curtains,
furniture etc. Allow at least 2 metre clearance.
• DO NOT place the heater on a raised surface or anywhere where it
could topple over
• Take care to ensure that the grille cannot be blocked by curtains or
other fabrics.
• Do not operate fan heaters in explosive atmospheres such as in the
presence of flammable liquids, gases or dust such as in a paint spray
booth or any explosive environment. Electric motors create sparks which
may ignite dust or fumes.
5
Parts & Service: 020 8988 7400 / E-mail: [email protected] or [email protected]
Page 6
COMMON SENSE
• DO NOT operate the heater when you are tired or under the influence of
alcohol, drugs or intoxicating medication.
• DO NOT stand on the heater.
• DO NOT use the heater with wet hands or when there is water on the
power cable.
• Turn the heater off when not in use and keep it in a safe, dry, childproof
location.
• The heater is designed to heat enclosed areas larger than 4m
workshops and other industrial areas. Do not use the heater for any other
function. It is not suitable for drying clothes or laundry.
• Young children must be kept away unless continuously supervised.
OPERATION
• The heater must only be used by people who have read these
instructions and have been trained in its use.
• DO NOT obstruct the air inlet and outlet sections of the heater.
•DO NOT cover the heater.
• DO NOT touch the heater casing or grille when first switched off, as these
will be very hot and will take time to cool.
• DO NOT get the heater wet or use in areas of high condensation.
• DO NOT allow the power lead to touch hot surfaces.
• DO NOT connect other appliances to the same mains socket as the
heater.
3
, such as
• Only use the heater in an level position.
• Do not use this heater with a programmable timer used to switch it on
automatically.
SERVICE & REPAIRS
• Have your appliance repaired by a qualified person using identical
replacement parts. This will ensure that the safety of the appliance is
maintained.
6
Parts & Service: 020 8988 7400 / E-mail: [email protected] or [email protected]
Page 7
ELECTRICAL CONNECTIONS
WARNING: THE INSTALLATION OF THIS APPLIANCE SHOULD BE CARRIED
OUT BY A COMPETENT ELECTRICIAN AND BE IN ACCORDANCE WITH THE
CURRENT IEE WIRING REGULATIONS (BS7671-2:2008).
This machine MUST be connected to a 400 Volt, 3 phase 50Hz supply through a
suitably rated isolator switch. It cannot be operated from a single phase
supply.
The user should purchase a suitable connecting cable capable of handling 32
Amps (recommended Cross Sectional Area 6mm
32A (or better) which complies with BSEN 60309. A length of 2-3 metres is
recommended giving mobility to the appliance but without becoming a trip
hazard
If in any doubt, consult a qualified electrician. DO NOT attempt any electrical
work yourself.
2
) and supply plug rated at
SAFETY SYSTEMS

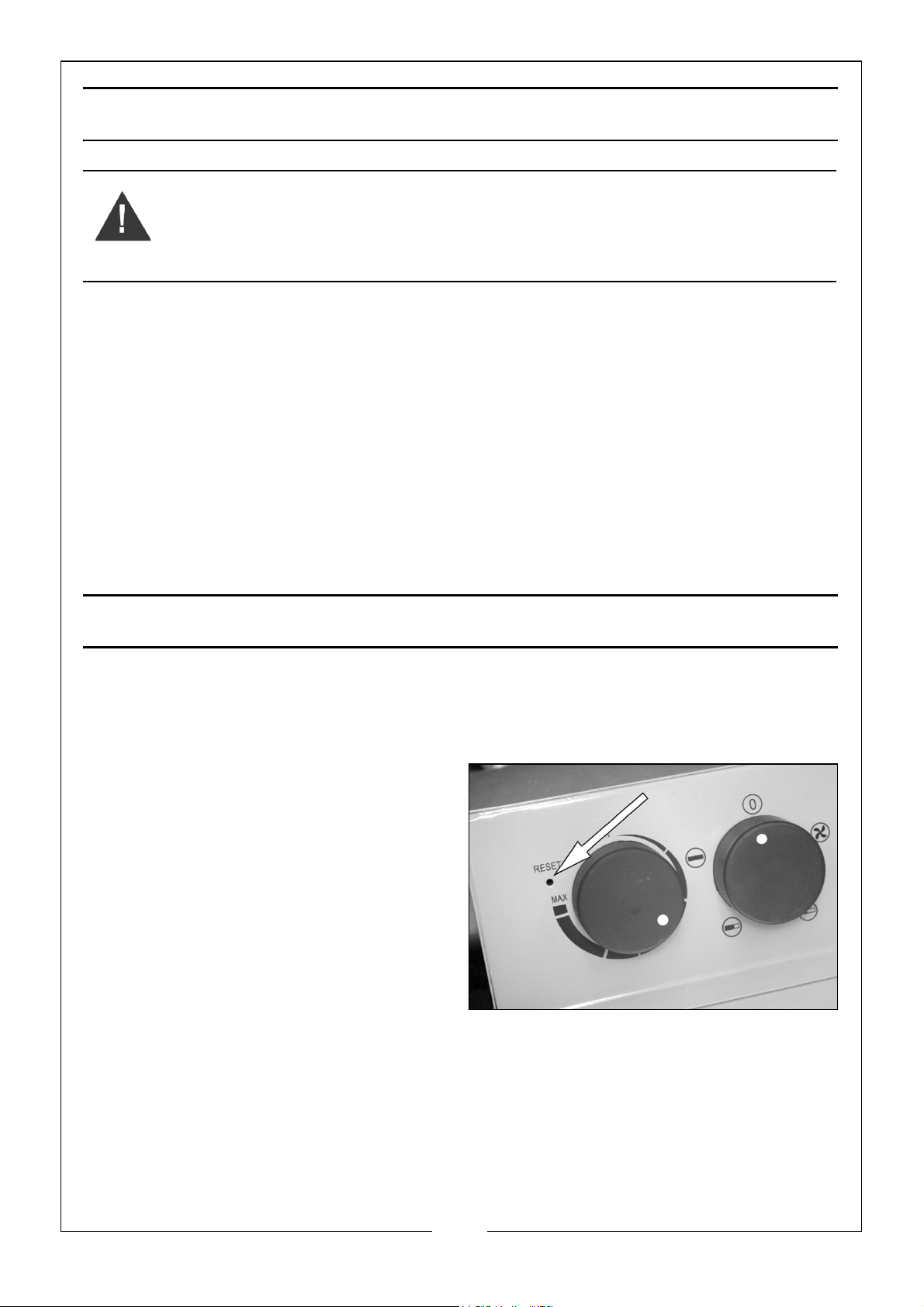

THERMOSTATIC PROTECTION
The Devil 7015 has a thermal cut out to prevent the unit from overheating.
The thermal cutout may also operate
if the heater is shut down without
allowing to cool sufficiently. If
subsequently, the heater fails to start,
use a suitible tool to press the RESET
button and try again.
7
Parts & Service: 020 8988 7400 / E-mail: [email protected] or [email protected]
Page 8

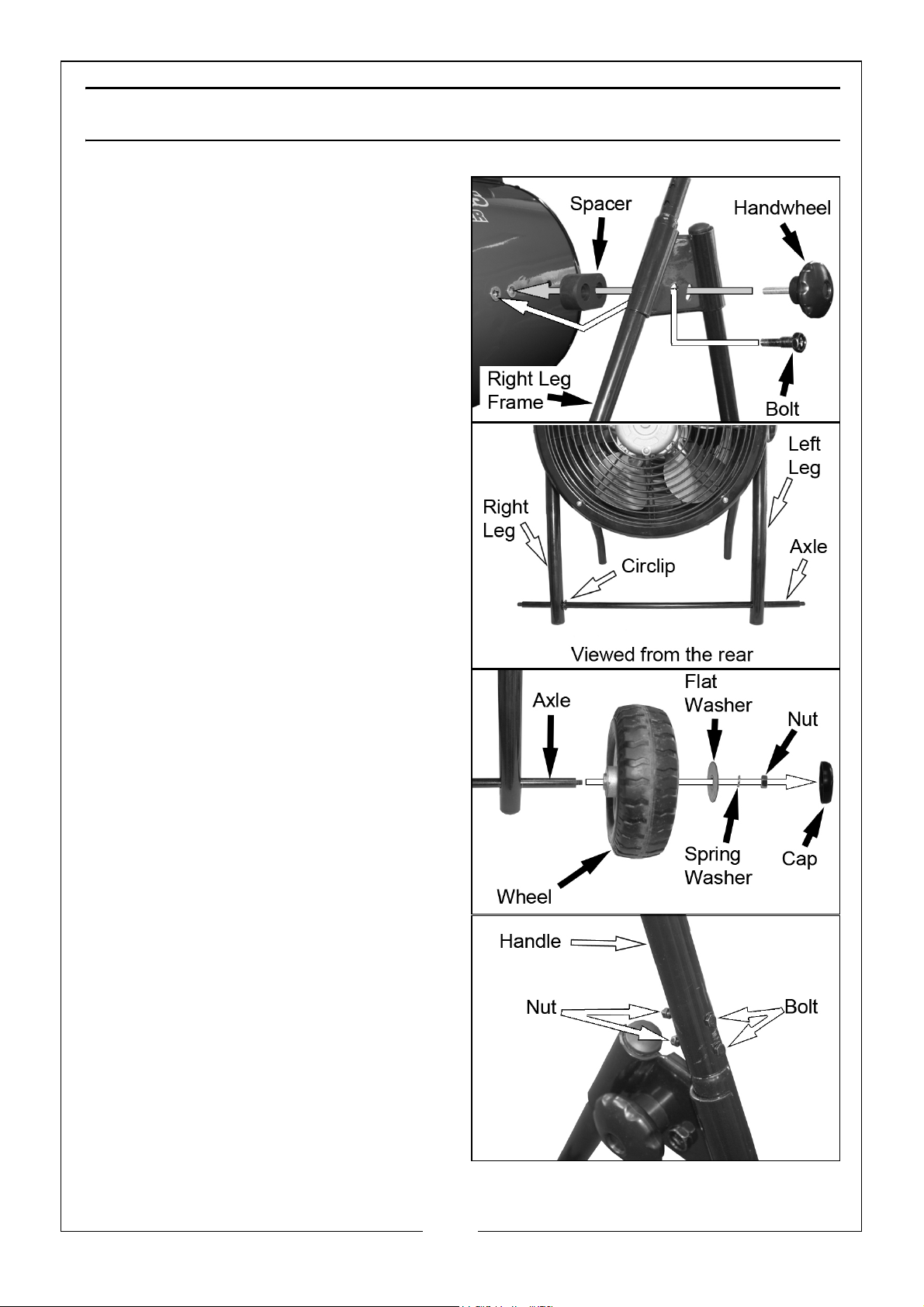

ASSEMBLY
1. Fit the right leg frame to the main
body as shown.
NOTE: The bolt needs to be inserted
before the handwheel.
NOTE: The bolt goes through the
larger of the 2 holes in the
spacer.
2. Fit the axle and left hand support
frame.
NOTE: The circlip shown must be on
the inside of the legs.
3. Fit the wheels as shown.
NOTE: The cap fits over the flat
washer.
4. Use the nuts and bolts supplied, to
secure the handle to the leg
frames as shown.
8
Parts & Service: 020 8988 7400 / E-mail: [email protected] or [email protected]
Page 9
OPERATION
WARNING: DO NOT USE THIS HEATER IN SMALL ROOMS WHEN THEY ARE
OCCUPIED BY PERSONS NOT CAPABLE OF LEAVING THE ROOM ON THEIR
OWN, UNLESS CONSTANT SUPERVISION IS PROVIDED.
CAUTION: SOME PARTS OF THIS PRODUCT CAN BECOME VERY HOT AND
CAUSE BURNS. PARTICULAR ATTENTION HAS TO BE GIVEN WHERE
CHILDREN AND VULNERABLE PEOPLE ARE PRESENT.
1. Put the heater in a level position on a flat surface and at a safe distance
from flammable materials. Keep a minimum of 2m clearance all round.
2. Connect the heater to a suitable
power supply.

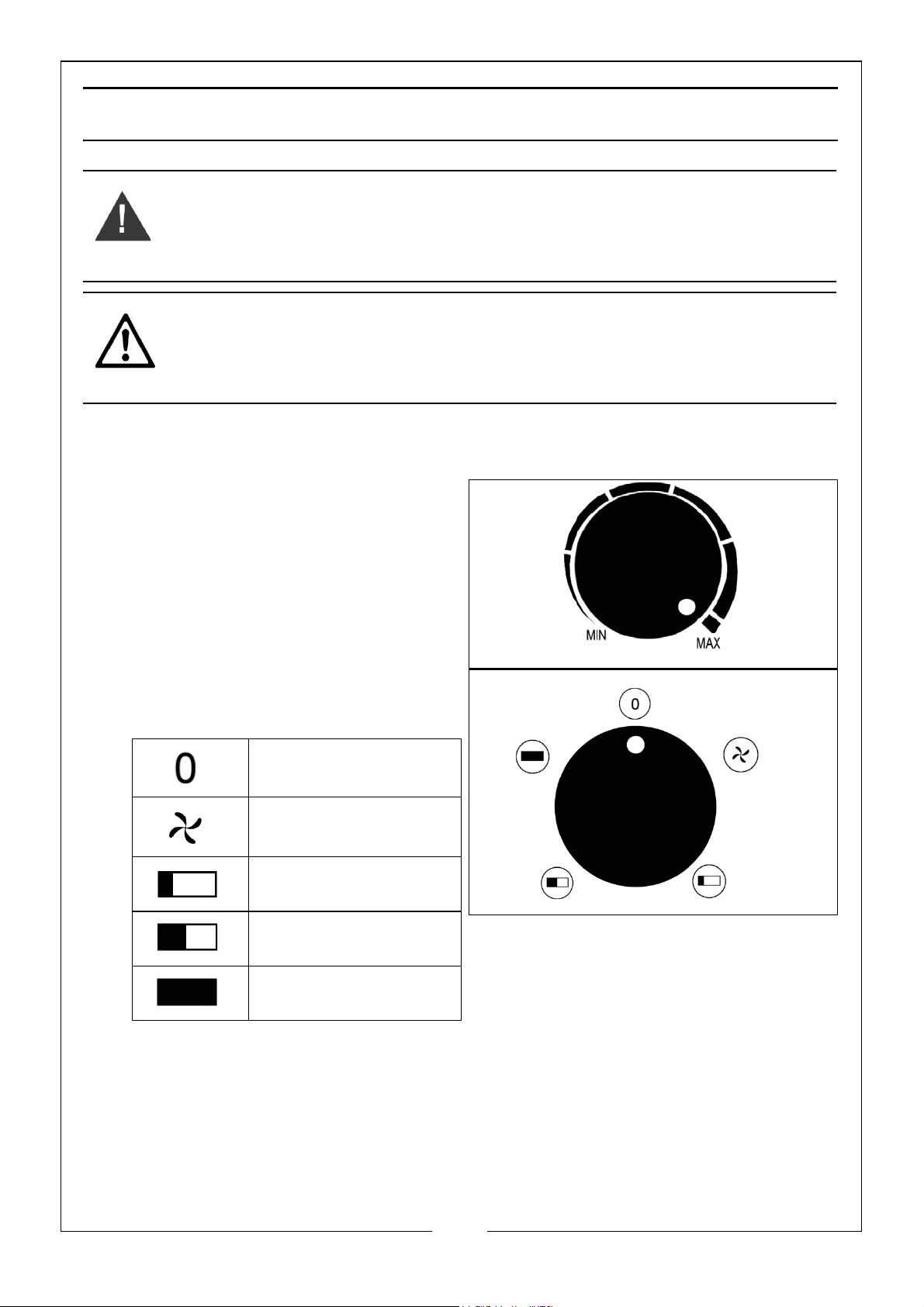

3. Set the thermostat control to the
maximum setting (fully clockwise).
4. Set the mode selector to one of
the settings:
Off
Fan Only
Low Heat Setting
Medium Heat Setting
High Heat Setting
• The heater will take up to three minutes to reach optimum temperature.
5. Once the room reaches the required temperature, turn the thermostat
control slowly counter-clockwise until the thermostat clicks, leave the
control in this position.
9
Parts & Service: 020 8988 7400 / E-mail: [email protected] or [email protected]
Page 10
• The room temperature will be maintained at this setting. The heater will
continue to operate until the mode selector is turned to the OFF position.
6. For fan only operation, turn the mode selector to the fan only setting and
set the thermostat to its minimum setting.
7. Turn the heater off by turning the mode selector to “0”,
• Do not remove the plug from the mains supply. The fan will continue to
run for several minutes to lower the temperature of the case and
elements. Once the fan stops you can safely remove the plug from the
power supply.
8. When not in use, disconnect the heater from the mains supply. Store it in a
safe, dry, childproof location.
MAINTENANCE
WARNING: ALWAYS DISCONNECT FROM THE POWER SUPPLY AND ALLOW
THE HEATER IT TO COOL DOWN BEFORE PERFORMING ANY
MAINTENANCE TASKS.
• Clean the heater with a soft damp cloth, Do not use solvents or
abrasives.
• Make sure that the heater grill is not blocked.
• No other maintenance is required, should you discover any problem
with the heater, return it to the Clarke service department for repair.
10
Parts & Service: 020 8988 7400 / E-mail: [email protected] or [email protected]
Page 11
SPECIFICATIONS
Operating Voltage, Current and Frequency:
(V / A / Hz / Phs)
Operating Temperature: (Min/Max) (°C): 0-40°C
Heat Output: (kW): 15 kW
3
Air Output: (m
Safety Device: Thermal cut-out
Duty Cycle Classification: Continuous duty
Electrical Insulation Class I
Product: Depth x Width x Height 512 x 540 x 852 mm
Product Weight 19.8 kg
/h) 941m3/h
400 V / 23A / 50Hz / 3 Phase
11
Parts & Service: 020 8988 7400 / E-mail: [email protected] or [email protected]
Page 12
TROUBLE SHOOTING
Problem Possible Cause Remedy
Heater does
not
operate,
although
plugged in
with the
switch and
thermostat
switched on.
Heating
element
glowing hot.
The unit has
failed to heat
up so only the
air fan has
operated.
Plug is loose/bad
connection.
Fuse blown or
circuit breaker
trips.
No power at
socket outlet
Input voltage too
high or too low.
Air inlet grille is
blocked
Control switch not
set at a "HEATING"
level.
Thermostat has
tripped.
Pull the plug out & check all connections
(cable/plug and socket).
Replace if necessary and investigate
cause. If fuse blows
repeatedly, consult your Clarke dealer.
Insert the plug in a suitable socket
Use a power supply in accordance with the
rating on the label.
Ensure the heater is kept away from any
objects which could cover the air inlet or
be drawn into it.
Turn switch to a heating level.
Turn the thermostat and listen. If there is no
CLICK and the thermostat is not damaged,
the heater will automatically switch ON
when it has cooled down.
Abnormal
noise.
Heater is not level. Stand heater on a level surface
12
Parts & Service: 020 8988 7400 / E-mail: [email protected] or [email protected]
Page 13
Page 14

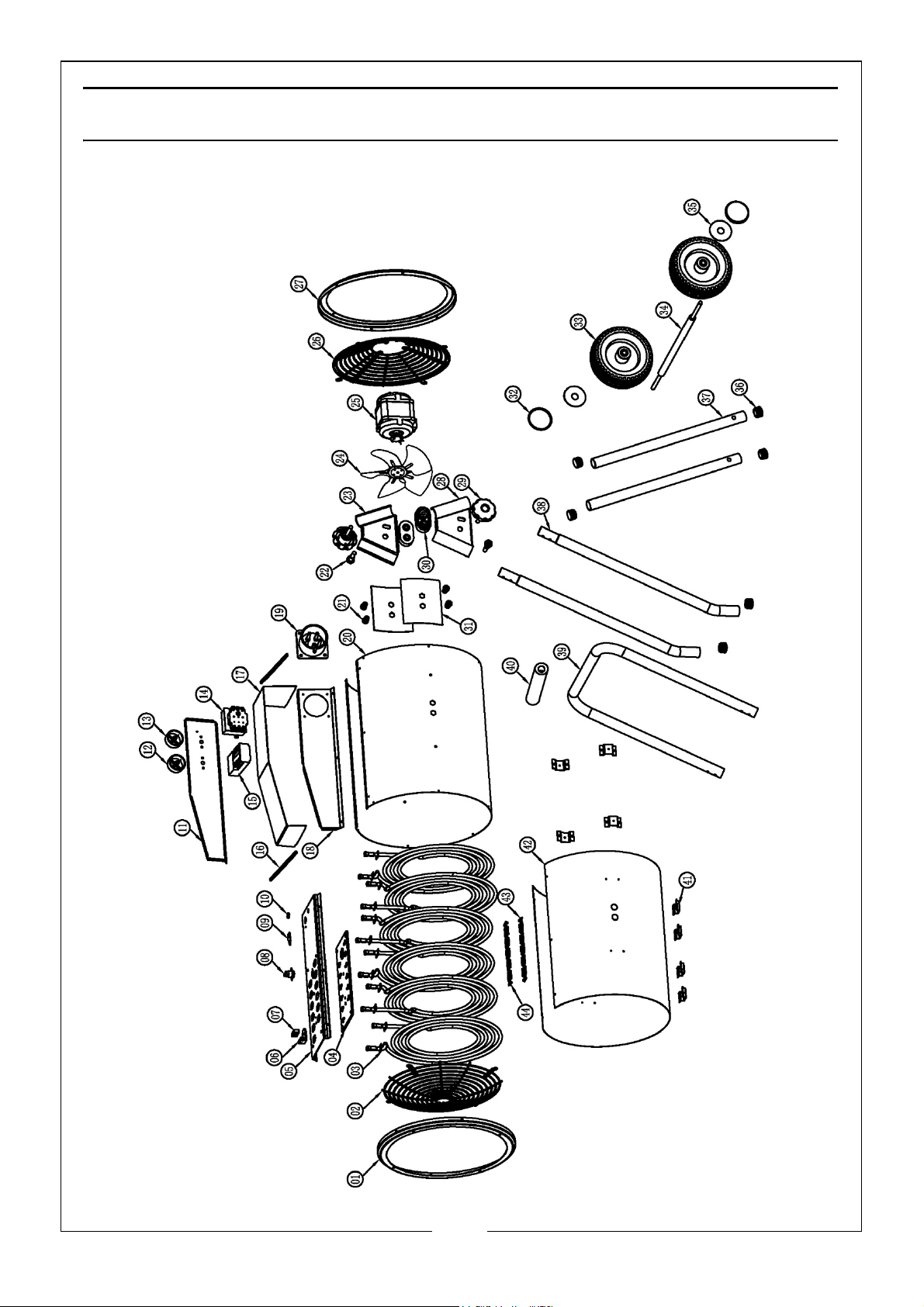

PARTS LIST
1 Front Rings 23 Securing Plate R
2 Front Grille 24 Fan
3 Heating Elements 25 Motor
4 Insulate Board 26 Rear Grille
5 Chassis Panel 27 Rear Rings
6 Temperature Retaining Clip 28 Securing Plate L
7 Temperature Retaining Clip 29 Adjustable Screw
8 After Cooling Sensor 30 Spacer
9 Retaining Plate 31 Securing Plate
10 Grommet 32 Decoration Cap
11 Control Panel 33 Wheel
12 Switch Knob 34 Axle
13 Thermostat Knob 35 Securing Plate
14 Temperature Controller 36 Base Pad
15 Speed Controller 37 Rear Frame
16 Sealing Tape 38 Front Frame
17 Control Box Cover 39 Upper Frame
18 Socket Panel 40 Insulate Sleeve
19 5 Pin Socket 41 Location Plate
20 House Casing 42 Heat Shield
21 Rivet Nut 43 Heater Bracket Upper
22 Fixing Bolt 44 Heater Bracket Bottom
Part number = (CXDEV7015 + the number of the part)
14
Parts & Service: 020 8988 7400 / E-mail: [email protected] or [email protected]
Page 15

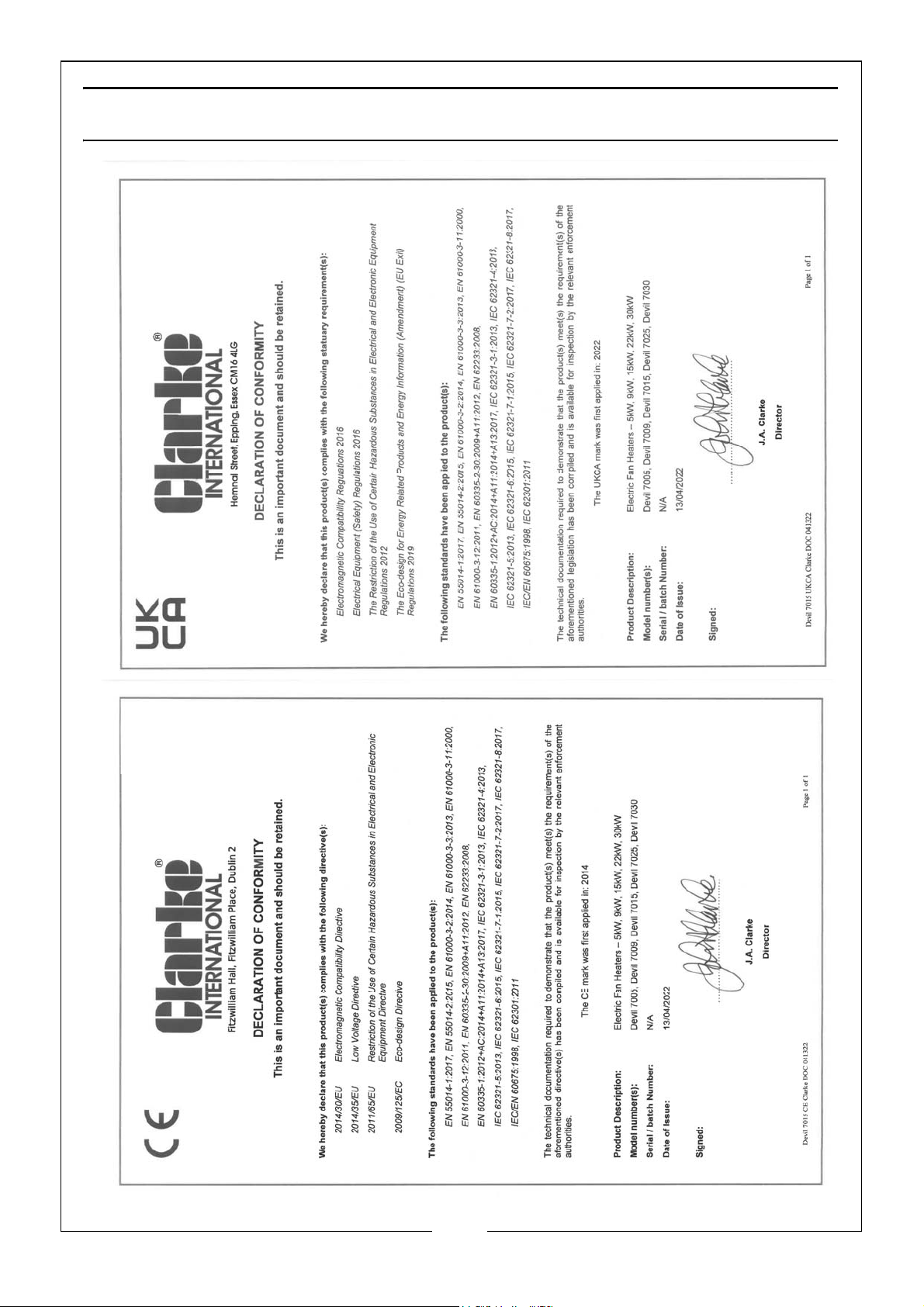

DECLARATION OF CONFORMITY - UKCA & CE
15
Parts & Service: 020 8988 7400 / E-mail: [email protected] or [email protected]
Page 16
Loading...
