Page 1
Only suitable for well insulated areas and not designed
to be the primary heat source
9KW ELECTRIC FAN HEATER
MODEL NO: DEVIL 7009
PART NO: 6935454
OPERATION & MAINTENANCE
INSTRUCTIONS
ORIGINAL INSTRUCTIONS
DL1022 - Rev 10
Page 2
INTRODUCTION
Thank you for purchasing this CLARKE product.
Before attempting to use this product, please read this manual thoroughly and
follow the instructions carefully. In doing so you will ensure the safety of yourself
and that of others around you, and you can look forward to your purchase
giving you long and satisfactory service.
GUARANTEE
This product is guaranteed against faulty manufacture for a period of 12
months from the date of purchase. Please keep your receipt which will be
required as proof of purchase.
This guarantee is invalid if the product is found to have been abused or
tampered with in any way, or not used for the purpose for which it was
intended.
Faulty goods should be returned to their place of purchase, no product can
be returned to us without prior permission.
This guarantee does not effect your statutory rights.
LIST OF PACK CONTENTS
1 x Heater 1 x Handle
1 x Support Frame 1 x Fixings Pack
ENVIRONMENTAL RECYCLING POLICY
Through purchase of this product, the customer is taking on the
obligation to deal with the WEEE in accordance with the WEEE
regulations in relation to the treatment, recycling & recovery and
environmentally sound disposal of the WEEE.
In effect, this means that this product must not be disposed of with general
household waste. It must be disposed of according to the laws governing
Waste Electrical and Electronic Equipment (WEEE) at a recognised disposal
facility.
2
Parts & Service: 020 8988 7400 / E-mail: [email protected] or [email protected]
Page 3
THE FOLLOWING TABLE ADDRESSES THE INFORMATION
REQUIREMENTS OF REG.2015/1188
Item Symbol Value Unit
Heat output
Measured seasonal space heating energy efficiency 36%
Nominal heat output P
Minimum heat output (indicative) P
Maximum continuous heat output P
nom
min
max
9kW
4.5 kW
9kW
Auxiliary electricity consumption
At nominal heat output el
At minimum heat output el
In standby mode el
max
min
SB
n/a kW
n/a kW
0kW
Type of heat input for electric storage local heaters only
Manual heat charge control with integrated thermostat No
Manual heat charge control with room and/or outdoor temperature
No
feedback
Electronic heat charge control with room and/or outdoor temperature
No
feedback
Fan assisted output No
Type of heat output/room temperature control (select one)
Single stage heat output, no temperature control No
Two or more manual stages, no temperature control No
With mechanical thermostat temp control Yes
With electronic temperature control No
Electronic temperature control with day timer No
Electronic temperature control with week timer No
Other control options (multiple selections possible)
Room temperature control with presence detection No
Room temperature control with open window detection No
Room temperature control with distance control option No
Room temperature control with adaptive start control No
Room temperature control with working time limitation No
Room temperature control with black bulb sensor No
3
Parts & Service: 020 8988 7400 / E-mail: [email protected] or [email protected]
Page 4
SAFETY SYMBOLS
The following symbols appear on the unitt.
Hot
Surface,
Do Not
Touch
Do Not
Cover
SAFETY RULES
Make sure that you read, understand and comply with the following.
ELECTRICAL SAFETY
WARNING: THIS HEATER MUST BE EARTHED AND FITTED WITH A SUITABLE
POWER CABLE & PLUG.
High
Voltage
• Regularly inspect the power cable/plugs used with this heater for signs of
damage/looseness. DO NOT use the heater it the power cable is
damaged.
• Minimise the risk of electric shock by installing a RCCB (Residual Current
Circuit Breaker) and a suitable 3-phase isolator into the main distribution
board.
• Make sure that the voltage on the rating plate is the same as the
voltage of the power supply. If in doubt, consult a qualified electrician.
• DO NOT abuse the electrical power cable. Never use the cable for
pulling or unplugging the heater.
• Keep the power cable away from sources of heat, oil, sharp edges or
moving parts. Damaged or tangled cables increase the risk of electric
shock.
• DO NOT use extension cables with this heater.
4
Parts & Service: 020 8988 7400 / E-mail: [email protected] or [email protected]
Page 5
MAINTENANCE.
WARNING: DISCONNECT THE HEATER FROM THE POWER SUPPLY, BEFORE
SERVICING OR PERFORMING ANY MAINTENANCE. SERVICING OR
MAINTENANCE MUST ONLY BE CARRIED OUT BY THE CLARKE SERVICE
DEPARTMENT.
• Check that the heater is in good working order. Take immediate action
to repair or replace damaged parts.
• DO NOT allow the heating elements to become covered with dust
which could become a fire hazard. If used in a dusty workplace it should
be cleaned as described under Cleaning and Maintenance.
• Use recommended parts only. Unapproved parts may be dangerous
and will invalidate the warranty.
• DO NOT attempt to repair a damaged heater, contact the Clarke
service department.
POSITIONING
WARNING: DO NOT USE THE HEATER NEAR FLAMMABLE MATERIAL,
LIQUIDS, SOLIDS, GASES OR COMPRESSED GAS CYLINDERS ETC.
• Heater is designed for indoor use only.
• DO NOT place the heater close to a bath, wash basin, shower, swimming
pool or any other water-filled area or wet surface. DO NOT place the
heater up against any surface such as a wall, door or furniture etc.
• DO NOT place the heater immediately below any electrical outlet.
• NEVER place the heater near combustible materials such as curtains,
furniture etc. Allow at least 2 metre clearance.
• DO NOT place the heater on a raised surface or anywhere where it
could topple over
• Take care to ensure that the grille cannot be blocked by curtains or
other fabrics.
• DO NOT operate fan heaters in explosive atmospheres such as in the
presence of flammable liquids, gases or dust such as in a paint spray
booth or any explosive environment. Electric motors create sparks which
may ignite dust or fumes.
5
Parts & Service: 020 8988 7400 / E-mail: [email protected] or [email protected]
Page 6
COMMON SENSE
• DO NOT operate the heater when you are tired or under the influence of
alcohol, drugs or intoxicating medication.
• DO NOT stand on the heater.
• DO NOT use the heater with wet hands or when there is water on the
power cable.
• Turn the heater off when not in use and keep it in a safe, dry, childproof
location.
• The heater is designed to heat enclosed areas larger than 4m
workshops and other industrial areas. DO NOT use the heater for any
other function. It is not suitable for drying clothes or laundry.
• Young children must be kept away unless continuously supervised.
OPERATION
• The heater must only be used by people who have read these
instructions and have been trained in its use.
• DO NOT obstruct the air inlet and outlet sections of the heater.
• DO NOT cover the heater.
• DO NOT touch the heater casing or grille when first switched off, as these
will be very hot and will take time to cool.
• DO NOT get the heater wet or use in areas of high condensation.
• DO NOT allow the power lead to touch hot surfaces.
• DO NOT connect other appliances to the same mains socket as the
heater.
3
, such as
• Only use the heater in an level position.
• DO NOT use this heater with a programmable timer used to switch it on
automatically.
SERVICE & REPAIRS
• Have your appliance repaired by a qualified person using identical
replacement parts. This will ensure that the safety of the appliance is
maintained.
6
Parts & Service: 020 8988 7400 / E-mail: [email protected] or [email protected]
Page 7
SAFETY SYSTEMS
THERMOSTATIC PROTECTION
The Devil 7009 has a thermal cut out to prevent the unit from overheating.
The thermal cutout may also operate
if the heater is shut down without
allowing to cool sufficiently. If
subsequently, the heater fails to start,
press the RESET button and try again.
ELECTRICAL CONNECTIONS
WARNING: THE INSTALLATION OF THIS APPLIANCE SHOULD BE CARRIED
OUT BY A COMPETENT ELECTRICIAN AND BE IN ACCORDANCE WITH THE
CURRENT IEE WIRING REGULATIONS (BS7671-2:2008).
The supply cable is fitted with a red 5 pin 16 amp industrial plug to EN 60309.
This heater MUST be connected to a 400 Volt, 3 phase 50Hz supply through a
suitably rated isolator switch. It cannot be operated from a single phase
supply.
If in any doubt, consult a qualified electrician. DO NOT attempt any electrical
repairs yourself.
7
Parts & Service: 020 8988 7400 / E-mail: [email protected] or [email protected]
Page 8

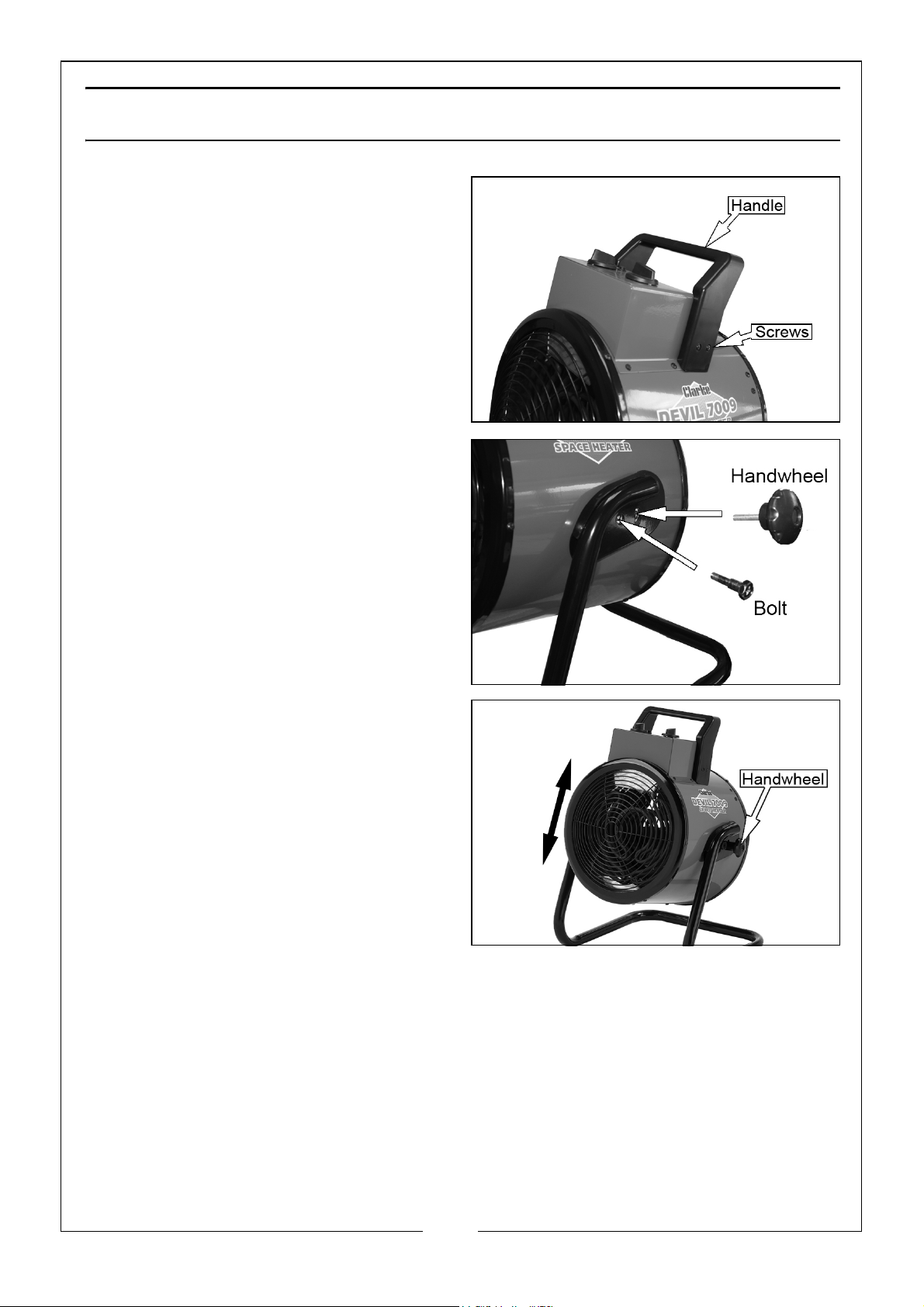

ASSEMBLY
1. Fit the handle to the main body
and secure using the four screws
supplied.
2. Fit the leg frame to the main body
as shown.
3. Secure using the bolt and
handwheel supplied.
NOTE: The bolt needs to be inserted
before the handwheel.
ADJUSTING THE ANGLE
1. Loosen both handwheels.
2. Adjust to the the required angle.
3. Retighten the handwheels.
8
Parts & Service: 020 8988 7400 / E-mail: [email protected] or [email protected]
Page 9
OPERATION
WARNING: DO NOT USE THIS HEATER IN SMALL ROOMS WHEN THEY ARE
OCCUPIED BY PERSONS NOT CAPABLE OF LEAVING THE ROOM ON THEIR
OWN, UNLESS CONSTANT SUPERVISION IS PROVIDED.
CAUTION: SOME PARTS OF THIS PRODUCT CAN BECOME VERY HOT AND
CAUSE BURNS. PARTICULAR ATTENTION HAS TO BE GIVEN WHERE
CHILDREN AND VULNERABLE PEOPLE ARE PRESENT.
1. Put the heater in a level position on a flat surface and at a safe distance
from flammable materials. Keep a minimum of 2m clearance all round.
2. Connect the heater to a suitable
power supply.
3. Set the thermostat control to the
maximum setting (fully clockwise).

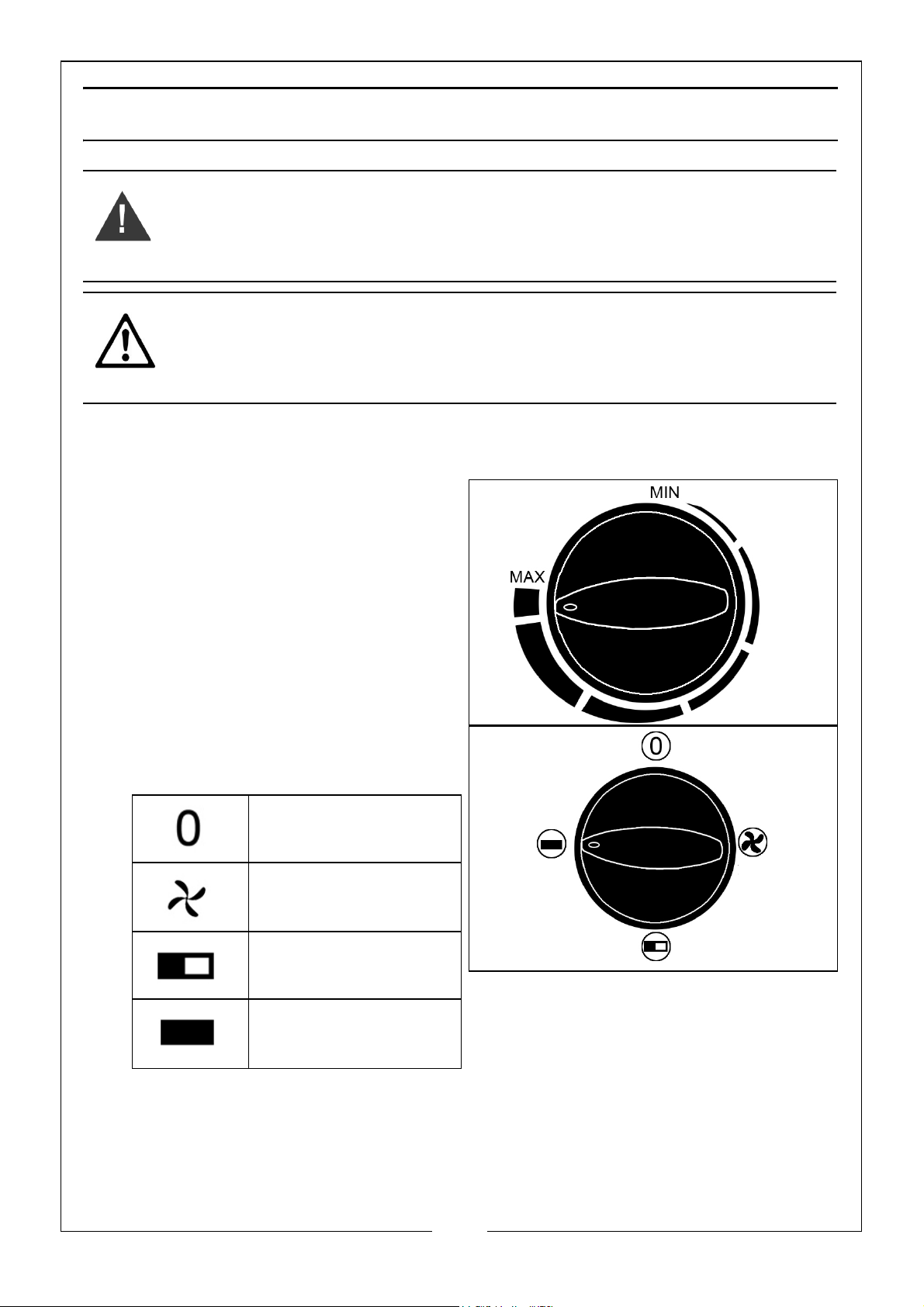

4. Set the mode selector to one of
the 3 settings:
Off
Fan Only
Heat Setting 1
Heat Setting 2
• The heater will take up to three minutes to reach optimum temperature.
5. Once the room reaches the required temperature, turn the thermostat
control slowly counter-clockwise until the thermostat clicks, leave the
control in this position.
9
Parts & Service: 020 8988 7400 / E-mail: [email protected] or [email protected]
Page 10
• The room temperature will be maintained at this setting. The heater will
continue to operate until the power switch is turned to the OFF position.
6. For fan only operation, turn the power switch to the fan only setting and set
the thermostat to its minimum setting.
7. When not in use, disconnect the heater from the mains supply. Store it in a
safe, dry, childproof location.
MAINTENANCE
WARNING: ALWAYS DISCONNECT FROM THE POWER SUPPLY AND ALLOW
THE HEATER IT TO COOL DOWN BEFORE PERFORMING ANY
MAINTENANCE TASKS.
• Clean the heater with a soft damp cloth. Do not use solvents or
abrasives.
• Make sure that the heater grill is not blocked.
• No other maintenance is required, should you discover any problem
with the heater, return it to the Clarke service department for repair.
SPECIFICATIONS
Operating Voltage and Frequency: (V / Hz / Phs) 400 V / 50Hz / 3 Phase
Operating Temperature: (Min/Max) (°C): 0-40°C
Heat Output: (kW): 9 kW
3
Air Output: (m
Safety Device: Thermal cut-out
Duty Cycle Classification: Continuous duty
Electrical Insulation Class I
/h) 474m3/h
Product: Depth x Width x Height 442 x 406 x 562 mm
Product Weight 10.5 kg
10
Parts & Service: 020 8988 7400 / E-mail: [email protected] or [email protected]
Page 11
TROUBLE SHOOTING
Problem Possible Cause Remedy
Heater does not
operate,
although
plugged in with
the switch and
thermostat
switched on.
Heating element
glowing hot.
The unit has failed
to heat up so only
the air fan has
operated.
Plug is loose/bad
connection.
Fuse blown or
circuit breaker
trips.
No power at
socket outlet
Input voltage too
high.
Air inlet grille is
blocked
Control switch not
set at a "HEATING"
level.
Thermostat has
tripped.
Pull the plug out & check all
connections (cable/plug and socket).
Replace if necessary and investigate
cause. If fuse blows repeatedly, consult
your Clarke dealer.
Insert the plug in a suitable socket.
Use a power supply in accordance
with the rating on the label.
Ensure the heater is kept away from
any objects which could cover the air
inlet or be drawn into it.
Turn switch to a heating level.
Turn the thermostat and listen. If there is
no CLICK and the thermostat is not
damaged, the heater will
automatically switch ON when it has
cooled down.
Abnormal noise. Heater is not level. Stand heater on a level surface
11
Parts & Service: 020 8988 7400 / E-mail: [email protected] or [email protected]
Page 12
Page 13

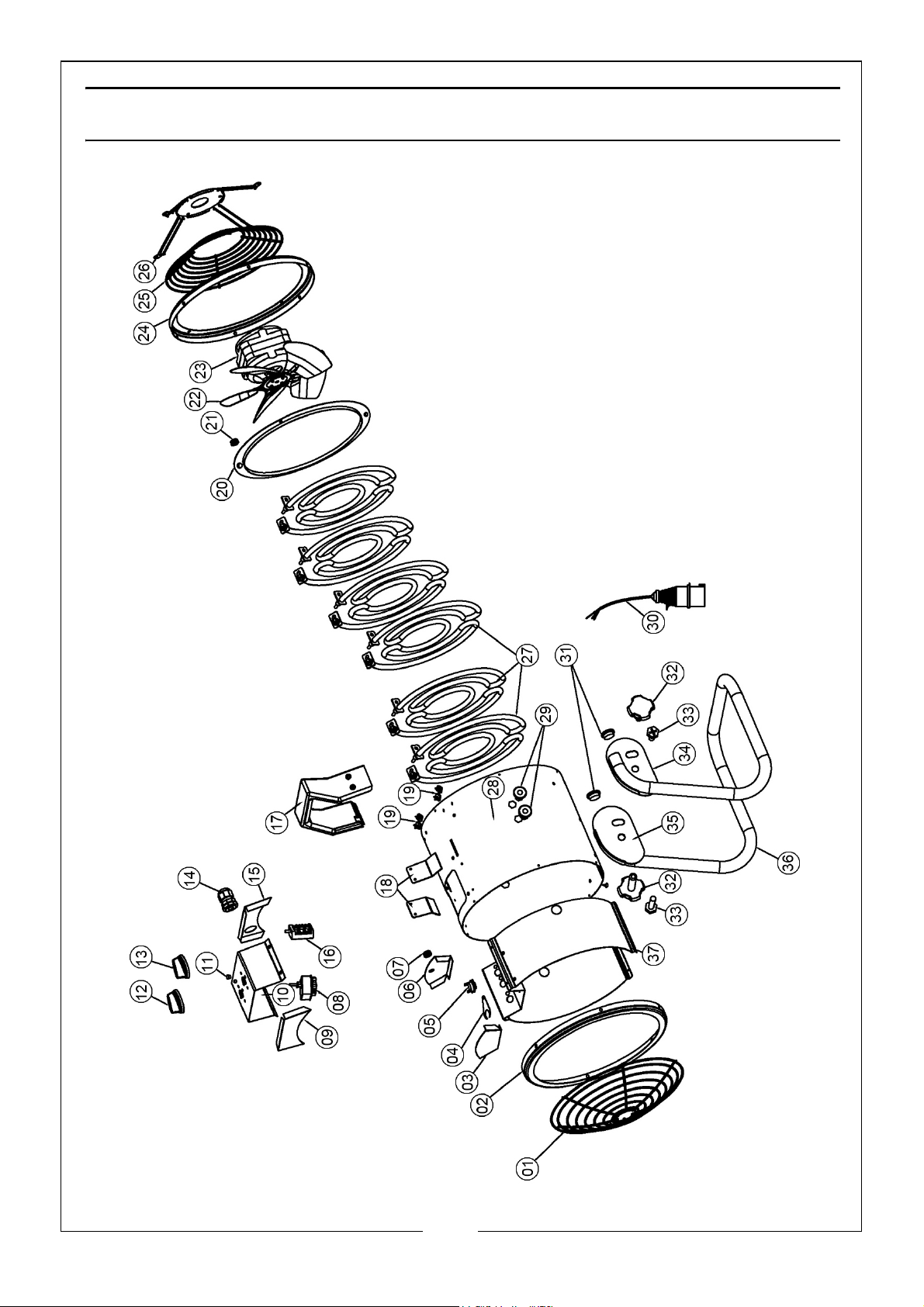

PARTS LIST
1 Front Grille 20 Closing Plate
2 Front Rings 21 Grommet
3 Chassis Panel Front 22 Fan
4 Temperature Sensor Clip 23 Motor
5 After Cooling Sensor 24 Rear Rings
6 Chassis Panel Rear 25 Rear Grille
7 Grommet 26 Motor Retaining Bracket
8 Temperature Controller 27 Heating Elements
9 Control Box Front 28 House Casing
10 Control Box 29 Rivet Nut
11 Reset Button 30 Mains Power Socket
12 Thermostat Knob 31 Decoration Cap
13 Switch Knob 32 Adjustable Screw
14 Supply Cable Entry 33 Fixing Bolt
15 Control Box Rear 34 Securing Plate L
16 Speed Controller 35 Securing Plate R
17 Plastic Handle 36 Frame
18 Handle Position 37 Heat Shield
19 Retaining Clips
Part number = (CXDEV7009 + the number of the part)
13
Parts & Service: 020 8988 7400 / E-mail: [email protected] or [email protected]
Page 14

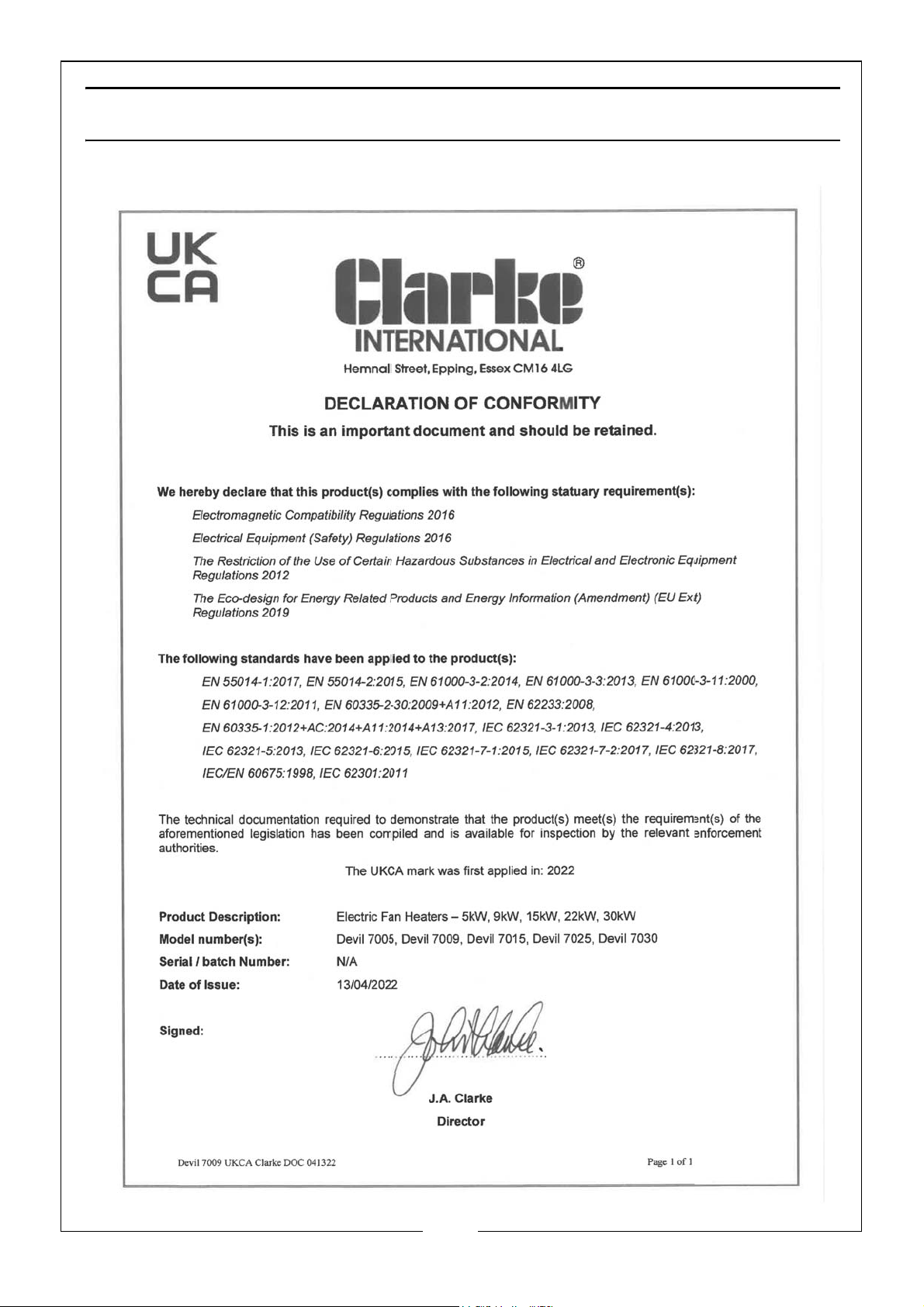

DECLARATION OF CONFORMITY - UKCA
14
Parts & Service: 020 8988 7400 / E-mail: [email protected] or [email protected]
Page 15

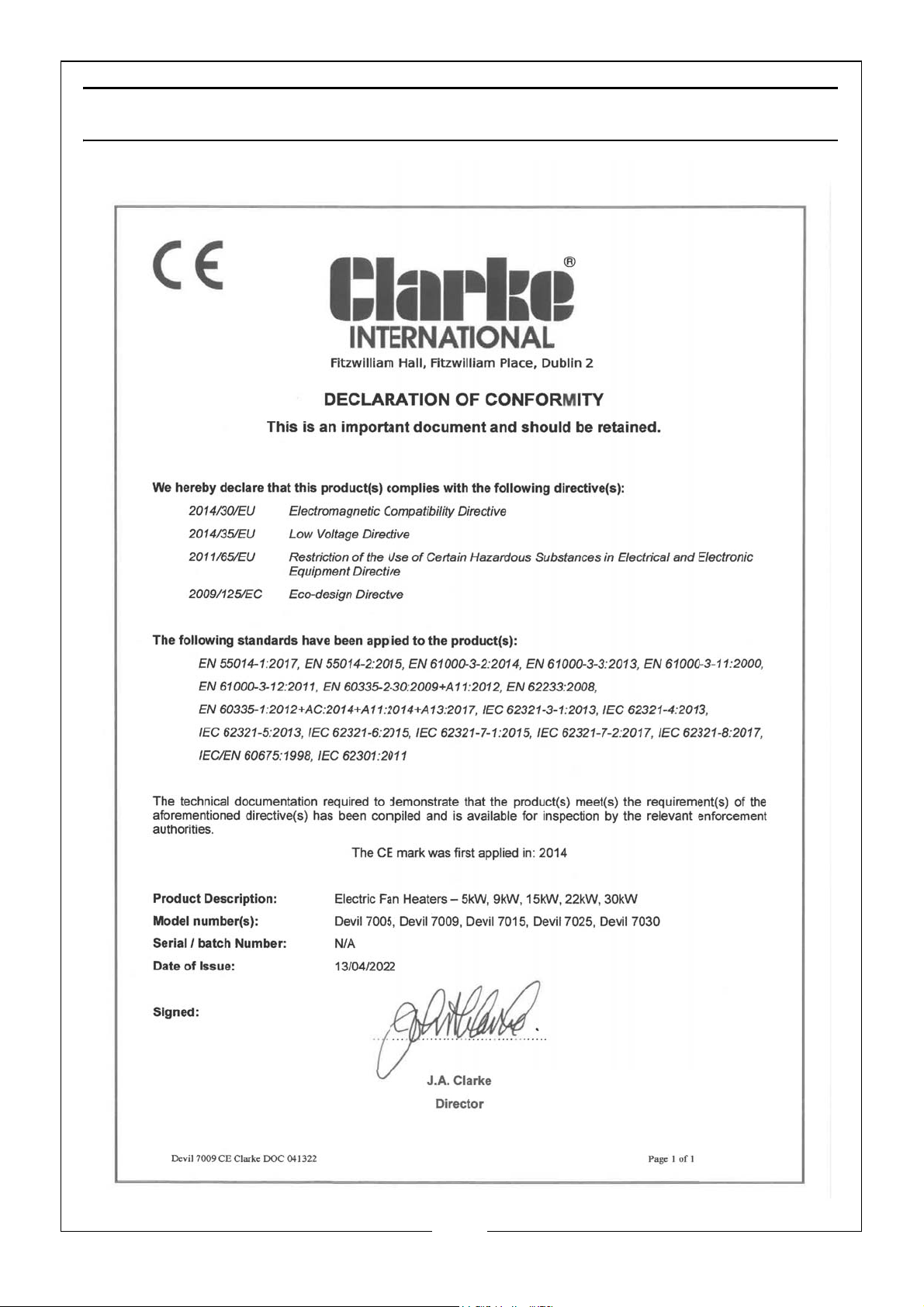

DECLARATION OF CONFORMITY - CE
15
Parts & Service: 020 8988 7400 / E-mail: [email protected] or [email protected]
Page 16
Loading...
