Clarke Devil 330, Devil 330 6920264, Devil 330 6920265 Operating & Maintenance Instructions

OPERATING & MAINTENANCE

INSTRUCTIONS

Devil 330

Part Nos: 6920264 (110V) & 6920265 (230V)

GC0310

DEVIL CERAMIC SPACE

HEATERS

2

INTRODUCTION

Thank you for purchasing this CLARKE Ceramic Space Heater.

Please read this manual thoroughly and follow the instructions carefully.
Before attempting to use the heater, thoroughly familiarise yourself with the
heater & its operation. In doing so you will ensure the safety of yourself and
that of others around you, and you can look forward to the heater giving you
long and satisfactory service.

GUARANTEE

This product is guaranteed against faulty manufacture for a period of 12
months from the date of purchase. Please keep your receipt which will be
required as proof of purchase.

This guarantee is invalid if the product is found to have been abused or
tampered with in any way, or not used for the purpose for which it was
intended.

Faulty goods should be returned to their place of purchase, no product can
be returned to us without prior permission.

This guarantee does not effect your statutory rights.

ENVIRONMENTAL PROTECTION

Do not dispose of this product with general household waste. This
product contains valuable raw materials and must be disposed of
according to the laws governing Waste Electrical and Electronic
Equipment, at a recognised disposal facility.

3

GENERAL SAFETY RULES

1) WORK AREA

1. These heaters are for INDOOR USE ONLY.

2. Do not expose the heater or power cable to rain or wet conditions. Any
water entering the heater will increase the risk of electric shock. DO NOT
use this heater in a bathroom, shower room or any other wet environment.

3. NEVER locate the heater near combustible materials such as curtains,
furniture etc. Allow at least 2 metre distance.

4. DO NOT locate the heater close to an adjacent wall or low ceiling. Allow
a distance of at least 1 metre from a wall or ceiling. Avoid placing the
heater directly below power socket outlets.

5. Take care to ensure that the front guard cannot be covered.

6. Do not operate heater in explosive atmospheres such as in the presence
of flammable liquids, gases or dust such as in a paint spray booth or any
explosive environment.

7. Never stand the heater on a movable vehicle where it could tip over.

8. Do not allow the emitters to become covered with dust which could
become a fire hazard. If used in a dusty workplace it should be cleaned
as described under Cleaning and Maintenance.

9. NEVER touch the emitters for at least 15 minutes after switching off.

10. DO NOT leave the heater unattended.

11. If children are present always use with a fireguard.

12. Store the heater out of the reach of children and do not allow persons
unfamiliar with these instructions to operate it.

13. Do not use this heater with a programmable timer used to switch it on
automatically.

14. Use ONLY in an upright position.

2) ELECTRICAL SAFETY

1. Electrical appliances must match the power outlet. Never modify the plug
in any way. Do not use adaptor plugs with earthed (grounded)
appliances. Correct plugs and outlets will reduce the risk of electric shock.

2. Do not abuse the electrical cable. Never use the cable for pulling or
unplugging the heater. Keep the cable away from sources of heat, oil,
sharp edges or moving parts. Damaged or tangled cables increase the
risk of electric shock.

3. Keep the mains cable well away from machines and ensure an adequate
electrical supply is close at hand so that the operation is not restricted by
the length of the cable.

4

4. ALWAYS disconnect from the mains supply before moving the heater, or
performing any cleaning or maintenance tasks.

5. Inspect the mains cable regularly for signs of damage. DO NOT use if it is
damaged, and ALWAYS keep it away from the source of heat.

6. Check the heater for damage before use. Any damage should be
properly repaired or the part replaced. If in doubt, DO NOT use. Consult
your local Clarke dealer.

3) SERVICE & REPAIRS

1. If necessary, have your heater repaired by a qualified person using
identical replacement parts. This will ensure that the safety of the
appliance is maintained.

Additionally, please keep these instructions in a safe place for future
reference.

ELECTRICAL CONNECTIONS

230V HEATER

The 230v model (Clarke part no 6920265) is provided with a 13 amp BS 1363 plug,
fitted with a 13amp fuse and MUST be connected to a standard, 230 Volt (50Hz)

electrical supply, preferably through a suitably fused isolator switch.

WARNING: THIS APPLIANCE MUST BE EARTHED

IMPORTANT: The wires in the mains lead should be wired up in accordance
with the following colour code:

Green & Yellow - Earth

Blue - Neutral

Brown - Live

As the colours of the flexible cable of this appliance may not correspond with
the coloured markings identifying terminals in your plug, proceed as follows:

•

Connect the GREEN & YELLOW coloured cord to the plug terminal
marked with a letter E or Earth symbol “

” or coloured GREEN or

GREEN & YELLOW.

• Connect the BROWN coloured cord to the plug terminal marked a

letter “L” or coloured RED.

•

Connect the BLUE coloured cord to the plug terminal marked a
letter “N” or coloured BLACK.

5

If this appliance is found to be fitted with a plug which is moulded on to the
electric cable (i.e. non-rewireable) please note:

1. The plug must be thrown away if it is cut from the electric cable. There is a
danger of electric shock if it is subsequently inserted into a socket outlet.

2. Never use the plug without the fuse cover fitted.

3. Should you wish to replace a detachable fuse carrier, ensure that the
correct replacement is used (as indicated by marking or colour code).

4. Replacement fuse covers can be obtained from your local Clarke dealer
or most electrical stockists.

FUSE RATING

The fuse in the plug must be replaced with one of the same rating and this
replacement must be ASTA approved to BS1362.

We strongly recommend that this machine is connected to the mains supply
via a Residual Current Device (RCD).

110V HEATER

The 110v model (Clarke part no 6920264) MUST be connected to a 110 Volt, 1
phase 50Hz supply through a suitably fused isolator switch. On no account
must a 230V, 13amp (BS1363) plug be used.

NOTE: If a portable 110V transformer is used, make sure it has a rated

capacity sufficient to take the load of the heater.

In the event that the heater is hard wired into the electrical system, it must be
carried out in accordance with IEE regulations.

The user should purchase a suitable connecting lead which is compatible
with the appliance socket. A length of 2-3 metres is recommended as giving
mobility to the heater but without becoming a trip hazard.

If in any doubt, consult a qualified electrician. DO NOT attempt any electrical
repairs yourself.

6

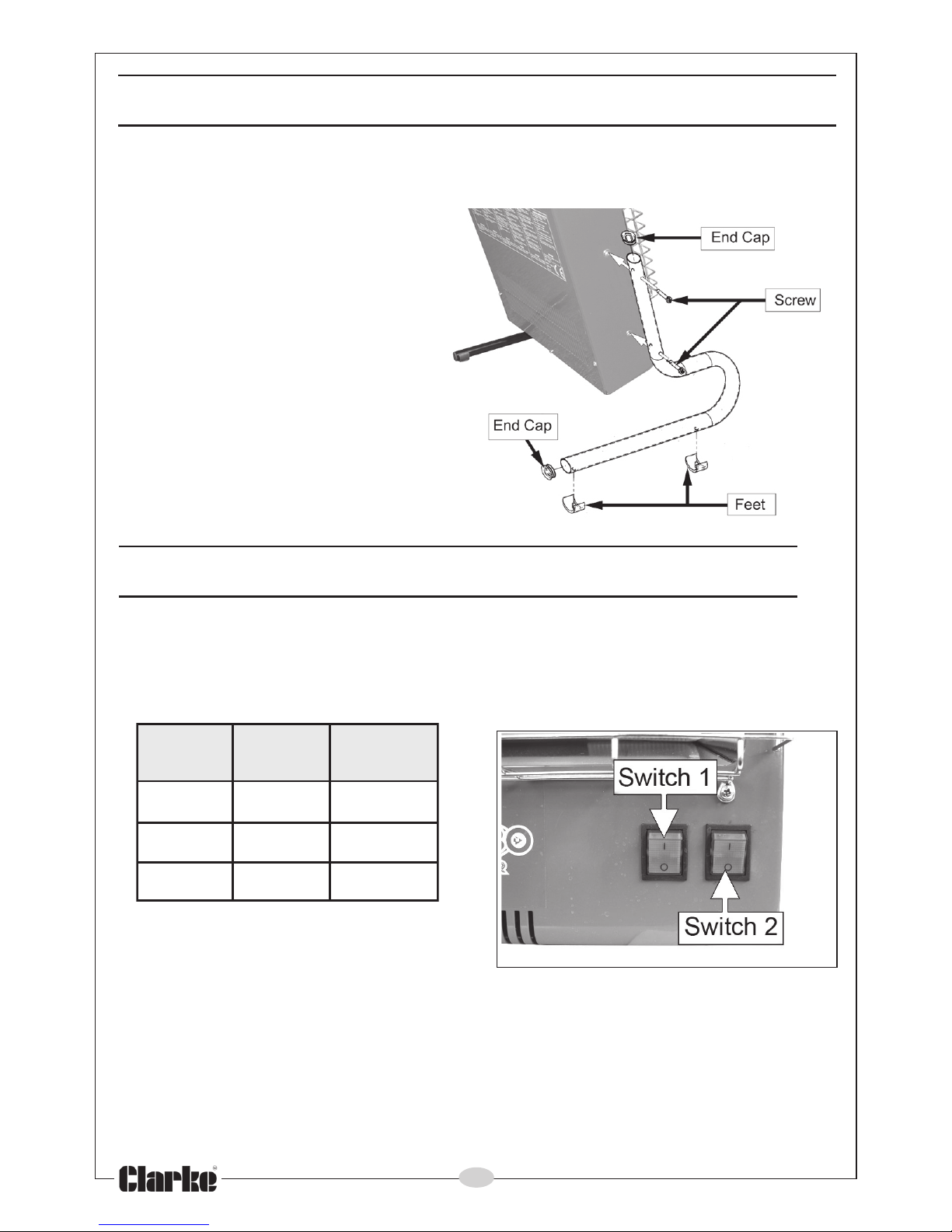

UNPACKING AND ASSEMBLY

Before assembling, please check contents against the following list and
advise your dealer immediately if any parts are missing.

1 x Heater

2 x Support Legs

4 x Screws

1. Attach the side legs to the
heater using the screws
provided.

2. Fit the feet and end caps as
shown.

3. DO NOT use the heater
without fitting the legs.

INSTRUCTIONS FOR USE

1. Place the heater on a firm, solid foundation, and following all safety
precautions, plug in to a suitable mains supply.

2. The power output can be adjusted at three settings.

HCTIWS

1

HCTIWS

2

TAEH

TUPTUO

NOFFOW008

FFONOW0061

NONOW0042

NOTE: The heater is equipped with a tip-over device that

automatically shuts the power off should the heater tip over.
If this happens, simply place the heater in its correct position
and it will immediately restart.

7

CLEANING & MAINTENANCE

ALWAYS allow the heater to cool down for at least 15 minutes and disconnect
from the mains supply before performing any maintenance tasks.

PERIODICALLY

• Inspect the mains cable for damage. Undue heat will cause the cable to
stiffen and crack. If this is found, have the cable replaced. Check cable
routing and ensure it is well away from the heat source.

• Disconnect from the mains supply, remove the guard and wipe the
reflector and elements with a clean damp cloth. DO NOT use abrasive
cleaners. Take care that no moisture enters the heater.

• Refer to your CLARKE dealer if internal maintenance is required.

• When storing the heater, allow it to cool down, then place it in its packing
box for storage in a dry, ventilated place.

CERAMIC ELEMENT REPLACMENT

Ceramic elements are long lasting and should not need replacing under
normal circumstances. Should this become necessary take the heater to your
Clarke dealer.

For parts & Servicing, please contact your nearest dealer, or

CLARKE International, on one of the following numbers.

PARTS & SERVICE TEL: [phone]

PARTS & SERVICE FAX: [phone]

or e-mail as follows:

PARTS: [e-mail]

SERVICE: [e-mail]

8

melborP esuaCelbissoP ydemeR

tonseodretaeH

hguohtla,etarepo

dnanideggulp

.nodehctiws

dab/esoolsigulP

.noitcennoc

ehtkcehc&tuogulpehtlluP

dnagulpehtfonoitcennoc

.tekcos

nwolbesuFdnayrassecenfiecalpeR

swolbesuffI.esuacetagitsevni

EKRALCruo

ytlusnoc,yldetaeper

.relaed

tekcostarewopoN

.teltuo

elbatiusanigulpehttresnI

.tekcos

tnemelegnitaeH

.tohgniw

olg

hgihootegatlovtupnI

.wolootro

niylppusrewopaesU

gnitarehthtiwecnadrocca

.lebalehtno

yltrapsitelniriA

.de

kcolb

yawatpeksiretaehehterusnE

slairetamrostcejboynamorf

ehtrevocyllaitrapdluochcihw

.tiotninwardebrodraugtnorf

FAULT FINDING

9

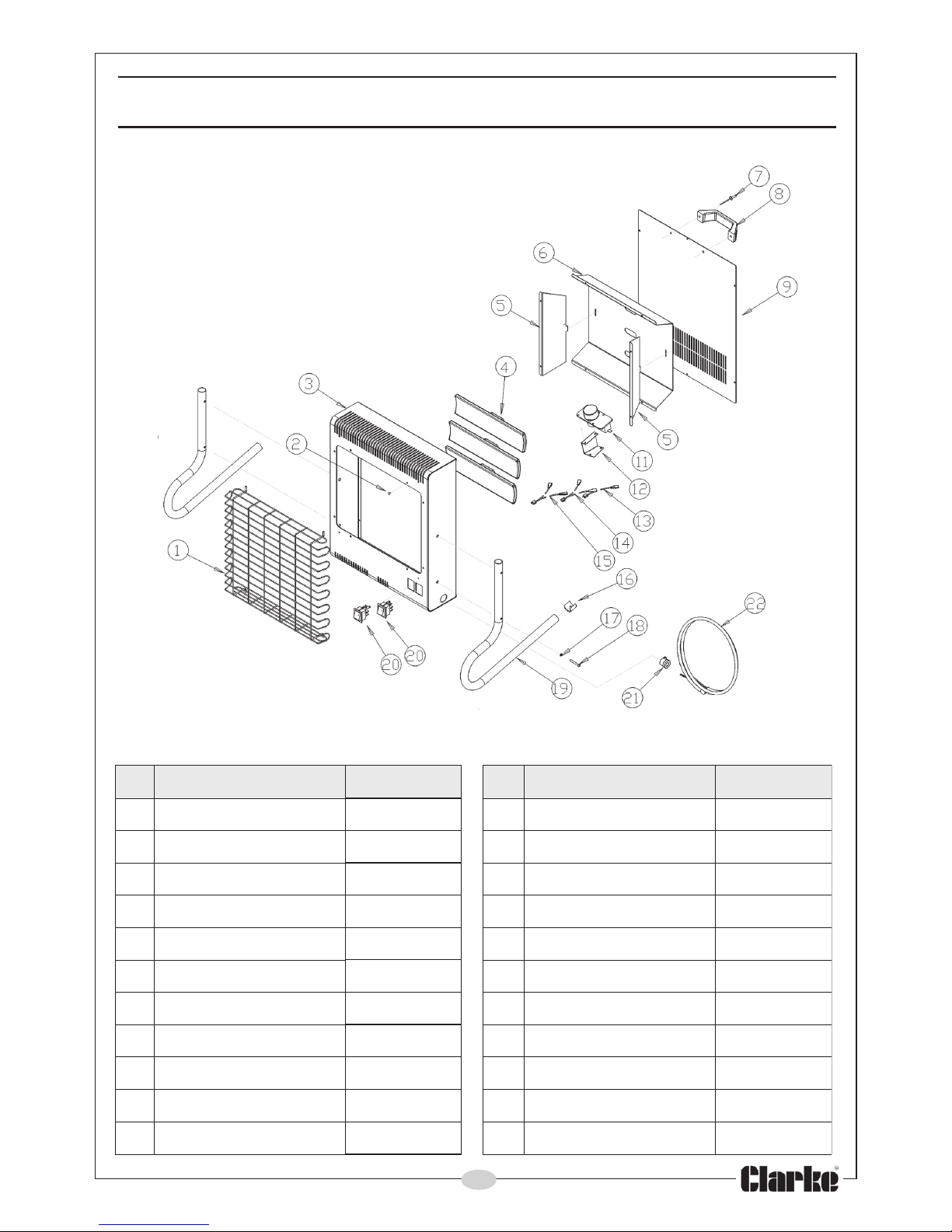

COMPONENT PARTS

oN noitpircseD oNtraP oN noitpircseD oNtraP

1drauGtnorF71004202XA31elbaC52109302XA

2wercS97003202XA41elbaC62109302XA

3lenaPtnorF58903602XA51elbaC72109302XA

4t

nemelEgnitaeH61007002XA61tooFrebbuR71002002XA

5lenaProtcelfeRediS32003602XA71rehsaW84103202XA

6lenaProtcelfeRniaM2

2003602XA81wercS67003202XA

7teviR19103202XA91tooF42001602XA

8eldnaH70001002XA02hctiwSFFO/NO41002302XA

9lenaPraeR0990360

2XA12pmalCelbaC11001302XA

11hctiwSrevo-piT71002302XA22elbaCrewoP60409302XA

21troppuShctiwS70202602XA

10

TECHNICAL SPECIFICATION

Please note that the details and specifications contained herein, are correct
at the time of going to print. However, CLARKE International reserve the right
to change specifications at any time without prior notice.

A selection of suitable extension leads & plugs is available from your nearest
CLARKE dealer, for further information, contact your nearest dealer, or
telephone CLARKE International Sales department on 01992 565300.

ledoM 033liveD

oNtraP46202965620296

thgieWgk6gk6

mm)HxWxL(snoisnemiD525x004x563525x004x563

tuptuOtaeH.xaMW0042/0061/00

8W0042/0061/008

tnerruCdetaRA8.12A5.01

egatloVylppuShp1/zH05/v011hp1/zH05/v032

gnitaresuFA31A31

ssalCnoitalusnI02

PI02PI

11

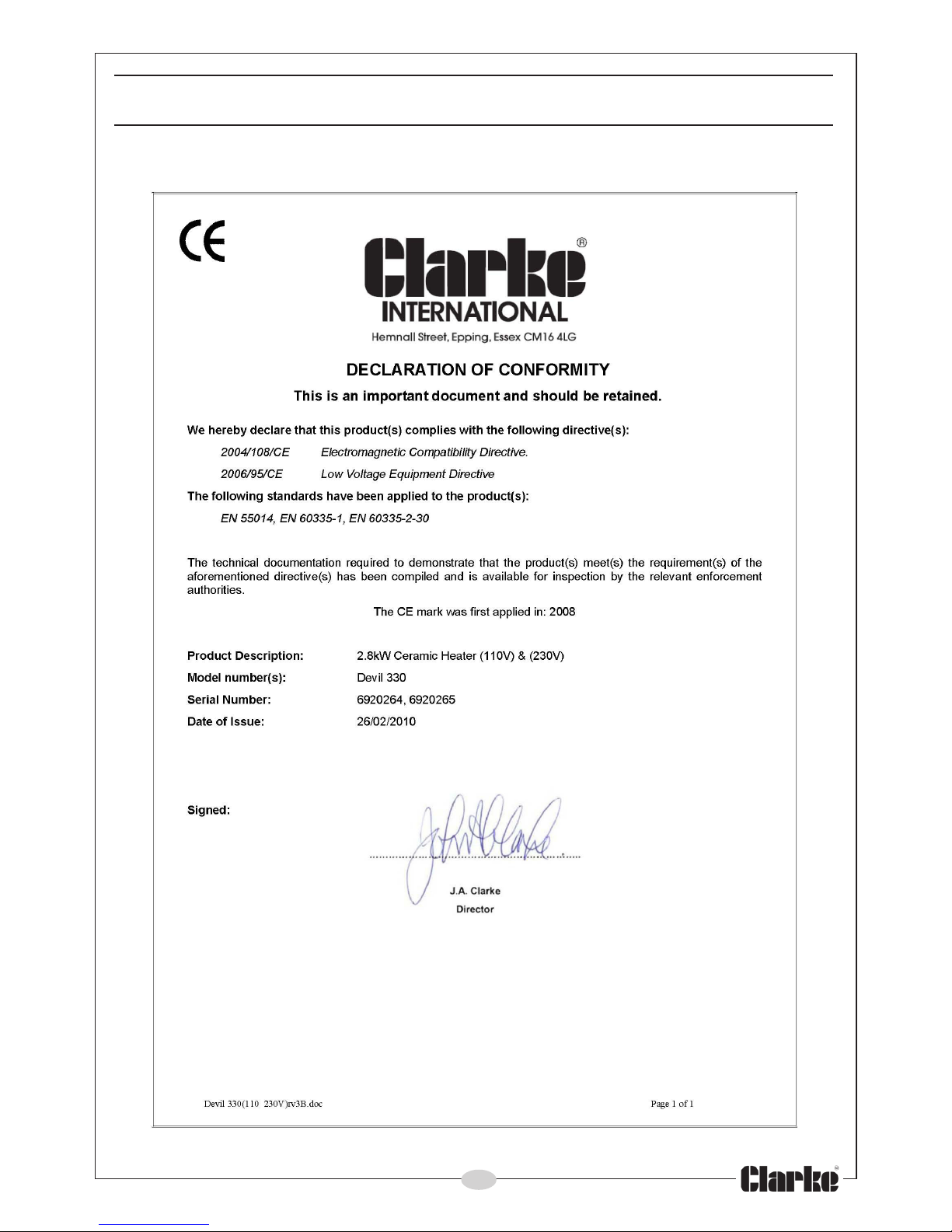

DECLARATION OF CONFORMITY
