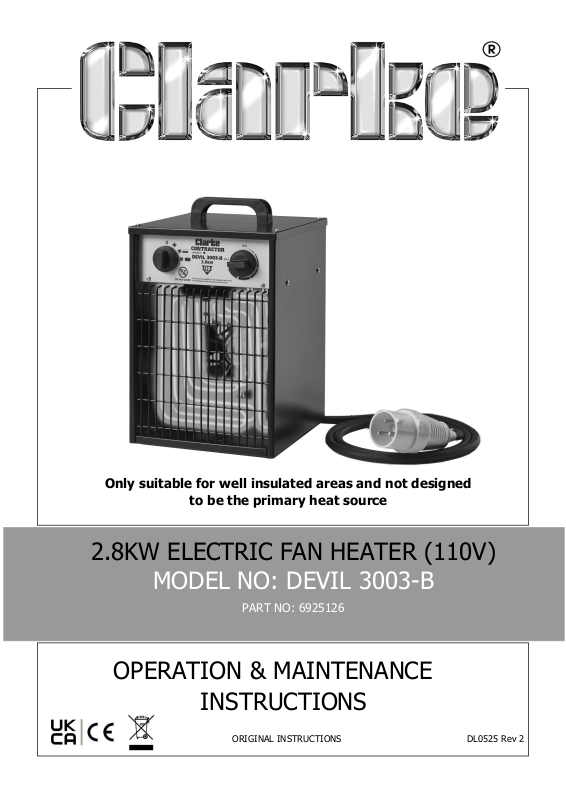

2.8KW ELECTRIC FAN HEATER (110V)
MODEL NO: DEVIL 3003-B
PART NO: 6925126
OPERATION & MAINTENANCE
INSTRUCTIONS
ORIGINAL INSTRUCTIONS DL0525 Rev 2
Page 2
INTRODUCTION
Thank you for purchasing this CLARKE product.
Before attempting to use this product, read this manual carefully. In doing so you
guarantee the safety of yourself and that of others around you, and you can look
forward to your purchase giving you long and satisfactory service
GUARANTEE
This product is guaranteed against faulty manufacture for a period of 12 months from
the date of purchase. Please keep your receipt as proof of purchase.
This guarantee is invalid if the product is found to have been abused, tampered with,
or not used for the purpose for which it was intended. Faulty goods must be returned
to their place of purchase, no product can be returned to us without prior permission.
This guarantee does not effect your statutory rights.
FUNCTION AND OPERATING PARAMETERS
This is a forced air heater. It’s intended use is for drying and the warming of
commercial/industrial buildings and construction sites and areas where adequate
ventilation is provided.
• It must be operated as prescribed in the operating manual.
• It is not intended to be used for domestic use or for the heating of habitable
areas.
• It is not intended to be used to reach and maintain a certain level of human
thermal comfort within an enclosed space in which the heater is situated.
• It is not intended to be used in enclosed areas with restricted ventilation.
• It is not intended for warming animals or live stock.
2
Parts & Service: 020 8988 7400 / E-mail: [email protected] or [email protected]
Page 3
THE FOLLOWING TABLE ADDRESSES THE
INFORMATION REQUIREMENTS OF REG.2024/
1103
Item Symbol Value Unit
Heat output
Nominal heat output P
Minimum heat output (indicative) P
Maximum continuous heat output P
nom
min
max, c
2.800 kW
1.400 kW
2.800 kW
Auxiliary electricity consumption
In off mode P
In standby mode P
In idle mode P
In network standby P
Seasonal space heating energy efficiency in active mode n
o
sm
idle
nsm
s, on
0.000 W
0.000 W
0.000 W
0.000 W
85 %
Standby mode with display information or status - No -
Type of heat output/room temperature control (select one)
Single stage heat output, no temperature control No
Two or more manual stages, no temperature control No
With mechanical thermostat temp control Yes
With electronic temperature control No
Electronic temperature control with day timer No
Electronic temperature control with week timer No
Other control options (multiple selections possible)
Room temperature control with presence detection No
Room temperature control with open window detection No
Room temperature control with distance control option No
Room temperature control with adaptive start control No
Room temperature control with working time limitation No
Room temperature control with black bulb sensor No
Room temperature control with self-learning functionality No
Room temperature control with control accuracy No
3
Parts & Service: 020 8988 7400 / E-mail: [email protected] or [email protected]
Page 4
SAFETY RULES
Make sure that you read, understand and comply with the following guidance. These
safety symbols should appear on the heater.
GENERAL
• DO NOT operate the heater when you are tired or under the influence of
alcohol, drugs or intoxicating medication.
• DO NOT stand on the heater.
• DO NOT use if dropped. DO NOT use if there is visible signs of damage.
• DO NOT use the heater with wet hands or when there is water on the power
cable.
• Turn the heater off when not in use and keep it in a safe, dry, childproof
location.
• The heater is designed to heat enclosed areas such as workshops and other
industrial areas. DO NOT use the heater for any other function. It is not
suitable for drying clothes or laundry.
Hot Surface,
Do Not Touch
Read the
manual
Do Not Cover
• This heat can be used by children aged 8 and above and persons with reduced
physical, sensory and mental capabilities or lack of knowledge if they have
been given instruction concerning the use of the appliance in a safe way and
understand the hazards.
• Children of less than 3 years should be kept away unless continuously
supervised.
ELECTRICAL SAFETY
WARNING: THIS HEATER MUST BE EARTHED AND IS ONLY FOR USE
WITH A 110VOLT SUPPLY.
• Regularly inspect the power cable / plugs for damage/looseness. DO NOT use
the heater it the power cable is damaged.
• Minimise the risk of electric shock by installing a RCCB (Residual Current Circuit
Breaker) and a suitable isolator into the main distribution board.
4
Parts & Service: 020 8988 7400 / E-mail: [email protected] or [email protected]
Page 5
• Make sure that the voltage on the rating label is the same as the voltage of the
power supply. If in doubt, consult a qualified electrician.
• DO NOT abuse the electrical cable. DO NOT use the cable for pulling or
unplugging the heater.
• Keep the cable away from sources of heat, oil, sharp edges or moving parts.
Damaged or tangled cables increase the risk of electric shock.
• DO NOT use extension cables with this heater.
POSITIONING
WARNING: DO NOT USE THE HEATER NEAR FLAMMABLE MATERIAL,
LIQUIDS, SOLIDS, GASES OR COMPRESSED GAS CYLINDERS ETC.
• This heater is designed for indoor use only.
• DO NOT use this heater in small rooms when they are occupied by persons not
capable of leaving the room on their own, unless constant supervision is
provided.
• DO NOT place the heater close to a bath, wash basin, shower, swimming pool
or any other water-filled area or wet surface. DO NOT place the heater against
any surface such as a wall, door or furniture etc.
• DO NOT place the heater immediately below any electrical outlet.
• NEVER place the heater near textiles, curtains or combustible materials etc.
Allow 2 metres clearance all round this heater.
• DO NOT place the heater on a raised surface or anywhere it could topple over.
ONLY use this heater on a horizontal and stable surface.
• Take care to ensure that the grille cannot be blocked.
• DO NOT operate fan heater in explosive atmospheres such as in the presence
of flammable liquids, gases or dust such as in a paint spray booth, or any
explosive environment. Electric motors create sparks which may ignite dust or
fumes.
OPERATION
• The heater must only be used by people who have read these instructions and
have been trained in its use.
• DO NOT obstruct the air inlet and outlet sections of the heater.
• DO NOT cover the heater.
• DO NOT touch the heater casing or grille when first switched off, as these will
be very hot and will take time to cool.
5
Parts & Service: 020 8988 7400 / E-mail: [email protected] or [email protected]
Page 6
• DO NOT get the heater wet or use in areas of high condensation.
• DO NOT allow the power lead to touch hot surfaces.
• DO NOT connect other appliances to the same mains socket as the heater.
• DO NOT use this heater with a programmable timer used to switch it on
automatically.
• CAUTION: Some parts of this product can become very hot and cause burns.
Particular attention should be given where children, vulnerable people and
animals are present.
SPECIFICATIONS
Operating Voltage / Frequency 110V / 50Hz
Maximum output 2.8kW (2 x elements 1.4kW)
Temperature Setting Range 0 to +40°C
Input Wattage:
Fan only
Heat Setting 1
Heat Setting 2
Required Power 25.5A
Max Air Output
Safety Devices Thermal cut-out
Ingress Protection IPX0
Duty cycle S1-continuous
Depth x Width x Height 255 x 255 x 390 mm
Weight 4.6 kg
0.04 kW
1.4 kW
2.8 kW
570 m3/h
6
Parts & Service: 020 8988 7400 / E-mail: [email protected] or [email protected]
Page 7
ELECTRICAL CONNECTIONS
WARNING: READ THESE ELECTRICAL SAFETY INSTRUCTIONS
THOROUGHLY BEFORE CONNECTING THE HEATER TO THE
POWER SUPPLY.
This heater MUST be connected to a 110 Volt, 1 phase 50Hz supply through
a suitably fused isolator switch. ON NO ACCOUNT MUST A 230V, 13AMP
(BS1363) PLUG BE USED.
If the plug has to be changed because it is not suitable for your socket, or because of
damage, it must be removed and a replacement fitted, following the wiring
instructions shown below. The old plug must be discarded safely, as insertion into a
power socket could cause an electrical hazard.
WARNING: THE WIRES IN THE POWER CABLE OF THIS
PRODUCT ARE COLOURED IN ACCORDANCE WITH THE
FOLLOWING CODE:
BLUE = NEUTRAL BROWN = LIVE YELLOW AND GREEN =
EARTH
If the colours of the wires in the power cable do not agree with the markings on the
plug.
• The BLUE wire must be connected to the terminal marked N or coloured black.
• The BROWN wire must be connected to the terminal marked L or coloured red.
• The YELLOW AND GREEN wire must be connected to the terminal marked E or
or coloured green.
We strongly recommend that this machine is connected to the mains
supply through a RCCB (Residual Current Circuit Breaker).
NOTE: If a portable 110V transformer is used, make sure it has a rated capacity
sufficient to take the load of the heater.
In the event that the heater is hard wired into the electrical system, it must be carried
out in accordance with IEE regulations.
Any power supply provided by the user must be comparable with the power cable
supplied with the heater, and any additional cables should not be allowed to cause a
trip hazard.
If in any doubt, consult a qualified electrician. DO NOT attempt any electrical repairs
yourself.
7
Parts & Service: 020 8988 7400 / E-mail: [email protected] or [email protected]
Page 8
OPERATION
WARNING: DO NOT USE THIS HEATER IN SMALL ROOMS IF
OCCUPIED BY PERSONS NOT CAPABLE OF LEAVING THE ROOM ON
THEIR OWN UNLESS CONSTANT SUPERVISION IS PROVIDED.
CAUTION: SOME PARTS OF THIS PRODUCT CAN BECOME VERY HOT AND
CAUSE BURNS. PARTICULAR ATTENTION HAS TO BE GIVEN WHERE
CHILDREN AND VULNERABLE PEOPLE ARE PRESENT.

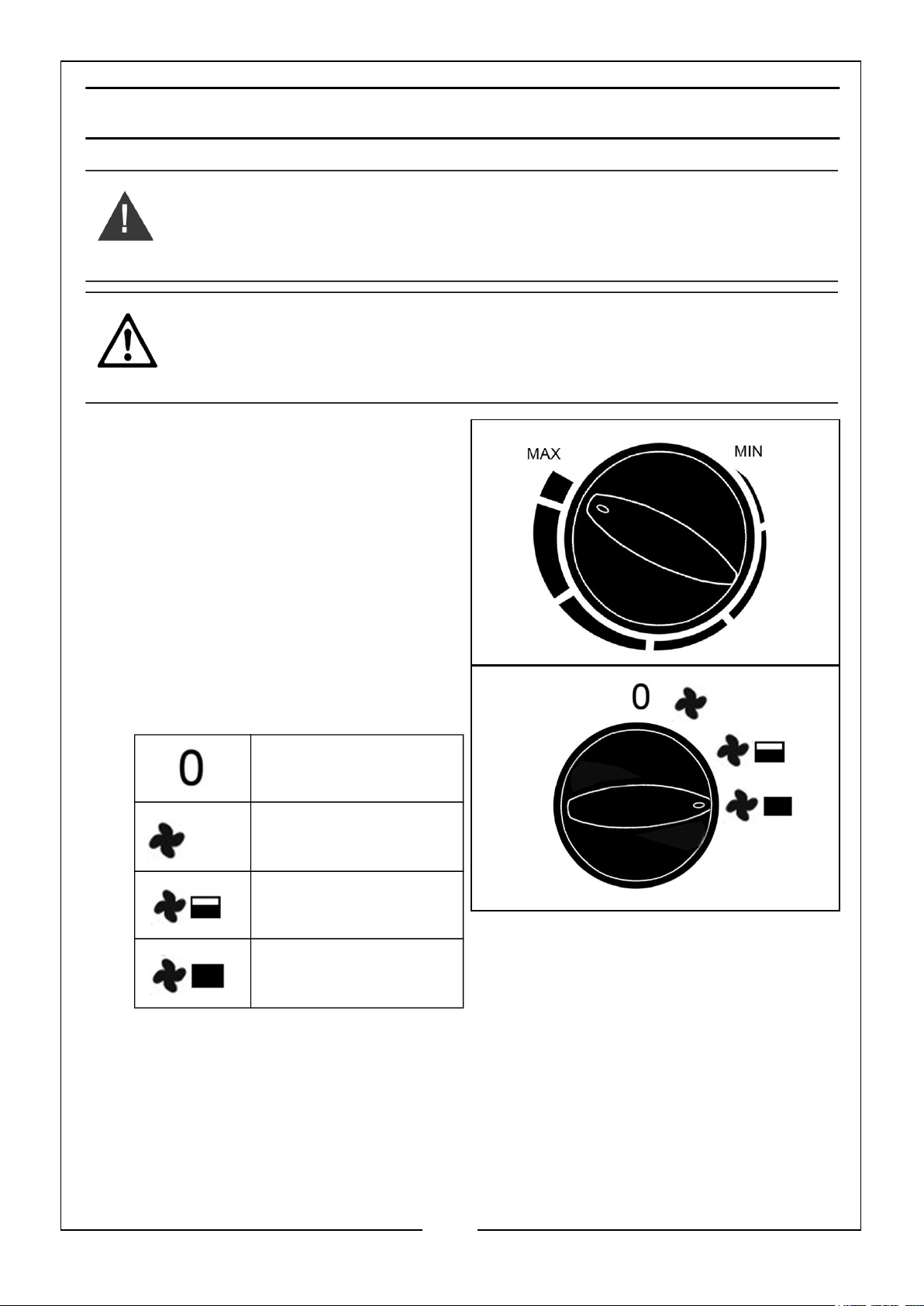

1. Put the heater in a level position on a
flat surface and at a safe distance
from flammable materials. Keep a
minimum of 2m clearance all round.
2. Connect the heater to a suitable
110V power supply.
3. Set the thermostat control to the
maximum setting (fully clockwise).
4. Set the mode selector to one of the 3
settings:
Off
Fan only
Fan + Heat Setting 1
Fan + Heat Setting 2
5. Once the room reaches the required temperature, turn the thermostat control
slowly counter-clockwise until the thermostat clicks. Leave the control in this
position.
• The room temperature will be maintained at this setting. The heater will
continue to operate until the power switch is turned to the OFF position.
8
Parts & Service: 020 8988 7400 / E-mail: [email protected] or [email protected]
Page 9
6. When not in use, disconnect the heater from the power supply. Store it in a safe,
dry, childproof location.
SAFETY DEVICE
This heater is fitted with a thermal cut-out safety device which prevents the unit
overheating.
If the thermal cut-out device is actuated, the heating elements will switch off and the
fan with continue to run to cool the unit.
Allow time for the unit to cool (10 mins) before manually re-setting.

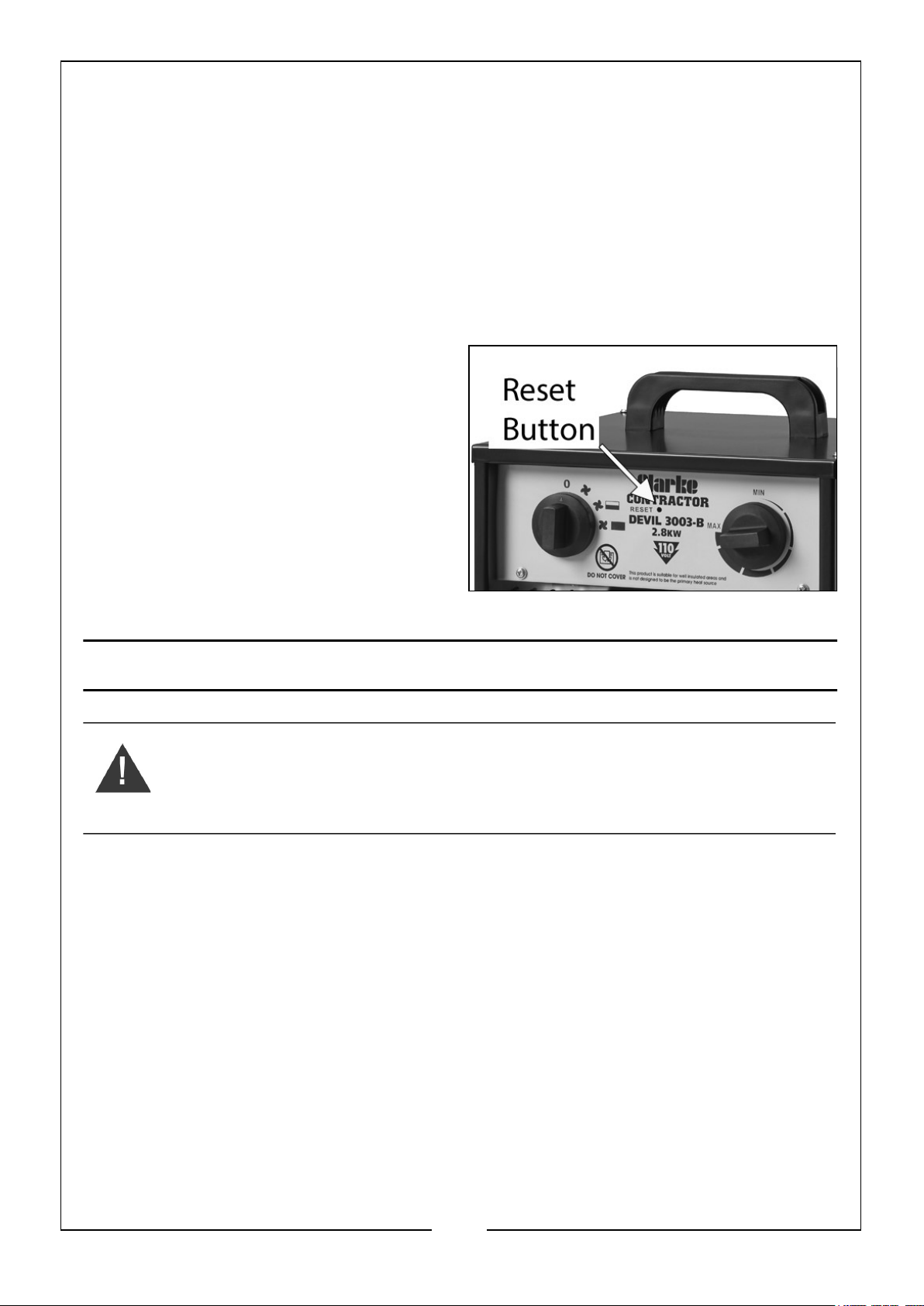

To re-set, firmly press the button located
on the front panel using a suitable tool.
MAINTENANCE
WARNING: ALWAYS DISCONNECT FROM THE POWER SUPPLY AND
ALLOW THE HEATER IT TO COOL DOWN BEFORE PERFORMING ANY
MAINTENANCE TASKS.
• Clean the heater with a soft damp cloth, DO NOT use solvents or abrasives.
• Check that the heater is in good working order. Take immediate action to have
any damaged parts repaired or replaced by the Clarke service department.
• DO NOT allow the heating elements to become covered with dust which could
become a fire hazard. If used in a dusty workplace it should be cleaned as
described under Maintenance on page 9.
• Only recommended parts should be used. Unapproved parts may be dangerous
and will invalidate the warranty.
• Have your heater repaired by a qualified person using identical replacement
parts. This will ensure that the safety of the heater is maintained.
9
Parts & Service: 020 8988 7400 / E-mail: [email protected] or [email protected]
Page 10
FAULT FINDING
Problem Possible Cause Remedy
Heater does
not
operate,
although
plugged in with
the selector
switch and
thermostat
switched on.
Heating
element
glowing hot.
Heater has
failed to heat
up so only the
air fan has
operated.
Plug is loose/bad
connection.
Fuse blown or
circuit breaker has
tripped.
No power at socket
outlet.
Input voltage too
high.
Air inlet grille is
blocked.
Thermostat has
tripped.
Pull the plug out & check the connection of the
plug and socket.
Replace if necessary and investigate cause. If
fuse blows repeatedly, consult your Clarke
dealer.
Insert the plug in a functioning socket.
Use a power supply in accordance with the
rating on the product label.
Ensure the heater is kept away from any
objects which could cover the air inlet or be
drawn into it.
Turn the thermostat and listen. If there is no
CLICK and the thermostat is not damaged, the
heater will automatically switch ON when it has
cooled down.
Abnormal
noise.
Heater is not level. Stand the heater on a level surface.
ENVIRONMENTAL RECYCLING POLICY
Through purchase of this product, the customer is taking on the obligation
to deal with the WEEE in accordance with the WEEE regulations in relation
to the treatment, recycling & recovery and environmentally sound disposal
of the WEEE.
In effect, this means that this product must not be discarded with general household
waste. It must be discarded according to the laws governing Waste Electrical and
Electronic Equipment (WEEE) at a recognised disposal facility.
10
Parts & Service: 020 8988 7400 / E-mail: [email protected] or [email protected]
Page 11
DECLARATIONS OF CONFORMITY
11
Parts & Service: 020 8988 7400 / E-mail: [email protected] or [email protected]
Page 12
Loading...
