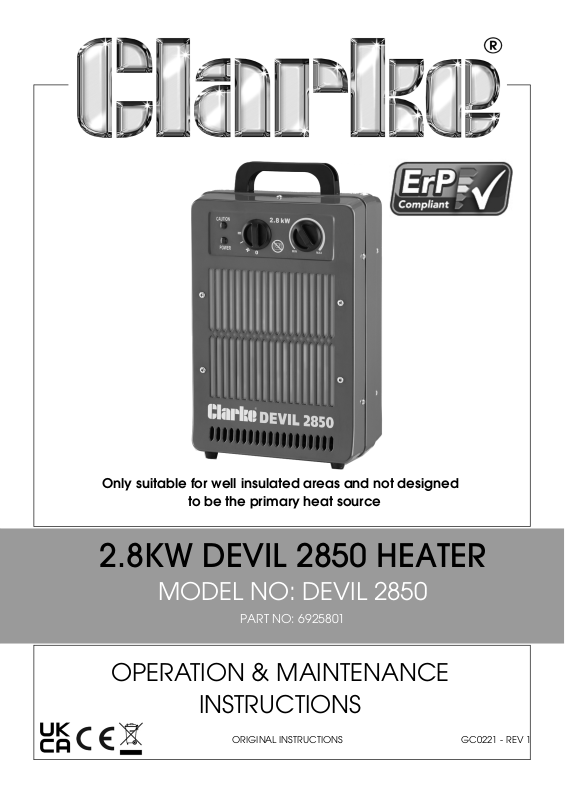

Clarke Devil 2850, 6925801 User guide

Only suitable for well insulated areas and not designed

to be the primary heat source

2.8KW DEVIL 2850 HEATER

MODEL NO: DEVIL 2850

PART NO: 6925801

OPERATION & MAINTENANCE

INSTRUCTIONS

ORIGINAL INSTRUCTIONS GC0221 - REV 1

INTRODUCTION

Thank you for purchasing this CLARKE product.

Before attempting to use this product, read this manual carefully. In doing so
you guarantee the safety of yourself and that of others around you, and you
can look forward to your purchase giving you long and satisfactory service

GUARANTEE

This product is guaranteed against faulty manufacture for a period of 12
months from the date of purchase. Please keep your receipt as proof of
purchase.

This guarantee is invalid if the product is found to have been abused,
tampered with, or not used for the purpose for which it was intended. Faulty
goods must be returned to their place of purchase, no product can be
returned to us without prior permission.

This guarantee does not effect your statutory rights.

SPECIFICATIONS

Operating Voltage / Frequency 230V / 50Hz

Operating Temperature Range -15 to +25°C

Input Wattage:

Fan only

Fan + Heat 1

Fan + Heat 2

Heat output 2.8 kW

Max Air Output 415 m

Safety Devices Thermal cut-out

Ingress Protection IP20

Depth x Width x Height 145 x 235 x 390 mm

Weight 2.5 kg

Duty cycle S1 (continuous)

Sound Power Level 45 dB LWA

0.025 kW

1.4 kW

2.8 kW

3/h

Tip-over switch

2

Parts & Service: 020 8988 7400 / E-mail: [e-mail] or [e-mail]

THE FOLLOWING TABLE ADDRESSES THE INFORMATION
REQUIREMENTS OF REG.2015/1188

Item Symbol Value Unit Item Unit

Heat output Type of heat input for electric storage local

Measured seasonal space

40% Manual heat charge control with

heating energy efficiency

Nominal heat
output

Minimum heat
output

P

P

nom

min

2.8 kW Manual heat charge control with room

1.4 kW Electronic heat charge control with

(indicative)

Maximum
continuous

P

2.8 kW Fan assisted output n/a

max

heat output

Auxiliary electricity consumption Type of heat output/room temperature control

At nominal
heat output

At minimum
heat output

In standby
mode

Parts & Service: 020 8988 7400 / E-mail: [e-mail] or [e-mail]

el

el

el

N/A kW Single stage heat output, no

max

N/A kW Two or more manual stages, no

min

N/A kW With mechanical thermostat temp

SB

heaters only

n/a

integrated thermostat

n/a

and/or outdoor temperature feedback

n/a
room and/or outdoor temperature
feedback

(select one)

No

temperature control

No

temperature control

Yes

control

With electronic temperature control No

Electronic temperature control with day

No

timer

Electronic temperature control with

No

week timer

Other control options (multiple selections
possible)

Room temperature control with

No

presence detection

Room temperature control with open

No

window detection

Room temperature control with

No

distance control option

Room temperature control with

No

adaptive start control

Room temperature control with working

No

time limitation

Room temperature control with black

No

bulb sensor

3

SAFETY RULES

Make sure that you read, understand and comply with the following rules..

WARNING: THIS PRODUCT IS ONLY SUITABLE FOR WELL INSULATED AREAS
AND IS NOT DESIGNED TO BE THE PRIMARY HEAT SOURCE.

SAFE WORKING PRACTICES

• DO NOT operate the heater when you are tired or under the influence of
alcohol, drugs or intoxicating medication.

• DO NOT stand on the heater.

• DO NOT use the heater with wet hands or in wet conditions.

• Turn the heater off when not in use and keep it in a safe, dry location.

The heater is designed to heat enclosed areas such as workshops and other
industrial areas but should not be used in confined spaces. Do not use the
heater for any other function. It is not suitable for drying clothes or laundry.

ELECTRICAL SAFETY

WARNING: THIS HEATER MUST BE EARTHED.

• Regularly inspect the power cable / plug for signs of damage/looseness.
DO NOT use the heater it the power cable is damaged.

• Minimise the risk of electric shock by installing a RCCB (Residual Current
Circuit Breaker) and a suitable isolator into the main distribution board.

• Make sure that the voltage on the rating label is the same as the voltage
of the power supply. If in doubt, consult a qualified electrician.

• DO NOT abuse the electrical cable. Never use the cable for pulling or
unplugging the heater.

• Keep the cable away from sources of heat, oil, sharp edges or moving
parts. Damaged or tangled cables increase the risk of electric shock.

• DO NOT use extension cables with this heater.

4

Parts & Service: 020 8988 7400 / E-mail: [e-mail] or [e-mail]

POSITIONING

WARNING: DO NOT USE THE HEATER NEAR FLAMMABLE MATERIAL,
LIQUIDS, SOLIDS, GASSES OR COMPRESSED GAS CYLINDERS ETC.

• This heater is designed for indoor use only.

• DO NOT place the heater close to any water-filled area or wet surface.

• DO NOT place the heater against any surface such as a wall, door or
furniture etc.

• DO NOT place the heater immediately below any electrical outlet.

• NEVER place the heater near combustible materials. Allow at least 2
metre clearance.

• DO NOT place the heater on a raised surface or anywhere where it
could topple over.

• ALWAYS ensure that the grille cannot be blocked.

• DO NOT operate fan heaters in explosive atmospheres such as in the
presence of flammable liquids, gasses or dust such as in a paint spray
booth or any explosive environment. Electric motors create sparks which
may ignite dust or fumes.

OPERATION

• The heater must only be used by people who have read these
instructions and have been trained in its use.

• DO NOT obstruct the air inlet and outlet sections of the heater.

• DO NOT cover the heater with anything that could restrict the air flow.

• DO NOT touch the heater casing or grille when first switched off, as these
will be very hot and will take time to cool.

• DO NOT get the heater wet or use in areas of high condensation.

• DO NOT allow the power lead to touch hot surfaces.

• DO NOT connect other appliances to the same mains socket as the
heater.

• ONLY use the heater in a level position.

• DO NOT use this heater with a programmable timer used to switch it on
automatically.

• DO NOT leave the heater unattended.

• ALWAYS switch the heater off at night.

5

Parts & Service: 020 8988 7400 / E-mail: [e-mail] or [e-mail]

MAINTENANCE

• Check that the heater is in good working order. Take immediate action
to have any damaged parts repaired or replaced by the CLARKE
service department.

• DO NOT allow the heating elements to become covered with dust
which could become a fire hazard. If used in a dusty workplace it should
be cleaned as described under Maintenance on page 10.

• Only recommended parts should be used. Unapproved parts may be
dangerous and will invalidate the warranty.

• Have your heater repaired by a qualified person using identical
replacement parts. This will ensure that the safety of the heater is
maintained.

SAFETY SYMBOLS

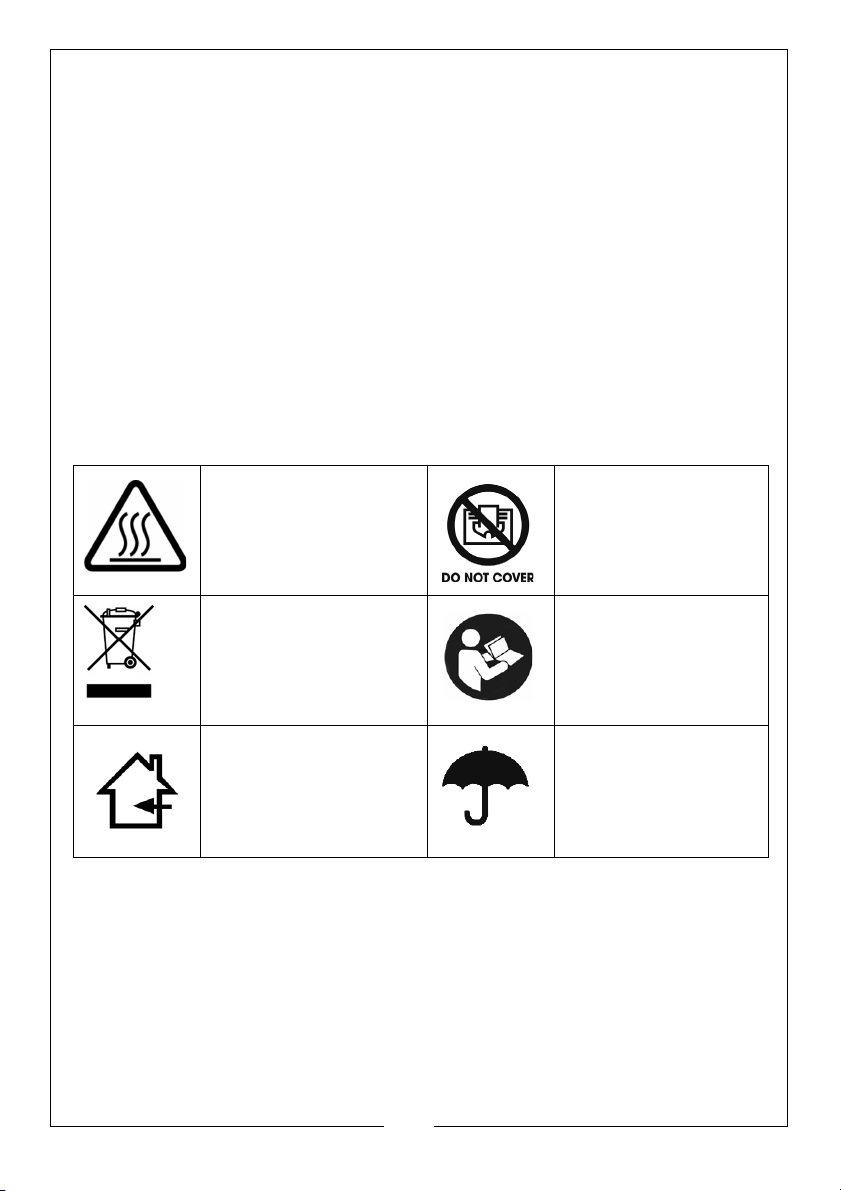

These safety symbols appear on the heater.

Hot Surface
Do not touch

WEEE Directive for the
disposal of Waste
Electrical & Electronic
Equipment

Suitable for indoor use
only

Do not cover

Read instruction
manual before use

Protect from splashing

6

Parts & Service: 020 8988 7400 / E-mail: [e-mail] or [e-mail]

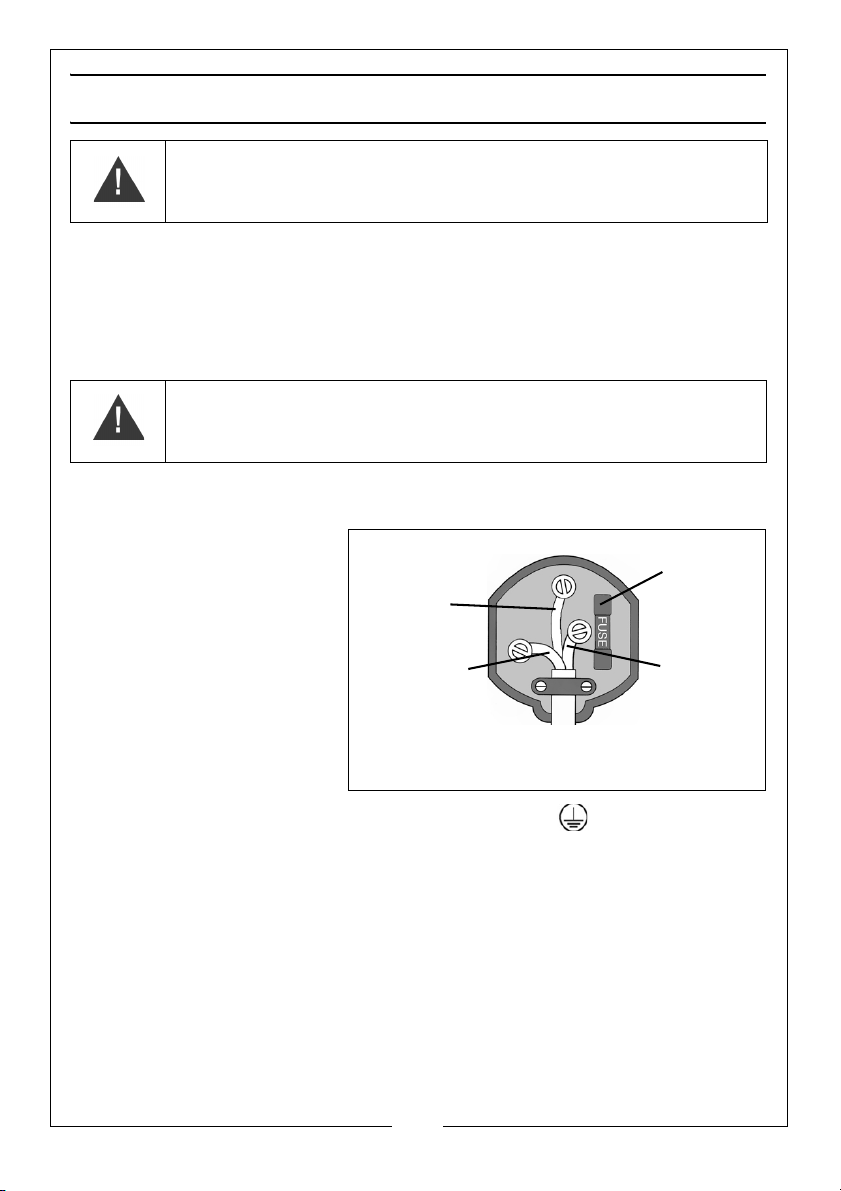

ELECTRICAL CONNECTIONS

Plug must be BS1363/A approved.

Always fit

Ensure that the outer sheath of

Neutral

(Blue)

Live

(Brown)

Earth

(Green and

a 13 Amp

the cable is firmly held by the clamp

fuse.

Yel low)

WARNING: READ THESE ELECTRICAL SAFETY INSTRUCTIONS
THOROUGHLY BEFORE CONNECTING THE HEATER TO THE MAINS
SUPPLY.

Connect the mains lead to a standard, 230 Volt (50Hz) electrical supply
through an approved 13 amp BS 1363 plug, or a suitably fused isolator switch.

If the plug has to be changed because it is not suitable for your socket, or
because of damage, it must be removed and a replacement fitted, following
the wiring instructions shown below. The old plug must be discarded safely, as
insertion into a power socket could cause an electrical hazard.

WARNING: THE WIRES IN THE POWER CABLE OF THIS PRODUCT ARE
COLOURED IN ACCORDANCE WITH THE FOLLOWING CODE:
BLUE = NEUTRAL BROWN = LIVE YELLOW AND GREEN = EARTH

If the colours of the wires in the power cable do not agree with the markings
on the plug:

• The BLUE wire must be
connected to the
terminal which is
marked N or coloured
black.

• The BROWN wire must
be connected to the
terminal which is
marked L or coloured
red.

• The YELLOW AND
GREEN wire must be

connected to the terminal which is marked E or or coloured green.

We strongly recommend that this machine is connected to the mains supply
through a Residual Current Circuit Breaker (RCCB).

If you are not sure, consult a qualified electrician.

Parts & Service: 020 8988 7400 / E-mail: [e-mail] or [e-mail]

7

OPERATION

WARNING: DO NOT USE THIS HEATER IN SMALL ROOMS IF OCCUPIED BY
PERSONS NOT CAPABLE OF LEAVING THE ROOM ON THEIR OWN, UNLESS
CONSTANT SUPERVISION IS PROVIDED.

CAUTION: SOME PARTS OF THIS PRODUCT CAN BECOME VERY HOT AND
CAUSE BURNS. PARTICULAR ATTENTION HAS TO BE GIVEN WHERE
CHILDREN AND VULNERABLE PEOPLE ARE PRESENT.

1. Put the heater in a level position
on a firm, flat surface and at a
safe distance from flammable
materials. Keep a minimum of 2m
clearance all round.

2. Connect the heater to a suitable
power supply.

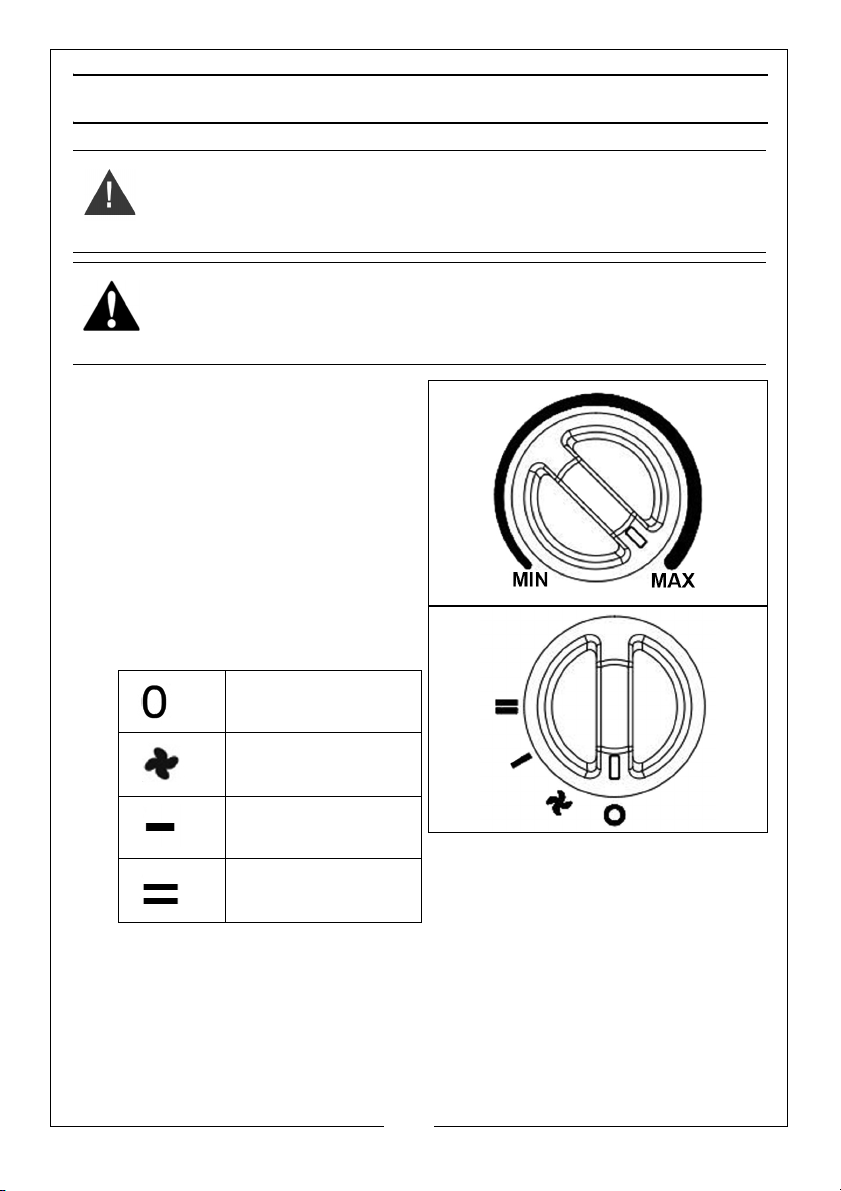

3. Set the selector switch to one of
the 3 settings:

Off

Fan only

Fan + Heat Setting 1

Fan + Heat Setting 2

4. Set the thermostat control to the maximum setting (fully clockwise) and let
the heater operate on full power.

5. The heater will switch on when the selector is set to one of the power
settings.

8

Parts & Service: 020 8988 7400 / E-mail: [e-mail] or [e-mail]

6. Once the room reaches the required temperature, the heating element
will stop working and will come back on automatically to maintain a
constant temperature in the room.

7. Turn the thermostat control slowly counter-clockwise until the thermostat
clicks off to set the running temperature. Leave the control in this position.

8. When not in use, disconnect the heater from the mains supply.

SAFETY SYSTEMS

The Devil 2850 has a thermal cut out to prevent the unit from overheating.

If the temperature of the front grille gets too high the thermal cutout will turn
off the heating elements. When the fan has cooled the unit sufficiently, normal
operation will resume.

In the event of the heater falling over, the tip-over switch will cut off the power
until it is set upright again.

FAULT FINDING

Problem Possible Cause Remedy

Heater does
not operate
although
plugged in with
the switch and
thermostat
switched on.

Heating
element
glowing hot.

Heater has
failed to heat
up so only the
air fan has
operated.

Abnormal
noise.

Plug is loose/bad
connection.

Fuse blown or
circuit breaker has
tripped.

No power at
socket outlet

Input voltage too
high.

Air inlet grille is
blocked

Thermostat has
tripped.

Heater is not level. Stand heater on a level surface

Check the connection of the plug and
socket.

Replace if necessary and investigate
cause. If fuse blows repeatedly, consult
your CLARKE dealer.

Insert the plug in a functioning socket.

Use a power supply in accordance with
the rating on the label.

Ensure the heater is kept away from any
objects which could cover the air inlet or
be drawn into it.

Turn the thermostat and listen. If there is
no CLICK and the thermostat is not
damaged, the heater will automatically
switch ON when it has cooled down.

9

Parts & Service: 020 8988 7400 / E-mail: [e-mail] or [e-mail]

MAINTENANCE

WARNING: ALWAYS DISCONNECT FROM THE POWER SUPPLY AND ALLOW
THE HEATER IT TO COOL DOWN BEFORE PERFORMING ANY
MAINTENANCE TASKS.

1. Clean the heater with a soft damp cloth, Do not use solvents or abrasives.

2. No other maintenance is required, should you discover any problem with
the heater, return it to the CLARKE service department for repair.

3. Store the heater in a dry, ventilated place.

ENVIRONMENTAL RECYCLING POLICY

By purchasing this product, the customer is taking on the obligation
to deal with its safe disposal in accordance with the Waste Electrical
and Electronic Equipment (WEEE).

This product must not be disposed of with general household waste
but be disposed of according to the laws governing Waste Electrical and
Electronic Equipment (WEEE) at a recognised disposal facility.

This product contains valuable raw materials. Metal products should be taken
to your local civic amenity site for recycling.

10

Parts & Service: 020 8988 7400 / E-mail: [e-mail] or [e-mail]

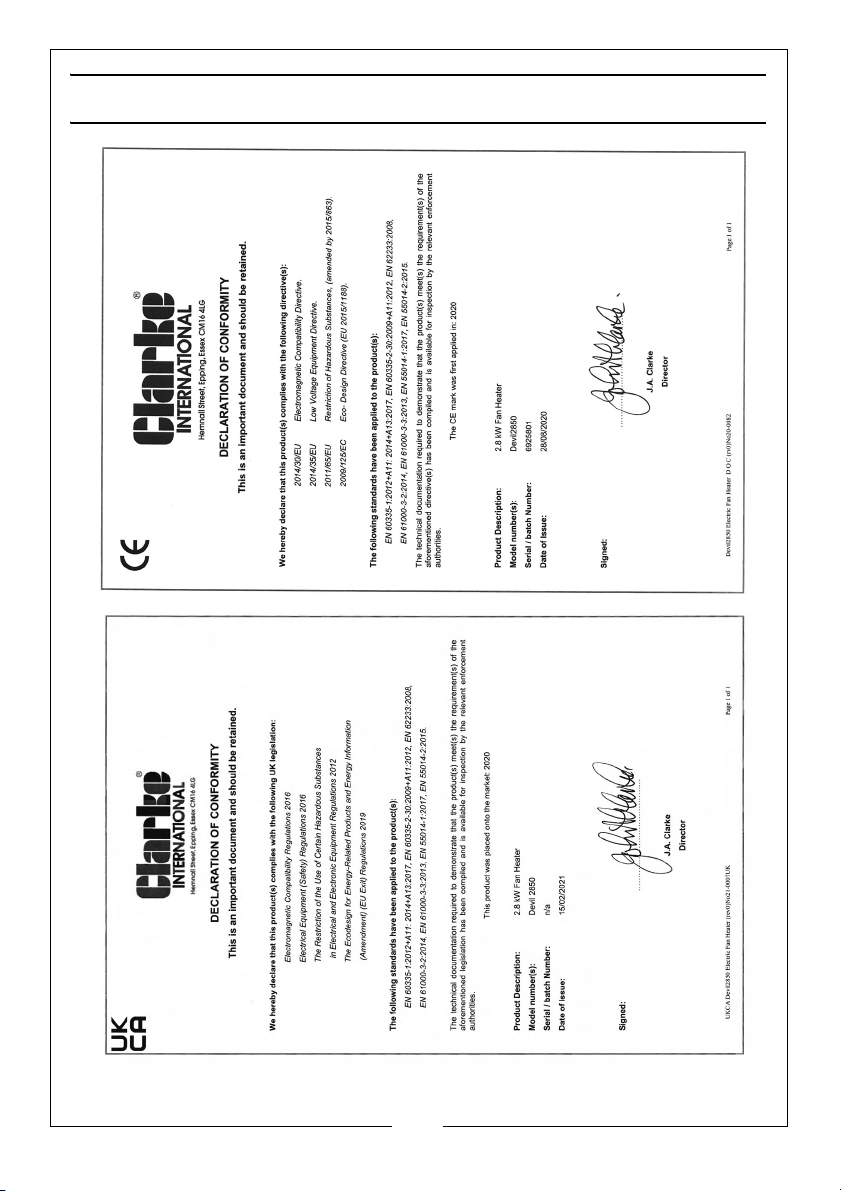

DECLARATIONS OF CONFORMITY

11

Parts & Service: 020 8988 7400 / E-mail: [e-mail] or [e-mail]
