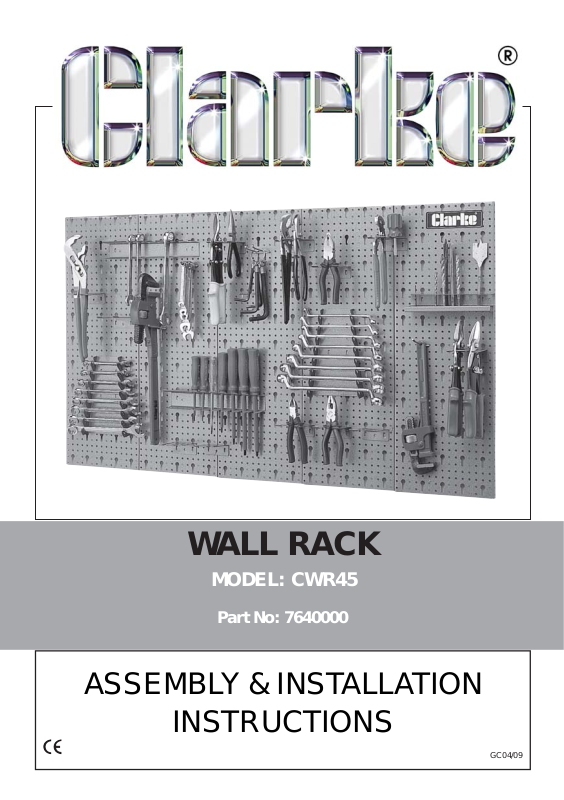

Page 1
WALL RACK
MODEL: CWR45
Part No: 7640000
ASSEMBLY & INSTALLATION
INSTRUCTIONS
GC04/09
Page 2
INTRODUCTION
Thank you for purchasing this CLARKE wall rack. Please follow these assembly
instructions carefully.
GUARANTEE
This CLARKE product is guaranteed against faulty manufacture for a period of
12 months from the date of purchase. Please keep your receipt as proof of
purchase. This guarantee is invalid if the product is found to have been
abused or tampered with in any way, or not used for the purpose for which it
was intended. Faulty goods should be returned to their place of purchase, no
product can be returned to us without prior permission. This guarantee does
not effect your statutory rights.
ENVIRONMENTAL PROTECTION
Do not dispose of this product with general household waste. All tools,
accessories and packaging should be sorted, taken to a re-cycling
centre and disposed of appropriately.
SPECIFICATION
• Dimensions (mm) 1130 long x 630 high x 14 deep
• Weight 6.5kg
PARTS & SERVICE
For parts & service, please contact your nearest dealer, or CLARKE Interna-
tional, on one of the following numbers.
PARTS & SERVICE TEL: 020 8988 7400 / FAX: 020 8558 3622
or e-mail as follows:
PARTS: [email protected]
SERVICE: [email protected]
2
Page 3
PARTS LIST
Unpack your wall rack and check to ensure that no damage was suffered
during transit. Should any damage be apparent, you should contact your
Clarke dealer immediately.
The kit comprises: 5 x panels
9 x assorted tool holders
12 x peg hooks
8 x sets of bolts & nuts
6 screws with rawlplugs
Tools required: power drill with masonry drill bits
x-head screwdriver
5.5mm spanner/ small screwdriver
ASSEMBLY
1. Fix the five panels together, side by side, using the nuts and bolts supplied.
Use two bolts per panel joint. Fully tighten all the nuts.
2. Mark the intended position of the product on the wall. Accurately measure the distance between the centres of the holes of the integral supporting brackets on the back of each panel.
• End and centre panels only should be used for fixing.
3. Mark these hole centres on the wall and drill holes for the rawlplugs
supplied. Secure the screws into each fixing position.
4. The wall rack can now be hung on these screws, ensuring the head of
each screw locates into the supporting bracket on the back of each
panel.
5. After securing the wall rack to the wall, attach the tool holders and peg
hooks into the desired positions to suit your tools.

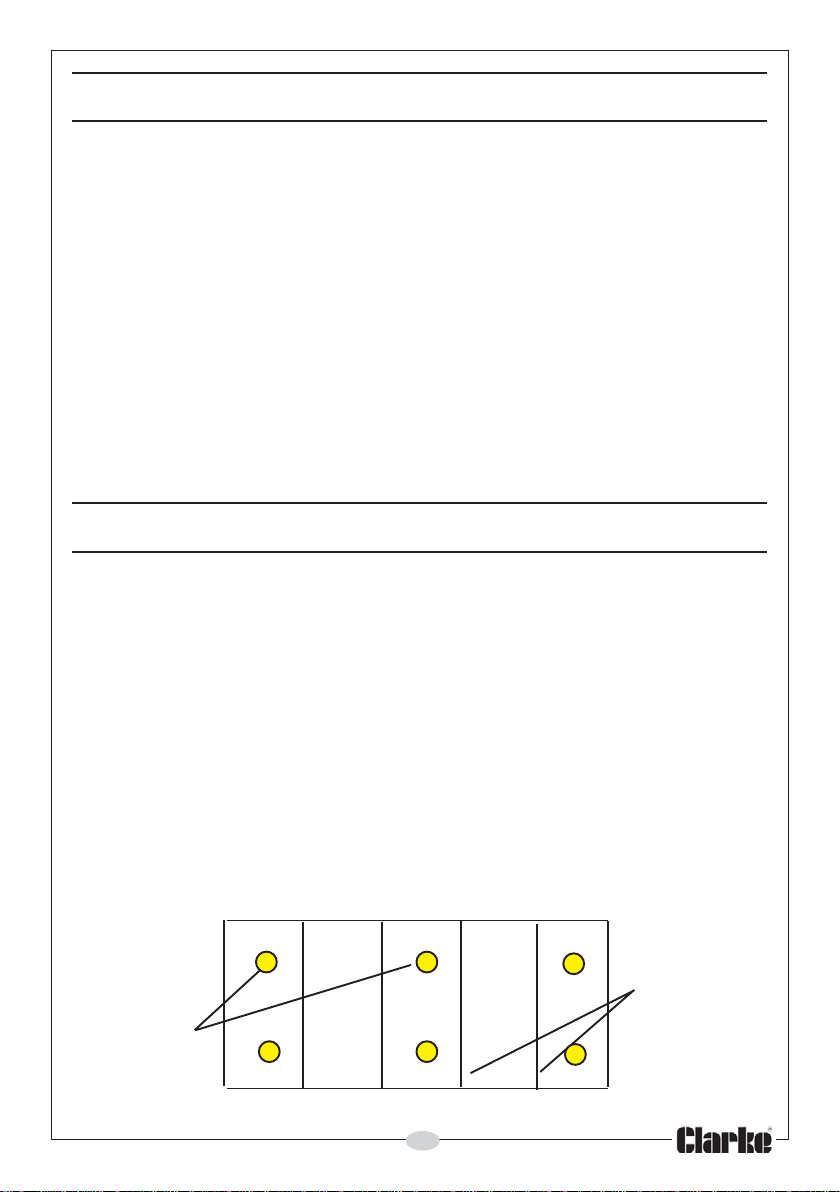

x x x x
Wall fixings
here
x x x x
3
Connecting
bolts here
