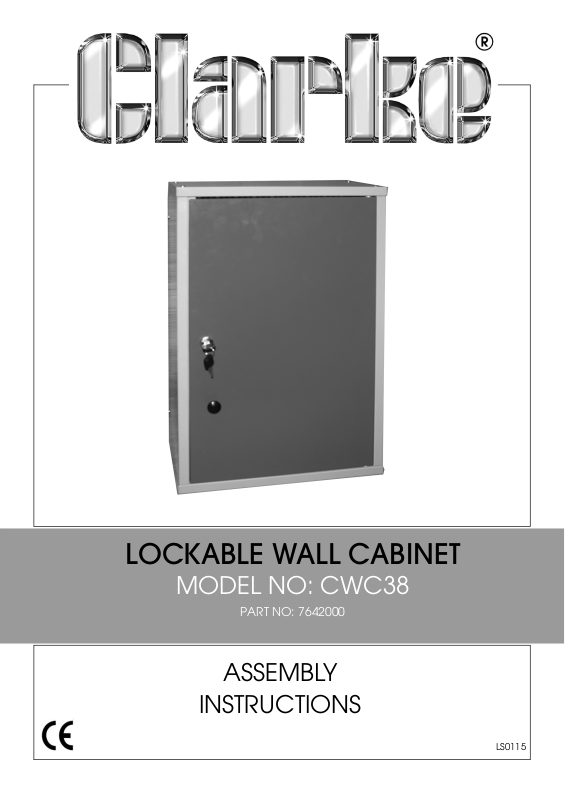

Clarke CWC 38, 7642000 User guide

LOCKABLE WALL CABINET

MODEL NO: CWC38

PART NO: 7642000

ASSEMBLY

INSTRUCTIONS

LS0115

INTRODUCTION

Thank you for purchasing this CLARKE product.

Before attempting to use this product, please read this manual thoroughly and
follow the instructions carefully. In doing so you will ensure the safety of yourself
and that of others around you, and you can look forward to your purchase
giving you long and satisfactory service.

GUARANTEE

This product is guaranteed against faulty manufacture for a period of 12
months from the date of purchase. Please keep your receipt which will be
required as proof of purchase.

This guarantee is invalid if the product is found to have been abused or
tampered with in any way, or not used for the purpose for which it was
intended.

Faulty goods should be returned to their place of purchase, no product can
be returned to us without prior permission.

This guarantee does not effect your statutory rights.

SPECIFICATION

Dimensions (w x d x h) 380 x 190 x 600 mm

Maximum Load Per Shelf 5 kg

Maximum Load Total 15 kg

2

Parts & Service: 020 8988 7400 / E-mail: [e-mail] or [e-mail]

CONTENTS

1Left Panel

2 Right Panel

3Door

4 Rear Panel

5 Shelf

6 Top/Bottom Panel

7 Wall Hanging Brackets

8 Fixings kit (not shown) Includes

• 24 Machine Screws

• 24 Nuts

• 24 Washers

• Door Knob

• Lock Assembly and Key

• 2 x 45mm screws and rawl plugs

3

Parts & Service: 020 8988 7400 / E-mail: [e-mail] or [e-mail]

ASSEMBLY

1. Place the left panel against the
rear panel and use the fixings
(machine screws, nuts and
washers) supplied to secure.

3. Set the door in place as shown
making sure that the hinge pin is
inserted into the hole on the
bottom panel.

2. Repeat with the right panel and
the bottom panels.

4. Fit the top panel and secure in
place using the fixings supplied.

• The hinge pin on top of the door
must be inserted into the hole in
the top panel.

4

Parts & Service: 020 8988 7400 / E-mail: [e-mail] or [e-mail]

5. Place the key in the lock and
turn it so that the window on the
front of the lock turns green.

6. Remove the screw and star
washer from the rear of the
lock.

7. Remove the washer and
locking arm.

8. Remove the locknut from the
lock barrel.

9. Insert the lock barrel with the
green window at the top
through the door and secure
using the locknut as shown.

10. Replace the locking arm and
washer and secure using the
star washer and screw.

11. Check the lock and if necessary
adjust the orientation of the
locking arm

12. Fit the door knob.

5

Parts & Service: 020 8988 7400 / E-mail: [e-mail] or [e-mail]

13. If you are fitting the shelves,
place the shelves into position
and secure using the fixings
supplied.

14. If you are using tool hooks,
place the tool hooks onto the
rear panel .

15. A coimbination of shelves and
tools is also possible.

16. Fit the wall hanging bracket as
shown (one on each side).

17. Fix the cabinet to the wall using
suitable screws (2” minimum)
and use rawl plugs suitable for
the wall being fixed to.
