Page 1

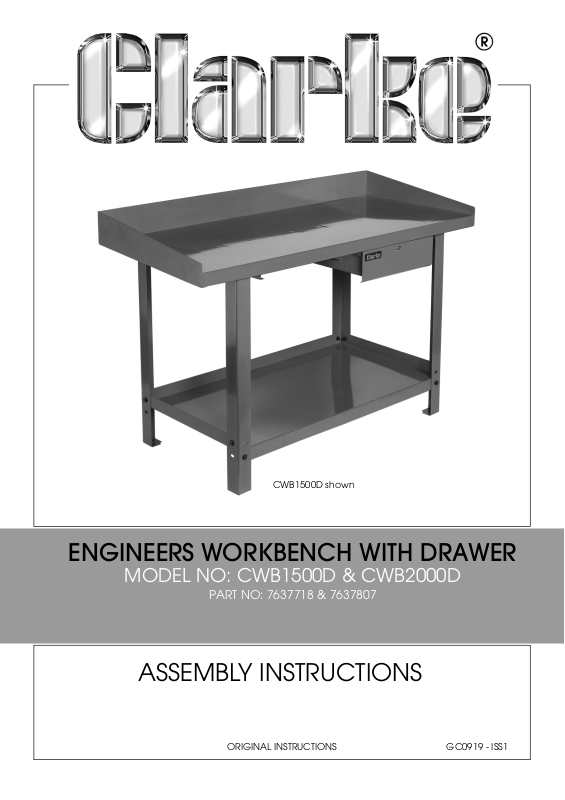

CWB1500D shown
ENGINEERS WORKBENCH WITH DRAWER
MODEL NO: CWB1500D & CWB2000D
PART NO: 7637718 & 7637807
ASSEMBLY INSTRUCTIONS
ORIGINAL INSTRUCTIONS GC0919 - ISS1
Page 2

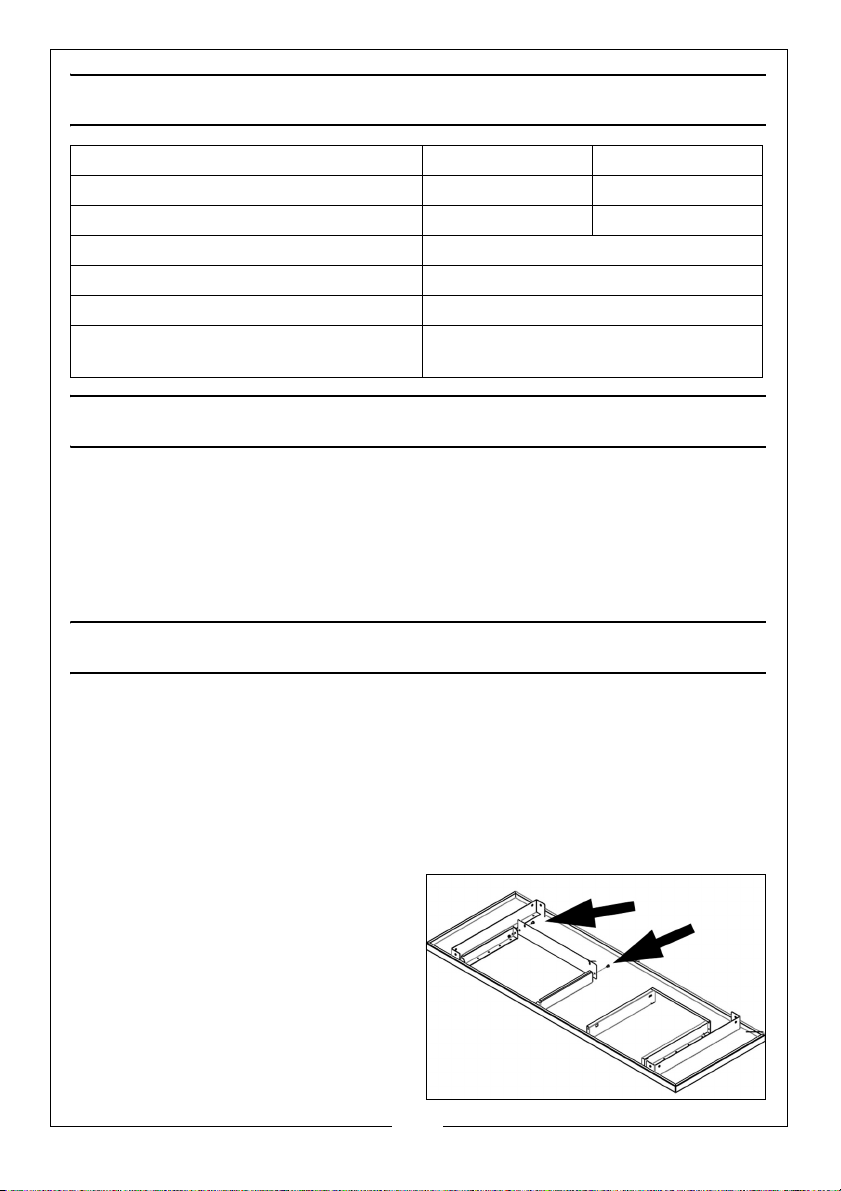

SPECIFICATION
CWB1500D CWB2000D
Dimensions (w x d x h) mm 1500 x 650 x 978 2000 x 650 x 978
Weight 53 kg 65.8 kg
Maximum Load (table top) 300 kg
Maximum Load in Drawer 30 kg
Maximum Load (shelf) 80 kg
Maximum Load (CD3WB 3-drawer
unit sold separately)
90 kg
SAFETY PRECAUTIONS
ALWAYS seek assistance when lifting heavy items.
ALWAYS keep children and animals away from tools and work area.
ALWAYS keep work area clean and free from oil spills etc.
ALWAYS wear protective footwear when assembling the workbench.
ASSEMBLY
Thank you for purchasing this CLARKE product. Please read and follow the
instructions carefully. The kit comprises the workbench top, lower shelf, drawer,
drawer backstops with screws, and four legs with 16xM8 bolts with nuts and flat
washers for the legs.
Unpack your workbench and check to ensure that no damage was suffered
during transit. Should any damage be apparent, you should contact your
CLARKE dealer immediately.
The workbench is best assembled
with the use of an assistant.
1. Rest the workbench top upside
down on a soft, protective surface
and fit the draw backstops to the
base using the 4 x M6 screws,
washers and bolts.
• USE WITH CD3WB 3-DRAWER UNIT
ONLY
2
Parts & Service: 020 8988 7400 / E-mail: [email protected] or [email protected]
Page 3

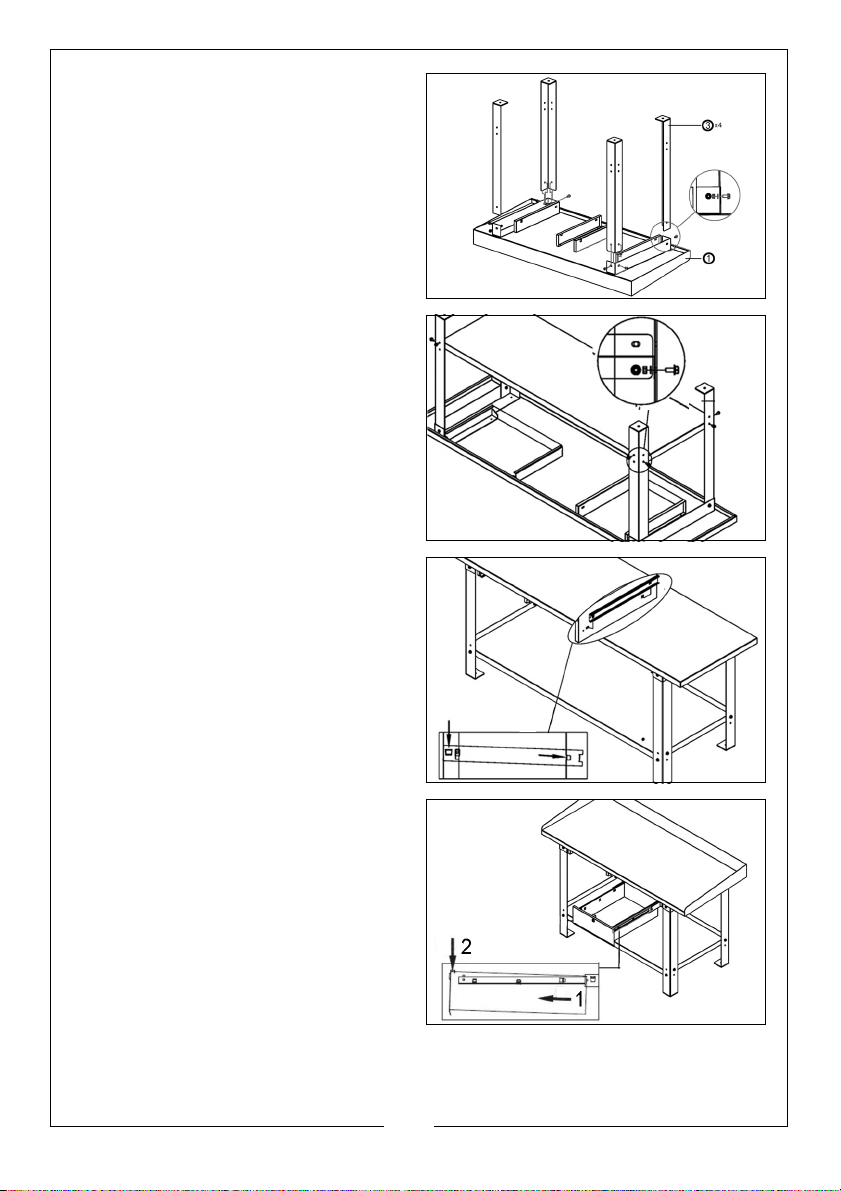

2. At each of the rear mountings,
attach a leg, with the foot pad
downwards using two M8 bolts with
each leg, ensuring a flat washer is
used with the nut. Nip up the nuts DO NOT fully tighten.
3. Attach the front legs in a similar
manner using M8 bolts with nuts
and flat washers. DO NOT fully
tighten.
4. Position the shelf between the legs,
using an assistant, and bolt it to the
legs, using M8 bolts with nuts and
flat washers. DO NOT fully tighten
the nuts. NOTE The tray will only fit
one way round.
5. Finally, turn the workbench on to its
feet on a flat, even surface and
shake it vigorously to ensure it is
completely stable and resting
evenly on all four legs, then fully
tighten all nuts.
6. Slot the single drawer into place in
the ball bearing draw runners.
7. If a CD3WB 3-drawer unit is
purchased, this can be slotted into
place on the spare runners.
3
Parts & Service: 020 8988 7400 / E-mail: [email protected] or [email protected]
