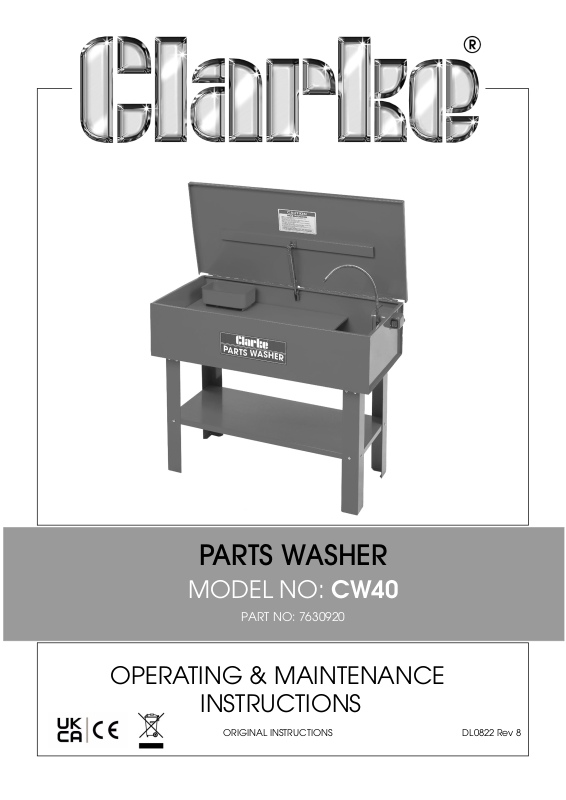

PARTS WASHER
MODEL NO: CW40
PART NO: 7630920
OPERATING & MAINTENANCE
INSTRUCTIONS
ORIGINAL INSTRUCTIONS DL0822 Rev 8
Page 2
INTRODUCTION
Thank you for selecting this CLARKE Parts Washer.
Before using the product, be sure to read these instructions thoroughly.
In doing so you will ensure the safety of yourself and of others around
you, and you can look forward to the product giving you long and
satisfactory service.
GUARANTEE
This CLARKE product is guaranteed against faulty manufacture for a
period of 12 months from the date of purchase. Please keep your
receipt as proof of purchase.
This guarantee is invalid if the product is found to have been abused
or tampered with in any way, or not used for its intended purpose.
Faulty goods should be returned to their place of purchase, no
product can be returned to us without prior permission.
This guarantee does not effect your statutory rights.
SPECIFICATIONS
Motor: 230V, 1ph, 50Hz
Maximum Pump Rate 90 litres/hour
Tank Capacity 150 L
Fluid Capacity: 75 L
Dimensions: (L x W x H) 1135 x 545 x 890 mm (Lid
Closed)
Weight: 42 kg
• Accepts all common degreasing fluids.
• Fusible link automatically closes lid in case of fire.
• Easy maintenance solvent pump.
2
Parts & Service: 020 8988 7400 / E-mail: [email protected] or [email protected]
Page 3
SAFETY PRECAUTIONS
WARNING: AS WITH ALL MACHINERY, THERE ARE CERTAIN
HAZARDS INVOLVED WITH THEIR OPERATION AND USE.
EXERCISING RESPECT AND CAUTION WILL CONSIDERABLY LESSEN
THE RISK OF PERSONAL INJURY. HOWEVER, IF NORMAL SAFETY
PRECAUTIONS ARE OVERLOOKED OR IGNORED, PERSONAL
INJURY TO THE OPERATOR OR DAMAGE TO PROPERTY MAY
RESULT.
1. ALWAYS learn the machine’s applications, limitations, and the
specific potential hazards peculiar to it. Read and become familiar
with the entire operating manual.
2. ALWAYS wear suitable protective clothing, gloves and goggles,
manufactured to the latest European Safety Standards. Everyday
eye glasses are not safety glasses.
3. ALWAYS clean off any accidental splashes of degreaser on the skin.
Seek medical attention immediately if necessary.
4. ALWAYS follow degreaser manufacturer’s instructions carefully.
5. ALWAYS check for damage before using the washer. Any damaged
part, should be checked to ensure that it will operate properly and
perform its intended function. Any damage should be properly
repaired or the part replaced. If in doubt, DO NOT use. Consult your
local CLARKE dealer.
6. ALWAYS disconnect the washer from the power supply before
carrying out any maintenance.
7. ALWAYS keep the work area clean. Cluttered areas and benches
invite accidents. Mop up accidental spillages of degreaser
immediately.
8. ALWAYS ensure that adequate lighting is available. A minimum
intensity of 300 lux should be provided. Ensure that lighting is placed
so that you will not be working in your own shadow.
9. ALWAYS keep children away. All visitors should be kept a safe
distance from the work area, especially whilst operating the
machine.
10.ALWAYS maintain machine in top condition. Keep the washer clean
for the best and safest performance.
3
Parts & Service: 020 8988 7400 / E-mail: [email protected] or [email protected]
Page 4
11.ALWAYS ensure the switch is off before plugging in to mains. Avoid
accidental starting.
12.ALWAYS concentrate on the job in hand, no matter how trivial it
may seem. Be aware that accidents are caused by carelessness
due to familiarity.
13.ALWAYS keep your proper footing and balance at all times don’t
over reach. For best footing, wear rubber soled footwear. keep
floor clear.
4
Parts & Service: 020 8988 7400 / E-mail: [email protected] or [email protected]
Page 5

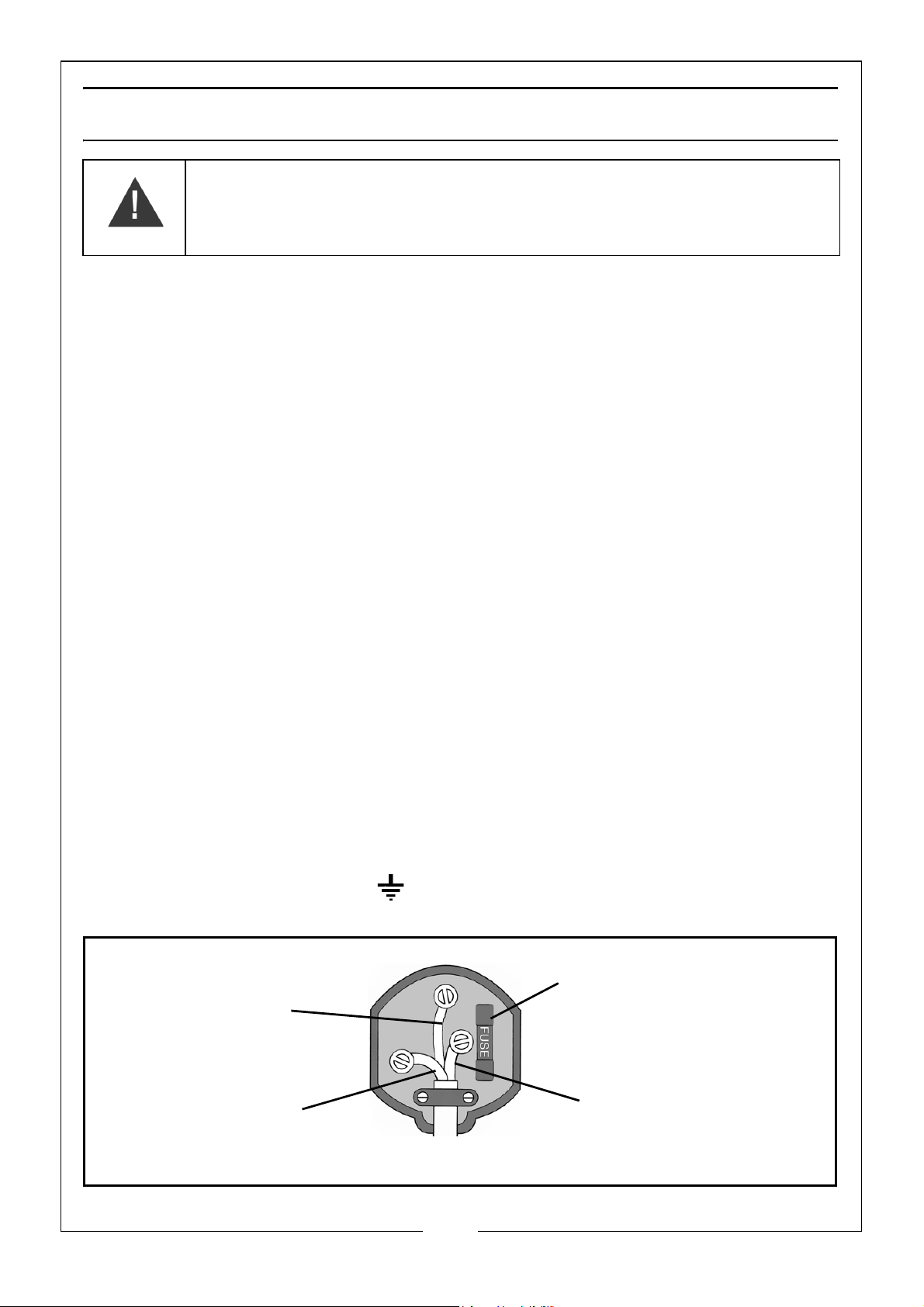

ELECTRICAL CONNECTIONS
Plug must be BS1363/A approved.
Always fit a 3 Amp fuse.
Ensure that the outer sheath of the cable is firmly held by the clamp
Neutral
(Blue)
Live
(Brown)
Earth
(Green and Yellow)
WARNING! READ THESE ELECTRICAL SAFETY
INSTRUCTIONS THOROUGHLY BEFORE CONNECTING THE
PRODUCT TO THE MAINS SUPPLY.
Before switching the product on, make sure that the voltage of your
electricity supply is the same as that indicated on the rating plate. This
product is designed to operate on 230VAC 50Hz. Connecting it to any
other power source may cause damage.
This product may be fitted with a non-rewireable plug. If it is necessary
to change the fuse in the plug, the fuse cover must be refitted. If the
fuse cover becomes lost or damaged, the plug must not be used until
a suitable replacement is obtained.
If the plug has to be changed because it is not suitable for your
socket, or due to damage, it should be cut off and a replacement
fitted, following the wiring instructions shown below. The old plug must
be disposed of safely, as insertion into a mains socket could cause an
electrical hazard.
If the colours of the wires in the power cable of this product do not
correspond with the markings on the terminals of your plug, proceed
as follows.
•The Blue wire must be connected to the terminal which is
marked N or coloured Black.
•The Brown wire must be connected to the terminal which is
marked L or coloured Red.
•The Yellow/Green wire must be connected to the terminal
which is marked E or or coloured Green.
Parts & Service: 020 8988 7400 / E-mail: [email protected] or [email protected]
5
Page 6
We strongly recommend that this machine is connected to the mains
supply via a Residual Current Device (RCD).
If in doubt, consult a qualified electrician. DO NOT attempt any repairs
yourself
INSTALLATION & ASSEMBLY
1. Choose a firm, flat and level surface to site the machine on, in a
well ventilated area and away from any naked flames.
2. Assemble the legs and shelf to the parts washer as shown in the
diagram on page 6, using the screws and nuts supplied.
3. Remove the pump housing cover plate (2 x self tapping screws)
and dispose of any packaging around the pump.
4. Replace the cover plate and mount the pump housing through the
slot in the side of the tank. The switch housing protrudes through the
slot with its underside hooking over the edge of the tank.
5. Ensure all packaging is removed before filling with parts washer
fluid.
OPERATION
1. Fill only with a non-flammable degreaser or cleaning agent, such as
Clarke parts washer fluid, to just below the level of the parts shelf.
DO NOT fill with flammable solvents such as paraffin, thinners, etc.
2. Open the lid, switch the pump on and hold the part to be cleaned
under the nozzle, slowly rotate the component until clean.
3. When clean, leave to drain on the tray or in a small component
container until dry.
4. Switch off the pump and close the lid and disconnect the power
supply.
5. Remove gloves and goggles, store safely.
NOTE: Any spillages should be mopped up immediately, so as not
to cause a safety hazard.
6
Parts & Service: 020 8988 7400 / E-mail: [email protected] or [email protected]
Page 7
IMPORTANT: The lid stay incorporates a safety device in the form of
a fusible link, which closes the lid in the event of fire. The link is nonresetting and must be replaced should it be activated.
6. Clean the pump filter regularly, by sliding it away from the pump
housing
7. and rinsing it in clean degreaser.Do not allow the level of liquid in
the parts washer to fall below the pump inlet, as damage to the
pump can result.
ENVIRONMENTAL PROTECTION
Do not dispose of this product or damaged components with general
household waste. All tools, accessories and packaging should be
sorted, taken to a recycling centre and disposed of appropriately.
One of the most damaging sources of environmental pollution is oil
products. Never throw away used oil with domestic refuse or flush it
down a sink or drain. Collect any oil in a leak proof container & take it
to your waste disposal site.
Through purchase of this product, the customer is taking on the
obligation to deal with the WEEE in accordance with the WEEE
regulations in relation to the treatment, recycling, recovery &
environmentally sound disposal of the WEEE.
In effect, this means that this product must not be disposed of with
general household waste but according to the laws governing Waste
Electrical and Electronic Equipment (WEEE) at a recognised disposal
facility.
CONSUMABLES
This parts washer is suitable for use with Clarke water-based parts
washer fluid;
Concentrated; P/No: 3051063 (5 Litre) P/No: 3051065 (25 Litre) - or
Ready to Use; P/No: 3051064 (5 Ltr) P/No: 3051066 (30 Ltr)
These products are non-flammable and bio-degradable. We do not
recommend the use of solvent-based parts washer fluids such as P/
Nos: 3051115 and 3051120 with this parts washer.
7
Parts & Service: 020 8988 7400 / E-mail: [email protected] or [email protected]
Page 8

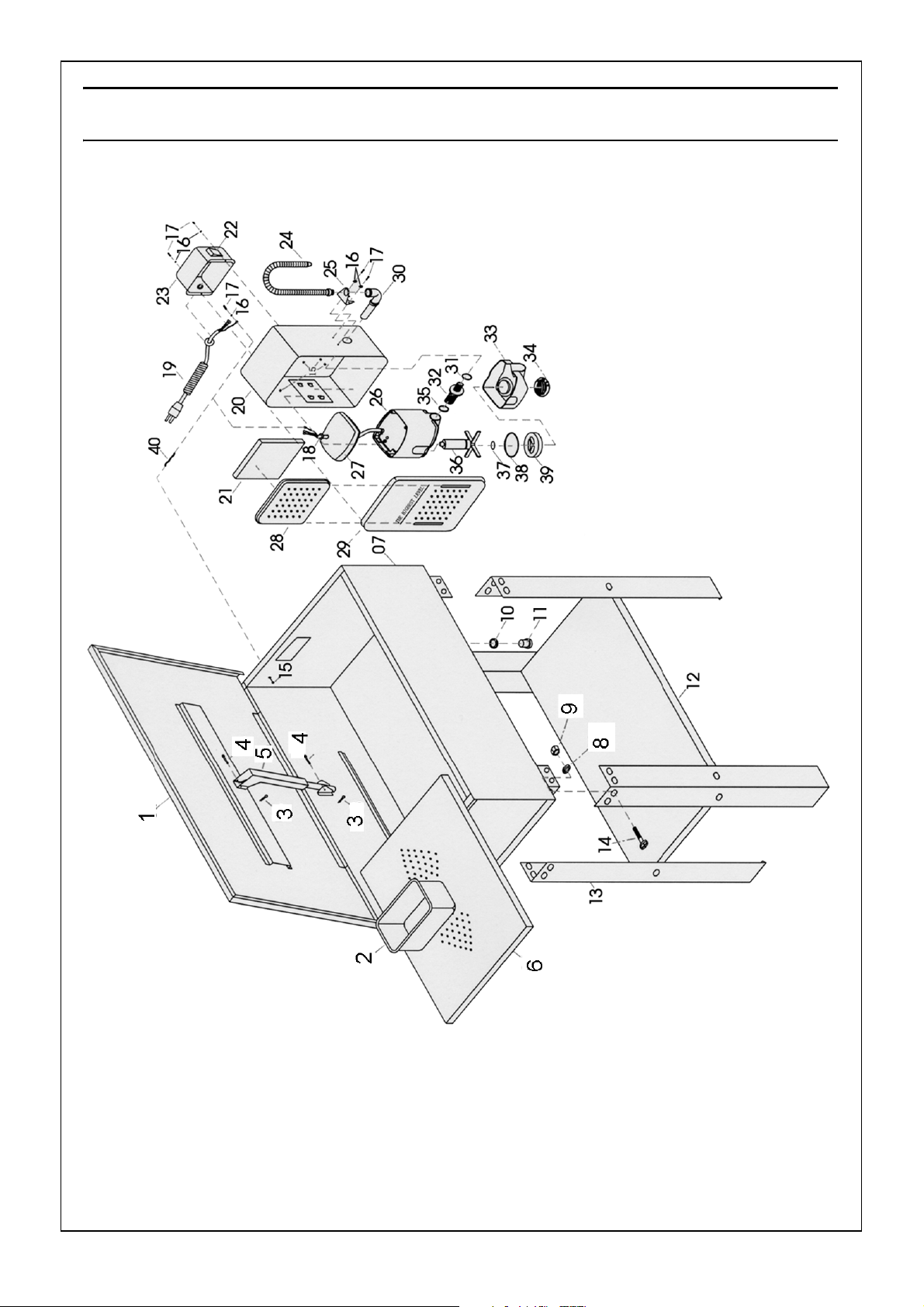

PARTS DIAGRAM
Page 9
PARTS LIST
No Description No Description
1Lid 21Screen
2 Small Parts Container 22 Switch
3Spring Pin 23Switch Box
4. Rivet 24 Flexible Pipe
5 Lid Stay c/w Fusable Link 25 Elbow Seat
6Work Shelf 26Pump Body*
7 Tank 27 Pump Cover*
8 Spring Washer 28 Filter Cover
9 Nut 29 Pump Housing Cover
10 O-ring 30 Elbow
11 Plug 31 O-Ring
12 Shelf 32 Spigot
13 Leg 33 Pump Housing*
14 Screw 34 Pump Filter*
15 Nut 35 Sealing Ring
16 Spring Washer 36 Pump Impeller*
17 Screw 37 Pump Shim Washer*
18 Grommet 38 Pump Sealing Ring*
19 Power Cable & Plug 39 Pump Impellor Holder*
20 Pump Housing 40 Pyrocondensation Pipe
9
Parts & Service: 020 8988 7400 / E-mail: [email protected] or [email protected]
Page 10

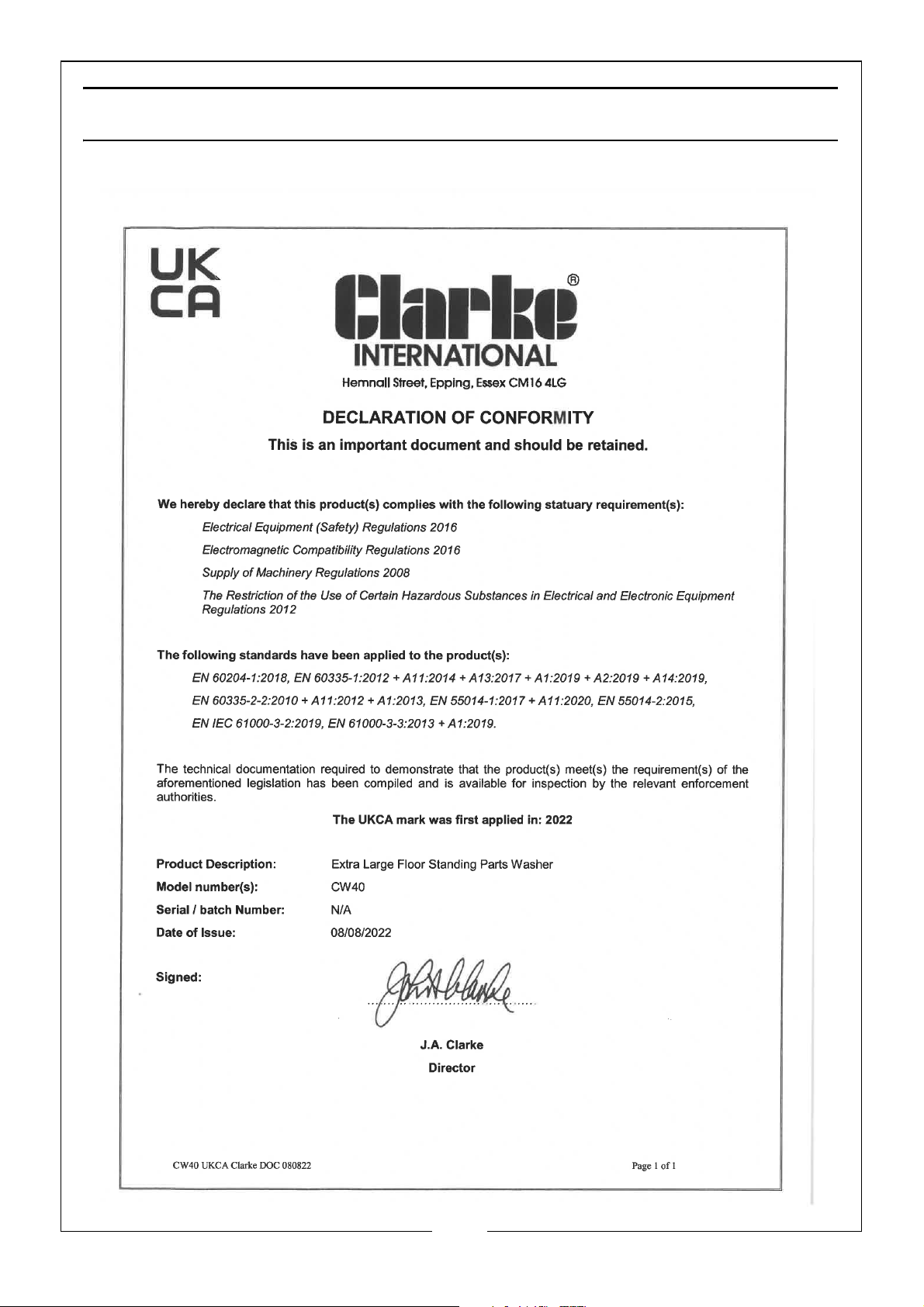

DECLARATION OF CONFORMITY - UKCA
10
Parts & Service: 020 8988 7400 / E-mail: [email protected] or [email protected]
Page 11

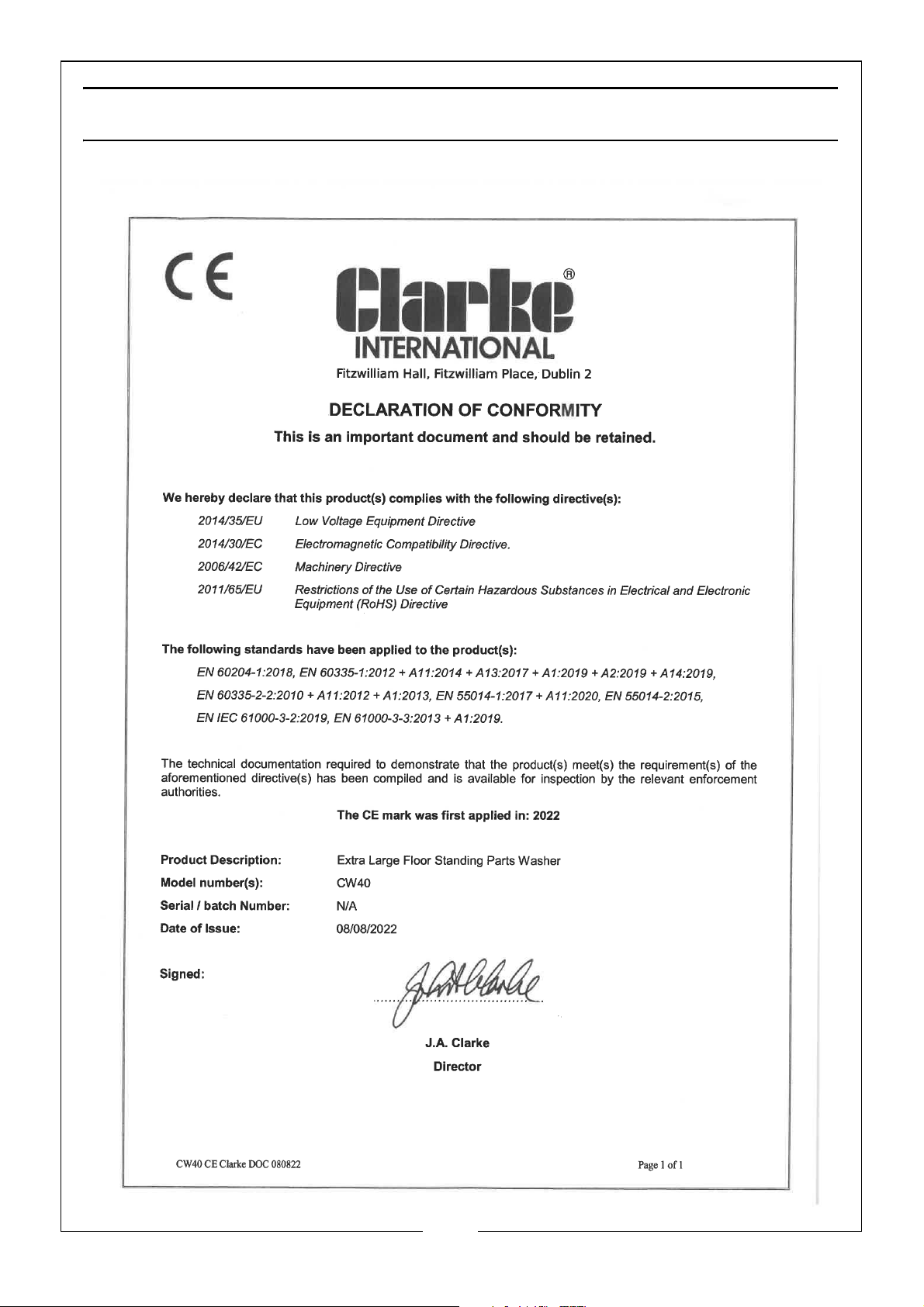

DECLARATION OF CONFORMITY - CE
11
Parts & Service: 020 8988 7400 / E-mail: [email protected] or [email protected]
