ARC WELDERS
ARC WELDERS
PARTS LISTS & DIAGRAMS
0612
SPECIFICATIONS
Model No. 105N 115N 160N 190N
Min/Max (Amps) 40-100 30-110 40-150 50-185
Electrode Dia. 1.6-2.5mm 1.6-2.5mm 1.6-3.25mm 1.6-3.25mm
Open Circuit Volts 38-47 44.5-47 45-48 45-48
Volts/Phase 230V, 1Ph 230V, 1Ph 230V, 1Ph 230V, 1Ph
Max Input kW 2.5 2.5 2.8 4.0
Dimensions (mm) 440x232x300 440x235x300 440x235x300 440x235x300
Weight (kg) 12.5 14.5 15.6 18.5
Part No. 6010972 6010974 6010976 6010978
Model No. 145TN 165TN 190TEN 145ND
Min/Max (Amps) 40-140 45-160 40-180 40-140
Electrode Dia. 1.6-3.25mm 1.6-4.0mm 1.6-4.00mm 1.6-3.25mm
Open Circuit Volts 45-48 45-48 48 45-48
Volts/Phase 230V, 1ph 230/400, 1Ph 230/400, 1Ph 230/115, 1Ph
Max Input kW 3.5 4.0 4.5 3.5
Dimensions (mm) 400x250x300 500x260x340 500x260x340 370x250x370
Weight (kg) 19 24 18.8 18
Part No. 6010605 6010610 6010740 6010600
Model No. 235TEN 260TE 300TE 350TE 450TE
Min/Max (Amps) 55-210 50-240 55-270 55-330 40-400
Electrode Dia. 2-5mm 2.0-5mm 1.6-6mm 1.6-6mm 1.6-6mm
Open Circuit Volts 51 52 52 52 52
Volts/Phase
Max Input kW 5.0 6.5 7.0 10 17
Dimensions (mm) 540x280x370 360x310x600 800x400x500 800x400x500 1000x520x600
Weight (kg) 20.5 47 68 61 88
Part No. 6010235 6010780 6011000 6011010 6011020
230/400V,1ph 230/400V,1ph 230/400V,1ph 230/400V,1ph 230/400V,
3
1ph
Contents
Parts Lists & Diagrams
Ideal for light fabrication
work..body repairs and
the like
Professional welders with
high efficiency turbo
fans for tough daily use
in automotive and
maintenance workshops
As above with dual 230/
110V input, ideal for the hire
trade for use on building
sites, shop fitting etc.
Professional welders for
general fabrication work
in workshops and
manufacturing.
Page No.
105N .................................................... 4-5
115N .................................................... 6-7
160N .................................................... 8-9
190N .................................................... 10-11
145TN ................................................... 12-13
165TN ................................................... 14-15
190TEN ................................................. 16-17
145ED ................................................... 18-19
235TEN ................................................. 20-21
260TE .................................................... 22-23
300TE .................................................... 24-25
350TE .................................................... 26-27
450TE .................................................... 28-29

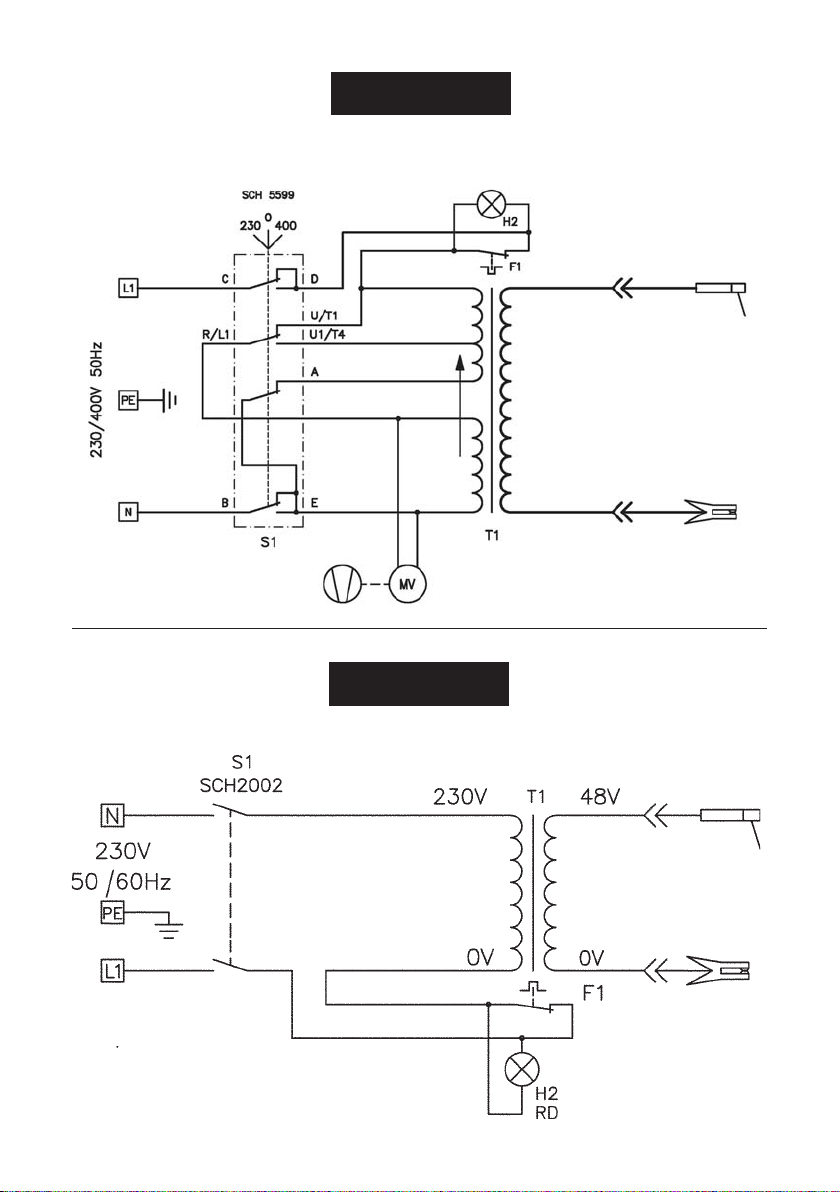

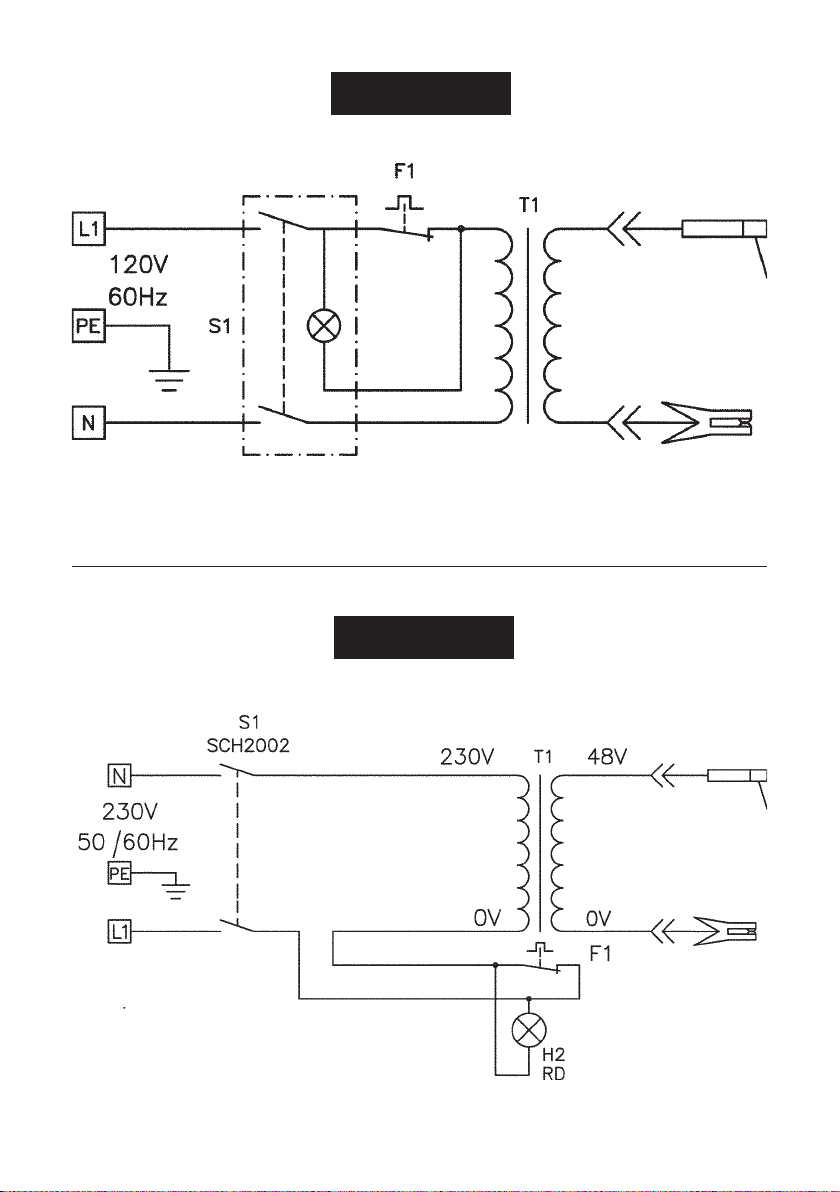

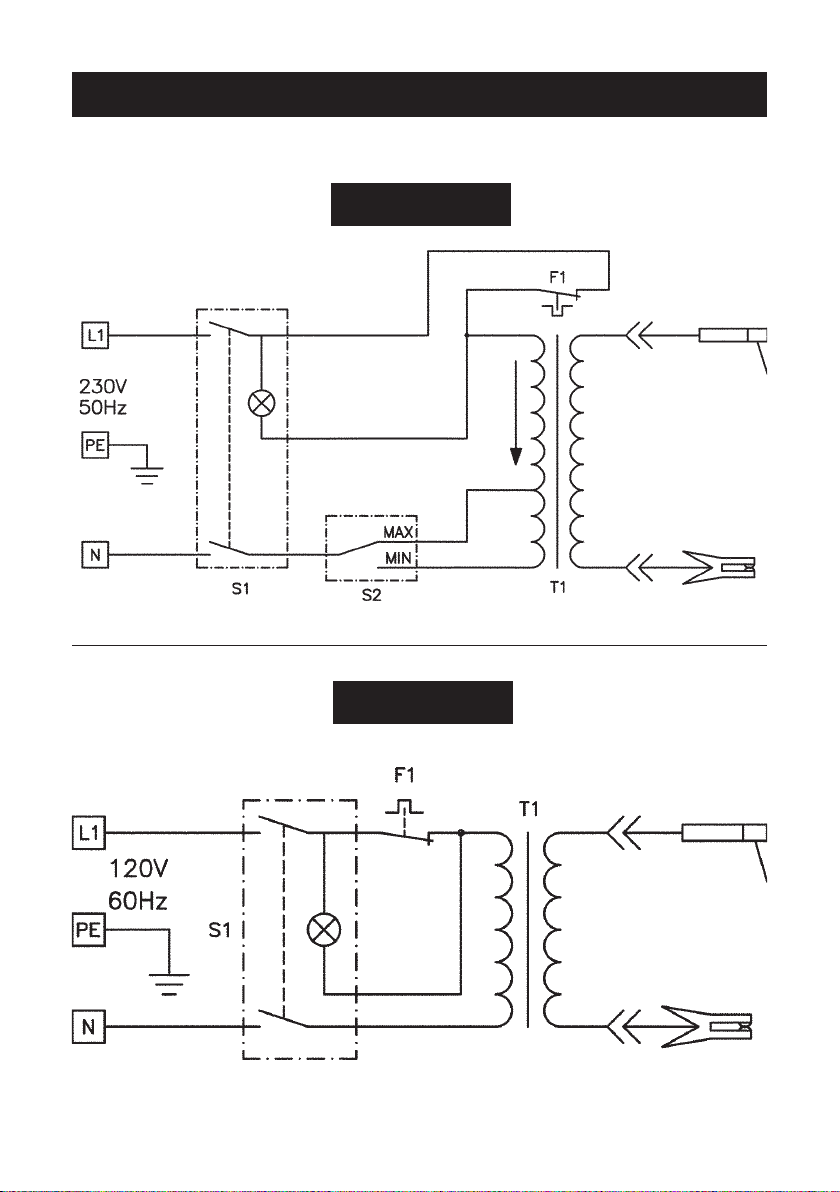

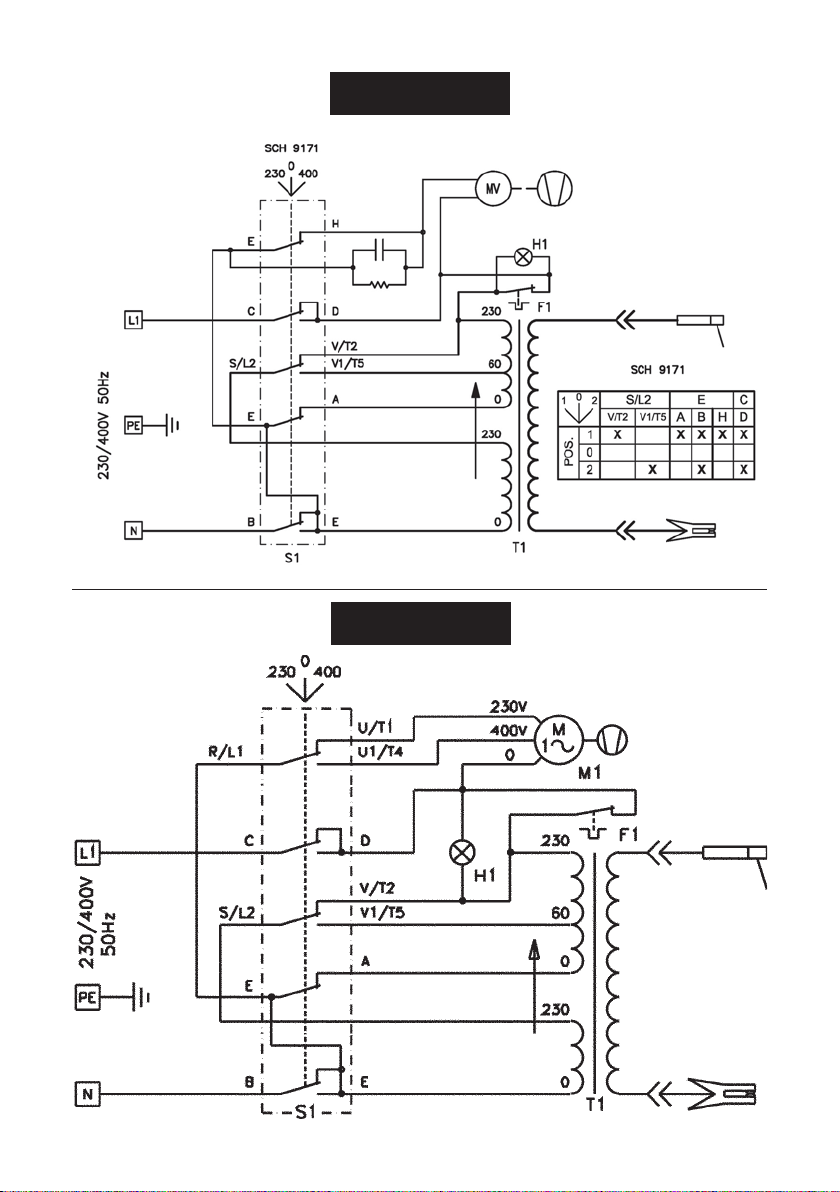

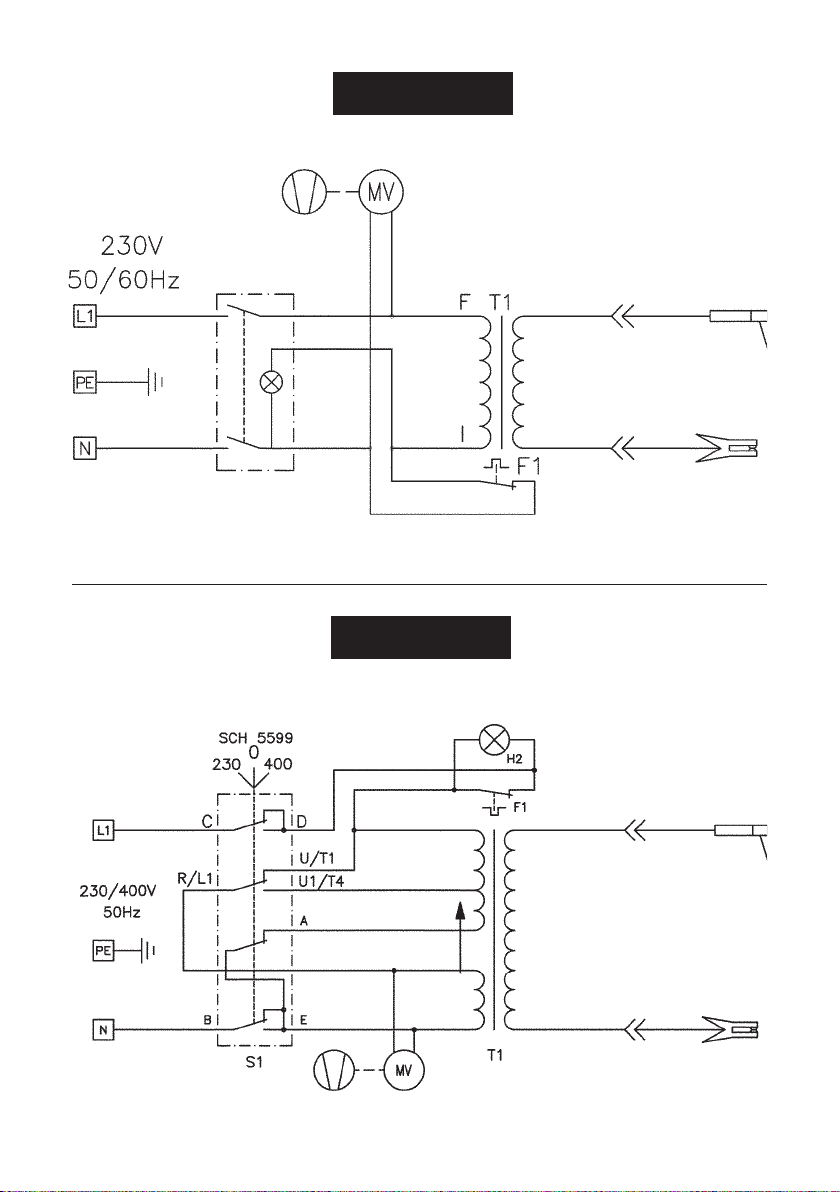

Wiring Diagrams
150N - 115N ........................................ 30
160N- 190N ......................................... 31
145TE- 165TE ........................................ 32
190TEN - 145ED ................................... 33
235TEN - 260TE .................................... 34
300TE - 350TE ....................................... 35
450TE .................................................... 36
3

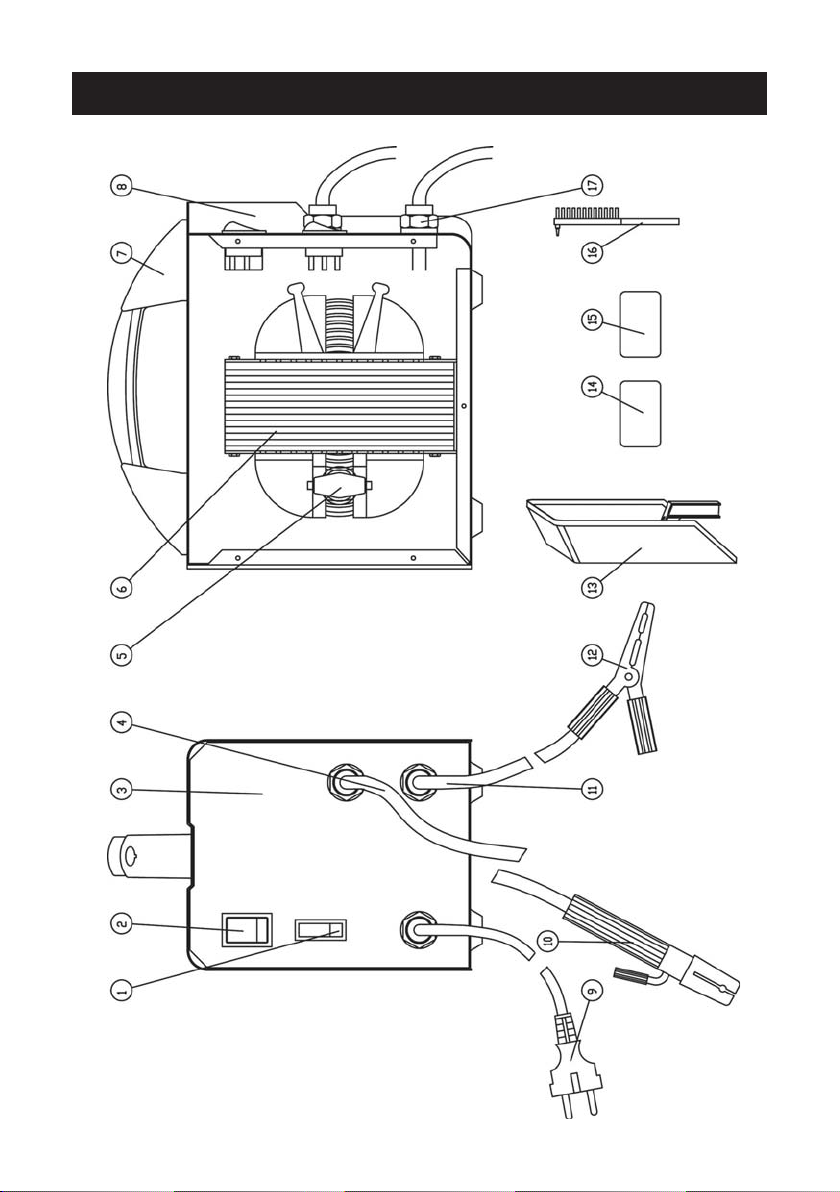

EASI ARC 105N
No. Description Qty Part No.
01 Welding Current Switch 16A 250V 1 EM22200006
02 Yellow Pilot-light Switch 16A 250V 1 EM22200022
03 Rear Panel 1 EM33700160
2
04 Welding Cable 6mm
05 Thermostat 16A 1 EM22210016
06 Transformer 230V 40x60 1 EM44110264
07 Handle 1 EM21600036
08 Upper Panel 1 EM33705290
09 Input Cable 2,5M 13A Fuse 1 EM20220068
10 Electrode Holder Clamp 1 EM22110029
11 Earth Cable 6mm2 1,6M 1 EM43210001
12 Earth Clamp 120A 1 EM22110005
13 Plastic Mask With Handle 1 EM21905065
14 Transparent Glass 82x108 1 EM21905020
15 Dark Glass 82x108 1 EM21905021
16 Hammer/Brush 1 EM21905039
17 Cable Clamp 3 EM04600233
Mt.2,4 1 EM43205075
4
EASI ARC 105N
5

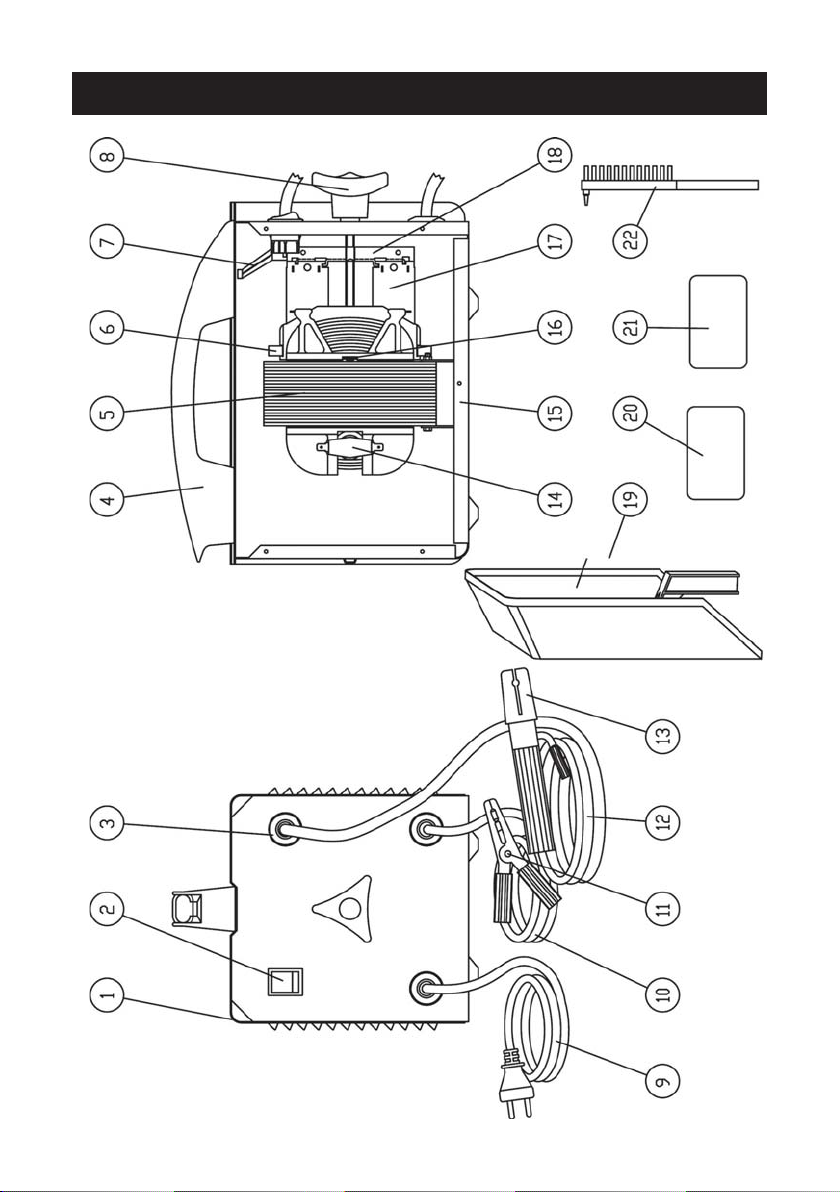

EASI ARC 115N
No. Description Qty Part No.
01 Upper Panel 1 EM33705419
02 Yellow Pilot-light Switch 16A 1 EM22200022
03 Cable Clamp 3 EM04600233
04 Bent Handle 1 EM21600035
05 Transformer 230V 1 EM44110265
06 “C” Type Spring For Shunt 2 EM33800029
07 Indicator X Shunt 1 EM21690328
08 3 Lobe D.80 Hand-wheel 1 EM21800056
09 Input Cable 2,5M 13A fuse 1 EM20220068
10 Earth Cable 6 mm
11 Earth Clamp 120A 1 EM22110005
12 Welding Cable 6mm2 2.4M 1 EM43205075
2
1,6M 1 EM43210001
13 Electrode Holder Clamp 1 EM22110029
14 Thermostat 16A 1 EM22210016
15 Lower Panel Shunt 1 EM33700232
16 Spring For Regulating Screw 1 EM33800028
17 Shunt 2 EM41415018
18 Shunt Yoke 1 EM33815010
19 Plastic Mask With Handle 1 EM21905065
20 Transparent Glass 82x108 1 EM21905020
21 Dark Glass 82x108 1 EM21905021
22 Hammer/Brush 1 EM21905039
6
EASI ARC 115N
7
EASI ARC 160N
No. Description Qty Part No.
01 Upper Panel 1 EM33705419
02 Yellow Pilot-light Switch 16A 250V 1 EM22200022
03 Cable Clamp 3 EM04600233
04 Handle 1 EM21600035
05 Transformer 230v 40x75 1 EM44110266
06 C” Type Spring For Shunt 2 EM33800029
07 Indicator Shunt 1 EM21690328
08 3 Lobe Hand-wheel 1 EM21800056
09 Input Cable 3x1,5 2,5 M 1 EM20220014
10 Earth Cable 1 EM43210021
11 Earth Clamp 120A 1 EM22110005
12 Welding Cable 1 EM43205069
13 Electrode Holder Clamp 1 EM22110029
14 Thermostat 16A 1 EM22210016
15 Lower Panel 1 EM33700232
16 Spring For Regulating Screw 1 EM33800028
17 Shunt 39x 93 2 EM41415018
18 Shunt Yoke 1 EM33815010
19 Plastic Mask With Handle 1 EM21905065
20 Transparent Glass 82x108 1 EM21905020
21 Dark Glass 82x108 1 EM21905021
22 Hammer/Brush 1 EM21905039
8
EASI ARC 160N
9

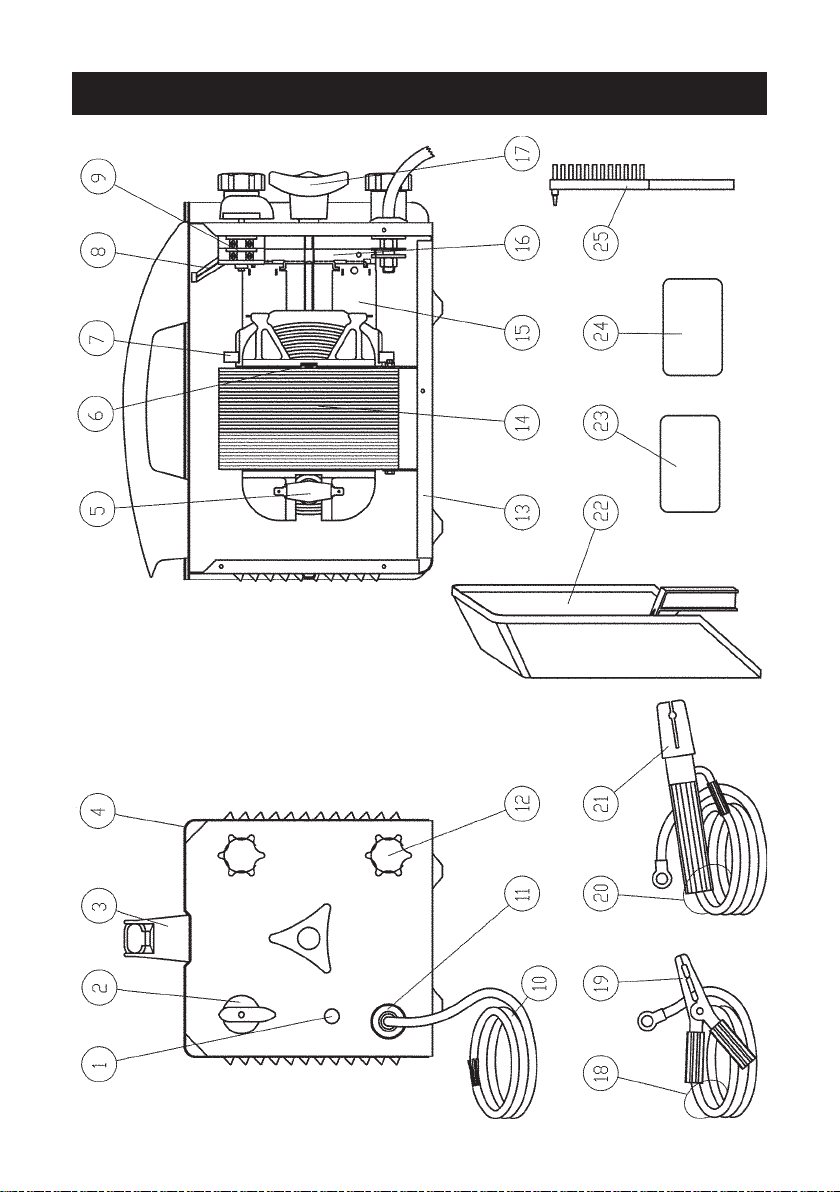

EASI ARC 190N
No. Description Qty Part No.
01 Orange Pilot-lamp 1 EM 22610021
02 Switch Knob D.38 1 EM 21690179
03 Handle I EM 21600035
04 Upper Panel 1 EM 33705419
05 Thermostat 16A I EM 22210016
06 Spring For Regulating Screw 1 EM 33800028
07 “C Type Spring For Shunt 2 EM 33800029
08 Indicator Shunt I EM 21690328
09 Switch 12A On/Off I EM 22205009
10 Input Cable 3x2.5 2.5M I EM 20220020
11 Cable Clamp W/Self Tapping Screw I EM 04600234
12 Complete Black Connector 2 EM 04600022
13 Lower Panel Shunt I EM 33700232
14 Transformer 230v I EM44110268
15 Shunt 2 EM41415019
16 Shunt Yoke I EM33815010
17 3 Lobe Hand-wheel I EM 21800057
18 Earth Cable 16mm
19 Earth Clamp I EM22110007
20 Welding Cable 16mm
21 Electrode Holder I EM 22110011
22 Plastic Mask With Handle 1 EM21905065
23 Transparent Glass 82x108 I EM 21905020
24 Dark Glass 82x108 1 EM 21905021
25 Hammer/Brush I EM 21905039
2
2M I EM 43210136
2
3M I EM 43205029
10
EASI ARC 190N
11
145TN
No. Description Qty Part No.
01 Yellow Pilot-light Switch 1 EM22200022
02 Front Panel 1 EM33710059
03 Handle 1 EM21600035
04 Cover Panel 1 EM33705394
05 Complete Fan 1 EM04600055
06 Thermostat 16A 1 EM22210016
07 Transformer 230v 40x75 1 EM44110266
08 Spring For Shunt 2 EM33800029
09 Spring For Regulation Screw 1 EM33800028
10 Indicator X Shunt 1 EM21690384
11 Earth Cable 10mm
12 Earth Clamp 120A 1 EM22110005
13 Welding cable 10mm
2
2
2,4m 1 EM43205069
1 EM43210021
14 Electrode Holder 1 EM22110029
15 Input Cable 3x1,5 M 2,5 1 EM20220014
16 Cable Clamp Screw 3 EM04600233
17 Panel 1 EM33700033
18 Shunt 2 EM41415018
19 Shunt Yoke 1 EM33815010
20 3 Lobed Hand-wheel 1 EM21800056
21 Plastic Mask With Handle 1 EM21905065
22 Transparent Glass 82x108 1 EM21905020
23 Dark Glass 82x108 1 EM21905021
24 Hammer-brush Mini 1 EM21905039
12
145TN
13

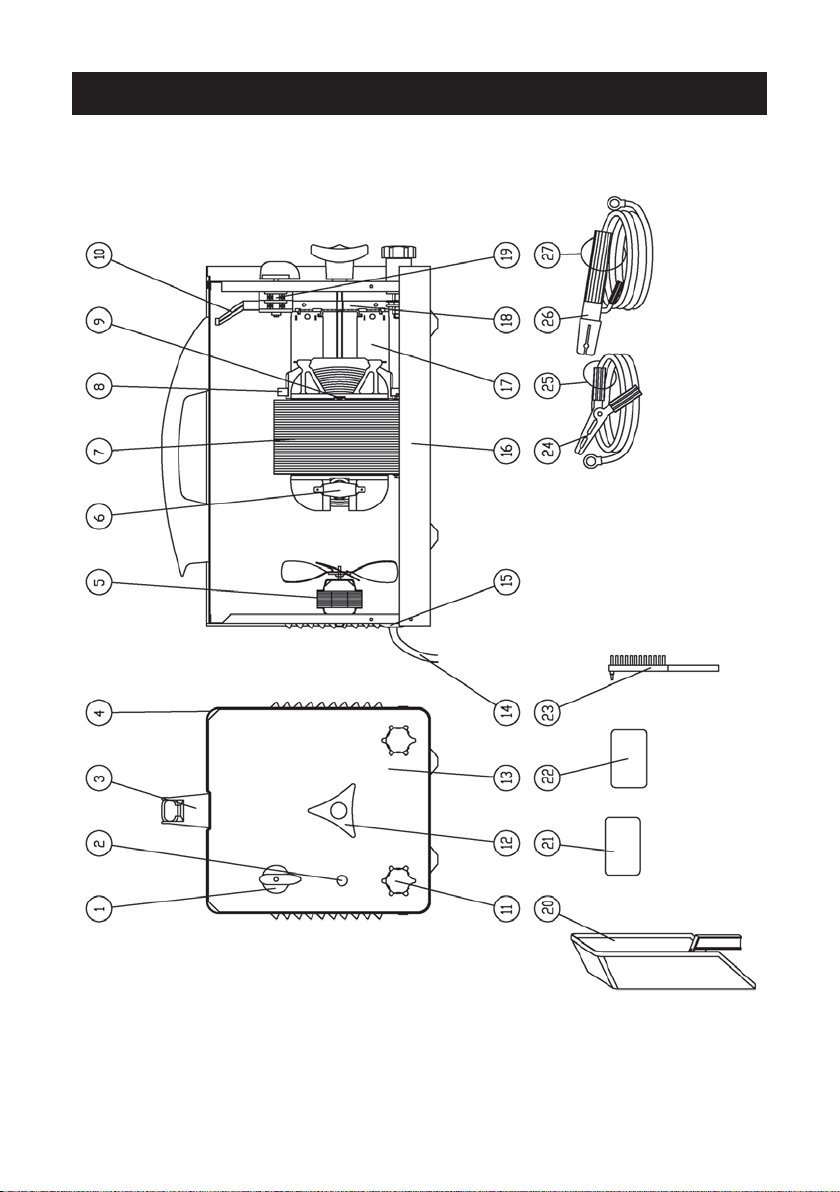

165TN
No. Description Part No.
01 Switch Knob D.34
02 Orange Pilot-lamp 1 EM22610012
03 Bent Handle 1 EM21600035
04 Cover Panel 1 EM33705393
05 Fan Kit 230V 1 EM04600056
06 Thermostat 16A 1 EM22210016
07 Transformer 2 EM44110269
08 “C” Type Spring For Shunt 2 EM33800029
09 Spring For Regulation Screw 1 EM33800028
10 Indicator Shunt 1 EM21690386
11 Connector 2 EM04600022
12 3 Lobed Hand-wheel 1 EM21800057
13 Front Panel 1 EM33710061
14 Input Cable 3x2,5 M.2,5 1 EM20220020
15 Cable Clamp + Screw 1 EM04600234
16 Lower Panel 1 EM33700035
17 Shunt 39x108 2 EM41415019
18 Shunt Yoke 1 EM33815010
19 Switch 1 EM22205026
20 Plastic Mask With Handle 1 EM21905065
21 Transparent Glass 82x108 1 EM21905020
22 Dark Glass 82x108 1 EM21905021
23 Hammer-brush 1 EM21905011
24 Earth Clamp 1 EM22110007
2
25 Earth Cable 16mm
26 Electrode Holder 1 EM22110011
27 Welding Cable 16mm
2M 1 EM43210136
2
3M 1 EM43205029
1
EM21690015
14
165TN
15

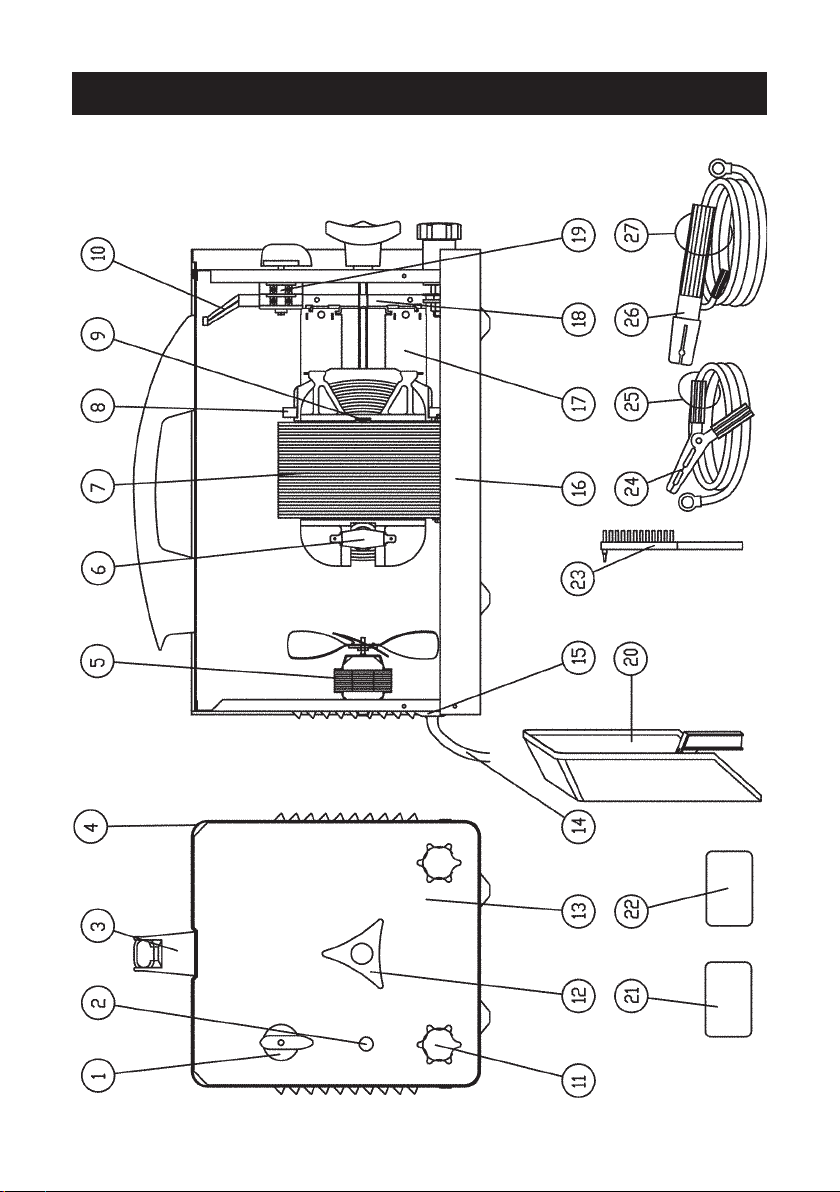

190TEN
No. Description Part No.
01 Switch Knob ..................................................................... EM21690015
02 Orange Pilot-lamp ........................................................... EM22610012
03 Handle .............................................................................. EM21600035
04 Upper Panel ..................................................................... EM33705393
05 Fan Kit ............................................................................... EM04600056
06 Thermostat ....................................................................... EM22210016
07 Transformer ...................................................................... EM44110269
08 ‘C’ Type Spring for Shunt ................................................ EM33800029
09 Spring for regulation Screw ............................................ EM33800028
10 Indicator x Shunt ............................................................. EM21690386
11 Complete Black Connector .......................................... EM04600022
12 Hand-wheel ..................................................................... EM21800057
13 Front Panel ....................................................................... EM33710061
14 PVC Input Cable ............................................................. EM20220020
15 Cable Clamp................................................................... EM04600234
16 Lower Panel ..................................................................... EM33700035
17 Shunt 39X108 H=9.2 ........................................................ EM41415019
18 Shunt Yoke X Lam 39 ....................................................... EM33815010
19 Switch ............................................................................... EM22205026
20 Carton Mask .................................................................... EM21905019
21 Transparent Glass ........................................................... EM21905020
22 Dark Glass ........................................................................ EM21905021
23 Hammer-brush ................................................................. EM21905011
24 Earth Clamp ..................................................................... EM22110007
25 Earth Cable...................................................................... EM43210136
26 Electrode Holder ............................................................. EM22110011
27 Welding Cable ................................................................. EM43205029
16
190TEN
17
145ND
No. Description Part No.
01 Switch Knob 1 EM21690015
02 Orange Pilot-lamp 1 EM22610012
03 Handle 1 EM21600035
04 Front Panel 1 EM33710014
05 Cover Panel 1 EM33705394
06 PVC Input CableM.2,5 1 EM20220020
07 Thermostat 25A 1 EM22210019
08 Spring For Regulation Screw 1 EM33800028
09 “C” Type Spring For Shunt 2 EM33800029
10 Indicator Shunt 1 EM21690384
11 Switch 17amp 1 EM22205101
2
12 Earth Cable 10mm
13 Earth Clamp 1 EM22110005
14 Welding Cable 1 EM43205069
15 Cable Clamp + Screw 2 EM04600233
16 Electrode Holder Clamp 1 EM22110029
17 Cable Clamp + Screw 1 EM04600234
18 Lower Panel 1 EM33700033
19 Transformer 110/230V 1 EM44110289
20 Shunt 2 EM41415018
21 Shunt Yoke 1 EM33815010
22 3 Lobe Hand-wheel 1 EM21800056
23 Plastic Mask With Handle 1 EM21905065
24 Transparent Glass 82x108 1 EM21905020
25 Dark Glass 82x108 1 EM21905021
26 Hammer/brush 1 EM21905039
M1.6 1 EM43210021
18
145ND
19
235TEn

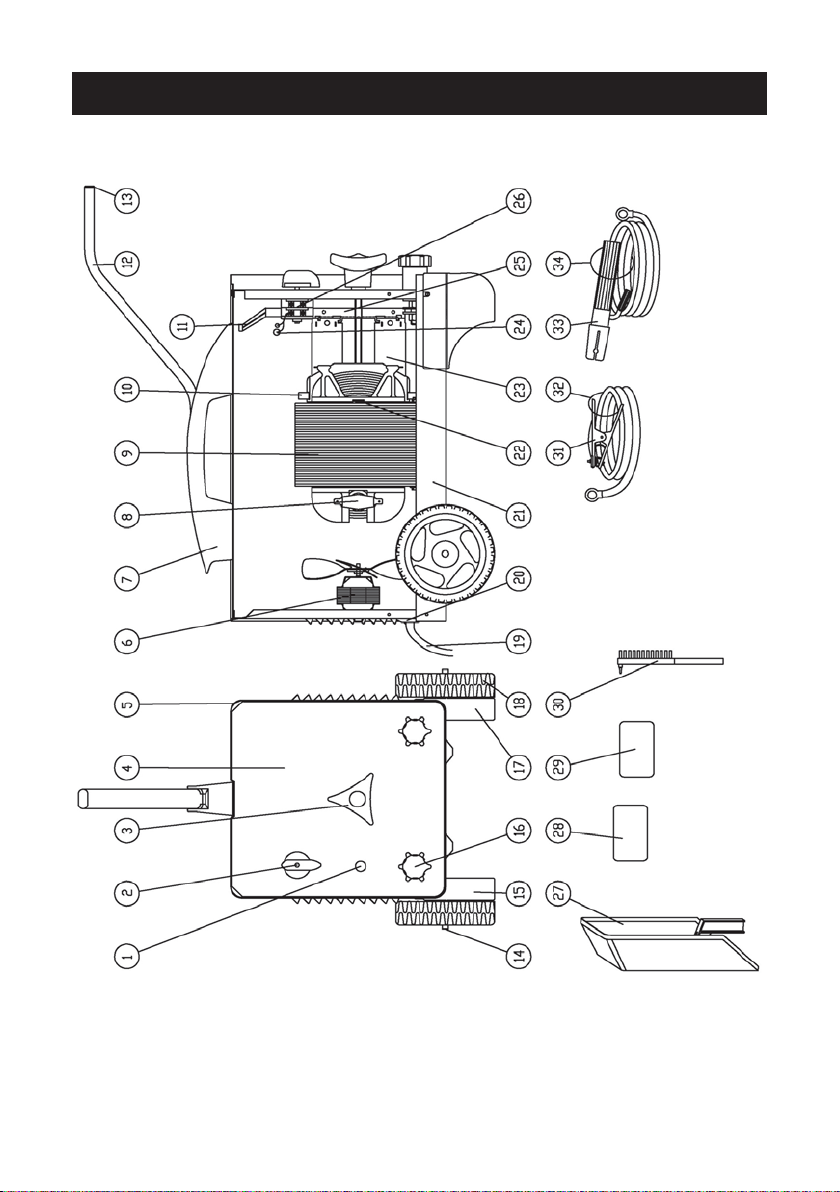

No. Description Part No.
01 Orange Pilot-lamp ........................................................... EM22610012
02 Switch Knob ..................................................................... EM21690015
03 Hand Wheel ..................................................................... EM21800057
04 Front Panel ....................................................................... EM33710061
05 Upper Panel ..................................................................... EM33705393
06 Fan Kit ............................................................................... EM04600151
07 Handle .............................................................................. EM21600035
08 Thermostat ....................................................................... EM22210019
09 Transformer ...................................................................... EM44110300
10 ‘C’ Type Spring for Shunt ................................................ EM33800029
11 Indicator x Shunt ............................................................. EM21690386
12 Handle Extension ............................................................. EM33725015
13 Cap for oval tube ........................................................... EM21610018
14 Wheel Axle ....................................................................... EM55200037
15 Plastic Foot Left ............................................................... EM21610022
16 Connector Complete .................................................... EM04600022
17 Plastic Foot Right ............................................................. EM21610021
18 Wheel ............................................................................... EM21625034
19 PVC Input Cable ............................................................. EM20220022
20 Cable Clamp................................................................... EM04600234
21 Lower Panel ..................................................................... EM33700035
22 Spring for Regulation Screw ........................................... EM33800028
23 Shunt 39X108 H=9.2 ........................................................ EM41415019
24 Cord ................................................................................. EM22320015
24 Resister 1M Ohm .............................................................. EM26030173
25 Shunt Yolk ......................................................................... EM33815010
26 Switch ............................................................................... EM22205130
27 Carton Mask .................................................................... EM21905019
28 Transparent Glass ........................................................... EM21905020
29 Dark Glass ........................................................................ EM21905021
30 Hammer Brush .................................................................
31 Earth Clamp ..................................................................... EM22110007
32 Earth Cable...................................................................... EM23210136
33 Electrode Holder ............................................................. EM22110010
34 Welding Cable................................................................. EM23205004
20
EM21905011
235TEN
21
260TE

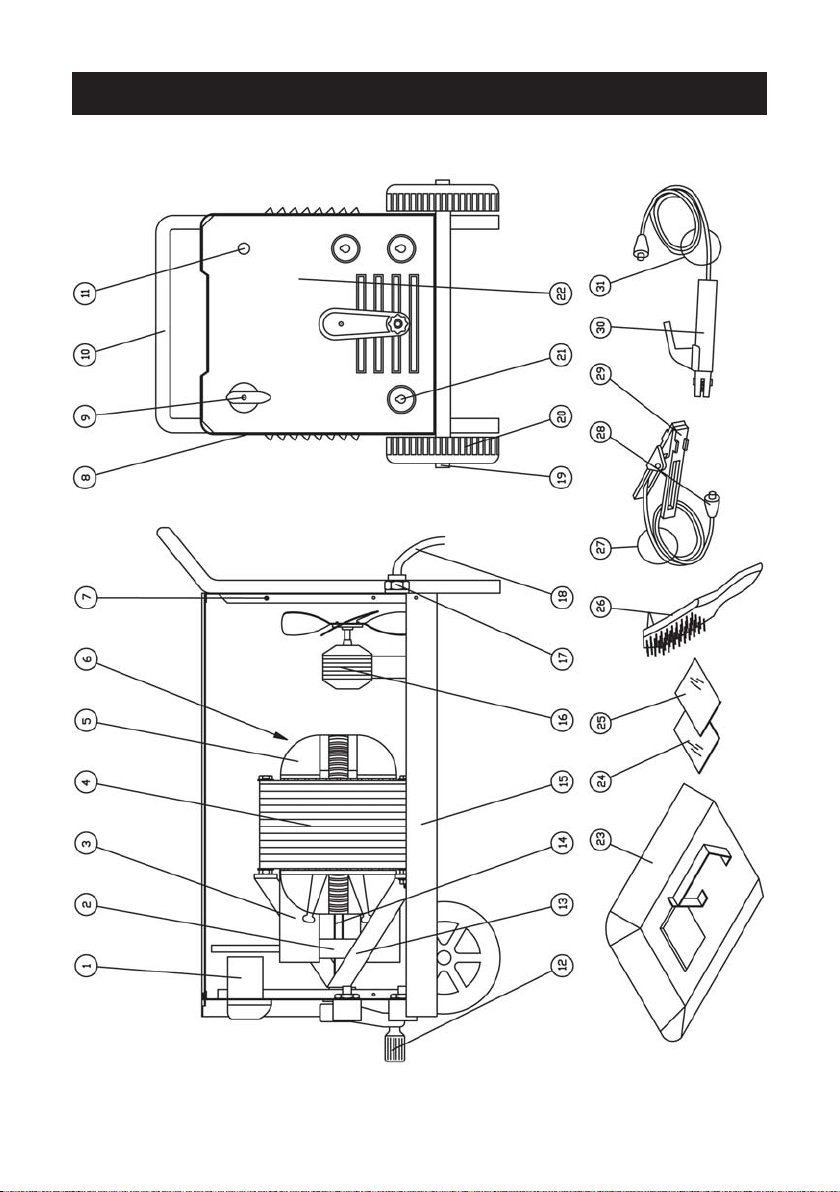

No. Description Part No.
01 Switch ................................................................................ EM22205045
02 Shunt Yoke ......................................................................... EM33815006
03 Shunt .................................................................................. EM41415906
04 Transformer ....................................................................... EM44110041
05 Handle ............................................................................... EM33725005
06 Secondary Winding ......................................................... EM44010099
07 Primary Winding ............................................................... EM44010098
08 Switch Knob ...................................................................... EM21690015
09 Front Panel ........................................................................ EM33710025
10 Hand-wheel W/Handle ................................................... EM21800017
11 Upper Panel ...................................................................... EM33705022
12 Back Panel ........................................................................ EM33715007
13 Orange Pilot-lamp ............................................................ EM22610012
14 Cable Clamp .................................................................... EM21605010
15 Insulating Washer ............................................................. EM21615012
16 Transformer Holder ........................................................... EM33640010
17 Regulation Screw ............................................................. EM33810002
18 Thermostat ........................................................................ EM22210021
19 Fan ..................................................................................... EM22800006
20 Input Cable ....................................................................... EM20220075
21 Wheels-axle ....................................................................... EM55200002
22 Wheel ................................................................................ EM21625007
23 Lower Panel ...................................................................... EM33700036
24 Foot .................................................................................... EM33740017
25 Hand-wheel ...................................................................... EM21800014
26 Carton Mask ..................................................................... EM21905019
27 Transparent Glass ............................................................. EM21905020
28 Dark Glass ......................................................................... EM21905024
29 Hammer-brush .................................................................. EM21905011
30 Earth Clamp ...................................................................... EM22110009
31 Earth Cable ...................................................................... EM43210012
32 Welding Cable ................................................................. EM43205016
33 Electrode Holder .............................................................. EM22110010
22
260TE
23
300TE
No. Description Qty Part No.
01 Switch 25A Sch 5599
02 Shunt Yoke 0718 L=125
03 Shunt 28x44,5x190
04 Transformer 1Ph 230/400V
05 Secondary Winding70x1
06 Primary Winding 230/400V
07 Back Panel
08 Panel
09 Switch Knob
10 Handle
11 Green Lamp D.16 380V SD16
12 Hand Wheel Black+Knob
13 Transformer Holder
14 Regulation Screw
15 Panel
16 Fan 10W 230V
17 Cable Clamp Hole D.20
18 Input Cable
19 Wheels Axle D.20
20 Wheel D.200
21 Dinse Socket 50sqmm
22 Front Panel
23 Face Mask 82x108
24 Transparent Glass 82x108
25 Dark Glass 82x108
26 Hammer-Brush
27 Earth Cable 25mm2 M.3
28 Earth Clamp 500A
29 Electrode Holder art202
30 Welding Cable 25 Sqmm M.5
31 Dinse Plug 50sqmm
1 EM22205100
1 EM33815006
2 EM41415906
1 EM44110025
1 EM44010045
1 EM44010044
1 EM33715074
1 EM33705483
1 EM21690028
1 EM33725058
1 EM22610042
1 EM04600181
1 EM33640010
1 EM33810002
1 EM33700263
1 EM22800007
1 EM21605010
1 EM20220077
1 EM 55200029
2 EM21625010
2 EM22100004
1 EM33710195
1 EM21905019
1 EM21905020
1 EM21905024
1 EM21905011
1 EM43210155
1 EM22110026
1 EM22110010
1 EM43205015
2 EM22100003
24
300TE
25
350TE
No. Description Qty Part No.
01 Switch 25 A Sch 5599
02 Shunt Yoke 0.18
03 Shunt 28x44,5x190
04 Transformer 1Ph 230/400V
05 Secondary Winding
06 Primary Winding 230/400V
07 Back Panel
08 Panel
09 Switch Knob
10 Handle
11 Green Lamp D.16 380V SD16
12 Hand Wheel Black+Knob
13 Transformer Holder
14 Regulation Screw 2x185 M8
15 Panel
16 Fan 10W 230V
17 Cable Clamp For Hole D.20
18 Neoprene Cable 3x6 MT.4
19 Wheels Axle D.20
20 Wheel
21 Dinse Socket 50sqmm
22 Front Panel
23 Face Mask 82x108
24 Transparent Glass 82x108
25 Dark Glass 82x108
26 Hammer-Brush
27 Earth Cable 25Sqmm M.3
28 Dinse Plug 50sqmm
29 Earth Clamp 500A
30 Electrode Holder
31 Welding Cable 25 Sqmm M.5
1 EM22205100
1 EM33815006
2 EM41415906
1 EM44110053
1 EM44010080
1 EM44010079
1 EM33715074
1 EM33705483
1 EM21690028
1 EM33725058
1 EM22610042
1 EM04600181
1 EM33640010
1 EM33810002
1 EM33700263
1 EM22800007
1 EM21605010
1 EM20220130
1 EM55200029
2 EM21625010
3 EM22100004
1 EM33710195
1 EM21905019
1 EM21905020
1 EM21905024
1 EM21905011
1 EM43210155
2 EM22100003
1 EM22110026
1 EM22110010
1 EM43205015
26
350TE
27
450TE

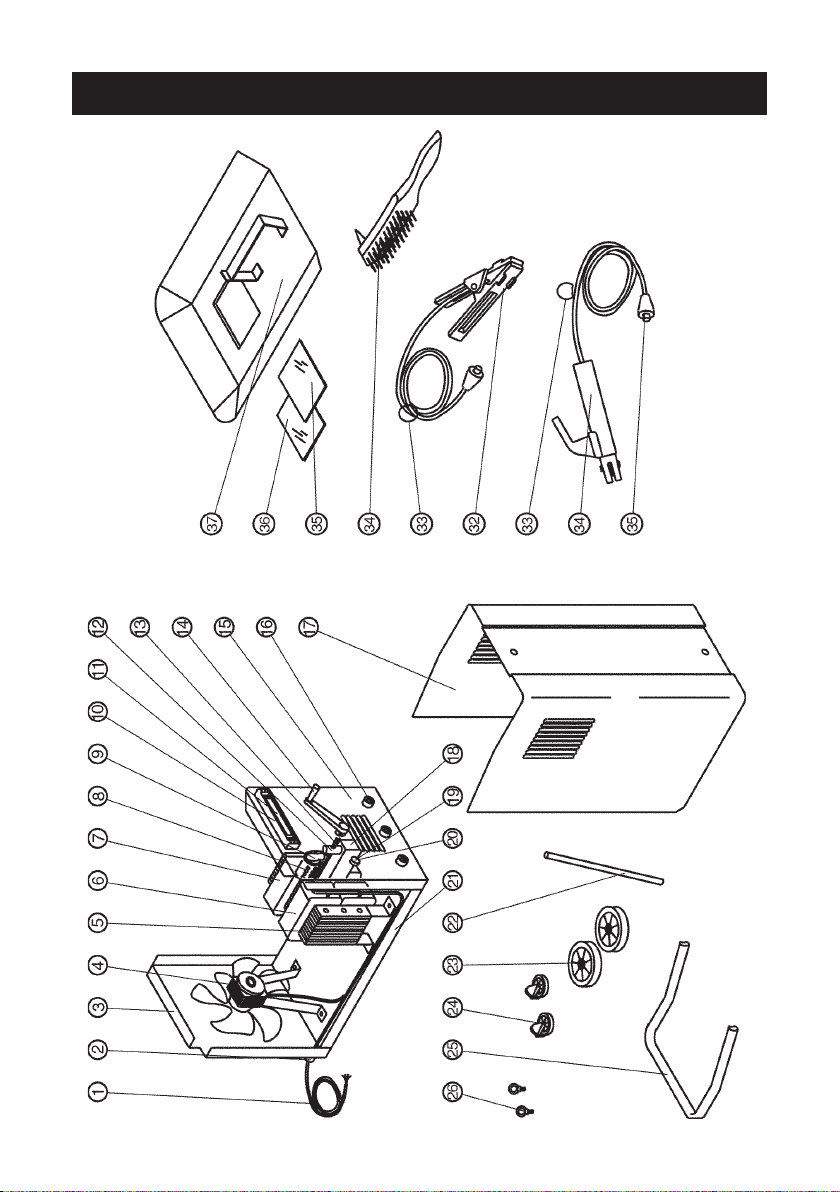

No. Description Part No.
01 PVC Input Cable 3x16 M4 1 EM20220101
02 Cable Clamp Hole D.30 1 EM21605011
03 Back Panel 1 EM33715033
04 Fan 25W 230V 1 EM22800009
05 Transformer 400V 1 EM44110177
06 Primary Winding 400V 2 EM44010302
07 Secondary Winding 2 EM44010290
08 Switch 63A 1 EM22205110
09 Switch Knob 1 EM21690016
10 Scale Holder 1 EM21690180
11 Regulation Index 1 EM21690255
12 Shunt Yoke 1 EM33815009
13 Regulation Screw M24 1 EM33810037
14 Hand-wheel W/Handle 1 EM21800018
15 Front Panel 1 EM33710196
16 Dinse Socket 50mm
17 Right Side Panel 1 EM33705350
17a Left Side Panel 1 EM33705349
17b Upper Panel 1 EM33705235
18 Shunt 1 EM41415908
19 Green Pilot-lamp 230V 1 EM22610015
20 Lamp Holder 1 EM22610018
21 Lower Panel 1 EM33700073
22 Wheel-axle 1 EM55200006
23 Rear Wheel 2 EM21625011
24 Caster 2 EM21625003
25 Handle 1 EM33725035
26 Lifting-eye 2 EM21070001
27 Carton Mask 82x108 1 EM21905019
28 Transparent Glass 82x108 1 EM21905020
29 Dark Glass 82x108 1 EM21905024
30 Hammer-brush 1 EM21905011
31 Earth Cable 50mm
32 Earth Clamp 1 EM22110014
33 Welding Cable 50mm
34 Electrode Holder 1 EM22110016
35 Dinse Plug 50mm
2
2
M3 1 EM43210110
2
. 1 EM43205037
2
3 EM22100004
2 EM22100003
28
450TE
29
WIRING DIAGRAMS
105N
115N
30
160N
190N
31
145TN
165TN
32
190TEN
145ND
33
235TEN
260TE
34
300TE
350TE
35
450TE
Parts & Service Contacts
For Spare Parts and Service, please contact your nearest dealer, or CLARKE
International, on one of the following numbers.
PARTS & SERVICE TEL: 020 8988 7400
PARTS & SERVICE FAX: 020 8558 3622
or e-mail as follows:
PARTS: Parts@clarkeinternational.com
SERVICE: Service@clarkeinternational.com
36
Loading...
