Clarke CVAC25SSR User guide

WET & DRY VACUUM CLEANER

MODEL NO: CVAC25SSR

PART NO: 6471097

OPERATING & MAINTENANCE

INSTRUCTIONS

ORIGINAL INSTRUCTIONS GC02/25 - Rev 16

INTRODUCTION

Thank you for selecting this VAC KING Vacuum Cleaner, which will provide you with a
cleaner and safer working environment.

This machine is capable of collecting both wet and dry materials as well as water. DO
NOT, however, collect any other type of liquid as this could be dangerous.

Before attempting to operate the machine, it is essential that you read this manual
thoroughly and carefully follow all instructions given. In doing so you will ensure the
safety of yourself and that of others around you, and you can also look forward to the
machine giving you long and satisfactory service.

SPECIFICATION

MODEL

Weight 6.4 kg

Dimensions (L x W x H) mm 325 x 325 x 620 (with handle)

Tank Capacity (water) 17 Litres

Dust Capacity 20 Litres

Max Vacuum 17 kPa

Max Airflow 28.3 L/sec

Stepped adapter diameters (25/32/35/38 & 41mm)

Duty Cycle S1 (continuous)

Fuse Rating 13 Amps

Power Supply 230 V/50Hz/1ph

Cable length 3.8 M

Motor Power rating 1.4 kW

CVAC25SSR

IP Rating IPX4

Output Socket Rating 2200W (13A)

Please note that the details and specifications contained herein, are correct at the
time of going to print. However, CLARKE International reserve the right to change
specifications at any time without prior notice.

2

Parts & Service: 020 8988 7400 / E-mail: [email protected] or [email protected]

SAFETY PRECAUTIONS

WORK AREA

1. Avoid operating in the presence of flammable liquids or gases. The motor may
produce sparks during operation. DO NOT use in enclosed areas where
flammable, explosive or toxic vapours are given off.

PERSONAL SAFETY

1. ALWAYS stay alert, watch what you are doing and use common sense when
operating the CVAC. DO NOT use the CVAC while you are tired or under the
influence of medication, drugs or alcohol. A moment of inattention can result in
personal injury.

2. NEVER over-reach. Keep your proper footing and balance at all times to enable
better control of the machine in unexpected situations.

3. ALWAYS store the machine out of reach of children.

GENERAL MACHINE USE AND CARE

1. Prior to use, all users should become familiar with this instruction booklet.

2. ALWAYS maintain the CVAC with care and keep it clean for best / safest
performance.

3. NEVER use this CVAC if any part is damaged. Have it inspected and repaired by
your CLARKE dealer. DO NOT use if the electric cable, plug, or the machine itself,
is in poor condition.

4. NEVER abuse the power cable. NEVER pull on the cable when removing the plug
from the socket or lift the machine by the power cable. Take care not to close
doors on the cable, or allow it to become snagged under furniture/objects with
sharp edges. Keep away from heat or oil.

5. Only use extension leads that are of an appropriate power rating and suitable for
the work environment. Extension leads must have an earth connection. Inspect
the extension lead regularly and replace if damaged.

6. ALWAYS take care when a long hose is required in the work area as it presents a
trip hazard. Tidy the hose away when the job is finished.

7. NEVER pick up flammable or readily combustible material such as hot ashes or
coals, or use in the presence of explosive liquids or vapours.

8. NEVER pick up burning cigarettes or other smoking substances.

9. NEVER abuse the CVAC by standing on it.

10. ALWAYS transport the CVAC by lifting it by the handle.

3

Parts & Service: 020 8988 7400 / E-mail: [email protected] or [email protected]

CARE & STORAGE

1. When not in use, turn off by the On/Off switch on top of the machine, then
remove the plug from the mains power supply.

2. When you have finished with the machine, ensure the electric cable is stowed
away and not left as a hazard for others to trip over.

3. DO NOT change filters, or carry out any cleaning or servicing, without first
disconnecting the machine from the power supply.

4. Keep the external surfaces clean. Avoid impact damage and DO NOT allow the
machine to contact abrasive or corrosive materials.

5. DO NOT use solvents, thinners or alcohol to clean the CVAC, as these chemicals
will damage the finish. With the machine unplugged from the power supply, use a
dry cloth to wipe over the plastic casing.

6. When not in use the CVAC should be stored in a secure, dry place, out of the
reach of children. DO NOT leave it exposed to the elements and avoid direct
sunlight, direct heat, rain/moisture etc.

7. Only use parts and accessories recommended in this manual. The use of
unauthorised accessories or attachments is not permitted and may result in
personal injury or damage to the machine.

8. DO NOT attempt to repair or modify the machine. DO NOT attempt any electrical
repair yourself. Consult a qualified electrician or our Service Department on 020
8988 7400.

ENVIRONMENTAL PROTECTION

By purchasing this product, the customer is taking on the obligation to deal
with its safe disposal in accordance with the Waste Electrical and Electronic
Equipment regulations (WEEE).

In effect, this means that this product must not be disposed of with general
household waste. It must be disposed of according to the laws governing Waste
Electrical and Electronic Equipment (WEEE) at a recognised disposal facility.

GUARANTEE

This CLARKE product is guaranteed against faulty manufacture for a period of 12
months from the date of purchase. Please keep your receipt as proof of purchase.

This guarantee is invalid if the product is found to have been abused or tampered
with in any way, or not used for its intended purpose.

Faulty goods should be returned to their place of purchase, no product can be
returned to us without prior permission. This guarantee does not effect your statutory
rights.

4

Parts & Service: 020 8988 7400 / E-mail: [email protected] or [email protected]

ELECTRICAL CONNECTIONS

WARNING! READ THESE ELECTRICAL SAFETY INSTRUCTIONS
THOROUGHLY BEFORE CONNECTING THE PRODUCT TO THE
MAINS SUPPLY.

Before switching the product on, make sure that the voltage of your electricity supply
is the same as that indicated on the rating plate. This product is designed to operate
on 230VAC 50Hz. Connecting it to any other power source may cause damage.

This product may be fitted with a non-rewireable plug. If it is necessary to change the
fuse in the plug, the fuse cover must be refitted. If the fuse cover becomes lost or
damaged, the plug must not be used until a suitable replacement is obtained.

If the plug has to be changed because it is not suitable for your socket, or due to
damage, it should be cut off and a replacement fitted, following the wiring
instructions shown below. The old plug must be disposed of safely, as insertion into a
mains socket could cause an electrical hazard.

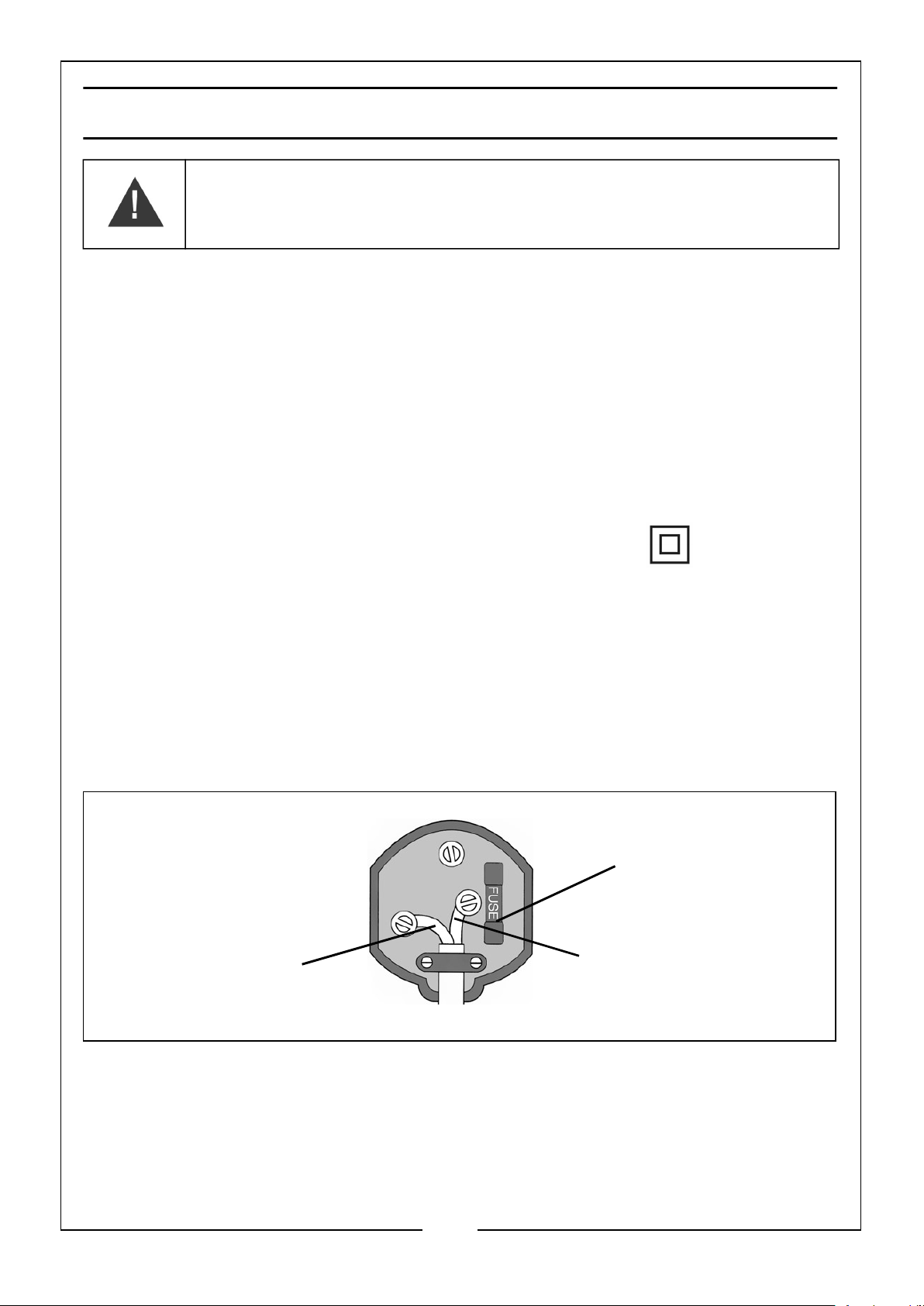

CVAC25SS (DOUBLE INSULATED APPLIANCE)

NOTE: CVAC25SS has a pass-through earth at the socket.

If the colours of the wires in the power cable of this product do not correspond with
the markings on the terminals of your plug, proceed as follows.

• The Blue wire must be connected to the terminal marked N or coloured

Black.

• The Brown must be connected to the terminal marked L or coloured Red

.

Plug must be BS1363/A approved.

Always fit a 13 Amp fuse

Neutral

(Blue)

Ensure that the outer sheath of the cable is firmly held by the clamp

Live

(Brown)

We strongly recommend that this machine is connected to the mains supply via a
Residual Current Device (RCD).

5

Parts & Service: 020 8988 7400 / E-mail: [email protected] or [email protected]

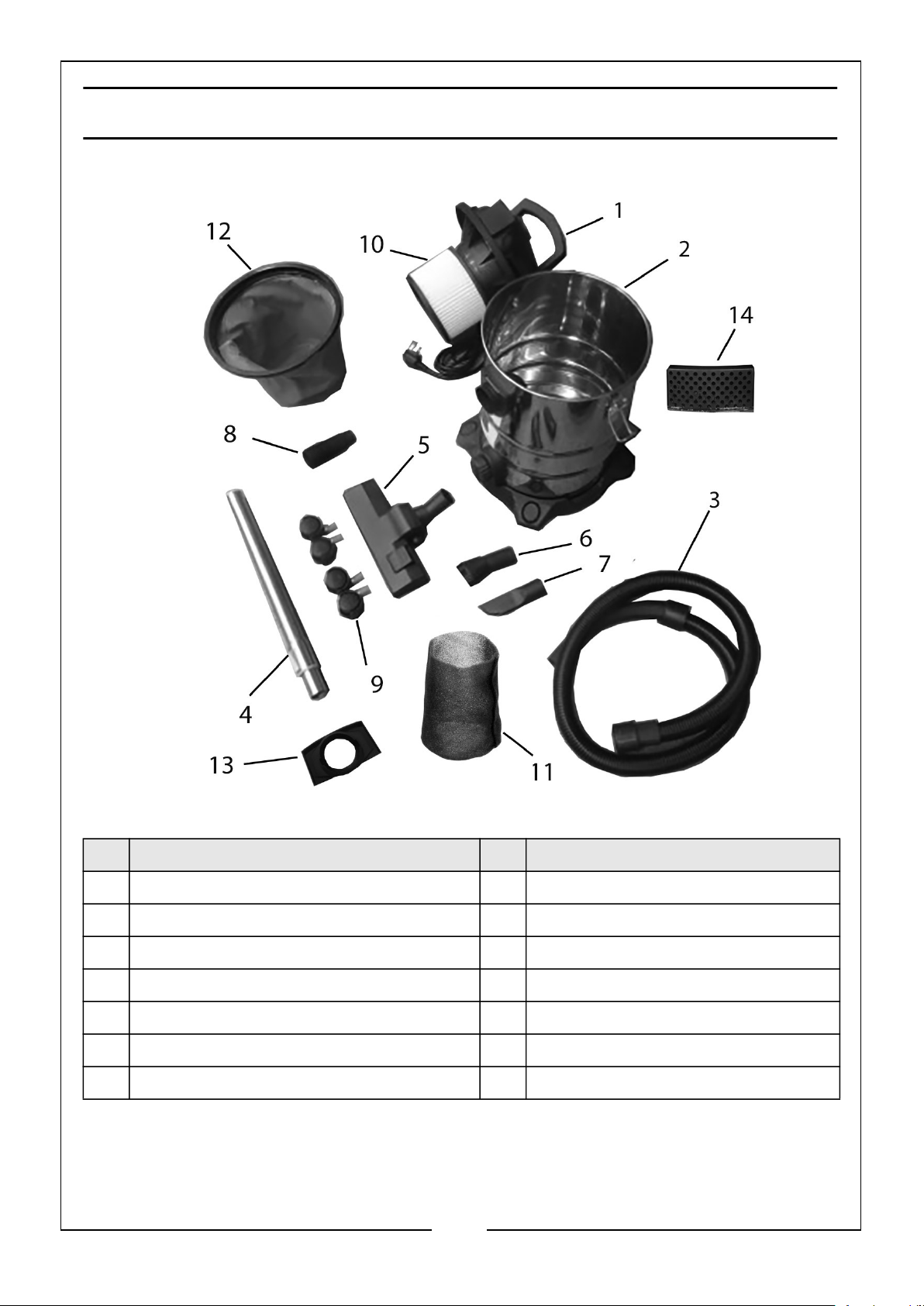

COMPONENTS

No Description No Description

1 Motor Housing & Head Section 8 Stepped Tool Adapter

2 Container 9 Castor

3 Flexible Hose 10 Cartridge Filter

4. Extension Tube 11 Foam Filter (water pick-up only)

5 Floor Brush Adapter 12 Cloth bag filter

6 Bristle Brush Adapter 13 Blowing board

7 Crevice Tool 14 Non-blowing board

6

Parts & Service: 020 8988 7400 / E-mail: [email protected] or [email protected]

PREPARATION FOR USE

WARNING: BEFORE USING THE CVAC, MAKE SURE THAT YOU HAVE
READ AND UNDERSTOOD THE SAFETY INSTRUCTIONS

UNPACKING & ASSEMBLY

With the CVAC removed from the packaging, undo the two clamps securing the head
and remove the components from within the tank. Lay them out and check for
shortages and that no damage was suffered in transit.

For ease of mobility, the CVAC base is provided with castors which require fitting.
Push the four castors onto their mountings firmly.

THE FILTERS

Filters are essential to ensure that dust or foreign matter does not enter the motor
compartment which would reduce motor efficiency, and eventually cause serious
damage.

During dry operation, the double filtering action of the linen and paper bag filters
protects the motor from dust and dirt but also ensures that the cleanest possible air is
exhausted, thereby preventing dust being spread into the environment.

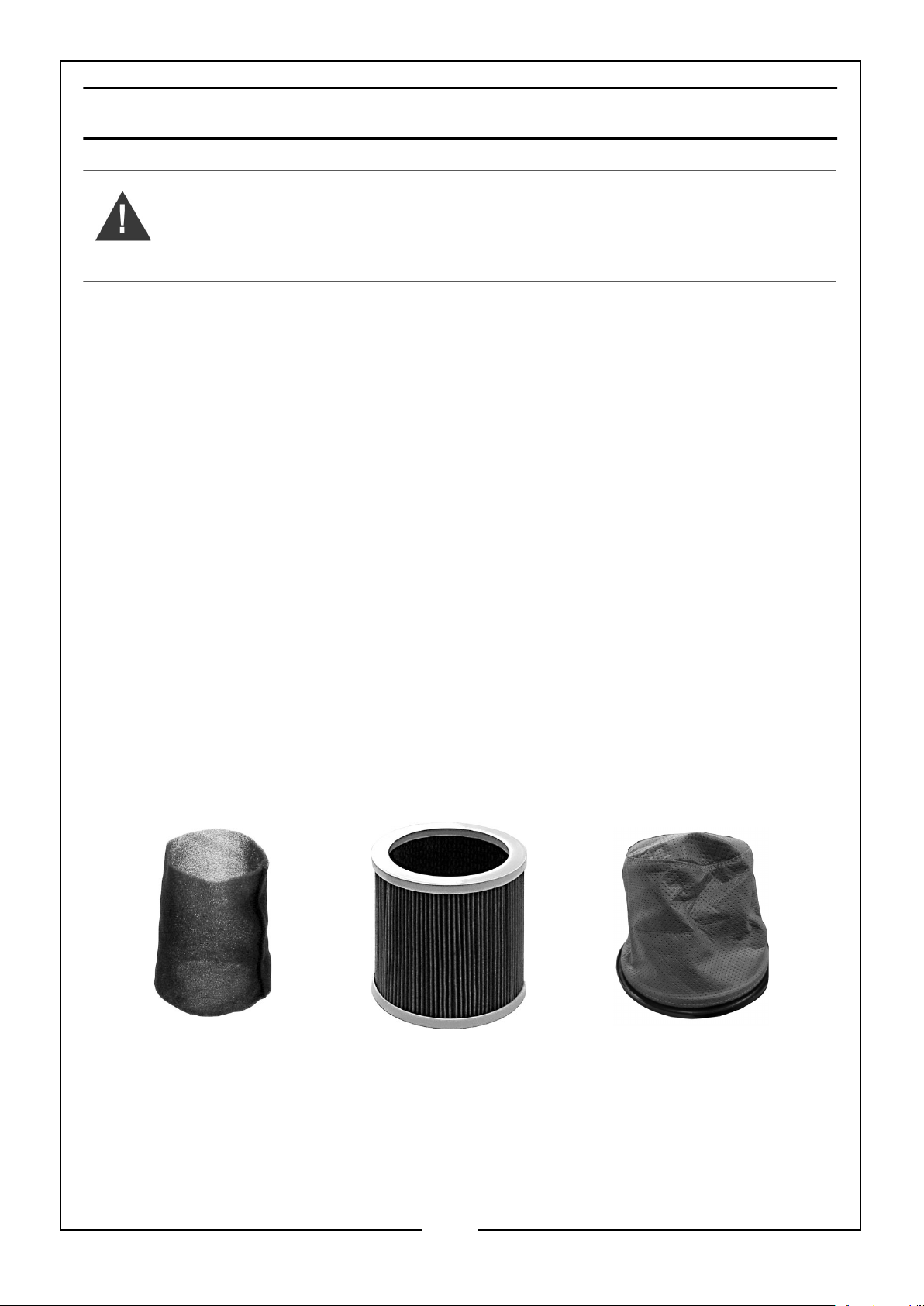

A. Water Pickup Filter

B. Cartridge Filter

C. Woven Cloth Bag Filter

A. B. C.

7

Parts & Service: 020 8988 7400 / E-mail: [email protected] or [email protected]

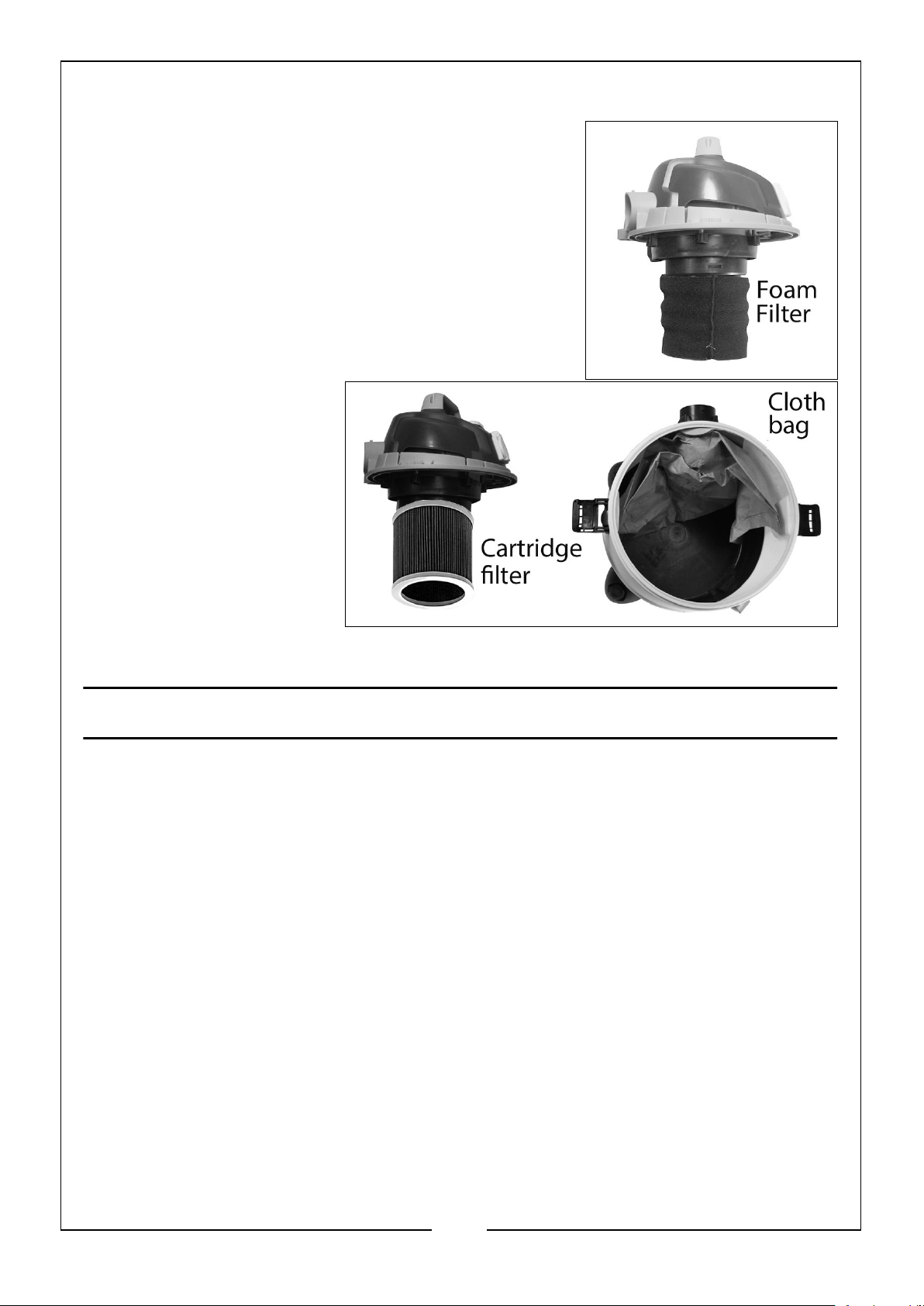

FOR WET USE

The foam filter is only to be used for picking up water.

It is the only filter used during this operation and must
be fitted over the filter cage as shown.

The linen and paper bag filters must be removed
before using the CVAC to pick up water.

FOR DRY USE

The Cartridge Filter must be fitted over the filter cage
and is used when dry vacuuming ONLY.

Remove the foam filter
for dry use.

The Bag Filter should be
used in conjunction with
the Cartridge filter for dry
vacuuming ONLY. It is fitted
over the inlet elbow on the
inside of the container. The
paper bag filter will inflate
in use and dust is being
collected.

OPERATING INSTRUCTIONS

Before use, open the machine and check that the appropriate filters are securely in
place and in good condition. If the paper bag is full, replace it. Spare bags are
available from your CLARKE stockist.

Switch on and start work. The CVAC should be positioned on a firm, level surface. DO
NOT cover the CVAC. and always position it with good all-round ventilation. The
CVAC must remain upright, especially when picking up water.

When moving the CVAC;

• ALWAYS use the handle.

• DO NOT lift by (or place a strain on) the hose or cable.

• After use always switch it off and disconnect from the power supply.

REMEMBER to use the FOAM FILTER ONLY for picking up WATER and ensure that it is
correctly fitted so that it covers the filter cage completely.

NOTE: Remember that when picking up water, the tank will gradually fill up.

Check and empty at frequent intervals, otherwise the float (located
within the filter cage) will rise and eventually shut off the suction. This is

8

Parts & Service: 020 8988 7400 / E-mail: [email protected] or [email protected]

a safety feature to prevent water from coming into contact with
electrical components. Should suction stop, you will hear a more urgent
sound from the motor. Immediately switch OFF and empty the tank,
otherwise the motor could overheat.

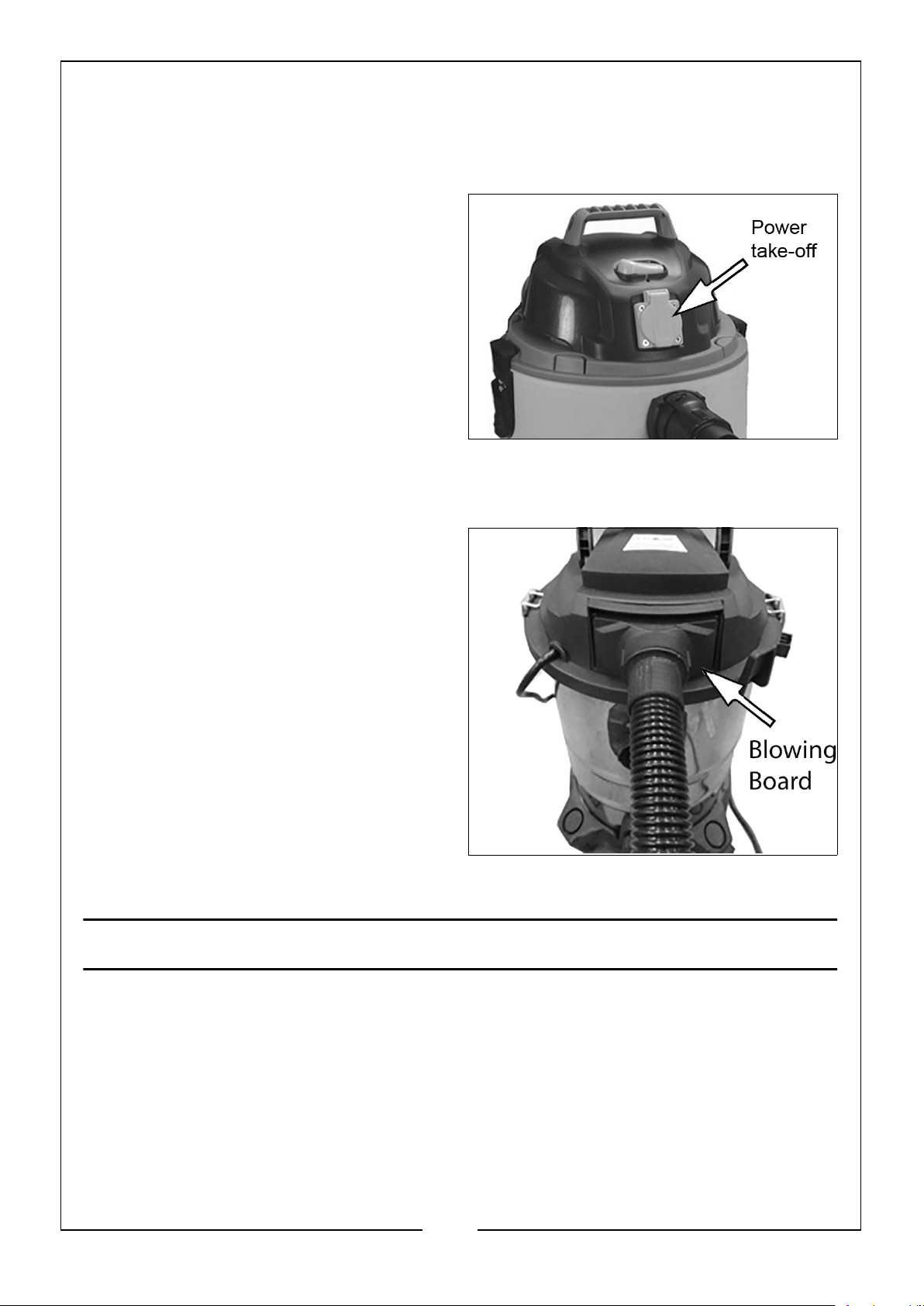

These machines are provided with a
standard three pin auxiliary power take
off which enables the machine to be used
as a dust extractor for power tools. Plug
the power tool into the socket and switch
it on. The CVAC will automatically start.
When the power tool is switched off, the
CVAC will switch itself off after a short
delay. Any power tool up to a maximum
of 2200W/6A rating can be used.

A stepped adapter tube is provided which
may be pushed into the dust extract port of any suitable power tool and on to which,
the flexible hose may be attached.

By connecting the flexible hose to the
exhaust of the CVAC, a blowing function
can be achieved. Remove the non ­blowing board and replace it with the
blowing board shown.

ALWAYS clear the hose of any
obstructions before attaching to the
blower port.

WARNING: ALWAYS WEAR EYE
PROTECTION TO PREVENT DEBRIS
FROM BEING BLOWN OR
RICOCHETING INTO THE EYES OR
FACE WHICH COULD RESULT IN
SERIOUS INJURY.

MAINTENANCE

Maintenance is limited to inspecting the filters and replacing if necessary. If the filters
become holed or damaged they must be replaced.

The cartridge filter is of paper construction and therefore may not be washed. It may
be brushed clean and compressed air set at a low pressure may also be used. The
linen bag may be washed as required and dried before use.

Ensure the hose is kept in good condition. A damaged hose will seriously effect the
efficiency of the machine and should be replaced immediately.

9

Parts & Service: 020 8988 7400 / E-mail: [email protected] or [email protected]

Inspect all other components periodically and replace damaged castors or accessories
when necessary. Contact your CLARKE dealer for replacements.

Regular inspection and the correct maintenance of the filters will ensure efficient
running and prolong the life of your machine.

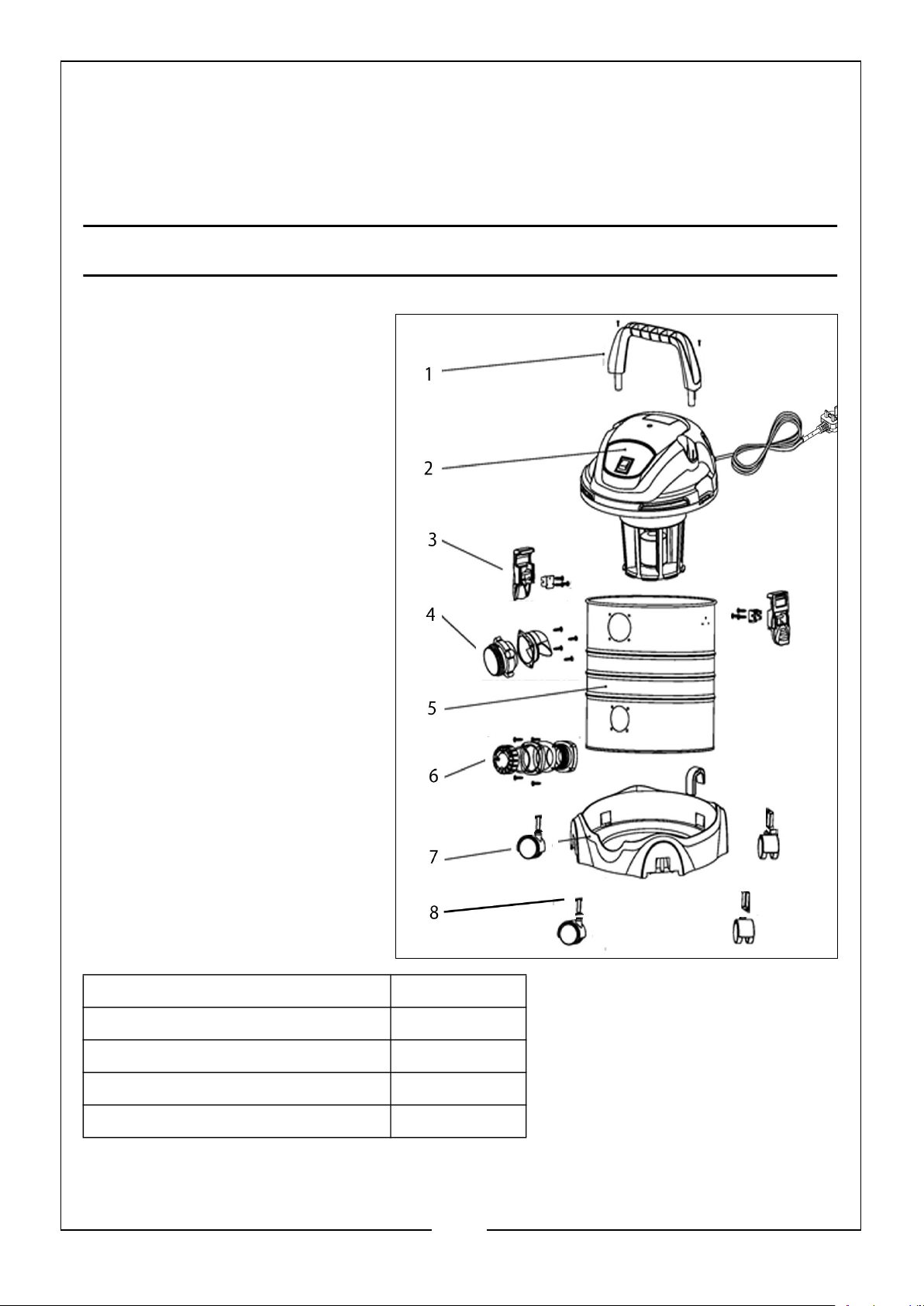

SPARE PARTS

1. Handle

2. Head Assembly

3. Latch Assembly

4. Hose Inlet Assembly

5. Container body

6. Water Drain Assembly

7. Base Frame

8. Castor Assembly

ACCESSORIES

CARTRIDGE FILTER 6471094

PAPER DUST BAG FILTER 6471140

FOAM FILTER 6471092

REPLACEMENT FILTER PACK 6471095

OPTIONAL 5M HOSE 6471155

10

Parts & Service: 020 8988 7400 / E-mail: [email protected] or [email protected]

DECLARATIONS OF CONFORMITY

11

Parts & Service: 020 8988 7400 / E-mail: [email protected] or [email protected]
