20V 10LITRE WET/DRY CORDLESS
VACUUM CLEANER
MODEL NO: CVAC18V10
PART NO: 6471102
OPERATING & MAINTENANCE
INSTRUCTIONS
ORIGINAL INSTRUCTIONS DL1025 REV 2
Page 2
INTRODUCTION
Thank you for selecting this Vac King 20 Volt Vacuum Cleaner, which will provide you with a clean and safe working environment.
Before attempting to operate the machine, it is essential that you read this manual thoroughly and carefully follow all instructions given. In doing so you will ensure the safety of yourself and that of others around you, and you can also look forward to the machine giving you long and satisfactory service.
SPECIFICATION
MODEL
Part No 6471102
Weight 3.8 kg
Dimensions (D x W x H) 300mm x 420mm x 300mm
Drum Capacity 10 Litres
Water Capacity 4.5 Litres
Dust Capacity 8 Litres
Hose Dimensions (Length x Diameter) Approx. 400mm - 1500mm x 38.1mm
Max Airflow 1.2 m3/min
Duty Cycle S1 (continuous)
Battery Charger Power Supply 230 V/50Hz/1ph
Battery Voltage 20V
Battery Charging Time Approx. 100 mins.
CVAC18V10
Discharge (Usage) Time Approx. 20 mins
Motor Rated Input 180W
Vacuum IP Rating IPX4
Operating Temperature
Please note that the details and specifications contained herein, are correct at the time of going to print. However, CLARKE International reserve the right to change specifications at any time without prior notice.
0 - 30oC
2
Page 3
SAFETY PRECAUTIONS
GENERAL SAFETY
1. Prior to use, all users should become familiar with this instruction booklet.
2. This cleaner can be used by children aged from 8 years and above and persons with reduced physical, sensory or mental capabilities or lack of experience and knowledge if they have been given supervision or instruction concerning the use of the cleaner in a safe way and understand the hazards involved.
3. DO NOT let children play with this cleaner, supervise children using or maintaining the cleaner.
4. AVOID operating in the presence of flammable liquids or gases. The motor may produce sparks during operation. DO NOT use in enclosed areas where flammable, explosive or toxic vapours are given off.
5. ALWAYS stay alert, watch what you are doing and use common sense when operating. DO NOT use the machine while you are tired or under the influence of medication, drugs or alcohol. A moment of inattention can result in personal injury.
6. NEVER over-reach. Keep your proper footing and balance at all times to enable better control of the machine in unexpected situations. Take extra care when cleaning stairs.
7. DO NOT block the cleaners openings or hinder air flow. Keep openings free of objects including dust, lint, clothing and all body parts.
GENERAL MACHINE USE AND CARE
8. ALWAYS maintain the cleaner with care and keep it clean for best / safest performance.
9. NEVER use this cleaner if any part is damaged. Have it inspected and repaired by your CLARKE dealer. DO NOT use if the battery or the cleaner itself, is in poor condition..
10. ALWAYS take care when a long hose is required in the work area as it presents a trip hazard. Tidy the hose away when the job is finished.
11. NEVER pick up burning cigarettes or other hot or smoking substances.
12. NEVER abuse the cleaner by standing on it.
13. ALWAYS transport the cleaner by lifting it by the handle.
14. When not in use, turn off by the On/Off switch on top of the cleaner and remove the battery.
3
Page 4
15. DO NOT change filters or carry out any cleaning or servicing, without first removing the battery.
16. Keep the external surfaces clean. AVOID impact damage and DO NOT allow the cleaner, charger or battery to come into contact with abrasive or corrosive materials.
17. DO NOT use solvents, thinners or alcohol to clean the cleaner, charger or battery, as these chemicals will damage the finish. With the cleaners battery unplugged from the battery compartment, use a dry cloth to wipe over the plastic casing.
18. When not in use the cleaner and battery should be stored in a secure, dry place, out of the reach of children. DO NOT leave it exposed to the elements and avoid direct sunlight, direct heat, rain/moisture etc.
19. Only use parts and accessories recommended in this manual. The use of unauthorised accessories or attachments may result in personal injury or damage to the machine.
20. DO NOT attempt to repair or modify the cleaner charger or battery. DO NOT attempt any electrical repair yourself. Consult a qualified electrician or the CLARKE Service Department on 020 8988 7400.
BATTERY SAFETY
1. Only use batteries and charger supplied with the cleaner.
2. If the battery or charger are damaged in anyway, DO NOT attempt to repair them. They should be replaced and the damaged item should be disposed of in accordance with local regulations.
3. DO NOT incinerate the batteries or expose to high temperatures, as they may explode.
4. Liquid ejected from the battery may cause irritation or burns. Leaks from the battery cells can occur under extreme conditions. DO NOT touch any liquid that leaks from the battery. If any liquid gets on the skin, wash immediately with soap and water. If liquid gets into the eyes, flush them immediately with water for a minimum of 10 minutes and seek medical attention. wear gloves to handle the battery and dispose of immediately in accordance with local regulations.
5. Keep the battery away from all metal objects such as paper clips, coins, keys, nails or screws. Shorting the battery terminals increases the risk of fire or burns.
4
Page 5

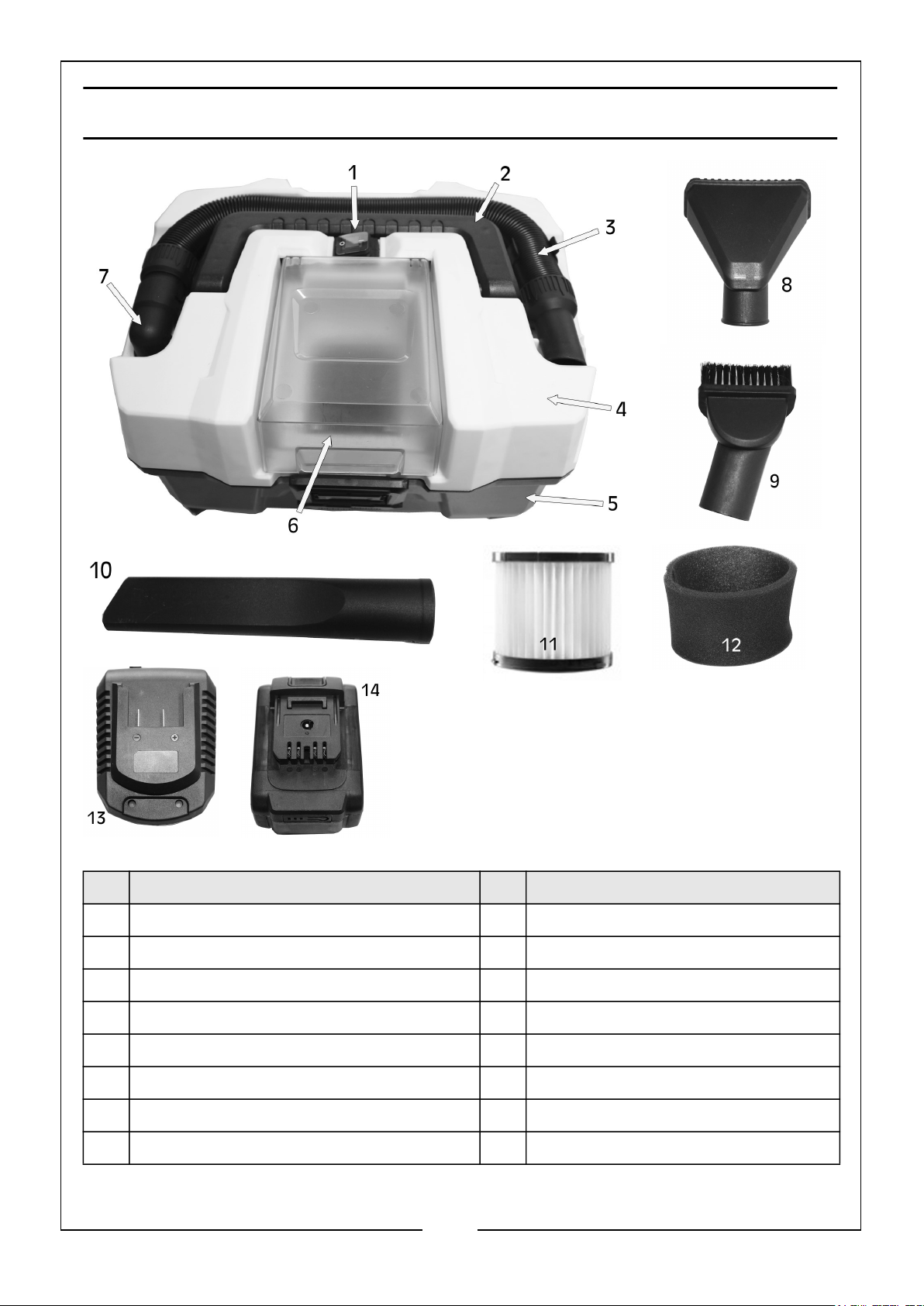

INVENTORY OF COMPONENTS
No Description No Description
1 On/Off Switch 9 Brush Nozzle
2 Carrying Handle 10 Crevice Nozzle
3 Flexible Plastic Hose 11 Dry HEPA Filter
4. Top Cover 12 Wet Sponge Filter
5 Tank 13 Battery Charger
6 Battery Compartment 14 4Ah Battery
7 Suction Port 15 4 x Wheels (Not Shown)
8 Triangle Nozzle
5
Page 6
BATTERY CHARGER ELECTRICAL CONNEC-
Plug must be BS1363/A approved.
TIONS
WARNING! READ THESE ELECTRICAL SAFETY INSTRUCTIONS THOROUGHLY BEFORE CONNECTING THE CHARGER TO THE MAINS SUPPLY.
Before switching the battery charger on, make sure that the voltage of your electricity supply is the same as that indicated on the rating plate. This battery charger is designed to operate on 230VAC 50Hz. Connecting it to any other power source may cause damage.

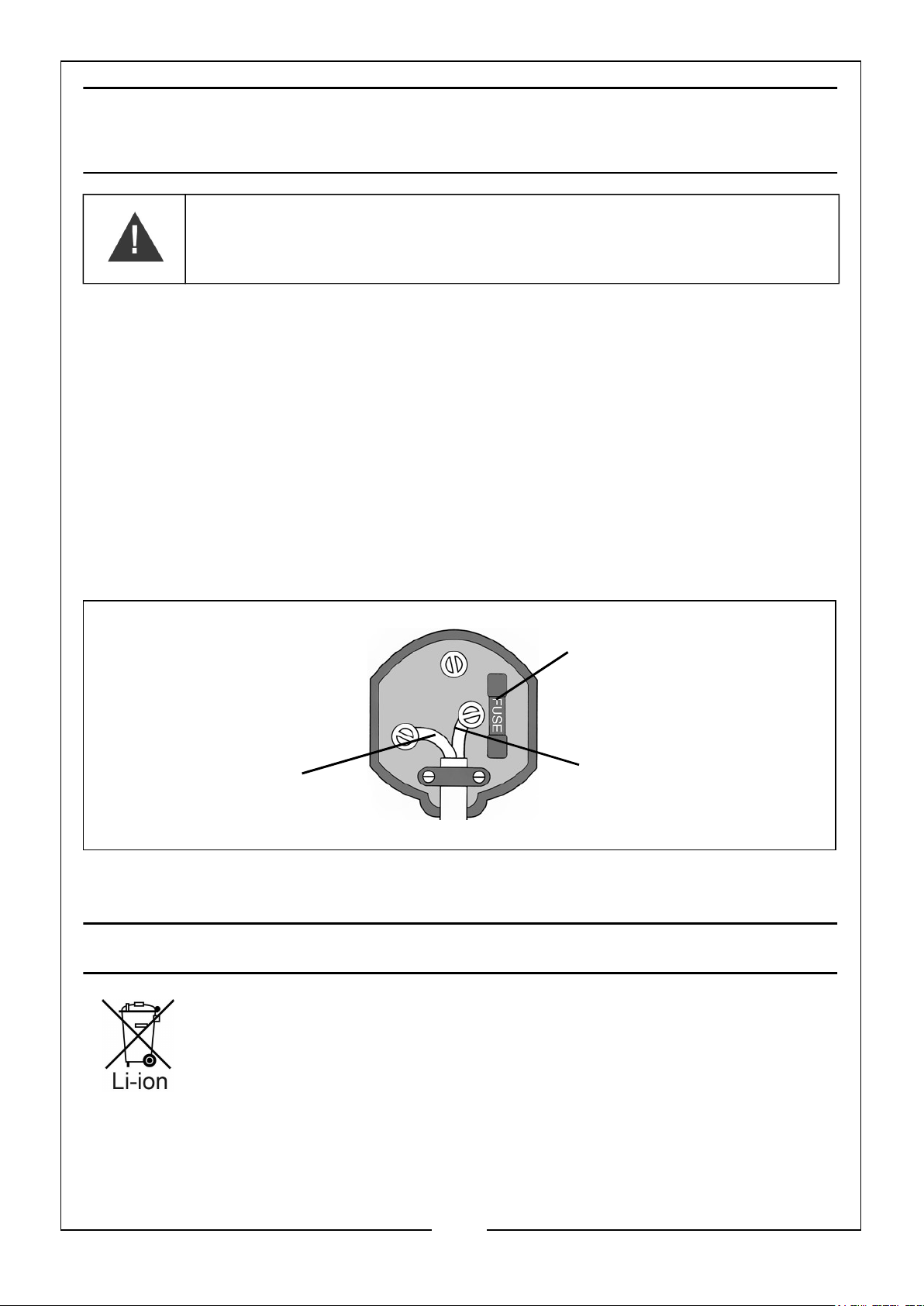

This battery charger may be fitted with a non-rewireable plug. If it is necessary to change the fuse in the plug, the fuse cover must be refitted. If the fuse cover becomes lost or damaged, the plug must not be used until a suitable replacement is obtained.
If the plug has to be changed because it is not suitable for your socket, or due to damage, it should be cut off and a replacement fitted, following the wiring instructions shown below. The old plug must be disposed of safely, as insertion into a mains socket could cause an electrical hazard.
Always fit a 3 Amp fuse
Neutral
(Blue)
Ensure that the outer sheath of the cable is firmly held by the clamp
If in any doubt, consult a qualified electrician. DO NOT attempt any repairs yourself.
Live
(Brown)
ENVIRONMENTAL PROTECTION
By purchasing this product, the customer is taking on the obligation to deal with its safe disposal in accordance with the Waste Electrical and Electronic Equipment regulations (WEEE).
In effect, this means that this cleaner, charger and battery must not be disposed of with general household waste. It must be disposed of according to the laws governing Waste Electrical and Electronic Equipment (WEEE) at a recognised disposal facility.
6
Page 7
PREPARATION FOR USE
WARNING: BEFORE USING THE VACUUM CLEANER, MAKE SURE THAT YOU HAVE READ AND UNDERSTOOD THE SAFETY INSTRUCTIONS
UNPACKING & ASSEMBLY
With the vacuum cleaner removed from the packaging, remove the components from within the tank. Lay them out and check for shortages and that no damage was suffered in transit.

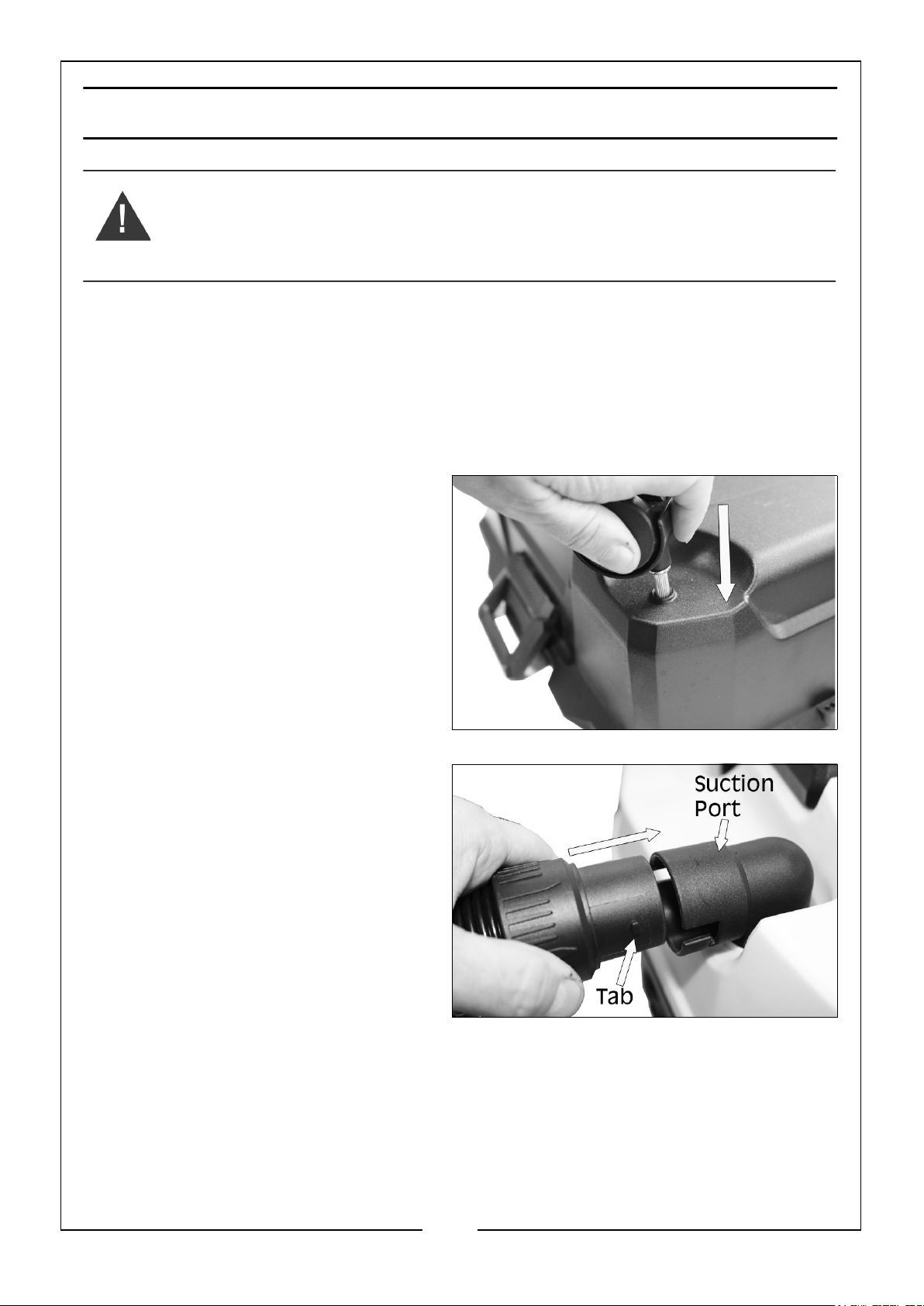

FITTING THE WHEELS
1. Press the 4 wheels into the
detachable base positions as shown.
ASSEMBLING THE HOSE
1. Push the plastic hose end into the
suction port, making sure the 2 tabs on the hose end align with the grooves in the suction port.
2. Twist the hose clockwise to lock in
place.
7
Page 8

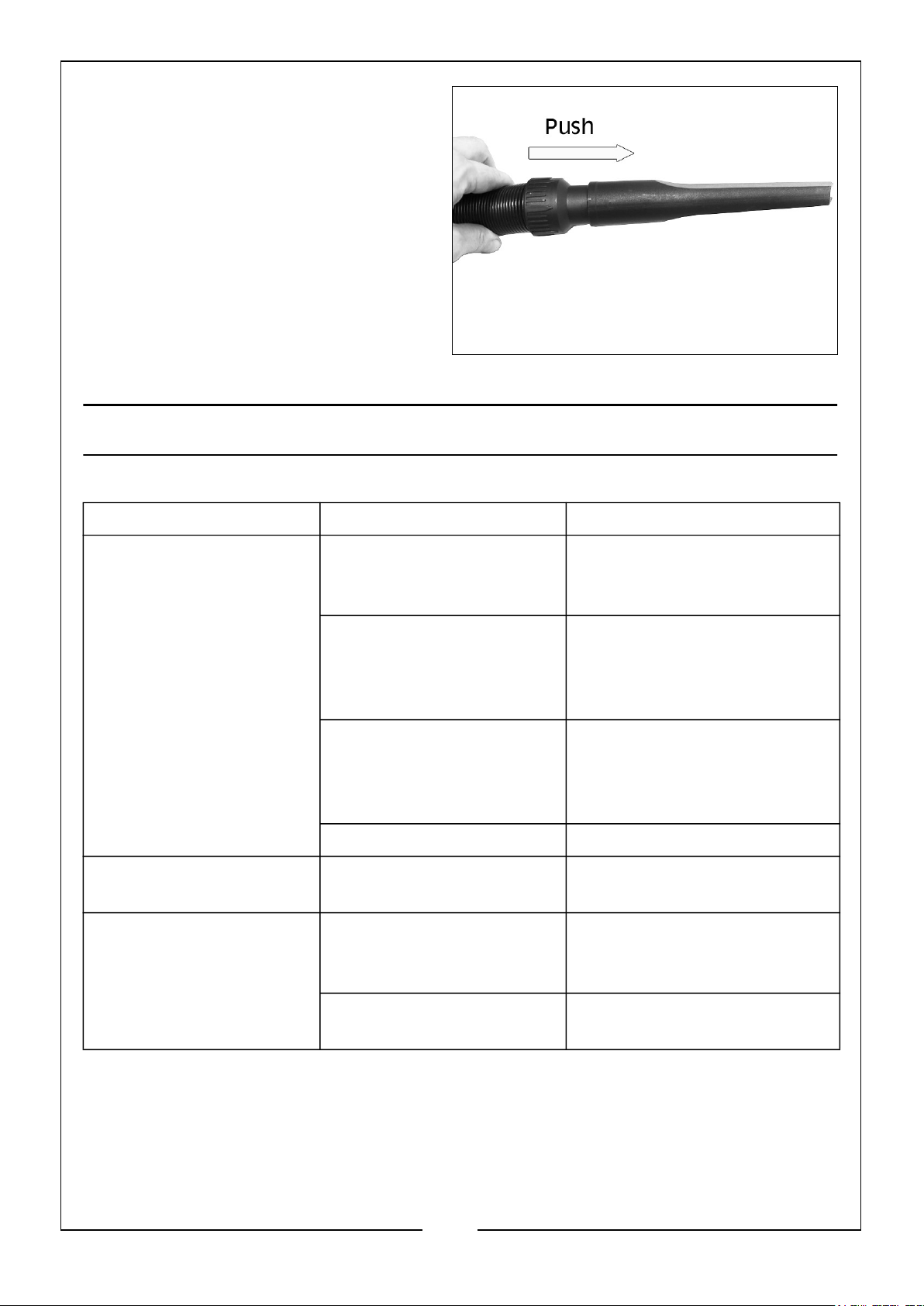

3. Insert the plastic hose into the
required brush/nozzle and push in until it is a tight fit, brush nozzle shown

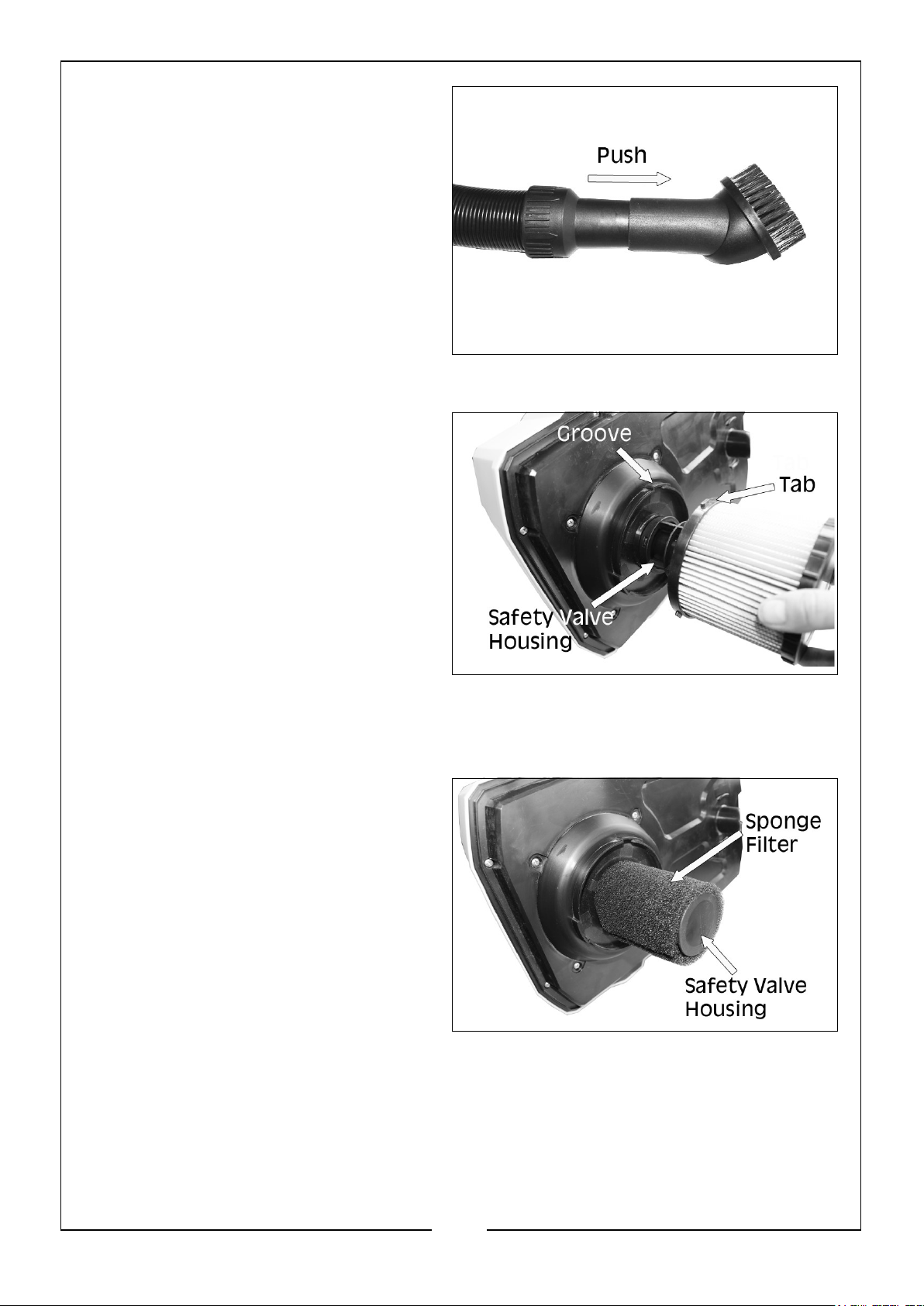

FITTING/CHANGING THE FILTERS
Filters are essential to ensure that dust or foreign matter does not enter the motor compartment which would reduce motor efficiency and eventually cause serious damage.
HEPA FILTER FOR DRY CLEANING
1. Fit the HEPA filter over the top of
the safety flotation valve housing, as shown.
2. Line up the 3 tabs on the filter with
the 3 grooves in the motor unit and turn the filter clockwise to lock in place.
SPONGE FILTER FOR WET CLEANING
1. Place the sponge filter over the
safety flotation valve housing, making sure it covers the whole housing, as shown.
8
Page 9
BATTERY INSTALLATION

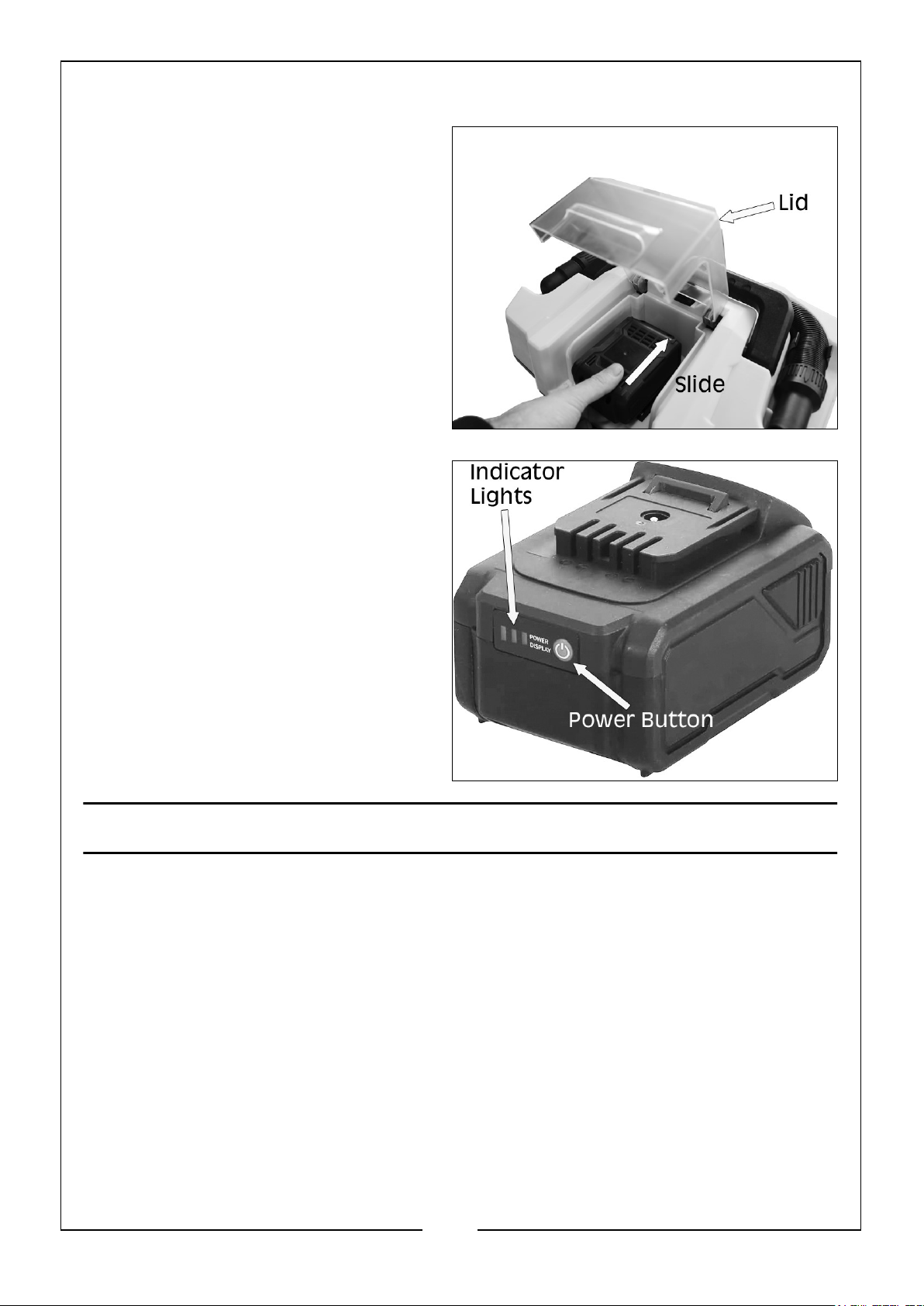

1. Lift the battery compartment lid.
2. Slide the battery into the
compartment, with the release clip on the outside.
3. Before use, make sure the
compartment lid is firmly clipped down in place.
4. To check how much power is in the
battery, press the power indicator button on the end of the battery. The following lights will indicate how much power is in the battery.
• 1 Light: 33% power
• 2 Lights: 66% power
• 3 Lights: 100% power
OPERATION
SUCTION
1. Before operating the cleaner, make sure that the appropriate filter is fitted
correctly (see page 8) for the job in hand, as follows:
• Dry Vacuum Cleaning, use the HEPA filter.
• Wet Vacuum Cleaning, use the sponge filter.
• Mixture of material and liquid, use both filters, fitting the sponge filter first then the HEPA filter over the top.
2. Choose the appropriate brush/nozzle and fit to the end of the plastic tube (see page 8)
9
Page 10
3. Make sure the hose is fixed to the suction port (see page 7)
4. Make sure that the motor housing is seated on top of the tank and the clips are locked in place, one on each side.
5. Switch on and start work.
NOTE: The machine should be
positioned on a firm, level surface, specially when using for wet cleaning.
NOTE: The tank will hold
approximately 4.5 litres of liquid before the safety flotation valve shuts off the vacuum flow. This can be recognised by a change in the noise of the motor. Once this happens, switch off the cleaner and empty the tank of all liquid.

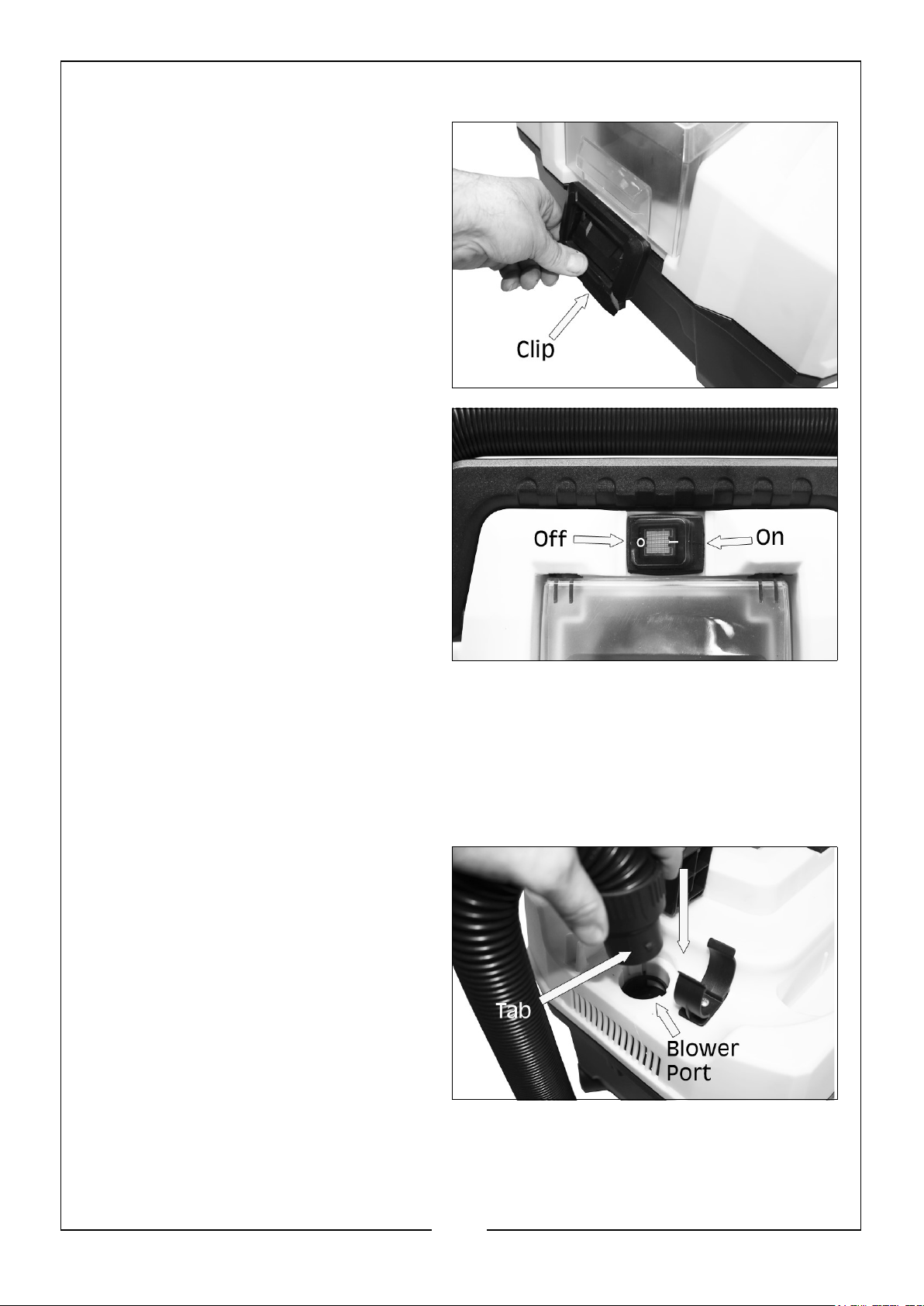

BLOWER
This vacuum has a blower function, as follows:
1. Remove the plastic hose end from the suction port.
2. Push the plastic hose end into the blower port, making sure the 2 tabs on the hose end align with the grooves in the blower port.
3. Push down and twist the hose clockwise to lock in place.
10
Page 11
4. Insert the plastic hose into the crevice nozzle and push in until it is a tight fit, this will give you a stronger airflow.
5. Switch on and start work.
TROUBLESHOOTING
Symptom Possible Cause Corrective action
Suction weakens Clogged filter Clean dirt from filter.
If condition continues, change filter.
Air leak Check the connection of all
the accessories (hose, brush/ nozzle, etc). Check that clips are fastened properly.
Obstruction in hose or brush/nozzle
Saturated filter Replace saturated filter.
Dust leakage Filter is not fitted well Check if the filter is fitted in
Machine doesn’t work Battery is not well charged Check if there is any power
Check hose and brush/nozzle for obstructions and remove if present.
the right position.
left in the battery; or charge battery.
Motor breakdown Take the cleaner to your
CLARKE dealer for repair.
11
Page 12
MAINTENANCE
WARNING: TAKE OUT THE BATTERY BEFORE DOING ANY MAINTENANCE WORK. IF PROPER CARE IS TAKEN TO MAINTAIN YOUR CLEANER, MOTOR MAINTENANCE IS UNNECESSARY.
CLEANING YOUR FILTERS
1. Take the filter off the machine (see pages 8)
2. Wash the filters with water only, at 40°C max.
3. When washing the filters, be gentle and avoid brushing them, as this may damage them.
4. Dry the filters for at least 24 hours before reusing them.
CLEANING YOUR ACCESSORIES
1. Wash the hose, tube and brush/nozzles regularly to reduce build up of dirt, using water at a 40°C max.
2. Shake the water off from inside, and make sure that they dry for 24 hours before reuse.
CLEANING THE TANK
1. Clean out any liquid from inside the tank.
2. Wipe down the inside with a duster cloth.
12
Page 13
DECLARATION OF CONFORMITY
13
Page 14
GUARANTEE
This CLARKE product is guaranteed against faulty manufacture for a period of 12 months from the date of purchase. Please keep your receipt as proof of purchase.
This guarantee is invalid if the product is found to have been abused or tampered with in any way, or not used for its intended purpose.
Faulty goods should be returned to their place of purchase, no product can be returned to us without prior permission.
This guarantee does not effect your statutory rights.component parts list

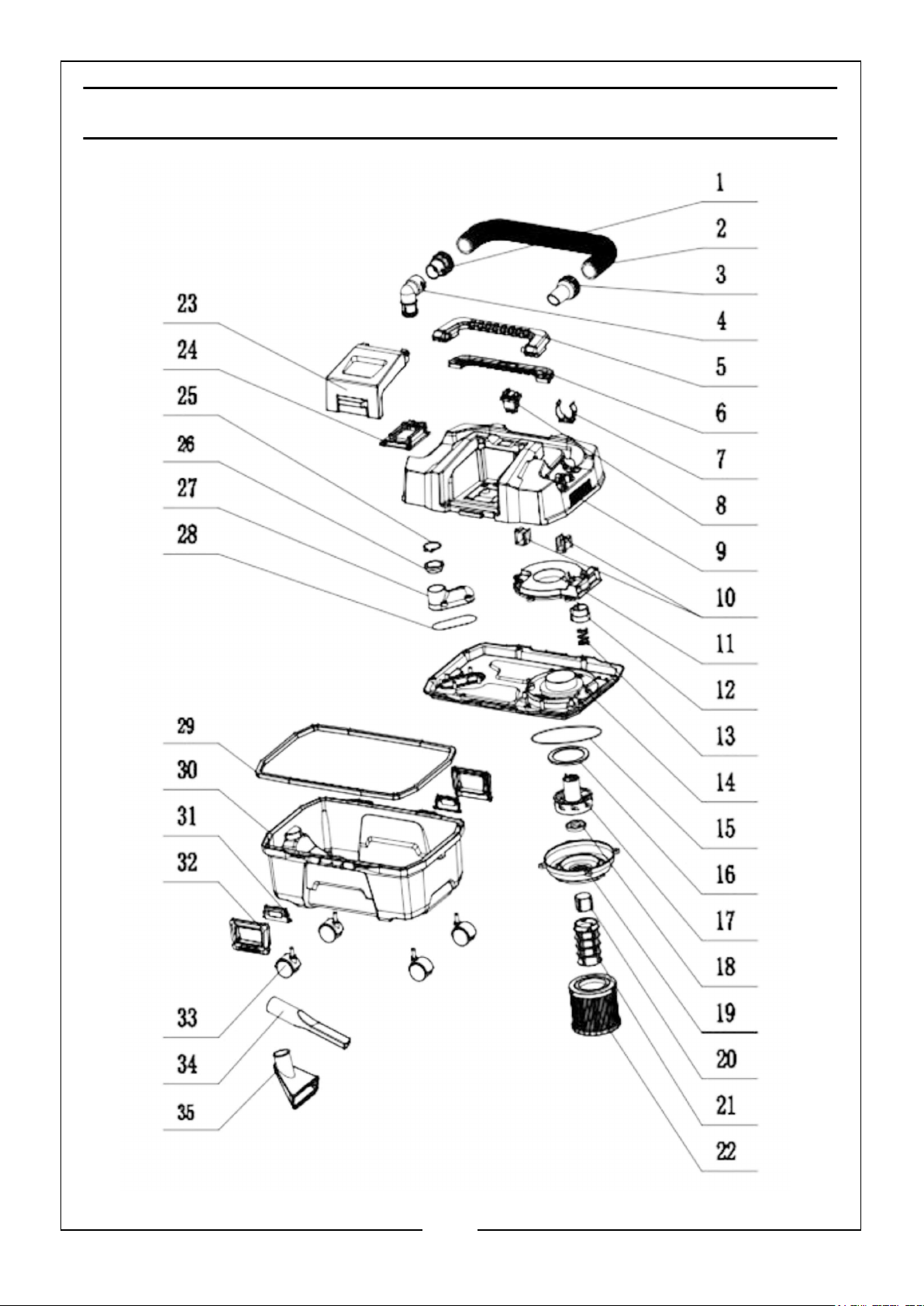

COMPONENT PARTS LIST
1 Suction Mouth Connector 19 Motor Base
2 Telescopic Flexible Hose 20 Safety Flotation Valve
3 Hose Connector 21 Flotation Valve Housing
4 Suction Connector 22 HEPA Filter
5 Handle 23 Battery Cover
6 Handle Cover 24 Battery Seat
7 Hose Clamp 25 Black Ring
8 On/Off Switch 26 Connector Seal Ring
9 Top Cover 27 Connector Tube
10 Left & Right Block 28 Connector Sealing Strip
11 Motor Cover 29 Barrel Sealing Strip
12 Blower Controller 30 Barrel
13 Blower Spring 31 Buckle Seat
14 Barrel Cap 32 Buckle
15 Rubber Sealing Strip 33 Wheels
16 Motor Upper Seal Ring 34 Crevice Nozzle
17 Motor 35 Triangle Nozzle
18 Motor Lower Seal Ring
14
Page 15
COMPONENT PARTS
15
Page 16
