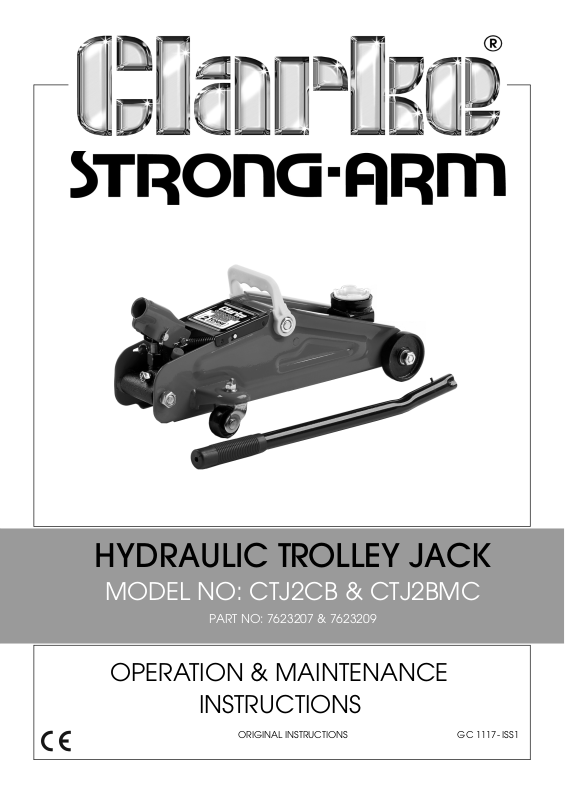

HYDRAULIC TROLLEY JACK
MODEL NO: CTJ2CB & CTJ2BMC
PART NO: 7623207 & 7623209
OPERATION & MAINTENANCE
INSTRUCTIONS
ORIGINAL INSTRUCTIONS GC 1117- ISS1
INTRODUCTION
Thank you for purchasing this CLARKE Trolley Jack. This manual cover s the
CTJ2CB and the CTJ2BMC which is supplied in a blow moulded case.
Before attempting to use this product, please read this manual thoroughly and
follow the instructions carefully. In doing so you will ensure the safety of yourself
and that of others around you, and you can look forward to your purchase
giving you long and satisfactory service.
SPECIFICATION
Length (exc handle): 435 mm
Width: 196 mm
Min height of lifting cup: 130 mm
Maximum lifting height from floor: 330 mm
Weight: 8.4 kg
Pump Oil Capacity: 85-100 ml
Rated Capacity: 2 Tonnes
GUARANTEE
This product is guaranteed against faulty manufacture for a period of 12
months from the date of purchase. Please keep your receipt which will be
required as proof of purchase.
This guarantee is invalid if the product is found to have been abused or
tampered with in any way, or not used for the purpose for which it was
intended. Faulty goods should be returned to their place of purchase, no
product can be returned to us without prior permission. This guarantee does
not effect your statutory rights.
2
SAFETY PRECAUTIONS
WARNING: THE OPERATOR MUST FOLLOW ALL INSTRUCTIONS WITHIN THIS
INSTRUCTION BOOKLET
1. This jack is for lifting only. Do not move a load using the jack as a dolly.
2. Do not use to lift people.
3. Always inspect the jack before use. Make sure that all parts are in good
condition and operating smoothly, and that no cracks or distortion is
apparent. If in doubt do not use. Have the damaged parts replaced or
consult your CLARKE dealer.
4. Make sure that the jack is on a firm level base, and there is no possibility of
it slipping when under load.
5. Make sure the load is taken by the full saddle and that the point of lift on
the load, is strong enough to support the load adequately.
6. Do not work under the raised vehicle until it is supported by suitable means
e.g. axle stands, NEVER rely on the jack to support the vehicle by itself.
7. Never push a load off the jack.
8. Ensure that all personnel are well clear of a load being raised or lowered.
9. Do not try to lift more then the rated load for the jack.
10. Do not use the jack if an oil leak is apparent. Consult your Clarke dealer.
11. Consult the vehicle handbook to determine the correct lifting points.
12. Always watch the jack and the load during operation.
13. Check the condition of the labels regularly and replace as required.
14. The jack must be maintained and repaired in accordance with the these
instructions by suitably qualified persons.
15. Do not make any modifications to this jack or adjust any valves.
ENVIRONMENTAL PROTECTION
One of the most damaging sources of environmental pollution is oil products.
Never throw away used hydraulic oil with domestic refuse or flush it down a
sink or drain. Collect any hydraulic oil in a leak proof container and take it to
your local waste disposal site.
If disposing of this product or any damaged components, do not dispose of
with general waste. This product contains valuable raw materials and should
be taken to your local civic amenity site for recycling of metal products.
3
BEFORE USE
1. Before use, attach the lifting
handle by clipping it over the two
rge nuts at the main arm pivot.
la
2. Inspect the jack for oil leaks or any
sign
of damage. If in doubt, do
not use. Should any defects be
apparent, have the jack repaired
by your CLARKE dealer.
3. Check the piston for dirt, rust etc
hich can damage the piston
w
and internal components.
The jack is now ready to use.
OPERATION
WARNING: NEVER WORK ON THE VEHICLE WHEN SUPPORTED ONLY BY A
JACK. THIS IS HIGHLY DANGEROUS. THE VEHICLE MUST BE SUPPORTED ON
AXLE STANDS OR SUITABLE SUPPORTS BENEATH THE CORRECT JACKING/
SUPPORT POINTS.
1. Ensure the vehicle to be raised is stable and on firm level ground with the
wheels chocked.
NOTE: T
2. Position the jack so that the
3. Place the operating lever over the
4. Place the operating lever in the
5. Check that there are no obstacles to prevent a clean lift, also, make sure
he jack may move slightly during operation. It is important
therefore, that the floor is clean and completely free from debris.
saddle is directly beneath the
lifting point.
• Consult the vehicle handbook
to d
etermine the lifting points.
release valve and turn it fully
clockwise to close the valve.
ja
cking port and pump the
operating lever so that the saddle rises to the lifting point.
that all personnel are well away from the area, before raising the vehicle.
4
6. Pump the handle to raise the vehicle to the required level.
• If, at any time, the jack feels spongy, follow the bleeding procedure
under Maintenance.
7. Position suitable, good quality axle stands directly beneath the supporting
points on the vehicle. Place the operating lever over the release valve and
very gently twist the operating lever anti-clockwise to lower the load onto
the stands.
8. Check constantly, preferably with an assistant, that the vehicle is resting
correctly on the axle stands and that the stands are stable before the
weight is taken.
9. Place the operating lever over the release valve and VERY slowly turn the
handle anti-clockwi
• Ensure the axle stands are centred about the support point and
perfectly stable before full weight is taken.
10. To stop it lowering at any point, turn the operating lever clockwise again.
Alw
ays avoid a rapid descent by turning the operating lever slowly.
NOTE: Ensure
the load to drop suddenly as this could damage internal parts.
11. Completely remove the jack from the vehicle.
this is carried out under complete control. DO NOT allow
se to lower the load on to the axle stands.
MAINTENANCE
CHECKING/MAINTAINING THE OIL LEVEL
1. Ensure the jack is fully lowered by
turning the control valve fully anticlockwise.
2. Remove the filler plug.
• The oil should be almost level
wit
h the bottom of the filler hole
• Oil can be topped up using
Clarke Hydraulic Oil (p/n
3050830 1 litre).
3. Bleed any air from the system as described on page 6
plug and cover plate.
4. Dispose of old/spilled oil appropr
iately and wipe up any spillage.
5
and replace the filler
BLEEDING AIR FROM THE SYSTEM
1. Use the operating lever to turn the release valve anti-clockwise, relieving
pressure inside the jack.
2. Pump the operating lever several times to purge air from the system.
3. Turn the release valve clockwise and test the jack. If efficiency is still low,
check the oil level as described above.
4. Wipe up any oil spillage and dispose of old/spilled oil appropriately.
TROUBLESHOOTING
PROBLEM CAUSE SOLUTION
Jack will not lift the
rated load
Jack lowers when
under load
Pump feels spongy Low oil level. Check for leakage and top up
Handle raises or flies
back under load
Jack will not lift full
height
Jack will not lower
completely
Low oil level. Check for leakage and top up
if required.
Release valve not
closed.
Air in the hydraulic ram. Bleed air as above.
Release valve not fully
closed.
Air in the hydraulic ram. Bleed air as above.
Air in the system. Bleed air as above.
Air in the hydraulic ram. Bleed air as above.
Low oil level. Check for leakage and top up
Air in the hydraulic ram. Bleed air as above.
Return spring may be
faulty.
Turn release knob fully
clockwise.
Turn the release knob fully
clockwise.
if required.
if required.
Return to your Clarke dealer for
repair.
If any of these remedies fail to restore your jack, consult your Clarke dealer.
SPARE PARTS
The following user serviceable parts are available from your Clarke dealer, or
Clarke International Parts Department: Carrying Handle, Operating Lever,
Castor Assembly.
6
