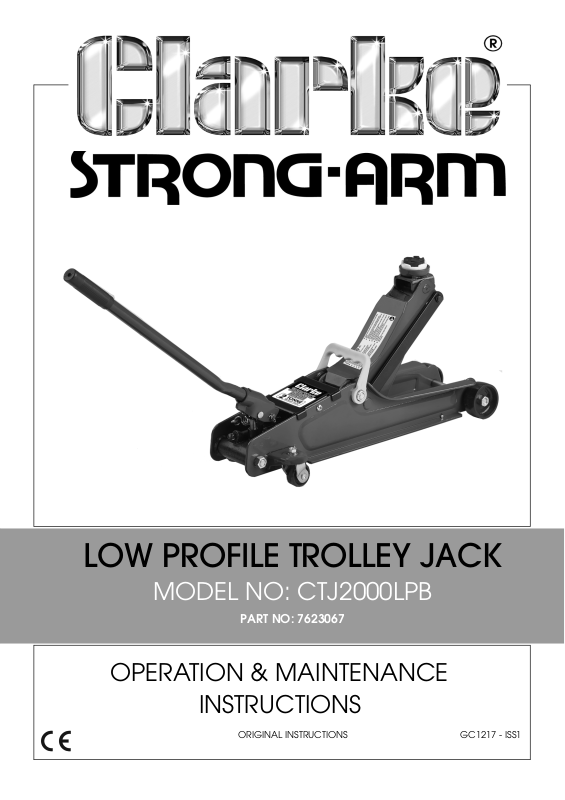

LOW PROFILE TROLLEY JACK
MODEL NO: CTJ2000LPB
PART NO: 7623067
OPERATION & MAINTENANCE
INSTRUCTIONS
ORIGINAL INSTRUCTIONS GC1217 - ISS1
INTRODUCTION
Thank you for purchasing this CLARKE trolley jack.
Before attempting to use this product, please read this manual thoroughly and
follow the instructions carefully. In doing so you will ensure the safety of yourself
and that of others around you, and you can look forward to your purchase
giving you long and satisfactory service.
SPECIFICATION
Model number CTJ2000LPB
Length (exc handle): 560 mm
Width: 215 mm
Height of lifting cup (at rest): 90 mm
Maximum lifting height from floor: 380 mm
Distance raised per
Weight: 12.9 kg
Pump Oil Capacity: 160-170 ml
Rated Capacity: 2 Tonnes
stroke (average): 6.5 mm
GUARANTEE
This product is guaranteed against faulty manufacture for a period of 12
months from the date of purchase. Please keep your receipt which will be
required as proof of purchase.
This guarantee is invalid if the product is found to have been abused or
tampered with in any way, or not used for the purpose for which it was
intended.
Faulty goods should be returned to their place of purchase, no product can
be returned to us without prior permission. This guarantee does not effect your
statutory rights.
2
SAFETY PRECAUTIONS
WARNING: THE OPERATOR MUST FOLLOW ALL INSTRUCTIONS WITHIN THIS
INSTRUCTION BOOKLET
1. This jack is for lifting only. Do not move a load using the jack as a dolly.
2. Do not use to lift people.
3. Always inspect the jack before use. Make sure that all parts are in good
condition and operating smoothly, and that no cracks or distortion is
apparent. If in doubt do not use. Have the damaged parts replaced or
consult your CLARKE dealer.
4. Make sure that the jack is on a firm level base, and there is no possibility of
it slipping when under load.
5. Make sure the load is taken by the full saddle and that the point of lift on
the load, is strong enough to support the load adequately.
6. Do not work under the raised vehicle until it is supported by suitable means
e.g. axle stands, NEVER rely on the jack to support the vehicle by itself.
7. Never push a load off the jack.
8. Ensure that all personnel are well clear of a load being raised or lowered.
9. Do not try to lift more then the rated load for the jack.
10. Do not use the jack if an oil leak is apparent. Consult your Clarke dealer.
11. Consult the vehicle handbook to determine the correct lifting points.
12. Always watch the jack and the load during operation.
13. Check the condition of the labels regularly and replace as required.
14. The jack must be maintained and repaired by suitably qualified persons.
15. Do not make any modifications to this jack or adjust any valves.
ENVIRONMENTAL PROTECTION
One of the most damaging sources of environmental pollution is oil products.
Never throw away used hydraulic oil with domestic refuse or flush it down a
sink or drain. Collect any hydraulic oil in a leak proof container and take it to
your local waste disposal site.
If disposing of this product or any damaged components, do not dispose of
with general waste. This product contains valuable raw materials and should
be taken to your local civic amenity site for recycling of metal products.
3
BEFORE USE
1. Before use, attach the lifting
handle by clipping it over the two
rge nuts at the main arm pivot.
la
2. Fit the rubber puck on the saddle.
3. Inspect the jack for oil leaks or any
other sign
be apparent, have the jack
repaired by a qualified technician.
4. Check the piston for dirt, rust etc
which can damage the piston and
internal components.
5. Inspect the jack for distortion of components and security of all nuts and
bolts. If in doubt, do not use. Have damaged parts repaired or replaced. If
necessary, consult your CLARKE dealer.
The jack is now ready to use.
of damage. Should any
OPERATION
WARNING: NEVER WORK ON THE VEHICLE WHEN SUPPORTED ONLY BY A
JACK. THIS IS HIGHLY DANGEROUS. THE VEHICLE MUST BE SUPPORTED ON
AXLE STANDS OR SUITABLE SUPPORTS BENEATH THE CORRECT JACKING/
SUPPORT POINTS.
1. Ensure the vehicle to be raised is stable and on firm level ground with the
wheels chocked.
NOTE: T
2. Position the jack so that the
3. Place the operating lever over the
he jack may move slightly during operation. It is important
therefore, that the floor is clean and completely free from debris.
saddle is directly beneath the
lifting point.
• Consult the vehicle handbook
to d
etermine suitable lifting
points.
release valve and turn it fully
clockwise to close the valve.
4
4. Fit the operating lever into the jacking port and pump the operating lever
to raise the saddle until it reaches the jacking point.
5. Make sure that the saddle is in full contac
there is nothing that will prevent a clean lift. Keep all personnel at a safe
distance before lifting.
6. Pump the operating lever to raise the vehicle to the required level.
NOTE: If,
7. Position suitable, good quality axle stands directly beneath the supporting
points on the vehicle. Place the operating lever over the release valve and
very gently twist anti-clockwise to lower the load onto the stands.
8. Check constantly, preferably with an assistant, that the vehicle is resting
correctly on th
weight is taken.
9. Ensure that the axle stands cannot move when supporting the load.
10. To stop it lowering at any point, turn the operating lever clockwise again.
Alw
NOTE: Ensure
11. Completely remove the jack from the vehicle.
at any time, the jack feels spongy, follow the bleeding
procedure under Maintenance.
e axle stands and that the stands are stable before the
ays avoid a rapid descent by turning the operating lever slowly.
this is carried out under complete control. DO NOT allow
the load to drop suddenly as this could damage internal parts.
t with the lifting point and that
MAINTENANCE
CHECKING THE OIL LEVEL
1. Ensure the jack is fully lowered by
turning the release valve fully anticlockwise.
2. Remove the cover plate and filler
plug.
• The oil should be almost level
wit
h the bottom of the filler hole
• Oil can be topped up using
Clarke Hydraulic Oil (p/n
3050830 1 litre).
3. Replace the filler plug/cover plate and bleed any
5
air from the system.
BLEEDING AIR FROM THE SYSTEM
1. Use the operating lever to turn the release valve anti-clockwise, relieving
pressure inside the jack.
2. Pump the operating lever several times to purge air from the system.
3. Turn the release valve clockwise and test the jack. If efficiency is still low,
check the oil level as described.
4. Wipe up any oil spillage and dispose of old/spilled oil appropriately.
TROUBLESHOOTING
PROBLEM CAUSE SOLUTION
Jack will not lift the
rated load
Jack lowers when
under load
Pump feels spongy Low oil level Check for leakage and top up
Handle raises or flies
back under load
Jack will not lift full
height
Jack will not lower
completely
Low oil level Check for leakage and top up
if required.
Release valve not
closed
Air in the hydraulic ram Purge of air as on page 4.
Release valve not fully
closed
Air in the hydraulic ram Purge of air as on page 4.
Air in the system Purge of air as on page 4.
Air in the hydraulic ram Purge of air as on page 4.
Low oil level Check for leakage and top up
Air in the hydraulic ram Purge of air as on page 4.
Return spring may be
faulty.
Turn release knob fully
clockwise.
Turn the release knob fully
clockwise.
if required.
if required.
Return to your Clarke dealer for
repair.
If any of these remedies fail to restore your jack, consult your Clarke dealer.
SPARE PARTS
The Operating Lever, Rubber Puck, Rear Castor assembly are available as user
serviceable parts from your Clarke dealer, or Clarke International Parts
Department.
6
DECLARATION OF CONFORMITY
7
