TILE CUTTER
MODEL NO: CTCM400
PART NO: 3400656
USER INSTRUCTIONS
ORIGINAL INSTRUCTIONS GC05/25
Page 2
INTRODUCTION
Thank you for purchasing this CLARKE Tile Cutter.
The CTCM400 tile cutter is ideal for professional and DIY users alike.
Ceramic tiles up to 400mm (16”) in length, and 14mm (1/2”) thick, may be cut
perfectly straight. The CTCM400 has the additional capability of cutting to any angle,
accurately, (max. diagonal cut - 400mm).
Please read this leaflet thoroughly before use. This will ensure not only the safety of
both yourself and those around you, but also accuracy of operation and long and
trouble free service from your tile cutter.
TILE CUTTING
1. Place the tile on the work table with the line to be scored exactly in line with the
centre mark on the scale.
• An end stop is provided to ensure the tile is held in a square position. (Ensure the
angle gauge is set to zero degrees).
2
Parts & Service: 020 8988 7400 / E-mail: [email protected] or [email protected]
Page 3

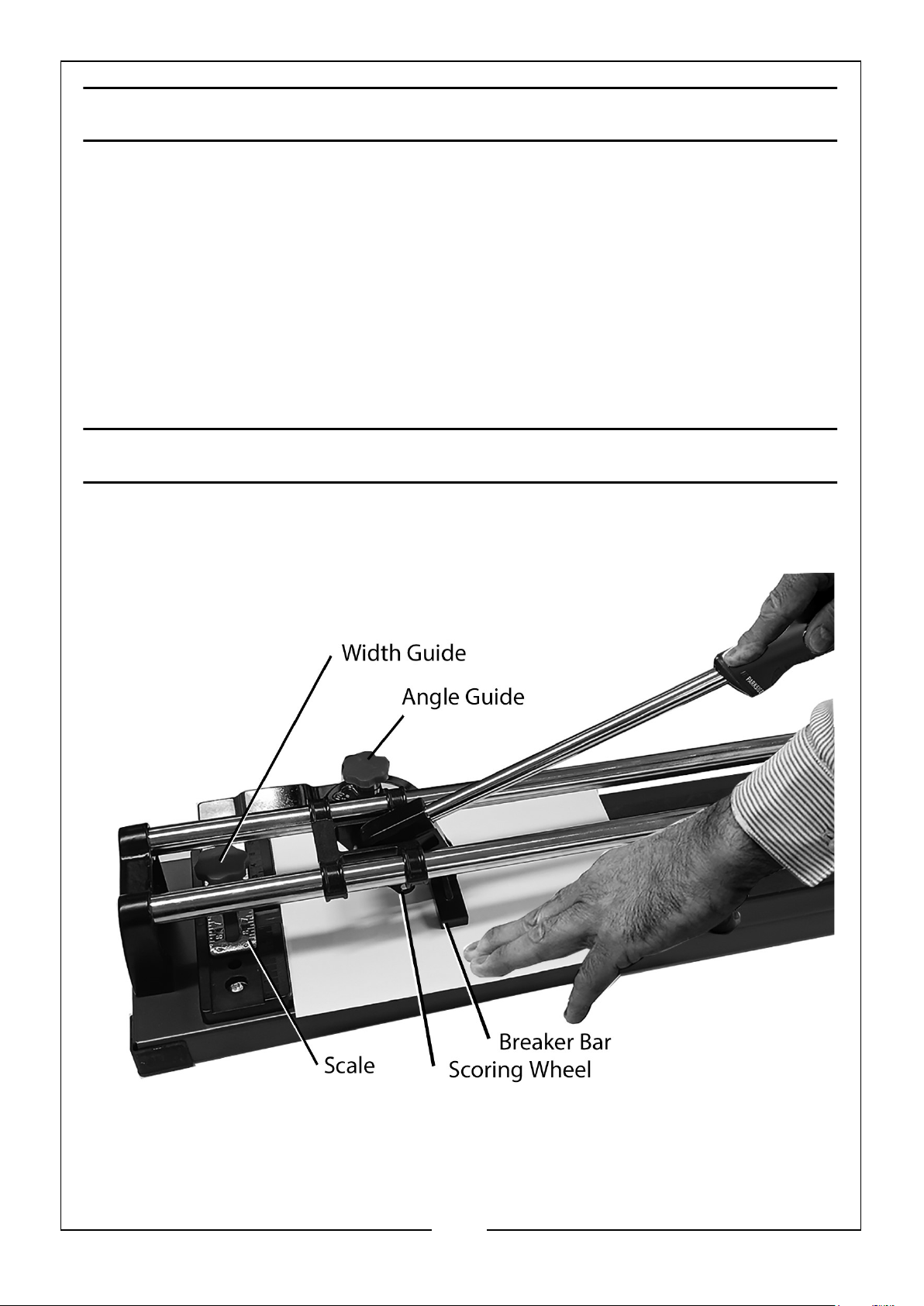

2. Adjust the position of the width guide to accommodate the tile and hold the tile
firmly in place with the left hand, as shown.
3. Raise the handle and draw the slide back, past the edge of the tile, then lower the
handle so that the tungsten carbide scoring wheel comes into contact with the
leading edge of the tile.
4. Apply a firm pressure (not too heavily) down on to the handle whilst pushing
forward, smoothly and evenly, in the direction of the arrow, so that the tile is
scored along its entire length.
5. Raise the handle and reposition the slide so that the breaker bars are
approximately half way along the tile. DO NOT MOVE THE TILE.
6. Pressing down on the handle again will cause the tile to break
It is necessary to score the tile ONCE ONLY.
The tile cutter is provided with an angle
gauge so that the tile may be secured at
any angle for cutting in a straight line.
Simply adjust the angle gauge to the
required angle and place the tile so that
it is held firmly against the angle gauge
guide plate.
GUARANTEE
This product is guaranteed against faulty manufacture for a period of 12 months from
the date of purchase. Please keep your receipt which will be required as proof of
purchase.
This guarantee is invalid if the product is found to have been abused or tampered
with in any way, or not used for the purpose for which it was intended.
Faulty goods should be returned to their place of purchase, no product can be
returned to us without prior permission.
This guarantee does not effect your statutory rights.
