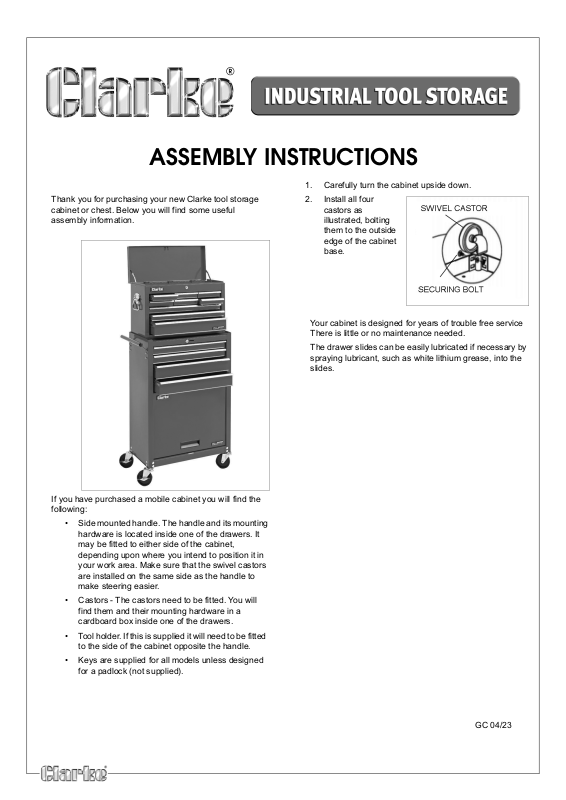

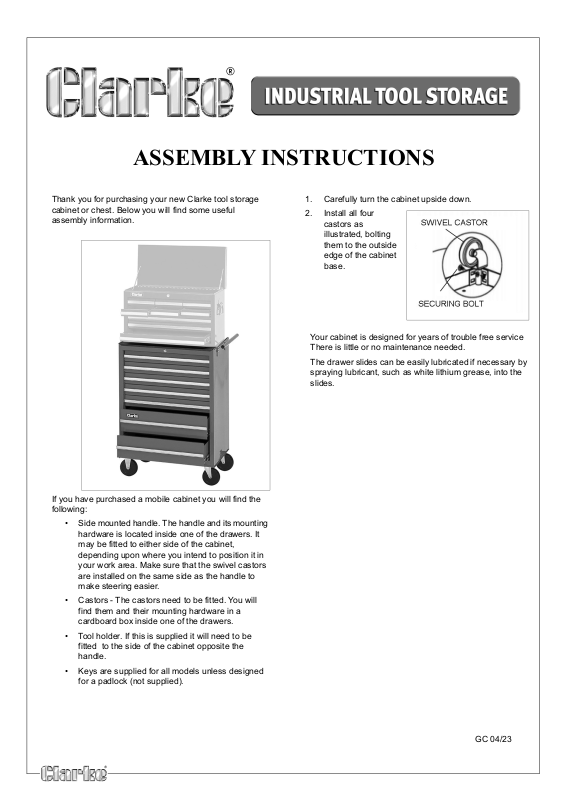

ASSEMBLY INSTRUCTIONS
Thank you for purchasing your new Clarke tool storage
cabinet or chest. Below you will find some useful
assembly information.
1. Carefully turn the cabinet upside down.
2. Install all four
castors as
illustrated, bolting
them to the outside
edge of the cabinet
base.
Your cabinet is designed for years of trouble free service
There is little or no maintenance needed.
The drawer slides can be easily lubricated if necessary by
spraying lubricant, such as white lithium grease, into the
slides.
If you have purchased a mobile cabinet you will find the
following:
• Side mounted handle. The handle and its mounting
hardware is located inside one of the drawers. It
may be fitted to either side of the cabinet,
depending upon where you intend to position it in
your work area. Make sure that the swivel castors
are installed on the same side as the handle to
make steering easier.
• Castors - The castors need to be fitted. You will
find them and their mounting hardware in a
cardboard box inside one of the drawers.
• Tool holder. If this is supplied it will need to be
fitted to the side of the cabinet opposite the
handle.
• Keys are supplied for all models unless designed
for a padlock (not supplied).
GC 04/23
Page 2

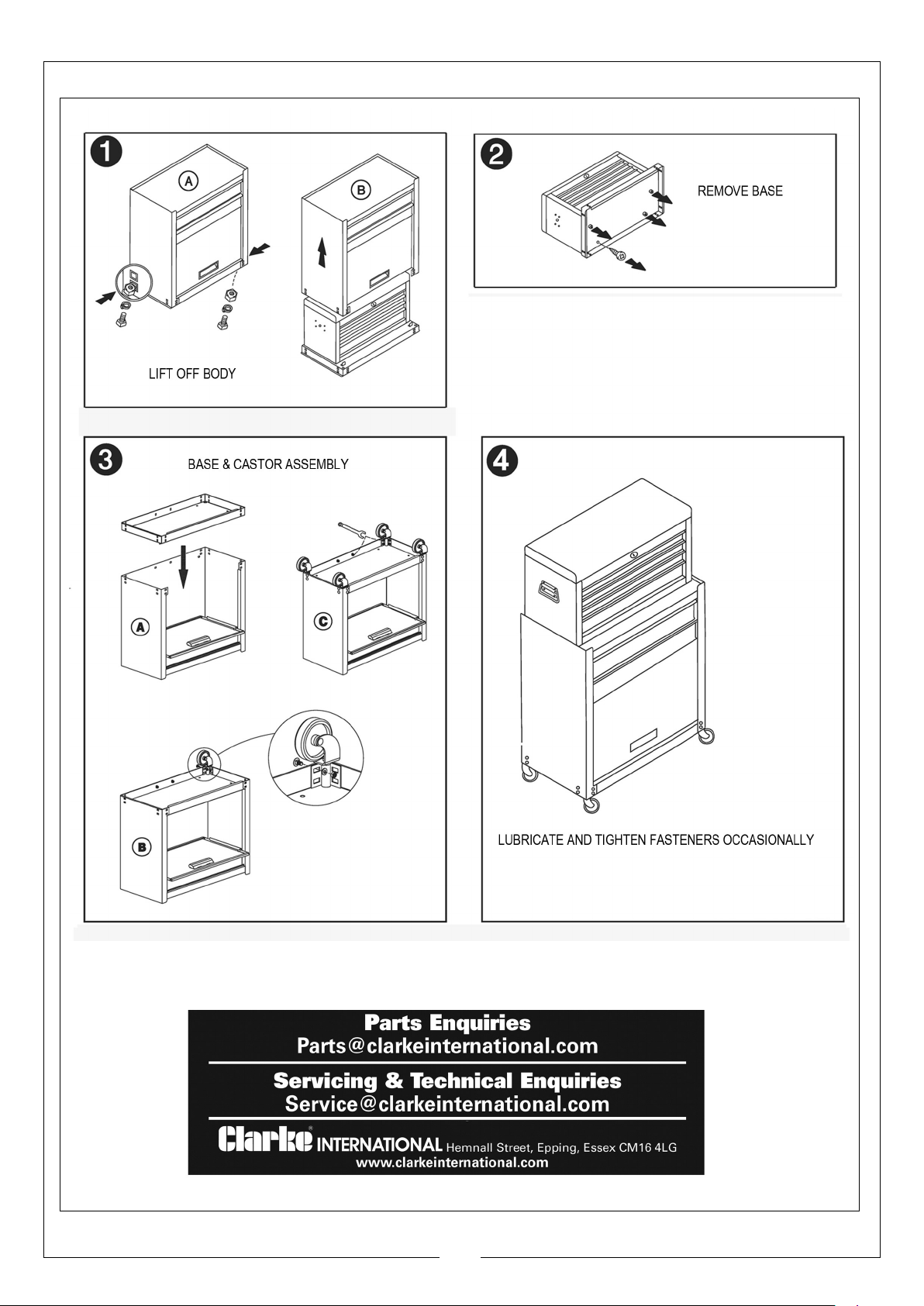

Assembling a combination of cabinet and tool chest.
