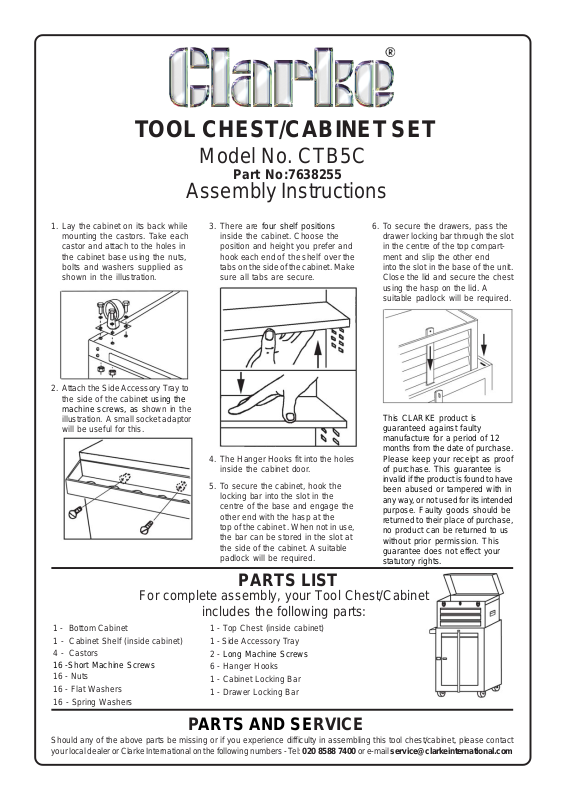

TOOL CHEST/CABINET SET
Model No. CTB5C
Part No:7638255
Assembly Instructions

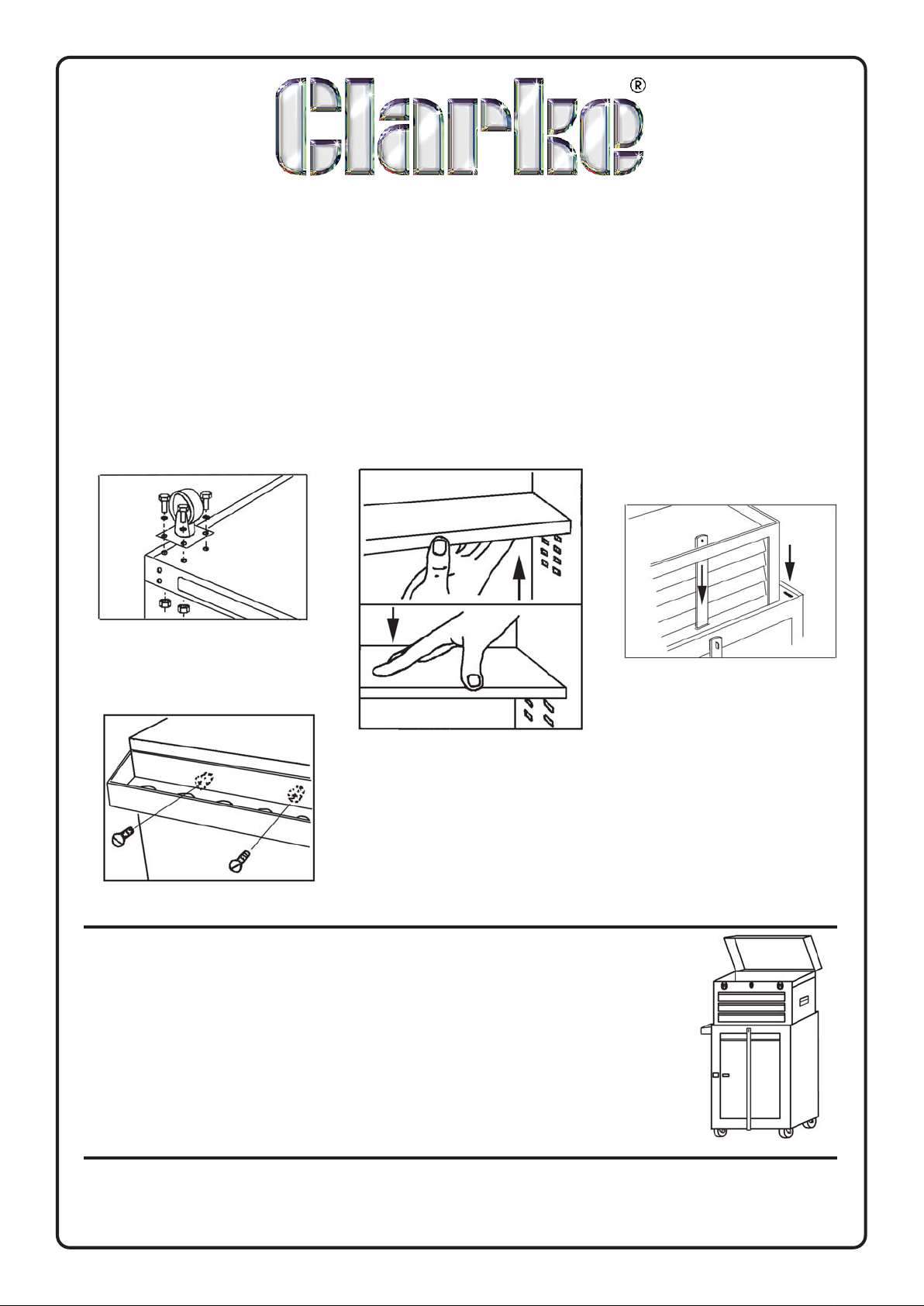

1. Lay the cabinet on its back while
mounting the castors. Take each
castor and attach to the holes in
the cabinet base using the nuts,
bolts and washers supplied as
shown in the illustration.
2. Attach the Side Accessory Tray to
the side of the cabinet using the
machine screws, as shown in the
illustration. A small socket adaptor
will be useful for this.
3. There are four shelf positions
inside the cabinet. Choose the
position and height you prefer and
hook each end of the shelf over the
tabs on the side of the cabinet. Make
sure all tabs are secure.
4. The Hanger Hooks fit into the holes
inside the cabinet door.
5. To secure the cabinet, hook the
locking bar into the slot in the
centre of the base and engage the
other end with the hasp at the
top of the cabinet . When not in use,
the bar can be stored in the slot at
the side of the cabinet. A suitable
padlock will be required.
6. To secure the drawers, pass the
drawer locking bar through the slot
in the centre of the top compartment and slip the other end
into the slot in the base of the unit.
Close the lid and secure the chest
using the hasp on the lid. A
suitable padlock will be required.
This CLARKE product is
guaranteed against faulty
manufacture for a period of 12
months from the date of purchase.
Please keep your receipt as proof
of purchase. This guarantee is
invalid if the product is found to have
been abused or tampered with in
any way, or not used for it s intended
purpose. Faulty goods should be
returned to their place of purchase,
no product can be returned to us
without prior permission. This
guarantee does not effect your
statutory rights.
PARTS LIST
For complete assembly, your Tool Chest/Cabinet
includes the following parts:
1 - Bottom Cabinet
1 - Cabinet Shelf (inside cabinet)
4 - Castors
16 -Short Machine Screws
16 - Nuts
16 - Flat Washers
16 - Spring Washers
1 - Top Chest (inside cabinet)
1 - Side Accessory Tray
2 -
Long Machine Screws
6 - Hanger Hooks
1 - Cabinet Locking Bar
1 - Drawer Locking Bar
PARTS AND SERVICE
Should any of the above parts be missing or if you experience difficulty in assembling this tool chest/cabinet, please contact
your local dealer or Clarke International on the following numbers - T el: 020 8588 7400 or e-mail [email protected]
