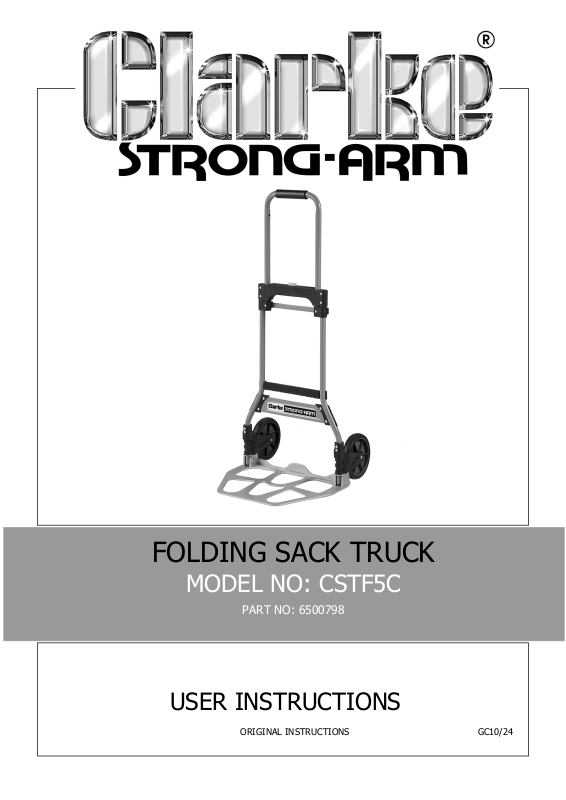

Page 1
FOLDING SACK TRUCK
MODEL NO: CSTF5C
PART NO: 6500798
USER INSTRUCTIONS
ORIGINAL INSTRUCTIONS GC10/24
Page 2
INTRODUCTION
Thank you for purchasing this CLARKE Folding Sack Truck.
Before attempting to use this product, please read this manual thoroughly and follow
the instructions carefully. In doing so you will ensure the safety of yourself and that of
others around you, and you can look forward to your purchase giving you long and
satisfactory service.
Please keep these instructions in a safe place for future reference.
GUARANTEE
This product is guaranteed against faulty manufacture for a period of 12 months from
the date of purchase. Please keep your receipt which will be required as proof of
purchase.
This guarantee is invalid if the product is found to have been abused or tampered
with in any way, or not used for the purpose for which it was intended.
Faulty goods should be returned to their place of purchase, no product can be
returned to us without prior permission.
This guarantee does not effect your statutory rights.
ENVIRONMENTAL PROTECTION
Do not dispose of this product with general household waste. All tools, accessories
and packaging should be sorted, taken to a recycling centre and disposed of
appropriately.
SPECIFICATIONS
Model No CSTF5C
Maximum Rated Load Capacity 90 kg
Dimensions
(L x D x H) mm
Weight 4.5 kg
Open 490 x 520 x 1075
Closed 490 x 60 x 820
Please note that the details and specifications contained herein, are correct at the
time of going to print. However, CLARKE International reserve the right to change
specifications at any time without prior notice.
2
Parts & Service: 020 8988 7400 / E-mail: [email protected] or [email protected]
Page 3
SAFETY PRECAUTIONS
1. Keep the work area tidy & well lit and keep children and visitors away.
2. DO NOT exceed the stated capacity of the truck.
3. ALWAYS load the platform evenly with the centre of gravity of the load over the
centre of the platform.
4. DO NOT bounce the truck over rough ground or down curbs etc. Use ramps
wherever possible.
5. DO NOT drop or lay the trolley down when heavily loaded.
6. DO NOT transport a tall load which may impair your forward view.
7. ALWAYS take extra care if transporting a wide load.
8. ALWAYS ensure the load is stable before attempting to move the truck.
9. ALWAYS take care that the heaviest part of a tall load is to the bottom of the
truck touching the frame. When stacking loads ensure that the height of the stack
does not extend above the handle.
FOLDING & UNFOLDING THE TRUCK
Unfold the platform by pushing it down and the wheels automatically open out. Press
the button in the centre of the cross-beam and pull the handle upwards until it locks
into position.
To fold the platform away, pull it up until it lies flat against the back support with the
wheels automatically folded away and then lower the handle.
3
Parts & Service: 020 8988 7400 / E-mail: [email protected] or [email protected]
