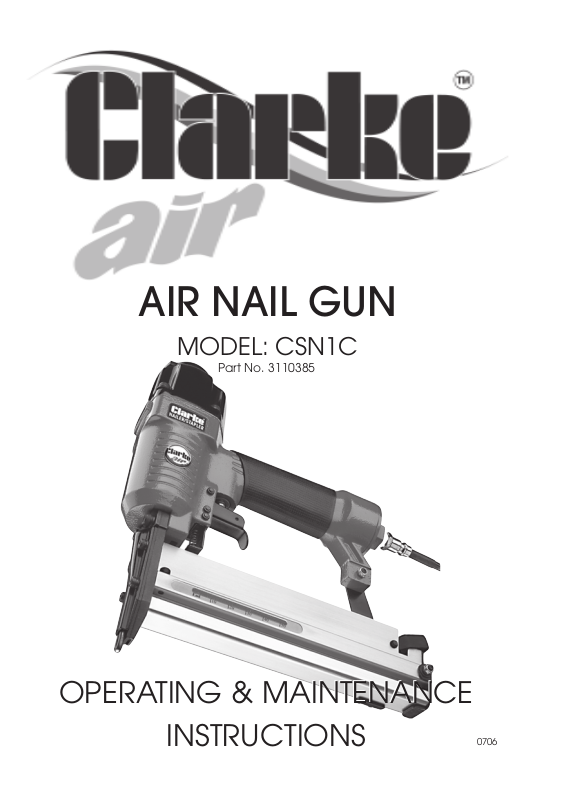

Clarke CSN 1C, 3110385 User guide

AIR NAIL GUN

MODEL: CSN1C

Part No. 3110385

OPERATING & MAINTENANCE

OPERATING & MAINTENANCE

INSTRUCTIONS

INSTRUCTIONS

0706

SPECIFICATIONS

Min. Hose Size (ID) ........................................................................ 6mm (1/4”)

Air Inlet Connector ....................................................................... 10mm Quick Fit

Ave. Air Consumption .................................................................. 0.47 cfm

Operating Pressure ....................................................................... 4 - 7bar (60-100psi)

Air Pressure Max ............................................................................ 8.3bar (122psi)

Nail Size .......................................................................................... 18gauge/15-50mm

Staple Size ...................................................................................... 18gauge/16-40mm

Magazine Capacity ..................................................................... 100

Drive Speed ................................................................................... 200Shots/min

Sound Power Level ....................................................................... 98 dBL

Weight ............................................................................................ 1.5kg

Dimensions LxWxH ........................................................................ 254x55x253mm

Part No ........................................................................................... 3110385

Please note that the details and specifications contained herein, are correct at the time of going to print. However

CLARKE International reserve the right to change specifications at any time without prior notice. Always consult the

machine’s data plate

WA

RESTRICTIONS OF USE

This Stapler/Nail Gun is suitable for use on materials such as:

• Soft wood, Hard wood • MDF • Plywood • Hardboard • Fibreboard

• Corkboard • Flexible Plastics • Leather, Fabrics • PVC, Polythene sheet

• Foam Rubber

This Stapler/Nail Gun is NOT suitable for use on materials such as:

• Hard Laminates • Brittle Plastics • Metals (other than light foils)

2

Please read these instructions carefully before operating the tool

Thank you for purchasing this CLARKE Air Nailer/Staple Gun

Before using the device, please read this leaflet thoroughly and carefully follow
the instructions given. In doing so you will ensure the safety of yourself and that of
others around you, and you can also look forward it giving long and satisfactory
service.

GUARANTEE

This CLARKE product is guaranteed against faulty manufacture for a period of 12
months from the date of purchase. Please keep your receipt as proof of purchase.

This guarantee is invalid if the product is found to have been abused or tampered
with in any way, or not used for the purpose for which it was intended.

Faulty goods should be returned to their place of purchase, no product can be
returned to us without prior permission.

This guarantee does not effect your statutory rights.

3

SAFETY PRECAUTIONS

IMPORTANT

Failure to follow these precautions could result in personal injury, and/or

damage to property.

1. When operating this tool, ALWAYS wear:

a. approved impact resistant SAFETY GOGGLES. (Eye glasses are NOT safety

glasses)

b. EAR DEFENDERS

c. a good pair of INDUSTRIAL GLOVES

2. ALWAYS disconnect the tool from the air supply when not in use, and before
carrying out any maintenance

3. ALWAYS keep a safe distance between yourself and others when using the
tool.

4. ALWAYS Maintain the tool with care. Keep it clean for best/safest performance.

5. NEVER wear ill fitting clothing, remove watches and rings.

6. NEVER overreach. Keep your proper footing and balance at all times.

7. NEVER force or misuse the tool. It will do a better and safer job at the rate for
which it was designed.

8. NEVER abuse hoses or connectors. NEVER carry a tool by the hose, or yank it
to disconnect from the air supply. Keep hoses away from heat, oil and sharp
edges. Check hoses for leaks or worn condition before use, and ensure that
all connections are secure.

9. NEVER use with an air supply greater than 8bar (110 PSI), at the tool.

10. NEVER modify the tool in any way.

11. NEVER remove any labels. Damaged labels should be replaced.

12. NEVER point the tool at anyone.

13. NEVER carry the tool with your finger on the trigger.

14. NEVER use any other type of gas to operate this tool. Use compressed air ONLY.

15. NEVER load the tool with Nails/Staples BEFORE connecting to an air supply.

16. NEVER load the tool with the trigger depressed

17. NEVER use this tool if any part is damaged. Have it inspected and repaired

by a competent technician

18. NEVER modify this tool in any way. Use it ONLY for the purpose for which it is

designed.

19, NEVER fire tool at an incline. it must be perpendicular to the work surface.

20. NEVER drive in Nails/Staples at the edge of a work surface, as the edge could
fail and fly off, endangering yourself or others in the vicinity.

4

AIR SUPPLY

WARNING!

Compressed air can be dangerous. Ensure that you are thoroughly familiar with

all precautions relating to the use of compressors and compressed air supply.

Tools of this type, operate on a wide range of air pressures. It is recommended that air
pressure be set to between 60 and 100psi. at the tool when running.

Higher pressure and unclean air will shorten the tools’ life because of faster wear, and could
be a safety hazard.

Water in the air line will cause damage to the tool, ensure it is properly maintained at all times.
The recommended procedure to connect this tool to an air supply, is shown on page 11.
The air inlet used for connecting air supply, is a 10mm Quick Fit type.
Line pressure, or hose ID., should be increased to compensate for unusually long air hoses

(over 10M). Minimum hose dia. should be 6mm (1/4”) ID., and fittings should have the same
inside dimensions.

ASSEMBLY

Ensure the tool is not loaded, then, with the air supply turned OFF, connect the air line to
the Nailer at the Quick Fit coupling.
With your fingers well away from the trigger, and the tool pointed away from you, and
anyone in the vicinity, depress the magazine catch, pull out the magazine and load with
appropriate nails or staples...as shown,

Staples

Push the magazine back until it locks in position, - Your Nailer/Stapler is now ready for use.

CSG2K

Nails

OPERATION

Turn ON the air supply, and check for air leaks. If any are apparent, rectify before
proceeding. Ensure the operating pressure is set to between 4-7bar (60-100psi), depending
upon the size of nail used and type of material being worked. The harder the material,
and bigger the nail, the higher the pressure.

Hold the tool so that it is at right angles to the work. Lower it so that the Safety Element
contacts the work surface, and is forced upwards. This movement releases the Trigger,
which may now be pulled, driving in the nail or staple.

To Clear a jam, ensure the air is turned OFF, and the trigger pulled to ensure the airline is
not under pressure, before opening the magazine and pulling out the offending nail/
staple. Close the Magazine, turn on the air and proceed.

CSG3K

MAINTENANCE

Daily before use.

1. Drain water from compressor air tank, and air line.

2. Check and clean, if necessary, the air inlet gauze filter.

3. A bottle of CLARKE Air Line Oil** is supplied with the kit. Squirt a few drops of oil
(approx. 3cc), into the air inlet.

This should be carried out regardless of whether or not an air line lubricator is
used.

During Use.

For lubricating the internal components when in operation, an air line lubricator
should be used, with Clarke Air Line Oil**, adjusted to 2 drops per minute. (see p.7)

If an Air line lubricator is NOT used, this procedure should be repeated after every
two to three hours of use.

Storage.

If the Nailer is to be stored, or is idle for longer than 24 hours, run a few drops of
Clarke Air Line Oil* into the air inlet before storing.

Notes

Be aware that factors other than the tool may effect its operation and efficiency
such as reduced compressor output, excessive drain on the airline, moisture or
restrictions in the line, or the use of connectors of improper size or poor condition
which will reduce air supply.

Grit or gum deposits in the tool may also reduce efficiency. This condition can be
corrected by cleaning the air strainer and flushing out the tool with gum solvent
oil, or failing this, the tool should be disassembled, thoroughly cleaned, dried and
reassembled.

If the tool runs erratically or becomes inefficient, and the air supply is sound,
dismantle the piston assembly and replace worn or damaged parts, or take the
tool to your CLARKE dealer.

**Clarke Air Line Oil is available from your CLARKE dealer part no. 3050825.

IMPORTANT:

The use of parts other than CLARKE replacement parts may result in safely

hazards, decreased tool performance and will invalidate your warranty.

6

ACCESSORIES

A wide range of Airline accessories is available, including Filter/Regulators. Lubricators, High
Pressure Hoses from 5 to 100 Metres, Whip hose etc. Contact your CLARKE dealer for further
information, or CLARKE International Sales Department on 01992 565333

CONSUMABLES

1.25mm
Crown

15mm

20mm

25mm

30mm
32mm

35mm

40mm

45mm

50mm

18 GAUGE

Nails - 1.25mm Crown

Length Part No:

15mm ................................ 1800413

20mm ................................ 1800415

30mm ................................ 1800417

32mm ................................ 1800419

35mm ................................ 1800421

40mm ................................ 1800423

45mm ................................ 1800425

50mm ................................ 1800427

16mm
19mm
22mm
25mm

18 GAUGE

Staples - 5.5mm Crown

Length ............................... Part No:

16mm ................................ 1800429

19mm ................................ 1800431

22mm ................................ 1800433

25mm ................................ 1800435

32mm ................................ 1800436

40mm ................................ 1800437

7

PARTS DIAGRAM

8

PARTS LIST

No. Description Part No. No. Description Part No.

1 Hex. Skt Hd Screw HTCSN1C01
2 Air Deflector HTCSN1C02
3 Compression Spring HTCSN1C03
4 Cap Screw M5 -.8x20 HTCSN1C04
5 Lock Washer 5mm HTCSN1C05
6 Cylinder Cover HTCSN1C06
7 O-Ring 13 x 2.4 HTCSN1C07
8 Sealing Washer HTCSN1C08
9 Compression Spring HTCSN1C09
10 On/Off Valve HTCSN1C10
11 Sealing Washer HTCSN1C11
12 O-Ring 24.8 x 3.5 HTCSN1C12
13 O-Ring 31.2x2.5 HTCSN1C13
14 Collar HTCSN1C14
15 O-Ring 42.6 x 2.35 HTCSN1C15
16 O-Ring 30x1.8 HTCSN1C16
17 Sealing Gasket HTCSN1C17
18 Cylinder HTCSN1C18
19 O-Ring 29.7 x 3.55 HTCSN1C19
20 Piston Assembly HTCSN1C20
21 Shock Absorber HTCSN1C21
22 Body HTCSN1C22
23 Grommet HTCSN1C23
24 Piston Valve `HTCSN1C24
25 O-Ring 11x1.2 HTCSN1C25
26 Compression Spring HTCSN1C26
27 Valve Stem HTCSN1C27
28 O-Ring 8x1 HTCSN1C28
29 O-Ring 1.9x1.1 HTCSN1C29
30 Trigger Valve Guide HTCSN1C30
31 O-Ring 11.2x1.85 HTCSN1C31
32 Pin 2.97x30 HTCSN1C32
33 Trigger HTCSN1C33
34 O-Ring 2.96x 1.7 HTCSN1C34
35 Safety Plate HTCSN1C35
36 Roll Pin 2.5 x 18 HTCSN1C36
37 Safety Element Bracket HTCSN1C37
38 Compression Spring HTCSN1C38
39 E-Clip 12mm HTCSN1C39
40 Plate HTCSN1C40

41 Retainer HTCSN1C41
42 Adjusting Nut HTCSN1C42
43 Safety Element HTCSN1C43
44 Bar HTCSN1C44
45 Cap Screw M4.7x12 HTCSN1C45
46 Flat Head Screw M4.7x6 HTCSN1C46
47 O-Ring 2.4 x 1.8 HTCSN1C47
48 Nut HTCSN1C48
49 Pusher HTCSN1C49
50 Pusher Rod HTCSN1C50
51 O-Ring 4.5 x 1.2 HTCSN1C51
52 Compression Spring HTCSN1C52
53 Catch Lever HTCSN1C53
54 Compression Spring HTCSN1C54
55 Cap Screw M4-.7 x 35 HTCSN1C55
56 Fixed Seat HTCSN1C56
57 Pin 3.93 x 15.50 HTCSN1C57
58 Tube HTCSN1C58
59 Label HTCSN1C59
60 Scale HTCSN1C60
61 Sliding Magazine HTCSN1C61
62 Nose HTCSN1C62
63 Spacer HTCSN1C63
64 Cap Screw M4.7x14 HTCSN1C64
65 Cap Screw M4.7x10 HTCSN1C65
66 Nose Cover HTCSN1C66
67 Driver Guide HTCSN1C67
68 Pin 1.5x12 HTCSN1C68
69 Insert HTCSN1C69
70 Magazine HTCSN1C70
71 Fixed Seat HTCSN1C71
72 Cap Screw M4.7x8 HTCSN1C72
73 Hex Nut M4 HTCSN1C73
74 Caps Crew M4.7x16 HTCSN1C74
75 Rubber Handle Case HTCSN1C75
76 O-Ring 36.3 x 3.55 HTCSN1C76
77 End Cap HTCSN1C77
78 Q/Fit Coupling HTCSN1C78
80 Spring Washer 4mm HTCSN1C80

9

RECOMMENDED AIR SUPPLY CONNECTION

DECLARATION OF CONFORMITY

We declare that these products comply to the following standards/directives

• BS EN 792-13: 2000

Model No: CSN1C

Serial or Batch number: See product data plate

signature:

L. E. Fergusson

SERVICE MANAGER

SPARE PARTS & SERVICING CONTACTS

For Spare Parts and Service, please contact your nearest dealer, or CLARKE

International, on one of the following numbers.

PARTS & SERVICE TEL: [phone]

PARTS & SERVICE FAX: [phone]

or e-mail as follows:

PARTS: [e-mail]

SERVICE: [e-mail]

11
