Clarke CSM5265 User guide

5-SHELF BOLTLESS SHELVING UNITS

MODEL NO: CSM5265

PART NO: SEE TABLE PAGE 2

ASSEMBLY INSTRUCTIONS

ORIGINAL INSTRUCTIONS DL1123

INTRODUCTION

Thank you for purchasing this CLARKE Shelving Unit.

Before attempting to use this product, please read this manual thoroughly and
follow the instructions carefully. In doing so you will ensure the safety of yourself
and that of others around you, and you can look forward to your purchase
giving you long and satisfactory service.

Please keep these instructions in a safe place for future reference.

SCOPE

These instructions cover the following models

Description Model Part Number

5-Shelf Boltless Shelving (Blue) CSM5265/30BL 6600761

5-Shelf Boltless Shelving (Blue) CSM5265/60BL 6600763

5-Shelf Boltless Shelving (Blue) CSM5265/40BL 6600765

5-Shelf Boltless Shelving (Light Grey) CSM5265/30LG 6600762

5-Shelf Boltless Shelving (Light Grey) CSM5265/60LG 6600764

5-Shelf Boltless Shelving (Light Grey) CSM5265/40LG 6600766

SPECIFICATIONS

Model Dimensions

(W x D x H)

CSM5265/30BL & LG 900 x 300 x 1800 mm 15.6 kg 265 kg

CSM5265/40BL & LG 1200 x 400 x 1800 mm 23.2 kg 265 kg

CSM5265/60BL & LG 900 x 600 x 1800 mm 23.9 kg 265 kg

Weight
(Empty)

Load per shelf

evenly
distributed

2

Parts & Service: 020 8988 7400 / E-mail: [email protected] or [email protected]

ASSEMBLY ADVICE

1. Assemble on a strong, level surface. Avoid assembly on a domestic carpet.

2. Use a cloth or softwood block to protect the surface finish of the product
when using a mallet. Strike the flat surface of each beam to prevent
damage to the beam.

3. Always ensure that the tabs enter fully into the slots.

4. It is recommended that the assembly should be done by two persons.

5. Always wear protective gloves when assembling the shelving unit.

This shelving unit is not recommended for outdoor use.

3

Parts & Service: 020 8988 7400 / E-mail: [email protected] or [email protected]

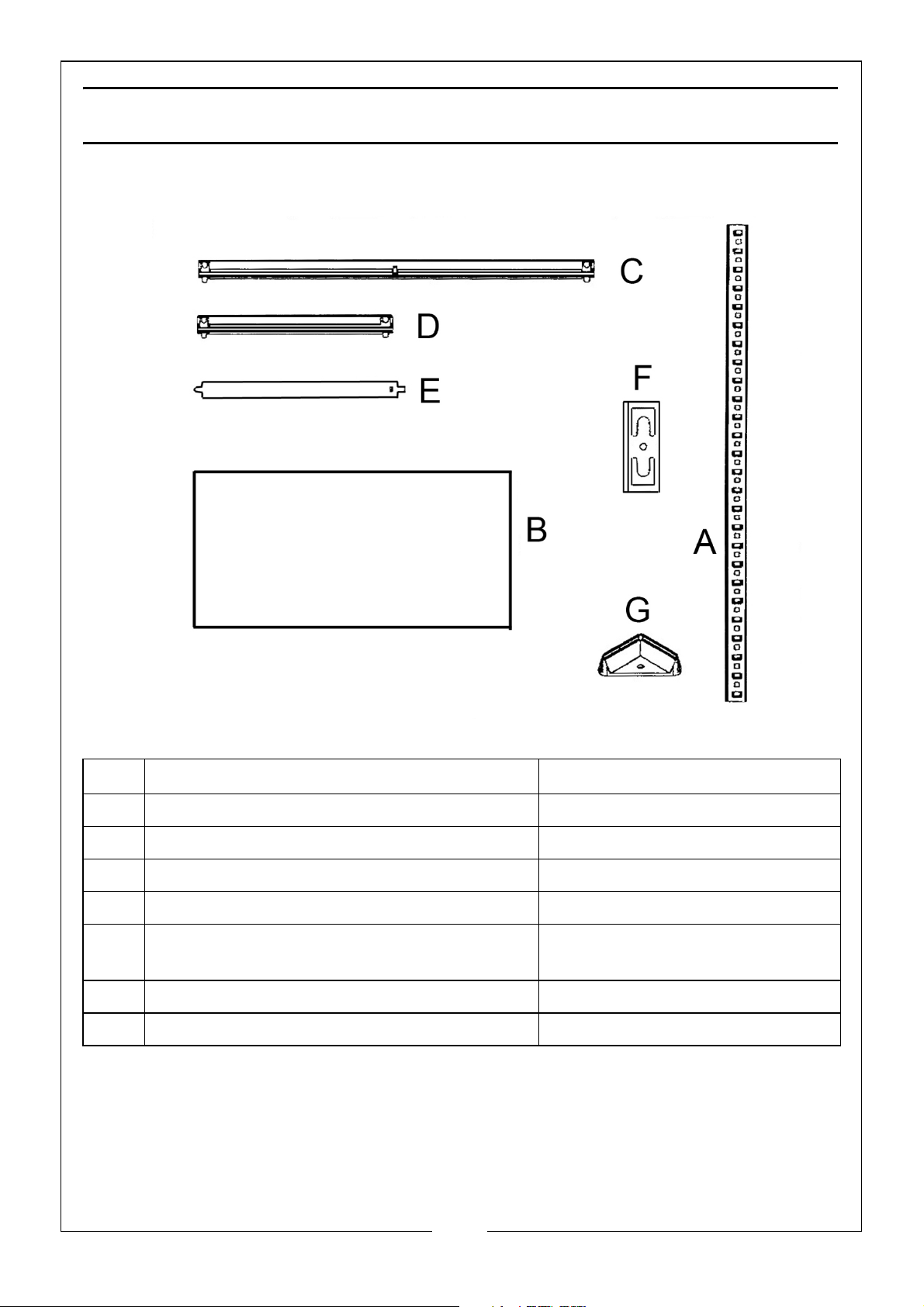

INVENTORY

No Description Quantity

APost 8

B Shelf 5

CLong Beam 10

DShort Beam 10

E Support Beam 5 (900 mm wide units)

10 (1200mm wide units)

F Post Joining Insert 4

GPlastic End Cap 4

4

Parts & Service: 020 8988 7400 / E-mail: [email protected] or [email protected]

ASSEMBLY INSTRUCTIONS

TOOLS REQUIRED

• Rubber mallet or hammer

• Protective cloth/wood block

ASSEMBLY

The tabs of the beams will often enter the slots fully using just firm hand
pressure but if they are too tight, you may require a rubber mallet to assist. If so,
always use a cloth to protect the product paint finish.

Tap gently with the mallet to drive the tabs of the beams fully into the slots in
the post. Always strike the edge close to the post.

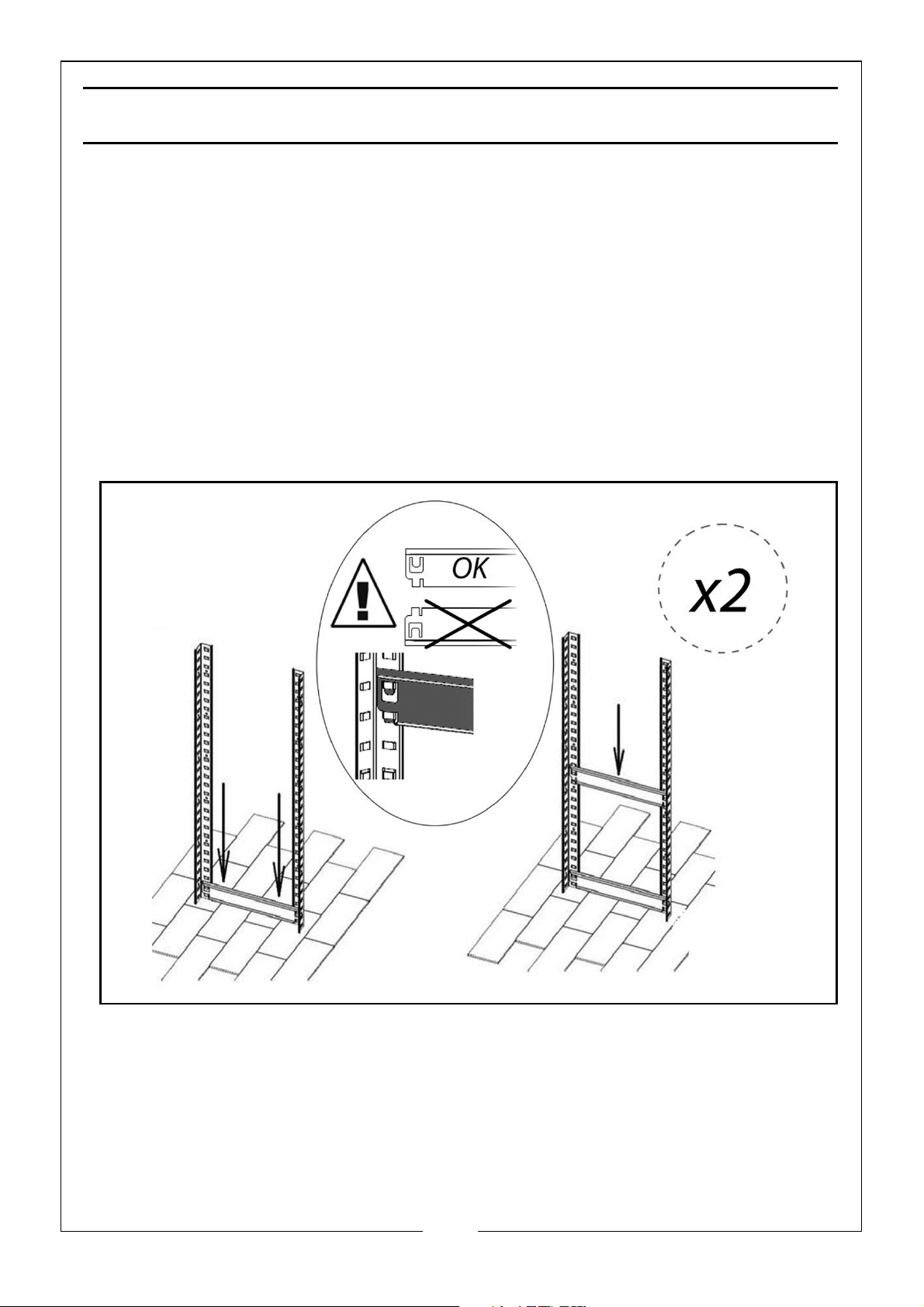

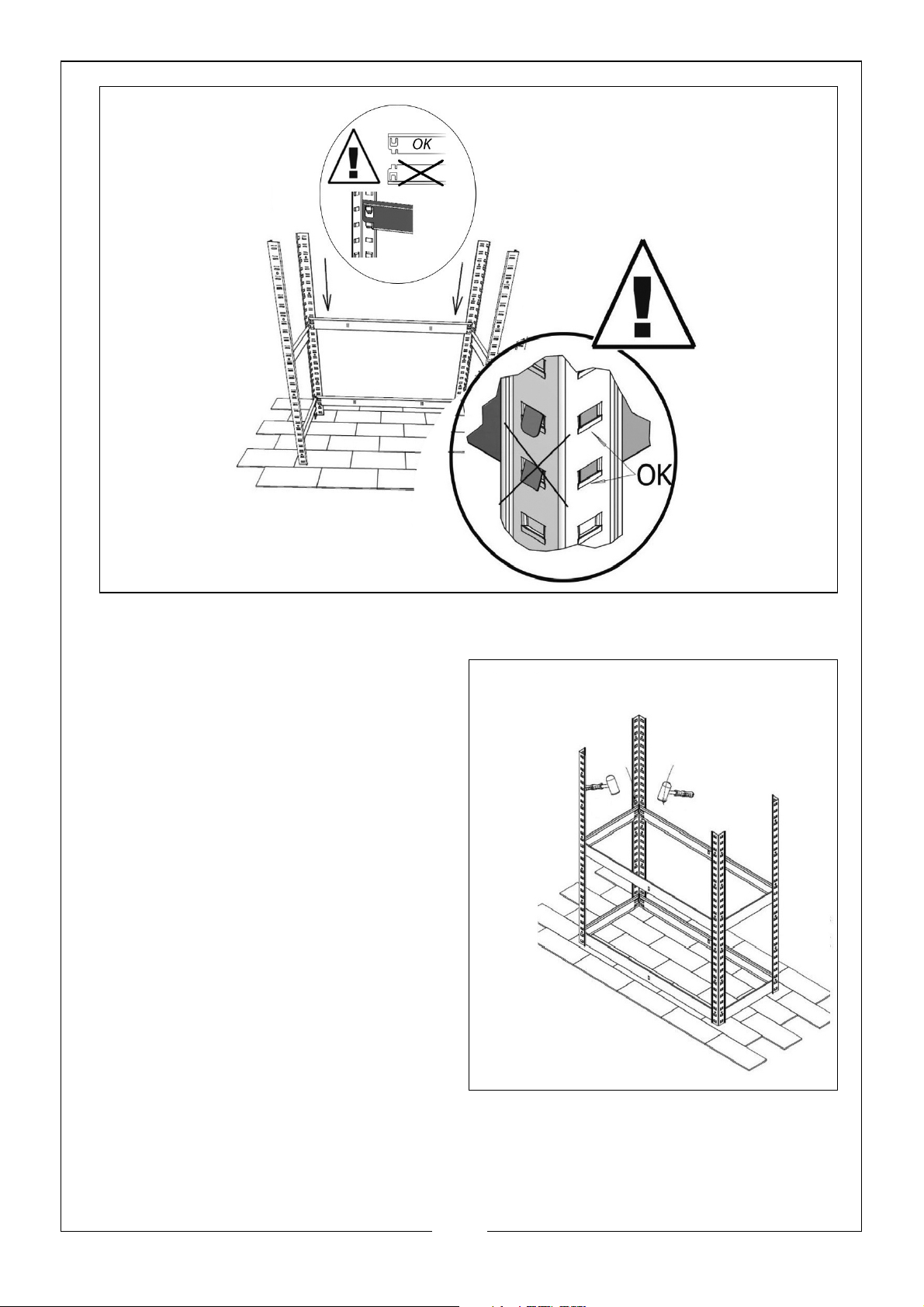

1. Use the short beams to connect the front and rear posts together.

NOTE: The short and long beams should be installed with the recessed

edge uppermost to retain the shelf.

• Repeat this again to create the other end assembly, making sure that the
corresponding beams are at the same height.

2. Ensure the tabs lie flat against the surface of the post.

5

Parts & Service: 020 8988 7400 / E-mail: [email protected] or [email protected]

3. Join the two end assemblies together with the long beams.

4. Fit post joining inserts into the posts,
ensuring that the inserts are fitted
with their tabs to match the slots of
the posts.

6

Parts & Service: 020 8988 7400 / E-mail: [email protected] or [email protected]

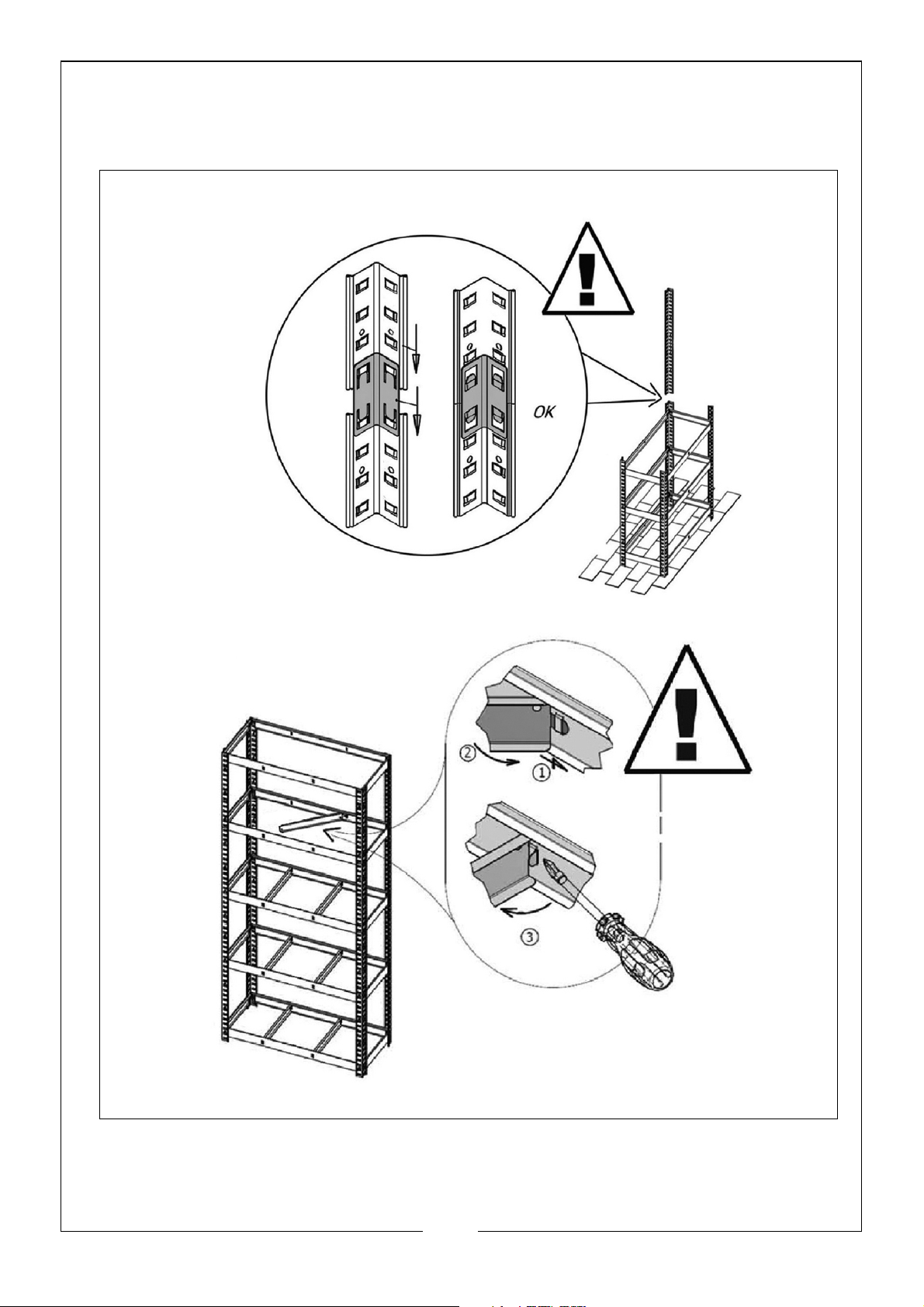

5. Construct more upper end assemblies onto the post inserts (F) before
adding more long beams and support beams as previouisly to complete
the framework.

6. Connect the support beams to the long beams. First bend the flexible tabs
to 90 degrees to pass them through the slots in the long beams.

7

Parts & Service: 020 8988 7400 / E-mail: [email protected] or [email protected]

• The tab initially lays flat against the long beam.

7. Next, bend the tab back through 180 degrees to grip the long beam.

• Use a screwdriver or similar tool to bend the tabs.

8. Finally bend the tab again through 90 degrees the opposite way, to seat
tightly against the support beam.

9. Ensure there is no movement between the beams.

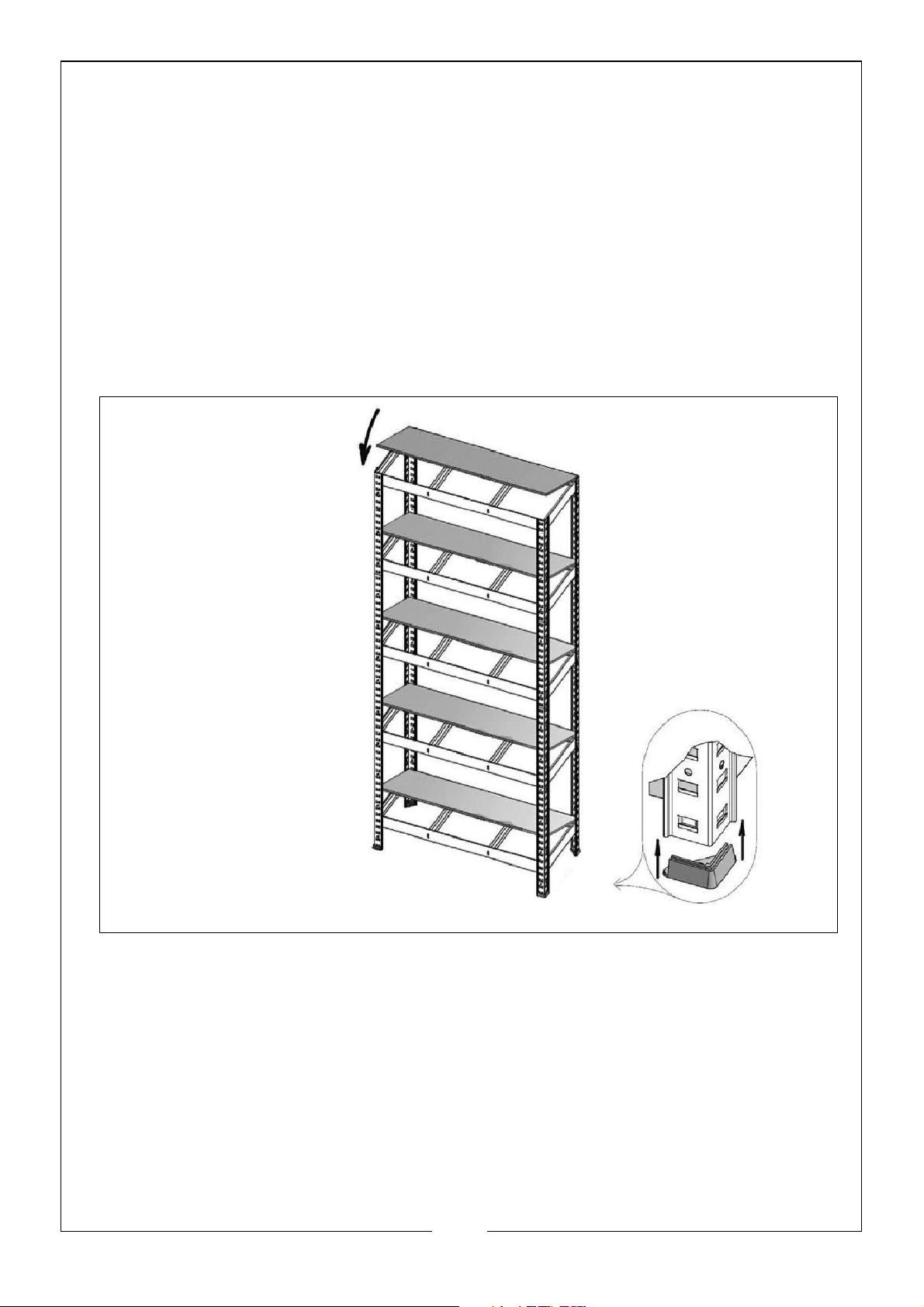

10. Lay the shelf panels into position.

• Always assemble the top shelf at the highest posible position.

11. Fit the plastic end caps to the end of each post.

8

Parts & Service: 020 8988 7400 / E-mail: [email protected] or [email protected]

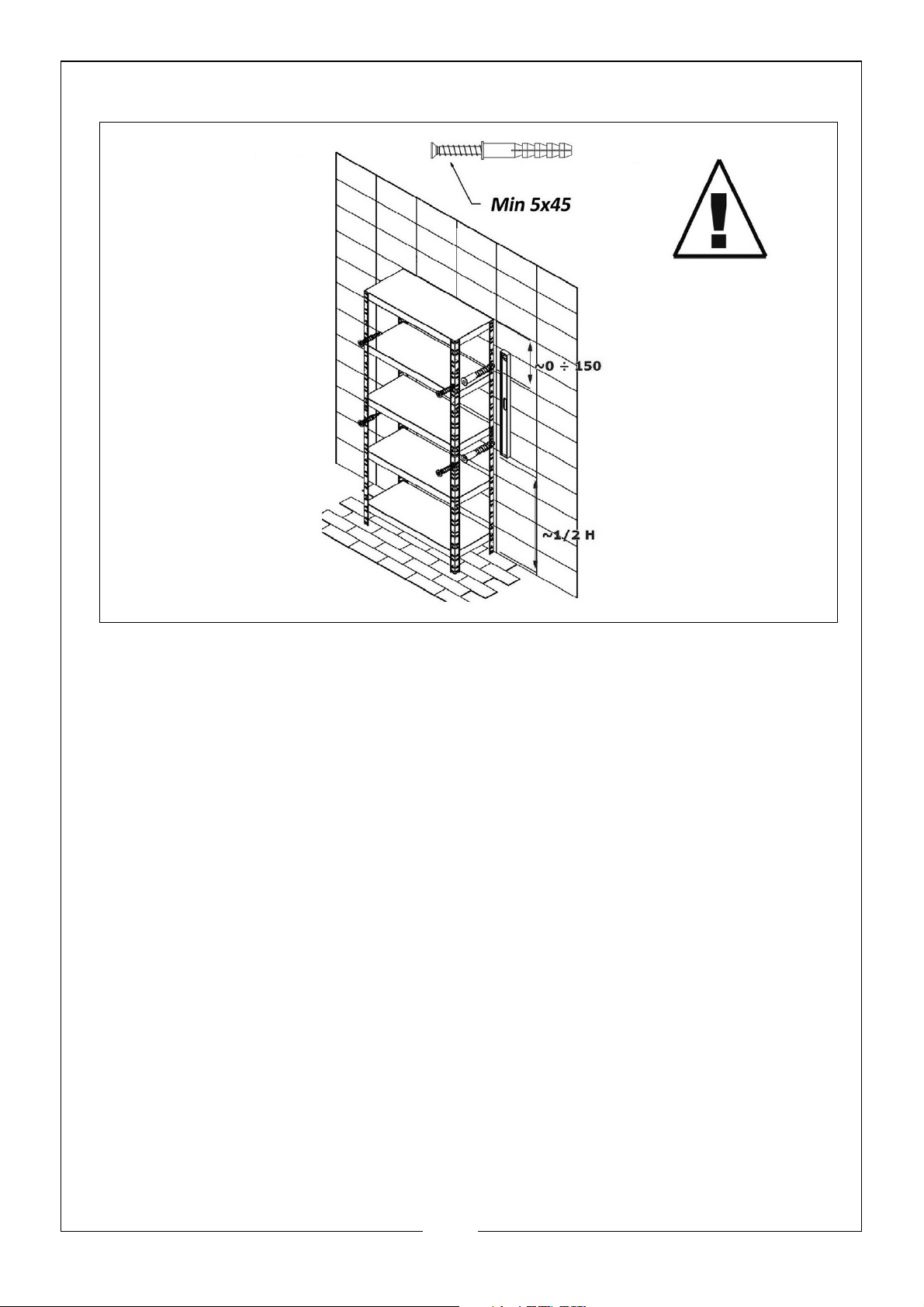

We recommend that the shelving be secured to an adjacent wall using
typical wall insert plugs and screws (not supplied) aligned with the slots in the
posts.

9

Parts & Service: 020 8988 7400 / E-mail: [email protected] or [email protected]

GENERAL SAFETY RULES

1. Always maintain shelving in good condition for the best/safest
performance.

2. Never exceed the maximum load for these shelving units as stated in the
specification.

3. Never use these shelving units if they are damaged.

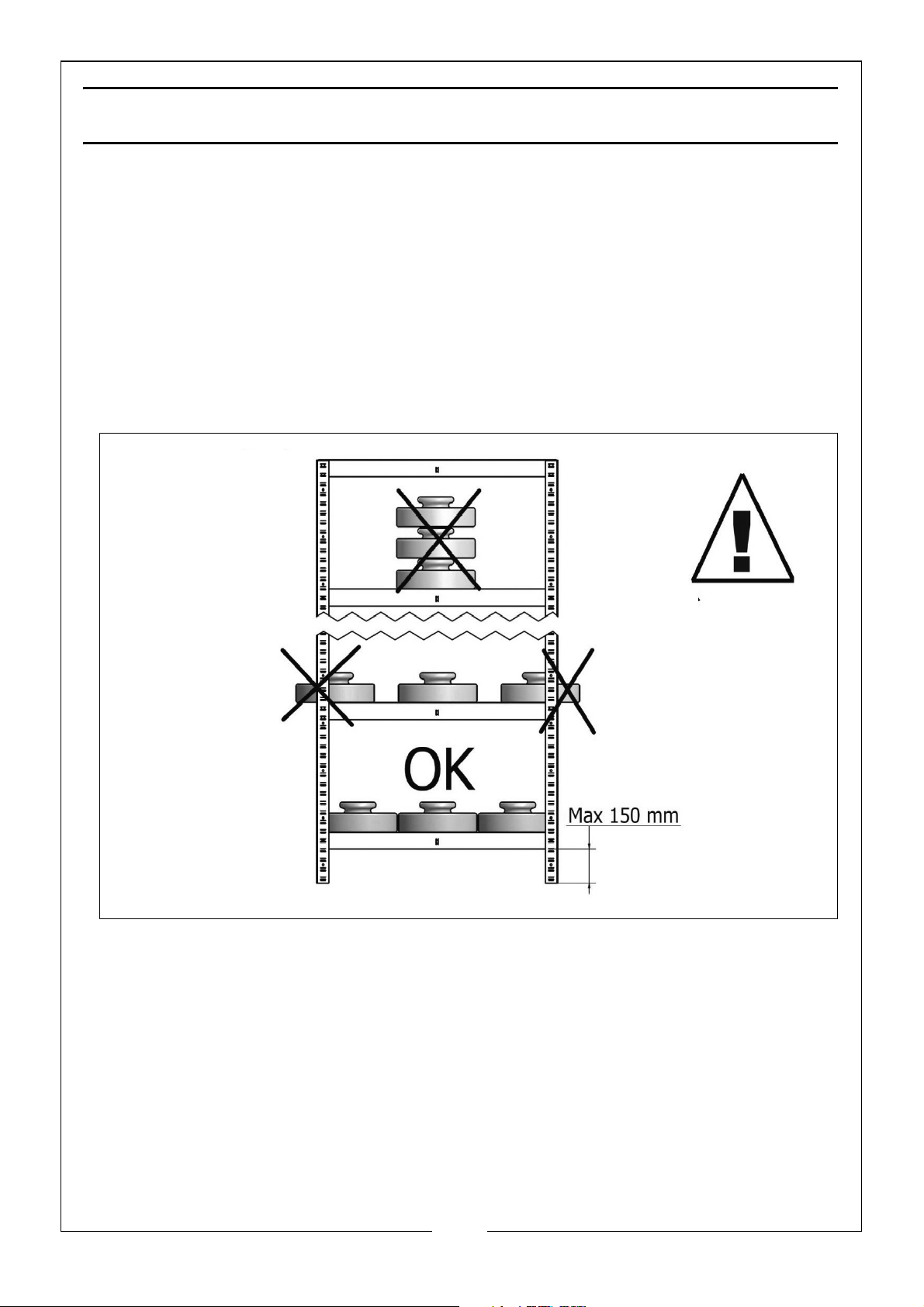

4. Always load small, stable items on the top shelves, heavier and bulky items
should be stored on the lower shelves.

5. Always distribute heavy loads evenly across the shelves.

10

Parts & Service: 020 8988 7400 / E-mail: [email protected] or [email protected]

GUARANTEE

This product is guaranteed against faulty manufacture for a period of 12
months from the date of purchase. Please keep your receipt which will be
required as proof of purchase.

This guarantee is invalid if the product is found to have been abused or
tampered with in any way, or not used for the purpose for which it was
intended.

Faulty goods should be returned to their place of purchase, no product can
be returned to us without prior permission.

This guarantee does not effect your statutory rights.

ENVIRONMENTAL PROTECTION

Do not dispose of old products or damaged parts with general household
waste. All tools, accessories and packaging no longer required should be
sorted, taken to a recycling centre and disposed of appropriately.
