Clarke CSA 10BB, 7614020 User guide

WARNING: Read these instructions before using the machine

10 TONNE HYDRAULIC BENCH PRESS

MODEL NO: CSA10BB

PART NO: 7614020

OPERATION & MAINTENANCE

INSTRUCTIONS

DL0822

INTRODUCTION

Thank you for purchasing this CLARKE 10 Tonne Hydraulic Bench Press.

Before attempting to operate the machine, it is essential that you read this
manual thoroughly and carefully follow all instructions given. In doing so you
will ensure the safety of yourself and that of others around you, and you can
also look forward to the press giving you long and satisfactory service.

GUARANTEE

This CLARKE product is guaranteed against faulty manufacture for a period of
12 months from the date of purchase. Please keep your receipt as proof of
purchase.

This guarantee is invalid if the product is found to have been abused or
tampered with in any way, or not used for the purpose for which it was
intended. Faulty goods should be returned to their place of purchase, no
product can be returned to us without prior permission. This guarantee does
not effect your statutory rights.

TECHNICAL SPECIFICATIONS

Capacity 10 tonne

Operating
pressure

Ram stroke 184mm

Ram diameter 42mm

Net weight 55kg

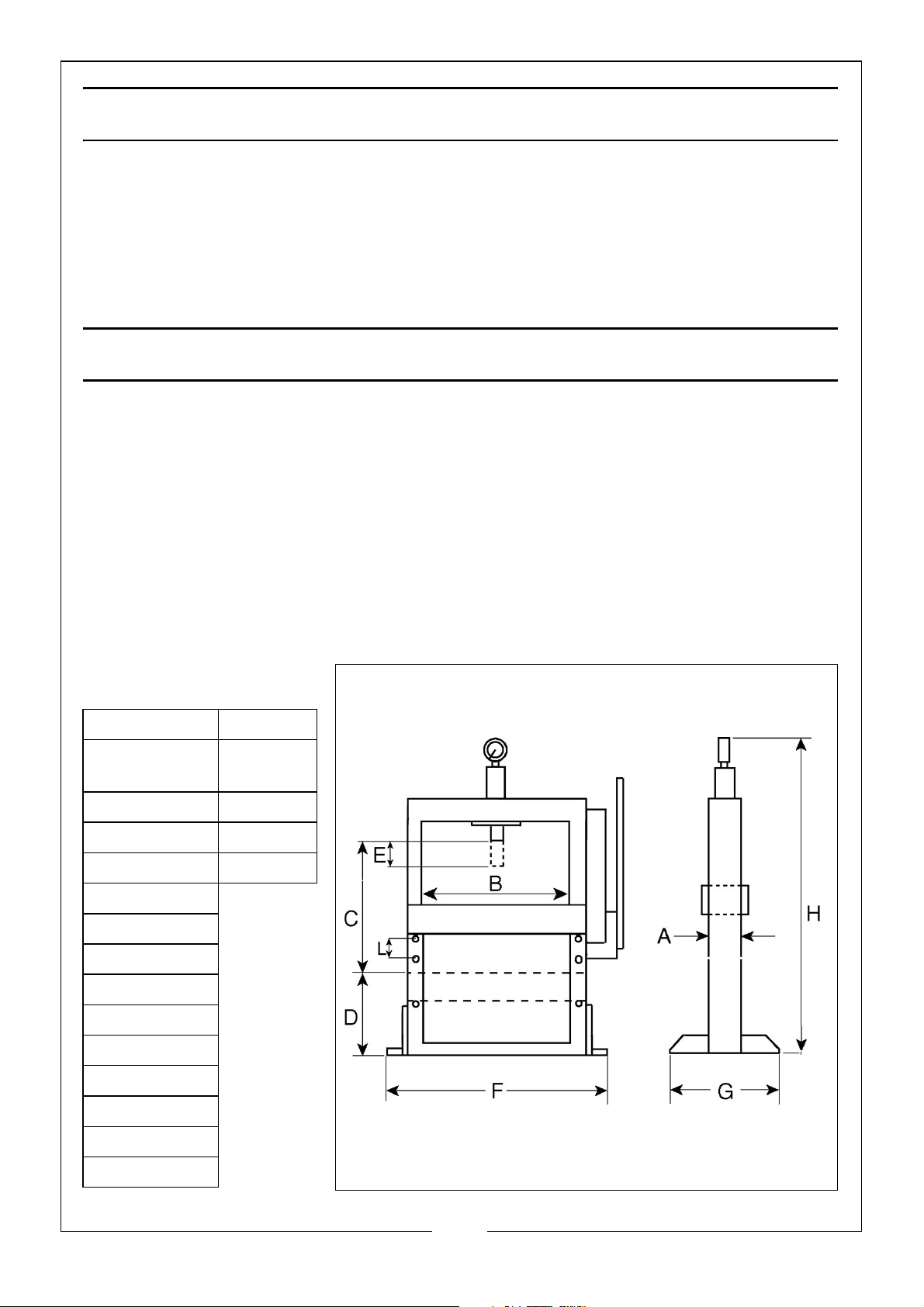

Dimensions

A) 110mm

B) 340mm

C) 365mm

D) 180mm

E) 183mm

F) 600mm

10000psi

G) 450mm

H) 1070mm

L) 80mm

2

Parts & Service: 020 8988 7400 / E-mail: [email protected] or [email protected]

SAFETY PRECAUTIONS

• During assembly or if the press is moved, always call for the help of an
assistant, DO NOT manhandle single-handedly.

• ALWAYS bolt the press down to a suitably strong bench.

• Ensure the press is located on a strong bench with adequate light.

• Before applying a load, ensure all press bed support pins are fully engaged.

• Ensure that hydraulic hoses and couplings are completely sound.

• Before use, ALWAYS ensure the workpiece is firmly secure and stable.

• ALWAYS clean spills of hydraulic oil immediately as this can be dangerous in a
workshop environment.

• DO NOT exceed the rated capacity of the press.

• DO NOT allow any person who is inexperienced in the use of hydraulic
presses, to use the press unless they are under direct supervision.

• DO NOT allow anyone to work directly in front of the press when it is in use.

• NEVER tamper with the press. The safety valve is calibrated and sealed at the
factory; DO NOT attempt to change the setting.

• Use only the recommended hydraulic oil.

• Components of this press are specially designed to withstand the rated
capacity. DO NOT substitute bolts, pins, or any other components.

• ALWAYS apply the load under the centre of the ram. Offset loads can
damage the ram or ram mount and may cause the work piece to eject.

• Before operating, check for signs of cracked welds, bent bed pins, loose or
missing bolts, or any other structural damage. DO NOT operate if any of these
conditions exist. Have repairs made only by an authorised service centre.

• Remove load from press bed before attempting to adjust bed height.

• Press only on a work piece supported by the press bed.

• When using accessories such as arbor plates, be certain they are centered
below the ram and are in full contact with the bed.

• Parts being pressed may splinter, shatter, or be ejected from the press. Due to
varied applications, it is your responsibility to always use adequate guards,
wear eye protection and protective clothing when operating this press.

• Keep hands and fingers away from parts that may pinch and shift.

• DO NOT use extension tubes on the pump handle. Excessive effort can cause
damage and/or accidents.

3

Parts & Service: 020 8988 7400 / E-mail: [email protected] or [email protected]

UNPACKING

Ensure the press and its components suffered no damage during transit and
that all components are present. Should any loss or damage become
apparent, please contact your CLARKE dealer immediately.

TOOLS REQUIRED

• Spanners to suit M6, M8 and M10 nuts/bolts, or an adjustable wrench.

• PTFE tape

ACCESSORIES

A mandrel set (including storage bracket and pressure plate) is not supplied
with the press but is available from your dealer as Clarke part no 7615060.

INVENTORY

1 x Frame 1 x Pump

2 x Base Supports 1 x Pump Handle

1 x Ram with Locking Collar 1 x Hose (attached to pump)

1 x Pressure Gauge 1 x Press Bed (Frame)

2 x Bed Support Pins 2 x Bed blocks (V-blocks)

1 x Fixing Kit containing bolts, washers & nuts

ASSEMBLY

IMPORTANT: Due to the weight of the press components, we recommend
that you get assistance during installation.

IMPORTANT: We strongly recommend that the press be firmly secured to a
firm and level bench using suitable bolts (not supplied).

IMPORTANT: Do not locate your press where it will be open to the elements,
Severe weather conditions will damage the hydraulic components.

4

Parts & Service: 020 8988 7400 / E-mail: [email protected] or [email protected]

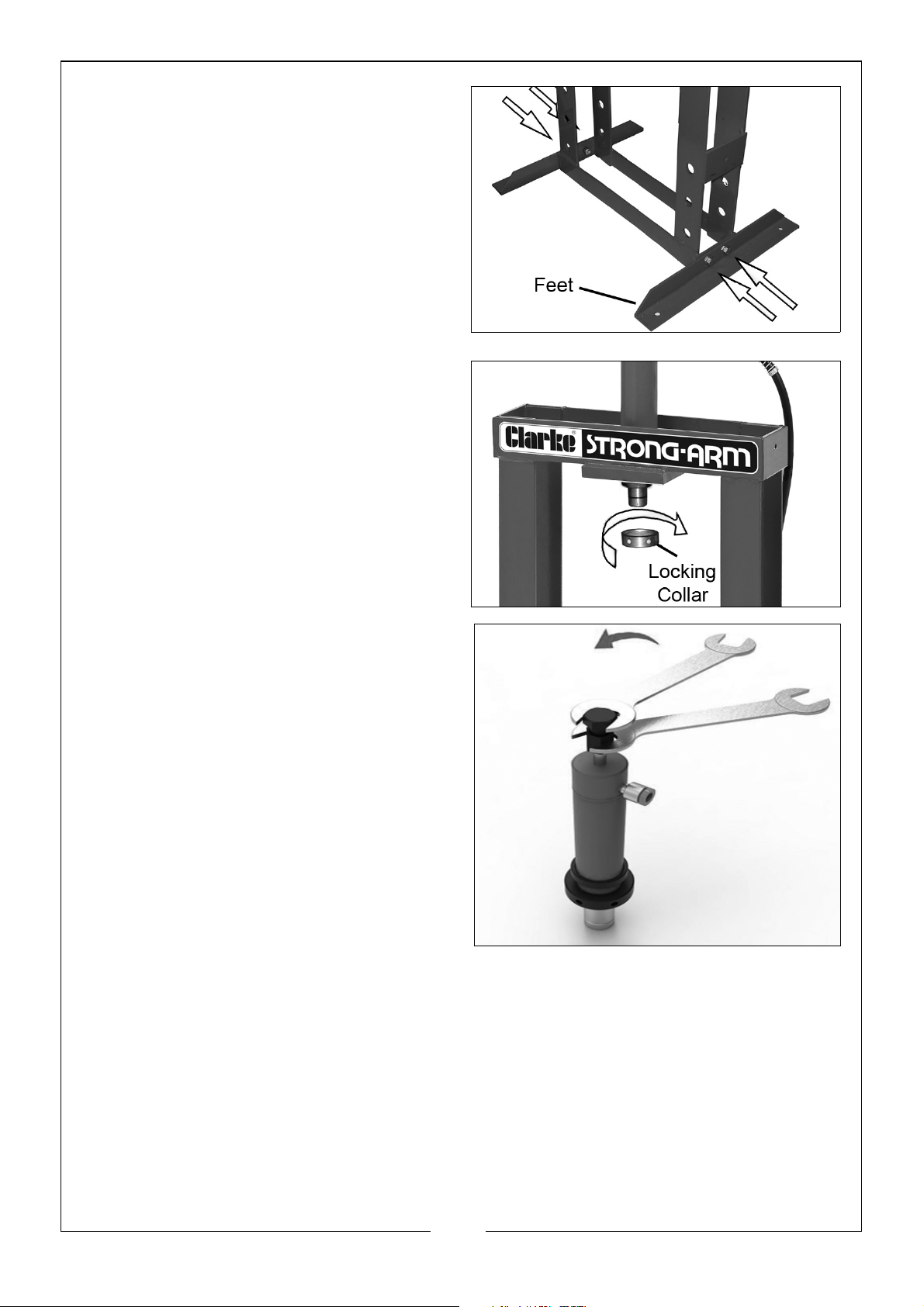

1. Attach the feet to the frame,
using the nuts, bolts and washers.

2. With the help of an assistant, lift
the frame assembly upright and
manoeuvre it to its intended
location on the workbench.

• It is strongly recommended that the
press be firmly secured to a firm and
level bench using suitable bolts (not
supplied)

3. Insert the ram through the hole in
the base plate and secure in
position using the locking collar.

4. Using two spanners, unscrew the
transportation cap from the top of
the press cylinder as shown.

5

Parts & Service: 020 8988 7400 / E-mail: [email protected] or [email protected]

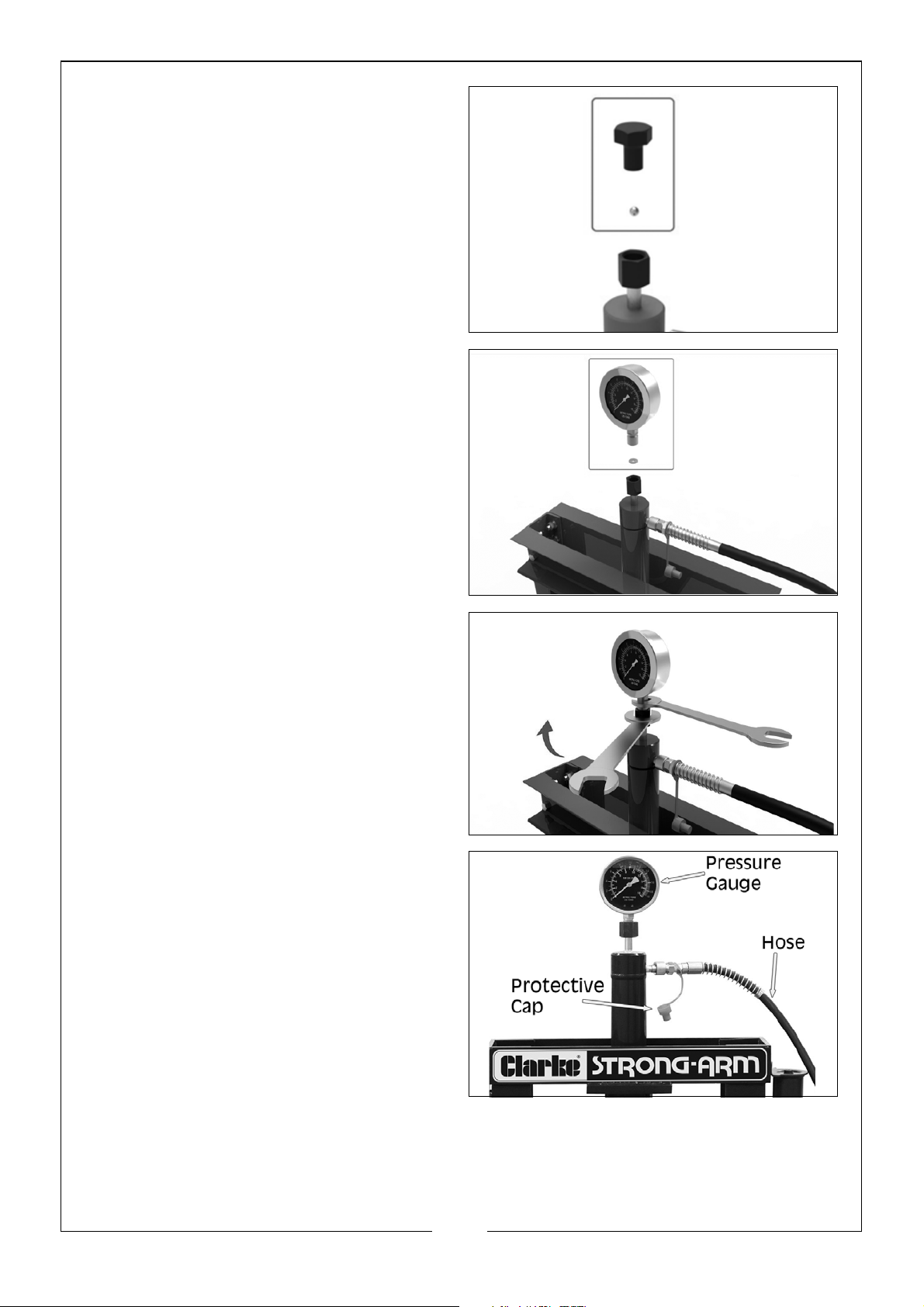

5. Remove the cap and ball bearing
as shown.

6. Place the washer and pressure
gauge in the top of the press
cylinder.

7. Making sure the gauge faces the
front of the press, using two
spanners, tighten the gauge nuts
as shown.

8. Unfasten the protective end cap
and screw the hose to the
threaded connection of the
hydraulic ram.

• We recommend sealing the thread
with PTFE tape. Take care not to let
any oil escape while connecting
the hose.

6

Parts & Service: 020 8988 7400 / E-mail: [email protected] or [email protected]

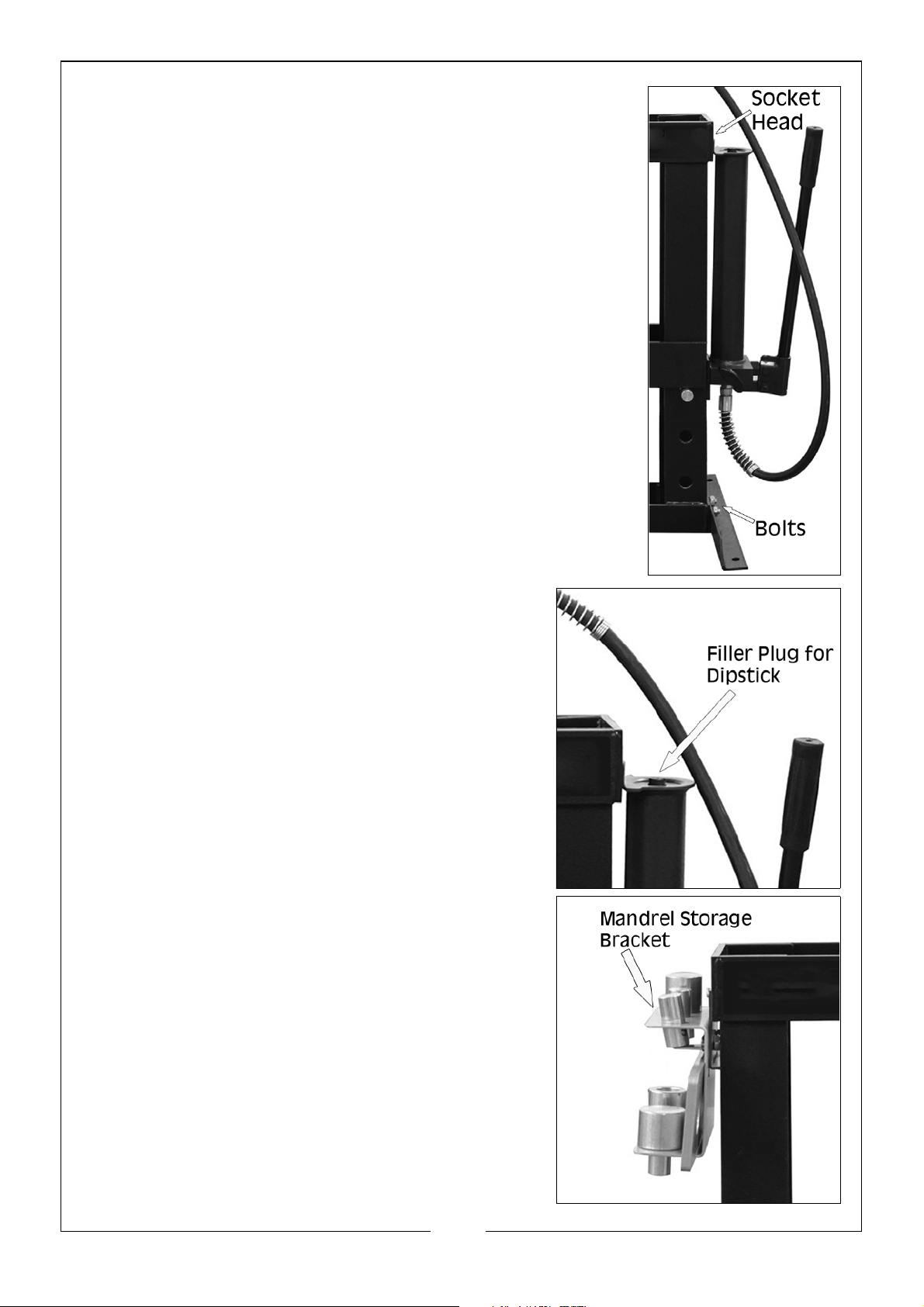

9. Attach the pump assembly to the frame using the
fixing bolts and washers. Fit one bolt first to bear the
weight and use the adjustment provided by the
upper bolt.

• The pump can be installed on either side of the frame
but will usually be assembled for a right-handed press
operator.

10. Screw the pump handle into the pump actuating
lever.

11. Unscrew the filler plug and withdraw the
dipstick. Check that the pump is filled with
hydraulic oil up to the level shown on the
dipstick.

• If empty, the total capacity is 630ml.

12. If obtained, bolt the mandrel storage
bracket to the side of the frame using the
bolts supplied.

13. Store the mandrels including the adaptor,
in their positions on the bracket.

7

Parts & Service: 020 8988 7400 / E-mail: [email protected] or [email protected]

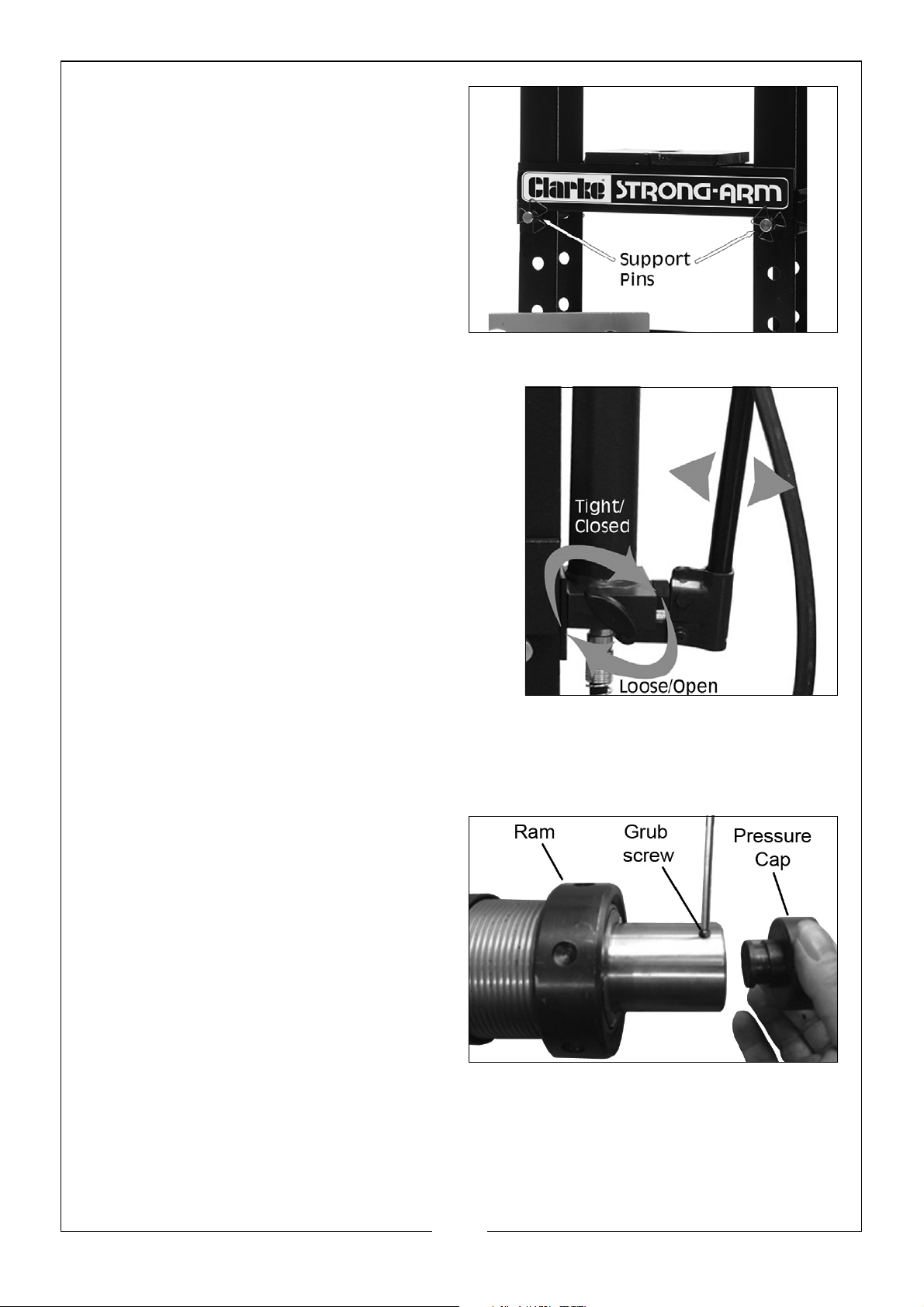

14. Insert the bed support pins into
the holes in the columns at the
required position. Then set the
bed frame in position on the pins.

HYDRAULIC PUMP/RAM OPERATION

1. Before using the press, purge any air
from the system by opening the release
valve by turning it anti-clockwise and
pumping several full strokes to eliminate
any air bubbles. Tight the release valve
before continuing.

2. Check all parts are secure and correctly
aligned before using the press.

The press is now ready for use.

POSITIONING THE BED

1. Position the bed at the desired height,
so it will be as close as possible to the ram when the workpiece is mounted
on it.

FITTING THE MANDRELS OR PRESSURE CAP

Mandrels are available as an
adaptor kit, any of which may be
connected to the end of the ram
using the adaptor.

Alternatively, the basic ram pressure
cap can be fitted as shown. Secure
the pressure cap by tightening the
grub screw with a suitable hex key.

8

Parts & Service: 020 8988 7400 / E-mail: [email protected] or [email protected]

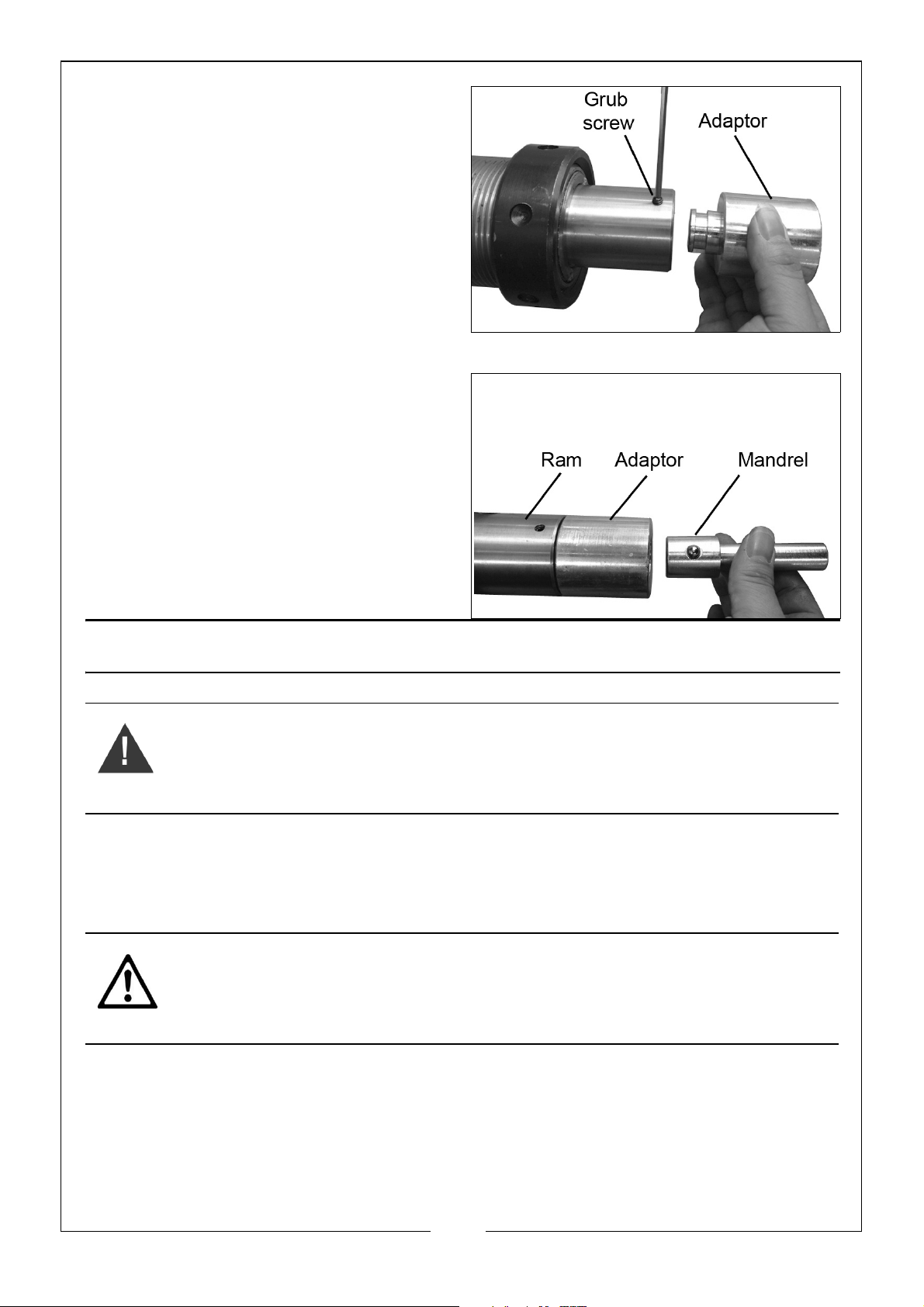

If one of the mandrels is required, the
adaptor must be fitted instead of the
pressure cap. Secure the adaptor by
tightening the grub screw with a
suitable hex key.

Select your mandrel depending
upon the size of the workpiece
bearing surface.

The mandrel can then be pushed
into the adaptor where the built-in
spring clip will hold it in place.

Store the mandrels in their positions
on the mounting bracket when not in
use.

OPERATION

WARNING: FAILURE TO HEED THE WARNINGS ON PAGE 3 MAY RESULT IN
DAMAGE TO THE EQUIPMENT, OR FAILURE RESULTING IN PROPERTY
DAMAGE OR PERSONAL INJURY.

1. Place the workpiece on the bed. It must be completely stable and
supported by packing or shims where required. ‘Heel’ blocks (arbor plates)
are supplied, which locate on the bed. Place the workpiece on a
combination of these to give it stability.

CAUTION: DO NOT POINT LOAD THESE ACCESSORIES AS THEY ARE NOT
DESIGNED TO TAKE THE FULL FORCE OF THE RAM IN ONE SPOT. ENSURE
THEY ARE ADEQUATELY SUPPORTED.

NOTE: Any packing pieces or shims used MUST be capable of

withstanding the pressure that will be brought to bear, and MUST
be of sufficient size with sufficient surface area, so as to avoid the
possibility of slipping or springing out. Mating surfaces MUST be
horizontal so that the force being exerted will NOT be at an angle.

9

Parts & Service: 020 8988 7400 / E-mail: [email protected] or [email protected]

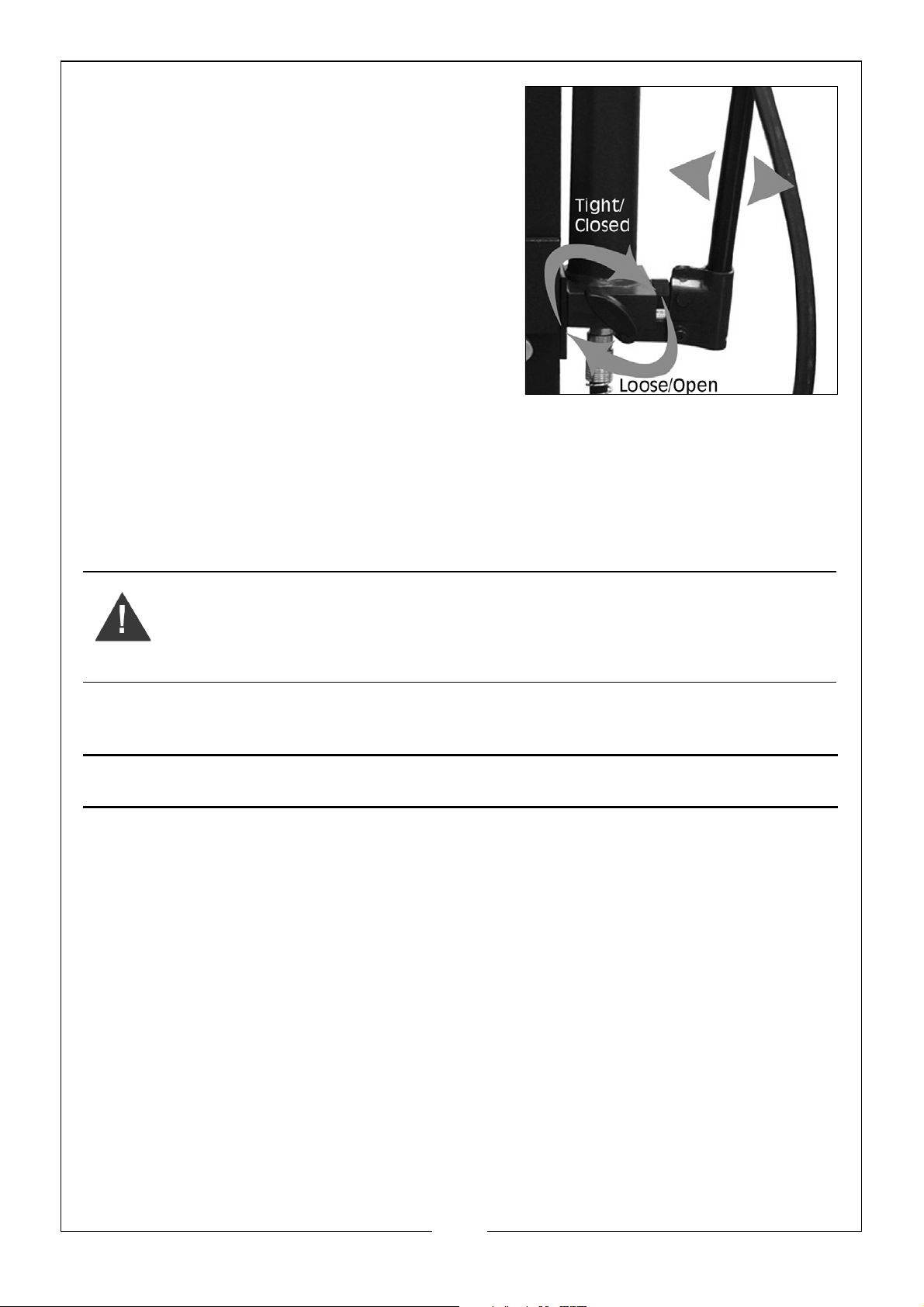

2. Close the release valve by turning it
clockwise until tightly closed.

3. Pump the handle to bring the ram very
lightly into contact with the workpiece.

4. Manoeuvre the workpiece so that the
desired point of contact is directly
beneath the centre of the ram.

5. When satisfied that the workpiece is
correctly aligned and is completely
stable in that position, slowly pump the
handle so that the ram begins to exert
pressure on the workpiece. Continue to
pump the handle whilst standing to the side. DO NOT stand directly in front
of the work and constantly monitor the process and pressure gauge,
ensuring the ram and work remain completely in line and there is no risk of
slipping.

6. When the process is complete, turn the release valve anticlockwise in small
increments to release ram pressure and allow removal of the workpiece.

WARNING: NEVER USE EXTENSIONS TO THE RAM PUMPING HANDLE.

MAINTENANCE

• A visual inspection must be made before each use of the press, checking for
leaking hydraulic fluid and damaged, loose, or missing parts.

• Owners and/or users should be aware that repair of this equipment requires
specialised knowledge and facilities. It is recommended that a thorough
annual inspection of the press be made and that any defective parts be
replaced with genuine Clarke parts.

• Any press which appears to be damaged in any way, is found to be badly
worn, or operates abnormally SHOULD BE REMOVED FROM SERVICE until the
necessary repairs are made.

• If the press is not to be used for any length of time, store it with the ram piston
withdrawn and the operating handle in the lowered position to protect the
moving parts.

10

Parts & Service: 020 8988 7400 / E-mail: [email protected] or [email protected]

PERIODICALLY

• Check the press frame to make sure all bolts are tight and inspect for
cracked welds, bent, loose or missing parts.

• Check the hydraulic connections for leaks. Replace or properly repair any
damaged or leaking hydraulic components before using. In the event of
leaking seals, oil can be topped up via the filler plug at the end of the unit.
Oil should be level with the mark on the dipstick. If necessary top up with
CLARKE hydraulic oil, Part No 3050830. This task is carried out with the ram

fully retracted.

• If any rust is apparent it must be removed completely and the paint restored.

DE-COMMISSIONING THE PRODUCT

Should the product become completely unserviceable and require disposal,
draw off the oil into an approved container and dispose of the product and
the oil according to local regulations.

TROUBLESHOOTING

Problem Probable Cause Remedy

Pump will not work. Dirt on valve seat/warn

seals.

Pump will not produce
pressure.
Pump feels hesitant
under load.
Pump will not lower
completely.

Pump will not deliver
pressure.

Pump feels hesitant
under load.

Air-lock in system. Open the release valve

Reservoir could be over­filled or have low oil level.

Pump cup seal could be
worn out.

Bleed pump unit or have
unit overhauled with new
seals.

and remove the oil filler
plug. Pump the handle a
couple of full strokes and
close the release valve.
Replace the filler plug.

Check oil level by
removing the filler plug
and topping up to the
correct level.

Have the cup seal
replaced.

Pump will not lower
completely.

Parts & Service: 020 8988 7400 / E-mail: [email protected] or [email protected]

Air-lock in system. Release air by removing

the filler plug.

11

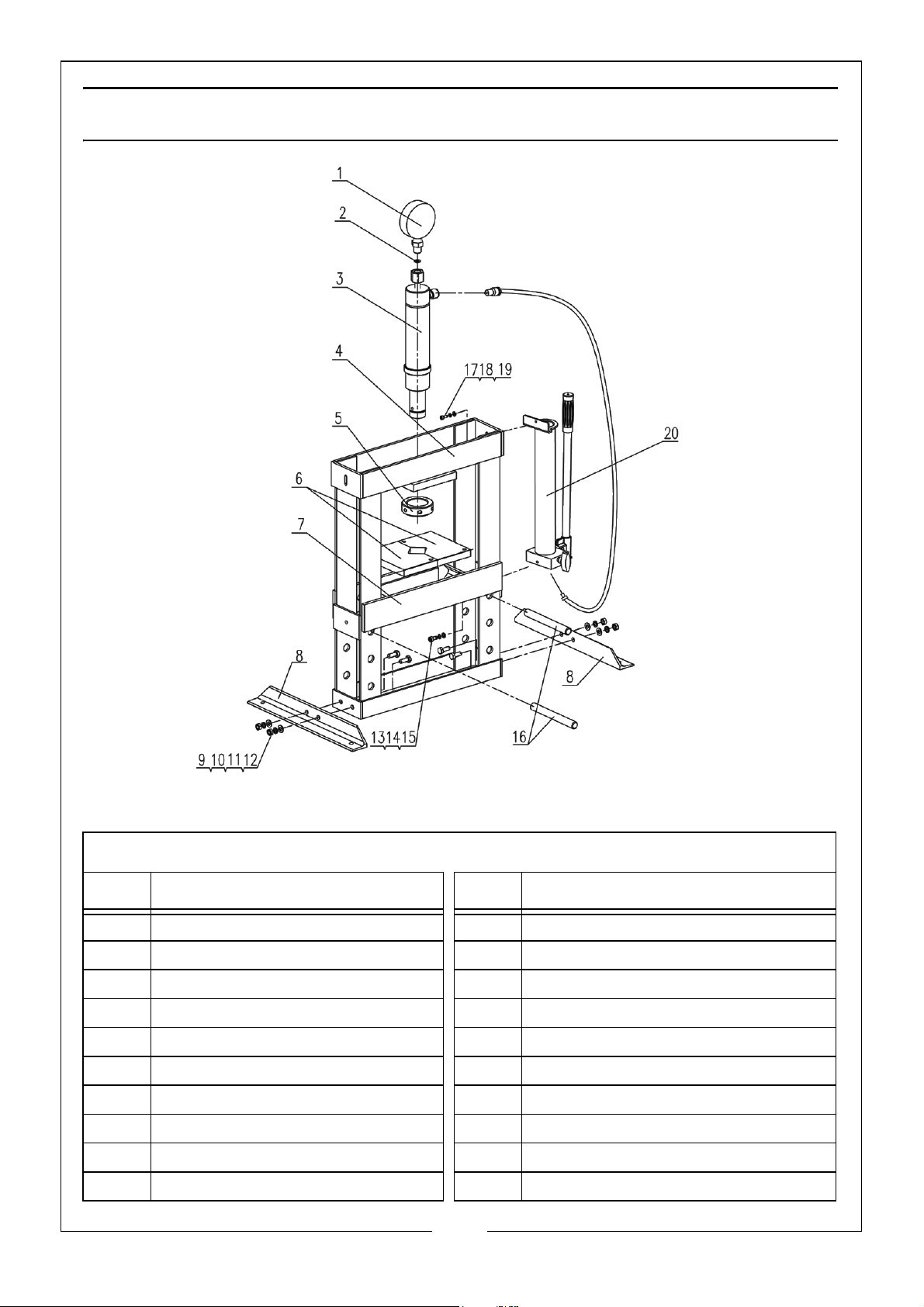

FRAME PARTS DIAGRAM

FRAME PARTS

NO DESCRIPTION NO DESCRIPTION

1 Pressure Gauge 11 Spring Washer 10

2 Nylon Ring 12 Nuts, M10

3 Press Cylinder 13 Bolt, M8 x 16

4 Frame 14 Spring Washer 8

5Locking Collar 15Washer 8

6Heel Block 16Rod

7 Bed Flat 17 Bolt, M6 x 16

8Base Section 18Spring Washer 6

9 Bolt, M10 x 25 19 Hose Fitting

10 Washer 10 20 Press Pump

12

Parts & Service: 020 8988 7400 / E-mail: [email protected] or [email protected]

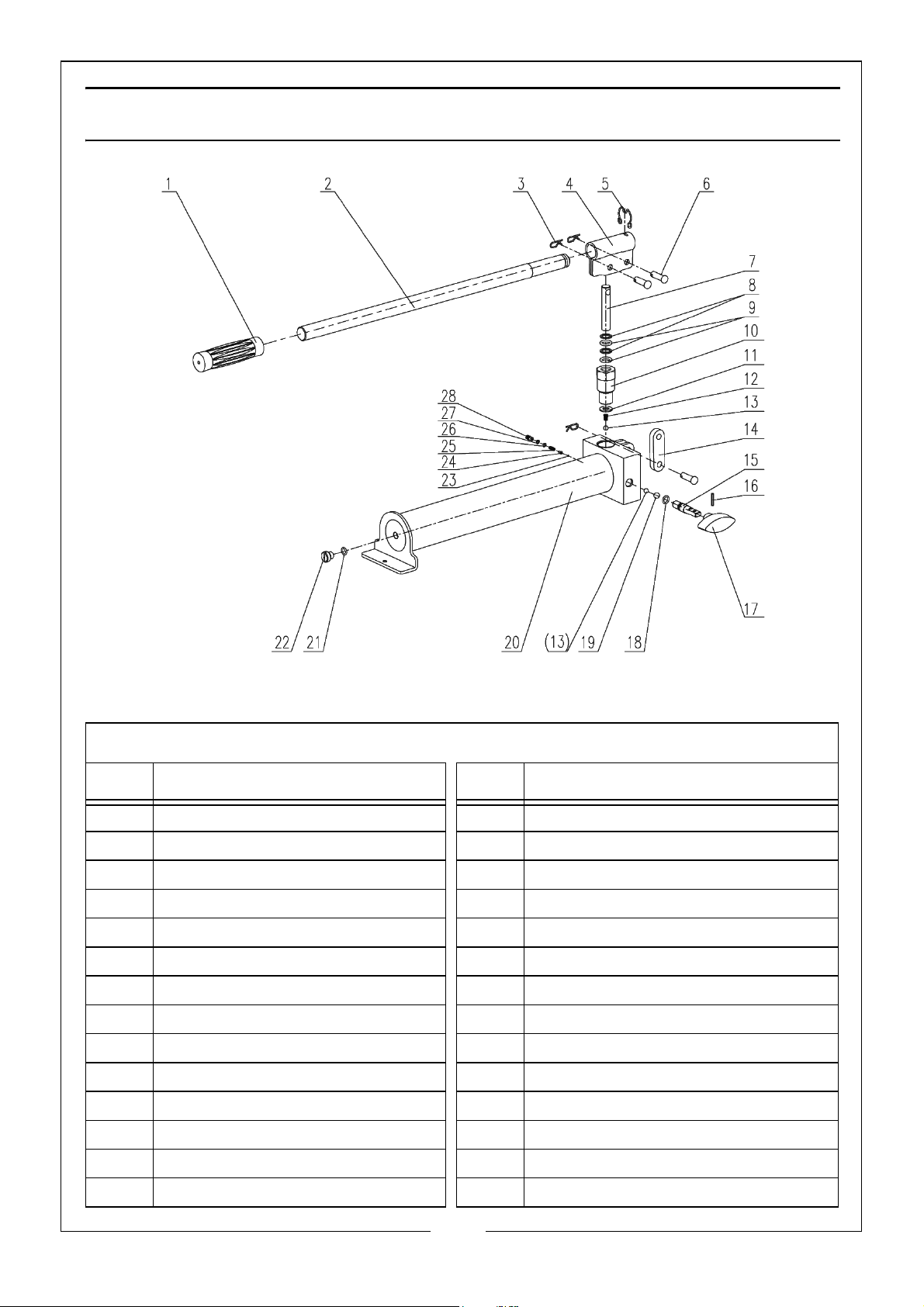

PUMP PARTS DIAGRAM

PUMP PARTS

NO DESCRIPTION NO DESCRIPTION

1 Handle Grip 15 Release Valve Stem

2 Handle 16 Pin, 3 x 20

3 Torsional Spring Latch 17 Release Valve Stem Handle

4Socket 18O-Ring

5 Socket Spring 19 8mm Steel Ball

6Pin 20Base

7 Piston 21 O-Ring, 8.5 x 2.65G

8 Seal 22 Seal Screw

9 O-Ring 23 2mm Steel Ball

10 Clamping Nut 24 Spring Plate

11 Copper Pad 25 Spring

12 Spring 26 O-Ring

13 6mm Steel Ball 27 Seal

14 Connecting Rod 28 Pressure Adjusting Screw

13

Parts & Service: 020 8988 7400 / E-mail: [email protected] or [email protected]

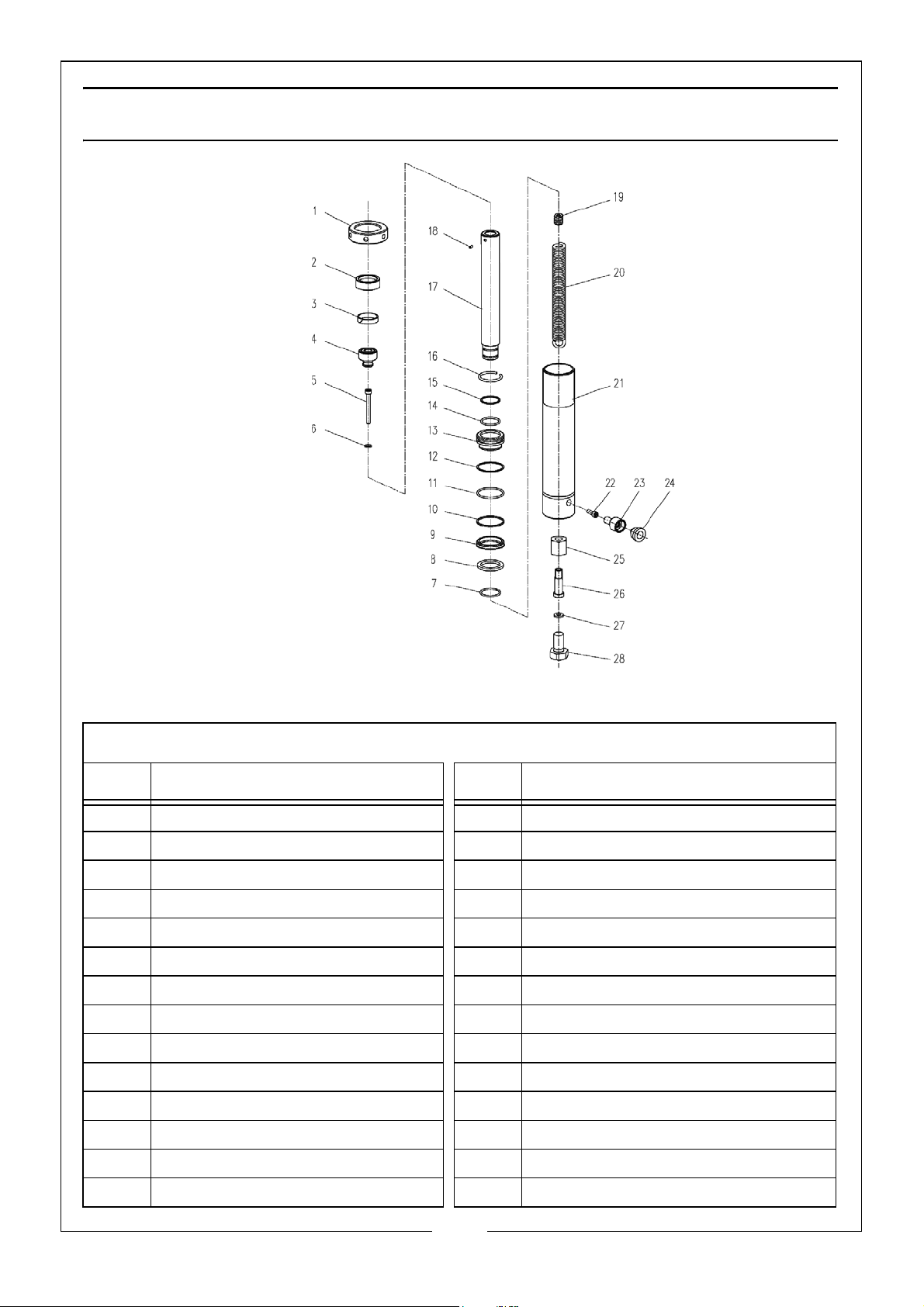

RAM PARTS DIAGRAM

RAM PARTS

NO DESCRIPTION NO DESCRIPTION

1End Cap 15Ring

2 Upper Collar 16 Retaining Ring

3 Threaded Ring 17 Circlip

4 Guide Ring 18 Ram Piston

5 Bolt, M8 x 70 19 Spring Nut

6Washer 20Spring

7 Circlip 21 Cylinder Body

8 Circlip 22 Hex Socket Bolt, M8 x 30

9 Ring 23 Connector

10 Y-Ring 24 Dust Cap

11 Sealing Ring 25 Gauge Coupling

12 Ring 26 Connecting Insert

13 Retaining Ring 27 Sealing Washer

14 Threaded End 28 Bolt, M20 x 25

14

Parts & Service: 020 8988 7400 / E-mail: [email protected] or [email protected]

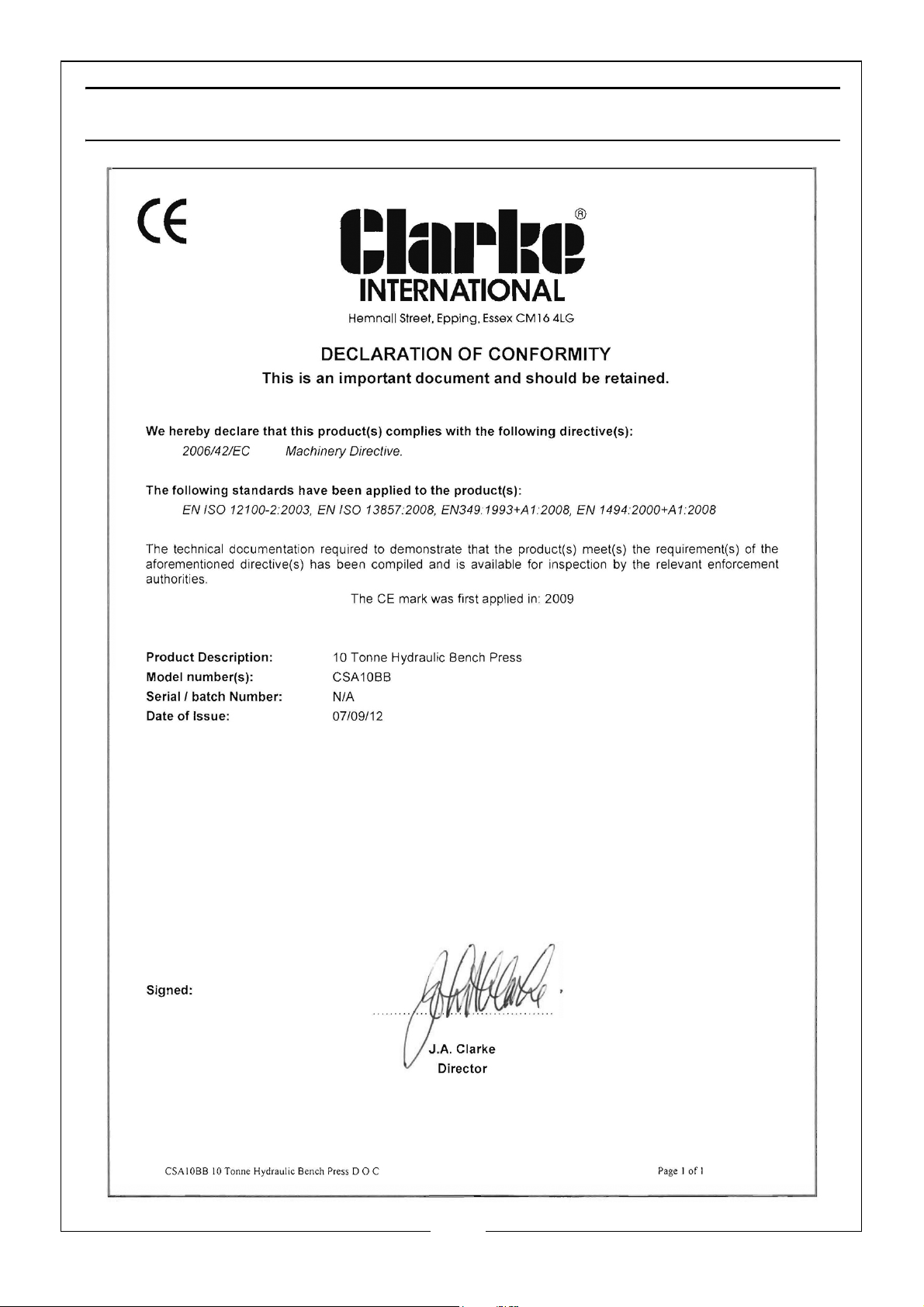

DECLARATION OF CONFORMITY

15

Parts & Service: 020 8988 7400 / E-mail: [email protected] or [email protected]
