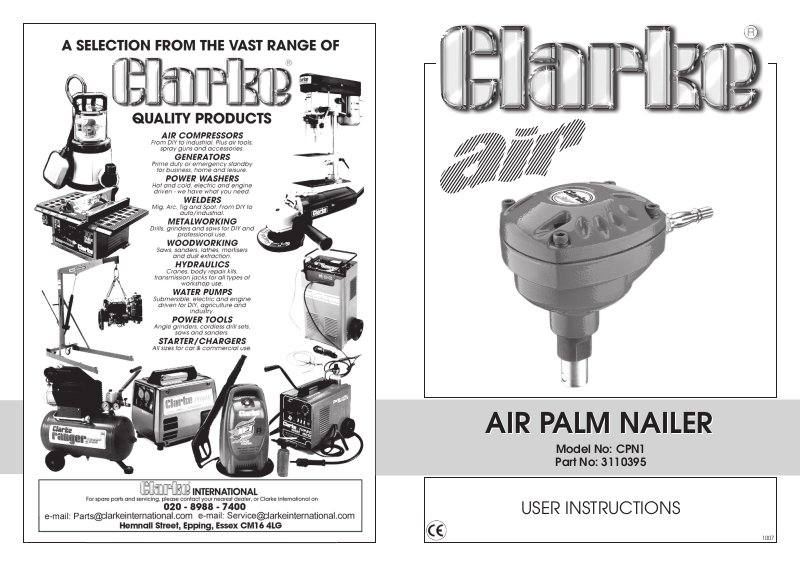

AIR PALM NAILER
AIR PALM NAILER
Model No: CPN1 Part No: 3110395
USER INSTRUCTIONS
1007
NOTES: ...........................................................................................................................
.........................................................................................................................................
.........................................................................................................................................
.........................................................................................................................................
.........................................................................................................................................
.........................................................................................................................................
.........................................................................................................................................
.........................................................................................................................................
.........................................................................................................................................
.........................................................................................................................................
.........................................................................................................................................
.........................................................................................................................................
.........................................................................................................................................
.........................................................................................................................................
.........................................................................................................................................
.........................................................................................................................................
.........................................................................................................................................
.........................................................................................................................................
.........................................................................................................................................
.........................................................................................................................................
.........................................................................................................................................
.........................................................................................................................................
.........................................................................................................................................
.........................................................................................................................................
.........................................................................................................................................
.........................................................................................................................................
.........................................................................................................................................
.........................................................................................................................................
.........................................................................................................................................
HAND-ARM VIBRATION
Employers are advised to refer to the HSE publication “Guide for Employers”.
All hand held power tools vibrate to some extent, and this vibration is transmitted to the operator via the handle, or hand used to steady the tool. Vibration from about 2 to 1500 herz is potentially damaging and is most hazardous in the range from about 5 to 20 herz.
Operators who are regularly exposed to vibration may suffer from Hand Arm Vibration Syndrome (HAVS), which includes ‘dead hand’, ‘dead finger’, and ‘white finger’. These are painful conditions and are widespread in industries where vibrating tools are used.
The health risk depends upon the vibration level and the length of time of exposure to it……in effect, a daily vibration dose.
Tools are tested using specialised equipment, to approximate the vibration level generated under normal, acceptable operating conditions for the tool in question. For example, a grinder used at 45° on mild steel plate, or a sander on softwood in a horizontal plane etc.
These tests produce a value‘a’, expressed in metres per second per second, which represents the average vibration level of all tests taken, in three axes where necessary, and a second figure ‘K’, which represents the uncertainty factor, i.e. a value in excess of ‘a’, to which the tool could vibrate under normal conditions. These values appear in the declaration on page 7.
You will note that a third value is given in the specification - the highest measured reading in a single plane. This is the maximum level of vibration measured during testing in one of the axes, and this should also be taken into account when making a risk assessment.
a’ values in excess of 2.5 m/s2 are considered hazardous when used for prolonged periods. A tool with a vibration value of 2.8 m/s2 may be used for up to 8 hours (cumulative) per day, whereas a tool with a value of 11.2 m/s2 may be used for ½ hour per day only.
The graph below shows the vibration value against the maximum time the respective tool may be used, per day.
The uncertainty factor should also be taken into account when assessing a risk. The two figures ‘a’ and ‘K’may be added together and the resulant value used to assess the risk.
It should be noted that if a tool is used under abnormal, or unusual conditions, then the vibration level could possibly increase significantly. Users must always take this into account and make their own risk assessment, using the graph as a reference.
Thank you for purchasing this CLARKE Air Palm Nailer, which is designed for DIY
and trade use only.
Please read this instruction leaflet thoroughly and follow the instructions carefully, in doing so you will ensure the safety of yourself and that of others around you, this will also ensure that the Air Palm Nailer will give you long and satisfactory service.
Please keep these instructions in a safe place for future reference.
This CLARKE product is guaranteed against faulty manufacture for a period of 12 months from the date of purchase. Please keep your receipt as proof of purchase.
This guarantee is invalid if the product is found to have been abused or tampered with in any way, or not used for the purpose for which is was intended.
Faulty goods should be returned to their place of purchase, no product can be returned to us without prior permission.
This guarantee does not effect your statutory rights.
CONTENTS
Guarantee ....................................................................................................... 1
General Safety Precautions ........................................................................... 2
Safety Precautions for Air Palm Nailers ......................................................... 3
Technical Specification.................................................................................. 4
Setup & Operation.......................................................................................... 5
Maintenance .................................................................................................. 5
Parts List ............................................................................................................ 6
Trouble shooting .............................................................................................. 7
Hand Arm Vibration Statement ..................................................................... 8
Some tools with a high vibration value, such as impact wrenches, are generally used for a few seconds at a time, therefore the cumulative time may only be in the order of a few minutes per day. Nevertheless, the cumulative effect, particularly when added to that of other hand held power tools that may be used, must always be taken into account when the total daily dose rate is determined.
Please Note that details and specifications herein, are correct of time of going to print.
However CLARKE International reserve the right to change specifications at any time without prior notice.
Copyright CLARKE International All rights Reserved 2006.
- 1 -- 8 -
GENERAL SAFETY PRECAUTIONS
TROUBLE SHOOTING
WARNING:
PLEASE READ ALL INSTRUCTIONS CAREFULLY BEFORE OPERATING
As with all power tools and machinery, there are certain hazards involved with their operation and use. Exercising respect and caution will considerably lessen the risk of personal injury. However, if normal safety precautions are overlooked or ignored, personal injury to the operator or damage to property, may result.
ALWAYS Learn the tools applications, limitations and specific potential hazards peculiar to it. Read and become familiar with the entire operating manual.
ALWAYS check for damage before use , any damaged part should be checked to ensure that it will operate properly and perform it’s intended function. Check for alignment of moving parts, breakage of parts, mountings, and any other condition which may effect the tools operation. Any damage should be properly repaired or the part replaced . If in any doubt DO NOT use the machine. Consult your local dealer.
ALWAYS disconnect the tool from the air supply before servicing and when changing accessories.
ALWAYS wear safety goggles, manufactured to the latest European safety standards. Everyday glasses do not have impact resistant lenses, they are NOT safety glasses.
ALWAYS wear suitable ear protection to protect your hearing.
ALWAYS keep work area clean, cluttered areas and benches invite accidents.
ALWAYS ensure that adequate lighting is available. A minimum intensity of 300 lux should be provided. Ensure the lighting is placed so you will not be working in your own shadow.
ALWAYS keep children away. All visitors should be kept at a safe distance from the work area, especially whilst operating the tool.
ALWAYS maintain tool in top condition. Keep tool clean for best performance. Follow maintenance instructions.
ALWAYS concentrate on the job at hand, no matter how trivial it may seem. Be aware that accidents are caused by carelessness due to familiarity.
ALWAYS wear proper apparel. Loose clothing or jewellery may get caught in moving parts. Wear protective hair covering to contain long hair.
ALWAYS keep your proper footing and balance at all times DO NOT over reach. For best footing wear rubber soled footwear. Keep floor clear of oil, scrap wood etc.
ALWAYS use recommended accessories, the use of improper accessories could be hazardous.
•ALWAYS ensure safety devices are in place and are working correctly, if not DO NOT use the tool until rectified.
PROBLEM: Air leaking between the body and the cylinder cap.
CAUSE: TROUBLE SHOOTING:
Loose screws.
Worn or damaged O-rings or seals.
PROBLEM: Air leaking near the bottom of the tool.
CAUSE: TROUBLE SHOOTING:
Loose screws.
Worn or damaged O-rings or bumper.
PROBLEM: Blade driving fastener too deep.
CAUSE: TROUBLE SHOOTING:
Worn bumper.
Air pressure too high.
PROBLEM: Tools operation is poor or fails to drive fasteners.
CAUSE: TROUBLE SHOOTING:
Inadequate air supply.
Inadequate lubrication.
Worn or damaged O-rings or seals.
Exhaust port in cylinder head is blocked.
PROBLEM: Tool skips fasteners.
CAUSE: TROUBLE SHOOTING:
Worn bumper or damaged spring.
Worn or dry O-ring on piston or lack of lubrication.
Cylinder cover seal leaking.
PROBLEM: Tools jams.
CAUSE: TROUBLE SHOOTING:
Incorrect or damaged fasteners.
Tighten screws.
Check and replace O-rings and seals.
Tighten screws.
Check and replace O-rings or bumper.
Replace bumper.
Adjust the air pressure.
Verify adequate air supply.
Place 2/6 drops of oil in air inlet.
Check and replace O-rings or seals.
Replace damaged internal parts.
Replace bumper or pusher spring.
O-ring needs to be replaced and lubricated.
Replace sealing washer.
Change and use correct fasteners.
- 2 - - 7 -
PARTS LIST
1
12
2
13
3
4
14
GENERAL SAFETY PRECAUTIONS CONTINUED
NEVER force the tool, it will do a better and safer job at the rate for which it was designed.
NEVER operate the tool when under the influence of drugs, alcohol or any medication.
NEVER leave the tool running unattended. Disconnect from the air supply.
NEVER use power tools in damp or wet locations or expose them to rain. Keep your work area well illuminated. Do NOT use in explosive atmosphere (around paint, flammable liquids etc.). Avoid dangerous environments.
AVOID accidental starting, by disconnecting the tool from the air supply when not in use.
5
6
7
6
8
9
10
11 11
Item: Description: Part No:
1. M5*20 Screw ...... HTCPN1001
2. Cylinder Cover .. HTCPN1002
3. O Ring ................. HTCPN1003
4. Washer................ HTCPN1004
5. Sealing Washer .. HTCPN1005
6. O Ring ................. HTCPN1006
7. Slip Set ................ HTCPN1007
8. Sealing Ring ....... HTCPN1008
9. Cylinder .............. HTCPN1009
10. Cylinder Cover .. HTCPN1010
11. O Ring ................. HTCPN1011
12. Piston ................... HTCPN1012
15
18
22
Item: Description: Part No:
13. Ram Piston............ HTCPN1013
14. O Ring ................... HTCPN1014
15. Bumper ................. HTCPN1015
16. Axle Sleeve .......... HTCPN1016
17. Gun Body ............. HTCPN1017
18. Air Inlet .................. HTCPN1018
19. Washer .................. HTCPN1019
20. Spring .................... HTCPN1020
21. Fix Set .................... HTCPN1021
22. Magnet ................. HTCPN1022
23. Bolt ........................ HTCPN1023
16
17
19 20
21
23
SAFETY PRECAUTIONS FOR AIR PALM NAILERS
NEVER use combustible gases or other propellants to operate this tool. Use a regulated air supply ONLY.
NEVER point the tool at any person or animal.
NEVER free fire the tool at high pressure.
ALWAYS disconnect the tool from the air supply before performing any maintenance or during periods of non-operation.
ALWAYS inspect the tool before use and ensure the tool’s safety spring trigger is moving freely.
ALWAYS keep hands clear of the discharging area of the tool when connecting the air supply.
DO NOT exceed the maximum rated pressure for this tool 120psi / 8.3bar.
DO NOT keep the safety spring trigger depressed during the loading of fasteners as this could cause unintentional firing, resulting in serious personal injury.
DO NOT attempt to drive a fastener into the top of another fastener, doing so could cause the fastener to ricochet resulting in serious personal injury.
DO NOT drive fasteners into the edge of a work piece as this could cause the work piece to split allowing the fastener to ricochet free resulting in serious personal injury.
ONLY use fasteners which comply with the specifications of this tool.
- 3 -- 6 -
TECHNICAL SPECIFICATION
Description:
Model: ...................................................................................................... CPN1
Part No: ................................................................................................ 3110395
Product Specification:
Operating Air Pressure: .............................................. 72-100 psi / 4.9-6.9 bar
Max Air Pressure: .................................................................... 120 psi / 8.3 bar
Air Consumption: ................................................................................. 2.5 cfm
Air Inlet Connector: ................................................. ¼” Male BSP Connector
Nail Size Capacity: (length) ................................................ 14 mm - 120 mm
Nail Cap Diameter:.............................................................. 3 mm - 11 mm Ø
Nail Capacity: ................................................................................................. 1
Noise Emissions:
Sound Pressure: ................................................................................ 101dB (A)
Sound Power Measured: ................................................................ 114dB L
Vibration Emissions:
Measured Emission: (Statement on page 8) .................................. 14.0 m/s²
Dimensions & Weights:
Product: (packed) (L x W x H) ........................ 125 mm x 125 mm x 133 mm
Product: (unpacked) (L x W x H) ...................... 100 mm x 81 mm x 130 mm
Weight: (packed) ................................................................................ 0.86 Kg
Weight: (unpacked) ............................................................................ 0.85 Kg
Package Contents:
Air Palm Nailer: .............................................................................................. x1
Leather Cover: .............................................................................................. x1
4mm Allen Key: ............................................................................................. x1
Bottle of Lubricating Oil: ............................................................................... x1
Operating Manual: ....................................................................................... x1
WA
SETUP AND OPERATION
AIR SYSTEM SETUP:
Use a clean, dry regulated compressed air supply at 4.9-6.9 bar (72-100 psi).
Never exceed the maximum air pressure (120 PSI), doing so will cause noise, misfiring and fast wearing of the tool.
When connecting the air supply always keep hands and body away from the discharge area of the tool.
A filter-regulator-lubrication is the preferred method of air supply and should be located as close to the tool as possible. (refer to fig.1).
Cutt-off
Valve
*OPTIONAL
Air
Compressor
fig.1
Regulator (0-8.5 bar)
Filter
Tool
Quick
Connector
Quick
Coupler
Air Hose
Quick
Connector*
Coupler*
Lubricator
Quick
Keep the air filter clean, a dirty filter will reduce the air pressure and cause a reduction in power and efficiency.
For better performance, install a quick connector in your tool and a quick coupler on the hose if possible.
Be sure all connections in the air supply system are sealed to prevent air loss.
OPERATION:
Insert a nail into the end of the tool (only holding the shank of the nail).
Align the tool square with the work piece.
Apply a downward pressure on the tool and drive the nail into the piece.
MAINTENANCE
If you use the tool without in-line lubrication then place 2 - 6 drops of pneumatic tool oil into the air inlet before each day or after 2 hours of continuous use.
Inspect the tool before every use, replace any worn or damaged parts to ensure the tool operates correctly and safely.
Regularly inspect the spring and safety mechanism to ensure that it operates correctly, check there are no loose or missing parts.
Keep the nose of the tool clean and free from any dirt or abrasive particles.
- 4 - - 5 -
