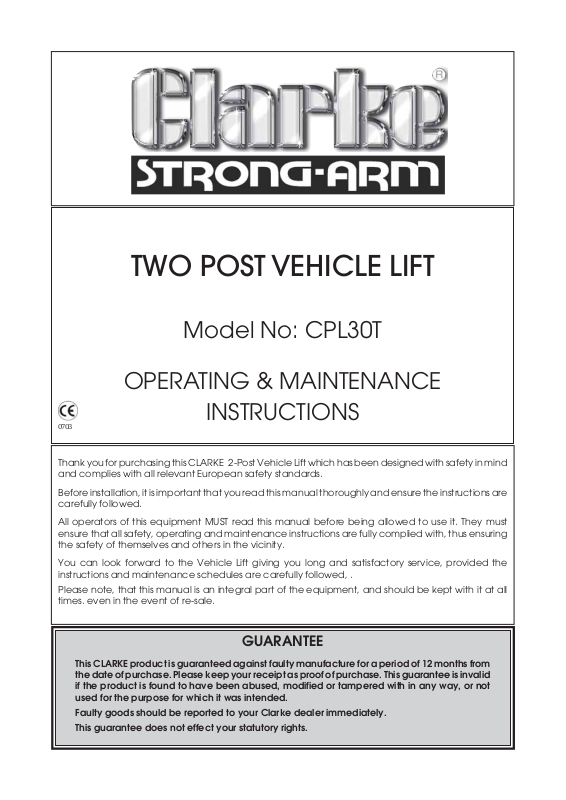

TWO POST VEHICLE LIFT
Model No: CPL30T
OPERATING & MAINTENANCE
INSTRUCTIONS
0703
Thank you for purchasing this CLARKE 2-Post Vehicle Lift which has been designed with safety in mind
and complies with all relevant European safety standards.
Before installation, it is important that you read this manual thoroughly and ensure the instructions are
carefully followed.
All operators of this equipment MUST read this manual before being allowed to use it. They must
ensure that all safety, operating and maintenance instructions are fully complied with, thus ensuring
the safety of themselves and others in the vicinity.
You can look forward to the Vehicle Lift giving you long and satisfactory service, provided the
instructions and maintenance schedules are carefully followed, .
Please note, that this manual is an integral part of the equipment, and should be kept with it at all
times. even in the event of re-sale.
GUARANTEE
This CLARKE product is guaranteed against faulty manufacture for a period of 12 months from
the date of purchase. Please keep your receipt as proof of purchase. This guarantee is invalid
if the product is found to have been abused, modified or tampered with in any way, or not
used for the purpose for which it was intended.
Faulty goods should be reported to your Clarke dealer immediately.
This guarantee does not effect your statutory rights.

1
International
2
International
Index
Introduction ................................................................................................................
Description, model .............................................................................................. 5
Scope of application........................................................................................... 5
Dimensions and Ratings ...................................................................................... 5
Technical description ................................................................................................
Basic conditions for operation............................................................................ 6
Installation, foundation........................................................................................ 6
Operation ............................................................................................................. 6
Main components ......................................................................................................
Lifting spindle ....................................................................................................... 7
Controls................................................................................................................. 7
Transport, storage.......................................................................................................
Installation...................................................................................................................
Foundation ........................................................................................................... 9
Test run without load............................................................................................ 10
5
6
7
9
9
Test r3un under load ............................................................................................ 10
Operation ....................................................................................................................
Safety instructions for operation ......................................................................... 12
Maintenance ..............................................................................................................
Required maintenance/inspection periods...................................................... 13
Wearing parts..............................................................................................................
Replacement of wearing parts........................................................................... 14
Conduct and measures in case of technical defects............................................
Failure of the supporting nut ............................................................................... 16
Failure of the chain (torn chain) ......................................................................... 16
Failure of the upper limit switch.......................................................................... 16
Failure of the lower limit switch .......................................................................... 17
Drive-on protection (antilock system) ............................................................... 17
Short circuit protection ........................................................................................ 17
Failure of the control cable ................................................................................ 17
11
13
14
16
Safety Instructions ................................................................................................ 17
Decommissioning ......................................................................................................
3
18
International
Other risks/dangers ..............................................................................................
Components/Accessories/Spare parts ..............................................................
Recommended spare parts .................................................................................
Lubrication chart ...................................................................................................
Table of lubricants .......................................................................................... 21
Reference table of lubricants ........................................................................ 21
Illustrations .............................................................................................................
Figure 1: CPL30T – Main Components ........................................................... 22
Figure 2: Dimensions ....................................................................................... 23
Figure 3: Ground plan dimensions and swivelling range ........................... 24
Figure 4: Circuit diagram ............................................................................... 25
Figure 5: Control box ...................................................................................... 26
Figure 6: Guidance/arrangement of the control cable.............................. 26
Figure 7: Power supply ................................................................................... 27
Figure 8: Control rod ....................................................................................... 28
19
20
20
21
22
Figure 9: Oil tank for automatic lubrication of the spindle ......................... 29
Figure10: Supporting nut and safety nut, motor side................................... 30
Figure 11: Carriage ......................................................................................... 31
Figure 12: Carriage ......................................................................................... 32
Figure 13: Swivel arm, short version .............................................................. 33
Figure 14: Swivel arm, long version ............................................................... 34
Figure 15: Explosion drawing ......................................................................... 35
Parts list to Fig. 15 ............................................................................................ 36
4
International
Description, model
Description Two-post lift with swivel arm
Model CPL30T
Scope of application
The two-post lift with swivel arm, type CPL30T, is used to lift passenger vehicles
up to a weight of 3,000 kg.
The chassis and running gear of the lifted-up vehicle are easy to survey and
can be accessed easily. Any required repair or maintenance works can be
carried out. The electrical and mechanical safety devices of the lift make
working on and under the vehicle safe.
Dimensions and Ratings
Introduction
Max. load ............................................................................ 3,000 kg
Max. lifting height ............................................................... 1,800 mm
Lowest pick-up height ....................................................... 130 mm
Height of the base frame.................................................. 48 mm
Clearance between posts................................................ 2,050 mm
Lifting speed ....................................................................... 0.036 m/s
Lowering speed.................................................................. 0.038 m/s
Max. permissible eccentricity of centre of gravity
at half load: ........................................................................ 491 mm
Electrical protection: ......................................................... IP 31
Contact-voltage protection ............................................ I.
Splash (water) protection ................................................. IP 54
Height .................................................................................. 2,600 mm
Width ................................................................................... 2,960 mm
Voltage ................................................................................ 3 x 380/220 V, 50 Hz
Motor power ....................................................................... 3 kW
Lifting time at max. load ................................................... 57 s
Lowering time at max. load ............................................. 55 s
Max. lifting frequency ........................................................ 8/h
Overall weight .................................................................... 620 kg
Length of swivel arm: long version ................................... 775/1,250 mm
Length of swivel arm: short version .................................. 515/940 mm
Positioning pads ................................................................. Ø150 mm
5
International
Basic conditions for operation
The lift can only be installed on a level concrete foundation with solid floor
covering.
Concrete quality: B 25 according to DIN 1045. The deviation of the concrete
slab from level must not exceed 10 mm on a length of 1,000 mm. The lift must
not be installed in a hazardous location (potentially explosive environment).
The lift must only be used with its base frame properly fastened using anchors.
Operating voltage: 3 x 380/220 V, 50 Hz
Power consumption: 3 kW
The lift must not be installed in open areas or in humid locations.
Technical description
Installation, foundation
When determining the place of installation, the convenient access to the lift
and the drive-through direction should be considered. The power connection
cable must be lead to the lift overhead (see Fig. 7). The electrical installation
and connection is to be carried out by qualified personnel only; the applicable
CE regulations must be strictly adhered to. The completely assembled frame
is put on the prepared concrete foundation as shown in Fig. 3. The anchor
threadings in the base frame are sketched onto the concrete slab; then, the
appropriate holes for the anchor plugs are drilled. The bolts (anchors) of the
base frame are then fixed with a torque of 80-120 Nm.
Operation
The unit is an electromechanical lifting device driven by an electric motor
over a screw rod. The installed lift is shown in Fig. 1; the most important
dimensions can be seen from Fig. 2 and 3.
6
Main components
International
The lift consists of the following main components:
1. Post with motor
2. Post without motor
3. Base frame
4. Control box
5. Swivel arms with swivel arm lock and positioning pads
6. Lifting spindle
7. Nut system
8. Carriage
9. Roller chain
10. V-belt drive (electric motor)
11. V-belt drive (cable pull)
12. Selector switch
13. UP/DOWN switch
14. Fuses (in control box)
Lifting spindle
The lifting spindles are accommodated in the two lift posts. The lift posts
concurrently serve as guides for the carriages. The post with motor furthermore
carries the electric driving motor and the control box. The swivel arms with
swivel arm lock and foot protection rods are mounted onto the carriages.
The threading of the lifting spindles is self-locking. The upper ends of the spindles
are designed in a way that permits to turn the spindles manually using a
crank. The cover plates at the posts protect the spindles and bearings from
dirt. The drive operates from the electric motor over V-belts onto the spindles.
The V-belt tension can be adjusted. The motor is protected by a thermal
motor protection switch housed in the control box. Its setting value is 7 A
(motor protection: IP 44). The lift is equipped with a cable-pull control system.
The control system has the following functions:
Functions of the control system
· Lower and upper limit of travel
· Drive-on protection
· Perception of chain breaks
· Perception of nut breaks
· Perception of cable tear
· Upper and lower emergency switch-off
7
International
The control system initiates an emergency switch-off in the following
situations:
· Defect of the upper or lower limit switch
· Broken cable
In case of a broken nut, the upward movement is blocked and only the
downward movement of the unit is possible. In case of an emergency switchoff, no movement is possible any more.
The complete electrical installation is accommodated in the control box. On
the control box, the lockable selector switch, the control switches for lifting
and lowering, and the shockproof plug (230 V, 6 A) are located. Protection of
the control box: IP 32. The limit switch system is located in the upper part of
the post with motor. Protection of the limit switch system: IP 41.
8
TRANSPORT/ INSTALLATION
International
Transport, storage
Note
The packed item should be stored under a roof or, if stored in a free area, with
an appropriate cover (tarpaulin etc.). For transport and storage, all items and
packing must be free from defects.
Installation
Foundation
The foundation must be laid as described in the section ‘Installation, Foundation’
(see also Fig. 3). Unpacking the lift and accessories: after the packaging has
been opened, the contents of the shipment should be controlled using the
‘Machine Book’. Complete unpacking is only recommended shortly before
installation.
Installation instructions for the lift
Mount the base frame to the properly prepared foundation as shown in Fig. 3
using screws (anchors). Lay the lifting posts on the anchored base frame. Put up
the posts and preliminarily fix them using bolts M14 x 50; for preliminary fixing,
only the first five threads of the screws should be screwed in (five full turns). Then
insert the chain. This step will be made easier by tilting the preliminarily fixed
posts back.
ATTENTION!
Before the chain is inserted, ensure that both carriages are at the same height
(approx 800 mm), then, the post with motor may be installed.
The control cable is included in a separate package (coiled by manufacturer). The
cable is inserted, beginning at the post with motor.
At the side of the motor, mount the threaded rod in a centre position with the cable
down, then, from the right-hand side, lead the cable over the cable roller at the
carriage and then up over the cable roller at the control rod into the hollow of the
post. Lead the cable down through the hole in the post footing and then to the
opposite post. Enter it through the hole in the post footing again, and lead it upwards
until you can fix it to the control rod using a connection block (from terminal strip)
(see Fig. 6).
The fine adjustment is done over the threaded rod at the control rod on the motor
side. The control cable is adjusted correctly when the red mark of the control rod is
located at the centre of the emergency switch roller (see Fig. 8).
9
International
Attention: The control cable must be exactly lead through the grooves of
the guiding rollers under the posts. Before using the lift for the first time,
check the position of the control cable again!
After adjusting, the function of the switch system is verified by manually lifting
one of the carriages and pushing the upper limit switch. After the adjustment
has been completed, the tension of the V-belts is checked and adjusted as
required. The power cable is a five-core cable. The connection is made in
the control box: connect the three phase conductors to points 4, 6, 14 of
selector Q, the neutral conductor to point 16, the protective earth conductor
to the cover of the control box. The connection is made over a five-core
cable with a diameter of 2.5 mm, the main fuse must have a rating of 20 A.
The electric motor direction of rotation must be checked. If connected
correctly, the carriages move in accordance with the symbols.
After the connection has been completed, carry out lifting and lowering
cycles to check the function of the switch system and the free movement of
the carriages. It must be checked whether the spindles move the felt inserts
serving their lubrication further down after the lower limit switch has been
actuated (after the carriages have come to a halt). Then, the oil tanks must
be filled with oil according to Table 1. The required oil volume per tank is
about 0.08 l. The manufacturer equips the unit with pre-soaked felt inserts.
Switch off the power supply. Fit the dismantled cover plates again. Then
assemble the swivel arms and the swivel arm locks to the carriages.
Test run without load
Switch the lift on using the selector switch. The lifting without load is initiated
by selecting switch position “Up”. If the lift should now move downward, the
electrical connection was made wrong. Change poles immediately! The
carriages move upward until they reach the upper limit of travel. After the
upper limit of travel has been reached, the lift will not move any more if switch
position “Up” is selected. By selecting switch position “Down” the carriage
moves downward until it reaches the lower limit of travel. When the lower
limit of travel has been reached, the switch position “Down” has no effect
any more. Only after 4 – 5 lifting processes without load, the first test under
load can be performed.
Test run under load
After the lifting cycles without load have been completed, a vehicle with a
weight of about 1,300 kg is driven on the lift to carry out a further 4 – 5 lifting
cycles. If no unusual phenomena can be observed, further run-in cycles are
required.
10
OPERATION
International
Operation
Arrangement of the control elements (see Fig. 5)
Switch the unit on using the selector switch. By holding the selector switch in
one of the positions “Up” or “Down” the lift is put into operation. In case of an
emergency, the lift cannot be operated. The various situations for an
emergency switch-off are listed in the section ‘Functions of the switch system’.
Instructions for the use of the lift
• Move the carriage to the lower limit of travel.
• Put the swivel arms in the position shown in Fig. 3.
• Drive the vehicle over the base frame of the lift. Swing the arms under the
vehicle and adjust their length according to the seating points.
• Briefly put the selector switch in position “Up” to slightly lift the vehicle; check
for a safe seating of the vehicle.
• Lift the vehicle to the desired height. To make repair and maintenance work
easier electrical tools can be plugged into the shockproof socket at the post
with motor.
• Put the selector switch to position “Down” to lower the vehicle until the lower
limit of travel is reached.
• Swing the swivel arms back from under the vehicle.
• Remove the vehicle from the lift base frame.
ATTENTION!
Do not stand or leave any items under the load during lifting and lowering! When
the lift is operated, the lifted vehicle must be observed! In case of anomalous
function, the operation of the unit must be immediately stopped! The lift must
only be operated by appropriately trained personnel! It is forbidden to stay in the
lifted vehicle!
11
International
Safety instructions for operation
The following safety instructions must be put up when near the lift:
1. Unauthorised persons must stay away from the lift. The lift must only be
operated by appropriately trained persons over the age of 18.
2. The maximum permissible load of the lift must never be exceeded; possibly
present additional load of the vehicles must be considered.
3. Vehicles must be positioned such that their weight is distributed evenly
over the lift.
4. Before putting the lift into operation, the operator must pay particular
attention to the fact that this is done without danger to other persons.
5. The control devices should be used in a way that ensures a symmetrical
lifting and lowering.
OPERATION
6. During the movement of the lift no persons must stand under the load,
and no works must be carried out on a vehicle being lifted. It is forbidden
to ride on the lift.
7. The operator must take care that particularly when lifting vehicles with
superstructures these are not pushed against constructional parts of the
shop.
8. When operating mechanical lifting units, it must be ensured that the
intended locking devices are properly locked when in working position,
and that the emergency switch off is not used to switch off the unit during
usual use.
9. With mechanical lifts, the condition of the supporting components must
be checked regularly; the supporting components must be replaced if
required.
10. Lifts must be checked for the effectiveness of their safety devices as
required, but at least once every month.
11. After longer interruptions of operation as well as after repairs, the lift must
only be put into operation after it has been inspected and found good
as to its proper working condition by an appropriately qualified person.
12
MAINTENANCE
International
Maintenance
Required maintenance/inspection periods
The maintenance/inspection periods are stipulated as follows:
• The operator (owner) is obliged to maintain a maintenance/inspection log.
• The time between technical inspections of the lift by authorised personnel of
the manufacturer is maximum 12 months.
• The interval for the maintenance works to be carried out by the operator is
maximum 1 month.
• The completion of all inspections, repair works, the replacement of spare
parts or unusual operating conditions must be recorded in the maintenance/
inspection log.
Points and components requiring regular maintenance/inspection
• The lubrication of the spindle is done over oil-soaked felt pads.
• The oil level must be checked regularly; if the level should range under 50
mm the tank must be filled to its upper brim.
• For the lubrication of the chain, grease type LZS-3 or a gear lubricant oil with
high viscosity is used.
• The thrust bearings located on the top of the posts must be lubricated using
grease type LZS-3.
• The lower and upper bearings must be lubricated with grease type LZS-3 once
a year.
• The swivel arm locks are to be lubricated every six months using gear lubricant
oil with a high viscosity.
• All other sliding surfaces are to be lubricated with a gear lubricant oil or grease
type LZS-3 once a year.
• The wear indicator of the nut system must be checked monthly (see Fig. 9).
13
WEARING PARTS
International
Wearing parts
The following parts are subject to increased wear and tear:
• the rubber pads of the swivel arms
• the supporting nut of the nut system
• the guiding rollers of the carriages
These and other spare parts of the lifting system are supplied on order.
Replacement of wearing parts
Repair and maintenance works of any kind must only be carried out after the
power supply of the unit has been disconnected. Repairs of the electrical
system must only be carried out by a qualified electrician in accordance
with the applicable country-specific regulations or the CE regulations. For
repair work of any kind, the technical service of the manufacturer or the
supplier is available to the operator.
Replacement of the rubber guides of the chain
Remove the cover plate of the base frame. Loosen the connection of the
rubber guide to be replaced, replace the guide and properly fix the new
guide. Assemble the cover plate to the base frame again.
Replacement of the nut system
Remove the cover plates of the lifting posts. Move the carriage to the lower
limit of travel. Loosen the fixing screws of the upper bearing.
Remove the cable of the switch system from its guiding elements. Use a
crowbar to lift the spindle at the nut system and remove the suspension
components.
Turn the spindle to screw the nut system towards the end of the spindle. Lift
the spindle by about 150 mm and remove the feather key at the end of the
spindle; screw the nut system off the spindle and put a new one into the
carriage. The distance between supporting nut and safety nut is 24 mm (min.)
to 30 mm (max.).
Assembly is done in reverse order of disassembly.
After the control cable has been assembled anew, the function of the cable
switch system must be checked.
Do not reassemble a defective control cable. It is, however, recommended
not to reassemble even fully undamaged cables, as our experience revealed
that the usually extremely long service life of the control cable is in most cases
considerably shortened by reassembling.
Tension the V-belts properly. Reassemble the protection covers. Then, the
directions for installation must be observed.
14
International
When replacing the nut system, it is recommended to also replace the guiding
rollers of the carriage if these show any sign of wear. The replacement of the
guiding rollers of the carriage requires that the lifting post is fully disassembled.
The replacement of the nut system and guiding rollers is regarded as a major
overhaul and must be recorded in the maintenance/inspection log.
15
IN THE EVENT
International
OF TECHNICAL DEFECTS
ATTENTION!
All repair works must only be carried out by qualified service technicians authorised
by the manufacturer.
Failure of the supporting nut
In case of a failure or breaking of the supporting nut, the supporting nut falls
down onto the safety nut; the safety nut is of an identical design as the
supporting nut and can thus pick up the load. The failure of the supporting
nut is realised by the control cable switch system. The resulting arrangement
is recognised by the control system as if the carriage has reached the upper
limit of travel – a further lifting of the load is not possible, the load can only be
lowered. The carriages can, however, slightly move up from the lower limit of
travel if the selector switch is put in “Up” position, but then the upper limit
switch will actuate. Thus, the lifting of the load is not possible any more.
Failure of the chain (torn chain)
In case of a torn chain, the switch system interrupts the operation of the lift
until the failure has been corrected. If the chain is torn the lifted load can by
carefully returned to the lower end-of-travel position by concurrently turning
both spindles after the unit power supply has been disconnected. The pulleys
at both posts have threadings into which pins can stuck. Use these to
concurrently turn the pulleys and thus manually lower the vehicle to remove
it from the lift unit. Then the chain can be assembled as required and the lift
put into operation again.
ATTENTION!
Directly after the chain has been torn, the carriage on the side of the motor post
may still move about 20 – 30 mm up or down!
Failure of the upper limit switch
In case of a failure of the upper limit switch, the emergency switch will actuate.
In case of an emergency, the lifted load is manually lowered by 50 – 60 mm
as described above; thus, the blocking of the movement is reversed and the
load can be lowered as usual. After the defective limit switch has been
repaired or replaced, run 2-3 lifting cycles without load.
Failure of the lower limit switch
In case of a failure of the lower limit switch, the emergency switch will actuate.
The power supply of the unit must be disconnected and the carriage lifted
manually to about 150 mm by turning the pulley clockwise. Then, the
protection cover of the frame can be removed and the defective switch
replaced by an appropriately qualified technician. After the unit power supply
has been disconnected, the failure must be corrected by an appropriately
qualified expert in accordance with all applicable regulations. After the
16
IN THE EVENT
International
defective limit switch has been repaired or replaced, run 2-3 lifting cycles
without load.
Drive-on protection (antilock system)
If when lowering the lift any item, e.g. a tool car, should have been left under
the lift, the automatic drive-on protection or antilock system actuates. The
system automatically switches off the lift and does only permit to move the
unit upward. It is thus simulated that the carriages have reached the lower
limit of travel. After the item under the lift has been removed, the lift can be
further operated. If the emergency switch should actuate proceed as
described above (‘Failure of the lower limit switch’).
Short circuit protection
The short circuit protection works automatically. It must be checked whether
the ratings of the safety plug correspond to the ratings given in the circuit
diagram. Overload protection is granted by the built-in thermal protector. If
an overload should occur the thermal protector interrupts the operation. No
actions by the operator are required. Please verify that the value is actually
set to the required 7.0 A. To verify the protection against accidental contact,
the correct connection of the earth leads should be checked.
OF TECHNICAL DEFECTS
Failure of the control cable
In case of a defect or even tear of the cable of the control cable switch
system an emergency switch-off will always occur. After an emergency switchoff, the lifted load is manually lowered and removed from the lift as described
above (‘Failure of the chain’) after the unit power supply has been
disconnected. The torn cable is replaced by a new one and inserted
according to Fig. 6. The lift is put into operation as described in section 4.0.
Pay attention to the correct adjustment of the switch system!
ATTENTION!
A torn control cable must neither be repaired nor completed and reassembled!
This is strictly forbidden! Always use a new control cable! Measures to be taken in
case of an accidental defect: the unit must be shut down anytime an unusual
event occurs during operation. The correction of failures should be left to an
expert or authorised service personnel. The operation of the lift is forbidden unless
the failure has been corrected! The lift must be disconnected from its power
supply and protected from unauthorised return to service.
Safety directions
The lifting unit must only be operated with its protection covers and safety
devices properly installed. If the lift should be exposed to the danger of a
potential unauthorised use the selector switch must be secured in position ‘0’
using a padlock.
17
DECOMMISSIONING
International
The lift must be decommissioned
· in case of a longer standstill;
· for the time of repair or maintenance works;
· if the safe operation of the lift cannot be granted for any reason.
To decommission, proceed in the following order:
1. Fully lower the carriages and remove any vehicle possibly positioned on
the unit.
2. Move the carriages up by 250 – 300 mm.
3. Put the carrying arms into a central position.
4. Disconnect the unit power supply.
5. Screw off the fuse.
6. Secure the working area of the lift against further access.
7. Put up a ‘Do not operate’ sign on a visible place on the lift.
8. Lock the selector switch in position ‘0’ using a padlock.
18
OTHER RISKS/DANGERS
International
Other risks/dangers
Beware of the following!
Do not stand under a lifted vehicle or within the reach of the lift during the
upward or downward movement of the lift. If this prohibition should be ignored
personal injury may occur. The operator is instructed that he/she is only allowed
to use the operating switch for lifting or lowering if there are no persons within the
reach of the unit.
• The foot protectors are in accordance with EN 1493: 1998; however, this
does not exclude any and all possible accidents, but only those probable
according to general practice. The operator is to be instructed that he/
she is only allowed to use the operating switch for lifting or lowering if
there are no persons within the reach of the unit.
• If vehicles are positioned as required an accident hazard does usually
not exist. However, if vehicles are not properly positioned personal injury
may occur. The operator is to be instructed that vehicles must be checked
for their correct positioning before any works are carried out.
19
COMPONENTS &
International
Components
1. Post with motor, complete
2. Post without motor, complete
3. Base frame, horizontal bar, 2 pieces
4. Base frame, traversal bar
5. 2 long arms with rubber pads
6. 2 short arms with rubber pads
7. Bushed roller chain 5/8 10B, 5.5 m
8. Fastening elements
• 1 control cable
• 6 screws M 14 DIN 934-8
• 16 screws M 14 x 50 DIN 559
• 6 screws M 14 DIN 126
• 22 screws M 14 DIN 127
RECOMMENDED SPARE PARTS
• 8 screws M 6 x 14 DIN 559
• 8 screws M 6 DIN 126
• Swivel arm lock, 4 sets
• 4 pins for swivel arm lock
• Safety lock 5/8 10B MSZ 5508, 2 pieces
• 4 foot protectors
Spare parts available on request
1. Rubber pads for arms
2. Rubber guides for chain
3. Bushed roller chain
4. Safety lock for chain
5. Nut system
6. Control cable
7. Limit switch
Note: Electric motors and electric equipment are only supplied as complete
components. A supply of separate spare parts is not possible.
RECOMMENDED SPARE PARTS ARE:
• Wearing parts
• Control cable
20
LUBRICANTS
International
Table of lubricants
Component Lubricant Interval
Nut system 15W40 oil or light gear
lubricant oil, about 2 x 0.8 dl every six months
Sliding surfaces of the C-90 oil monthly
cable switch system
Axial bearings LZS-3 annually
Radial bearings LZS-2 annually
Chain lubrication LZS-3 every six months
Reference table of lubricants
MSZ...................................................... C-90
TOCT ................................................... TAN-15
DIN ...................................................... SAE-90
SHELL ................................................... OENTAX-90
AGIP .................................................... ROTRA-90
BP ........................................................ GEAR-90
ESSO .................................................... GEAR-OIL + 85 W-90
MOBIL ................................................. Mobilube C 90
MSZ...................................................... LZS-3
MSZ...................................................... LZS-2
TOCT ................................................... YC-3
DIN ...................................................... Roller bearing grease B/6562
SHELL ................................................... Grease FN 2
MOBIL ................................................. Mobilgrease AA No 3
MSZ...................................................... Molybdenum paste
DIN ...................................................... Molybdenum Disulphide Paste (Molykote)
21
International
MAIN COMPONENTS
Figure 1
22
International
DIMENSIONS
Figure 2
23
GROUND PLAN - DIMENSIONS
International
& SWIVEL RANGE
Figure 3
24
International
CIRCUIT DIAGRAM
Figure 4
25
CONTROL BOX
International
& CONTROL CABLE
Figures 5 & 6
26
International
POWER SUPPLY
Figure 7
1
27
International
CONTROL ROD
Figure 8
28
OIL TANK
International
(for spindle lubrication)
Figure 9
29
SUPPORTING & SAFETY
International
NUT
Figure 10
30
International
CARRIAGE
Figure 11
31
International
CARRIAGE
Figure 12
32
International
SWIVEL ARM - SHORT
Figure 13
33
International
SWIVEL ARM - LONG
Figure 14
34
International
PARTS DIAGRAM
Figure 15
35
PARTS LIST
International
Item Description Code No. Qty
1. Frame GZH75010300 1
2. Supporting arm II. GZH75010200 1
3. Supporting arm I. GZH75010100 1
4. Chain guide GZM25010004B 8
5. Cover plate GZH75010005 1
6. Screw M 8 x 16 GZSTN02110315 6
7. Screw M 12 x 45 GZSTN02110315 4
8. Nut M 12 GZSTN02140115 6
9. Washer 8 GZSTN02170215 6
10. Washer 12 GZSTN02174015 6
11. Washer 13 GZSTN02170205 6
12. Post with motor GZH75020000 1
13. Post GZH75030000 1
14. Carriage, post with motor GZH75040000 1
15. Carriage, post w/o motor GZH75050000 1
16. Control box, complete set GZH75060000 1
17. Upper cover plate, post with motor GH75070000 1
18. Upper cover plate, post w/o motor GZH75080000 1
19. Cap, post with motor GZH75000900 1
20. Cap, post w/o motor GZH75001000 1
21. Spindle cover plate GZH75001100A 2
22. Spindle GZH75000019 2
23. Chain wheel GZH75000022 2
24. V-belt pulley I. GZ616000024 1
25. V-belt pulley II. GZH75000024 1
26. Ring-shaped supporting nut GZM25000028 2
27. Washer GZH75000031 2
28. Cable cover GZH75000032 1
29. Ring GZH75000035 4
30. Washer GZM25000096 4
31. Washer 10.5 GZSTN02170205 12
32. Nut M 8 GZSTN02140105 8
33. Electric motor, 3 kW GZ3 kW230/400V 1
34. Spring BE 7 x 7 x 45 GZSTN022562 2
35. Spring BE 7 x 7 x 20 GZSTN022562 2
36. Screw M 14 x 40 GZSTN02110355 16
37. Screw M 10 x 25 GZSTN02110325 12
38. Screw M 10 x 16 GZDIN7991 2
39. Screw M 4 x 8 GZSTN02115615 6
36
International
Item Description Code No. Qty
40. Washer 4.3 GZSTN02170205 8
41. Washer 15 GZSTN02170205 16
42. Washer 14 GZSTN02174005 16
43. Slider GZH75040002 8
44. Oil tank (spindle lubrication) GZH75040300A 2
45. Felt insert GZH75020305 2
46. Bush GZH75040004 4
47. Pin GZH75040005 4
48. Toothed wheel GZH75040600 4
49. Locking cap GZH75040007 4
50. Levelling disc GZH75040008 16
51. Spring GZTL2000x220x0400 4
52. Spring GZTl 2000x145x0710 4
53. Nut M 10 x 60 GZSTN02113125 8
54. Screw GZH75040012 2
55. Control cable GZ469C005700 1
56. Rod GZH75050010 1
57. Spring GZM25080004 1
58. Nut M 18 x 1.5 GZSTN02140305 1
59. Screw GZM25080006 1
60. Washer 13 GZSTN02170205 1
61. Pin 5 x 25 GZSTN02178105 1
62. Bearing UC 206 GZZVL 4
63. Circlip GZSTN02293105 4
64. Control box housing GZH75060100 1
65. Control box cover GZH75060200 1
66. Cone-shaped ring GZH75070002 2
67. Axial bearing 51107 A GZSTN024730 2
68. Control rod holding device, motor side GZH75300100A 1
69. Control rod, motor side GZH75300002A 1
70. Roller GZH75300003 1
71. Spring GZM25380004 1
72. Ring GZM25380005 1
73. Washer GZM25150003 3
74. Limit switch C2-U1 ZR GZ6008116.013 3
75. Pin 5 x 32 GZSTN021781.05 1
76. Pin 4 x 20 GZSTN022140 1
77. Screw M 4 x 10 GZSTN021131.25 1
78. Screw M 4 x 16 GZSTN021131.25 6
37
International
Item Description Code No. Qty
79. Washer 4.3 GZSTN021744.05 1
80. Washer 4.3 GZSTN021702.05 1
81. Lock nut GZH75170002 2
82. Supporting nut GZM25000017 2
83. Bush GZM25000029 4
84. Turn limiting bracket GZH75170004 2
85. Screw GZH75170101 1
86. Cable roller GZM25000039 1
87. Metal plate GZM25004003 1
88. Circlip GZSTN022926.05 1
89. Nut M 12 GZSTN021401.05 1
90. Screw M 8 x 16 GZSTN021103.15 2
91. Washer 8 GZSTN021740.05 2
92. Cover, nut break indicator GZH75170003 2
93. Screw M 6 x 8 GZSTN 02110315 2
94. Washer 6 GZSTN 02174005 2
95. V-belt SPZ 9.5 x 975 LA GZSTN 023112 4
96. Cover GZH75030002 1
97. Screw M 4 x 8 GZSTN02113115 4
98. Washer 4 GZSTN021740.05 4
99. Arm II., long, left GZH75130100A 1
100. Arm II., long, right GZH75120100A 1
101. Telescopic arm insert, long GZH75120200A 2
102. Swivel arm, short GZH75140100A 2
103. Arm, middle part GZH75140200A 2
104. Arm, end part GZH75140300A 2
105. Bushing I. GZH75120003 4
106. Circlip 28 GZSTN022930 4
107. Bushing II. GZH75120004 4
108. Seating disc GZM25120300 4
109. Rubber pads GZM25120500 4
110. Screw 5 x 10 GZSTN02113125 16
111. Washer 6.1 GZSTN021740.05 16
112. Screw M 12 x 20 GZSTN02118915 8
113. Chain GZSTN0233110 1
114. Chain lock 10B-1 GZSTN0233113 1
115. Hub GZH75-000037 1
116. Screw M 8 x 12 GZSTN021131.25 6
117. Washer 8 GZSTN02174005 6
118. Nut M 8 GZSTN021403.15 6
