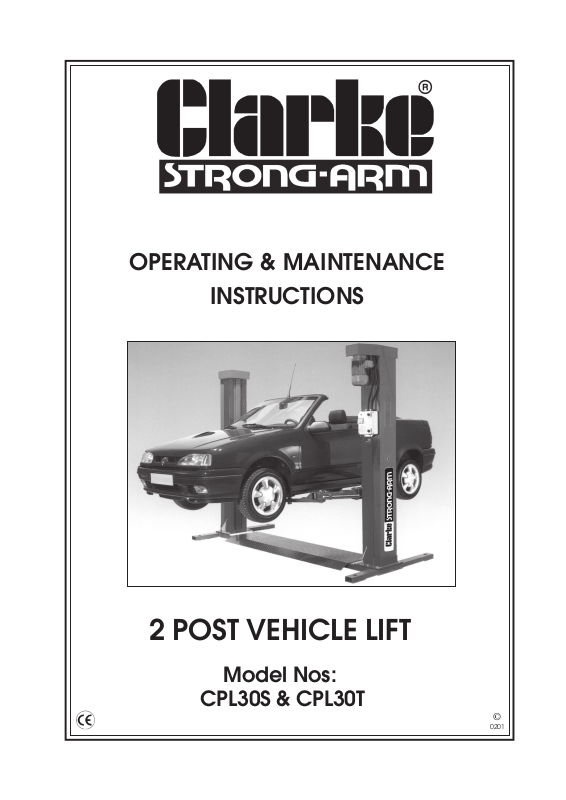

OPERATING & MAINTENANCE

INSTRUCTIONS

2 POST VEHICLE LIFT

Model Nos:

CPL30S & CPL30T

0201

Thank you for purchasing this CLARKE 2-Post Vehicle Lift which has been designed with safety in mind and complies with all relevant European safety standards.

Before installation, it is important that you read this manual thoroughly and ensure the instructions are carefully followed.

All operators of this equipment MUST read this manual before being allowed to use it. They must ensure that all safety, operating and maintenance instructions are fully complied with, thus ensuring the safety of themselves and others in the vicinity.

You can look forward to the Vehicle Lift giving you long and satisfactory service, provided the instructions and maintenance schedules are carefully followed, .

Please note, that this manual is an integral part of the equipment, and should be kept with it at all times. even in the event of re-sale.

GUARANTEE

This CLARKE product is guaranteed against faulty manufacture for a period of 12 months from the date of purchase. Please keep your receipt as proof of purchase. This guarantee is invalid if the product is found to have been abused, modified or tampered with in any way, or not used for the purpose for which it was intended.

Faulty goods should be reported to your Clarke dealer immediately.

This guarantee does not effect your statutory rights.

CONTENTS Page

Safety Precautions ............................................................................. 4

Features ............................................................................................... 5

Packaging and Contents ................................................................. 6

Selecting the Site ................................................................................ 7

Assembly and Installation ................................................................. 8

Electrical Installation ........................................................................ 12

Lubrication Pump ............................................................................ 13

Controls ............................................................................................ 13

Operation ......................................................................................... 13

Maintenance .................................................................................... 14

Specifications ................................................................................... 15

Troubleshootiing .............................................................................. 16

Parts List and Diagrams .................................................................................. 16

SAFETY PRECAUTIONS

WARNING!

As with all machinery, there are certain hazards involved with their operation and use. Exercising respect and

caution will considerably lessen the risk of personal injury. However, if normal safety precautions are

overlooked or ignored, personal injury to the operator or damage to property may result.

• Ensure the site selected is large enough to accommodate the lift, including a safety area, and with adequate height clearance, taking into account the size of vehicles expected to be worked on. (see Assembly & Installation, p6).

• Ensure the area on which the base is mounted is flat and level, and of sufficient strength to adequately support the weight of the lift and vehicle, and is capable of recieving and securing the foundation fittings. (see Assembly & Installation, p6).

• Ensure adequate lighting is provided throughout the entire area.

• ALWAYS wear shoes with non-skid soles and metal or reinforced toe-caps.

• ALWAYS wear protective head cover, and protective eye shield.

• DO NOT wear jewellery which may get caught in moving parts. Long hair should be contained.

• NEVER exceed the load for which the machine was designed. If the load capacity and other warning labels become defaced or illegible, have them replaced. (Contact your Clarke dealer for replacements).

• Before operating,ensure that all bolts, pins and securing devices are correctly in place and in good condition. Check for signs of cracked welds, bent or loose pins or other signs of structural damage. Do not use if any of these conditions exsist. Ensure repairs are carried out by qualified persons only, or contact your nearest Clarke dealer.

• Use ONLY those fittings and fixtures supplied. NEVER substitute bolts or pins or other components, unless they are direct replacements from Clarke International.

• DO NOT allow any person to operate the machine unless they are completely familiar with all aspects of operation and have read this manual thoroughly.

• DO NOT use the machine for lifting people or for any other use other than that for which it was designed.

• Ensure the machine is properly maintained at all times (see Maintenance).

• If the machine has been subjected to an abnormal load or shock, remove it from service immediately and have it fully inspected by a qualified person. If necessary, refer to your Clarke dealer.

• Before loading the machine, adjusting the arms etc., ensure the ON/OFF switch is set to the ‘O’ (OFF) position.

• Do not reverse a vehicle into position on the lift, unless it is rear engine drive, as the Short, Hinged Arms, at the rear of the lift, must always support the engine.

• Before locating the lifting arm pads on the lifting points, check to ensure the rubber pads are free from oil or grease which could cause the pad to slip during operation. Never raise a vehicle without the rubber pads in place. Replace them if they become damaged

• Ensure the vehicle being lifted is completely stable and the lifting arms are located on the recommended lifting points ONLY. If in doubt, ALWAYS consult the vehicle handbook to determine where the lifting points are located.

• NEVER operate the machine with any guard or cover removed.

• Ensure that no equipment is connected to the vehicle when raising or lowering.

• During the lifting process, ensure the load remains parallel to the ground. Should it tilt, stop lifting immediately, lower the load and investigate the cause.

• ALWAYS keep a constant check whilst lifting to ensure that there is sufficient height clearance, particularly in the event of an unusually large vehicle.

• NEVER allow any electric cables to pass through or rest on the structure of the lift. If they should become frayed or damaged in any way, the lift could become live, with serious consequences.

• Before lowering the lift, ensure that all personel, tools and other equipment used, is moved well clear, into the safety zone.

• When operating the machine, the operator and any persons in the vicinity should stand well clear - in the safety zone, (see Installation), and constantly checking to ensure that no obstacle prevents progress of the lift.

• DO NOT allow anyone to stand beneath the lift until it has stopped, is perfectly stable, and the ON/OFF switch is set to the ‘O’ (OFF) position.

• DO NOT remove a vehicle until all arms are swung clear.

• NEVER board the vehicle for any purpose when it is in a raised position.

• Never modify the lift in any way.

• ALWAYS ensure the power to the machine is switched OFF before maintenance or servicing.

• When the machine is not in use, the lift should be lowered to the ground and the supply to the machine should be switched OFF. The ON/OFF switch on the control panel should be in the ‘O’ (OFF) position, and the switch padlocked in place.

FEATURES

This machine has been designed with safety in mind and complies with all relevant European safety standards.

The lifting arms are operated by screws, one in each column, driven by an electric motor. The motor drives the Drive Screw via drive belts, and the drive is transferred to the Driven Screw via a chain.

A single control panel, mounted on the rear of the left hand (driving) column, comprises the main ON/OFF switch, and UP and DOWN controls.

Long Telescopic Arms are provided at the front of each column, with Hinged Arms at the rear. The Hinged Arms must ALWAYS be supporting the engine of the vehicle. Do not, therefore, reverse a vehicle into position on the lift, unless it is rear engine drive.

Each Arm is provided with adjustable rubber pads for locating on the vehicles’ lifting points. The maximum height to which the arms may be raised is 1850mm (6 ft), giving adequate room to operate beneath the vehicle.

The MINIMUM ground clearance is 125mm.

PACKAGING and CONTENTS

The 2-Post Lift is delivered in two packages. One consists of a wooden crate containing 1 Drive Column, 1 Driven Column and 4 Arms. The other package comprises the Base Frame, unpacked.

The wooden crate also includes:

• various screws for the assembly of the machine

• 1 chain for the transmission

• 4 Arm Pin sets

• 4 Arm Safety sets

• 4 Foot Guards

• 2 Carriage Guide Bars

• This Operating & Maintenance manual

Fig. 1

This illustration shows the rear of the machine with the Short, Hinged Arms nearest the camera,

Unpack the crate and carefully lay out the various components checking to ensure they are undamaged. Any damaged item should be reported to your Clarke dealer immediately in order to arrange for a replacement to be made.

SELECTING THE SITE

12345678901234567890123456

The machine should be placed on a concrete floor which is at least 160mm thick and capable of withstanding the load of the machine and vehicle (2450 lbf/in2 min).

The surface should be perfectly flat and level. If this is not the case, metal shims must be used beneath the base plate to ensure it is level. (see Final Adjustments - p10). The floor must be capable of receiving and securing four M12 foundation bolts (not supplied). Please refer to ‘Assembly - Base Frame’ for further details.

If the machine is mounted on a ‘load bearing floor’, expert advice should be sought to ensure it is of sufficient strength to withstand the load.

There should be sufficient space for a vehicle to manouvre to ensure a straight line path on to the lift, and the height clearance, directly above the lift, should be sufficient to ensure that no damage could occur to a vehicle being lifted.

NOTE: Ideally, a height gauge, set to the maximum vehicle height permitted, should be erected at the entrance to the lift.

The area must be large enough to provide a Safety Zone. The diagram below illustrates the minimum suitable space for the machine.

2345

Minimum Working Area(AxB)

5310 x 7200mm

(17 x 23½ft)

234567890

Space occupied by the machine (AxB)

3110 x 1500mm

(10 x 5ft)

2345

Free Safety Area (AxB)

4310 x 6200mm

(14 x 20ft)

The Free Safety Area is that area where equipment, personel etc., must NOT be positioned at

any time other than when working beneath the vehicle.

The size of this area will depend upon the size of the vehicle - the larger the vehicle, the larger the area. However, the MINIMUM FREE SAFETY AREA is 4310 x 6200mm

ASSEMBLY & INSTALLATION

IMPORTANT:

This machine should be assembled by trained personnel only.

NOTE: Unless otherwise stated,the numbers in brackets refer to the parts list item number and number in corresponding diagram.

1. Base Frame

Position the Base Frame at the desired location, bearing in mind that the ‘Driving Column’, i.e. that column carrying the motor and control panel, must be mounted so that the control panel faces the shorter foot of the base frame. (see fig.

2), and is at the LEFT HAND REAR of the machine.

Mark out the securing bolt holes, and proceed to

Short Foot

Control

Panel

Driving

Column

Long Foot

LEFT

Fig. 2

FRONT

RIGHT

install the foundation bolts.

The base frame should be secured using proper foundation bolts, size - M12 (not supplied), and the depth of the fixing should not be less than 150mm.

Installation should be carried out by a qualified person, who can determine the composition of the surface material and

Fig. 3

advise on the correct type of fixing required.

Bolt the base frame down, but do not fully tighten. It may be necessary to use metal shims, between the floor and frame, in order to ensure the frame is level. It is not necessary at this stage to level with absolute accuracy, as this is carried out once the

FRONT

23456789

lift is fully assembled.

2. The Columns

Packing piece

Firstly, fit the Column Dust Covers (Items 35 and 36, Parts List on page 17) - one to the top of each column, securing them each with four self tapping screws provided.

Column resting on base and packing piece

Position the Driven Column as shown in Fig. 3, with the bottom flange of the column resting on the edge of the base and a packing piece, and the carriage facing inwards.

Raise the column carefully, in the manner shown below. Ensure

Raising the Column with Bottom Plate resting on Foot of Base Frame and a packing piece

Fig. 4

Cable channel

Sprocket

Packing piece

Base Frame

the sprocket at the base of the column enters the opening in the base cleanly, without touching

the sides, (as this could damage the sprocket).

Ensure also that the cable, which protrudes from the channel, welded to the columns’ bottom plate (shown in fig. 4), is not trapped between the plate and base.

Secure to the Base Frame using the four screws, and large flat washers provided,in the corner bolt holes ONLY, leaving them finger tight at this stage. DO NOT use the centre holes.

Carry out the same procedure for the other column.

Fig. 5

3. THE CHAIN

3.1 Before attaching the chain, you must first ensure the Arm Carriages are at the same height, measured from the columns’ Base Plate. If an adjustment is required, remove the dust cover from the top of the Driven column and turn the hex. nut (on top of the column, shown in fig. 5),until the carriage is perfectly in line with that of the Drive Column. Replace the Dust Cover

3.2 Remove all but the two ‘outside’ column mounting screws and slacken these off sufficiently so that the column may be tilted outwards (see fig.6), in order to allow the chain to be slipped around the sprocket.

Before tilting the column outwards however, slacken off the chain adjuster screw, shown in fig. 7, fully, and make sure the column is pushed in, towards the opposite column, as far as possible.

3.3 Very carefully tilt the column outwards and, as a safety precaution, place chocks between the columns’ Base Plate and the Base Frame as shown in fig. 6. (Should the column slip, the chocks will prevent the column from injuring the hands of the person manipulating the chain.

3.4 Slip the chain around the sprocket so that the end of the chain reaches approximately half way across the Base Frame.

Place Chocks here

Fig. 6

23456789

Fig. 7

3.5 Once the chain is connected, remove the chocks, lowe the column and screw down the column mounting screws again, leaving them finger tight.

3.6 Proceed to connect the chain to the sprocket in the other column in a similar manner,ensuring that the run of chain, from one sprocket to he other, is as tight as you can get it, without turning the sprocket, (as this will cause the carriages to become missaligned).

3.7 The two ends of the chain can now be brought together and joined using the quick coupling provided (fig.8).

3.8 Once the chain is in place, it must be adjusted by screwing the adjuster screws, (fig. 7), clockwise. Screw in each adjuster, in turn, by a similar amount - say ½ turn each side, until the gap at the centre, between the two runs of the chain, is 10mm when using reasonable force of the thumb and forefinger of one hand only. (see fig.9). This microswitch is a safety feature, and operates when the chain becomes too slack (less than 10mm gap at the centre of the run), or breaks, shutting off the power to the motor.

3.9 Finally, connect the two electric cables, one from the base of each Column, to the leads from the microswitch, using the two waterproof in-line connectors packed in the parts bag. Trim the cables back so that there is as little slack in the cable as possible, to prevent any possibility of the connector, or the cable, coming into contact with the chain.

Fig. 8

Fig. 9

Connect brown to brown, and blue to blue. When adjustments are completed, apply chain lubricant to the chain (not supplied).

5. The Arms

The long telescopic arms must be mounted on the FRONT of each Arm Carriage, i.e. at the side of the column facing the longer foot.

Note that the arms are ‘handed’. Shown in fig. 10 are the four arms supplied, two Long - Telescopic, and two Short - Hinged.

The right hand long telescopic arm is located on the front carriage mounting

of the right hand (driven) column.

The right hand Short Hinged Arm is connected to the rear carriage mounting of the right hand (driven) column. etc.

Insert the end of the arm into its housing in the carriage, line up the holes and insert the 40mm dia. pin (item 3, fig.11) with the ring nut (2), at the top. Secure from below with the circlip (4), provided.

Fig. 10

Fig. 11

NOTE:

1. If the arms are low down, making it difficult to fit the circlips (4), wait until the arms are raised, during testing, when they can be fitted with ease.

2. It is recommended that you apply a thin layer of grease to the pins before insertionand also on to the carriage sliding guides when assembly of the arms is completed.

6. The Arm Safety Bars (Ref Fig 11)

The Arm Safety Bars (item 17), lock the arms in a set position preventing them from swinging freely, and also limits movement, so that they do not collide with each other.

This allows them to be safely locked out of the way when required, and provides for easy and quick lining up of the arms and pads with the lifting points without the possibility of the arms moving whilst unattended. i.e. when operating the lift to take the weight of a vehicle. The threaded Safety Bar has a boss welded to one end. This fits on to a pivot pin on the carriage. It can fit either way round. Ensure the pivot pin and the hole in the boss, are free of paint or preservative, and apply a drop of oil to the pin before fitting the safety bar, ensuring it is fully seated on the pin.

Do not fit the circlip to the top of the pin at this stage.

Fig. 12

Fig. 13

Insert the Spring (19), into the Housing (A),in the arm followed by the Safety nut (18). Ensure the threaded portion of the hole in the safety nut is at the bottom as shown in fig. 13. Push down on the safety nut, against spring pressure, and ensuring the hole in the nut lines up with that in the housing, swing the arm so that the safety bar (17) threads its way through the housing and nut.

Release pressure on the safety nut and the spring will push the nut upwards, locking its threads with those on the bar, thereby locking the bar in place.

To test its operation, press down on the safety nut and the threads should disengage, allowing the arm to move freely. If it proves to be difficult to disengage the threads by pushing down on the nut, it will be necessary to reposition the boss of the safety arm, on the pivot pin on the carriage.

If the safety bar is locked, i.e. the threads will not disengage when the safety nut is pressed down, apply an upward pressure to the safety bar whilst pushing down on the safety nut, thereby disengaging the threads, then get an assistant to swing the arm in order to withdraw the safety bar from the safety nut and housing.

Pull the safety bar from the pivot pin,place a flat washer (provided) on to the pin and replace the bar. Connect the bar to the safety nut as previously described and retest to ensure the bar

Flat washer placed on the pin before the Safety Bar is refitted

releases correctly when the safety nut is pressed down.

If necessary, repeat the operation, by placing another washer on the pin, until the safety bar locks and releases satisfactorily.

When completely satisfied, fit the circlip (16), to the pivot pin, and screw the self locking nut on to the end of the safety bar,to its full extent. i.e. ensure the threaded safety bar is completely through the nut and is gripped by the nuts’ nylon insert.

Fig. 14

7. The Foot Guards

The four Foot Guards are safety devices and must be in place. They are designed to prevent people from casually standing on the base of the column, with a foot extended into the Free Safety Area, thereby inviting the arm carriage or arm, to crush the foot on its downward travel.

They are located with a single Column mounting bolt as shown in fig. 14.

8. The Safety Guides

Safety Guides are provided which are bolted, one to each carriage, and can be clearly seen in fig., 1, mounted immediately above the arms. Each guide has rubber pads at each end of the guide bar to prevent serious damage to a vehicle if it is not driven or positioned correctly between the columns. The safety guides also affords some protection for the columns themselves. These guides should now be bolted the carriage, in the manner shown in fig. 1.

9. Final Adjustments

The machine is now ready for final adjustment. This involves securing the columns firmly to the base frame, and bolting the complete assembly to the floor ensuring the columns are perpendicular, and perfectly in line with each other.

Firstly, screw down the column mounting screws, progressively, to a torque setting of 32lbft (43Nm).

Using a large spirit level, ensure the columns are perpendicular, in both directions, and in line with each other. Any misalignment may be corrected with shims placed beneath the base frame at strategic points. Remember, the floor should be properly prepared beforehand, and should be perfectly level and flat at the area supporting the lift. This will simplify the job of aligning the columns.

All mounting points must be in solid contact with the floor, and any gaps between the base frame and the floor, must be taken up with suitable shims (‘U’ shaped at the mounting bolts), of at least 80x80mm dimension.

When completely satisfied, tighten the bolts progressively to the torque setting recommended by the foundation bolt manufacturers.

ELECTRICAL CONNECTIONS

WARNING

1. This machine must be earthed

2. Electrical installation of this machine must be carried out in accordance with all IEE regulations and must be carried out by a qualified electrician.

1. Model CPL30S

This model is powered by a 230 VAC, 50Hz, Single phase motor,

Connect the mains lead to a 230V 50Hz electrical supply, having a fuse rating of 20amps.

IMPORTANT: A 13Amp plug MUST NOT be used with this machine.

The conductors in the mains lead are coloured in accordance with the following code:

Green & Yellow - Earth

Blue - Neutral

Brown - Live

As the colours of the flexible lead may not correspond with the coloured markings identifying terminals in your electrical supply, you should proceed as follows:

Connect the Green & Yellow conductor to terminal marked with the letter ‘E’ or Earth symbol “ ”, or coloured GREEN or YELLOW & GREEN.

Connect the Brown conductor to the terminal marked with the letter ‘L’ or coloured RED

Connect the Blue conductor to the terminal marked with the letter ‘N’ or coloured BLACK

9.2Model CPL30T

This model is powered by a 400 VAC, 50Hz,three phase motor. and connection should be made through a fused isolator having a delayed fuse rating of 20Amps.

The conductors should be connected as follows:

Connect the Green & Yellow conductor to terminal marked with the letter ‘E’ or Earth symbol “ ”.

The other conductors should be connected, one to each of the three available phases.

It is IMPORTANT to ensure that the phase connections are correctly made, so that the motor turns in the correct direction of rotation. i.e. when the UP button is pressed the arms are raised, conversly when the DOWN button is pressed they are lowered.

If the arms lower when the UP button is pressed, it will be necessary to reverse two of the three phase connections in order to reverse the direction of rotation of the motor.

When testing the machine, ensure all precautions are taken as previously described.

IMPORTANT:

Connection must be made via a fused isolator, located close to the machine so that it is

easily reached by the operator. We further recommend that a Residual Current Device

(RCD) be used.

NOTE: It may be necessary to replace the mains cable, supplied with the machine, with one of a more suitable length for your installation. Ensure the conductor sizes are at least the same as those in the cable supplied.

WARNING

The trailing cable from the machine to the mains supply MUST be protected in accordance

with IEE regulations.

THE LUBRICATING PUMP

Each Drive Screw is lubricated by a pump located in the arm carriage. When the arms are at their lowest level, the pump is charged with oil from the reservoir in the base of the column. As the arms are raised, oil is delivered to the point of contact between the Drive Screw and Nut. Before the lift is used therefore, the oil reservoir must be filled with oil as follows:

Remove the side panel (3) from each column and pour 1 litre of oil (Shell Spirex Heavy Duty 85W/ 140 or equivalent is recommended) into the base of the column.

Observing all precautions previously mentioned, and keeping hands etc. well clear of the moving parts, switch on the power to the machine, and turn the main ON/OFF switch to ‘I’ (ON).

Press the ‘

the ‘ ’ (DOWN) button and lowering again. Repeat this operation a few times, until the pump delivers oil to the nut during the UP phase.

When satisfied, switch OFF the machine at the main ON/OFF switch, and the mains supply, with the arms in their lowest position, then replace the side panels.

’ (UP) button and allow the machine to rise by 20 - 30cm, before releasing and pressing

CONTROLS

Due to the care in which the machine is designed and manufactured, there are no special commissioning tests to carry out, however, once the machine has been installed, fully check its operation without a load. Should it not raise or lower to its fullest extent, check to ensure the limit switches in the drive column, and one in the driven column, are correctly set to allow maximum movement of the arm carriages.

The diagram shows the Control Panel, which is located at the rear of the left hand (driving) column.

If desired the main ON/OFF switch can be padlocked in place, and this is strongly recommended whenever the lift is left unnattended.

NOTE: The provision of the ON/OFF safety switch does not preclude the user from providing a mains supply isolator, in accordance with IEE regulations.

OPERATION

Ensure the main ON/OFF switch is in the ‘O’(OFF) position, then swing the arms well clear so that the vehicle may be driven in line with the axis of the lift, and centralised between the two columns.

It is extremely important to ensure the vehicle is positioned so as to achieve correct load distribution on the arms .

Fig. 15 illustrates the manner in which a typical vehicle should be positioned.

Fig. 15

Always check as to whether the vehicle is carrying an abnormal load. i.e in the boot, or in the back of a van etc., and have it removed before positioning. DO NOT exceed the max. capacity for the lift.

MAX

2500kg

Position the arms so that the rubber pads are directly beneath the lifting points recommended by the vehicles’ manufacturer, then screw out the pads so that they are in solid contact.

Screw out the coarser, large diameter screws first, from below the Arm, until the pad is almost touching the lifting point. Then bring the pad lightly into contact by screwing out the pad itself. It may be necessary at this stage to adjust the position of the Arm slightly in order to ensure the pad is correctly aligned before finally bringing it firmly into contact by screwing out the large diameter screw again.

Ensure all precautions are taken as previously described before turning the main ON/OFF switch to ‘I’ (ON), and pressing the (UP) button briefly in order to take the weight of the vehicle ONLY. DO NOT attempt to lift the vehicle in one operation.

Only when the full weight of the vehicle is taken and the vehicle is deemed to be level and stable should you continue to raise to the desired operating height.

Once the lift is at the desired operating height, DO NOT FORGET to turn the main ON/OFF switch to the ‘O’ (OFF) position.

When lowering the lift, first ensure that all personnel,tools and equipment are removed from the safety area and vehicle before turning the main ON/OFF switch to ‘I’ (ON) and pressing the (down) button.

Screw large dia. screw from below

Fig.16

Fig. 17

MAINTENANCE

IMPORTANT: Unless the maintenance task requires that the machine be operated,ensure it

is switched OFF at the main ON/OFF switch, and the mains supply, before commencing.

Weekly

Clean the machine at least once per week, removing all foreign bodies and dirty materials. Use a suitable non-corrosive, oil free detergent where necessary. DO NOT use water or inflammable liquids. The Support Pads must be free from oil or grease at all times.

Monthly

1. Check the drive nut wear by raising the arms until the drive nut is in line with the spy hole in the columns’ side panel (remove the plastic bung).

The drive nut is shown in fig 18. Check the distance between the drive nut, and the safety nut as shown. If this distance appears to be less than 10mm, remove side panel and measure. You should seek technical assistance from your Clarke dealer, if the measurement is less than 10mm, as it may be necessary to replace the drive nut.

2. Check the operation of the Screw Lubricating Pump, by raising the arms and observing the pump through the spy hole in the columns’ side panel (remove the plastic bung).

Drive Nut

Lubrication Tube

Safety Nut

Fig. 18

Oil should be seen moving through the plastic lubricating tube to the drive nut. If there is no oil present, or if only air bubbles can be seen, remove the side cover and add oil (Shell Spirex Heavy Duty 85W140 or equivalent is recommended), before re-checking the pumps’ operation.

3. Remove the base frame Cover Plate to allow access to the chain, and lubricate it with chain lubricant.

4. Lubricate the upper screw bearings which are accessed from the top of each column. Apply a few drops of oil to each bearing.

5. Grease the Sliding Carriage Guides. Clean off any excess.

Annually

1. Remove columns’ side panel, pump out the oil from the base of the column. Clean thoroughly and refill with clean oil (Shell Spirex Heavy Duty 85W140 or equivalent is recommended).

2. Check for lateral movement of the carriage on its guides. Any movement can be taken up by adjusting the guide rollers, which are accessed by removing the side panels, and can be found at each side of the carriage. Undo the locknuts and screw out the nylon guide rollerss until any wear is taken up. If the guide rollers are badly worn, contact your Clarke dealer for advice.

3. Check motor Drive Belt tension. The drive belts are located at the top of the drive column. Belt tension is correct when the belt can be depressed by 12mm (½”) at the middle of its longest run, using reasonable thumb pressure. Adjustment is effected by slackening the motor mounting bolts, jacking out the motor to give the required belt tension, and re-tightening the mounting bolts.

SPECIFICATIONS

Motor 230V 50Hz 1Ph 400V 50Hz 3Ph

Power Rating 4HP (3kW) 4HP (3kW)

Fuse Rating 20Amps 20Amps

MAX Capacity 2500kg 2500kg

CPL30S CPL30T

Please note that the details and specifications contained herein, are correct at the time of going to print. However, CLARKE International

reserve the right to change specifications at any time without prior notice. Always consult the machine’s data plate

TROUBLESHOOTING

Problem Probable Cause Remedy

Machine does 1. No power 1. Check power supply not operate Check ON/OFF switch

Check Fuse/circuit breaker

2. Chain microswitch 2. Switch OFF at main ON/OFF has operated switch, remove Base Frame

Cover Plate and check chain. Renew or adjust as necessary.

3. Safety Nut Microswitch 3. Check Safety nut through spy has operated hole. If Drive Nut has failed,

consult your Clarke dealer

Intermittant 1. Thermal cut-out has 1. Wait for a few minutes to allow Operation operated time for the relay to reset.

If the condition occurs repeatedly, check cause - low voltage, exceeding machines’ capacity, damaged motor etc. If necessary, consult your Clarke dealer.

2. Chain too loose 2. Re-adjust chain

Lifting operation is 1. Motor Drive Belts are 1. Check and adjust as necessary. irregular loose

2. Damaged or badly 2. Check, adjust and/or lubricate lubricated Carriage as necessary. Sliding Guides

3. Too much movement 3. Check and adjust as necessary. between carriage and sliding guides.

SPARE PART & SERVICING

For Spare Parts and Service,please contact your nearest dealer, or

CLARKE International, on one of the following numbers.

PARTS & SERVICE TEL: 020 8988 7400

PARTS & SERVICE FAX: 020 8558 3622

or e-mail as follows:

PARTS: Parts@clarkeinternational.com

SERVICE: Service@clarkeinternational.com

PARTS LISTS & DIAGRAMS

No. Description Part No.

1 Head GZ609-2-C39 2 Upper Panel GZ609-2-C42 3 Side Panel GZ609-0-C51 4 Microswitch GZ381004 5 Driven Column GZ609-1-C1 6 Inner Panel GZ609-0-C49 7 Flexible Covers GZ609-0-C50 8 Screw GZ01605

9 Rivet GZ18301 10 Front Guard GZ602-0-C48 11 Screw GZ011204 12 Washer GZ161201 13 Upper Panel (Drive) GZ609-2-H9 14 Washer GZ16801 15 Screw GZ01607 16 Driving Column GZ609-1-H1 17 Washer GZ16401 18 Screw GZ02402

No. Description Part No.

19 Screw GZ011614 20 Washer GZ161601 21 Cover Plate GZ609-0-P21 22 Threaded Rivet GZ12601 23 Screw GZ01607 24 Spring GZ609-0-17 25 Circlip GZ171201 26 Screw GZ02402 27 Roller Lever GZ609-2-13 28 Roller GZ609-0-P18 29 Self Lubricating Ferrule GZ271201 30 Screw GZ011603 31 Guide GZ609-0-P19 32 Screw GZ01802 33 Base Cover Plate GZ609-0-P20 34 Base Frame GZ609-1-P1 35 Dust Cover Driven Column n/a 36 Dust Cover Driving Column n/a

No. Description Part No.

41 Nut GZ143002 42 Pin GZ79503 43 Spacer GZ609-0-C44 44 Guard Ring GZ609-0-C43 45 Bearing GZ555202 46 Bearing GZ556202 47 Key GZ850801 48 Lifting Screw GZ609-0-C34 49 Bearing GZ556201 50 Sealing Ring GZ865201 51 Pinion GZ609-0-C38 52 Circlip GZ172801 53 Drive Belt GZ881173 54 Driven Pulley GZ609-0-H11 55 Drive Pulley GZ609-0-H12

56 Screw GZ01812 57 Washer GZ16801 58 Nut GZ14801 59 Belt Tightener GZ609-0-H13 60 Spring GZ15801 61 Motor Assy. 230V GZ609-M1-6-E40 61 Motor Assy. 400V GZ609-6-E40 62 Support Plate GZ609-0-H13 63 Screw GZ064203 64 Control Box 230V GZ6091-6-E60 64 Control Box 400V GZ609-6-E60 65 Screw GZ064202 66 Chain GZ331201 67 Internal Thread GZ11701 68 Washer GZ16402

No. Description Part No.

71 Circlip GZ174001

72 Self Lubricating Ferule GZ274001

73 Roller GZ609-0-C33

74 Sliding Block GZ609-0-C31

75 Screw GZ01811

76 Nut GZ14801

77 Contrast Ring GZ609-0-C32

78 Contrast Plate GZ609-0-C37

79 Carriage GZ609-1-C15

80 Screw GZ01804

81 Washer GZ16801

82 Plate - Drive Nut GZ609-2-C29

83 Circlip GZ175501

84 Drive Nut GZ609-0-C35

85 Spring GZ79801

86 Safety Nut GZ609-0-C36

87 Lubricsating Pump Assy GZ609-6-C45

88 Adapter GZ609-0-C52

89 Ball GZ29601

90 Microswitch Activator GZ609-2-H6

91 Spring GZ15604

92 Screw GZ01802

93 Microswitch Activator GZ609-0-H8

94 Self Locking Nut GZ13801

95 Adapter GZ711801

96 Tube GZ254601

97 Spacer GZ609-0-C46

98 Elbow GZ301801

99 Washer GZ50801

100 Gasket N/A

101 Piston GZ609-0-L1

102 Small Cylinder GZ609-0-L2

103 Cylinder Guide GZ609-0-L3

104 Gasket N/A

105 Cylinder GZ609-0-L4

106 Spring GZ609-0-L5

107 Nut GZ141001

108 Pawl GZ609-0-L6

No. Description Part No.

111 Carriage GZ609-1-C15

112 Ring Nut GZ874001

113 Pin GZ609-0-B14

114 Circlip GZ174001

117 Circlip GZ174301

118 Threaded Pin GZ609-0-B11

119 Circlip GZ172501

120 Support Set GZ609-1-B12

121 Buffer GZ609-0-B28

123 Screw GZV01803

124 Long Telescopic Arm (Left) GZ609-1-B9

124 Long Telescopic Arm (Right) GZ609-1-B1

125 Long Arm Extension GZ609-0-B8

126 Circlip GZ171202

127 Safety Bar GZ609-1-B29

128 Nut GZ609-0-B31

129 Spring GZ609-0-B32

131 Hinged Arm (Left) GZ609-1-B27

131 Hinged Arm (Right) GZ609-1-B20

132 Ring Nut (Hinged Arm) GZ873001

133 Pin GZ609-0-B26

134 Hinged Arm Extension GZ609-1-B23

135 Safety Bar GZ609-0-B33

136 Safety Bar Buffer GZ609-0-B34

137 Screw GZ01802

138 Washer GZ16807

Clarke CPL 30S, 7610136 User guide

Specifications and Main Features

Frequently Asked Questions

User Manual
