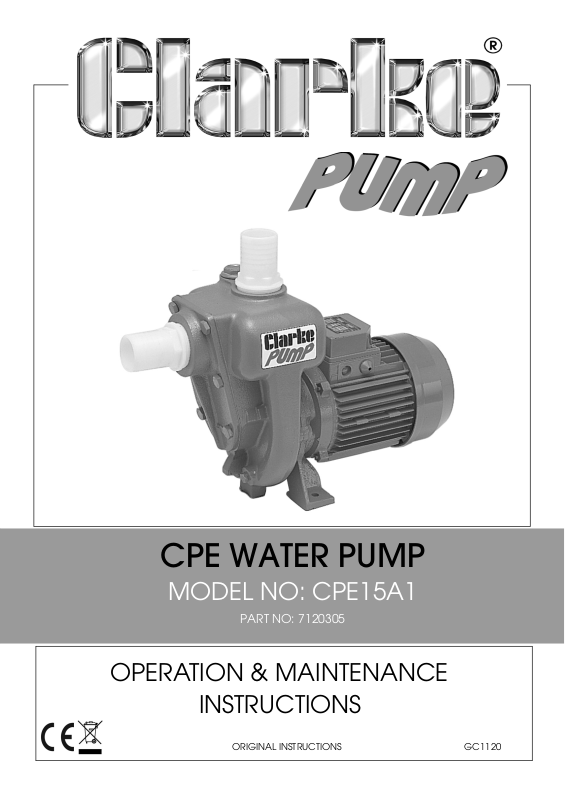

CPE WATER PUMP
MODEL NO: CPE15A1
PART NO: 7120305
OPERATION & MAINTENANCE
INSTRUCTIONS
ORIGINAL INSTRUCTIONS GC1120
Thank you for purchasing this Clarke Water Pump.
Your CPE pump is a highly efficient, robust, continuously rated, self priming pump with a powerful electric motor, and is ideal for a wide range of domestic, commercial and agricultural uses. It is suitable for pumping clean tap and rain water, and will handle small solids in suspension. It is designed to give you trouble free service provided it is installed and used in the correct way. If the pump is left in an exposed position, it should be protected from the elements. especially frost.
Before attempting to use this product, please read this manual thoroughly and follow the instructions carefully. In doing so you will ensure the safety of yourself and that of others around you, and you can look forward to your purchase giving you long and satisfactory service.
This water pump has been designed to give long and trouble free service. If, however, having followed the instructions in this booklet carefully, you encounter problems, take the unit to your local Clarke dealer.
Please keep these instructions in a safe place for future reference.
2
Parts & Service: 020 8988 7400 / E-mail: Parts@clarkeinternational.com or Service@clarkeinternational.com

PUMP SPECIFICATION

Water Classification Clean
Maximum Delivery 325 L/min
Rated Head 2-14 m
Maximum Suction Lift 16 m
Supply 230V / 50Hz
Outlet Thread Size 1.5” BSP
Weight 14 kg
3
Parts & Service: 020 8988 7400 / E-mail: Parts@clarkeinternational.com or Service@clarkeinternational.com

GENERAL SAFETY PRECAUTIONS

Before using this equipment it is in your own interest to read and pay attention to the following safety rules.
WARNING: ALWAYS CONNECT THE PUMP TO AN EARTHED POWER SUPPLY VIA AN RCD.
1. NEVER use for pumping flammable liquids or corrosive chemicals. This pump is designed to pump clean water only.
2. ALWAYS keep the working area clean and well lit. Floors should always be kept clear. Cluttered or dark areas invite accidents.
3. NEVER over-reach. Keep your proper footing and balance at all times when installing or maintaining the pump.
4. NEVER direct any water discharge towards electrical wiring or equipment.
5. ALWAYS thoroughly familiarise yourself with this pump & its operation, and follow all instructions in this manual. Never allow persons unfamiliar with these instructions to instal or operate the pump.
6. ALWAYS ensure that the pump is properly installed to prevent it from moving during operation, and that the immediate area surrounding the pump is kept clear.
7. ALWAYS maintain the pump with care and keep it clean for best / safest performance.
8. NEVER use this product if any part is damaged. Have it inspected and repaired by your local Clarke dealer. Always turn the pump off before carrying out any maintenance.
9. NEVER modify this pump in any way. Use it ONLY for the purpose for which it is designed.
10. ALWAYS have the pump serviced by your local Clarke dealer, using only identical replacement parts. This will ensure the safety of the pump is maintained. The use of non standard parts could be hazardous.
11. NEVER allow the pump to run dry.
CAUTION: THIS PUMP IS NOT A SUBMERSIBLE PUMP. ON NO ACCOUNT SHOULD IT EVER BE IMMERSED IN WATER.
4
Parts & Service: 020 8988 7400 / E-mail: Parts@clarkeinternational.com or Service@clarkeinternational.com

INSTALLATION

Because of the number of possible installations, no accessories are supplied with your pump except for a pair of male inlet/outlet adaptors. However accessories are available from your nearest Clarke dealer.
NOTE: It is recommended that the end user should consult a qualified
installer if there are any doubts as to the suitability of this product for a particular installation.
IMPORTANT: The pump MUST NOT be connected to the mains power supply until all hose/pipe installation is completed. and it has been primed.
POSITIONING OF THE PUMP
The pump must always be installed and operated in a horizontal position i.e. with the outlet port facing vertically upwards. The fixing holes in the base should be used to secure the pump firmly in it’s operating position. Mount the pump on raised blocks or a purpose built platform to protect it from flooding. Some kind of anti-vibration mounting is also desirable.
Always ensure there is adequate air circulation around the motor. The pump should be installed in a dry, well ventilated enclosure, sheltered from rain.
ELECTRICAL CONNECTION
The pump should be located at such a distance away from any pond or pool, as to avoid the possibility of immersion and the power supply should also be a safe distance away. If in doubt, please contact your electrical specialist and refer to national regulations.
Avoid situations where the pump could become drenched with water as neither the motor or terminal box are designed to be totally waterproof. Ensure the pump & its power cable do not create a safety hazard for people walking past it.
5
Parts & Service: 020 8988 7400 / E-mail: Parts@clarkeinternational.com or Service@clarkeinternational.com

ELECTRICAL CONNECTIONS

Plug must be BS1363/A approved.
Always fit
Ensure that the outer sheath of
Neutral
(Blue)
Live
(Brown)
Earth
(Green and
a 13 Amp
the cable is firmly held by the clamp
fuse.
Yel low)
WARNING! READ THESE ELECTRICAL SAFETY INSTRUCTIONS THOROUGHLY BEFORE CONNECTING THE PRODUCT TO THE MAINS SUPPLY.
Before switching the pump on, make sure that the voltage of your
electricity supply is the same as that indicated on the rating plate or on the junction box cover on top of the motor. This product is designed to operate on 230VAC 50Hz. Connecting it to any other power source may cause damage.
Installation should be carried out by a qualified electrician, using I.E.E approved cable and fittings, and in accordance with I.E.E. Regulations. However, in the further interests of safety we would emphasise the electrical hazard.
WARNING: WIRES IN THE MAINS LEAD ARE COLOURED IN ACCORDANCE WITH THE FOLLOWING CODE: GREEN/YELLOW = EARTH, BLUE = NEUTRAL, BROWN = LIVE.
• The BLUE wire must be
connected to the terminal marked N or coloured black.
• The BROWN wire must
be connected to the terminal marked L or coloured red.
• The YELLOW AND
GREEN wire must be connected to the terminal marked E
or or coloured green.
We strongly recommend that this machine is connected to the mains supply via a Residual Current Device (RCD).
If in any doubt, consult a qualified electrician. DO NOT attempt any connections yourself.
Parts & Service: 020 8988 7400 / E-mail: Parts@clarkeinternational.com or Service@clarkeinternational.com
6

PIPE/HOSE CONNECTIONS

The pump inlet and discharge ports are both 1
female threads and accept the adaptors supplied.
Hoses with the same diameter should be used and secured to the adaptor with a suitable hose clip.
Ensure all connections are air tight when under pressure but not so tight as to crack the plastic inlet/outlet adaptors.
These notes are for guidance on how to achieve a proper working system. The diagram (Fig. 1) above shows a typical installation at the pump.
A foot valve and filter should be fitted to the lower end of the suction hose, as illustrated in Fig. 2, so as to retain water
in the suction system and more importantly, to prevent the possibility of large foreign objects entering the pump body.

FURTHER CONSIDERATIONS

½” BSP (38 mm)
• Strain caused by vibration can be reduced by
connecting a short flexible hose between any rigid pipework and the pump.
• We recommend that you always use pipes/hoses
with a minimum diameter of 1
• Any restriction in the pipeline will greatly reduce the
flow.
• Ensure that the hoses and pipes are supported along their entire
length. They will be considerably heavier when filled with water.
• We recommend that you install isolation valves either side of the
pump in order to isolate the pump during maintenance/removal.
• A gate valve may be installed in-line on the delivery side of the
pump which can be adjusted as required to regulate the flow of water and can assist in priming the pump.
Parts & Service: 020 8988 7400 / E-mail: Parts@clarkeinternational.com or Service@clarkeinternational.com
½” (38 mm).
7
WARNING:-DO NOT place any such obstruction on the suction side
(inlet Port) of the pump unless it is an isolator valve in a gravity fed system. It is also IMPORTANT to note, that these pumps should not be operated with the delivery valve completely closed.
• If there is any chance of freezing, protect the pump and pipework
with suitable lagging. The formation of ice may cause serious damage.
IMPORTANT: The pump MUST NOT be connected to the mains supply until all hose/pipe installation is completed. DO NOT RUN THE PUMP DRY
NOTE: If any part of the system is to be connected to the mains water
supply ensure that local water authority regulations are observed.
8
Parts & Service: 020 8988 7400 / E-mail: Parts@clarkeinternational.com or Service@clarkeinternational.com

OPERATION

1. Open any valves in the pipeline.
2. If operating the pump for the first time, prime the pump as described.
NOTE: Re-priming) is only necessary if the pump has been drained.
3. Connect to the power supply and switch on.
• When water starts to flow through the system check for leaks and
correct as necessary.
• If the motor fails to start or the pump does not deliver water, refer to
TROUBLESHOOTING.
• Never operate the pump when not primed with water or if the inlet is
blocked which would allow the pump to run dry, causing damage.
NOTE: Filling the suction pipe with water will speed up the priming
process, and it is essential that a non-return valve be fitted to the end of the suction pipe.
4. Stop the pump by switching off the power supply.
CARE DURING USE
1. Do not allow the pump to run dry otherwise the seal between the pump and motor may be damaged. If a leak occurs at this point, allowing water to pass from the pump to the motor, take the pump to your Clarke dealer for overhaul.
2. In the event of a blockage, where debris has entered the pump, it can be cleaned out as described under MAINTENANCE.
3. DO NOT USE for pumping chemicals or other corrosive liquids. Should contaminants enter the pump, flush through with water as soon as possible to prevent damage.
4. If the pump is being used to drain a pool, ensure there is adequate drainage and there is no risk of damage to property as a result of water being discharged. If a flexible hose must be laid across a roadway, protect it with wooden planking.
9
Parts & Service: 020 8988 7400 / E-mail: Parts@clarkeinternational.com or Service@clarkeinternational.com

MAINTENANCE

Inspect the pump/hoses regularly to ensure that debris is not blocking the passage of water. If you suspect the pump is blocked by silt, leaf debris etc, disconnect it from the power supply, disconnect the discharge hose and back-flush to clear any blockage using a hosepipe.
Always keep the pump in a clean condition and check regularly for damage to the power cable etc.
All electrical connections should be inspected regularly for signs of corrosion and cleaned where necessary. It is advisable to apply a film of silicon grease on the terminals for added protection.
AFTER USE
After use, and if the pump will not be used over the winter period or if there is danger of freezing, always drain the pump body.
If the pump has been used with contaminated or salty water it should be thoroughly flushed with clean water following use, both inside and out. It should then be drained and covered over if not already sheltered from the weather.
If the pump is seized following a period of inactivity it may be possible to free it off. Ensure the power supply is turned off before by inserting a screwdriver into either the infeed or discharge port and dislodging a jammed impeller. If this is not successful it may be necessary to remove the relevant mounting bolts to separate the pump body and clean away any incrustation.
Re-prime the pump when returning to service.
In the event that overhaul of the pump or motor is necessary, contact your Clarke service department.

ENVIRONMENTAL RECYCLING POLICY

Through purchase of this product, the customer is taking on the obligation to deal with the WEEE in accordance with the WEEE regulations in relation to the treatment, recycling & recovery and environmentally sound disposal of the WEEE.
In effect, this means that this product must not be disposed of with general household waste. It must be disposed of according to the laws governing Waste Electrical and Electronic Equipment (WEEE) at a recognised disposal facility.
10
Parts & Service: 020 8988 7400 / E-mail: Parts@clarkeinternational.com or Service@clarkeinternational.com

TROUBLESHOOTING

Problem Cause Solution
Pump does not run. Thermal protection has
been activated.
Faulty power connection Check and repair con-
No mains supply Check fused power
Impeller seized/blocked Disconnect pump from
Pump fails to prime Air leaks through suction
hose joints (damaged hose, broken clamp, damaged.
Blocked inlet hose Check pipeline for
Pump runs but gives poor output
Congested material inside pump
Suction or delivery line obstructed.
Inlet pipe leakage. Check inlet pipe and
Air leaks through damaged seal.
Impeller damaged and making poor seal.
Impeller / mechanical seal is badly worn.
If the motor has over­heated, wait for it to cool down before trying again.
nection as necessary.
supply and replace fuse if necessary (check fuse rating). Check circuit breaker
power supply. Investigate cause and clear blockage
Repair connections/ replace hose as necessary.
blockage. Check any inlet valve fitted is fully open.
Clean out & backflush pump.
Remove obstruction and ensure there are no kinks in delivery line.
connector for leaks. Tighten as required.
Renew seal.
Return to your Clarke dealer for repair
Return to your Clarke dealer for repair.
11
Parts & Service: 020 8988 7400 / E-mail: Parts@clarkeinternational.com or Service@clarkeinternational.com
High friction losses in the suction line.
Pump badly sited result­ing in suction lift too high
Sudden loss of flow. Blockage of inlet pipe Check pipeline for
Undue vibration or noise. Excessive flow of water. Decrease flow of water.
Resistance in inlet pipe caused by obstruction.
Loose rotating component
Installation of pump is unstable.
Air pocket in pump or pipeline.
Damaged impeller Return to your Clarke
Avoid unnecessary curves, restrictions or valves
Set pump as close as possible to the level of the water to be pumped
blockage.
by adjusting inlet/outlet valves in system.
Check pipe and clean out as necessary
Return to your dealer for repairs.
Stop pump and re-position.
Release plug in impeller housing to release air.
dealer for repair.

GUARANTEE

This product is guaranteed against faulty manufacture for a period of 12 months from the date of purchase. Please keep your receipt which will be required as proof of purchase.
This guarantee is invalid if the product is found to have been abused or tampered with in any way, or not used for the purpose for which it was intended.
Faulty goods should be returned to their place of purchase, no product can be returned to us without prior permission.
This guarantee does not effect your statutory rights.
12
Parts & Service: 020 8988 7400 / E-mail: Parts@clarkeinternational.com or Service@clarkeinternational.com

PARTS DIAGRAM - CPE15

13
Parts & Service: 020 8988 7400 / E-mail: Parts@clarkeinternational.com or Service@clarkeinternational.com

PARTS LIST - CPE15

ID DESCRIPTION MANUFID ID DESCRIPTION MANUFID
1 Connector 1½” (38 mm) GML330 18 Rear motor cover GM5114
2 Valve body GM5853 19 Elastic washer GM5119
3 Check valve GM6010 20 Fan GM5293
4 Washer GM6162 21 Fan cover GM5319
5 Flexolite washer GM6186 22 Bearing GM5375
6 Drain plug GM6209 23 Motor stator GM5387
7 Top plug GM6213 24 N/a
8 Screw GM6230 25 Bearing GM5513
9 Screw GM6268 26 Condenser GM6581
10 Mechanical seal GM6334 27 N/a
11 Nut GM7103 28 Condenser Box GM6963
12 Counterface GM7702 29 Junction box cover N/a
13 Cover disc GM7776 30 Motor bracket GM7700
14 O-ring GM8048 31 Motor shaft GM8640
15 Key 4 x 4 x 16 GMF156 32 N/a
16 Pump body GMF458 33 Motor GMF313
17 Impeller GMF501

ACCESSORIES

½” BSP Plastic Foot Valve Filter FVF15
1
1
½” dia Reinforced Suction/Delivery Hose
1½” dia Layflat Delivery Hose 10M
1½” BSP Female Coupling
1
½” BSP Male Coupling
14
Parts & Service: 020 8988 7400 / E-mail: Parts@clarkeinternational.com or Service@clarkeinternational.com
Part No:7950682
Part No:7955015
Part No:7955155
Part No:7950315
Part No:7950215

DECLARATION OF CONFORMITY
