Clarke Compound Slide, 7610751 User guide

COMPOUND SLIDE

Part Number 7610751

Thank you for purchasing this CLARKE Compound Slide, for use with Mini Lathe
CL250M.

The Compound Slide increases the versatility of the Mini Lathe and allows tapers to
be cut.

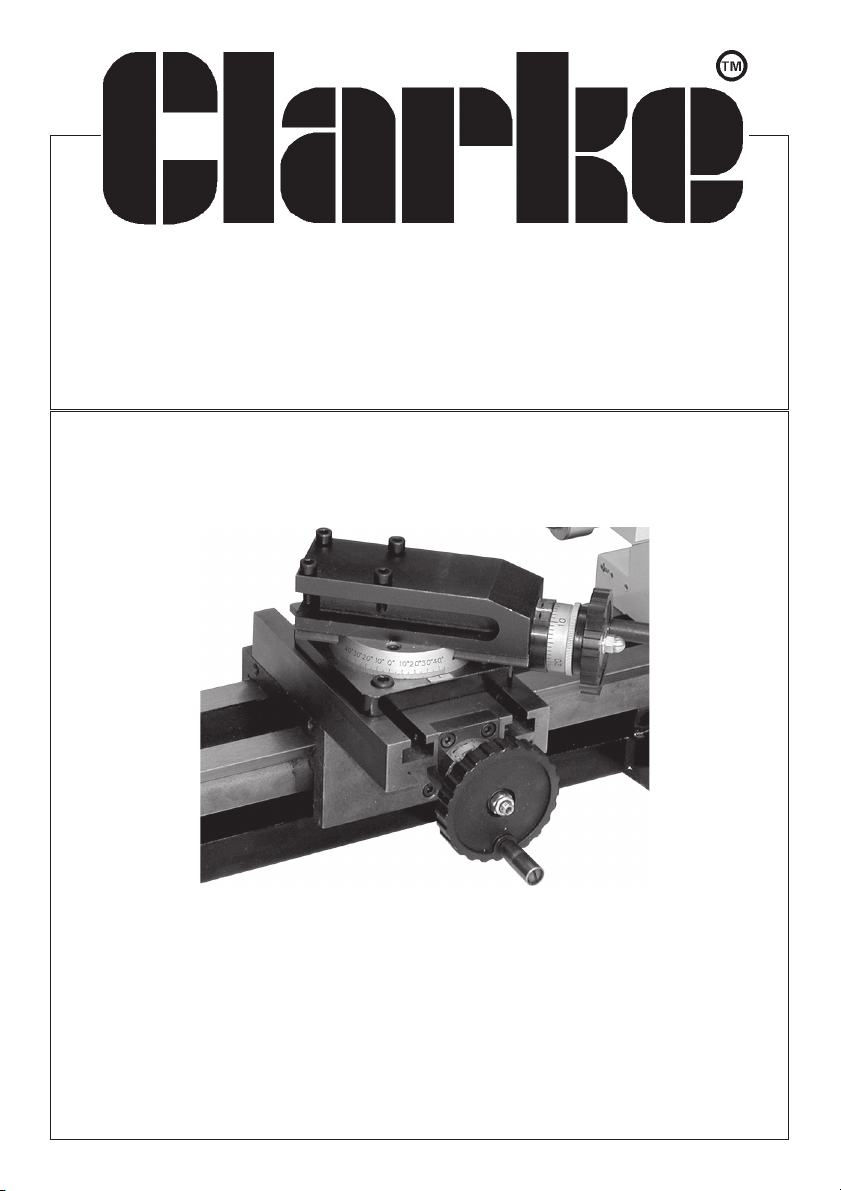

The Compound Slide is bolted directly to the Cross Slide using the ‘T’ nuts with hex.
socket head screws provided, in the manner shown in the illustration.

The cutting tool is mounted on the Compound Slide, and, when required, the
desired angle set using the scale provided.

NOTE:
To ensure absolute accuracy, it is necessary to ensure the Compound Slide is
exactly square on the Cross Slide.

GUARANTEE

This CLARKE product is guaranteed against faulty manufacture for a period
of 12 months from the date of purchase. Please keep your receipt as proof of
purchase.

This guarantee is invalid if the product is found to have been abused or
tampered with in any way, or not used for the purpose for which it was
intended.

Faulty goods should be returned to their place of purchase, no product can
be returned to us without prior permission.

This guarantee does not affect your statutory rights.

SPARE PARTS AND SERVICING

For Spare Parts or Servicing, please contact your nearest dealer,

or CLARKE International, on one of the following numbers.

PARTS & SERVICE TEL: [phone]

PARTS & SERVICE FAX: [phone]

or e-mail as follows:

PARTS: [e-mail]

SERVICE: [e-mail]
