Clarke COBDIIR-2 User guide

ENGINE FAULT CODE READER

MODEL NO: COBDIIR-2

PART NO: 4501139

USER INSTRUCTIONS

ORIGINAL INSTRUCTIONS DL0623

INTRODUCTION

Thank you for purchasing this CLARKE Engine and Transmission Fault Code
Reader.

Please read this manual thoroughly, before attempting to operate and
carefully follow all instructions given.

It is vitally important that ALL precautions are taken, as specified, which will not
only provide protection for yourself and that of others around you, but will also
ensure that the code reader will give you long and satisfactory service.

GUARANTEE

This CLARKE product is guaranteed against faulty manufacture for a period of
12 months from the date of purchase. Please keep your receipt as proof of
purchase.

This guarantee is invalid if the product is found to have been abused or
tampered with in any way, or not used for the purpose for which it was
intended.

Faulty goods should be returned to their place of purchase, no product can
be returned to us without prior permission.

This guarantee does not effect your statutory rights.

ENVIRONMENTAL RECYCLING POLICY

Through purchase of this product, the customer is taking on the
obligation to deal with the WEEE in accordance with the WEEE
regulations in relation to the treatment, recycling & recovery and
environmentally sound disposal of the WEEE.

In effect, this means that this product must not be disposed of with general
household waste. It must be disposed of according to the laws governing
Waste Electrical and Electronic Equipment (WEEE) at a recognised disposal
facility.

If disposing of this product or any damaged components, do not dispose of
with general waste. This product contains valuable raw materials. Metal
products should be taken to your local civic amenity site for recycling of metal
products.

2

Parts & Service: 020 8988 7400 / E-mail: [email protected] or [email protected]

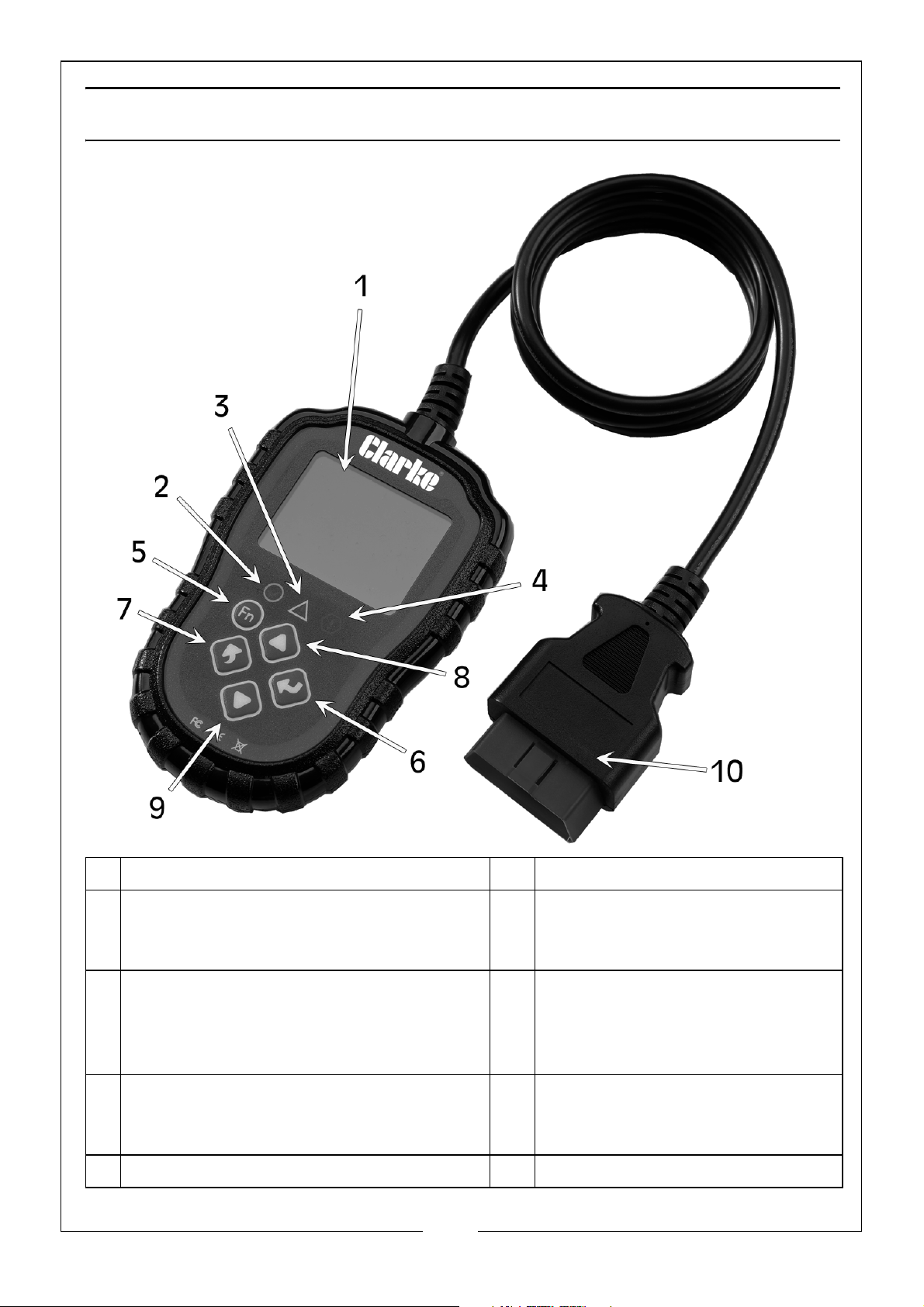

PRODUCT OVERVIEW

1 2.4” TFT LCD Colour Display 6 Enter Button

2 Green LED: Indicates correct engine

operation, no Diagnostic Trouble
Code (DTC)

3 Yellow LED: Indicates a possible

problem. Some diagnostics could not
be performed and/or a DTC is
pending

4 Red LED: Indicates a problem with the

engine. The MIL (Malfunction
Indicator Light) may be on.

5 One Click Function Key 10 OBDII 16 Pin Connector

3

Parts & Service: 020 8988 7400 / E-mail: [email protected] or [email protected]

7 Exit Button

8 Scroll Up Button

9 Scroll Down Button

SPECIFICATIONS

Model Number COBDIIR-2

Operating Voltage 8V - 25V

Operating Current 52mA

Operating Temperature -20°C to 70°C

Storage Temperature -30°C to 80°C

Display 2.4” TFT Colour Screen

Support Data Stream Type 249 Sensor Parameters

Fault Code Analysis Quantity 16929

Dimensions (HxWxD) 24mm x 84mm x 131mm

Weight 198g

FUNCTION DESCRIPTION

1. Dual system diagnostic, optional engine and transmission.

2. Quickly indicate engine faults with green/yellow/red LED indicators as fault
lights

3. You can read or clear the engine fault code and view DTC definition.

4. Display of sensor data stream information, supporting 249 types of

parameters

5. You can view freeze frame data and I/M status information.

6. You can read vehicle information:

• Vehicle Identification Number (VIN)

• Calibration Identification Number (IDs)

• Calibration Verification Number (CVNs)

7. Multi Language (English, Spanish, French, German, Polish, Finnish, Italian,

Dutch & Russian).

8. Codes Compliant: OBDII, EOBD & JOBD

9. Protocols Supported: SAE J1850 VPW, SAE J1850 PWM, ISO 9141-2,
ISO 14230-4(KWP FAST), ISO 14230-4(KWP 5BAUD), ISO 15765-4(CAN 11/250),
ISO 15765-4(CAN 11/500), ISO 15765-4(CAN 29/250), ISO 15765-4(CAN 29/

500).

4

Parts & Service: 020 8988 7400 / E-mail: [email protected] or [email protected]

SAFETY PRECAUTIONS

PLEASE READ BEFORE USING THIS UNIT

1. ALWAYS perform automotive testing in a safe environment.

2. Keep clothing, hair, hands, tools, test equipment, etc, away from all
moving or hot engine parts.

3. Operate the vehicle in a well-ventilated work area; Exhaust gases are

poisonous.

4. Put chocks under drive wheels and NEVER leave the vehicle unattended

while running tests.

5. ALWAYS use extreme caution when working around the ignition coil,

distributor cap, ignition wires and spark plugs. These components create
hazardous voltages when the engine is running.

6. Put transmission in PAR K (for automatic transmission) or NEUTRAL (for manual

transmission) and make sure the parking brake is engaged.

7. Keep a fire extinguisher suitable for gasoline/chemical/electrical fires

nearby.

8. DO NOT connect or disconnect any test equipment with ignition on or

engine running.

CARE AND MAINTENANCE

Keep the code reader dry, clean and free from oil, water and grease. Use a
mild detergent on a clean cloth to clean the outside of the code reader,
when necessary.

Keep the 16 pin connector clean and the cable tidy.

ALWAYS check for splits or cuts in the cable.

5

Parts & Service: 020 8988 7400 / E-mail: [email protected] or [email protected]

GENERAL INFORMATION

VEHICLE COVERAGE

The OBDII Code Reader is specially designed to work with all OBDII compliant
vehicles, including those equipped with the next-generation protocol --
Control Area Network (CAN). All 2000 and later vehicles are OBDII
compliant and this includes all USA, Asian and European vehicles.
A small number of 1994 and 1995 model year petrol vehicles are OBDII
compliant. To verify if a 1994 or 1995 vehicle is OBDII compliant, check the
Vehicle Emissions Control Information (VECI) Label which is located under the
bonnet or by the radiator of most vehicles. If the vehicle is OBDII compliant, the
label will designate “OBDII Certified”. Additionally, regulations mandate that
all OBDII compliant vehicles must have a “common” sixteen-pin Data Link
Connector (DLC).
For your vehicle to be OBDII, EOBD or JOBD compliant it must have a 16-pin
DLC (Data Link Connector) under the dash and the Vehicle Emission Control
Information Label must state that the vehicle is OBDII compliant.

OBDII COMPLIANT CAR MANUFACTURERS

For a full list of make and models of compliant manufacturers download the
spreadsheet using the following website or QR code.

http://www.bit.ly/cobdiir2

DIAGNOSTIC TROUBLE CODES (DTC)

OBDII Diagnostic Trouble Codes are stored by the
on-board computer diagnostic system in

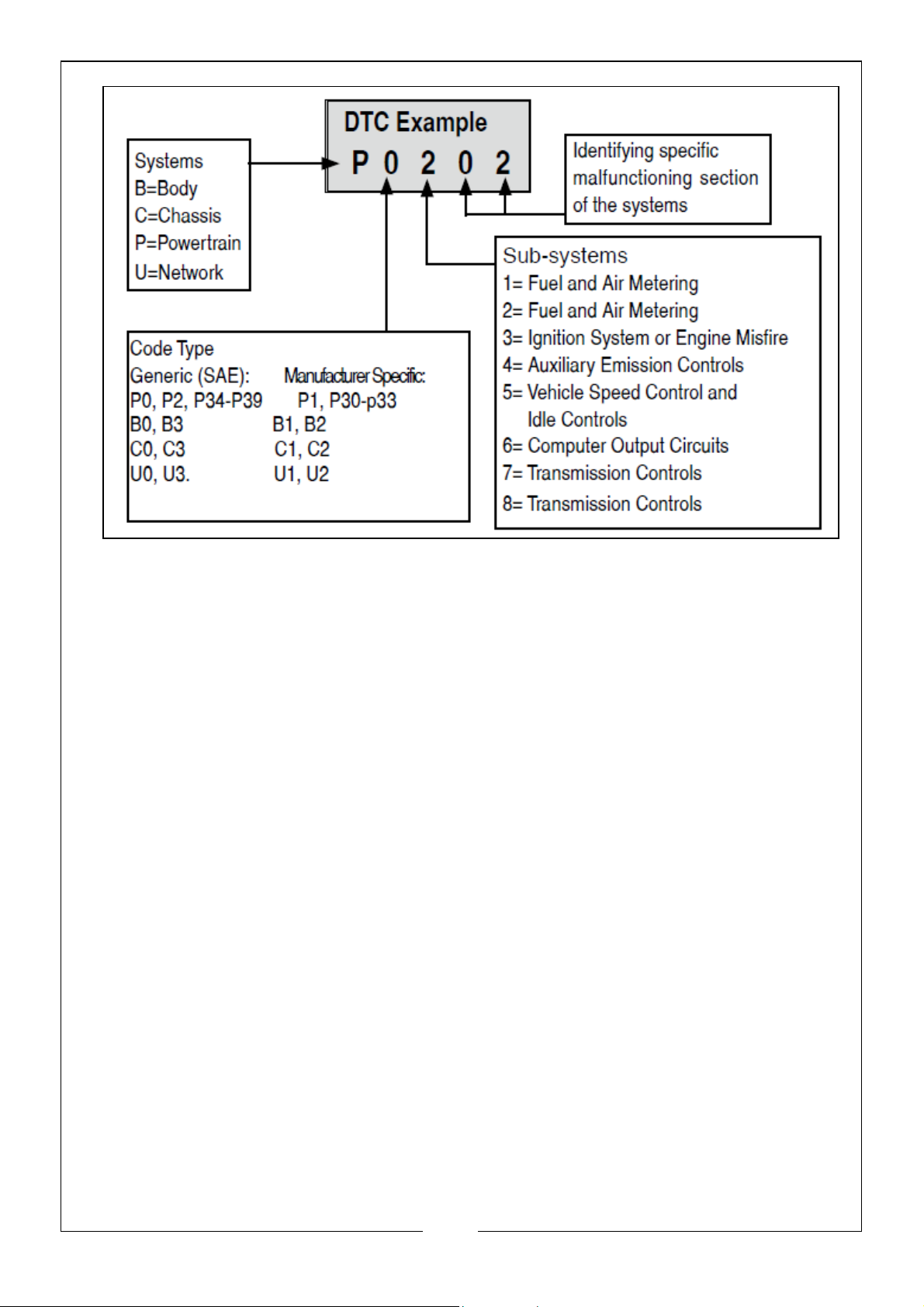

response to a problem found in the vehicle. These codes identify a particular
problem area and are intended to provide you with a guide as to where a
fault might be occurring within a vehicle. OBDII Diagnostic Trouble Codes
consist of a five-digit alphanumeric code. The first character, a letter, identifies
which control system sets the code. The other four characters, all numbers,
provide additional information on where the DTC originated and the
operating conditions that caused it to set. Here is an example to illustrate the
structure of the digits:

6

Parts & Service: 020 8988 7400 / E-mail: [email protected] or [email protected]

NOTE: Manufacturer Specific Codes(x1xxx): This is where the vehicle

manufacturer feels that a code is not available within the generic list.
The definitions for these are set by the vehicle manufacturer.

OBDII READINESS MONITORS

An important part of a vehicle's OBDII system are the Readiness monitors,
which are indicators used to find out if all of the emissions components have
been evaluated by the OBDII system. They run periodic tests on specific
systems and components to ensure that they are performing within allowable
limits.
Currently, there are eleven OBDII Readiness Monitors (or I/M Monitors) defined.
Not all monitors are supported by all vehicles and the exact number of
monitors in any vehicle depends on the motor vehicle manufacturer's
emissions control strategy.

CONTINUOUS MONITORS

Some of the vehicle components or systems are continuously tested by the
vehicle's OBDII system, while others are tested only under specific vehicle
operating conditions. The continuously monitored components listed below
are always ready:

1. Misfire

2. Fuel System

3. Comprehensive Components Monitors (CCM)

7

Parts & Service: 020 8988 7400 / E-mail: [email protected] or [email protected]

Once the vehicle is running, the OBDII system is continuously checking the
above components, monitoring key engine sensors, watching for engine
misfire, and monitoring fuel demands.

NON CONTINUOUS MONITORS

Unlike the continuous monitors, many emissions and engine system
components require the vehicle to be operated under specific conditions
before the monitor is ready. These monitors are termed non-continuous
monitors and are listed below:

1. EGR System

2. O2 Sensors

3. Catalyst

4. Evaporative System

5. O2 Sensor Heater

6. Secondary Air

7. Heated Catalyst

8. A/C System

OBDII MONITOR READINESS STATUS

OBDII systems must indicate whether or not the vehicle's PCM monitor system
has completed testing on each component. Components that have been
tested will be reported as Ready or Complete, meaning they have been
tested by the OBDII system. The purpose of recording readiness status is to
allow inspectors to determine if the vehicle's OBDII system has tested all the
components and/or systems.
The powertrain control module (PCM) sets a monitor to Ready or Complete
after an appropriate drive cycle has been performed. The drive cycle that
enables a monitor and sets readiness codes to ready varies for each individual
monitor. Once a monitor is set as Ready or Complete, it will remain in this state.
A number of factors, including erasing of diagnostic trouble codes (DTCs) with
a scan tool or a disconnected battery, can result in Readiness Monitors being
set to Not Ready. Since the three continuous monitors are constantly
evaluating, they will be reported as Ready all of the time. If testing of a
particular supported non-continuous monitor has not been completed, the
monitor status will be reported as Not Complete or Not Ready.”
In order for the OBD monitor system to become ready, the vehicle should be
driven under a variety of normal operating conditions. These operating
conditions may include a mix of highway driving and stop and go, city type
driving, and at least one overnight-off period. For specific information on
getting your vehicle's OBD monitor system ready, please consult your vehicle
owner’s manual.

8

Parts & Service: 020 8988 7400 / E-mail: [email protected] or [email protected]

OBDII DEFINITIONS

POWERTRAIN CONTROL MODULE (PCM)

OBDII terminology for the on-board computer that controls engine and drive
train.

MALFUNCTION INDICATOR LIGHT (MIL)

Malfunction Indicator Light (Service Engine Soon, Check Engine) is a term used
for the light on the instrument panel. It is to alert the driver and/or the repair
technician that there is a problem with one or more of vehicle's systems and
may cause emissions to exceed standards. If the MIL illuminates with a steady
light, it indicates that a problem has been detected and the vehicle should be
serviced as soon as possible. Under certain conditions, the dashboard light will
blink or flash. This indicates a severe problem and flashing is intended to
discourage vehicle operation. The vehicle on-board diagnostic system can
not turn the MIL off until the necessary repairs are completed or the condition
no longer exists.

DIAGNOSTIC TROUBLE CODES (DTC)

Diagnostic Trouble Codes (DTC) that identify which section of the emission
control system has malfunctioned.

ENABLING CRITERIA

Also termed Enabling Conditions. They are the vehicle specific events or
conditions that must occur within the engine before the various monitors will
set or run. Some monitors require the vehicle to follow a prescribed drive cycle
routine as part of the enabling criteria. Drive cycles vary among vehicles and
for each monitor in any particular vehicle.

OBDII DRIVE CYCLE

A specific mode of vehicle operation that provides condition required to set all
the readiness monitors applicable to the vehicle to the ready condition. The
purpose of completing an OBDII drive cycle is to force the vehicle to run its
on-board diagnostics. Some form of a drive cycle needs to be performed after
DTCs have been erased from the PCM's memory or after the battery has been
disconnected. Running through a vehicle's complete drive cycle will set the
readiness monitors so that future faults can be detected. Drive cycles vary
depending on the vehicle and the monitor that needs to be reset. For vehicle
specific drive cycle, consult the vehicle's Owner's Manual.

FREEZE FRAME DATA

When an emission related fault occurs, the OBDII system not only sets a code
but also records a snapshot of the vehicle operating parameters to help in

9

Parts & Service: 020 8988 7400 / E-mail: [email protected] or [email protected]

identifying the problem. This set of values is referred to as Freeze Frame Data
and may include important engine parameters such as RPM, vehicle speed,
air flow, engine load, fuel pressure, fuel trim value, engine coolant
temperature, ignition timing advance or closed loop status.

OBDII MODES OF OPERATION

MODE BYTE

The first byte in the system is the mode number. There are 9 modes for
diagnostic requests, so this first byte is from 1 to 9. The first byte in the response
data bytes is the same number plus 64. For example, a mode 1 request would
have the first data byte = 1, and the response would have the first data byte =

65. Here is a brief description of the modes:

1. Mode $01 - Identifies the Powertrain information and shows current data
available to the scan tool. This data includes: DTCs set, status of onboard
tests and vehicle data such as engine RPM, temperatures, ignition
advance, speed, air flow rates and closed loop status for fuel systems.

2. Mode $02 - Displays Freeze Frame Data. Dame data as in Mode 1, but it
captured and stored when a malfunction occurred and a DTC was set.
Some of the PIDs for mode 1 are not implemented in this mode.

3. Mode $03 - Displays the type of Powertrain or emission related DTCs stored
by a 5 digit code identifying the faults. There may be more than one
response message if there are more trouble codes than will fit in the data
bytes of the response message, or if there are more than one ECU
computer responding.

4. Mode $04 - Used to clear DTCs and Freeze Frame Data. This clears all
diagnostic trouble codes that may be set including Freeze Frame Data
and Readiness Monitors.

5. Mode $05 - Oxygen Sensor Test Results. This mode displays the oxygen
sensor monitor screen and the test results gathered about the oxygen
sensor. There are ten numbers available for diagnostics:

• $01 - Rich-to-Lean O2 sensor threshold voltage

• $02 - Lean-to-Rich O2 sensor threshold voltage

• $03 - Low sensor voltage threshold for switch time measurement

• $04 - High sensor voltage threshold for switch time measurement

• $05 - Rich-to-Lean switch time in ms

• $06 - Lean-to-Rich switch time in ms

• $07 - Minimum voltage for test

• $08 - Maximum voltage for test

• $09 - Time between voltage transitions in ms

10

Parts & Service: 020 8988 7400 / E-mail: [email protected] or [email protected]

6. Mode $06 - Non-Continuously Monitored Systems test results. there are
typically a minimum value, a maximum value and a current value for each
non-continuous monitor. This data is optional, and it is defined by a given
vehicle make if its used.

7. Mode $07 - Request for DTCs (pending) from Continuously Monitored
Systems after a single driving cycle has been performed to determine if
repair has fixed a problem. This is used by service engineer to verify repair
was performed properly and after clearing diagnostic trouble codes.

8. Mode $08 - This Special Control Mode request control of the onboard
system, test, or component bi-directionally (where applicable). This mode is
manufacturer specific.

9. Mode $09 - Reports Vehicle Information. This information includes vehicle
VIN number and calibration information stored in the vehicle ECUs.

10. Mode $10 - Request Emission Related Diagnostic Trouble Codes with
Permanent Status. This mode is required for all emissions related DTCs. The
presence of permanent DTCs at an inspection without the MIL illuminated is
an indiction that a proper repair was not verified by the onboard
monitoring system.

11

Parts & Service: 020 8988 7400 / E-mail: [email protected] or [email protected]

PRODUCT INFORMATION AND SET UP

NAVIGATION CHARACTERS

Characters used to help navigate the code reader are:

1. “#” - Identifies the control module number from which data is retrieved.

2. “Pd” - Identifies a pending DTC when viewing DTC’s.

VEHICLE POWER

The power of the code reader is provided via the vehicle data link connector
(DLC). Follow the steps below to turn on the code reader:

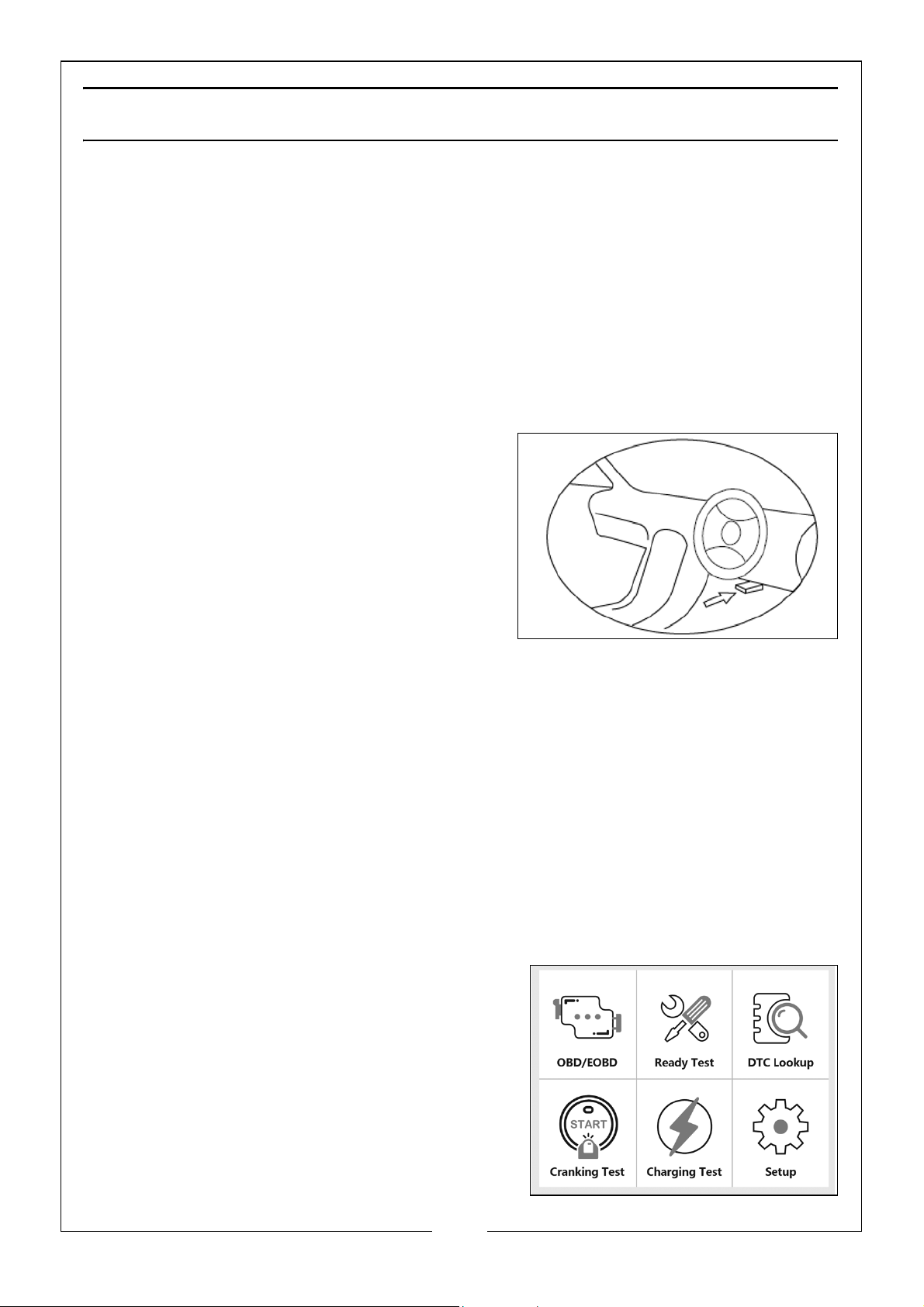

1. The DLC is usually located
approximately 12 inches from the
centre of the instrument panel
(dashboard), under or around the
drivers side for most vehicles. Consult
the vehicles handbook for exact
location.

2. Plug the OBDII 16 pin data link
connector to the vehicles DLC port.

SET UP

The code reader allows you to make the following adjustments and settings:

1. Language: The factory default is English, other languages can be manually
selected.

2. Unit of Measure: Supports metric and imperial units, factory default is
metric.

3. Fn Key Set: Sets the One-Click-Quick Function Key, including I/M readiness
status, trouble code, default live data and all data stream.

TO ENTER THE SETUP MENU

When the scan tool is powered on, it will
display a Main Screen.
From the Main Screen: Use the SCROLL
button to select Setup, and press the ENTER
button. Follow the instructions to make
adjustments and settings as described in the
following setup options.

12

Parts & Service: 020 8988 7400 / E-mail: [email protected] or [email protected]

NOTE: There is a navigation bar in red to

show the position of the chosen
item. Also shown is ‘X/X’ at the top
right corner to remind the user.

LANGUAGE SETUP

NOTE: English is the default language.

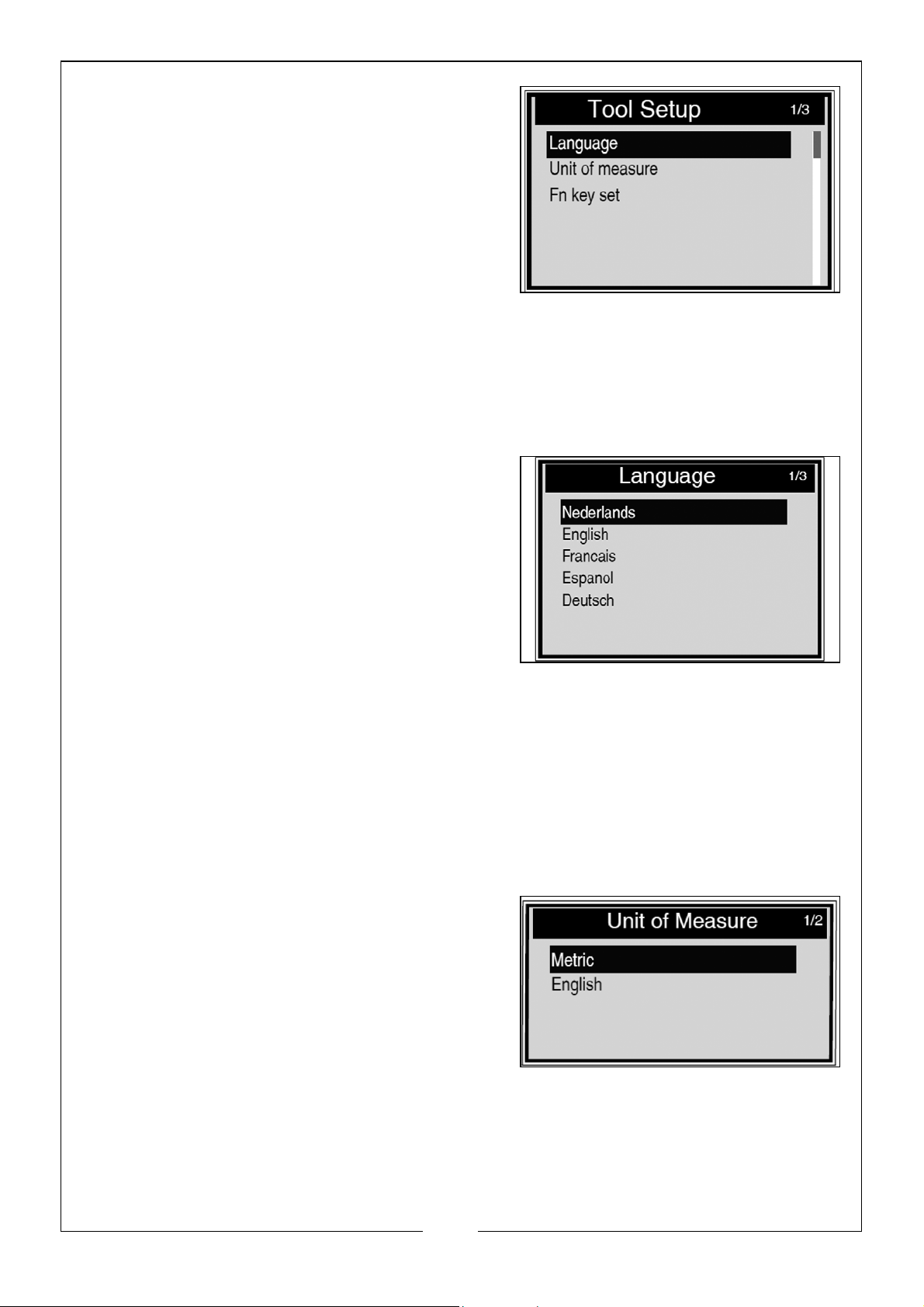

1. From the Main Screen, use the SCROLL button to select the Tool Setup
screen and press the ENTER button.

2. From the Tool Setup screen, use the
SCROLL button to select the desired
language and press the ENTER button.

3. Press the ENTER button to save your selection and return to the previous
menu.

UNIT OF MEASUREMENT

NOTE: Metric is the default measurement unit.

1. From the Main Screen, use the SCROLL button to select the Tool Setup
screen and press the ENTER button.

2. From the Tool Setup screen, use SCROLL
buttons to select Unit of Measure and
press the ENTER button.

3. From the Unit of Measure screen, use
the SCROLL button to select the
desired unit of measurement.

4. Press the ENTER button to save your
selection and return to the previous menu.

13

Parts & Service: 020 8988 7400 / E-mail: [email protected] or [email protected]

FUNCTION (FN) KEY SET

1. From the Main Screen, use the SCROLL button to select the Tool Setup
screen and press the ENTER button.

2. From the Tool Setup screen, use the
SCROLL button to select the Fn Key Set
and press the ENTER button.

3. From the Fn Key Set screen, use the
SCROLL button to select the desired
function.

4. Press the ENTER button to save your
selection and return to the previous
menu.

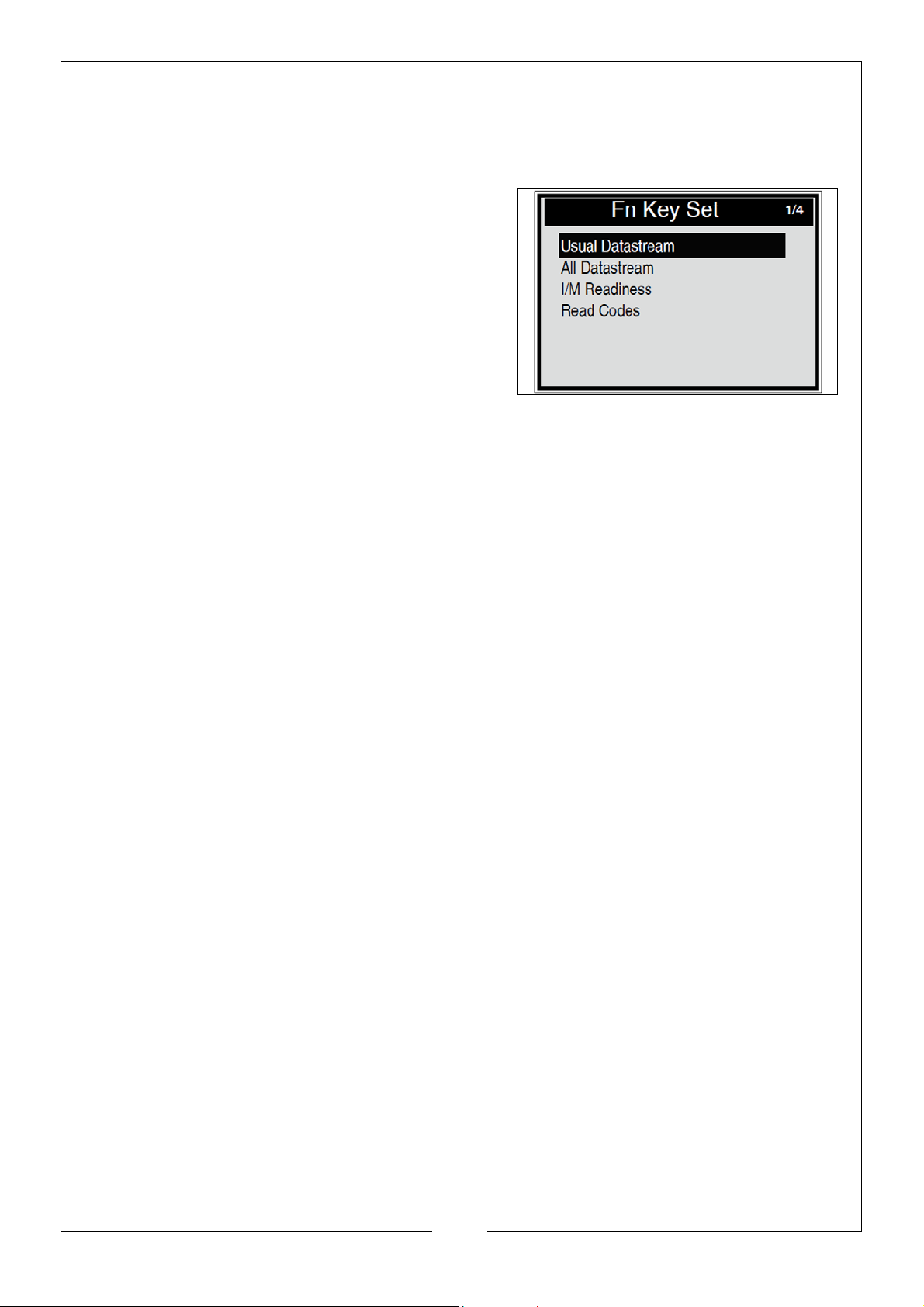

In this menu, you can configure the Fn setting for one-click function, as follows:

1. Usual Data stream Mode: In this mode the tool has recommended some
data stream for the user reference, during the vehicles monitors have run
and completed their diagnosis and testing.

2. All Data stream Mode: In this mode, after the vehicles monitors have run
and completed their diagnosis and testing, the scan tool will return to
check all data streams. So it is mostly used to check the monitors status.

3. I/M Readiness Mode: I/M Readiness mode is the default work mode. In this
mode, after the vehicles monitors have run and completed their diagnosis
and testing, the scan toll will turn to OBDII diagnostic procedures.

4. Read Codes Mode: Read codes mode is the basic work mode. In this
mode, after the vehicles monitors have run and completed their diagnosis
and testing, the scan tool will read the trouble codes insides.

To exit the Setup menu, use the SCROLL button to select Previous Menu from the
System Setup screen and press the ENTER button to return to the Main Screen.

14

Parts & Service: 020 8988 7400 / E-mail: [email protected] or [email protected]

OPERATING INSTRUCTIONS

CONNECTION

WARNING: DO NOT CONNECT OR DISCONNECT ANY TEST EQUIPMENT
WITH THE IGNITION ON AND THE ENGINE RUNNING.

1. Turn the vehicle ignition OFF.

2. Locate the vehicles 16 pin DLC port.

3. Plug the code reader into the vehicles DLC port.

4. Turn the vehicle ignition on. Engine can be off or running.

OBDII DIAGNOSTIC

1. Use the UP/DOWN button to select Diagnostics from the Main Screen.

2. Press the ENTER button and wait for the menu to appear. A sequence of
messages displaying the OBDII protocols will be shown on the display until
the correct vehicle protocol is detected.

NOTE: If the scan tool fails to communicate with the vehicles ECU (Engine

Control Unit) more than three times, a ‘LINKING ERROR’ message will
show on the display. If this is the case, verify that the ignition is ‘ON’,
check if the scan tools OBDII connector is securely connected to the
vehicles DLC and verify that the vehicle is OBDII compliant. Turn the
ignition ‘OFF’ and wait for about 10 seconds. Turn the ignition back to
‘ON’ and repeat the procedures from step 1.

NOTE: If the ‘LINKING ERROR’ message does not go away, then there might

be problems for the scan tool to communicate with the vehicle.
Contact either CLARKE service department of the vehicle
manufacturers service department for assistance.

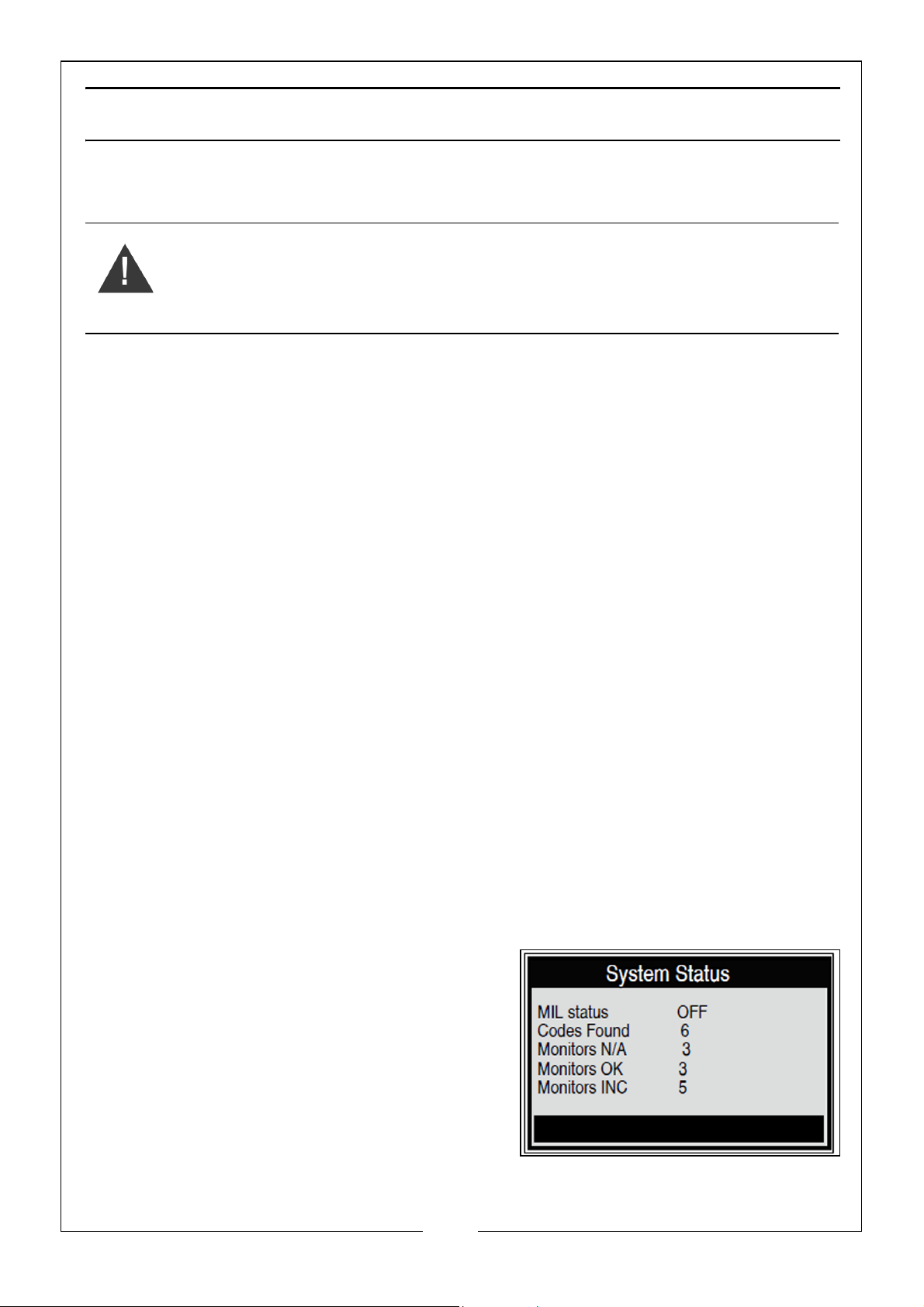

3. View a summary of the system status
(MIL status, DTC counts, Monitor status)
on screen. Wait a few seconds or press
any key for Diagnostic Menu to come
up.

4. If more than one module is detected,
you will be prompted to select a
module before testing.

15

Parts & Service: 020 8988 7400 / E-mail: [email protected] or [email protected]

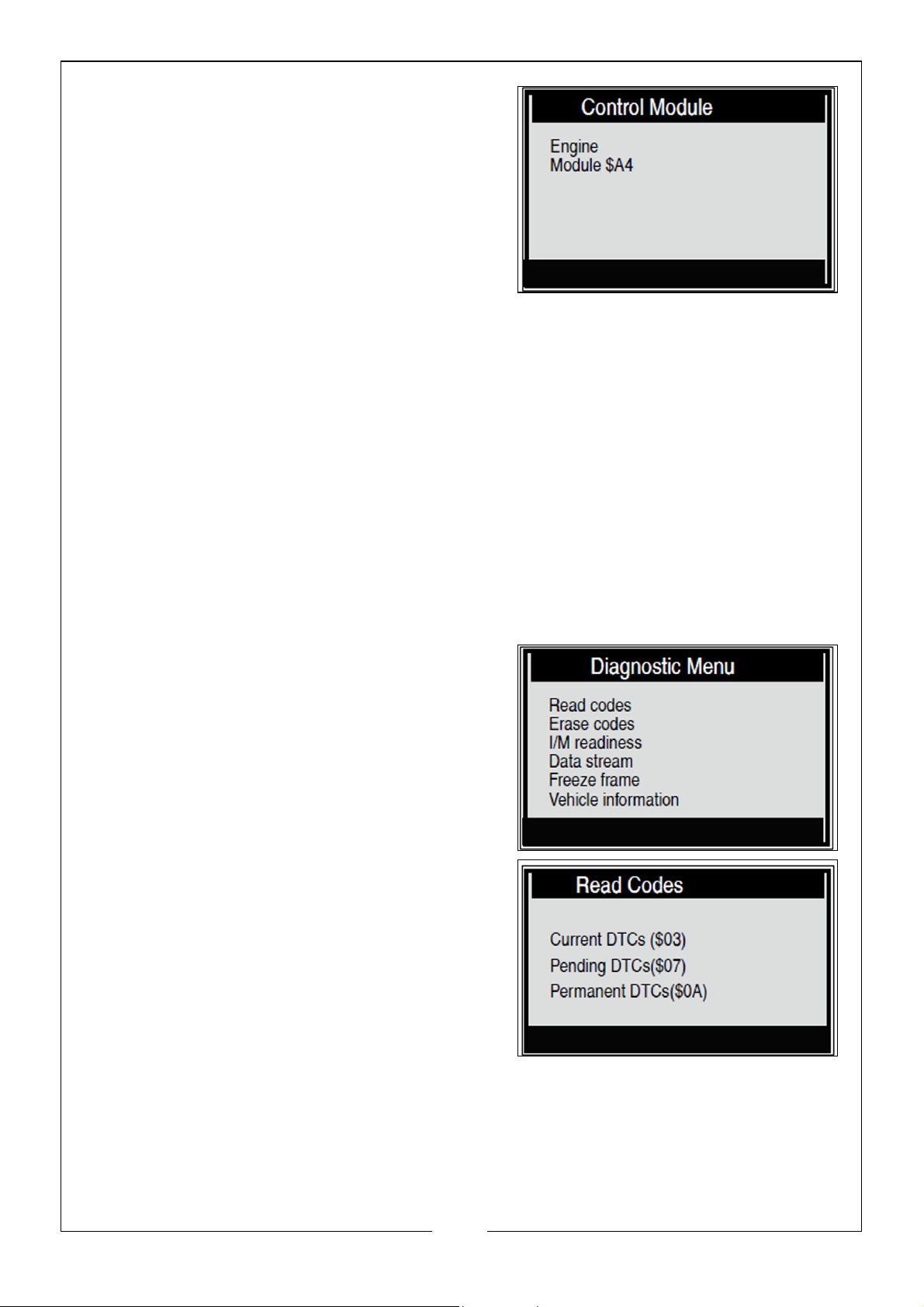

5. Use the UP/DOWN button to select a
module and press the ENTER button to
confirm.

READ CODES

Reading Codes can be done with the ignition on, engine off or ignition on,
engine running.

Stored codes are also known as ‘hard codes’ or ‘permanent codes’. These
codes cause the control module to illuminate the malfunction indicator light
(MIL) when an emission related fault occurs.

Pending codes are also referred to as ‘mature codes’ or ‘continuous monitor
codes’. They indicate problems that the control module has detected during
the current or last driving cycle but are not considered serious yet. Pending
codes will not turn on the malfunction indicator light (MIL). If the fault does not
occur within a certain number of warm up cycles, the code clears from the
memory.

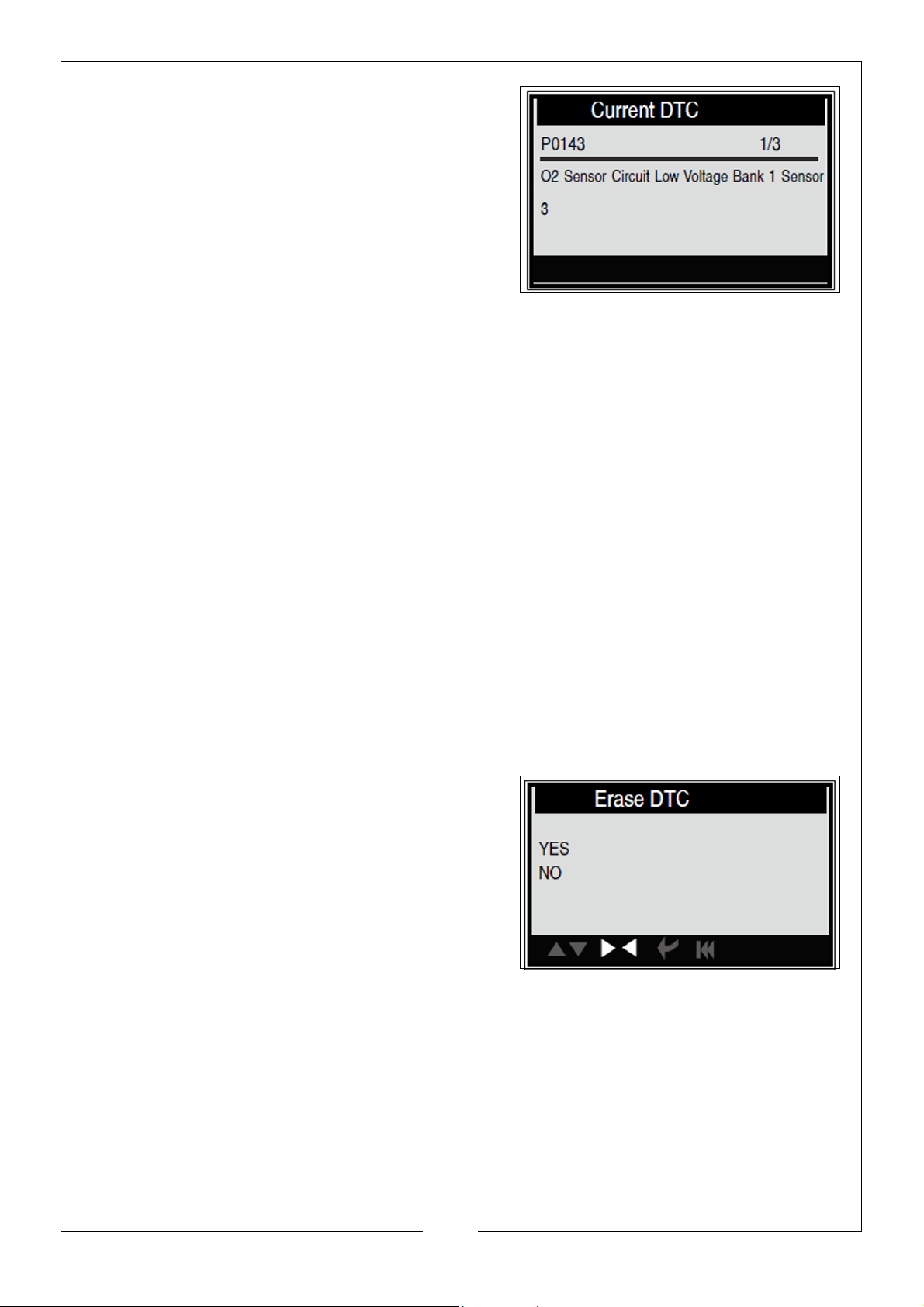

1. Select Read Codes and press ENTER in
the Diagnostic Menu. If there are some
codes, the screen will display the
codes as shown:

NOTE: There is a navigation bar in red to

show the position of the chosen
item. Also shown is ‘X/X’ at the top
right corner to remind the user.

2. Use the UP/DOWN Scroll buttons to
select Current Codes or Pending
Codes from the Read Codes menu
and press the ENTER button. If there are
no Diagnostic Trouble Codes, the
display indicates ‘No Pending Codes
are stored in the module!’. Wait a few
seconds or press any key to return to
previous screen.

NOTE: Permanent Codes function is available for merely vehicles supporting

the CAN protocols.

16

Parts & Service: 020 8988 7400 / E-mail: [email protected] or [email protected]

3. View DTCs and their definitions on
screen. Press ENTER button to return to
previous screen.

NOTE: The control module number,

sequence of the DTCs, total
number of codes detected and
type of codes (generic or
manufacturer specific, stored or
pending codes) will be observed
on the upper right hand corner of the display. 1/3 indicates there are 3
codes total and now P0143 is the first code to display. The screen will
also show the content of the code below the number of the code.

4. Press the EXIT button to view the next code.

5. After viewing all the codes, press the EXIT button to return to the Diagnostic
Menu.

ERASE CODES

CAUTION: Erasing the Diagnostic Trouble Codes may allow the scan tool to

delete not only the codes from the vehicles onboard computer, but also
Freeze Frame Data and manufacturers specific enhanced data. Further, the I/
M Readiness Monitor Status for all vehicle monitors is reset to Not Ready or Not
Complete status. DO NOT erase the codes before the system has been
checked completely by a technician.

NOTE: Erasing codes does not mean that the trouble codes in the ECU have

been eliminated completely. As long as there is fault with the vehicle,
the trouble codes will keep on presenting.

1. Select Erase Codes, the screen will
display the interfaces as shown:

2. Press the UP/DOWN SCROLL buttons to
select Yes or No.

3. Press the ENTER button to erase the
DTC.

NOTE: Before performing this function,

make sure to retrieve and record
the trouble codes.

After clearing, you should retrieve trouble codes once more or turn the ignition
on and retrieve codes again. If there are still some trouble codes in the system,
please troubleshoot the code using a factory diagnosis guide, then clear the
code and recheck.

17

Parts & Service: 020 8988 7400 / E-mail: [email protected] or [email protected]

DATA STREAM

The View Data function allows viewing of live or real time PID data of the
vehicles computer module(s).

For the vehicles with more ECUs, more live data will be found and shown. The
max. live data is 300 for some cars. However, the live data real quantity
depends on each car ECU. Please check this function as real vehicle status on
the vehicle.

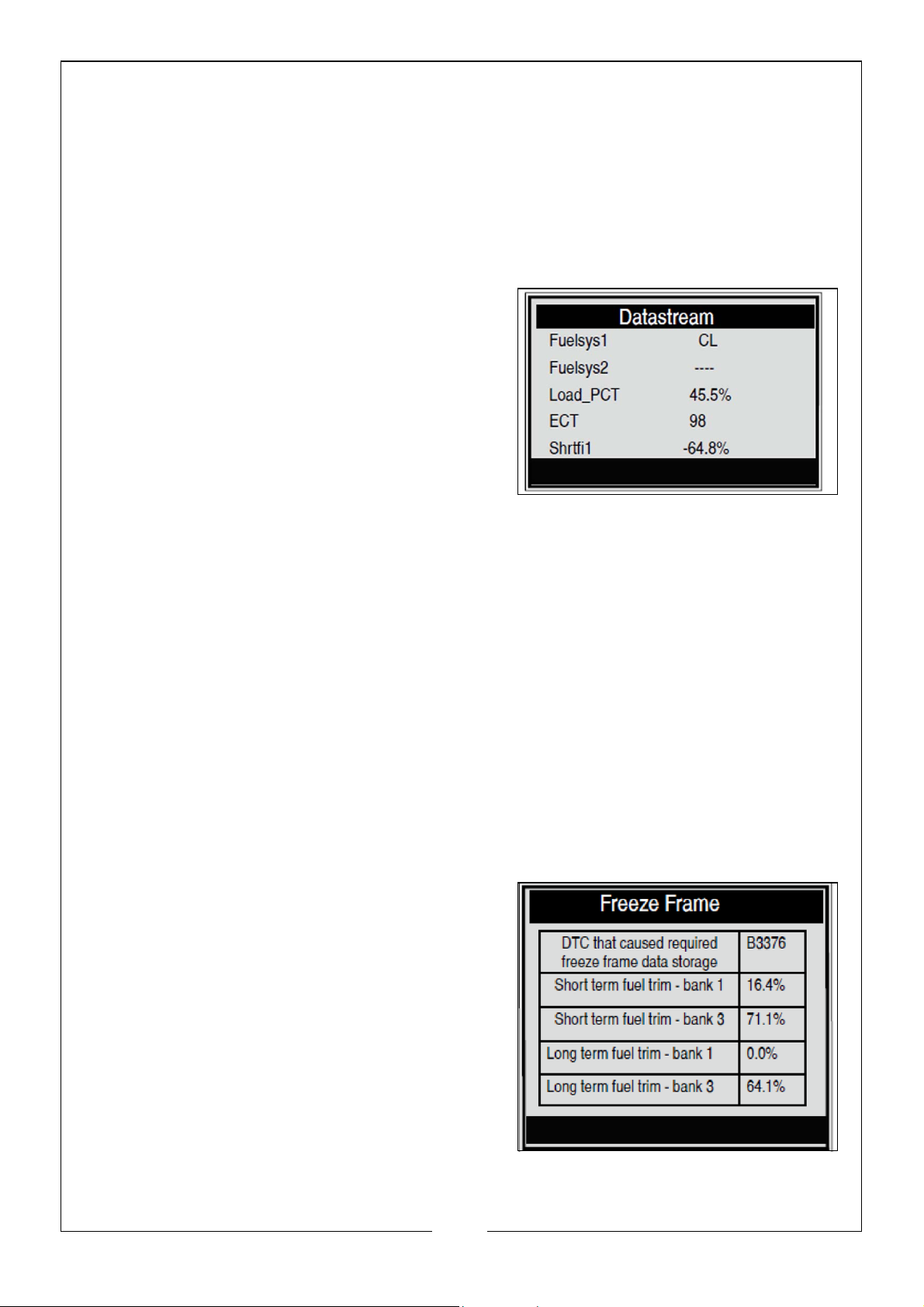

1. Use the SCROLL button to select Data
Stream from the Diagnostic Menu and
press the ENTER button.

NOTE: If there is no Freeze Frame Data

available, an advisory message
‘No Data Stream’ will show.

NOTE: The number ‘X’ to the right of the

screen indicates the sequence of
the highlighted item.

2. Wait a few seconds while the scan tool validates the PID MAP.

3. If retrieved information covers more than one screen, use the SCROLL
button as necessary, until all the data has been shown.

4. Press the EXIT button to return to the previous screen.

VIEW FREEZE FRAME DATA

When an emission related fault occurs, certain vehicle conditions are
recorded by the onboard computer. This information is referred to as freeze
frame data. Freeze Data is a snapshot of the operating conditions at the time
of an emission related fault.

NOTE: If DTCs were erased, Freeze Data may not be stored in the vehicle

memory depending on the vehicle type.

1. Select Freeze Frame in the main menu
interface, the screen will display the
interface as shown:

NOTE: If there is no Freeze Frame Data

available, an advisory message
‘No freeze frame data stored’ will
be shown.

2. Press the EXIT button to return to the
Diagnostic Menu.

18

Parts & Service: 020 8988 7400 / E-mail: [email protected] or [email protected]

I/M READINESS

I/M refers to Inspection and Maintenance that is legislated by the government
to meet clean air standards. I/M Readiness indicates if or not the various
emissions related systems on the vehicle operating properly and ready for I/M
testing.

The purpose of the I/M Readiness Monitor Status is to indicate which of the
vehicle status described on page 8, and which ones have not yet run and
completed testing and diagnosis of their designated sections of the vehicle
system.

The I/M Readiness Monitor Status function can also be used (after repair of a
fault has been performed) to confirm that the repair has been performed
correctly, and/or to check for Monitor Run Status.

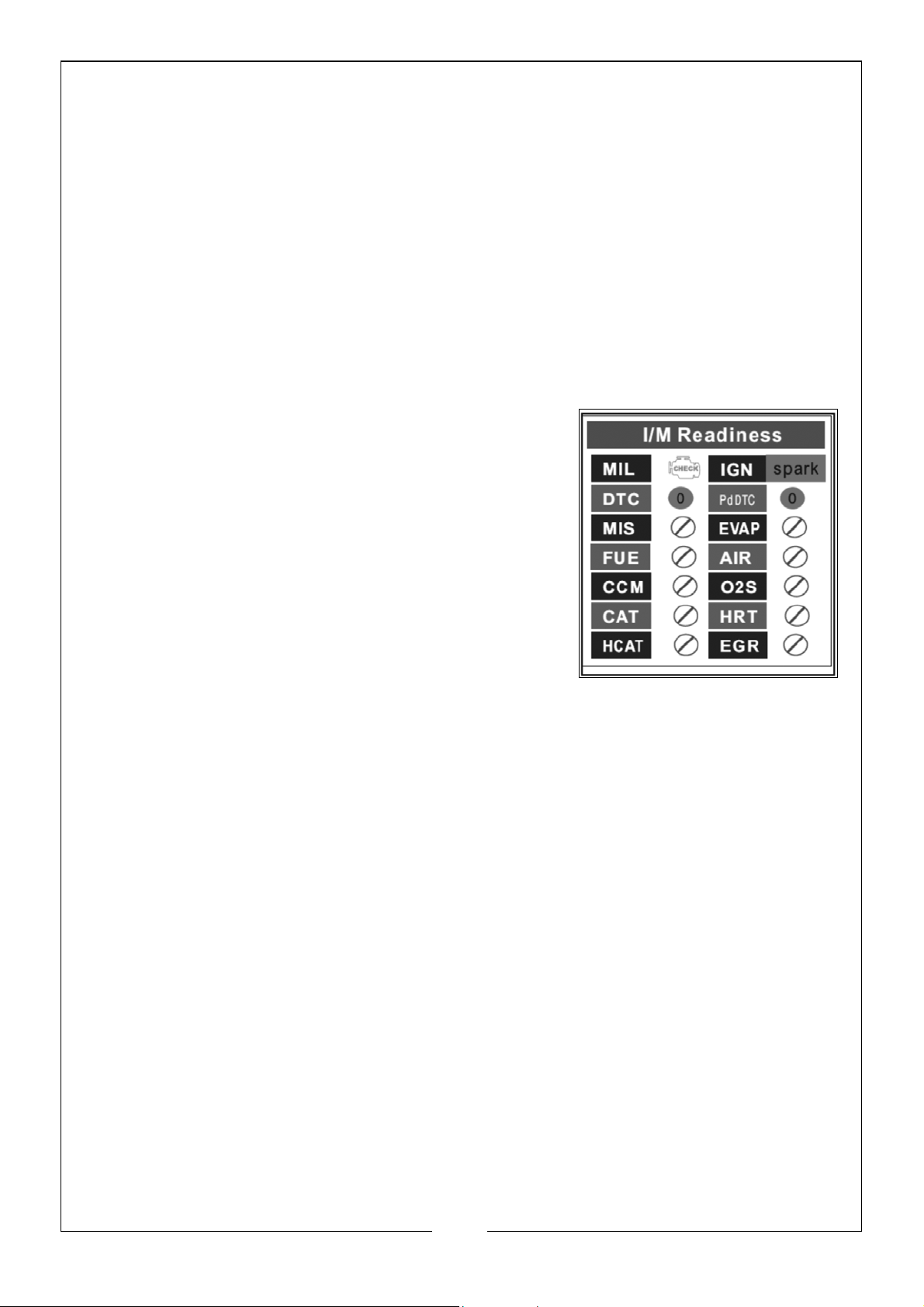

1. Select I/M readiness and press ENTER,
the screen will display as shown:

NOTE: You can use the UP/DOWN Scroll

button to select and press ENTER.

NOTE: N/A means not available on this

vehicle. INC means incomplete or
not ready. OK means completed or
monitor OK.

There are two modes to show I/M Readiness Monitor Status. You can configure
work modes in the Setup menu.

1. Scan Tool Mode: This mode is the default work mode. In this mode, after the
vehicles monitors have run and completed their diagnosis and testing, the
scan tool will turn to OBDII diagnostic procedures.

NOTE: Only in this mode can you perform the OBDII diagnostics.

2. Ready Test Mode: In this mode, after the vehicles monitors have run and
completed their diagnosis and testing, the scan tool will return to the
previous screen. So it is only used to check the emission related monitors
status.

READY TEST MODE

Repairs to the emissions control system of a 1996 or newer vehicle may cause
the vehicles computer (ECU) memory to be cleared. The vehicle must go
through a drive cycle to allow the ECU to perform a series of tests to ensure
that the repair was successful, and before a mandated emissions test can be
conducted.

19

Parts & Service: 020 8988 7400 / E-mail: [email protected] or [email protected]

Modern vehicles lack the equipment to indicate whether the tests have been
completed. With the auto code reader, you don’t have to bring the vehicle
back to the repair shop for retest if all required tests by the ECU are
completed.

In the Ready Test Mode, you can easily check the I/M Readiness status to
determine whether an OBDII vehicle is ready for an emissions test.

To enter this mode, simply press the One Click Key at anytime. If the One Click
function key is set to I/M Readiness. Or, while the scan tool is in Ready Test
Mode, select Diagnostics in the main menu screen. If the scan tool is idle, it will
show the result immediately. If it is busy, it will wait till the current procedure has
finished. After viewing the status, press the I/M Readiness One Click key or
ENTER button to exit, which takes a few seconds.

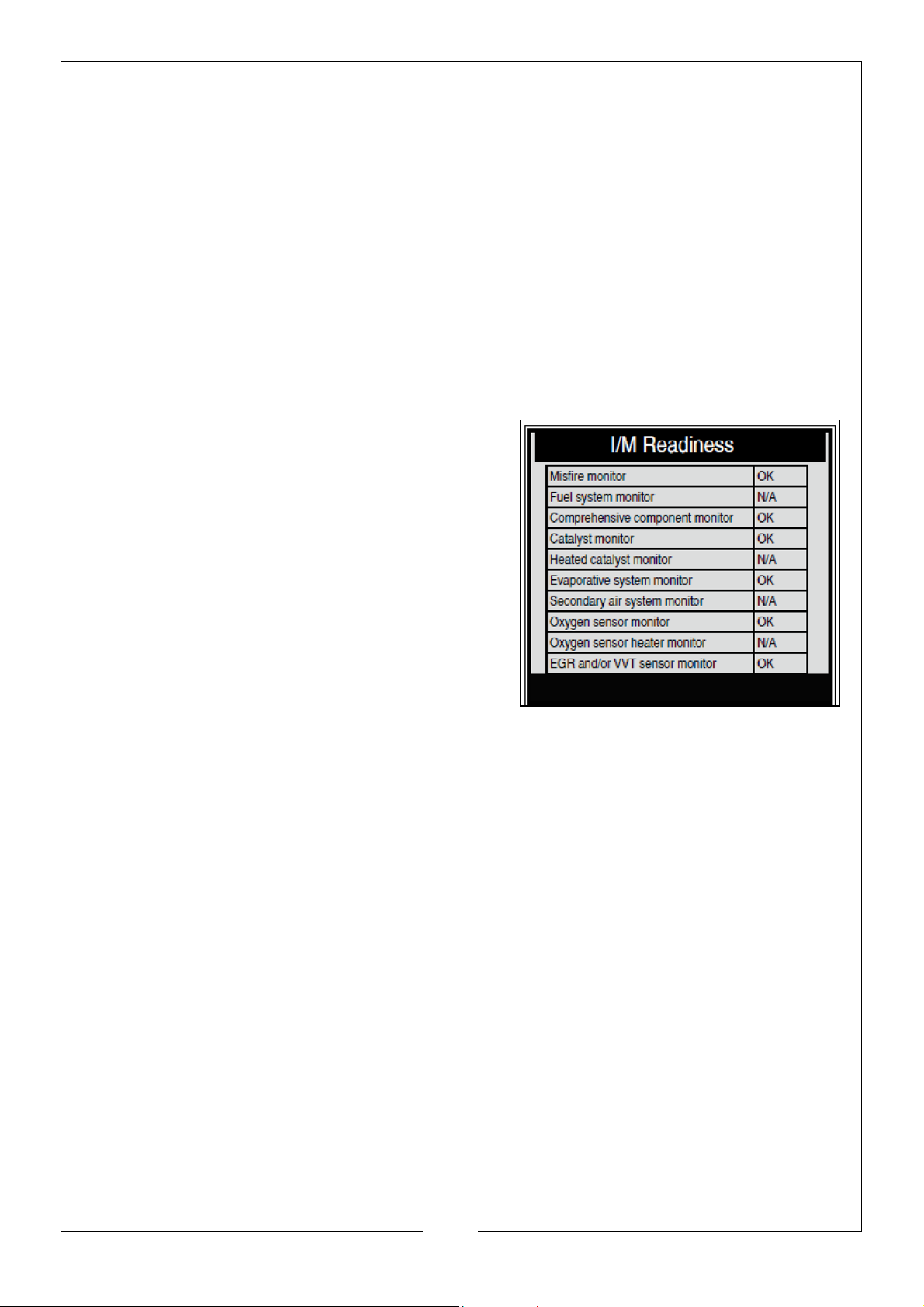

You will then get the information screen as
shown:

• OK - Indicates that a particular monitor
being checked has completed its
diagnostic testing.

• INC - Indicates that a particular monitor
being checked has not completed its
diagnostic testing.

•N/A - The monitor is not supported on this
vehicle.

The green and red LEDs provide an easy way to check if emission related
monitoring systems complete their self diagnostic testing

The LED and audio tone indications are as follow:

• Green LED - Indicates that the engine systems are OK and operating
normally (the number of monitors supported by the vehicle which have
run and performed their self diagnostic testing is in the allowed limit).

• Red LED - Indicates that the number of monitors supported by the
vehicle which have run and performed their self diagnostic testing is out
of the allowed limit.

VEHICLE INFO

The Vehicle Info. function enablers retrieval of Vehicle Identification No. (VIN),
Calibration ID Nos. (CINs), Calibration Verification Nos. (CVNs) and In Use
Performance Tracking on 2000 and newer vehicles that support Mode 9

1. Use the UP/DOWN SCROLL button to select the Vehicle Info. from the
Diagnostic Menu and press the ENTER button.

20

Parts & Service: 020 8988 7400 / E-mail: [email protected] or [email protected]

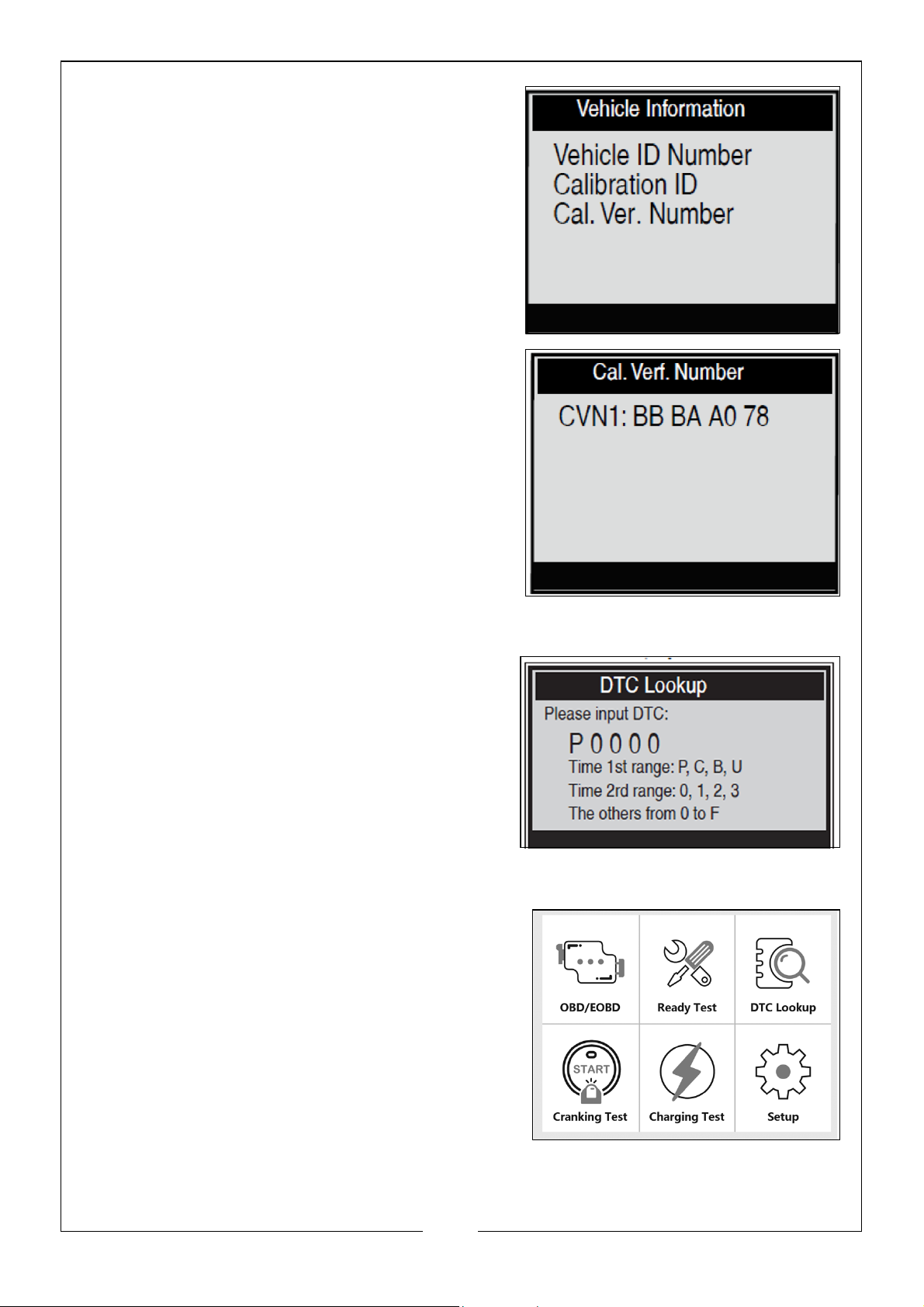

2. From the Vehicle Info. Menu, use the
SCROLL button to select an available
item to view and press the ENTER button

.

3. View retrieved vehicle information on
screen as shown:

CODE LOOKUP

Select DTC Lookup in the main menu and
press the ENTER button and the screen will
display as shown:

You can use the SCROLL key to change
the first letter. Press the Fn button to switch
to the next position.

STARTER/CRANKING TEST

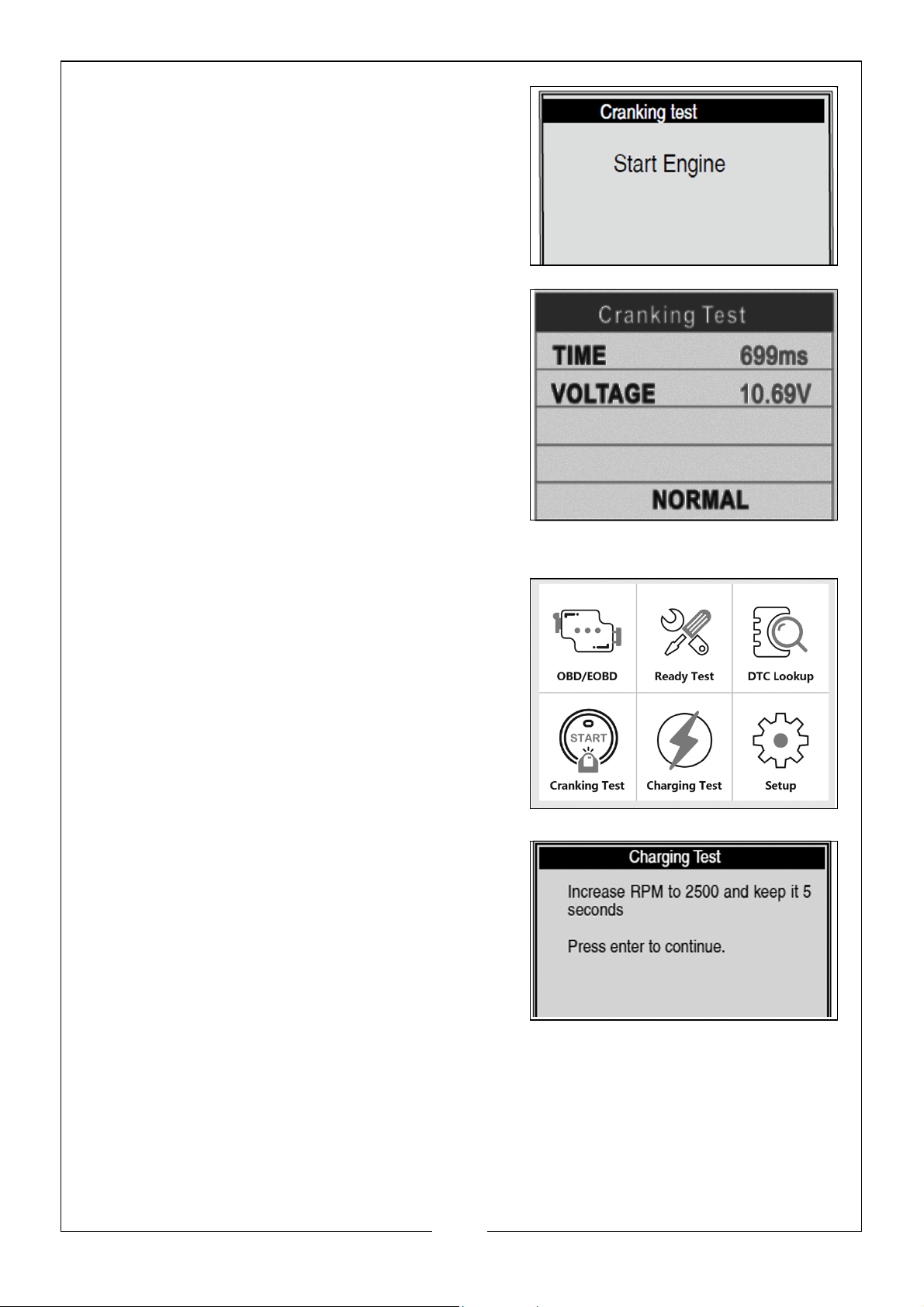

1. From the main menu, use the UP/DOWN
button to select the Cranking Test mode
and press the ENTER button.

21

Parts & Service: 020 8988 7400 / E-mail: [email protected] or [email protected]

2. Press the ENTER button to enter the test
mode.

3. Start the engine.

4. It will then show the test results - Normal/
Abnormal/Low/High, Starting Time and
Lowest Volt

ALTERNATOR/CHARGING TEST

1. From the main menu, use the UP/DOWN
button to select the Charging Test mode
and press the ENTER button.

2. Press the ENTER button to enter the test
mode.

3. Start the engine and follow the
instructions on the screen.

22

Parts & Service: 020 8988 7400 / E-mail: [email protected] or [email protected]

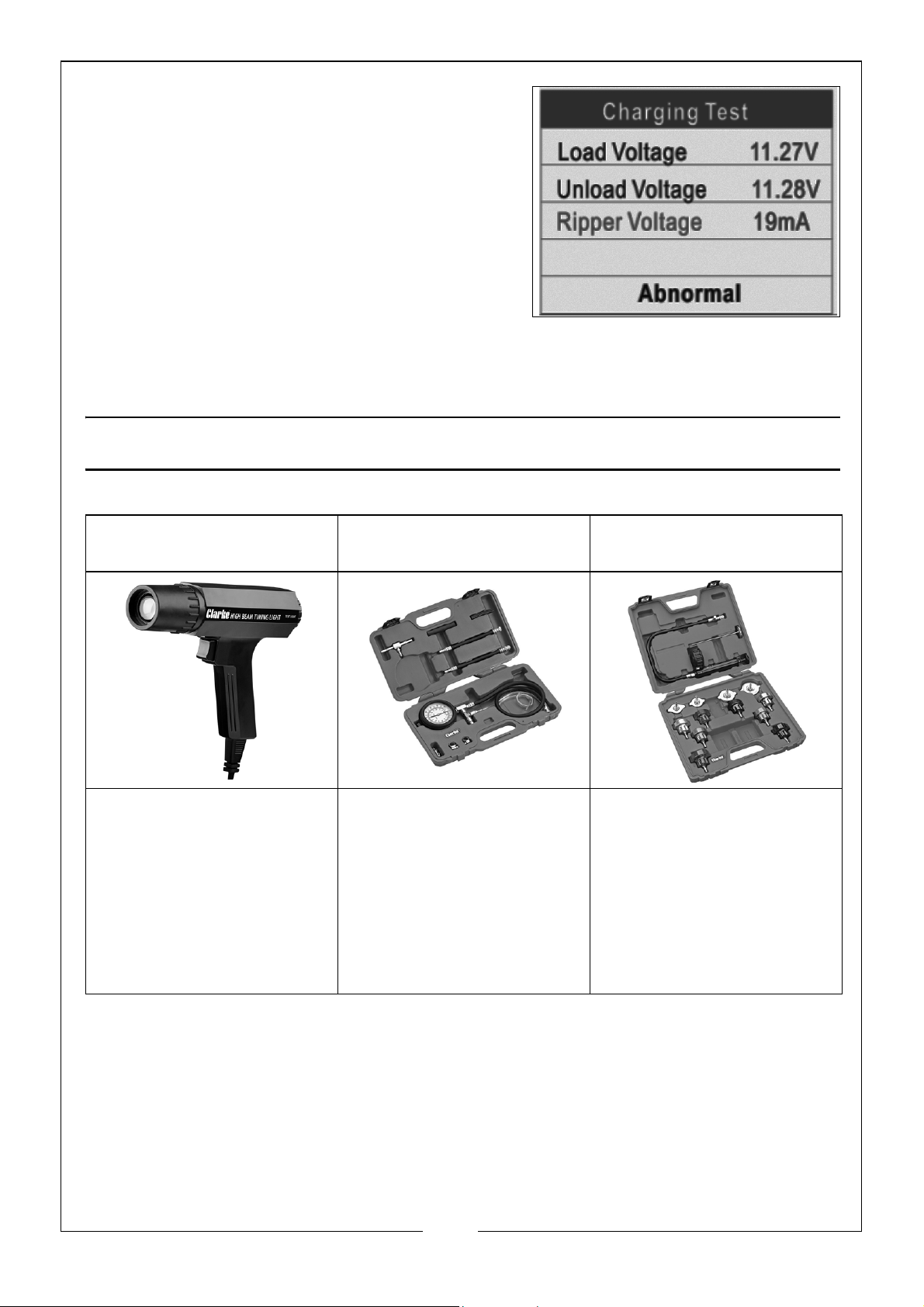

4. It will then show the test results - Normal/
Abnormal/Low/High, Loaded Volt and
Unload Volt.

ASSOCIATED CLARKE PRODUCTS

High Beam Timing Light

- CHBTL1

•Timing Advance up to

o

60

BTDC

•Trigger Activated

•12V Clamp Leads

•Part No. 4003402

Fuel Injection Testing Kit

- CHT713

•Includes: Gauge,
Pressure Relief Valve,
Relief & Pressure
Hoses, Small Length of
Hose, Hose Clips &
Fuel Bolt with Seal.

•Part No. 1801713

Radiator Pressure Test

Kit - CHT694

•Triple Calibrated
Pump

•12 Colour Coded
Adaptors

•610mm Hose with
Pressure Release Valve

•Part No. 1801694

23

Parts & Service: 020 8988 7400 / E-mail: [email protected] or [email protected]

TROUBLESHOOTING

Error Solution

Vehicle Linking
Error

Operating Error If the scan tool freezes, then

A communications error
occurs if the scan tool fails to
communicate with the
vehicles ECU (Engine Control
Unit). You need to do the
following to confirm
connectivity:

an exception occurs of the
vehicles ECU is too slow to
respond to requests. You
need to do the following to
reset the scan tool:

1) Verify that the ignition is
ON.

2) Check if the scan tools
OBDII connector is
securely connected to
the vehicles DLC.

3) Verify that the vehicle is
OBDII compliant.

4) Turn the ignition off and
wait for about 10
seconds. Turn the ignition
back on and continue
the testing.

5) Verify the control
module is not defective.

1) Turn the ignition off and
wait for about 10
seconds. Turn the ignition
back on and continue
the testing.

Scan Tool Doesn’t
Power Up

Parts & Service: 020 8988 7400 / E-mail: [email protected] or [email protected]

If the scan tool does not
power up or operates
incorrectly in any other way,
you need to do the
following:

24

1) Check if the scan tools
OBDII connector is
securely connected to
the vehicles DLC.

2) Check if the DLC pins
are bent or broken. Clean
the DLC pins if necessary.

3) Check the vehicle
battery to make sure it is
still good with at least 8
volts.

4) Verify the control
module is not defective.

LED Lights Not
Working

If you turn on the scan tool
and perform the I/M
Readiness test but the LED
lights are not working, there
may be several possible
causes, including bad
connection and ignition is
OFF. In this case, follow these
steps to confirm:

1) Check if the scan tools
OBDII connector is
securely connected to
the vehicles DLC.

2) Verify the ignition is on
and the engine is running.

3) Run the LED test in the
system setup menu. If the
scan tool does not pass
this test, there is a
problem with the LED
lights, please contact the
CLARKE service
department.

Can’t Use the
Diagnostic
Function

When you select the
Diagnostics function in the
main menu screen and it
only shows the I/M Readiness
status, the scan tool may be
in the Ready Test Mode.

1) Select Scan Tool Mode
in the System Setup menu.

25

Parts & Service: 020 8988 7400 / E-mail: [email protected] or [email protected]

DECLARATION OF CONFORMITY - UKCA

26

Parts & Service: 020 8988 7400 / E-mail: [email protected] or [email protected]

DECLARATION OF CONFORMITY - CE

27

Parts & Service: 020 8988 7400 / E-mail: [email protected] or [email protected]
