MOBILE WORK TABLE
MODEL NO: CMWT35
PART NO: 7630035
USER MANUAL
ORIGINAL INSTRUCTIONS DL0424
Page 2
INTRODUCTION
Thank you for purchasing this CLARKE Mobile Work Table.
Before attempting to use this product, please read this manual thoroughly and
follow the instructions carefully. In doing so you will ensure the safety of yourself
and that of others around you, and you can look forward to your purchase
giving you long and satisfactory service.
Please keep these instructions in a safe place for future reference.
GUARANTEE
This product is guaranteed against faulty manufacture for a period of 12
months from the date of purchase. Please keep your receipt which will be
required as proof of purchase.
This guarantee is invalid if the product is found to have been abused or
tampered with in any way, or not used for the purpose for which it was
intended.
Faulty goods should be returned to their place of purchase, no product can
be returned to us without prior permission.
This guarantee does not effect your statutory rights.
ENVIRONMENTAL PROTECTION
DO NOT dispose of old products or damaged parts with general
household waste. All tools, accessories and packaging no longer
required should be sorted, taken to a recycling centre and
disposed of appropriately.
2
Parts & Service: 020 8988 7400 / E-mail: [email protected] or [email protected]
Page 3
DESCRIPTION
This mobile work table consists of a wide table tray, an adjustable height support
column and four wheels. This work table is a movable multi-function tool table,
NOT a heavy support equipment or transport table. Please pay attention to the
maximum load weight capacity.
SPECIFICATION
Product Description Mobile Work Table - CMWT35
Part Number 7630035
Work Table Weight 17.5kg
Maximum Load Weight 35kg (77.16lb) Evenly Loaded
Measurements Height Max.: 1285mm
Height Min.: 940mm
Width: 760mm
Depth: 740mm
Tool Tray Working Area Depth: 750mm
Width: 520mm
SAFETY
1. Ensure that this user manual is read and understood by everybody that will
be using this work table.
2. Take care when placing a load on to the work table. It should be placed
gently so that the strain is taken up gradually.
3. NEVER exceed the maximum load weight of 35kg.
4. DO NOT move the table while it is carrying excessive weight.
5. ALWAYS ensure you are working on a firm flat stable surface.
6. DO NOT mount/directly attach power tools on to the work table.
7. NEVER stand on the work table.
8. Before use, ALWAYS ensure that the locking pin is securely positioned and
the wheel locks are in proper working condition. Failure to follow these
instructions may result in personal injury or equipment damage.
9. AV OI D storing the work table outside or in humid environments.
3
Parts & Service: 020 8988 7400 / E-mail: [email protected] or [email protected]
Page 4
ASSEMBLY

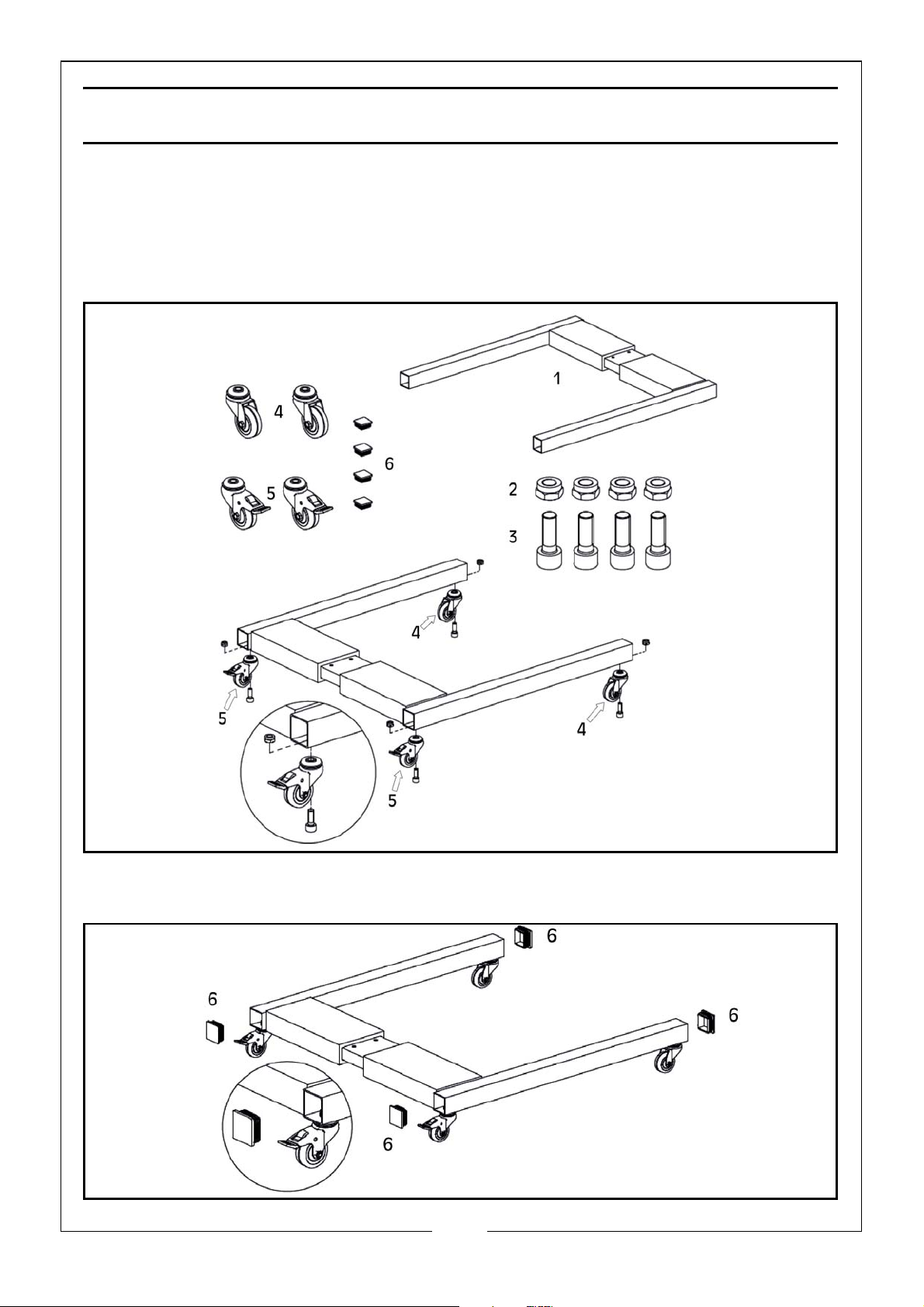

1. Place a nut (2) into each end of the leg section (1), as shown.
2. Place a bolt (3) through each castor (4&5) and the leg section and tighten
into place. Make sure that the 2 locking casters (5) are positioned at the
cross section end of each leg, as shown
3. Place a rubber stopper (6) over each end of the leg sections, as shown.
4
Parts & Service: 020 8988 7400 / E-mail: [email protected] or [email protected]
Page 5

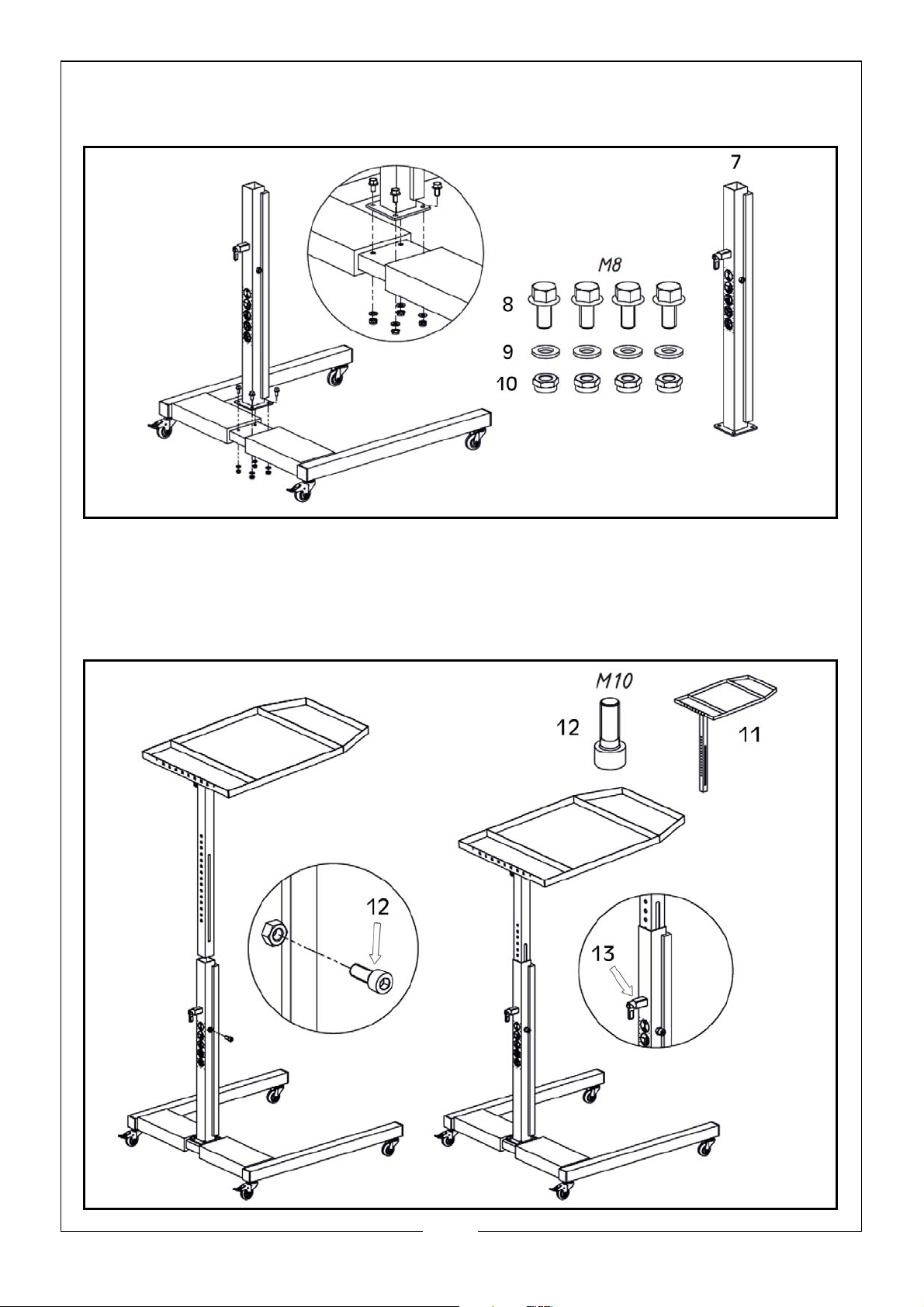

4. Place the table support (7) onto the leg section, with the rubber protection
side facing inward as shown.
5. Place the 4 M8 bolts (8) into the holes at the base of the table support and
tighten using the washers (9) and nuts (10) from underneath the leg
section.
6. Place the tool table section (11) into the table support, as shown.
5
Parts & Service: 020 8988 7400 / E-mail: [email protected] or [email protected]
Page 6
7. Place the running bolt (12) into the nut in the side of the table support. This
is to stop the tool table section being lifted out inadvertently.

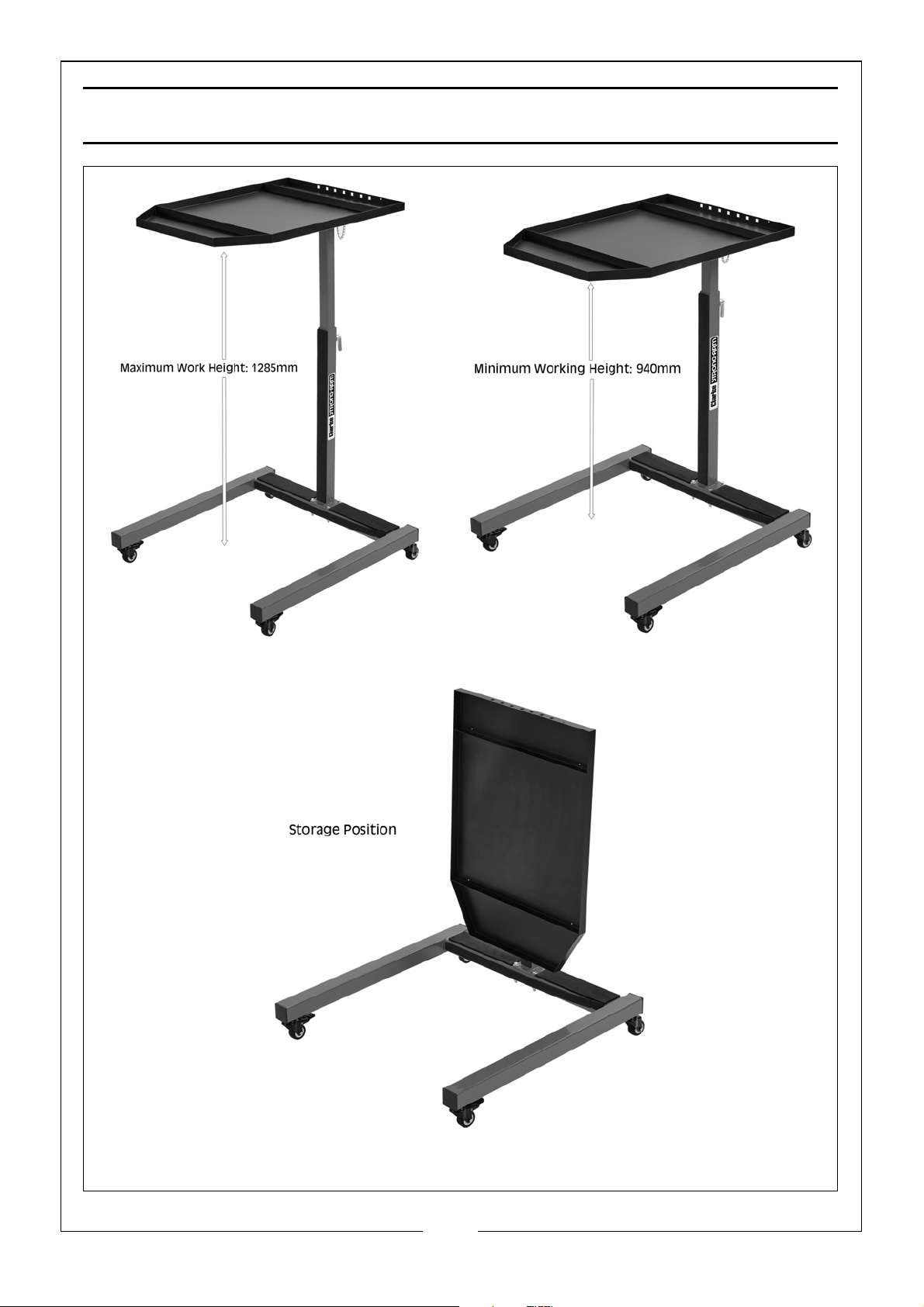

8. Move the tool table section up or down to the height required and lock in
place using the locking pin (13).

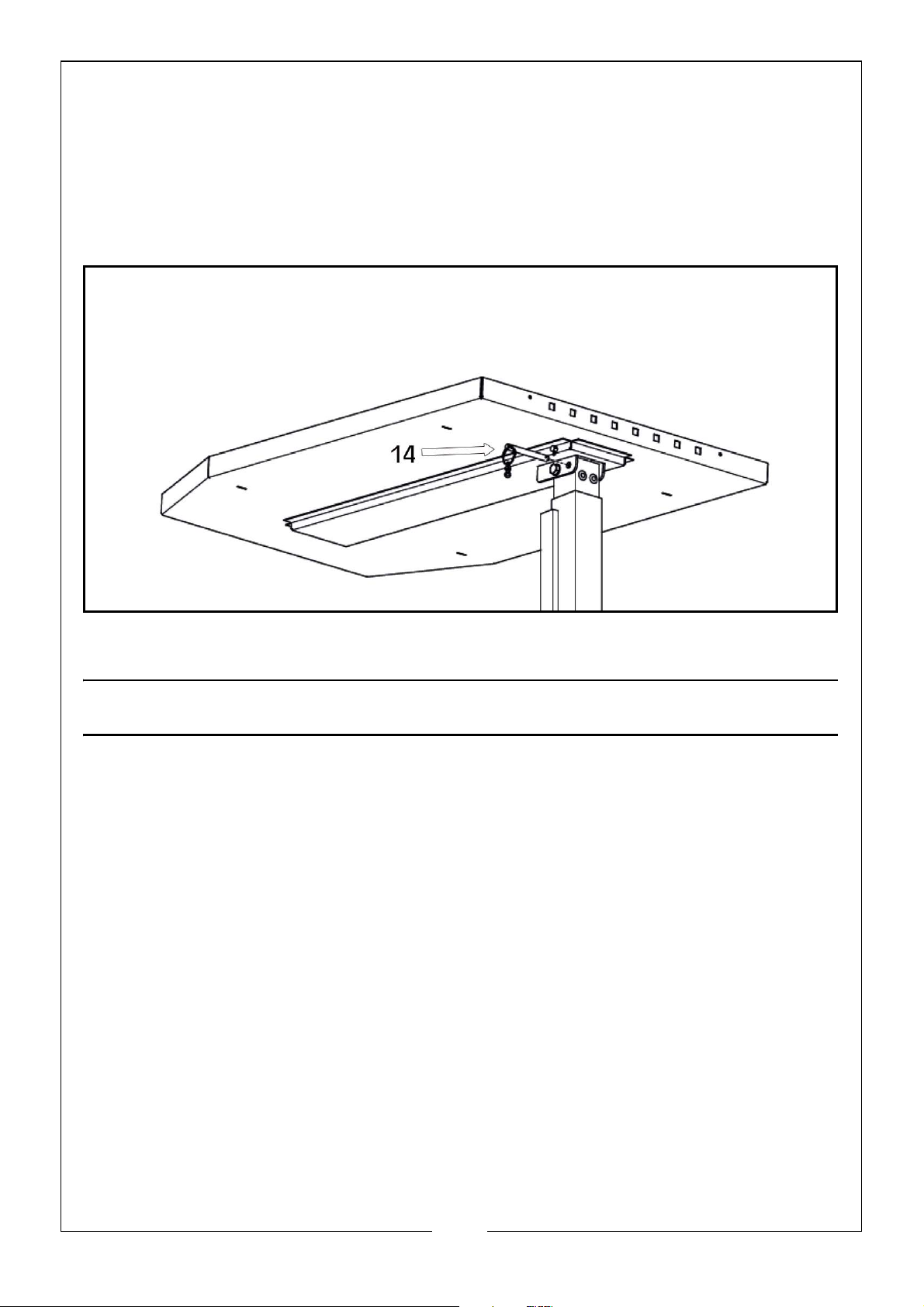

9. Pull the tool table top up to the horizontal and insert the fixing pin (14) in
place, as shown.
MAINTENANCE
1. When not in use, lower the position of the tool table to the lowest position,
and pull out the fixing pin of the table panel to place the table in the
folded state.
2. After each use, remove any accessories or tools and clean the table to
prevent oil pollution.
3. Regularly check whether the casters are flexible and the brakes work
correctly. If there is any movement problems, replace the casters.
6
Parts & Service: 020 8988 7400 / E-mail: [email protected] or [email protected]
