Page 1
MECHANICS SEAT
MODEL NO: CMSTRT
PART NO: 7630143
USER INSTRUCTIONS
DL1122
Page 2
INTRODUCTION
Thank you for purchasing this CLARKE Mechanics Seat.
Before attempting to use the product, it is essential that you read this manual
thoroughly and carefully follow all instructions given. In doing so you will ensure
the safety of yourself and that of others around you, and you can also look
forward to the product giving you long and satisfactory service.
GUARANTEE
This CLARKE product is guaranteed against faulty manufacture for a period of
12 months from the date of purchase. Please keep your receipt as proof of
purchase. This guarantee is invalid if the product is found to have been
abused or tampered with in any way, or not used for its intended purpose.
Faulty goods should be returned to their place of purchase, no product can
be returned to us without prior permission. This guarantee does not effect your
statutory rights.
2
Parts & Service: 020 8988 7400 / E-mail: [email protected] or [email protected]
Page 3
SAFETY PRECAUTIONS
1. Use your mobile seat for any task where you would normally sit or kneel.
Place on level ground ensuring that the floor surface is hard enough that
the castors do not sink in.
2. Use the seat as intended and in accordance with these instructions, taking
into account the working conditions and the work to be performed. Use of
the stool for operations different from those intended could result in a
hazardous situation.
3. This product is not a toy. DO NOT allow children to play with or near this
item and store out the reach of children.
4. Store idle equipment. When not in use this product must be stored in a dry
location to inhibit rust.
5. DO NOT leave the mobile seat where it may accidentally become a trip
hazard.
6. Inspect before every use; DO NOT use if parts are lose or damaged.
7. Have any damaged parts repaired or replaced immediately. Use genuine
CLARKE parts only. The use of unauthorised parts may be dangerous and
will invalidate the guarantee.
8. NEVER climb on, stand on, or attempt to ride on the mobile seat or use it to
transport heavy objects.
9. DO NOT exceed the safe working load of the seat (136kg/300lbs).
10. NOTE: Be aware of dynamic loading!. Sudden shifts in the load may briefly
create excess load, which may result in product failure.
11. It is recommended not to use the seat as a kneel board if you have any
medical conditions with your legs or knees.
12. WARNING: DO NOT stand on this product. Serious injury can occur.
13. The warnings, cautions and instructions discussed in this instruction manual
can’t cover all possible conditions and situations that may occur. It must be
understood by the operator that common sense and caution are factors
which cannot be built into this product and must be supplied by the
operator.
3
Parts & Service: 020 8988 7400 / E-mail: [email protected] or [email protected]
Page 4
UNPACKING & ASSEMBLY
Unpack and lay out all components, checking for any damage which may
have occurred during transit, and ensuring that all parts are accounted for by
checking against the parts list. Should there be any deficiency or damage,
please contact your CLARKE dealer immediately.

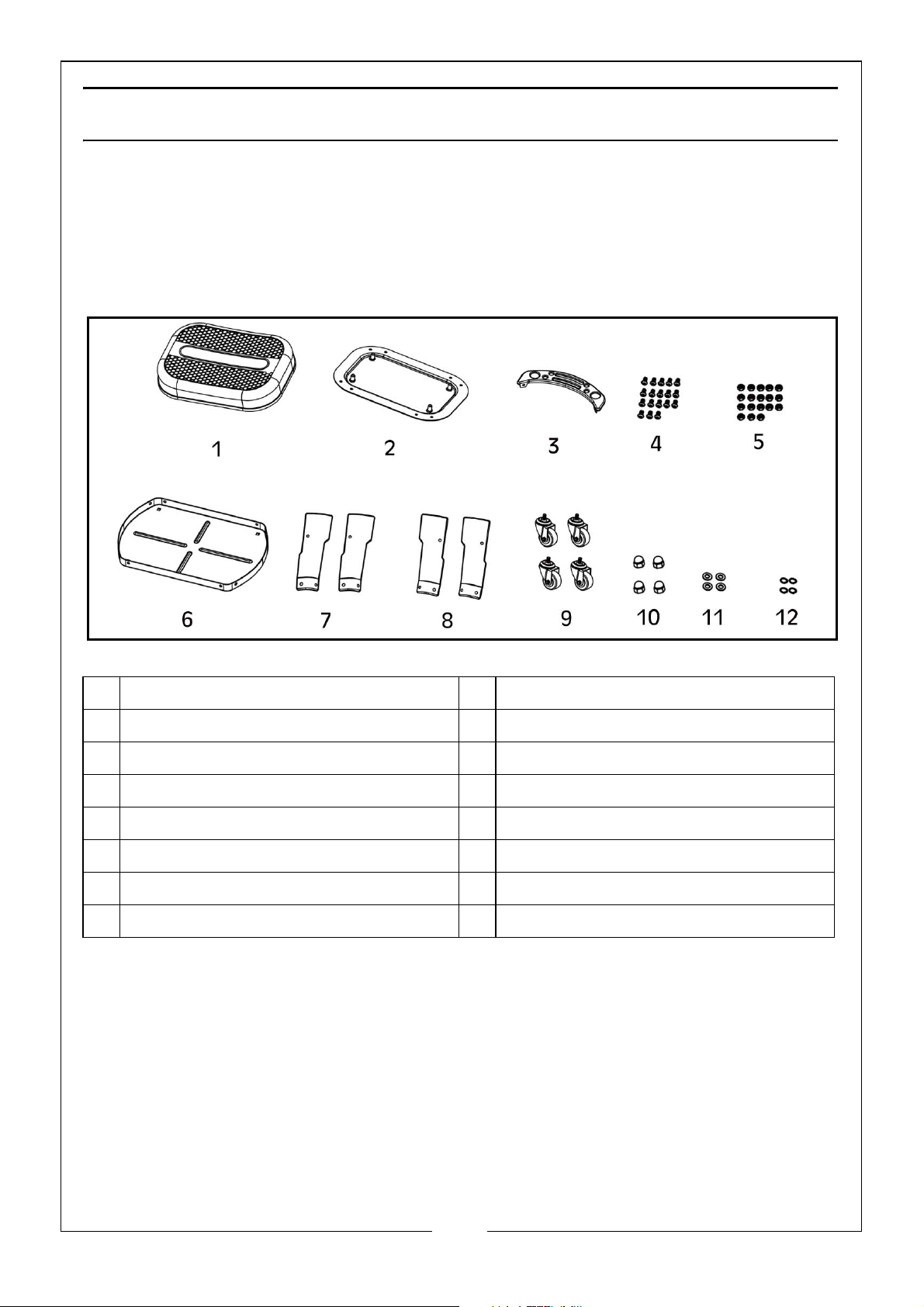

PARTS LIST
1Seat 92” Castor x 4
2 Seat Chassis 10 Cap Nut x 4
3 Tool Rack 11 M8 Gasket x 4
4 5mm Hex Head Cap Screw x 18 12 Spring Washer x 4
5 M6 Locknut x 18 13 10mm (M6) Spanner (Not Shown)
6 Base Plate 14 13mm (M8) Spanner (Not Shown)
7 Left Side Bracket x 2 15 5mm Hex Key (Not Shown)
8 Right Side Bracket x 2
4
Parts & Service: 020 8988 7400 / E-mail: [email protected] or [email protected]
Page 5
ASSEMBLY
ASSEMBLY PRECAUTIONS
• Assemble only according to these instructions. Improper assembly can
create hazards.
• Keep children, pets and bystanders out of the area during assembly.
Distractions can cause you to lose control of tools, injuring yourself or others.
• Weight capacity and other product capabilities apply to correctly and
completely assembled product only. DO NOT use if incomplete or incorrectly
assembled.
• Assemble on a soft surface to avoid scratching or damaging the seat.

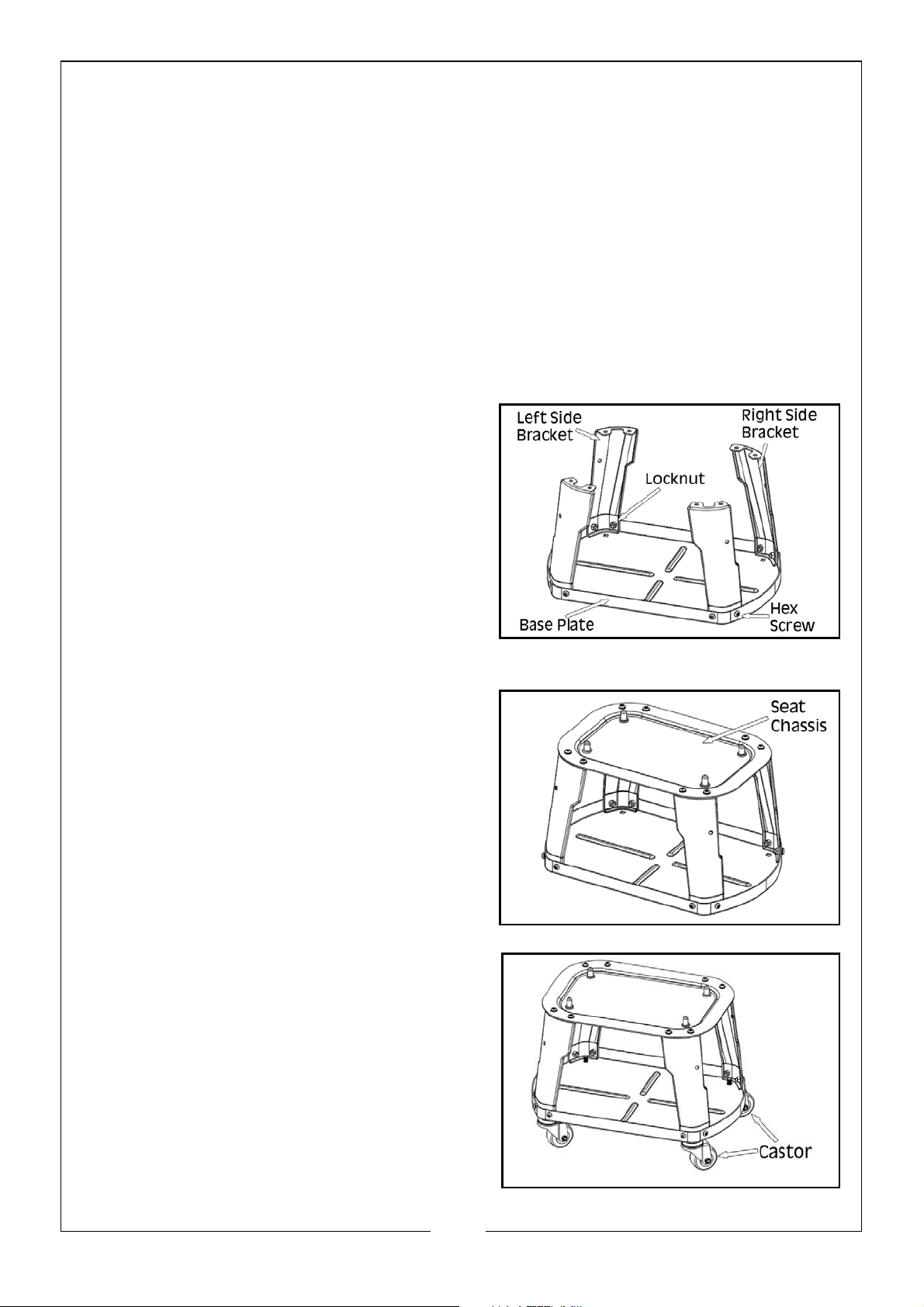

1. Install the left (7) and right (8)
brackets on the base plate (6) in
turn, as shown. Lock them with the
hex head cap screws (4) and M6
locknuts (5).
2. Install the seat chassis (2) on to the
brackets (7 & 8). Lock the chassis in
place using the socket head cap
screws (4) and M6 locknuts (5)
3. Install the 4 castors (9) on the
underside of the base plate (6),
paying attention to the square
clamp at the bottom of the castor
thread and square hole on the base
plate. Lock the castors in place using
the M8 gasket (11), spring washer (12)
and cap nut (10).
5
Parts & Service: 020 8988 7400 / E-mail: [email protected] or [email protected]
Page 6

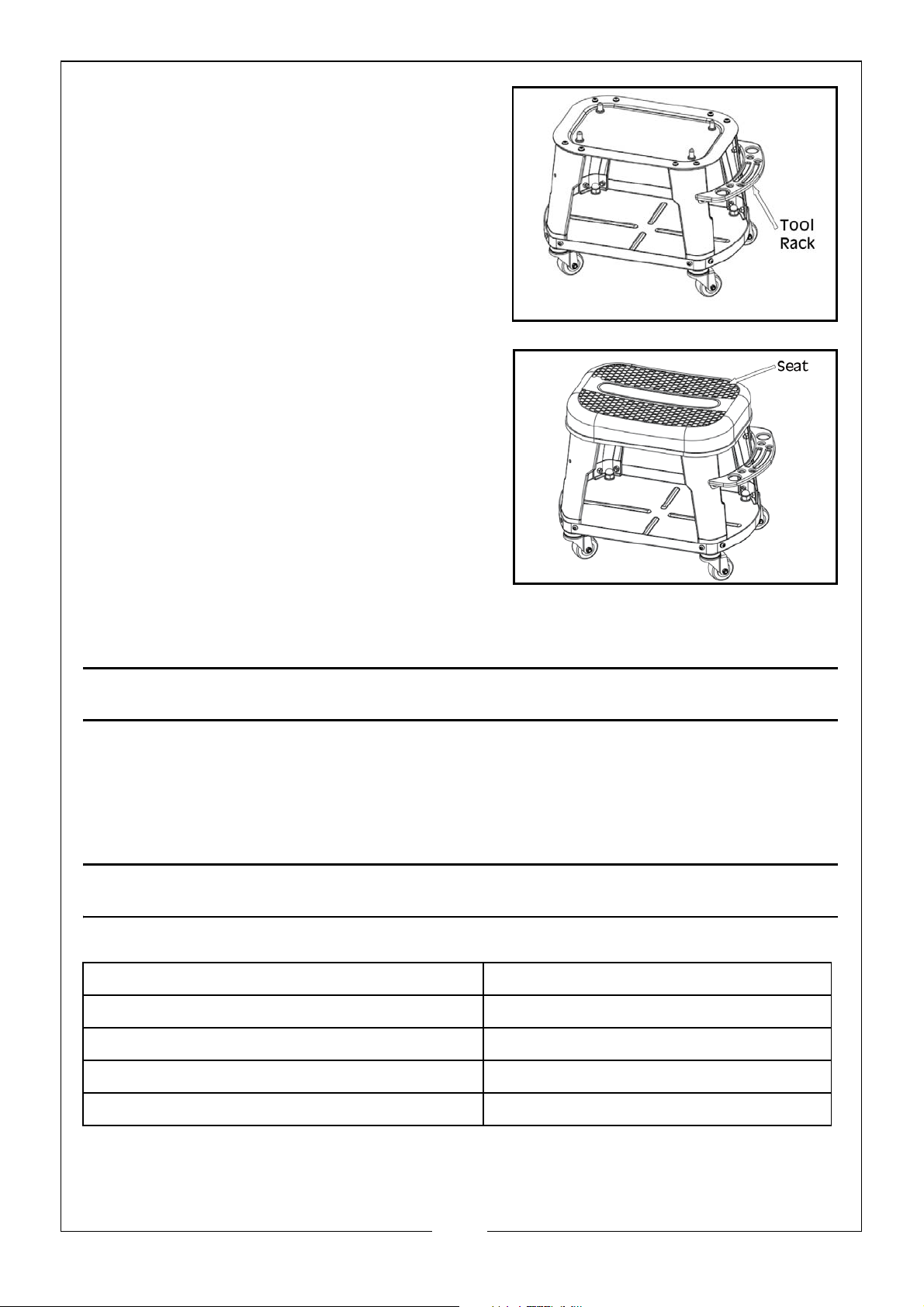

4. Install the tool rack (3) on the side of
the brackets (7 & 8) as shown. Lock the
rack in place using the cap screws (4)
and M6 locknuts (5).
5. Place the seat (1) onto the top of the
chassis (2), making sure the 4 pins in
the chassis line up with the 4 indents in
the underside of the seat.
• Seat is removable and can be used as a
kneel board.
6. Check that all nuts are tight and
secure before using this seat.
Your mobile seat is now ready for use.
MAINTENANCE
• Keep the mechanics seat clean using a soft damp cloth and a mild cleaner
if required.
• Keep the castors free from dust and oil.
SPECIFICATIONS
Model Number CMSTRT
Dimensions (D x W x H, Incl. castors) 415mm x 270mm x 345mm
Seat Area (D x W) 360mm x 260mm
Weight 6.15kg
Safe Working Load (Inc. Tools) 136kg/300lbs
6
Parts & Service: 020 8988 7400 / E-mail: [email protected] or [email protected]
Page 7
OTHER PRODUCTS IN THE CLARKE RANGE
Car Creepers -
Multiple
•Made From Tough
Coated Steel & Oil
Resistant Vinyl
•Ideal for Hobby, DIY,
Semi Professional or
Professional
•Part No.: See CLARKE
Website
Air Tools -
Multiple
•Assortment of Tools,
Compressors and
Equipment
•Spray Guns, Airlines,
DIY Tools, Professional
Garage Tools
•Part No.: See CLARKE
Website
Mechanics Hand Tools -
Multiple
•Socket Sets, Panel
Beating Sets,
Diagnostic Tools
•Ideal for use in the
Garage or Workshop
•Part No.: See CLARKE
Website
Tool Boxes & Cabinets -
Multiple
•From Portable Tool
Boxes to Modular
Garage Storage
Systems
•Part No.: See CLARKE
Website
Vehicle Jacks
- Multiple
•Suitable to lift 2 Tonne
to 20 Tonne
•Bottle Jacks, Trolley
Jacks, Farm Jacks
•Part No.: See CLARKE
Website
Battery Chargers &
Jumpstarters - Multiple
•From Small Micro
Jumpstarters to Heavy
Duty Professional
Starters
•Part No.: See CLARKE
Website
VISIT: WWW.CLARKEINTERNATIONAL.COM FOR MORE INFORMATION
