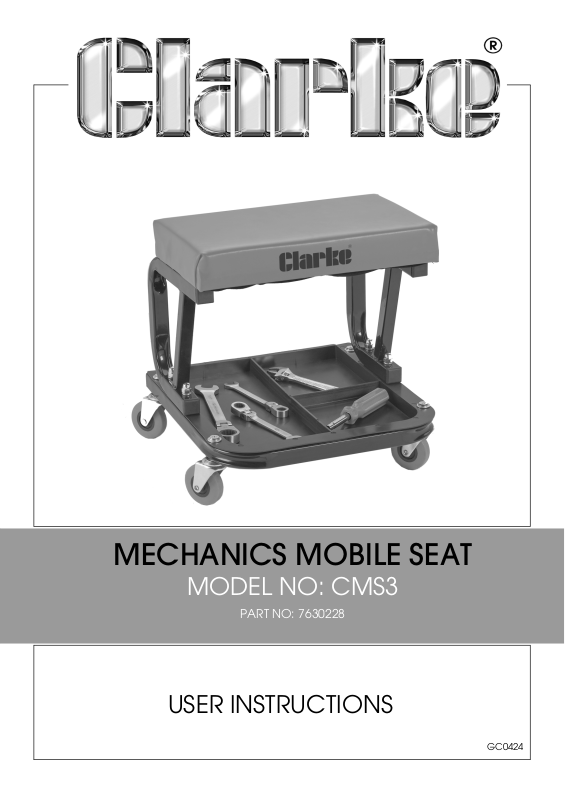

Page 1
MECHANICS MOBILE SEAT
MODEL NO: CMS3
PART NO: 7630228
USER INSTRUCTIONS
GC0424
Page 2
INTRODUCTION
Thank you for purchasing this CLARKE Mechanics Mobile Seat.
Before attempting to use the product, it is essential that you read this manual
thoroughly and carefully follow all instructions given. In doing so you will ensure
the safety of yourself and that of others around you and you can also look
forward to the product giving you long and satisfactory service.
GUARANTEE
This CLARKE product is guaranteed against faulty manufacture for a period of
12 months from the date of purchase. Please keep your receipt as proof of
purchase.
This guarantee is invalid if the product is found to have been abused or
tampered with in any way, or not used for its intended purpose.
Faulty goods should be returned to their place of purchase, no product can
be returned to us without prior permission. This guarantee does not effect your
statutory rights.
SAFETY PRECAUTIONS
1. Use your mobile seat for any task where you would normally sit or kneel,
ensuring the floor surface is hard enough that the castors do not sink in.
2. DO NOT leave the mobile seat where it may be accidentally trodden on.
3. Have any damaged parts repaired or replaced immediately. Use genuine
Clarke parts only. The use of unauthorised parts may be dangerous and will
invalidate the guarantee.
4. NEVER climb on, stand on, or attempt to ride on the mobile seat or use it to
transport heavy objects.
UNPACKING & ASSEMBLY
Unpack and lay out all components, checking for any damage which may
have occurred during transit, and ensuring that all parts are accounted for by
checking against the parts list. Should there be any deficiency or damage,
please contact your Clarke dealer immediately.
2
Parts & Service: 020 8988 7400 / E-mail: [email protected] or [email protected]
Page 3
1. Using the hand tools supplied,
assemble as follows.
2. Mount the side supports (2) to the
base assembly with the 14mm
bolts (11), small washers (10),
spring washers (5) and domed
nuts (4), tightening securely.
3. Attach the seat cushion (1) to the
side supports, using the x-headed
machine screws (3).
4. Fix the castors to the frame using the large washers (7)& retaining inserts (6).
Check that all fixings, including those securing the castors and base frame are
tight and secure before using this seat. Your mobile seat is now ready for use.
COMPONENT PARTS OF THE SEAT
No Description
1 Seat Cushion
2 Side Support
3 Machine Screw
4 Domed Nut
5 Spring Washer
6 Castor Retaining Insert
7 Washer (large)
8 Base Frame
9Swivel Castor
10 Washer (small)
11 Bolt
12 Plastic Base Tray
FEATURE
RATING
Max Capacity 113 kg
Net Weight 4.35 kg
Dimensions 355 x 375 x 380 mm
3
Parts & Service: 020 8988 7400 / E-mail: [email protected] or [email protected]
