Clarke CMP10 User guide

Thank you for purchasing this CLARKE megaphone which is ideal for use on
construction and demolition sites, sports fields, rowing, outdoor events and for fire
drills etc. It features a siren, volume control, folding handle and shoulder strap.
Please keep these instructions in a safe place for future reference.

MEGAPHONE

MODEL NO: CMP10

PART NO: 4560600

USER INSTRUCTIONS

ORIGINAL INSTRUCTIONS GC 09/25 Rev 1

SPECIFICATIONS

Horn Diameter 155 mm

Length 260 mm

Wattage 10 W

Range 200 Metres

Net weight including batteries 1 kg

ENVIRONMENTAL PROTECTION

DO NOT dispose of old products or damaged parts with general household

waste. All tools, accessories and packaging no longer required should be
sorted, taken to a recycling centre and disposed of appropriately.

GUARANTEE

This product is guaranteed against faulty manufacture for a period of 12 months from
the date of purchase. Please keep your receipt which will be required as proof of
purchase.

This guarantee is invalid if the product is found to have been abused or tampered
with in any way, or not used for the purpose for which it was intended.

Faulty goods should be returned to their place of purchase, no product can be
returned to us without prior permission. This guarantee does not effect your statutory
rights.

BATTERY REPLACEMENT

The megaphone uses 4 x HP2 size batteries (not supplied). Re-chargeable batteries
are not recommended for use in this megaphone

To fit new batteries proceed as follows:

2

Parts & Service: 020 8988 7400 / E-mail: [email protected] or [email protected]

1. Push in the lid release button, see fig l, and lift up the lid.

2. Insert new batteries, ensuring the correct polarity, see fig. 2.

3. Close the lid, ensure it is latched securely.

To replace the batteries at the end of their life continue with 1 above. Remove old
batteries and dispose of according to local authority regulations before replacing.

OPERATION

When using the megaphone, ALWAYS consider others around you and NEVER
operate when close to people or animals.

TO OPERATE THE SIREN

1. Turn the volume down by sliding the volume control fully to the left.

2. Push ON/Off button in.

3. Push the Siren/Speak button in.

4. Slowly raise the volume by slowly sliding the volume control to the right until the
desired volume is reached.

TO OPERATE AS A PUBLIC ADDRESS SYSTEM

1. Turn the volume down as above.

2. Ensure the Siren/Speak button is
in the speak position (OUT).

3. Lift the megaphone up to your
mouth and hold It so that the
microphone is approx 2" away.

4. Aim the megaphone in the
direction required.

5. Push the ON/OFF button in, speak
clearly and concisely into the
microphone, slowly pushing the
volume control to the right until
the desired volume is reached.

To keep your megaphone clean, wipe
with a damp cloth only. DO NOT use
detergents or harmful abrasives.

Remove the batteries if the
megaphone is not to be used for long
periods to prevent damage from
leaking batteries.

3

Parts & Service: 020 8988 7400 / E-mail: [email protected] or [email protected]

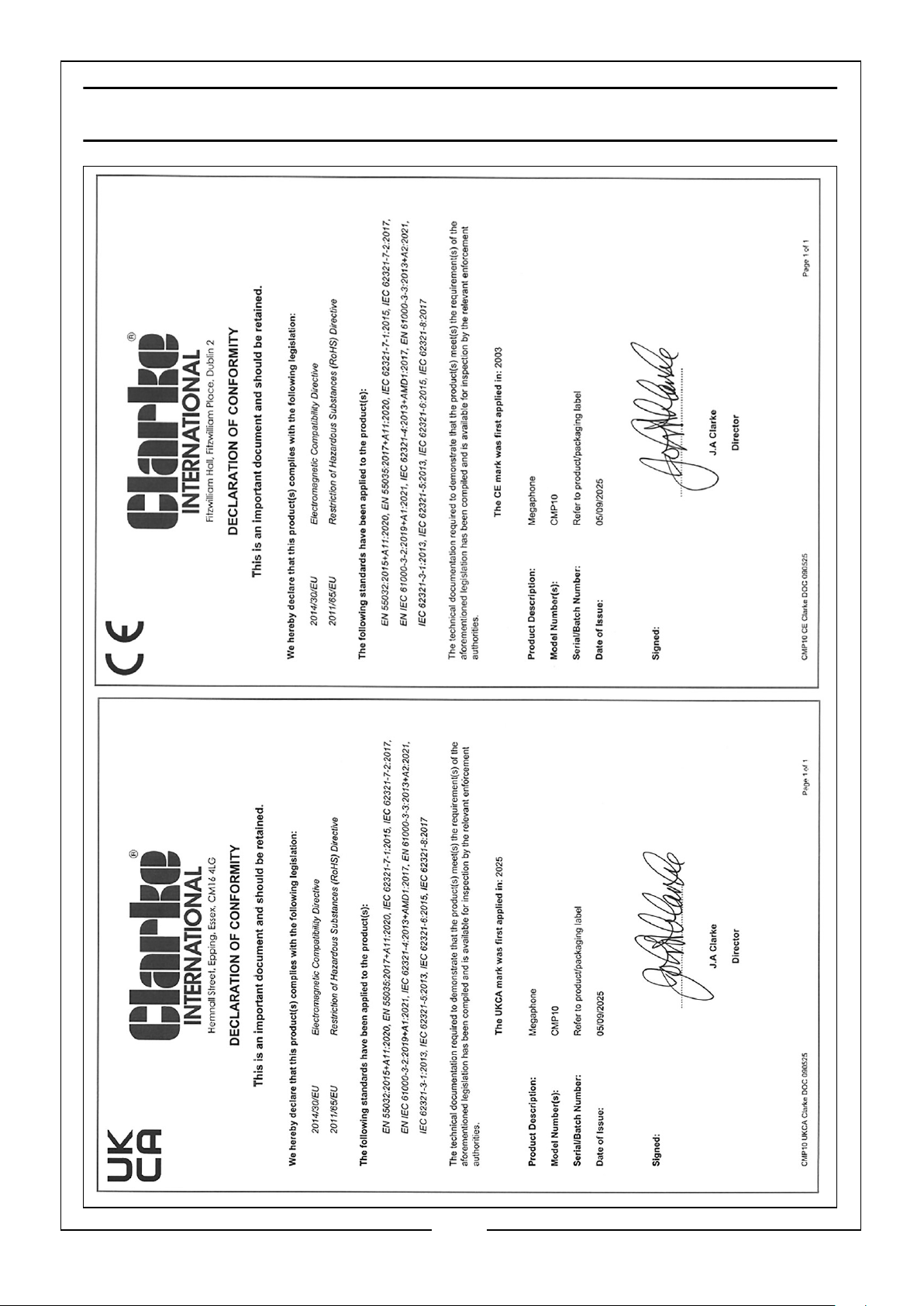

DECLARATIONS OF CONFORMITY

4
