Clarke CMF24C User guide

WARNING: Read these instructions before using the bender

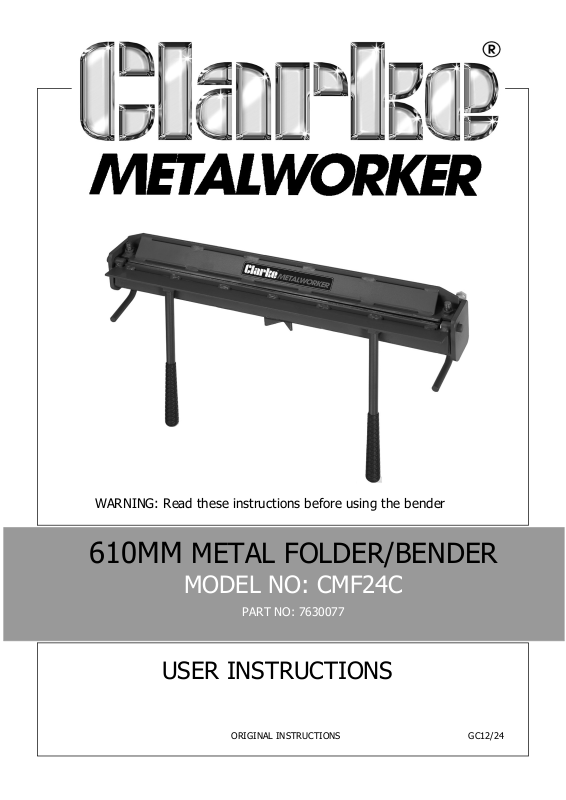

610MM METAL FOLDER/BENDER

MODEL NO: CMF24C

PART NO: 7630077

USER INSTRUCTIONS

ORIGINAL INSTRUCTIONS GC12/24

INTRODUCTION

Thank you for purchasing this CLARKE Metal Bender. Before attempting to use it
please read this manual and carefully follow all instructions given. In doing so you will
ensure the safety of yourself and that of others around you, and you can also look

forward to the product giving you long and satisfactory service.

Dimensions D x W x H 135 x 700 x 150 mm

Net Weight 11.2 kg

Bending Capacity Thickness-(mild steel)

1.0 mm (20 gauge)

Width 610 mm

Angle - 0-90

o

SAFETY PRECAUTIONS

As with all workshop equipment it is necessary to exercise caution when it is put to
use, being aware of any associated or inherent dangers.

• Due to the weight of the metal folder, the help of an assistant may be beneficial
during unpacking and mounting.

• ALWAYS wear gloves when handling sheet-metal with sharp edges.

• ALWAYS operate on a suitably strong bench with adequate light.

• Leave adequate working space around the folder for safe and convenient operation.

• ALWAYS check for signs of structural damage before starting work. DO NOT use if
damage is found. Have repairs made only by a CLARKE service centre.

• ALWAYS ensure the workpiece is secure and properly positioned before applying
pressure.

• ALWAYS keep hands and fingers away from moving parts that may pinch.

• NEVER use extension tubes to increase the length of the handles. Excessive effort
can cause damage and/or accidents.

• NEVER attempt to bend materials which exceed the sizes stated above.

Failure to heed these warnings may result in damage to the equipment or personal
injury.

ENVIRONMENTAL CONSIDERATIONS

If disposing of scrap metal, DO NOT dispose of with general waste. Metal products
and scrap should be taken to your local civic amenity site for the recycling of metal
products according to local regulations.

2

Parts & Service: 020 8988 7400 / E-mail: [email protected] or [email protected]

METHOD OF USE

Mount the Metal Folder in a vice, at a height which allows easy operation taking into
account the nature of the work with the handles pointing towards you.

WARNING: NEVER EXCEED THE MAX BENDING CAPACITY (1.0mm
MATERIAL).

1. Lower the handle until the moving plate becomes parallel to the workbench.

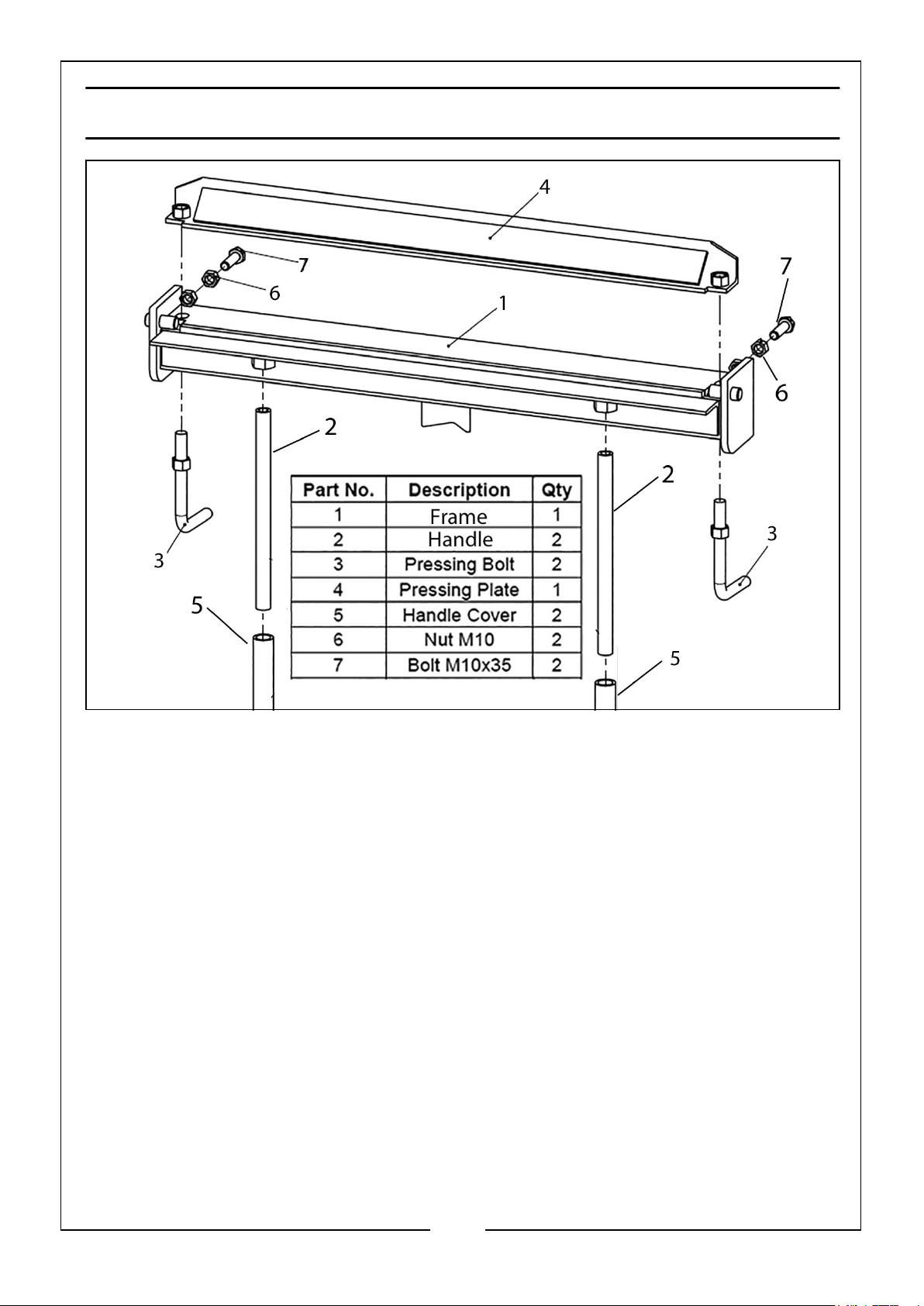

2. Turn the bolt (7) to adjust the gap between the front edge of the pressing plate
(4) and the moving plate to the required radius and tighten the nut (6).

3. Position the workpiece on the supporting plate and the moving plate so that the
edge to be bent, lines up with the back edge of the supporting plate.

4. Place the pressing plate (4) on top of the supporting plate so that the back edge
of the Pressing Plate lines up flush with the back edge of the Supporting Plate.

5. Turn the handle (2) until the pressing plate (4) presses the workpiece

6. Raise the two handles (2) to bend the material.

NOTE: Experiment with scrap pieces.

WARNING: WHEN BENDING SHEET METAL, KEEP YOUR HANDS CLEAR OF
THE SUPPORTING AND MOVING PLATE TO AVOID INJURY.

3

Parts & Service: 020 8988 7400 / E-mail: [email protected] or [email protected]
