FOLDING CREEPER
Model CMC50
Part Number 7630191
ASSEMBLY INSTRUCTIONS
Thank you for purchasing this CLARKE Folding Car Creeper.
Please read this leaflet thoroughly and follow the instructions carefully, in doing so
you will ensure the safety of yourself and that of others around you, and you can
look forward to the creeper giving you long and satisfactory service.
GUARANTEE
This CLARKE product is guaranteed against faulty manufacture for a period of 12
months from the date of purchase. Please keep your receipt as proof of purchase.
This guarantee is invalid if the product is found to have been abused or tampered
with in any way, or not used for the purpose for which it was intended.
Faulty goods should be returned to their place of purchase, no product
can be returned to us without prior permission.
This guarantee does not effect your statutory rights.
SAFETY PRECAUTIONS
1. Take care ALWAYS when handling the creeper, not to get your hands or fingers caught
between the frame and pivot arms, particularly when raising or lowering the seat.
2. ALWAYS lift and move the creeper using the LIFT STRAP.
3. NEVER allow the creeper to be used as a plaything. Keep children away at all times...this
is NOT a toy.
4. Never leave the creeper unattended. When not in use, it should be stored carefully and not
left lying around for others to trip over. Be aware that this could be a serious hazard.
5. Always use your creeper on a hard level surface, not in the vicinity of drains, holes,
curbs, cracks etc., as this could cause serious damage to the castors.
6. ALWAYS check your creeper regularly for signs of damage, and if any is apparent,
have it repaired before putting back into use. Remember, broken, worn or missing
parts could result in injury.
Page 2

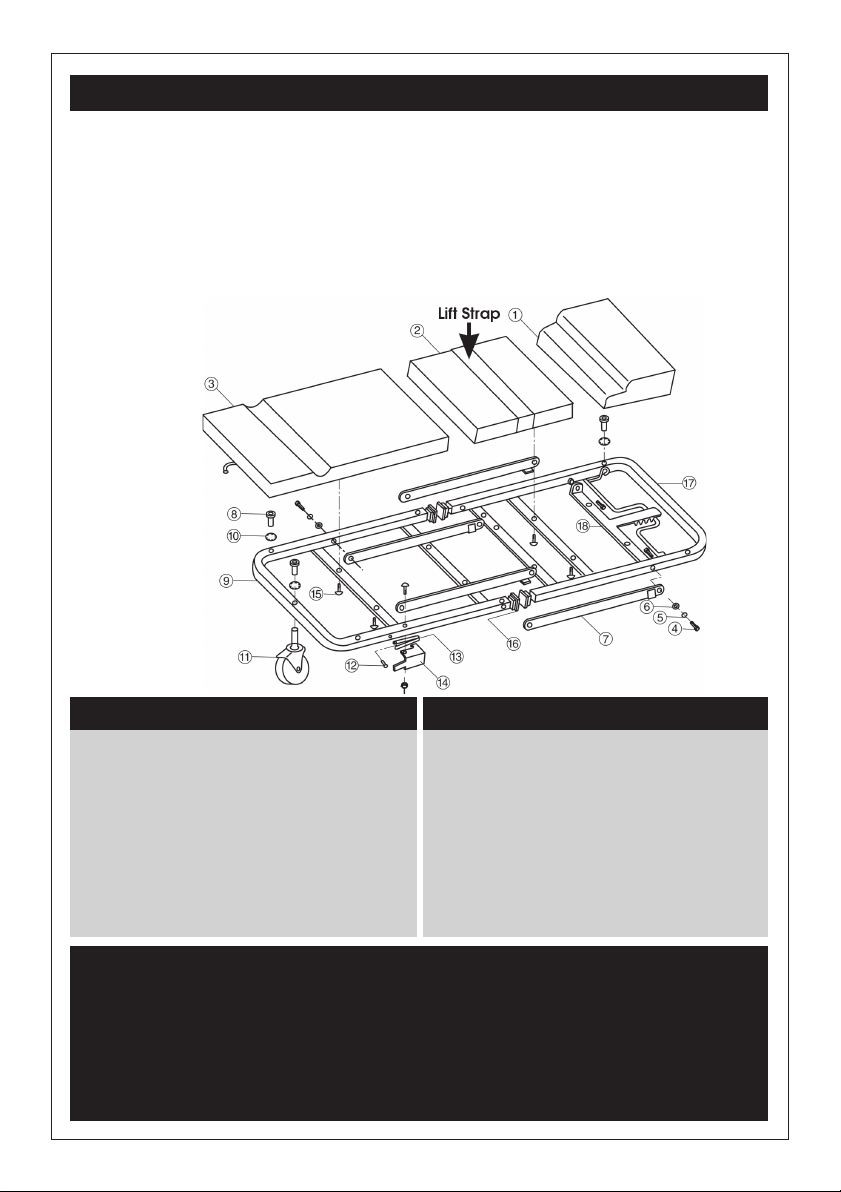

ASSEMBLY
Should damage, to any of the components, have occurred during transit, please notify
your Clarke dealer immediately.
1. Slip the lockwasher (10) on to the barrel nut (8) and inset into the pre-drilled holes in the
frame, from the top.
2. From the bottom, insert the castor into the barrel nut and tighten by hand as far as possible.
3. Using the Hex. wrench supplied, in the hex recess in the barrel nut...tighten all 7 Nuts.
The Creeper is maintenance free, but should any damage occur, spare parts are available
from Clarke International, details of which are shown below.
Item Description Part No.
1 Adjustable Headrest CMS5001
2 Middle Cushion CMS5002
3 Bottom Cushion CMS5003
4 M8x25 Screw CMS5004
5 Flat Washer CMS5005
6 Lockwasher CMS5006
7 Support Bar CMS5007
8 Barrel Nut CMS5008
9 Frame A CMS5009
For Spare Parts, please contact your nearest dealer, or
CLARKE International, on one of the following numbers.
TEL: 020 8988 7400
FAX: 020 8558 3622
or e-mail as follows:
PARTS: [email protected]
Item Description Part No.
10 Lockwasher CMS5010
11 2 1/2” Castor CMS5011
12 Rivet CMS5012
13 Spring CMS5013
14 Latch CMS5014
15 M6x16 Bolt CMS5015
16 Plastic End Cap CMS5016
17 Frame B CMS5017
18 Headrest Hinge Bar CMS5018
