WARNING: Read these instructions before using the bender
710mm METAL BENDER
MODEL NO: CMB710
PART NO: 7610905
OPERATION & MAINTENANCE
INSTRUCTIONS
ORIGINAL INSTRUCTIONS GC06/23
Page 2
INTRODUCTION
Thank you for purchasing this CLARKE Metal Bender. Before attempting to use
it please read this manual and carefully follow all instructions given. In doing so
you will ensure the safety of yourself and that of others around you, and you
can also look forward to the product giving you long and satisfactory service.
Ensure the product suffered no damage during transit and that all items are
present. Should any loss or damage become apparent, please contact your
CLARKE dealer immediately.
Dimensions D x W x H 155 x 902 x 128 (+420mm handle) mm
Net Weight 17.9 kg
Bending Capacity Thickness-1.2mm Width 730mm
Angle - 0-90
o
SAFETY PRECAUTIONS
As with all tools and workshop equipment it is necessary to exercise caution
when it is put to use, being aware of any associated or inherent dangers.
• Due to the weight of the metal bender, the help of an assistant may be
beneficial during unpacking and mounting.
• ALWAYS operate on a suitably strong bench with adequate light.
• This metal bender must be firmly secured to a firm and level bench using
suitable bolts (not supplied).
• Leave adequate working space around the bender for safer and
convenient operation.
• ALWAYS check for signs of structural damage before starting work. DO NOT
use if damage is found. Have repairs made only by a CLARKE service
centre.
• ALWAYS ensure the workpiece is secure and properly positioned before
applying pressure.
• ALWAYS keep hands and fingers away from moving parts that may pinch.
• NEVER use extension tubes to increase the length of the handles. Excessive
effort can cause damage and/or accidents.
• NEVER attempt to bend materials which exceed the sizes stated above.
Failure to heed these warnings may result in damage to the equipment or
personal injury.
2
Parts & Service: 020 8988 7400 / E-mail: [email protected] or [email protected]
Page 3

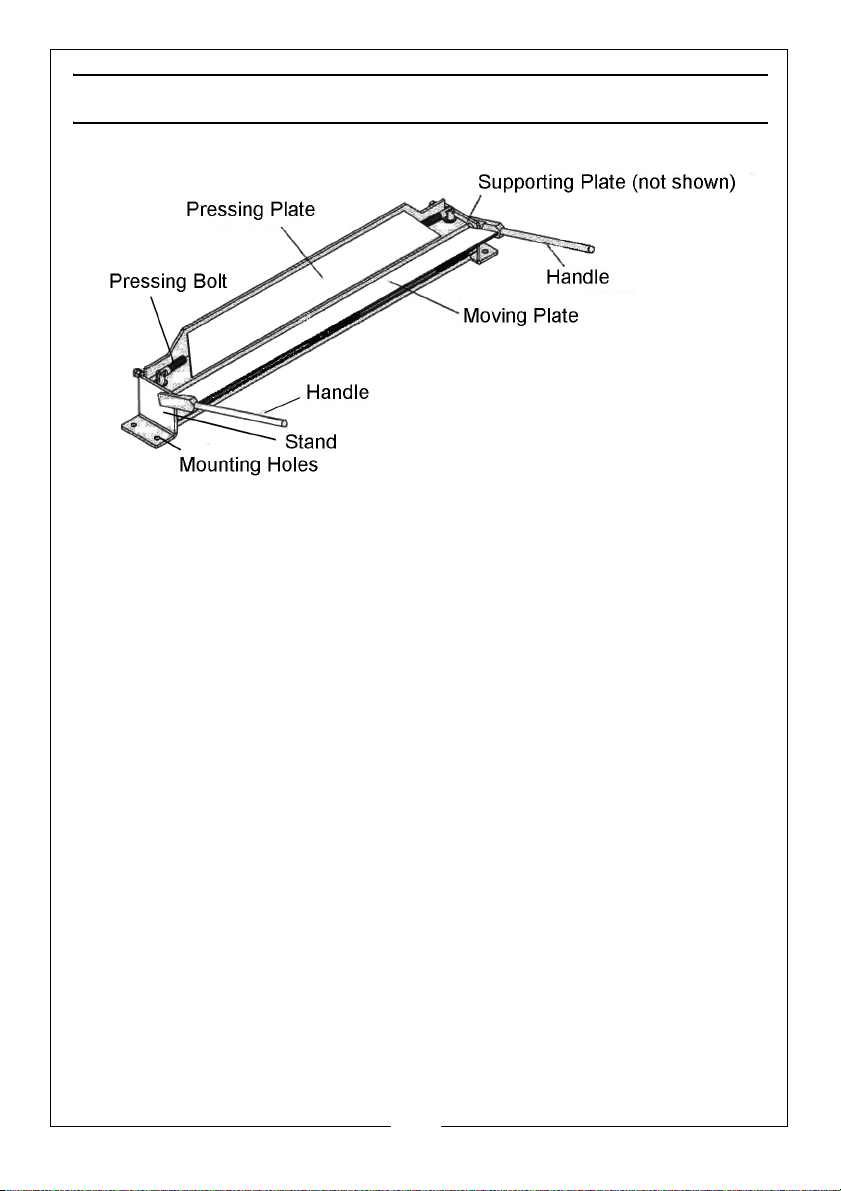

METHOD OF USE
Mount the Metal Bender on a sturdy workbench at a height which allows easy
operation taking into account the nature of the work, with the handles
pointing towards you.
• 4 x10 mm bolts will be required (not supplied) for mounting to the chosen
bench. Holes will need to be drilled in the bench at the positions shown.
WARNING: NEVER EXCEED THE MAX BENDING CAPACITY (1.2mm MATERIAL).
1. Lower the handle until the moving plate becomes parallel to the
workbench.
2. Position the workpiece on the supporting plate and the moving plate so
that the edge to be bent lines up with the back edge of the supporting
plate.
3. Place the pressing plate on top of the supporting plate so that the back
edge of the Pressing Plate lines up flush with the back edge of the
Supporting Plate.
NOTE: To ensure a proper bend, leave a 2-3mm gap for 1.2mm material,
decrease the gap when using thinner material. Experiment with
scrap pieces.
4. Raise the two handles to bend the material.
WARNING: WHEN BENDING SHEET METAL, KEEP YOUR HANDS CLEAR OF THE
SUPPORTING AND MOVING PLATE TO AVOID INJURY.
If disposing of scrap metal, DO NOT dispose of with general waste. Metal
products and scrap should be taken to your local civic amenity site for the
recycling of metal products according to local regulations.
3
Parts & Service: 020 8988 7400 / E-mail: [email protected] or [email protected]
