ABLE SAW LEG KIT

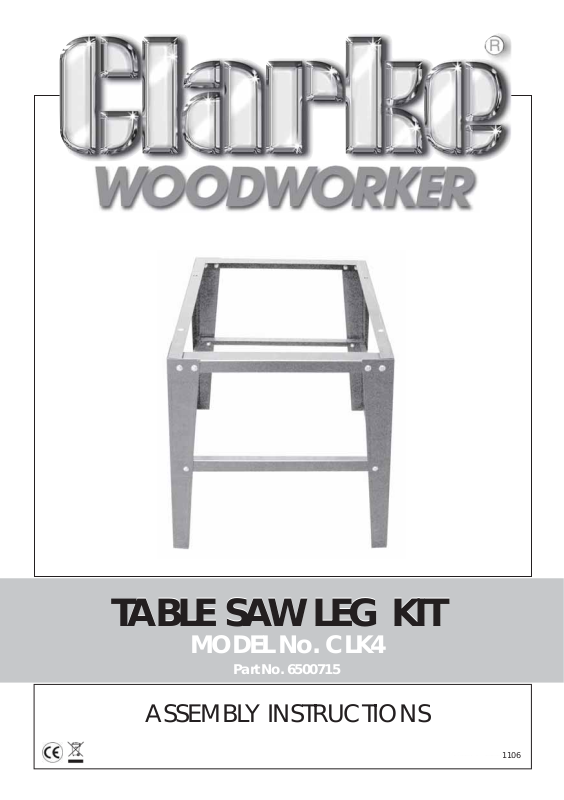

TABLE SAW LEG KIT
ASSEMBLY INSTRUCTIONS
Part No. 6460200
MODEL No. CLK4
Part No. 6500715
1
1106
PARTS LIST
Unpack the carton and lay out all components, checking to ensure that
they are complete, against the list which follows.
Check also for any damage which may have occurred in transit. Please
notify your CLARKE dealer immediately should any be found.
( 1 )
( 2 )
( 3 )
( 4 )
( 5 )
x 2
456 mm
x 2
465 mm
x 2
490 mm
x 2
500 mm
x 4
( 6 ) ( 7 ) ( 8 ) ( 9 ) ( 10 )
x 24
x 32 x 28 x 28
( 11)
Assembly Fixings
Whln disposing of this product, ensure it is disposed of according to all local ordinances. It must
not be disposed of with general household waste.
x 4
Please note that the details and specifications contained herein, are correct at the time of going to print. However, CLARKE
International reserve the right to change specifications at any time without prior notice.
2
PARTS LIST
ON NOITPIRCSED YTQ REBMUNTRAP
1sliaRediSpoT21004KLCH
2sliaRraeR/tnorFpoT22004KLCH
3mm094rebmeMssorCrewoL23004KLCH
oL24004KLCH
4mm005rebmeMssorCrew
5geL45004KLCH
6tloBhcaoC426004KLCH
7rehsaWtalF237004KLCH
8rehsaWgnirpS828004KLCH
9tuN829004KLCH
01wercS40104KLCH
FIXING ORDER
1. Pass the coach bolt (6) through the
two parts being joined.
2. Slide a washer (7) on to the the coach
bolt.
3. Then slide a spring washer (8) on to the
coach bolt.
4. Secure into place using a nut (9).
3
ASSEMBLY
1. Attach the 490mm lower
cross member (3) to a leg
(5).
2. Secure into place using the
assembly fixings (11).
1. Attach the free end of the
490mm lower cross member
(3) to another leg (5) as
shown
2. Secure into place using the
assembly fixings (11).
( 5 )
( 3 )
( 11 )
( 5 )
( 11 )
4
ASSEMBLY
1. Attach the 500mm lower
cross member (4) and
another leg (5) as shown.
2. Secure into place using
the assembly fixings (11).
( 4 )
( 5 )
( 3 )
( 11)
1. Attach the remaining
lower cross members (3 +
4) to another leg (5) as
shown.
Make sure that the two
500mm lower cross
members are placed
opposite each other .
2. Secure into place using
the assembly fixings (11).
( 3 )
( 4 )
( 11)
( 4 )
( 3 )
( 11 )
( 5 )
5
( 11)
ASSEMBLY
1. Fit the top side rails (1) as
shown (above the 490mm
lower cross member).
2. Secure into place using 8
assembly fixings (11).
( 11 )
( 1 )
( 11)
1. Fit the front / rear top rails
(2) as shown.
2. Secure into place using
the remaining assembly
fixings.
( 11 )
( 2 )
( 11 )
6
ASSEMBLY
The compleated leg kit should
look like this.
Use the 4 bolts and nuts left to
fix the table saw to the leg kit.
GUARANTEE
This CLARKE product is guaranteed against faulty manufacture for a
period of 12 months from the date of purchase. Please keep your
receipt as proof of purchase. This guarantee is invalid if the product is
found to have been abused or tampered with in any way, or not used
for the purpose for which it was intended.
Faulty goods should be returned to their place of purchase, no product
can be returned to us without prior permission. This guarantee does not
effect your statutory rights.
