Instant Shed - Peak Style
Assembly Instructions
6' x 12' x 8'
DESCRIPTION MODEL #
Instant Shed 6' x 12' x 8' - Green
RECOMMENDED TOOLS
THIS IS A TEMPORARY STRUCTURE AND NOT RECOMMENDED AS A PERMANENT STRUCTURE.
Please read instructions COMPLETELY before assembly. This shelter MUST be securely anchored.
Before you start: 2 or more individuals recommended for assembly, approximate time 2 hours.
CIS 612
3503504
OR
Clarke International
Hemnall Street
Epping
Essex CM16 4LG
ENGLAND
www.clarkeinternational.com
4/3/12
Page 1
PARTS & SERVICE: 0208 988 7400
E-mail: Parts@clarkeinternational.com or
Service@clarkeinternational.com
SALES: UK 01992 565333 or
EXPORT: 00 44 (0)1992 565335
05_70416_0A
ATTENTION:
This shelter product is manufactured with quality materials. It is designed to t the custom fabric cover included. Please anchor the
shed carefully following the instructions in this manual. Proper anchoring, keeping cover tight and free of snow and debris is the
responsibility of the consumer. Please read and understand the installation detail, warnings and cautions prior to beginning installation.
DANGER:
Choose the location of your shed carefully. DANGER: Keep away from electrical wires. Check for
overhead utility lines, tree branches or other structures. Check for underground pipes or wires before
you dig. DO NOT install near roof lines or other structures that could shed snow, ice or excessive run
off onto your shelter. DO NOT hang objects from the roof or support cables.
WARNING:
Risk of re. DO NOT smoke or use open ame devices (including grills, re pits, deep fryers, smokers or
lanterns) in or around the shed. DO NOT store ammable liquids (gasoline, kerosene, propane, etc.) in or
around your shelter. Do not expose top or sides of the shelter to open re or other ame source.
CAUTION:
Use CAUTION when erecting the frame.
PROPER ANCHORING AND INSTALLATION OF FRAME:
PROPER ANCHORING OF THE FRAME IS THE RESPONSIBILITY OF THE CONSUMER.
Clarke® International is not responsible for damage to the unit or the contents from acts of nature. Any shed that is not anchored
securely has the potential to y away causing damage. Periodically check the anchors to ensure stability of the shed. Clarke
International cannot be responsible for any shed that blows away. NOTE: Your shelter’s cover can be quickly removed and stored prior
to severe weather conditions. If strong winds or severe weather is forecast in your area, we
recommend removal of cover.
®
CARE AND CLEANING:
A tight cover ensures longer life and performance. Always maintain a tight cover. Loose fabric can accelerate
deterioration of cover fabric. Immediately remove any accumulated snow or ice from the roof structure with a
broom, mop or other soft-sided instrument. Use extreme caution when removing snow from cover- always
remove from outside the structure. DO NOT use hard-edged tools or instruments like rakes or shovels to
remove snow. This could result in punctures to the cover. DO NOT use bleach or harsh abrasive products to
clean the fabric cover. Cover is easily cleaned with mild soap and water.
Page 2
090111
05_70416_0A
Instant Shed - 6' x 12' x 8' - Parts List - Model # CIS 612 3503504
Description of Parts:
Cross Rails, Swedge 25
1
Cross Rails 24
Cross Rails 33
Top Cross Rails 20
Upright 41 in.
Corner Upright 30
Upright 31
Cover Rails 45
Corner Leg Bends
Side Corners
3-Way Top Connectors
in. / 62,4 cm
/
2
1
/
8
1
/
/
1
/
2
11
/
16
3
in. / 116,2 cm
/
4
3
in. / 65,4 cm
/
4
in. / 84 cm
in. / 51,9 cm
2
104,1 cm
in. / 77,8 cm
in. / 80,5 cm
Quantity Part #
10
5
8
3
4
4
8
6
4
8
2
800704
800703
802636
802837
803064
800598
800599
10110
802836
801204
802860
4-Way Top Connector
Steel Foot Plate
Shelter Stabiliser
Ratchet Clamp
White Bungee Cords (For holding door open)
1
Bolts
Bolts
Bolts
1
Washer
1
Nut
Half-Clamps for Middle Legs
Half-Clamps for Corner Legs
in. / 6,4 mm
/
4
in. / 6,4 mm
/
4
5
x 1
/
4
1
/
4
1
/
4
in. / 6,4 x 41,3 mm
/
8
7
x 1
in. / 6,4 x 47,6 mm
/
8
x 2 in. / 6,4 x 50,8 mm
2
4
8
8
4 10066
37
30
8
12
75
8
8
802861
802610
800938
10240
10115
03032
10114
01011
01010
13201
13202
Cover
2-Zipper Door
15 in. Auger Anchors (Temporary)
Cable - 1 ft. Length
Cable Clamps
NOTE: 15 inch anchors are available from our spare parts
department. Please quote Part No.10014
Page 3
10014
10015
10016
803070
803071
00847
}
05_70416_0A
1
2
4
4
4
1. ASSEMBLE 2 END RIBS
Secure connections using Bolts as shown with #01010 Nuts.
800938
800599
800598
801204
802636
802860
#03032
#10114
#10115
802636
801204
800938
800599
800598
01010
801204
800938
10114
800599
802836 802836
2. ASSEMBLE 2 MIDDLE RIBS
802861
802636
801204
#03032
800938
#10114
800599 800599
802636
NOTE:
The bolt heads at
the end ribs must be facing
outward to avoid damaging
your cover.
801204
800938
802610
#10115
Page 4
803064803064
802610
05_70416_0A
3. CONNECT FRONT END RIB TO MIDDLE RIB
A. Assemble 2 Side Cross Rails using parts as shown.
B. Assemble 1 Top Cross Rail using parts as shown.
C. Connect the Top Cross Rail at the 3- and 4-Way Connectors as shown.
D. Connect the 2 Side Cross Rails at the Shelter Stabilsers.
Assemble Side Cross Rails Assemble Top Cross Rail
A B
C1
03032
802860
01010
802837
10115 10115
800704 800703802837800703
01010 01010
C2
B
C2
800703
03032
802837
802861
01010
C1
A
A
D
D
03032
01010
800938
Cross Rail
Page 5
05_70416_0A
4. CONNECT REMAINING RIBS
A. Assemble 4 Side Cross Rails using parts as shown.
B. Assemble 2 Top Cross Rails using parts as shown.
C. Connect the Top Cross Rails at the 3- and 4-Way Connectors as shown.
D. Connect the Side Cross Rails at the Shelter Stabilsers.
C1
03032
802837
01010
802860
Assemble Side Cross Rails
A
10115
800704800704
01010
C2
Assemble Top Cross Rail
B
10115
800703802837
01010
C2
03032
800703
801246
C1
01010
B
802837
D1
A
D2
D2
03032
01010
D1
03032
01010
Middle
Rib
End Rib
800938
Cross Rail
800938
Cross Rail
Page 6
05_70416_0A
5. SQUARING UP THE FRAME
A. Place frame in its nal location, which needs to be as at and level as possible.
B. Measure across opposite corners. These distances must be equal to within 1 inch.
C. Check that the front and rear of the frame measures 6 feet in width
6 ft.
6 ft.
6. PROPERLY ANCHOR THE FRAME
A. Anchors must be placed inside shelter at the corners of the shelter.
B. Insert a ¾ inch pipe or steel rod, through the eyelet of the auger and screw the anchor into the ground until
the eyelet is sticking out of the ground by 1 to 2 inches so it can be anchored to the legs.
C. Wrap cable provided through the eyelet of the anchor and around the frame as shown below. Secure
the cable with the clamps provided.
If ground is too hard, dig a hole with a shovel or post hole tool. Optional: Fill with cement.
End Rib Anchors
WARNING:
Serious injury to persons
or property could result if
cover is installed and shelter
is not anchored and is left
unattended. Shelter must be
securely anchored before use.
Page 7
05_70416_0A

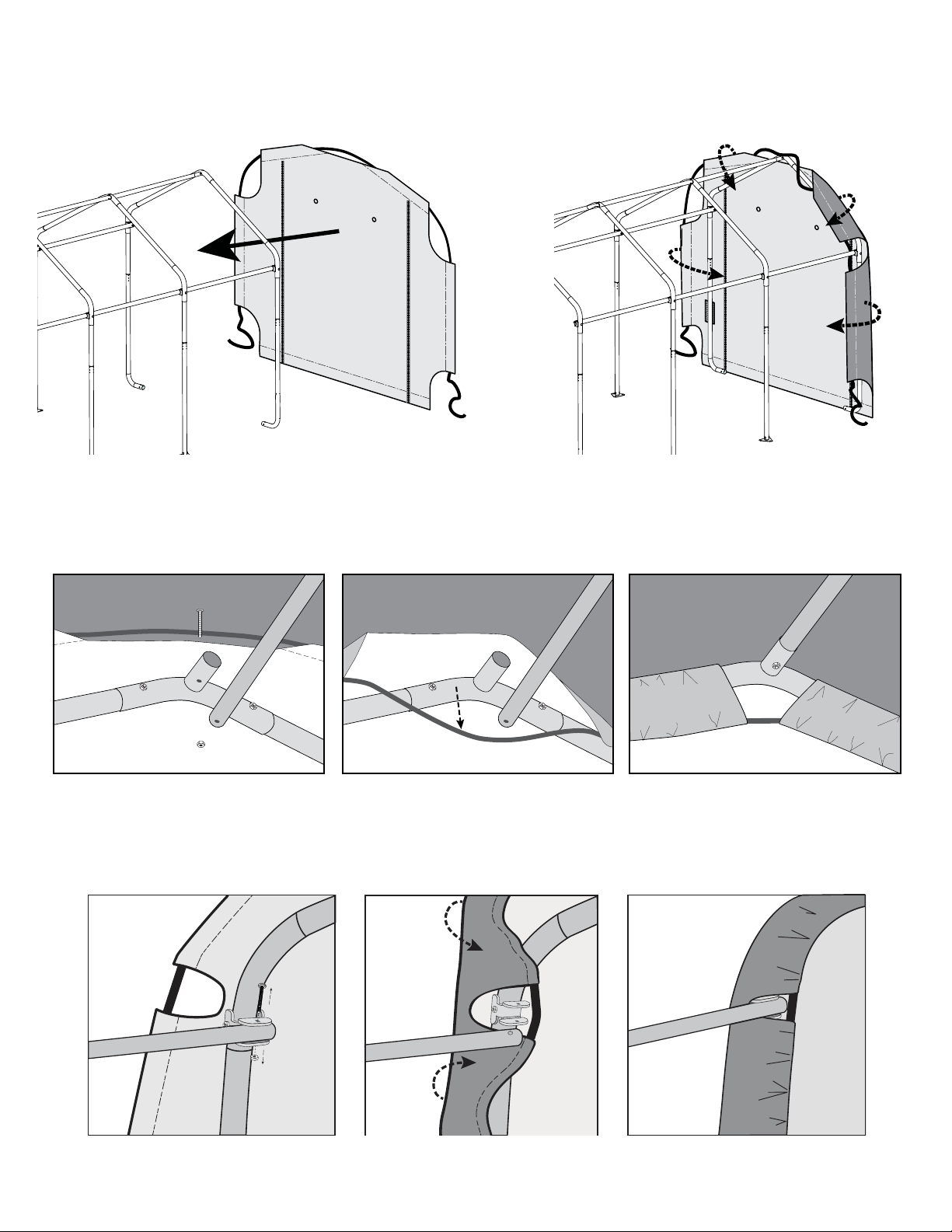

7. DOOR PANEL AND BACK PANEL INSTALLATION
A. (1) Hold end panel at the top center with white inner surface facing inside of the shelter. (2) Wrap the edges
of the fabric panel around the end rib and line up the cross rails with the pre made slits in the fabric.
A1
B. (1) Disconnect top cross rail (the horizontal pipe that runs from front to back along the top) from the end rib.
(2) Pull the end panel over the end rib and bring the end of the cross rail through the cut slit in the panel.
(3) Reattach the top cross rail to the end rib.
A2
B1 B2 B3
C. (1) Disconnect side cross rail from the end rib. Leave the Shelter Stabilsers attached to the rib with the bolt.
(2) Pull the end panel over the end rib and bring the end of the cross rail through the cut slit in the panel.
(3) Reattach the side cross rail to the end rib.
C1 C2 C3
Page 8
05_70416_0A
7. END PANEL INSTALLATION - continued
D. At the bottom, where the webbing exits the pocket on each side of end panel, pull webbing as you would a
drawstring to remove the slack. Be careful not to pull the webbing strap out of the webbing pocket.
D
END PANEL VIEW
FROM INSIDE
SHED
WEBBING
STRAP
PULLPULL
E. Insert the “S”- Hook on ratchet into hole on the leg bend. Insert the webbing into the spindle of the ratchet
and pull tight. Wind the ratchet so that the webbing overlaps itself. Position the end panel so that it is
centered on the building before fully tightening the end panel.
F. Tighten ratchets, alternating from one side to the other, until the end panel is tight. NOTE: Keep zips
fastened when tightening door panel.
E F
Insert Webbing into
Ratchet
Page 9
05_70416_0A

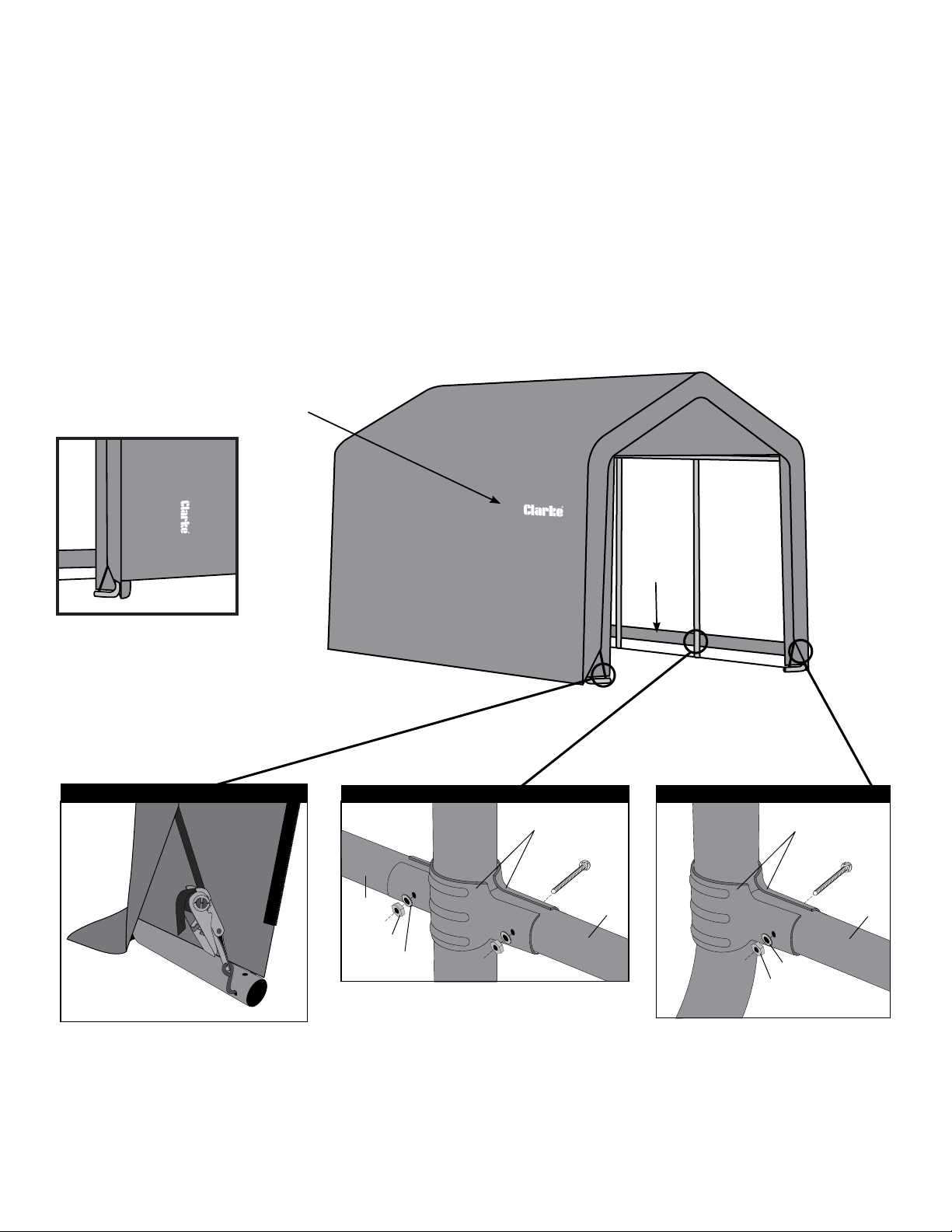

8. INSTALLING COVER AND COVER RAILS
A. Lay the cover on the ground next to the frame with inside of the cover (the side with the pipe pockets) facing
down and the webbing on the front and rear of the corner of the building.
B. Pull cover over the frame, making sure to center cover on frame. There should be an equal amount of over-
hang at all four corners.
C. Insert the “S”- Hook on ratchet into hole on the leg bend. Insert the webbing into the spindle of the ratchet
and pull tight. Wind the ratchet so that the webbing overlaps itself.
D. Disassemble cover rails and slide through fabric pockets at each leg and reattach with clamps to each leg.
Repeat this on other side. Push down on cover rails to tighten cover, before tightening bolts completely.
E. Check and tighten Ratchets and Cover Rails monthly to ensure the cover is tight.
®
NOTE: The Clarke
be oriented as shown below.
logo should
CORRECT
INCORRECT
REAR
Webbing and Ratchets Securing Cover
10110
01010
Middle Rib Cross Rail Clamps
Middle
Leg
01011
13201
10115
10110
10110
COVER
RAILS
FRONT
End Rib Cross Rail Clamps
Corner
Leg
13202
10115
01011
01010
10110
Page 10
05_70416_0A
