Instant Garage
7.3m x 3.7m x 2.6m / 24' x 12'3" x 8'6" (LWH)
Assembly Instructions
DESCRIPTION MODEL #
Garage 3.7m x 7.3m x 2.4m /
24' x 12'3" x 8'6" - Grey
RECOMMENDED TOOLS
+
/
45 cm
-
18"
CIG 1224
3503518
Clarke International
Hemnall Street
Epping
Essex CM16 4LG
ENGLAND
www.clarkeinternational.com
12/19/12
PARTS & SERVICE: 0208 988 7400
E-mail: [email protected] or
SALES: UK 01992 565333 or
EXPORT: 00 44 (0)1992 565335
1 05_62630_A3
Page 2
ATTENTION:
This shelter product is manufactured with quality materials. It is designed to t the garage custom fabric cover included. Please anchor
the shed carefully following the instructions in the manual. Proper anchoring, keeping cover tight and free of snow and debris is the
responsibility of the consumer. Please read and understand the installation detail, warnings and cautions prior to beginning installation.
DANGER:
Choose the location of your garage carefully. DANGER: Keep away from electrical wires. Check for
overhead utility lines, tree branches or other structures. Check for underground pipes or wires before
you dig. DO NOT install near roof lines or other structures that could shed snow, ice or excessive run
off onto your shelter. DO NOT hang objects from the roof or support cables.
WARNING:
Risk of re. DO NOT smoke or use open ame devices (including grills, re pits, deep fryers, smokers or
lanterns) in or around the garage. DO NOT store ammable liquids (gasoline, kerosene, propane, etc.) in
or around your shelter. Do not expose top or sides of the shelter to open re or other ame source.
CAUTION:
Use CAUTION when erecting the frame.
PROPER ANCHORING AND INSTALLATION OF FRAME:
PROPER ANCHORING OF THE FRAME IS THE RESPONSIBILITY OF THE CONSUMER.
Clarke® International is not responsible for damage to the unit or the contents from acts of nature. Any garage that is not anchored
securely has the potential to y away causing damage. Periodically check the anchors to ensure stability of the garage. Clarke
International cannot be responsible for any shelter that blows away. NOTE: Your shelter’s cover can be quickly removed and stored
prior to severe weather conditions. If strong winds or severe weather is forecast in your area, we recommend removal of cover.
®
CARE AND CLEANING:
A tight cover ensures longer life and performance. Always maintain a tight cover. Loose fabric can accelerate
deterioration of cover fabric. Immediately remove any accumulated snow or ice from the roof structure with a
broom, mop or other soft-sided instrument. Use extreme caution when removing snow from cover- always
remove from outside the structure. DO NOT use hard-edged tools or instruments like rakes or shovels to
remove snow. This could result in punctures to the cover. DO NOT use bleach or harsh abrasive products to
clean the fabric cover. Cover is easily cleaned with mild soap and water.
2 05_62630_A3
Page 3

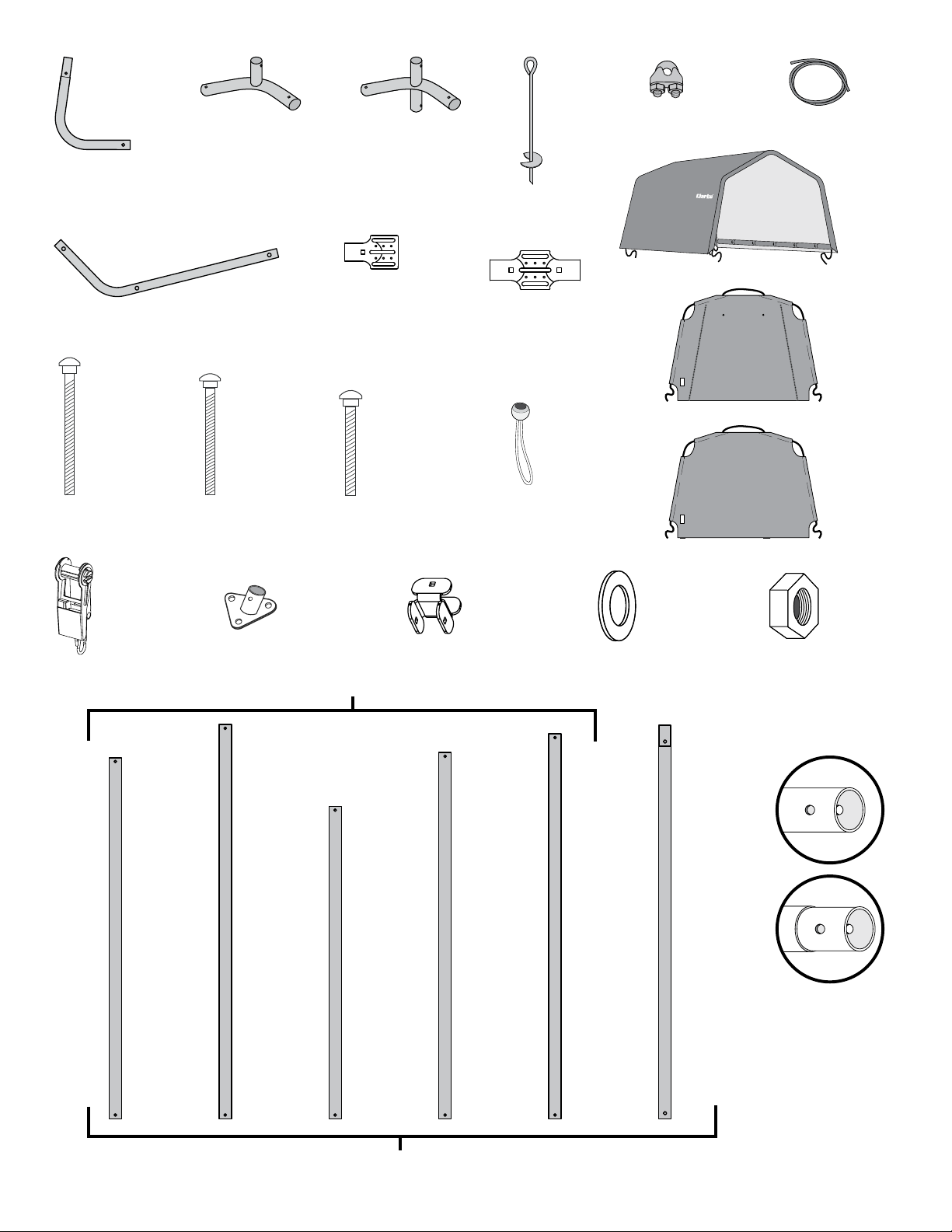

802637
x4
801256
x2
801257
x5
10014
x4
10016
x4
10015
x4
803291
801209
10114
x14
10240
x8
x14
03032
x68
12270
x10
13202
A
x8
10115
x38
13201
800938
x14
x20
10066
x2
01011
x24
B
x1
803293
x1
803292
x1
01010
x120
x6
801258
x10
802693
x4
802694
A
A
B
x12
802695
3 05_62630_A3
x16
802130
x10
802129

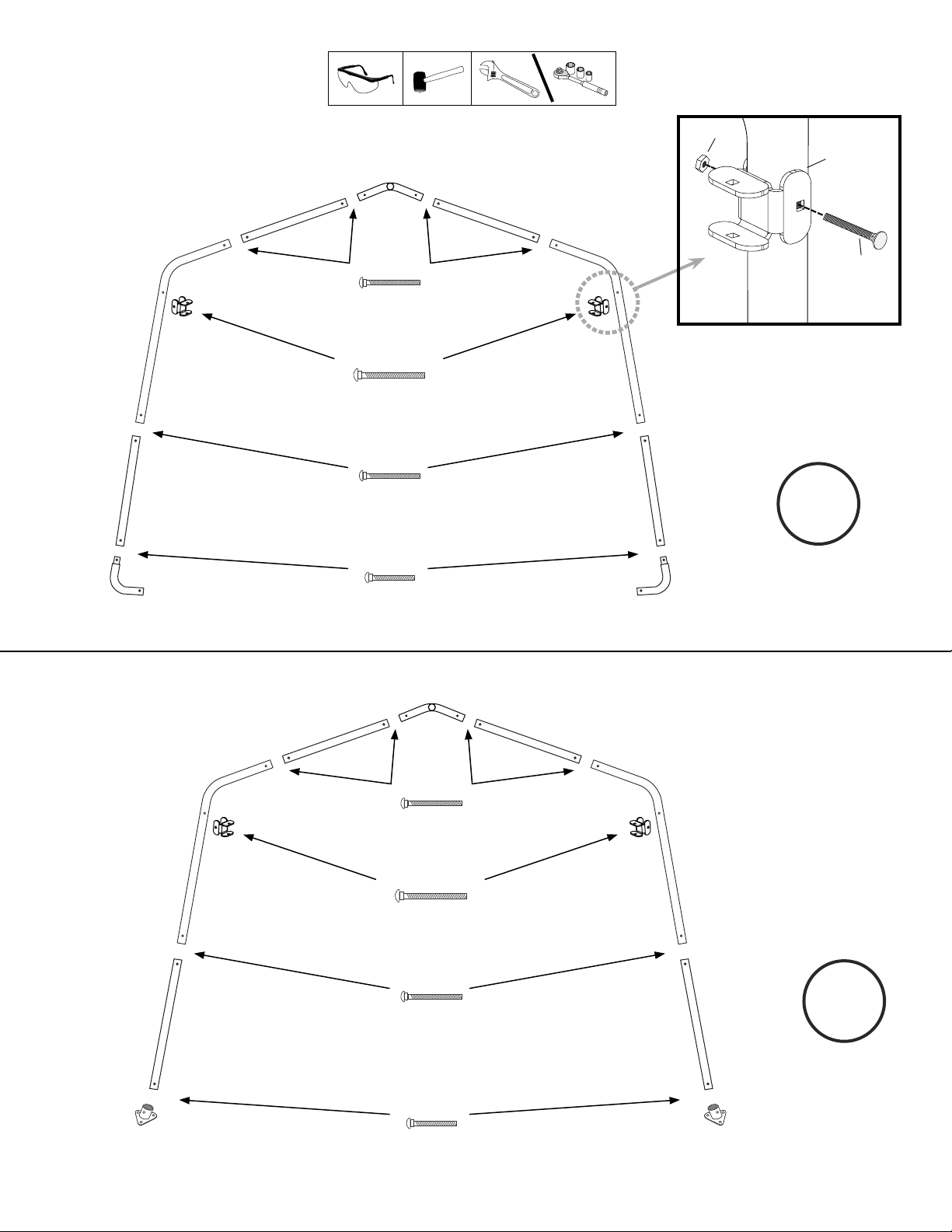

Page 4
01010
A.
801209
802694
802637
802130
800938
801256
#03032
#10114
#03032
#10115
802130
800938
800938
10114
801209
801209
802694
x2
802637
B.
802693
12270
801209
802130
800938
801257
#03032
#10114
#03032
#10115
802130
800938
801209
802693
x5
12270
4 05_62630_A3
Page 5
C.
802129
1
4
801258
3
2
802130
802130
1
800938
3
03032
03032
01010
801256
801209
01010
801258
802130
4
801209
2
01010
802130
800938
801258
03032
01010
801257
801258
5 05_62630_A3

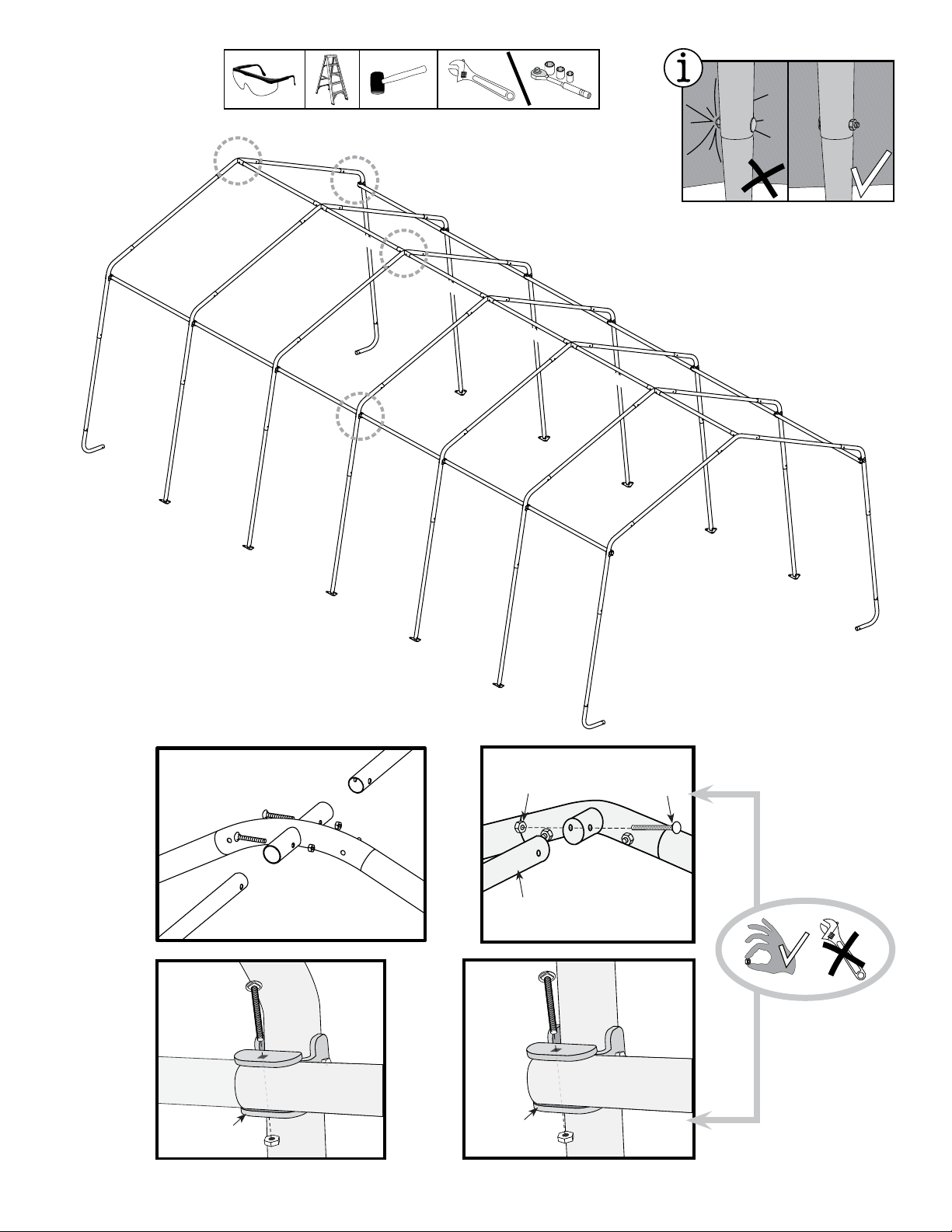

Page 6

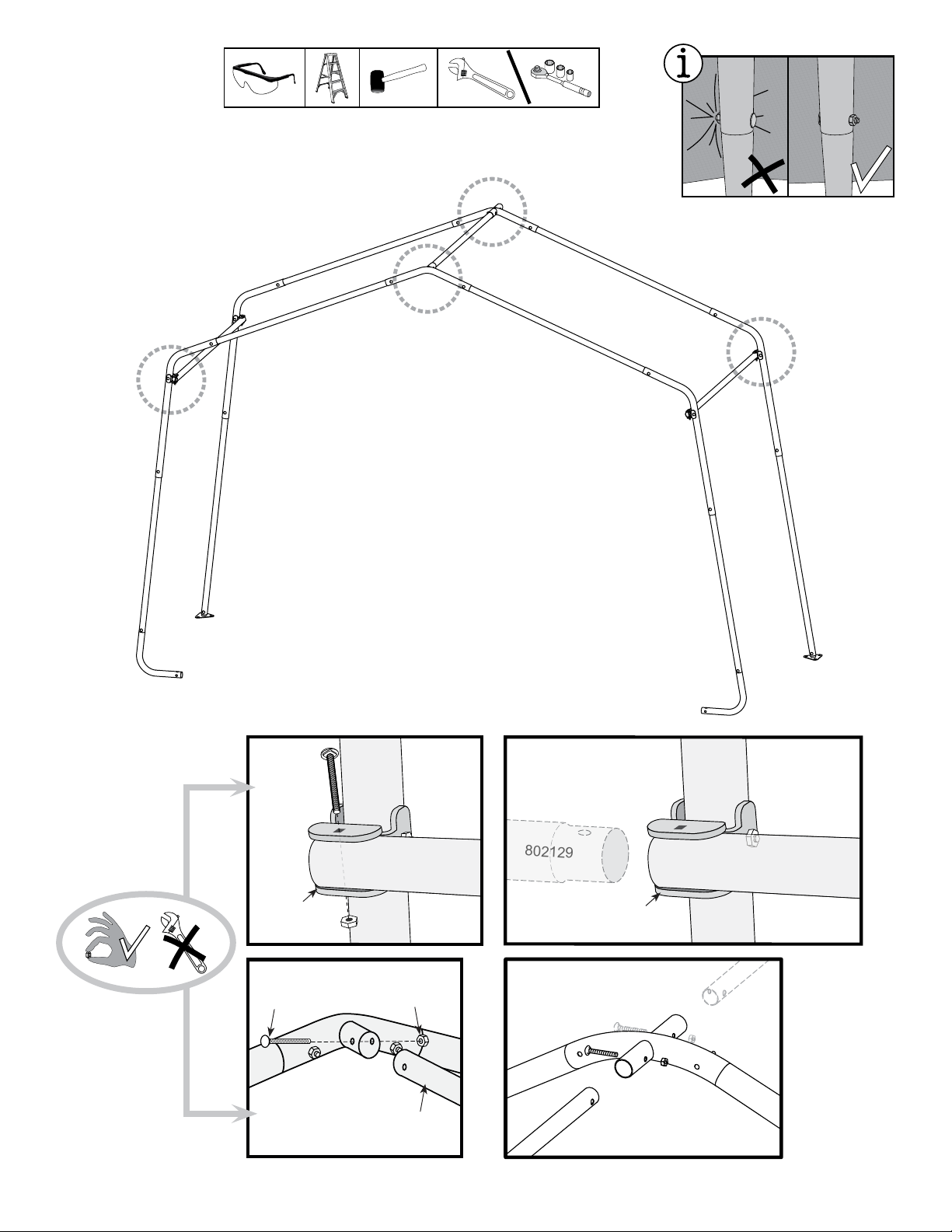

D.
802129
2
802129
801258
802129
801258
3
4
802129
802129
1
801258
802129
802129
801258
802129
801258
802129
802129
1 2
03032
801258
01010
801257
801258
801209
43
03032
802129
802129
800938
01010
800938
6 05_62630_A3
01010
801258
03032
01010
801256
801209
03032
802129
Page 7

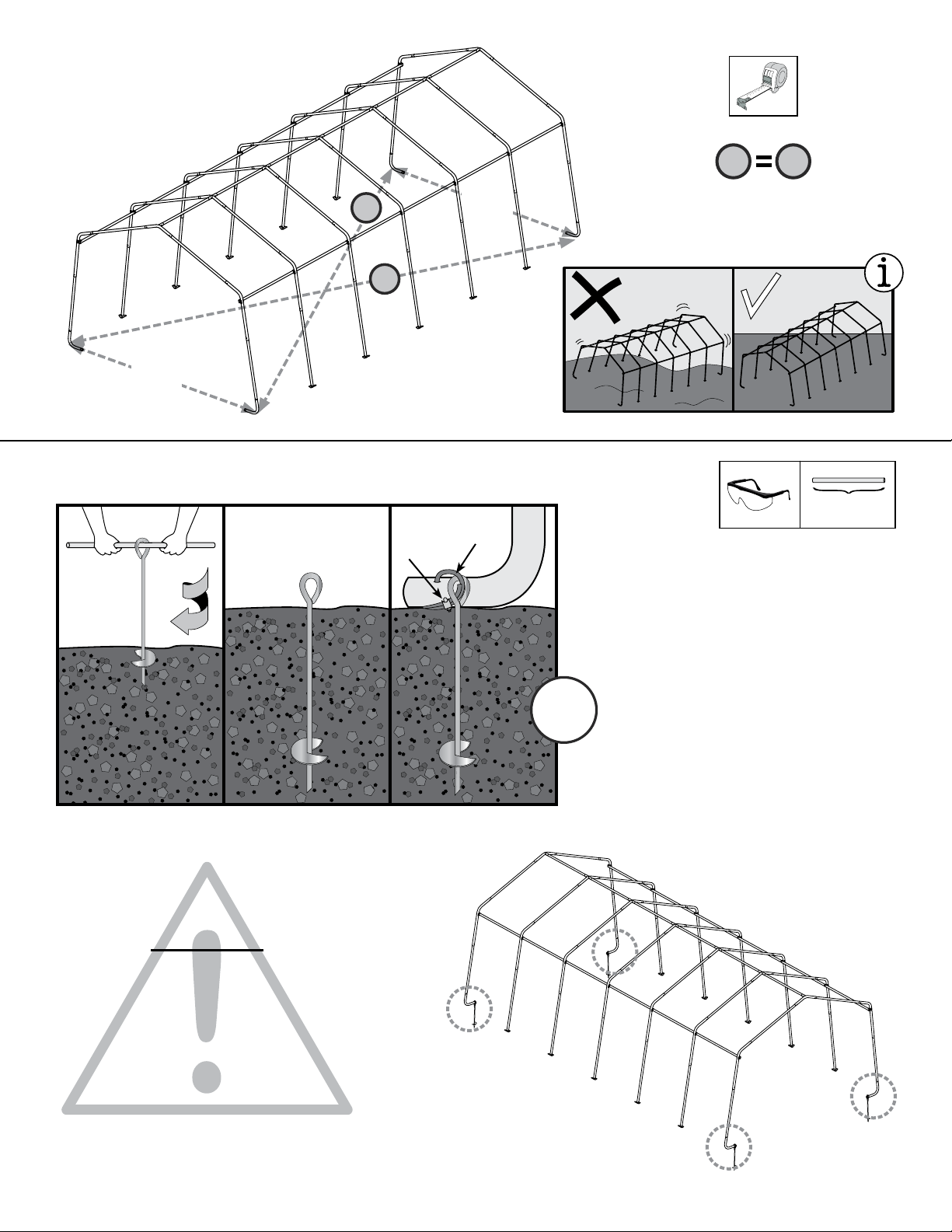

E.
F.
3,7m
12' 3"
X
Y
31 2
10116
3,7m
12' 3"
10115
YX
45 cm
+
/
-
18"
10114
WARNING!
Shelter MUST be securely
anchored. Serious injury
to persons or property
could result.
x4
7 05_62630_A3

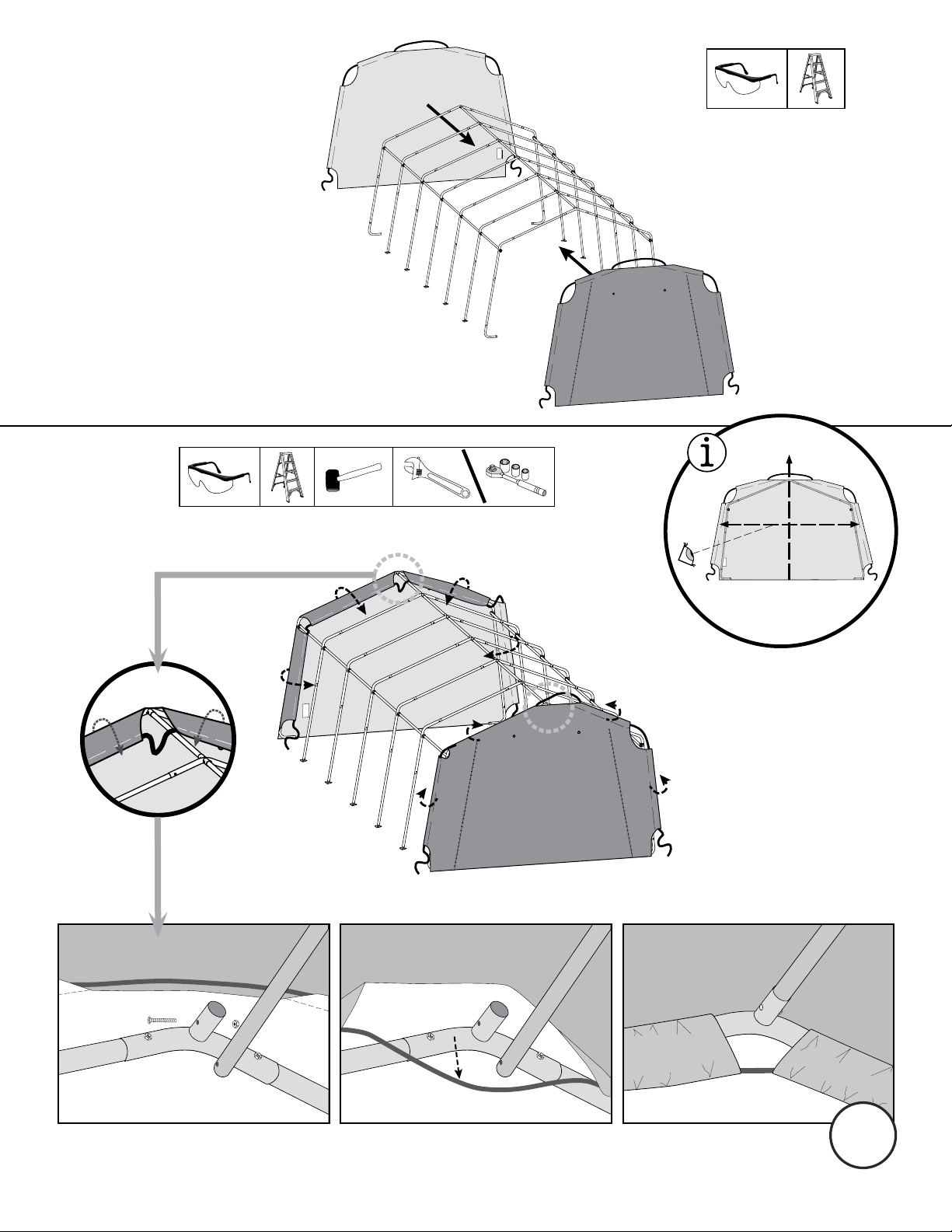

Page 8
G.
803292 & 803293
2
803292
1
803293
a b c
8 05_62630_A3
x2
Page 9

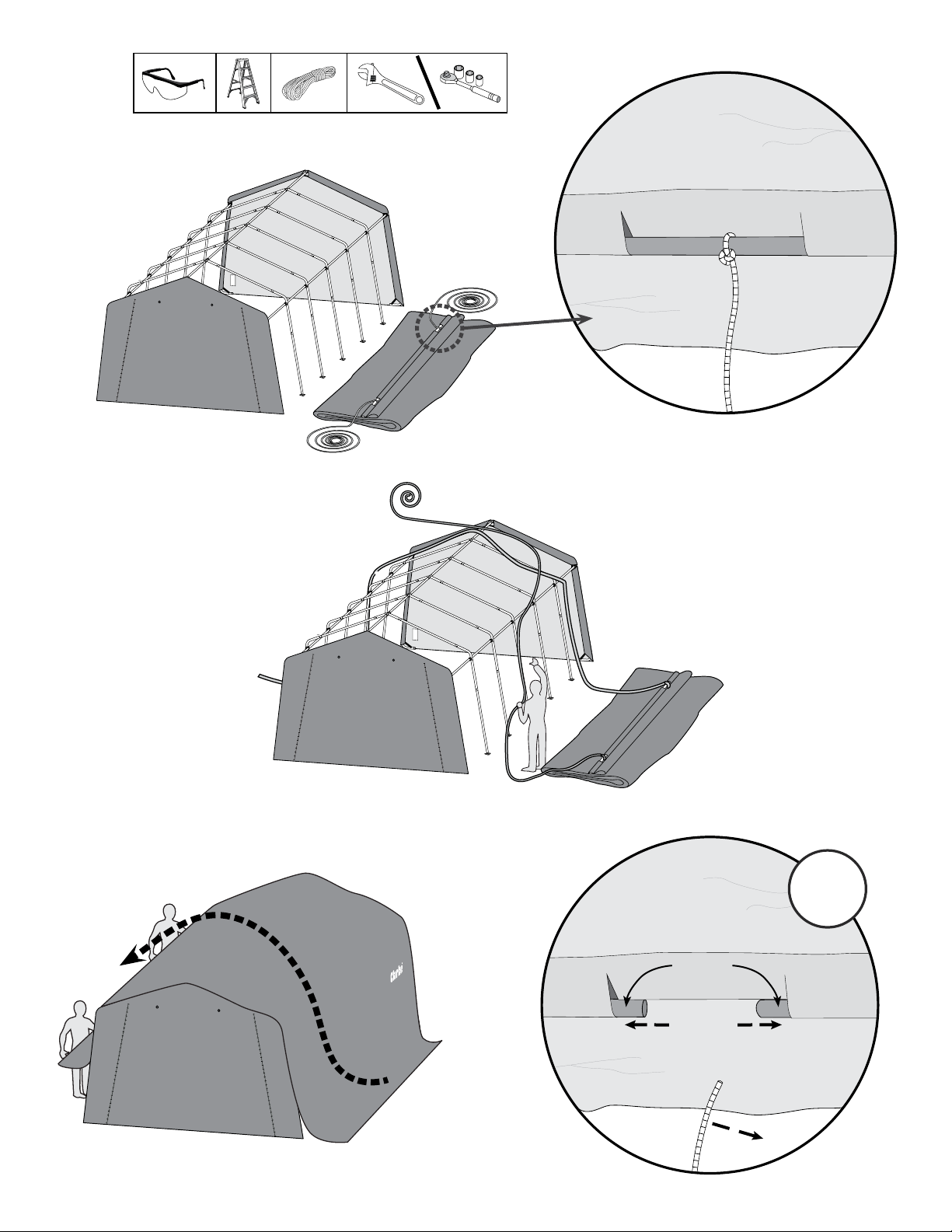

G.
a b c
3
4
x4
9 05_62630_A3

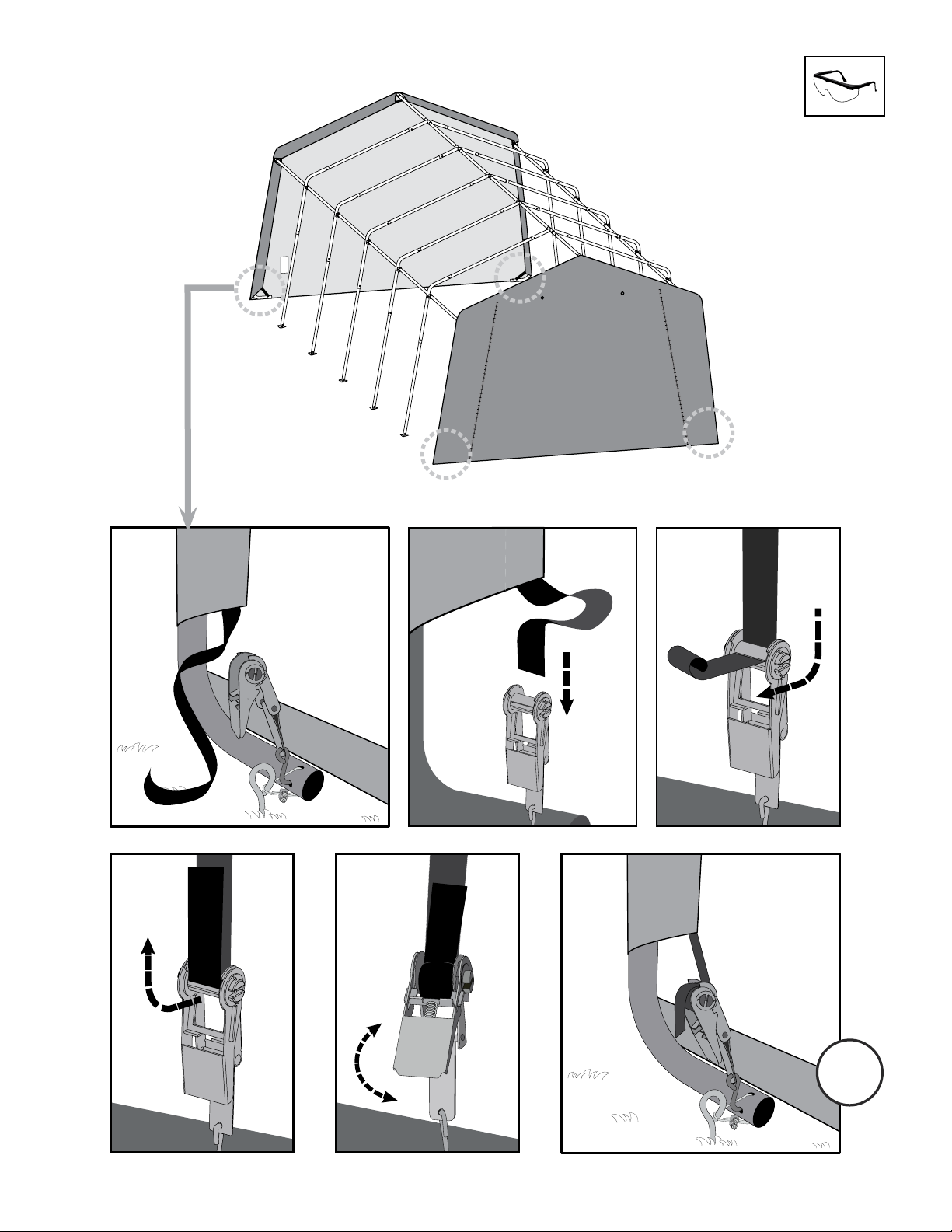

Page 10

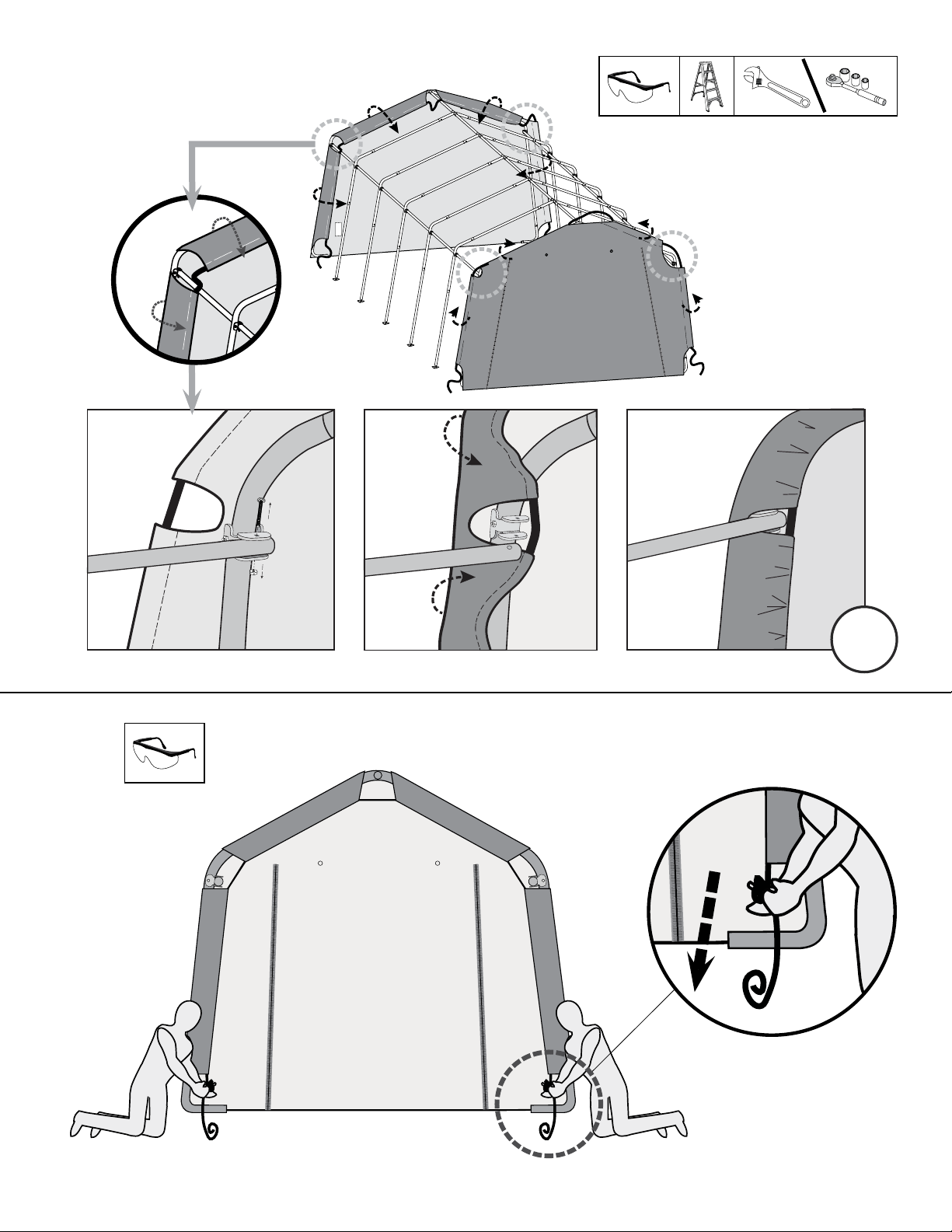

G.
5
d
a
10240
e
b
c
f
x4
10 05_62630_A3
Page 11
H.
1
802695
803291
800292
3
2
4
x12
802695
803291
11 05_62630_A3

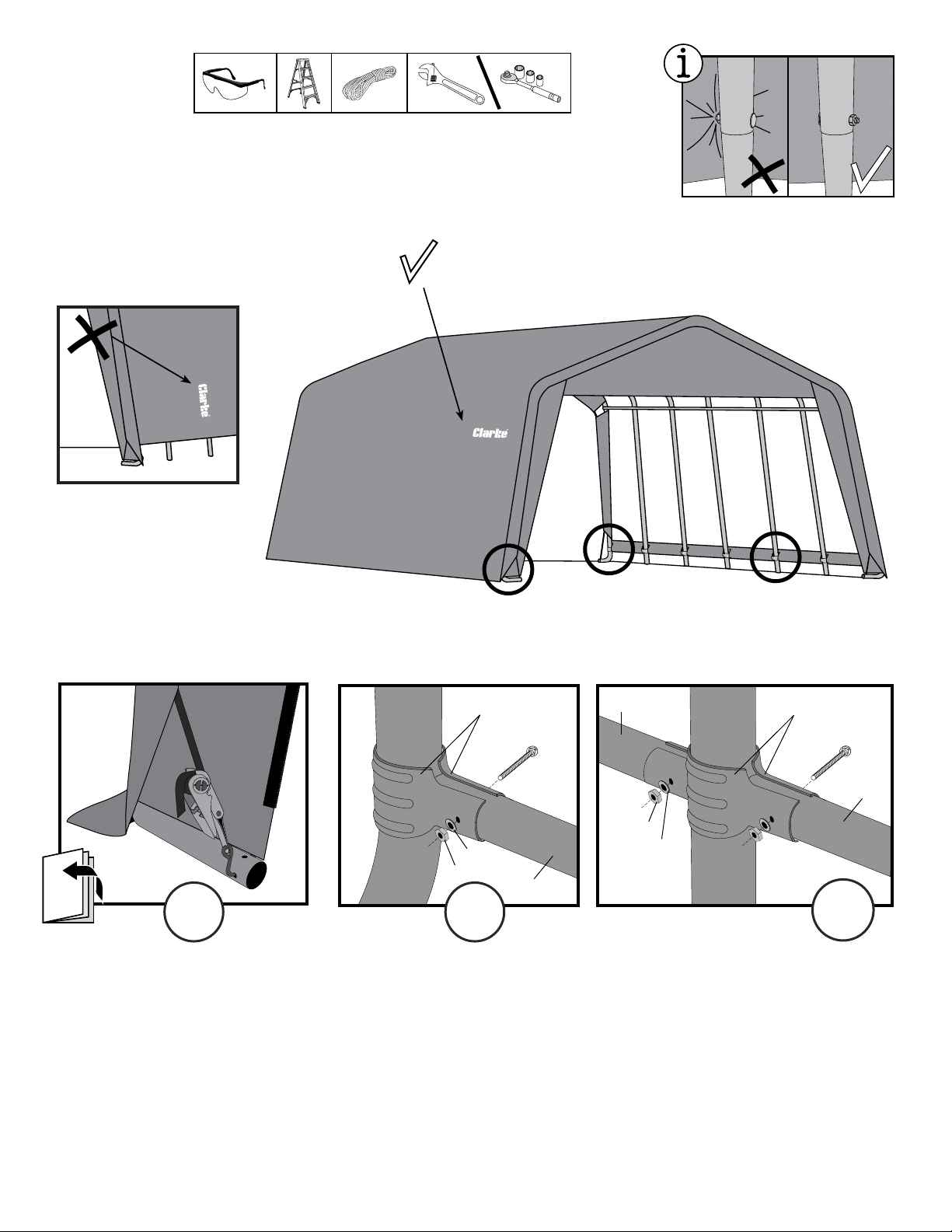

Page 12
H.
5
10
a
13202
01011
01010
x4 x4
a
10115
802695
b
b
802695
01010
01011
c
13201
c
10115
802695
x10
12 05_62630_A3
Page 13

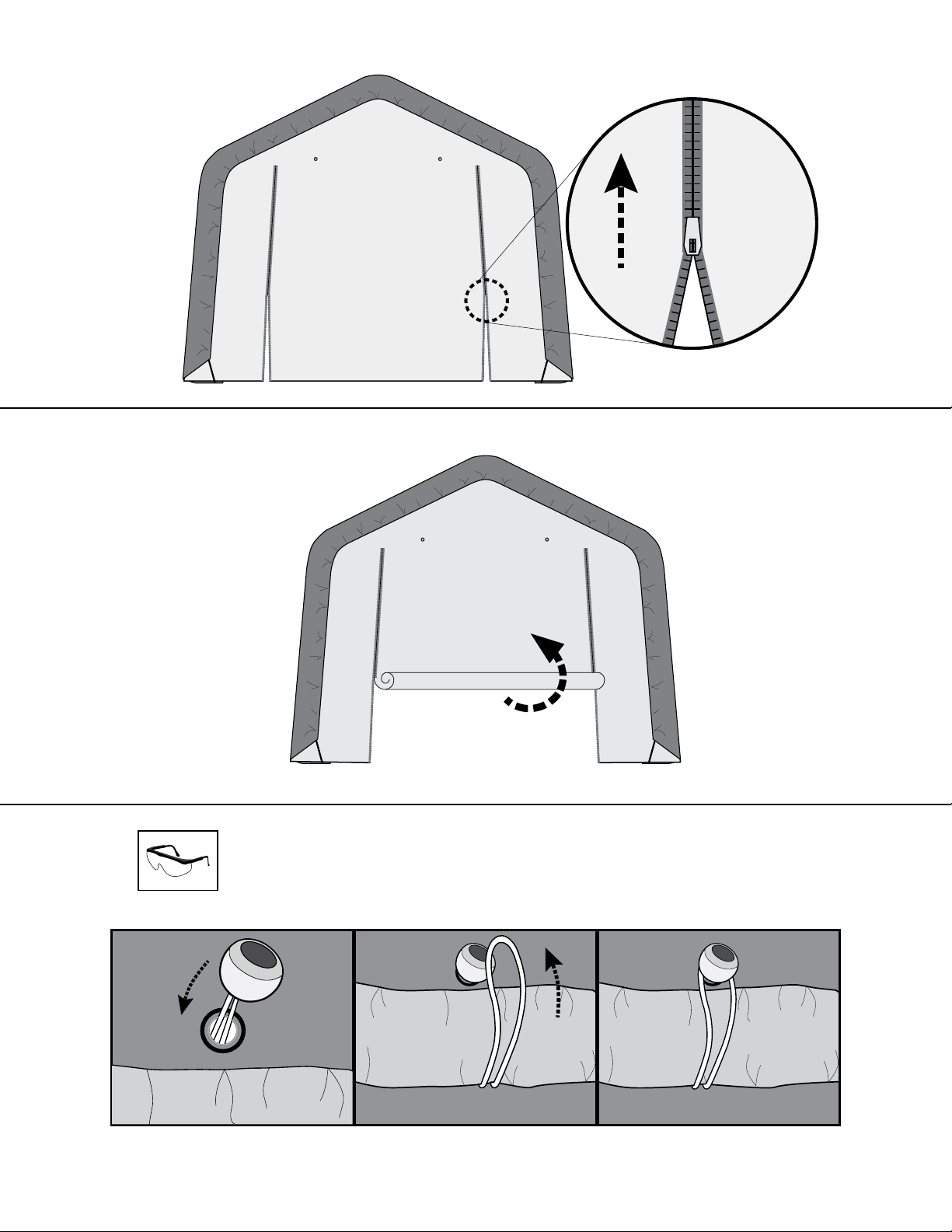

I.
1
2
3
10066
13 05_62630_A3
Page 14
OTHER QUALITY LEISURE & GARDENING
PRODUCTS AVAILABLE FROM
LOGBUSTERS
BANQUETING TABLES
BBQ’s
PORTABLE GENERATORS
GARDEN TROLLEYS
BINOCULARS
LED HEADLIGHTS / FLASHLIGHTS
HOT & COLD POWER WASHERS
TARPAULINS • INSECT KILLERS
CAR COVERS
INVERTERS
JUMP STARTS
FOOT PUMPS • FANS
LADDERS
AND MUCH MORE!
