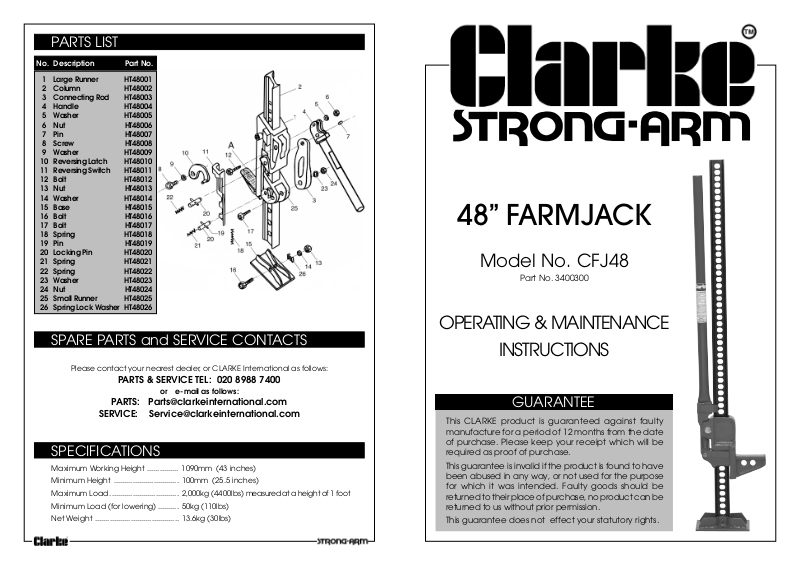

PARTS LIST
No. Description Part No.
1 Large Runner HT48001
2 Column HT48002
3 Connecting Rod HT48003
4 Handle HT48004
5 Washer HT48005
6 Nut HT48006
7 Pin HT48007
8 Screw HT48008
9 Washer HT48009
10 Reversing Latch HT48010
11 Reversing Switch HT48011
12 Bolt HT48012
13 Nut HT48013
14 Washer HT48014
15 Base HT48015
16 Bolt HT48016
17 Bolt HT48017
18 Spring HT48018
19 Pin HT48019
20 Locking Pin HT48020
21 Spring HT48021
22 Spring HT48022
23 Washer HT48023
24 Nut HT48024
25 Small Runner HT48025
26 Spring Lock Washer HT48026
48” FARMJACK
Model No. CFJ48
Part No. 3400300
SPARE PARTS and SERVICE CONTACTS
Please contact your nearest dealer, or CLARKE International as follows:
PARTS & SERVICE TEL: 020 8988 7400
or e-mail as follows:
PARTS: [email protected]
SERVICE: [email protected]
SPECIFICATIONS
Maximum Working Height ............... 1090mm (43 inches)
Minimum Height ............................... 100mm (25.5 inches)
Maximum Load ................................. 2,000kg (4400lbs) measured at a height of 1 foot
Minimum Load (for lowering) .......... 50kg (110lbs)
Net Weight ........................................ 13.6kg (30lbs)
OPERATING & MAINTENANCE
INSTRUCTIONS
GUARANTEE.
This CLARKE product is guaranteed against faulty
manufacture for a period of 12 months from the date
of purchase. Please keep your receipt which will be
required as proof of purchase.
This guarantee is invalid if the product is found to have
been abused in any way, or not used for the purpose
for which it was intended. Faulty goods should be
returned to their place of purchase, no product can be
returned to us without prior permission.
This guarantee does not effect your statutory rights.
Page 2
Thank you for purchasing thisClarke 48" Farm Jack.
This extremely versatile device,is designed to lift, pull or push, a maximum load of
2000 kg (4400lbs - 2Tonnes), and can raise a load up to 1.09mtrs (43"). Its applications
are many and varied, from lifting equipment and machinery, to removing tree
stumps or fence posts etc.
Before attempting to assemble or operate the unit, please read this instruction
booklet thoroughly, and follow all directions carefully, paying particular attention
to the safety precautions. By doing so, you will ensure the safe operation of the
unit, and the safety of yourself and others around you. You can then look forward
to long and reliable service from your CLARKE Farm Jack.
SAFETY PRECAUTIONS
1. Always inspect the jack before use. Ensure that all parts are in good condition
and operating smoothly, and that no cracks or distortion is apparent. If in
doubt do not use.
2. Ensure the jack is on a firm solid base, and that there is no likelihood of it
slipping when under load.
3. Ensure the load is taken by the FULL lifting nose (parts Diagram item A), and that the
point of lift on the load, is of sufficient strength to support the full load adequately.
4. Always ensure that the load is stabilised or supported in such a way that it will
not shift during lowering or lifting operations.
5. Always use supports to stabilise the load once lifted. NEVER work on or under
a load unless it is fully and adequately supported. Do not rely upon jack to
hold load in position.
6. Never push a load off the jack.
7. Ensure that all personnel are well clear of a load being raised, lowered or pulled.
8. It is strongly advised that industrial gloves are worn at all times when using the
jack. Take care not to trap fingers within the moving parts.
9. When using the jack to pull or drag a load, be aware that the load may
suddenly ‘give’, eg. Pulling a tree stump etc. Take the necessary precautions.
10. NEVER carry the jack by the handle, as the column may drop and cause
damage to persons or property, ALWAYS carry via the column.
2. Pull down firmly and evenly on the handle and observe the load rising. As the
handle is pulled down, you will hear the locking pin (20) click into place as it
locates in a hole in the column (2). At this point, relax the handle allowing the
pin (20) to take the load. Raise the handle to the top of its stroke to take a
fresh purchase, and pump the handle once again.
IMPORTANT:
1. DO NOT use extensions on the handle.
2. ALWAYS keep a firm hold on the handle.
To raise a load To lower a load
Fig. 1
Fig. 2.
B. TO LOWER A LOAD
IMPORTANT:
The jack must be loaded with a minimum 50kg (110lbs) to lower step by
step, otherwise the lifting nose will drop.
Taking all necessary precautions, take the load with the jack, (i.e. jack the load up
slightly), and ensuring the handle is in the FULLY UPRIGHT position, trip the Reversing
Latch (11), so that it is in the “Down” position, i.e. the indentation on the latch,
becomes disengaged from the notch on the reversing switch (see fig. 2). Keeping
a firm grip on the handle, pump it as you would for ‘raising a load’.
OPERATING INSTRUCTIONS
A. TO RAISE A LOAD.
1. Following all safety precautions, place the foot of the jack beneath the load.
Lift the Reversing Latch (10) to its’ “UP” position and ensure it is locked in place,
with the indentation in the Latch, firmly engaged in the notch on the Reversing
Switch (11) - refer to fig. 1. Jack up the nose until it comes into contact with the
load at the desired point of lift. Pause at this stage and check to ensure there are
no obstacles to a clean lift.
2
MAINTENANCE
Inspect for distortion of the column and locking pins, and security of all nuts and bolts. Keep
all parts of the jack well lubricated to prevent any possibility of corrosion. Store in a dry place
where it cannot be attacked by the elements.
If stored for long periods, inspect at least twice a year; clean, and re-oil
3
