Clarke CDP 10B, 6550020 User guide

DRILL PRESS

MODEL NO: CDP10B

PART NO: 6550020

OPERATION & MAINTENANCE

INSTRUCTIONS

DL00321

INTRODUCTION

Thank you for purchasing this CLARKE Drill Press. Before attempting to use this
product, please read this manual thoroughly and follow the instructions
carefully. In doing so you will ensure the safety of yourself and that of others
around you, and you can look forward to your purchase giving you long and
satisfactory service.

IMPORTANT

Please read all of the safety and operating instructions carefully before using
this product. Please pay particular attention to all sections of these instructions
that display warning symbols and notices.

WARNING: THIS SYMBOL IS USED THROUGHOUT THE INSTRUCTIONS
WHENEVER THERE IS A RISK OF PERSONAL INJURY. ENSURE THAT
THESE WARNINGS ARE READ AND UNDERSTOOD AT ALL TIMES.

GUARANTEE

This product is guaranteed against faulty manufacture for a period of 12
months from the date of purchase. Please keep your receipt which will be
required as proof of purchase. This guarantee is invalid if the product is found
to have been abused or tampered with in any way, or not used for the
purpose for which it was intended.

Faulty goods should be returned to their place of purchase, no product can
be returned to us without prior permission. This guarantee does not effect your
statutory rights.

ENVIRONMENTAL PROTECTION

Through purchase of this product, the customer is taking on the
obligation to deal with Waste Electrical/Electronic Equipment (WEEE)
in accordance with the WEEE regulations in relation to the treatment,

recycling & recovery and environmentally sound disposal of the
WEEE. In effect, this means that this product must not be disposed of with
general household waste. It must be disposed of according to the laws
governing Waste Electrical and Electronic Equipment (WEEE) at a recognised
disposal facility.

2

Parts & Service: 020 8988 7400 / E-mail: [e-mail] or [e-mail]

GENERAL SAFETY RULES

WARNING: WHEN USING ELECTRIC TOOLS, BASIC SAFETY PRECAUTIONS
SHOULD ALWAYS BE FOLLOWED TO REDUCE THE RISK OF FIRE, ELECTRIC
SHOCK AND PERSONAL INJURY INCLUDING THE FOLLOWING. READ ALL
THESE INSTRUCTIONS BEFORE ATTEMPTING TO OPERATE THIS PRODUCT
AND SAVE THESE INSTRUCTIONS FOR FUTURE REFERENCE.

GENERAL SAFETY IN THE WORKPLACE

1. Always ensure that air can circulate around the machine and that the air

vents are unobstructed.

2. Always keep work area clean & tidy. Cluttered work areas and benches

invite accidents.

3. Never over-reach. Keep proper footing and balance at all times.

4. Never store equipment in a wet/damp environment or expose to rain.

5. Keep other persons away. Do not let persons, especially children, not

involved in the work, touch the tool or extension cable and keep them
away from the work area.

6. Never operate a machine when under the influence of alcohol, drugs or

medication.

7. Always ensure the workplace is well lit. Ensure that lighting is placed so that

you will not be working in your own shadow.

8. Do not use tools in the presence of flammable liquids or gasses.

9. Stay alert, watch what you are doing, use common sense and do not

operate the tool when you are tired.

CARE OF POWER TOOLS

1. Read this manual carefully. Learn the machines applications and

limitations, as well as the specific potential hazards peculiar to it.

2. Always keep guards in place and in working order. A guard or other part

that is damaged should be properly repaired or replaced by an authorised
service centre, unless otherwise indicated in this instruction manual.

3. Remove any adjusting keys or wrenches before starting. Form the habit of

checking to ensure that keys, wrenches and tools are removed from the
machine.

4. Don’t force the machine and use the correct tool. It will do the job better

and safer, at the rate for which it was intended.

3

Parts & Service: 020 8988 7400 / E-mail: [e-mail] or [e-mail]

5. Always disconnect the machine from the power supply before carrying out

any servicing or changing of accessories.

6. Before further use of the tool, it should be carefully checked to determine

that it will operate properly and perform its intended function. Check for
alignment of moving parts, binding of moving parts, breakage of parts,
mounting or other condition that may affect its operation.

7. Have defective switches repaired by an authorised service centre. Do not

use a tool if the switch does not turn it on and off.

8. Always check for any damage or any condition that could affect the

operation of the machine. Damaged parts should be properly repaired.

9. Never remove the cover panel unless the machine is disconnected from

the power supply, and never use the machine with cover panels removed.

10. Have your tool repaired by a qualified person. This tool complies with the

relevant safety rules. Repairs should only be carried out by qualified
persons using original spare parts, otherwise this may result in considerable
danger to the user.

11. Never use this product for any other purpose than that described in this

booklet.

12. Never abuse the power cable by yanking the cable to disconnect it from

the socket. Keep the cable away from heat, oil or sharp edges.

13. Guard against electric shock. Avoid body contact with earthed or

grounded surfaces.

14. If the tool should be used outdoors, use only extension cables intended for

outdoor use and marked accordingly.

15. Avoid accidental starting by making sure the power switch is off before

plugging in the power cable.

ADDITIONAL SAFETY RULES FOR DRILL PRESSES

CAUTION: AS WITH ALL MACHINERY, THERE ARE CERTAIN HAZARDS
INVOLVED WITH THEIR OPERATION AND USE. EXERCISING RESPECT AND
CAUTION WILL CONSIDERABLY LESSEN THE RISK OF PERSONAL INJURY.
HOWEVER, IF NORMAL SAFETY PRECAUTIONS ARE OVERLOOKED, OR
IGNORED, PERSONAL INJURY TO THE OPERATOR, OR DAMAGE TO
PROPERTY MAY RESULT.

1. IMPORTANT: You should not operate this machine unless you are thoroughly

familiar with drilling machines and drilling techniques. If there is any doubt
whatsoever you should consult a qualified person.

2. Never operate the machine until it is completely assembled and you have

read and understood this entire manual.

4

Parts & Service: 020 8988 7400 / E-mail: [e-mail] or [e-mail]

3. Always use clamps or a drill vice bolted to the table, to hold the work. It

should never be held with bare hands.

4. Always shut off the power & remove drill bit before leaving the machine.

5. Always make all adjustments with the power off.

6. Always use the correct drilling speeds for the drill size and the type of

material being drilled.

7. Never leave the drill unattended whilst it is running. Turn the machine OFF

and do not leave until it has come to a complete stop.

8. Always remove and store the drill bits when you have finished work.

9. Never attempt to drill into a workpiece that does not have a flat surface

unless a suitable support is used.

10. Always stop the drill before removing workpieces, work supports or swarf

from the table.

11. Keep drills sharp and clean for best and safest performance. Follow

instructions for changing accessories.

12. Adjust the table or depth stop to avoid drilling into the table surface.

13. Always be sure that the drill bit is securely locked in the chuck.

14. Never assemble or set up any work on the table while the drill is running.

15. Always ensure the table lock is tight before starting the drill.

16. Keep handles dry, clean and free from oil and grease.

17. Always keep hands and fingers away from the drill bit.

WARNING: DUST GENERATED FROM CERTAIN MATERIALS CAN BE
HAZARDOUS TO YOUR HEALTH. ALWAYS OPERATE THE DRILL IN A WELL
VENTILATED AREA. USE A DUST COLLECTION SYSTEM IF POSSIBLE.

WARNING: THE USE OF ANY ACCESSORY OR ATTACHMENT OTHER THAN
ONE RECOMMENDED IN THIS INSTRUCTION MANUAL MAY PRESENT A RISK
OF PERSONAL INJURY.

PROTECTIVE CLOTHING

1. Dress properly. Loose clothing or other jewellery may get caught in moving

parts. Non-slip footwear is recommended. Wear protective hair covering to
contain long hair.

2. Always wear safety glasses. (Everyday glasses are not safety glasses.)

3. Wear a face mask if drilling into any material which produces dust.

5

Parts & Service: 020 8988 7400 / E-mail: [e-mail] or [e-mail]

ELECTRICAL CONNECTIONS

Plug must be BS1363/A approved.

Always fit a 13 Amp fuse.

Ensure that the outer sheath of the cable is firmly held by the clamp

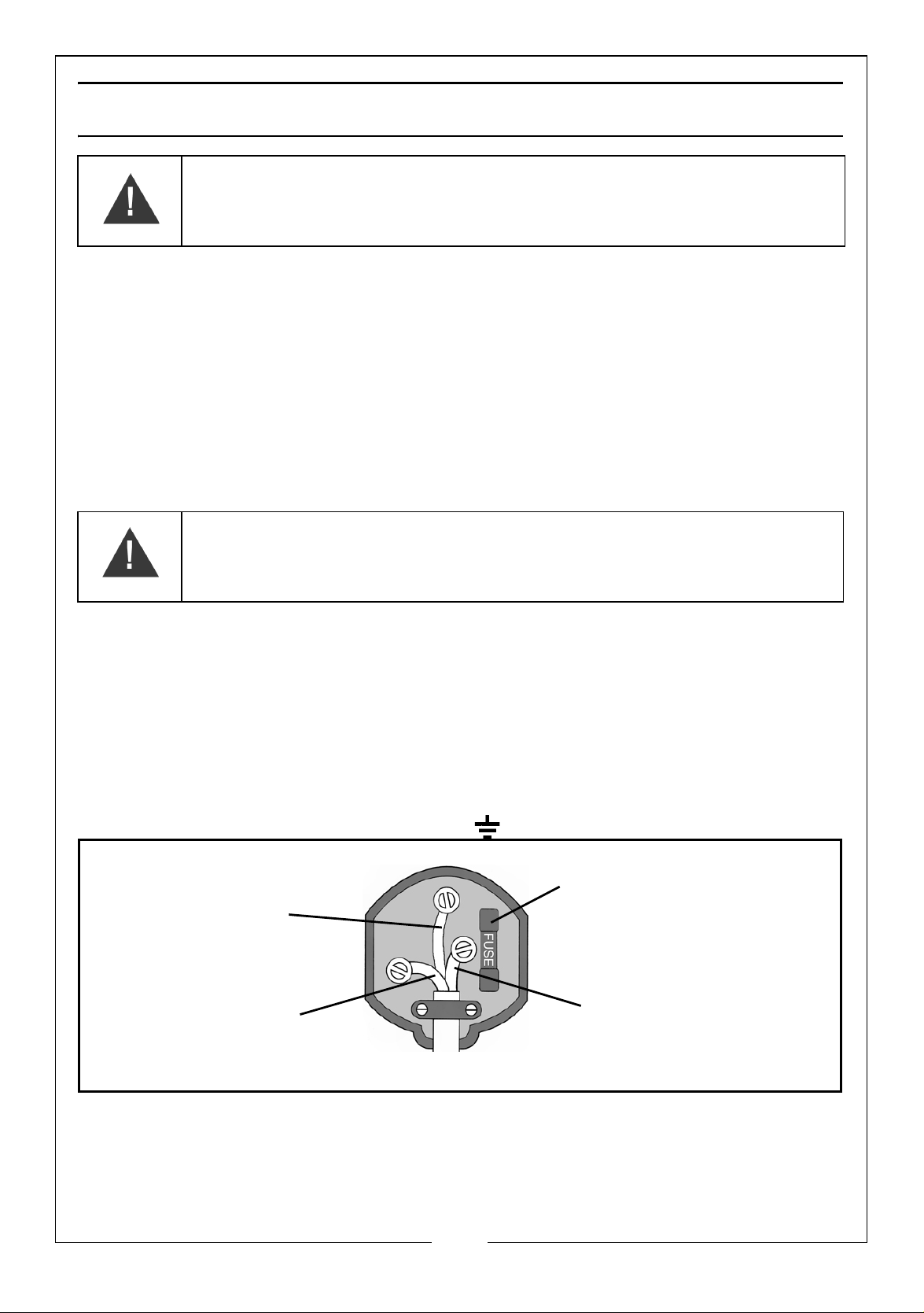

Neutral

(Blue)

Live

(Brown)

Earth

(Green and Yellow)

WARNING! Read these electrical safety instructions thoroughly
before connecting the product to the mains supply.

Before switching the product on, make sure that the voltage of your electricity supply is
the same as that indicated on the rating plate. This product is designed to operate on
230VAC 50Hz. Connecting it to any other power source may cause damage.

This product may be fitted with a non-rewireable plug. If it is necessary to change the
fuse in the plug, the fuse cover must be refitted. If the fuse cover becomes lost or
damaged, the plug must not be used until a suitable replacement is obtained.

If the plug has to be changed because it is not suitable for your socket, or due to
damage, it should be cut off and a replacement fitted, following the wiring instructions
shown below. The old plug must be disposed of safely, as insertion into a mains socket
could cause an electrical hazard.

WARNING! The wires in the power cable of this product are
coloured in accordance with the following code:
Blue = Neutral Brown = Live Yellow and Green = Earth

If the colours of the wires in the power cable of this product do not correspond
with the markings on the terminals of your plug, proceed as follows.

• The wire which is coloured Blue must be connected to the terminal
which is marked N or coloured Black.

• The wire which is coloured Brown must be connected to the terminal
which is marked L or coloured Red.

• The wire which is coloured Yellow and Green must be connected to

the terminal which is marked E or or coloured Green

.

We strongly recommend that this machine is connected to the mains supply
via a Residual Current Device (RCD)

If in any doubt, consult a qualified electrician. DO NOT attempt any repairs
yourself.

6

Parts & Service: 020 8988 7400 / E-mail: [e-mail] or [e-mail]

PARTS INVENTORY

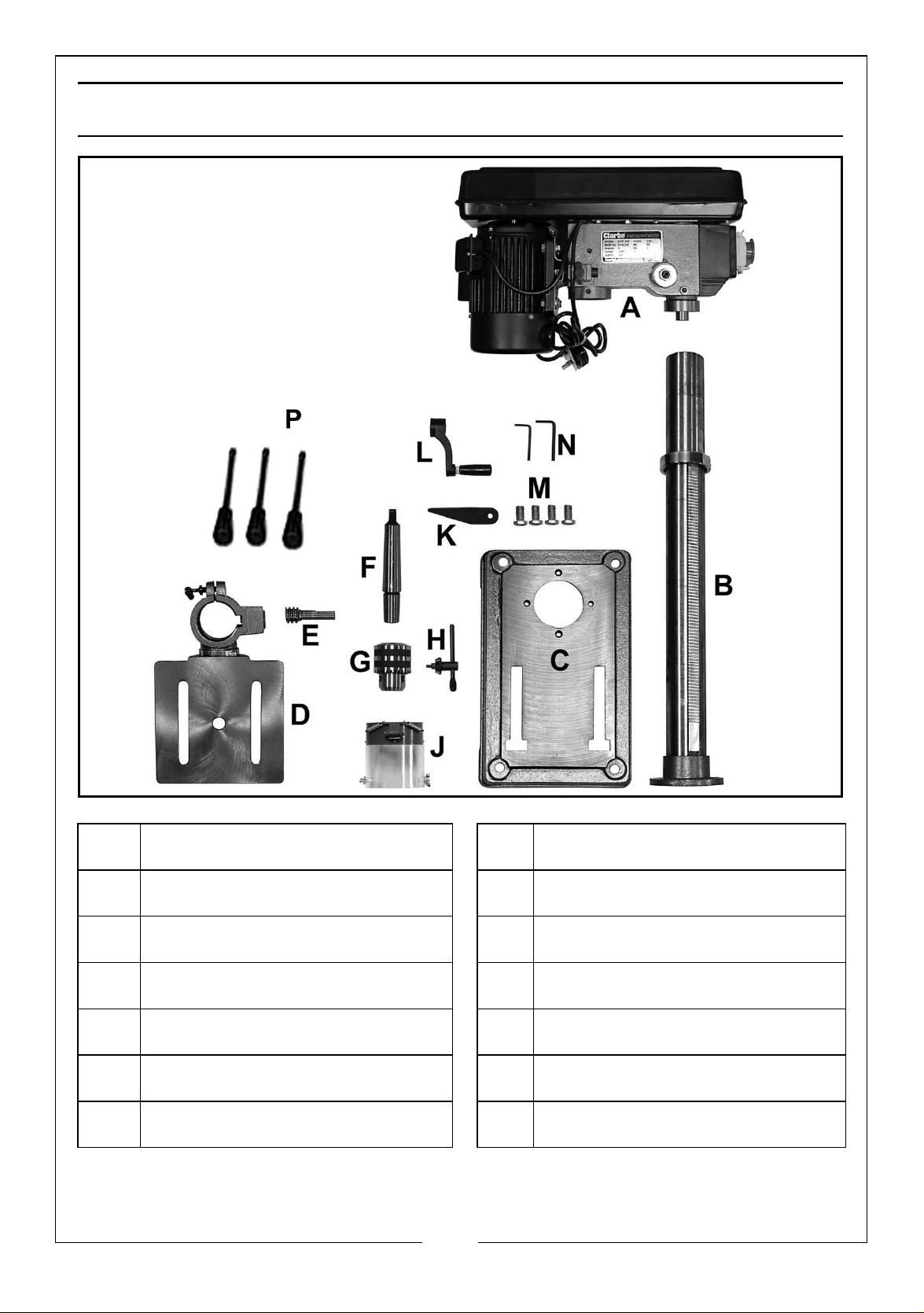

A Head Assembly H Chuck Key

B Column c/w Rack J Chuck Guard Assembly

C Base K Drift Wedge

D Table L Crank Handle

E Worm Drive M Bolts M10 x 25

F Arbor N Hex Keys

G Chuck P Feed Handles (x 3)

7

Parts & Service: 020 8988 7400 / E-mail: [e-mail] or [e-mail]

UNPACKING

The drill press is delivered with the components shown on page 7.

Check the parts against the list. Should there be any deficiencies or damage,
you should contact your CLARKE dealer immediately where the product was
originally purchased. Do not discard the packaging until the machine is
assembled. The packaging consists of cardboard and appropriately marked
materials which can be sent to a re-cycling facility.

To protect the machine parts from moisture, a protective coating of light
machine oil will have been applied to the outside surfaces. Remove any
excess with a paper towel.

Take care when lifting the head assembly, considering its weight.

Before use, the machine must be mounted, and securely bolted, to a strong,
heavy workbench, of sufficient height that you will be standing upright when
working.

Ensure the work place is adequately lit, and that you will not be working in your
own shadow.

ASSEMBLY

COLUMN TO BASE

1. Bolt the column assembly to the base with the four bolts provided.

NOTE: Ideally, the base with column attached, should be firmly bolted to

the workbench, prior to the assembly of other components.

TABLE TO COLUMN

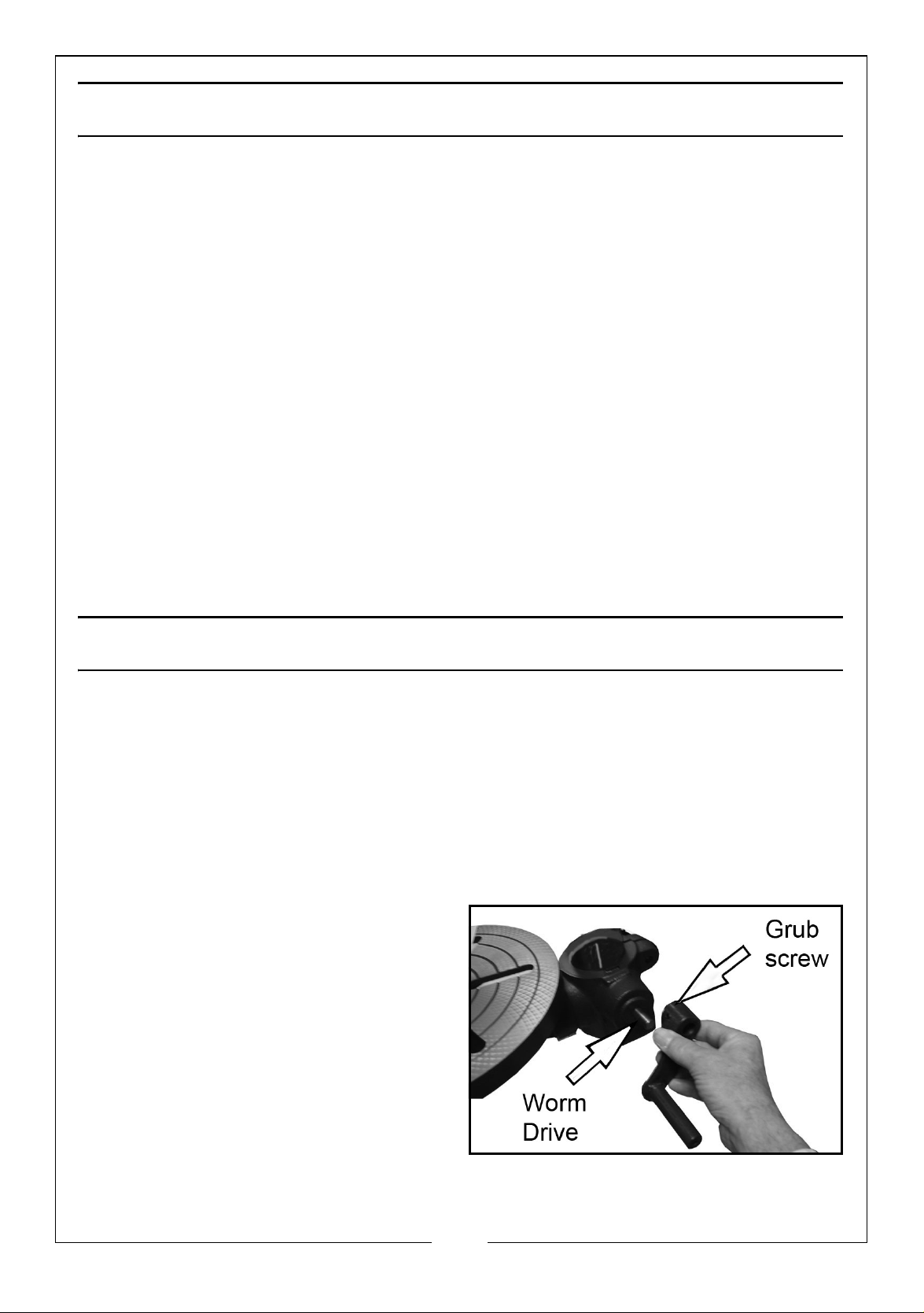

1. From the loose parts, locate the
worm and install it in the gear
housing of the table support,
liberally greased and pushed fully
home.

2. Push the crank on to the worm
spigot, protruding from the gear
housing, as far as it will go and
tighten the crank’s grub screw on
to the flat of the spigot using a hex
key.

8

Parts & Service: 020 8988 7400 / E-mail: [e-mail] or [e-mail]

3. Slacken the grub screw securing
the collar to the column and pull
collar and rack off the column.

4. Slide the rack through the slot in
the table support with the long,
smooth end uppermost, so that
the rack teeth engage with the

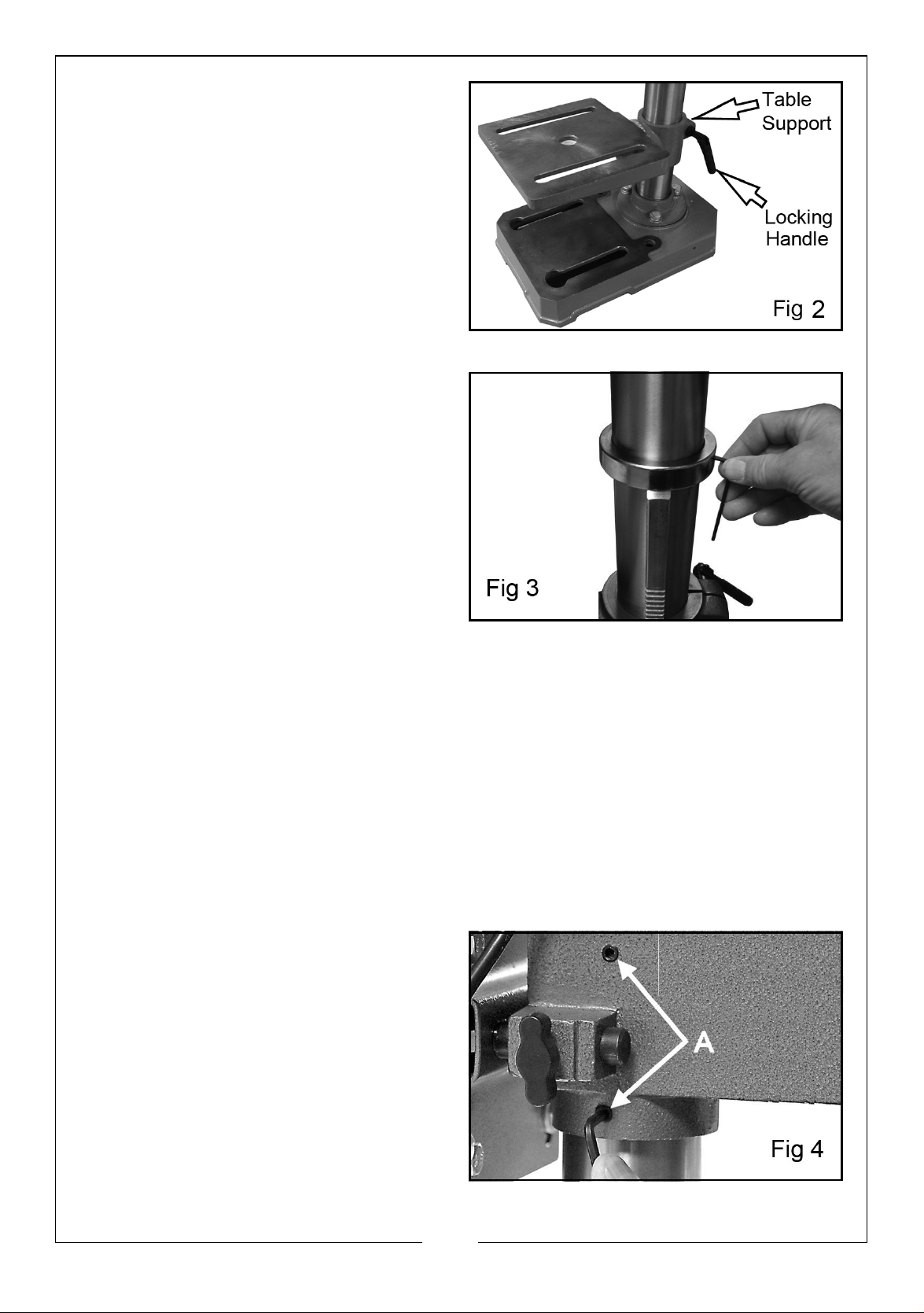

worm, as shown in Fig 2, and
holding in this position, slide the
table support, with rack, onto the
column.

5. Lower the assembly so that the
end of the rack sits fully into the
groove at the base of the column
support, then replace the collar
on to the column, with the groove
facing downwards to grip the
rack.

6. With the rack sitting snugly in the
grooves, top and bottom, tighten
the collar grub screw with a hex
key, as shown in Fig 3, ensuring
there is sufficient clearance to allow the complete table assembly to move
around the column.

7. Check to ensure the table moves smoothly from top to bottom of the rack
by turning the handle. If necessary ease off the rack collar by slackening
the grub screw and repositioning the collar to achieve a good movement.

HEAD TO COLUMN

NOTE: It may be necessary to unscrew the head lock. set screws (A in

fig.4), to ensure they do not protrude internally, as this would
prevent the head from sliding fully into position.

1. With the help of an assistant, raise
the head assembly, and locate it
on top of the column, ensuring it
slides home fully.

2. Align the head with the base, and
tighten down the head lock set
screws using the wrench (key)
provided as shown in Fig 4.

9

Parts & Service: 020 8988 7400 / E-mail: [e-mail] or [e-mail]

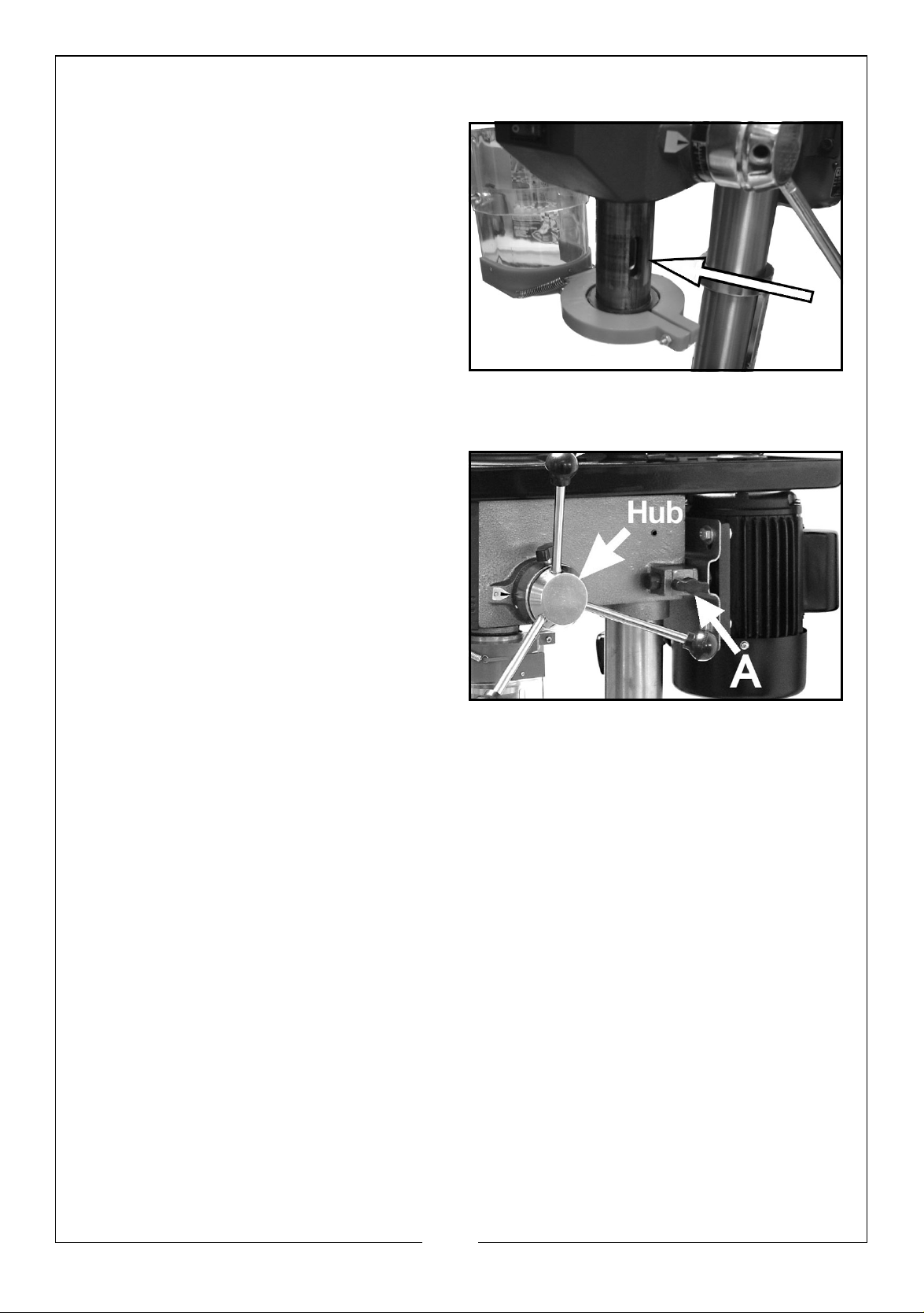

3. Locate the three feed handles,
and screw them firmly into the
hub of the feed shaft as shown in
Fig.5.

CHUCK GUARD ASSEMBLY

NOTE: This task should be carried

out before the chuck is
installed.

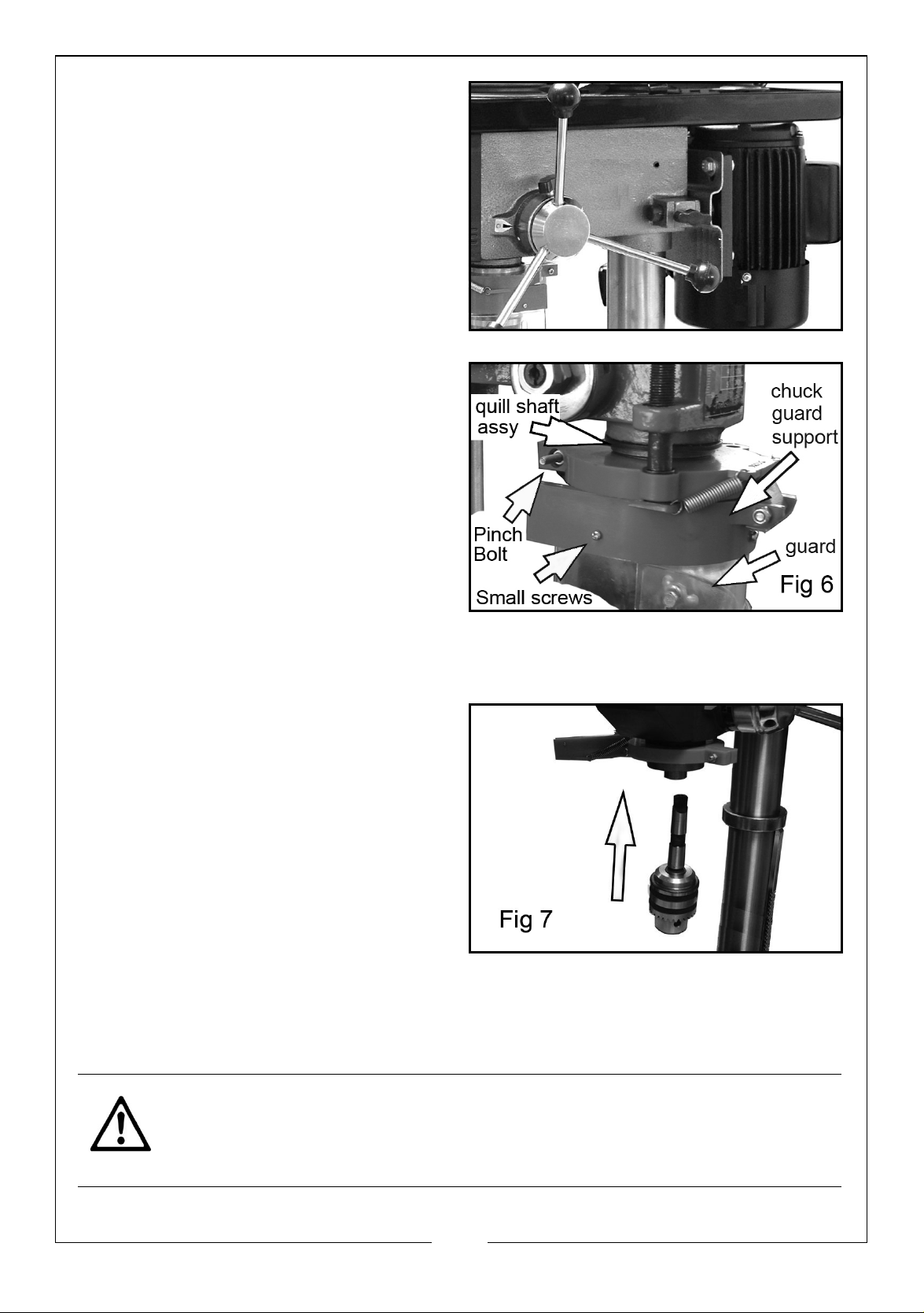

1. Assemble the transparent guard
to the guard support using the
small bolt/nut and the two small
screws provided. (A small x-head
screwdriver will be required.)

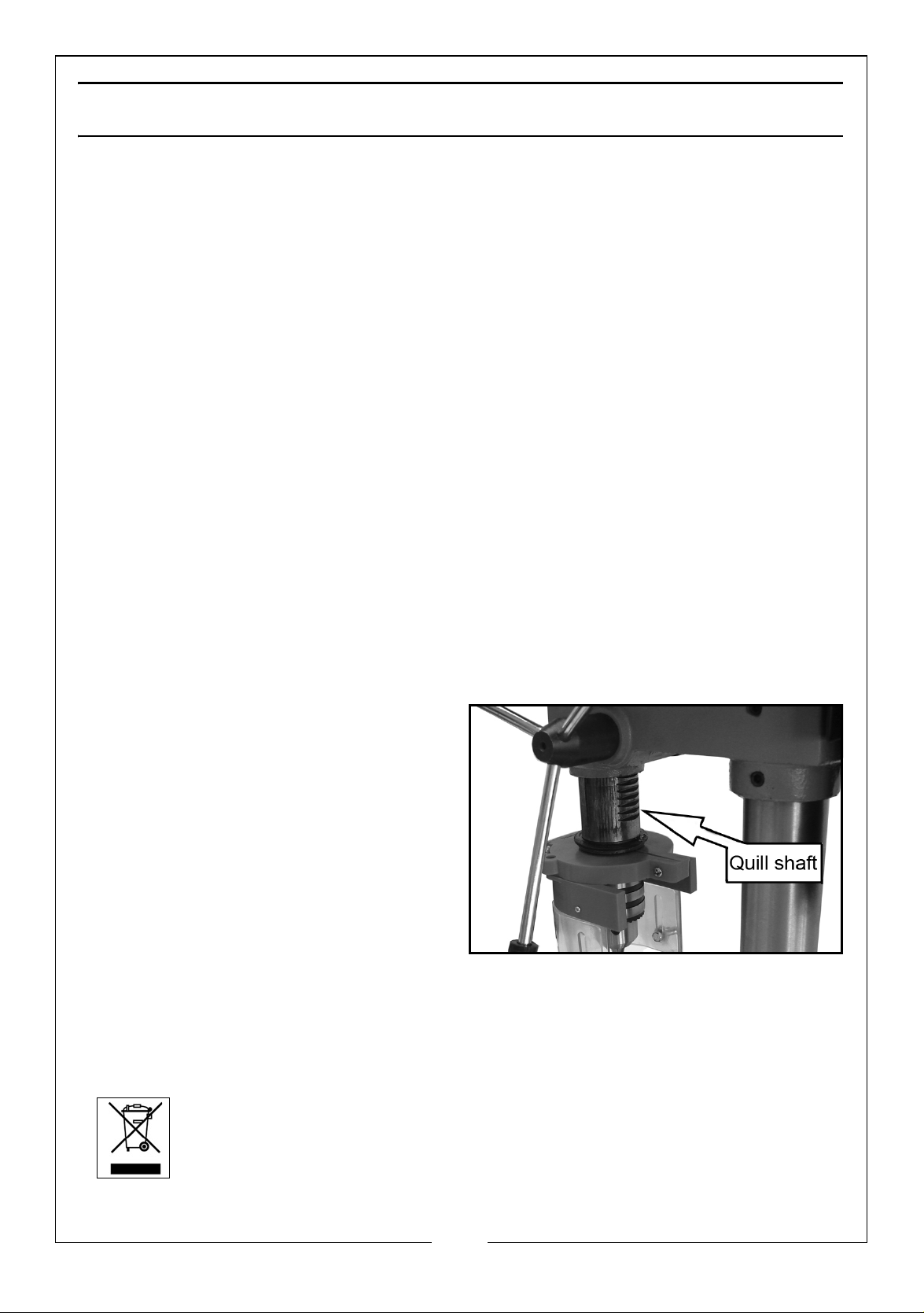

2. Slide the Chuck Guard over the
Quill Shaft and nip up the pinch
bolt, temporarily, with the pinch
bolt facing the front (see fig 6).
Ensure the Quill Shaft/Spindle is at
the top of its travel.

INSTALLING THE CHUCK

1. Open the jaws of the chuck to
their maximum, using the chuck
key supplied. Ensure the tapered

hole in the chuck is clean and
connect the arbor to the chuck
using the grub-screw and tighten
securely.

2. Slacken the chuck guard pinch
bolt and turn the chuck guard so
the pinch bolt is towards the rear

and tighten the pinch bolt.

3. Ensuring the arbor is clean and burr free. Seat the arbor into the quill shaft
till it bears against the drive spindle and tap the chuck firmly with a rubber
mallet until the tapered end of the arbor engages with the spindle.

CAUTION: IF A RUBBER MALLET IS NOT AVAILABLE, PROTECT THE CHUCK
WITH A BLOCK OF SCRAP TIMBER BEFORE STRIKING WITH A HAMMER.
ALWAYS ENSURE THE CHUCK JAWS ARE FULLY CLOSED BEFORE STRIKING
THE CHUCK

10

Parts & Service: 020 8988 7400 / E-mail: [e-mail] or [e-mail]

REMOVING THE CHUCK

1. Turn the lower feed handles to
lower the chuck to its lowest
position.

2. Insert a tapered drift key into the
corresponding slot in the quill
assembly and tap sharply with a
mallet to release the tapered
chuck arbor.

3. Take care to catch the chuck and
arbor as it falls.

BELT TENSIONING

1. Slacken the two belt tension

locking screws (A Fig 9), then lever

the motor, on its bracket, away
from the head, so that tension is
applied to the belt.

2. Tension is correct when the belt
deflects by approx. ½” at the
centre of its run when using
reasonable thumb pressure. Lock
the motor in this position by
tightening the two locking screws
(A).

NOTE: If the belt should slip whilst drilling, adjust the belt tension.

CHECKING THE OPERATION OF THE MICROSWITCH

When closing the cover, check the operation of the micro-switch. It is
important that it operates immediately the cover is pulled open, in order to

prevent the machine from operating........NOT when the cover is opened

sufficiently for fingers to be inserted. If necessary, bend the actuating tab,
which is attached to the cover, to ensure this.

11

Parts & Service: 020 8988 7400 / E-mail: [e-mail] or [e-mail]

SETTINGS AND ADJUSTMENTS

TABLE

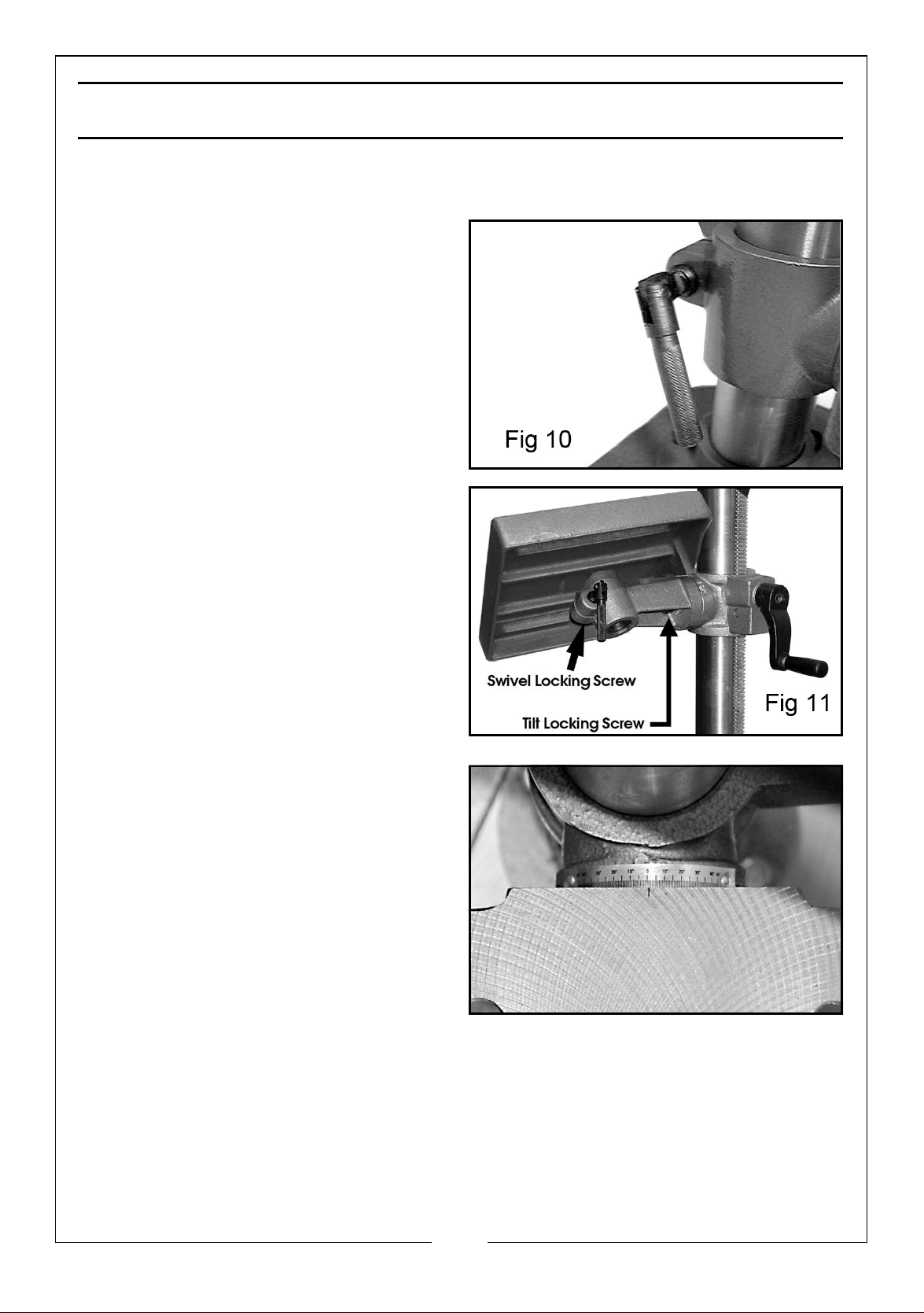

The table may be raised, lowered or
swivelled about the column, by
slackening off the table support
locking handle, adjusting the table
position accordingly and re­tightening the handle.

It may also be tilted by loosening the
screw which secures the table to its
mount beneath the table, tilting the
table to the required position and
re-tightening the bolt shown in Fig 11.

A bevel scale is provided on the
table mounting, (measured in
degrees), to assist in setting the
required angle. However, for greater
accuracy the use of a protractor is
recommended.

For all normal operations, the table
should be set to 0°. This should be
checked with a set-square.

To check to ensure the drill is entirely
perpendicular to the table, install a large drill bit in the chuck, place a square
on the table, and bring it up to the drill. Adjust the table tilt if necessary, so that
the table is perfectly square.

12

Parts & Service: 020 8988 7400 / E-mail: [e-mail] or [e-mail]

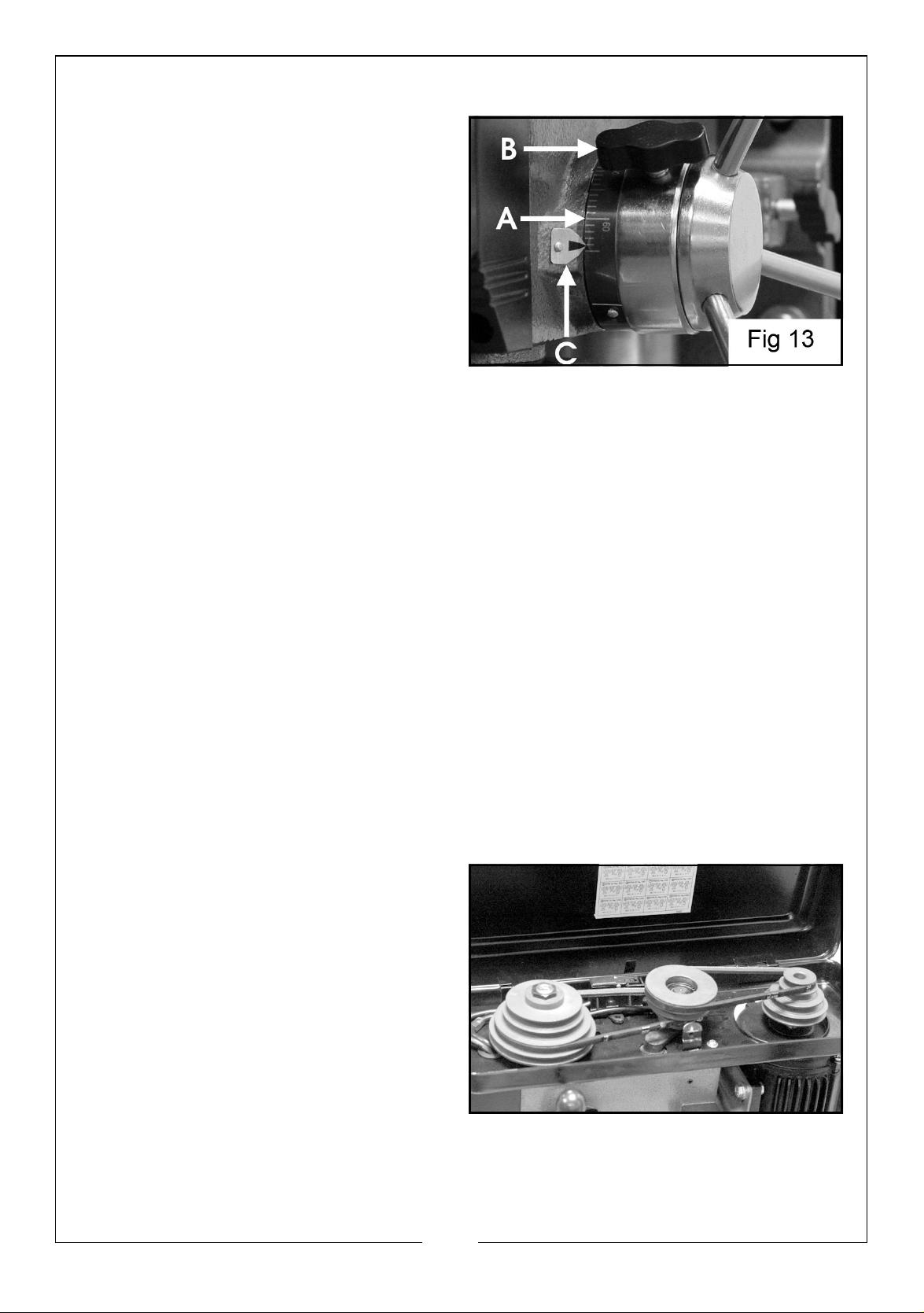

SPINDLE DEPTH STOP

Located around the spindle feed
shaft is a depth stop collar carrying a
graduated scale (A, Fig.13). The
collar is capable of turning about the
shaft and may be locked in place by
locking screw B. The graduations are
metric (mm).

To set a drilling depth:

With the drill bit installed and
tightened securely, lower it...WITH THE
POWER OFF, so that it lightly contacts the work, and hold in that position with
one hand whist slackening the locking screw (B) and rotating the scale (A)
ANTICLOCKWISE until it stops.

The zero mark should now be opposite the pointer (C).

To check to ensure the table is square to the drill, insert a piece of straight
round bar in the chuck, place a square on the table and bring it up to the
round bar. Adjust the table tilt if necessary so that the table is correctly aligned

Maintaining a light pressure on the drill bit, back off the scale ring until the
value of the desired depth of cut (mm), is opposite the pointer, then tighten
the locknut (B).

The drill is now set to drill holes to your desired depth. i.e. Providing your
workpiece is level and flat, you may drill a series of holes, each to the same
depth, quickly and accurately.

CHANGING DRILL (SPINDLE) SPEED

Before changing the speeds, ensure the machine is switched OFF, and
disconnected from the power supply.

1. Open the pulley cover.

2. Slacken off the belt tension
locking screw, to relieve any
tension on the drive belt.

3. Consult the chart inside the pulley
cover, and position the belt on the
pulley’s according to the spindle
speed required.

4. When the belt has been correctly
positioned, re-tension by levering
the motor away from the head, until the belt deflects by approx. ½” at its
centre when using reasonable thumb pressure. Lock the motor in this
position with the belt tension locking screws.

13

Parts & Service: 020 8988 7400 / E-mail: [e-mail] or [e-mail]

DRILL OPERATING SPEEDS

The table below gives the belt arrangement for given drill speeds.

A similar chart is also located on the inside of the pulley cover.

The diagram shows the belts fitted to step 4 of the spindle pulley and step 1 of
the motor pulley, giving a speed of 210rpm.

S

PINDLE

P

ULLEY

A

M

OTOR

P

ULLEY

B

D

RILL

S

PEED

RPM

S

PINDLE

P

ULLEY

A

M

OTOR

P

ULLEY

B

D

RILL

S

PEED

RPM

1 4 1 210 7 12830

2 4 2 280 8 2 3 1290

3 3 1 320 9 3 4 1350

4 2 1 420 10 1 3 1580

5 3 2 500 11 2 4 2180

6 4 3 540 12 1 4 2580

14

Parts & Service: 020 8988 7400 / E-mail: [e-mail] or [e-mail]

OPERATION

1. Insert the drill into the jaws of the chuck by approx 1", ensuring that the jaws
do not touch the flutes of the drill. Before tightening the chuck, ensure that
the drill is centred within the jaws.

2. Ensure the table height and position is set, so that drill travel is sufficient for
the job in hand.

3. Ensure the work is securely clamped or held in a drill vice, bolted to the
table. Never hold it with bare hands. Personal injury may be caused if the
workpiece is whipped out of the operator’s hand, and damage to the
machine incurred if the work strikes the column.

If the workpiece is of irregular shape and cannot be laid flat on the table, it
should be securely blocked and clamped.

Any tilting, twisting, or shifting, results not only in a rough hole, but also
increases drill bit breakage.

4. For small workpieces that cannot be clamped to the table, use a drill press
vice. The vice must be clamped or bolted to the table.

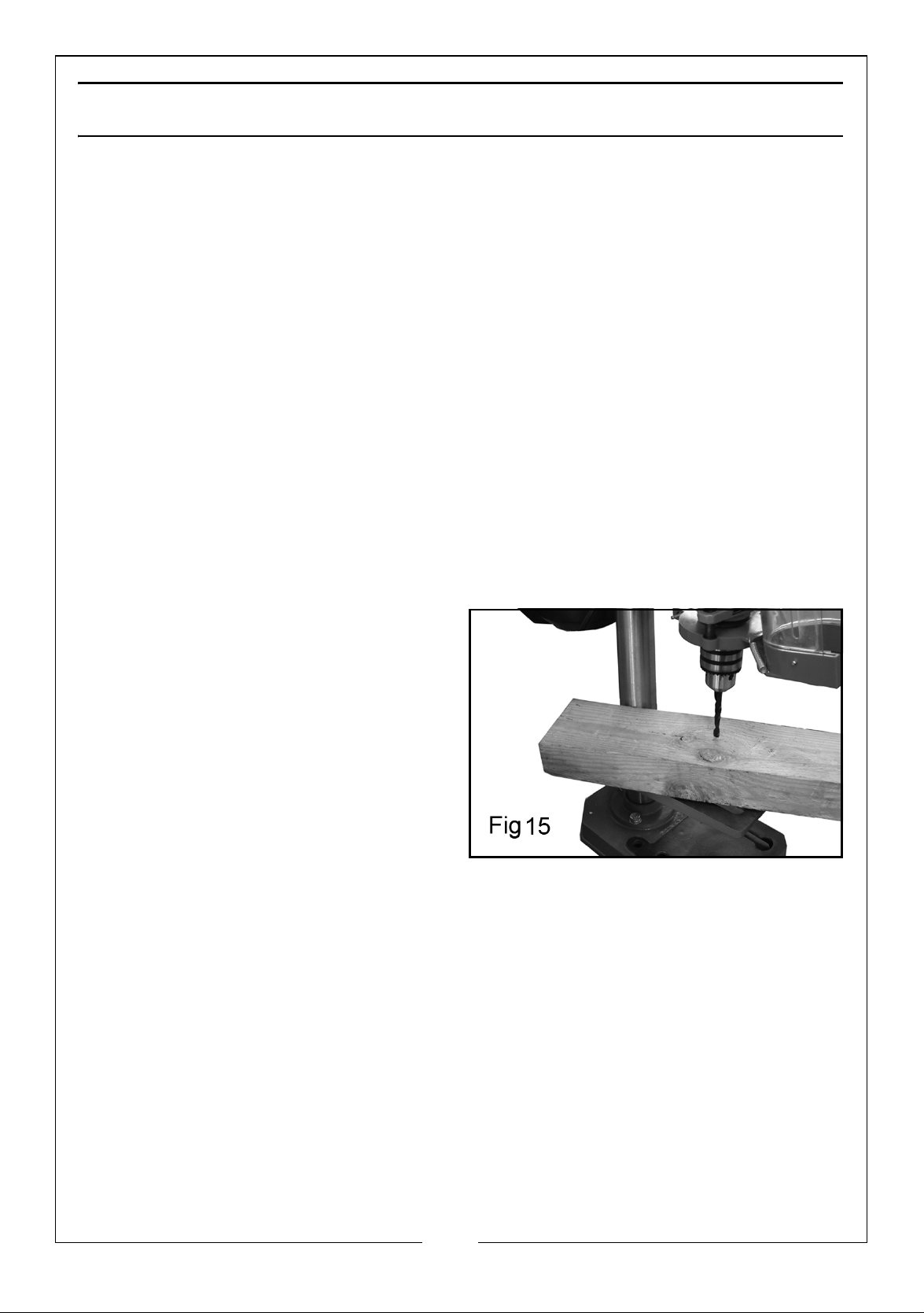

5. When drilling completely through
wood, always position a piece of
scrap wood between the
workpiece and the table to
prevent splintering on the
underside of the workpiece as the
drill breaks through. The scrap
piece of wood must make
contact with the left side of the
column as shown in Fig 15 to
prevent it moving.

6. In addition, set the depth of drill travel, so that the drill cannot possibly
come into contact with the table, or align the table so that the hole in its
centre is in line with the drill bit.

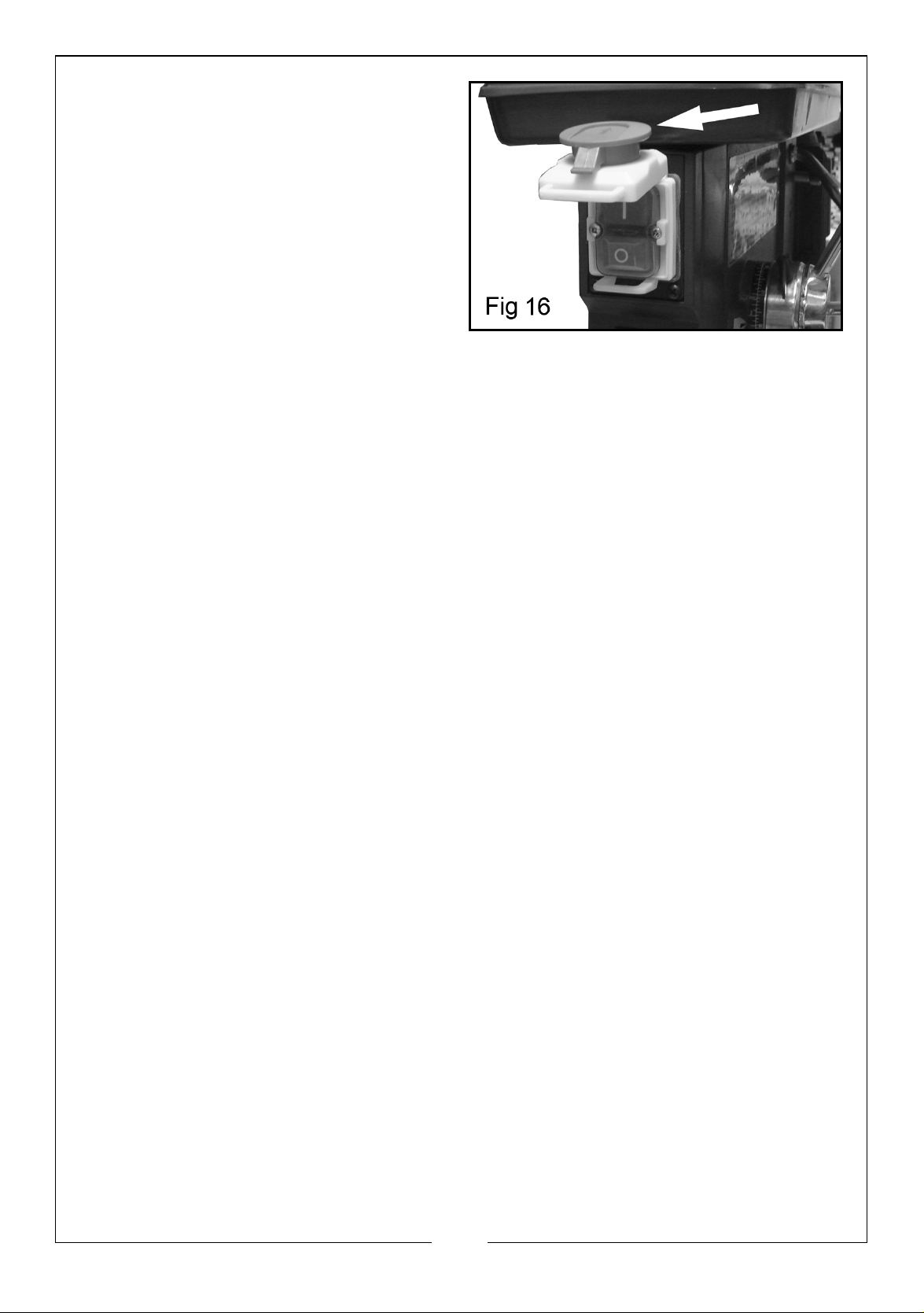

7. When completely satisfied that the setup is sound, lower the chuck guard
into place, and switch the machine ON by pushing the ‘I’ button. To switch
OFF, push the ‘O’ button, see Fig 16.

NOTE: As a safety feature, the ON/OFF switch is a ‘No Volt Release’ type.

Therefore, if the power is interrupted whilst the machine is
switched ON, it will not automatically start when the power is
restored.

15

Parts & Service: 020 8988 7400 / E-mail: [e-mail] or [e-mail]

Form the habit of checking to see
that the chuck key is removed from
the machine before turning it on.

A micro switch is provided within the
pulley cover, which prevents the
machine from operating unless the
pulley cover is fully closed.

16

Parts & Service: 020 8988 7400 / E-mail: [e-mail] or [e-mail]

CUTTING SPEEDS

Factors which determine the best speed to use in any drill press operation are:

• Type of material being worked

• Size of hole

• Quality of cut desired

• Type of drill

Generally, the smaller the drill, the greater the required RPM. In soft material,
the speed should be higher than for hard metals.

As a guide, the drill speed for a given drill bit size, is according to the table
below:

Speed Range

Wood

Zinc Diecast

Alum & Brass

Plastic

Cast Iron &
Bronze

Mild Steel &
Malleable

Cast Steel &
Med Carbon

Stainless & Tool
Steel

(rpm) 2180 -

2580

inches
mm

inches
mm

inches
mm

inches
mm

inches
mm

inches
mm

inches
mm

inches
mm

1/4

6.4

3/16

4.8

1/8

3.2

1/8

3.2

3/32

2.4

1/16

1.6

3/64

1.2

1/32

0.8

1580 1290 -

1350

3/8

9.5

1/4

6.4

3/16

4.8

3/16

4.8

1/8

3.2

3/32

2.4

1/16

1.6

3/64

1.2

5/8

16

3/8

9.5

3/8

9.5

5/16

7.9

1/4

6.4

5/32

4

1/8

3.2

1/16

1.6

830 500 -

540

-

-

1/2

12.5

1/2

12.5

7/16

11

11/32

8.75

1/4

6.4

3/16

4.8

1/8

3.2

5/8

16

11/16

17.5

1/2

12.5

1/2

12.5

3/8

9.5

5/16

7.9

1/4

6.4

320-

420

-

-

-

-

-

-

-

-

5/8

16

5/8

16

1/2

12.5

7/16

11

3/8

9.5

210-

280

-

-

-

-

-

-

-

-

-

-

-

-

9/16

14.5

1/2

12.5

DRILL PRESS VICES

In order to secure the workpiece to the table, a complete range of Drill Press
vices, Cross Vices and Clamps, is available from your Clarke dealer.

17

Parts & Service: 020 8988 7400 / E-mail: [e-mail] or [e-mail]

MAINTENANCE

For maximum performance, it is essential that the machine is properly
maintained. Always inspect it before use. Any damage should be repaired,
and faults rectified. Always remove the plug from the power supply before
carrying out any adjustment, servicing or maintenance.

Please refer to the trouble shooting chart on page 19. If you are unable to
rectify any faults, please contact your local dealer or Clarke International for
assistance.

MONTHLY (IF IN CONSTANT USE)

1. Check tightness of mounting bolts and head and column securing set
screws.

2. Check the drive belt for wear, and replace if frayed or damaged.

3. Blow out with compressed air, or vacuum clean out, any dust that may
have accumulated in the motor fan vents.

4. Apply a thin coat of wax paste or light oil to the table and column, for
lubrication, and to help prevent corrosion.

If the mains lead is damaged in any way, it should be replaced immediately.

LUBRICATION

All bearings are packed with grease
at the factory and require no further
lubrication.

Occasionally, lubricate the quill shaft
assembly with light oil if required.

AFTER USE

Remove all swarf from the machine
and thoroughly clean all surfaces.

Components should be kept dry, with
machined surfaces lightly oiled.

Always remove drill bits and store in a safe place.

ENVIRONMENTAL PROTECTION

Recycle unwanted materials instead of disposing of them as waste.
Any tools, accessories and packaging should be sorted, taken to a
recycling centre and disposed of in a manner which is compatible
with the environment.

18

Parts & Service: 020 8988 7400 / E-mail: [e-mail] or [e-mail]

TROUBLESHOOTING

PROBLEM PROBABLE CAUSE REMEDY

Noisy operation
(under load).

Excessive drill
wobble.

Motor won’t start. a. Power supply.

a. Incorrect belt tension.
b. Dry spindle.

c. Loose pulley.
d. Loose belt.
e. Worn bearing.

a. Loose chuck.

b. Worn spindle or
bearing.
c. Worn chuck.
d. Bent drill bit.

b. Motor connection.
c. NVR switch
connection faulty.
d. Faulty switch.
e. Motor windings burned.
f. Pulley cover not closed.
g. Micro switch on cover
not operating.

a. Adjust tension.
b. Remove spindle and quill
assembly and lubricate.
c. Tighten pulley.
d. Adjust belt tension.
e. Replace bearing.

a. Tighten by pressing chuck
down on to a block of wood
against the table.
b. Replace spindle shaft or
bearing.
c. Replace chuck.
d. Renew drill bit.

a. Check power cord/fuse.
b. Check motor connections.
c. Check switch connections.

d. Replace switch.
e. Replace motor.
f. Close pulley cover.
g. Check operation of micro
switch, and renew/adjust as
necessary. (Consult your
Clarke dealer for advice).

Drill binds in work­piece.

Parts & Service: 020 8988 7400 / E-mail: [e-mail] or [e-mail]

a. Excessive feed
pressure.
b. Loose belt.
c. Loose drill.
d. Incorrect bit speed.

e. Drill angles incorrect for
type of material.

19

a. Apply less pressure.

b. Check belt tension.
c. Tighten drill with key.
e. Refer to Cutting Speed chart
and adjust drill speed
accordingly.
e. Consult a technical manual
dealing with materials, drills
and cutting angles, and
sharpen drill accordingly.

Drill bit burns or
smokes.

a. Incorrect speed.

b. Swarf is not discharging
c. Dull drill or not proper
clearance for material.
d. Needs coolant.
e. Excessive feed pressure

a. Refer to Cutting Speed chart
& adjust drill speed
accordingly.
b. Clean drill.
c. Check sharpness & taper.

d. Use coolant whilst drilling.
e. Apply less pressure.

Table difficult to
raise.

a. Needs lubrication.
b. Table lock tightened.

a. Lubricate with light oil.
b. Loosen clamp.

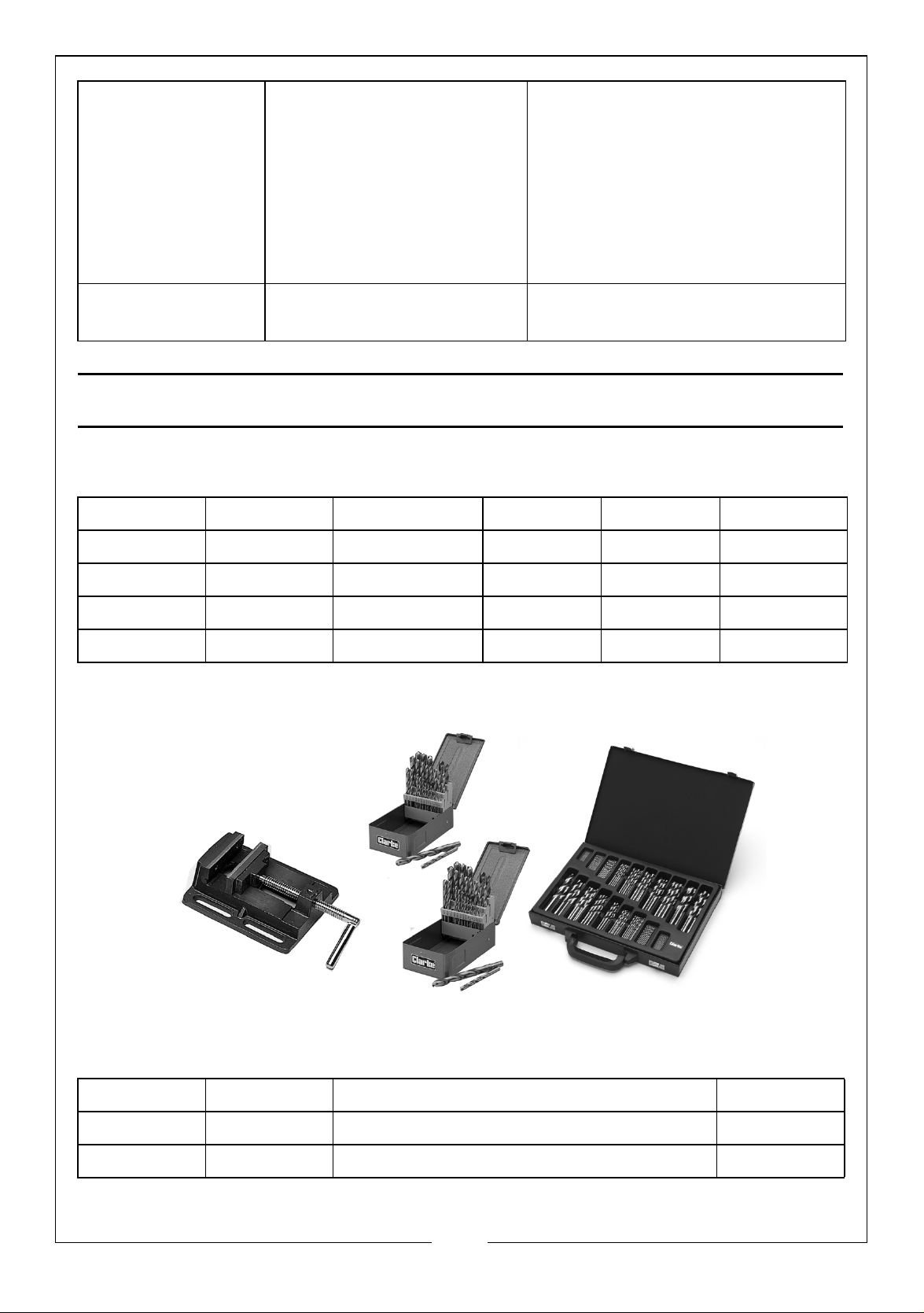

SUITABLE ACCESSORIES

Drill Press Vices available from your Clarke dealer include:

Model Jaw Width Max Opening Depth Weight Part No

CDV30C 76 mm 78 mm 19 mm 2 kg 6504019

CDV40C 102 mm 97 mm 28 mm 3 kg 6504020

CDV50C 127 mm 125 mm 37 mm 5 kg 6504021

CDV60C 152 mm 150 mm 38 mm 6 kg 6504022

Table Clamps available from your Clarke dealer include:

Model Size Max Clamp Height Part No

CVC6 152 mm 38 mm 6501920

CVC9 229 mm 95 mm 6501925

20

Parts & Service: 020 8988 7400 / E-mail: [e-mail] or [e-mail]

SPECIFICATION

Overall Height 840 mm

Column to Chuck Centre 127 mm

Table Dimensions 200 x 200 mm

Base Dimensions 210 x 340 mm

Column Dia 60 mm

Chuck Capacity 16 mm

Max Chuck to Table Distance 350 mm

Max Chuck to Base Distance 465 mm

Spindle Speed Range 210 - 2580 rpm

No of Speeds 12

Spindle Taper MT2

Max Spindle Travel 60 mm

Belt Type K550

Product Weight 42 kg

Motor supply 230Vac/50Hx/1 ph

Power Rating 370 W

Current Rating 1.3A

Machine Speed 210-2580rpm

21

Parts & Service: 020 8988 7400 / E-mail: [e-mail] or [e-mail]

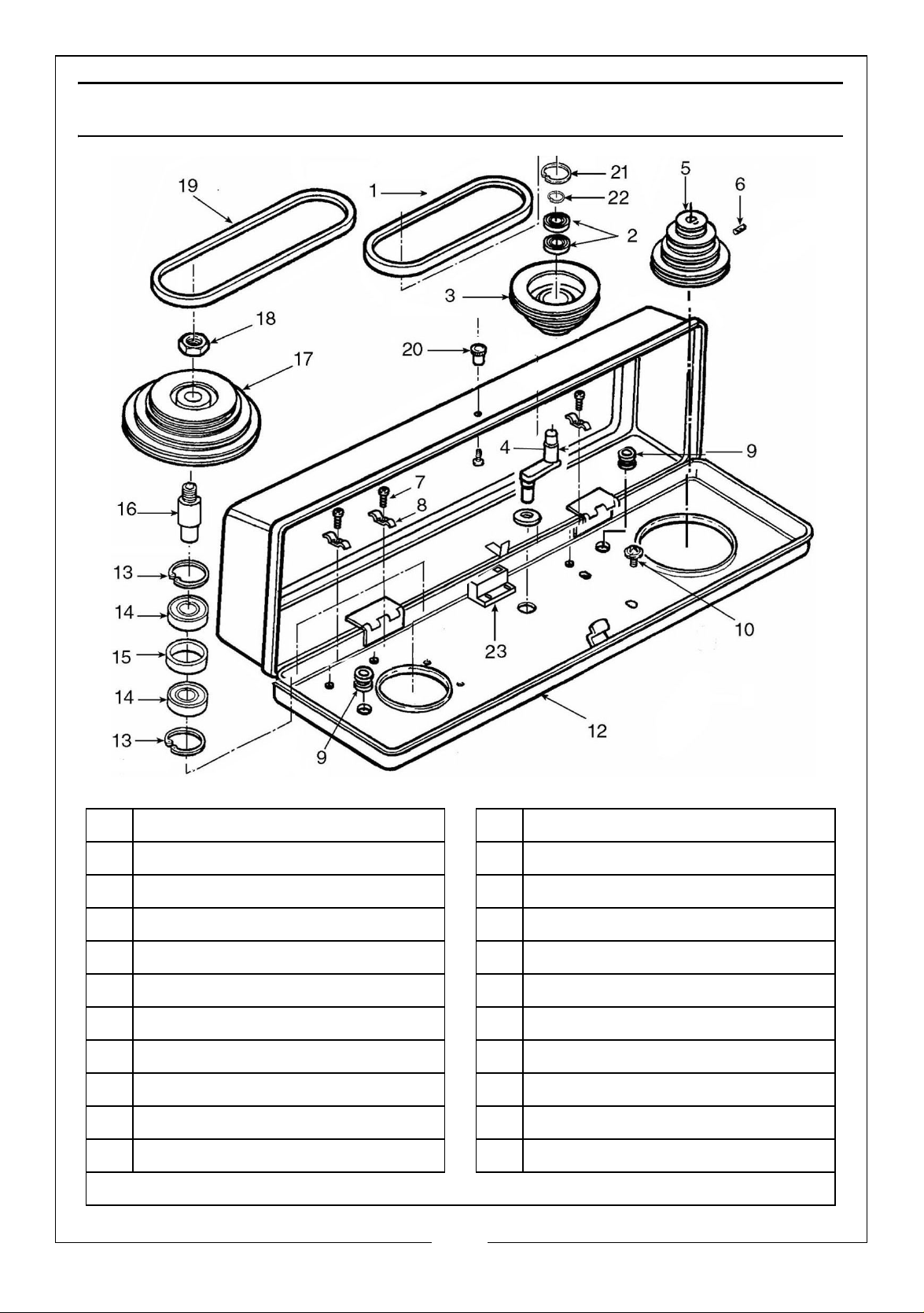

COMPONENT PARTS - PULLEY ASSEMBLY

No Description No Description

1 Belt 12 Pulley Cover

2 Bearing 13 Circlip

3 Idler Pulley 14 Bearing

4Idler Shaft 15Spacer

5 Motor Pulley 16 Shaft

6 Grub Screw 17 Pulley

7 Screw 18 Securing Screw

8 Cable Clamp 20 Cover Knob

9 Grommet 21 Circlip

10 Screw 22 Circlip

All items please ref: QBCDP10BP01-22

22

Parts & Service: 020 8988 7400 / E-mail: [e-mail] or [e-mail]

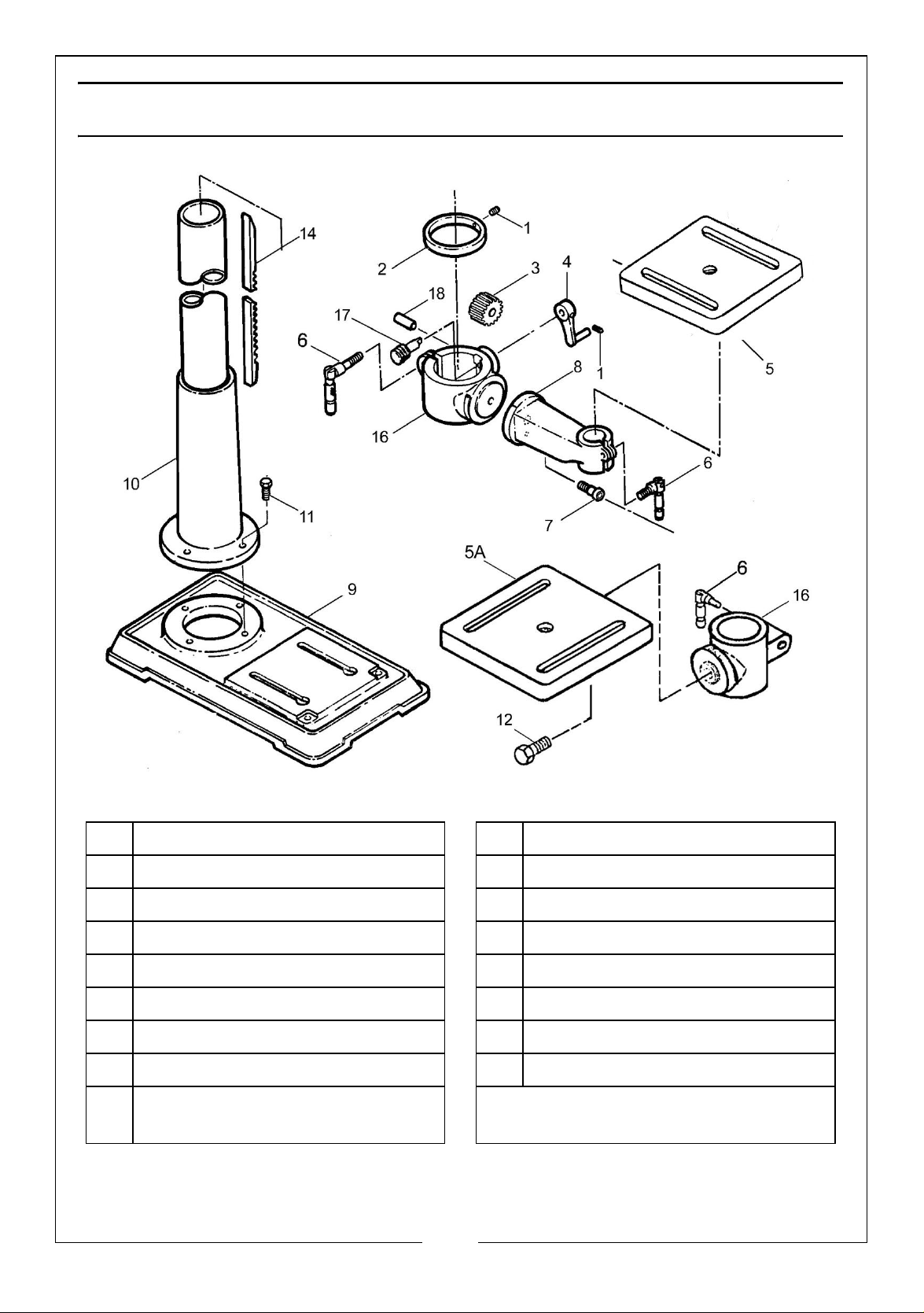

COMPONENT PARTS - BASE ASSEMBLY

No Description No Description

1 Grubscrew 10 Column

2 Rack Collar 11 Bolt M8

3 Pinion 12 Table Tilt Bolt

4Handle Assembly 14Rack

5A Square Table 16 Table Trunnion

6Clamp 17Worm

7 Base 18 Pinion Pin

All items please ref: QBCDP10BB01
onwards

23

Parts & Service: 020 8988 7400 / E-mail: [e-mail] or [e-mail]

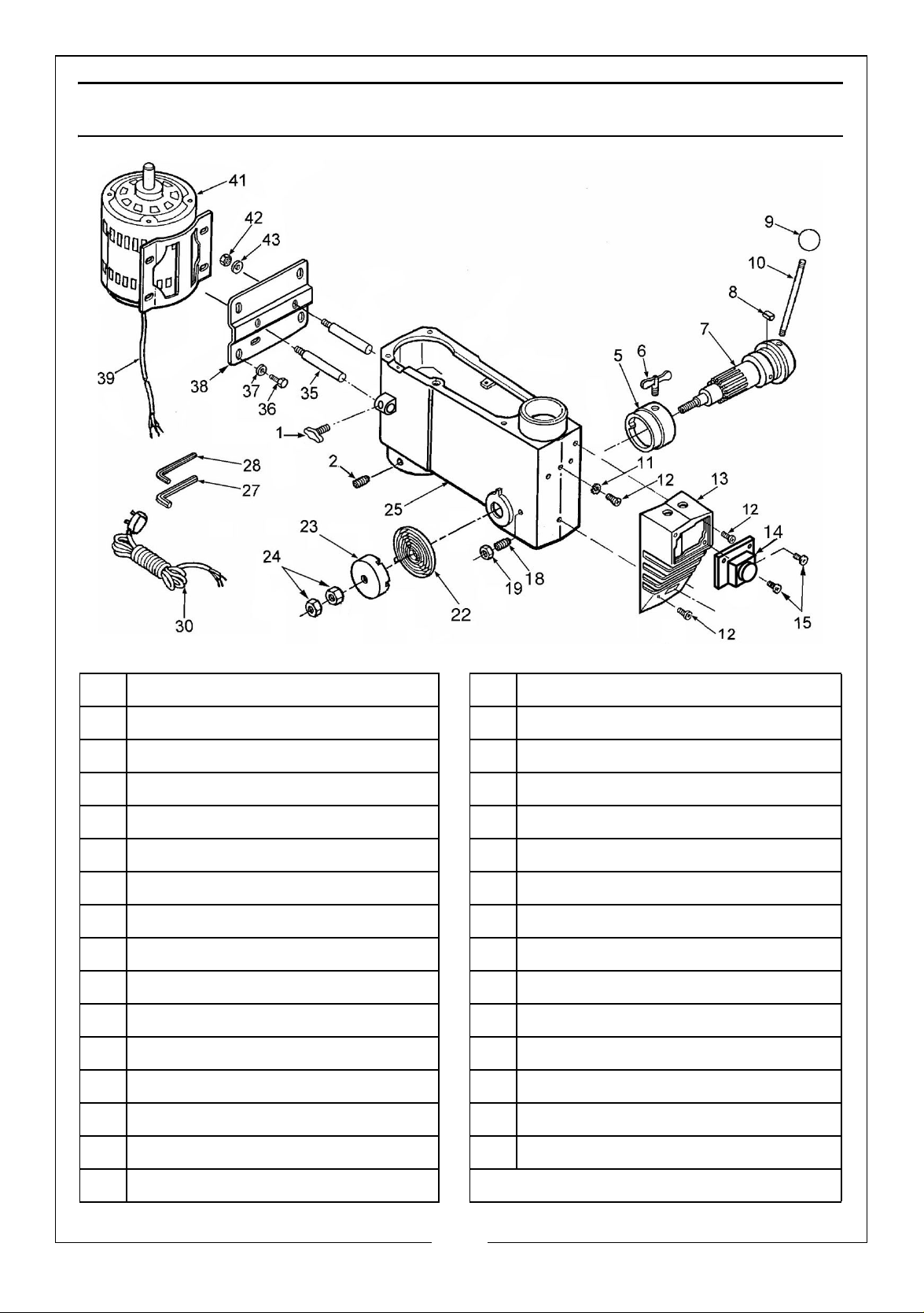

COMPONENT PARTS -HEAD ASSEMBLY

No Description No Description

1 Locking Screw 23 Spring Cover/Adjuster

2 Grub Screw 24 Nut

3 Collar 25 Head Assembly

4 Shaft 27 Allen Key

5 Screw 28 Allen Key

6 Knob 30 Cable Assembly

7Handle 35Adjuster Bar

8Washer 36Bolt

9Screw 37Washer

10 Plastic Cover 38 Motor Adjuster Plate

11 Switch Assembly 39 Motor Cable

12 Screw 41 Motor Assembly

13 Grub Screw 42 Nut

19 Locknut 43 Washer

22 Spring All items please ref: QBCDP10HB01 on

24

Parts & Service: 020 8988 7400 / E-mail: [e-mail] or [e-mail]

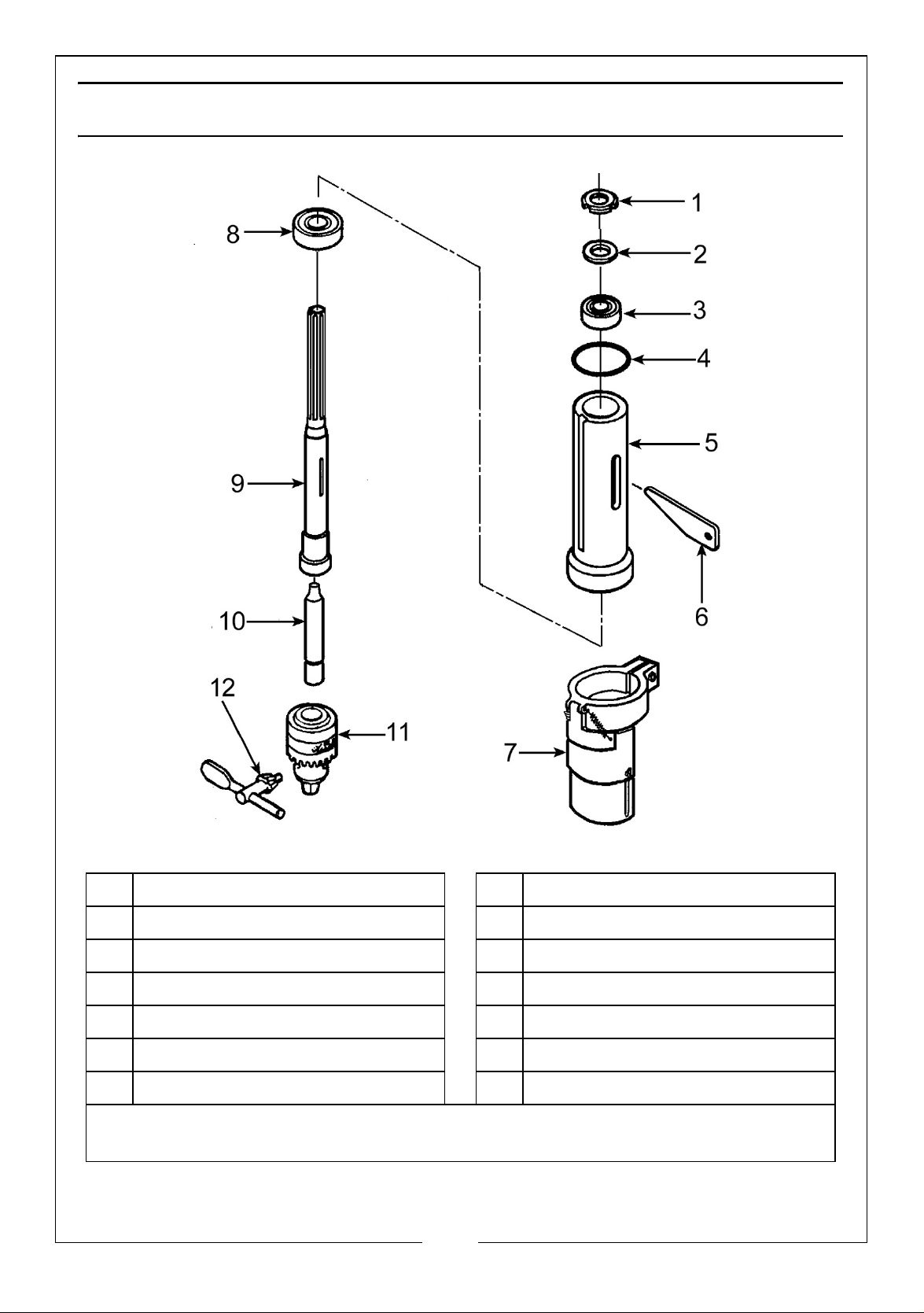

COMPONENT PARTS - QUILL ASSEMBLY

No Description No Description

1 Lock Nut 7 Chuck Guard Assembly

2Flat Washer 8Bearing

3Bearing 9Spindle

4O-Ring 10Arbor

5 Quill Shaft 11 Chuck

6 Wedge Drift 12 Chuck Key

When ordering spare parts, please quote the reference QBCDP10QB01
onwards.

25

Parts & Service: 020 8988 7400 / E-mail: [e-mail] or [e-mail]

DECLARATION OF CONFORMITY

26

Parts & Service: 020 8988 7400 / E-mail: [e-mail] or [e-mail]

27

Parts & Service: 020 8988 7400 / E-mail: [e-mail] or [e-mail]
