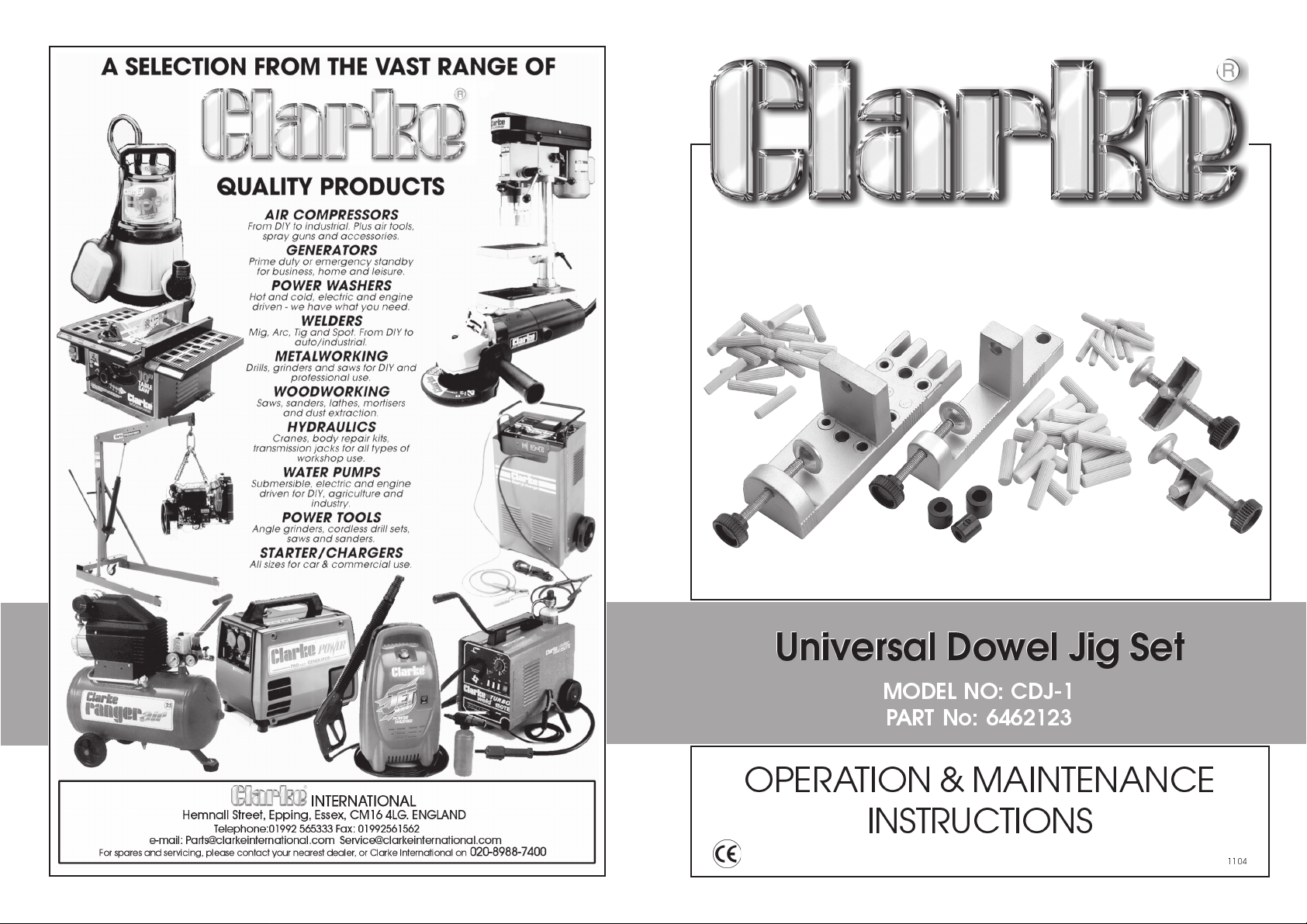

Universal Dowel Jig Set
Universal Dowel Jig Set
MODEL NO: CDJ-1
PART No: 6462123
OPERATION & MAINTENANCE
INSTRUCTIONS
1104

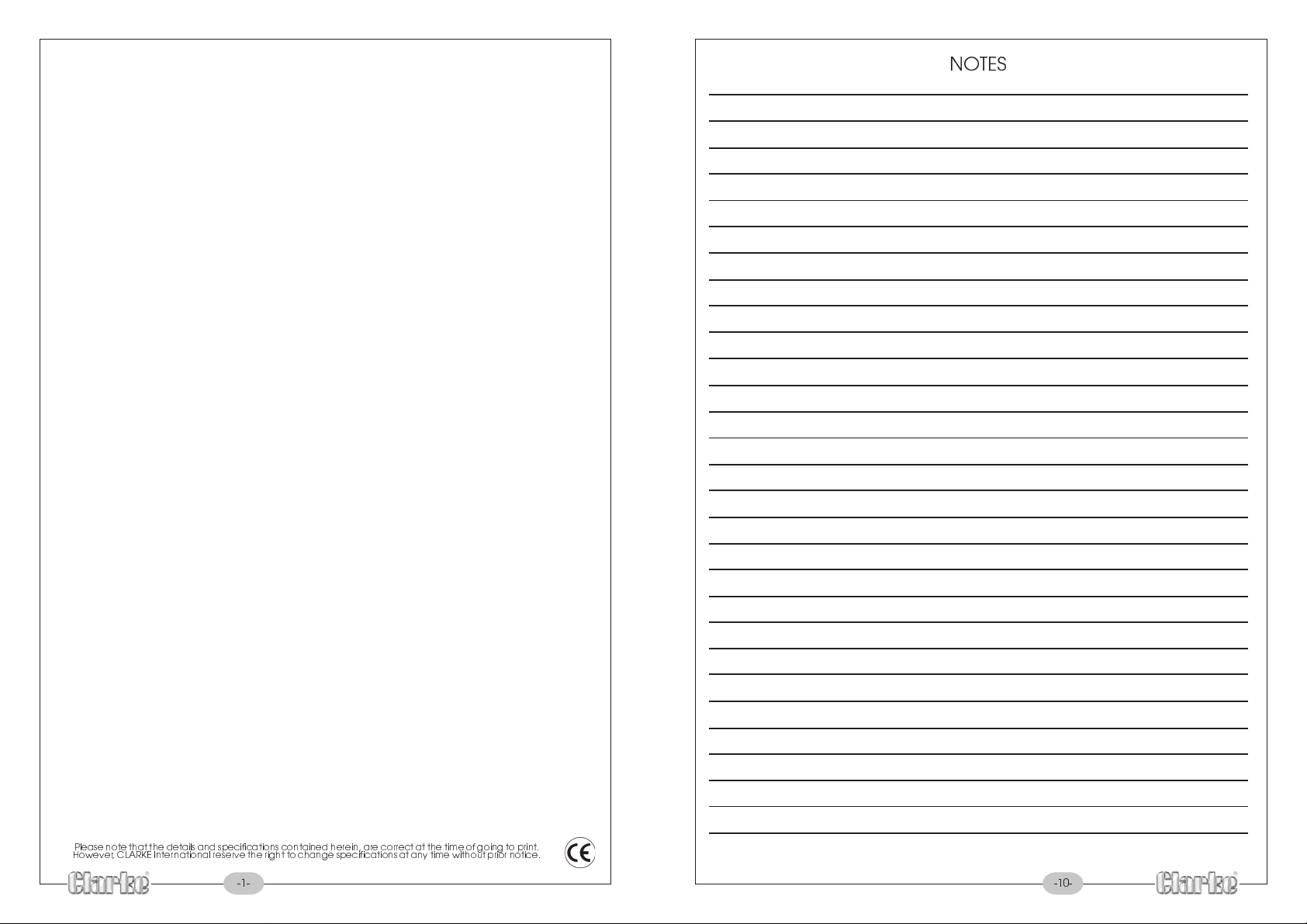

NOTES
Please note that the details and specifications contained herein, are correct at the time of going to print.
However, CLARKE International reserve the right to change specifications at any time without prior notice.
-1-
-10-
NOTES

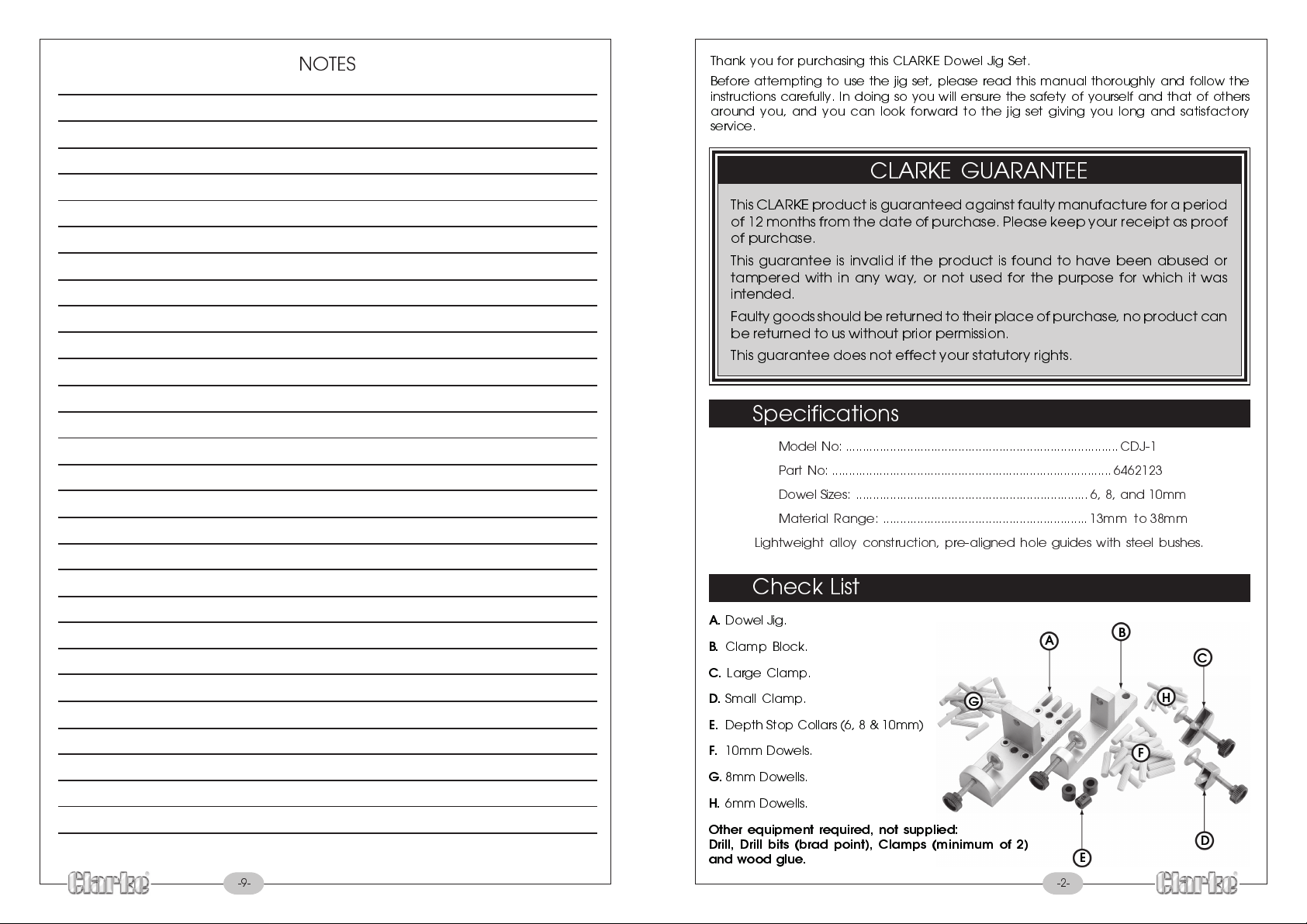

Thank you for purchasing this CLARKE Dowel Jig Set.
Before attempting to use the jig set, please read this manual thoroughly and follow the
instructions carefully. In doing so you will ensure the safety of yourself and that of others
around you, and you can look forward to the jig set giving you long and satisfactory
service.
CLARKE GUARANTEE
This CLARKE product is guaranteed against faulty manufacture for a period
of 12 months from the date of purchase. Please keep your receipt as proof
of purchase.
This guarantee is invalid if the product is found to have been abused or
tampered with in any way, or not used for the purpose for which it was
intended.
Faulty goods should be returned to their place of purchase, no product can
be returned to us without prior permission.
This guarantee does not effect your statutory rights.
Specifications
Model No: ................................................................................ CDJ-1
Part No: .................................................................................. 6462123
Dowel Sizes: .................................................................... 6, 8, and 10mm
Material Range: ............................................................13mm to 38mm
Lightweight alloy construction, pre-aligned hole guides with steel bushes.
Check List
A.
Dowel Jig.
B.
Clamp Block.
C.
Large Clamp.
D.
Small Clamp.
E.
Depth Stop Collars (6, 8 & 10mm)
F.
10mm Dowels.
G.
8mm Dowells.
H.
6mm Dowells.
Other equipment required, not supplied:
Drill, Drill bits (brad point), Clamps (minimum of 2)
and wood glue.
-9- -2-
G
A
B
C
H
F
D
E

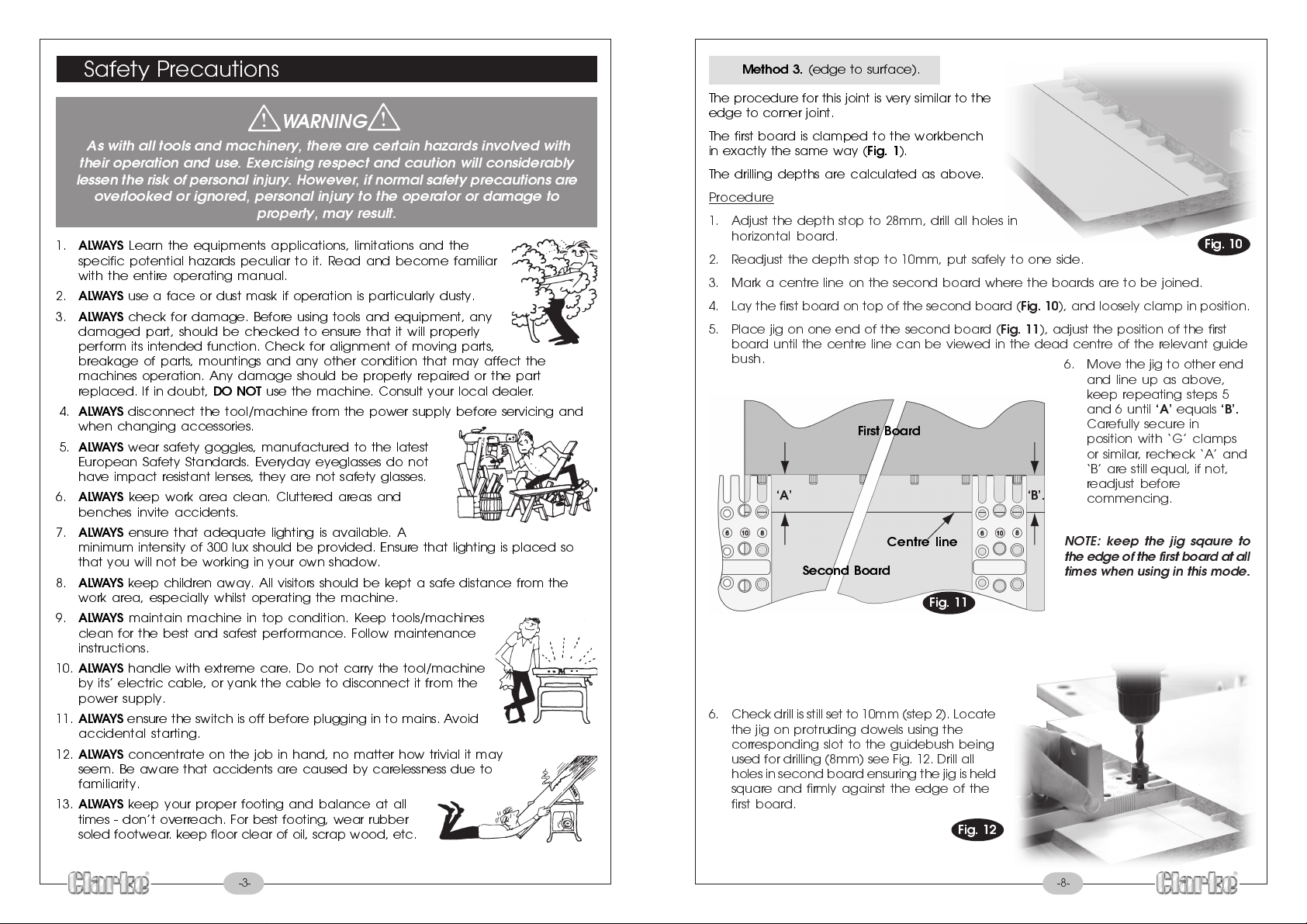

Safety Precautions
WARNING:
As with all tools and machinery, there are certain hazards involved with
their operation and use. Exercising respect and caution will considerably
lessen the risk of personal injury. However, if normal safety precautions are
overlooked or ignored, personal injury to the operator or damage to
property, may result.
1.
ALWAYS
specific potential hazards peculiar to it. Read and become familiar
with the entire operating manual.
2.
ALWAYS
3.
ALWAYS
damaged part, should be checked to ensure that it will properly
perform its intended function. Check for alignment of moving parts,
breakage of parts, mountings and any other condition that may affect the
machines operation. Any damage should be properly repaired or the part
replaced. If in doubt,
4.
ALWAYS
when changing accessories.
5.
ALWAYS
European Safety Standards. Everyday eyeglasses do not
have impact resistant lenses, they are not safety glasses.
6.
ALWAYS
benches invite accidents.
7.
ALWA YS
minimum intensity of 300 lux should be provided. Ensure that lighting is placed so
that you will not be working in your own shadow.
8.
ALWAYS
work area, especially whilst operating the machine.
9.
ALWAYS
clean for the best and safest performance. Follow maintenance
instructions.
10.
ALWAYS
by its electric cable, or yank the cable to disconnect it from the
power supply.
11.
ALWAYS
accidental starting.
12.
AL WAYS
seem. Be aware that accidents are caused by carelessness due to
familiarity.
13.
ALWAYS
times - dont overreach. For best footing, wear rubber
soled footwear. keep floor clear of oil, scrap wood, etc.
Learn the equipments applications, limitations and the
use a face or dust mask if operation is particularly dusty.
check for damage. Before using tools and equipment, any
DO NOT
disconnect the tool/machine from the power supply before servicing and
wear safety goggles, manufactured to the latest
keep work area clean. Cluttered areas and
ensure that adequate lighting is available. A
keep children away. All visitors should be kept a safe distance from the
maintain machine in top condition. Keep tools/machines
handle with extreme care. Do not carry the tool/machine
ensure the switch is off before plugging in to mains. Avoid
concentrate on the job in hand, no matter how trivial it may
keep your proper footing and balance at all
use the machine. Consult your local dealer.
Method 3.
The procedure for this joint is very similar to the
edge to corner joint.
The first board is clamped to the workbench
in exactly the same way (
The drilling depths are calculated as above.
Procedure
1. Adjust the depth stop to 28mm, drill all holes in
horizontal board.
2. Readjust the depth stop to 10mm, put safely to one side.
3. Mark a centre line on the second board where the boards are to be joined.
4. Lay the first board on top of the second board (
5. Place jig on one end of the second board (
board until the centre line can be viewed in the dead centre of the relevant guide
bush.
6. Check drill is still set to 10mm (step 2). Locate
the jig on protruding dowels using the
corresponding slot to the guidebush being
used for drilling (8mm) see Fig. 12. Drill all
holes in second board ensuring the jig is held
square and firmly against the edge of the
first board.
(edge to surface).
Fig. 1
).
Fig. 10
Fig. 11
First Board
A B.
Centre line
Second Board
Fig. 11
Fig. 12
), and loosely clamp in position.
), adjust the position of the first
6. Move the jig to other end
and line up as above,
keep repeating steps 5
and 6 until
Carefully secure in
position with G clamps
or similar, recheck A and
B are still equal, if not,
readjust before
commencing.
NOTE: keep the jig sqaure to
the edge of the first board at all
times when using in this mode.
A
equals
Fig. 10
B.
-3-
-8-

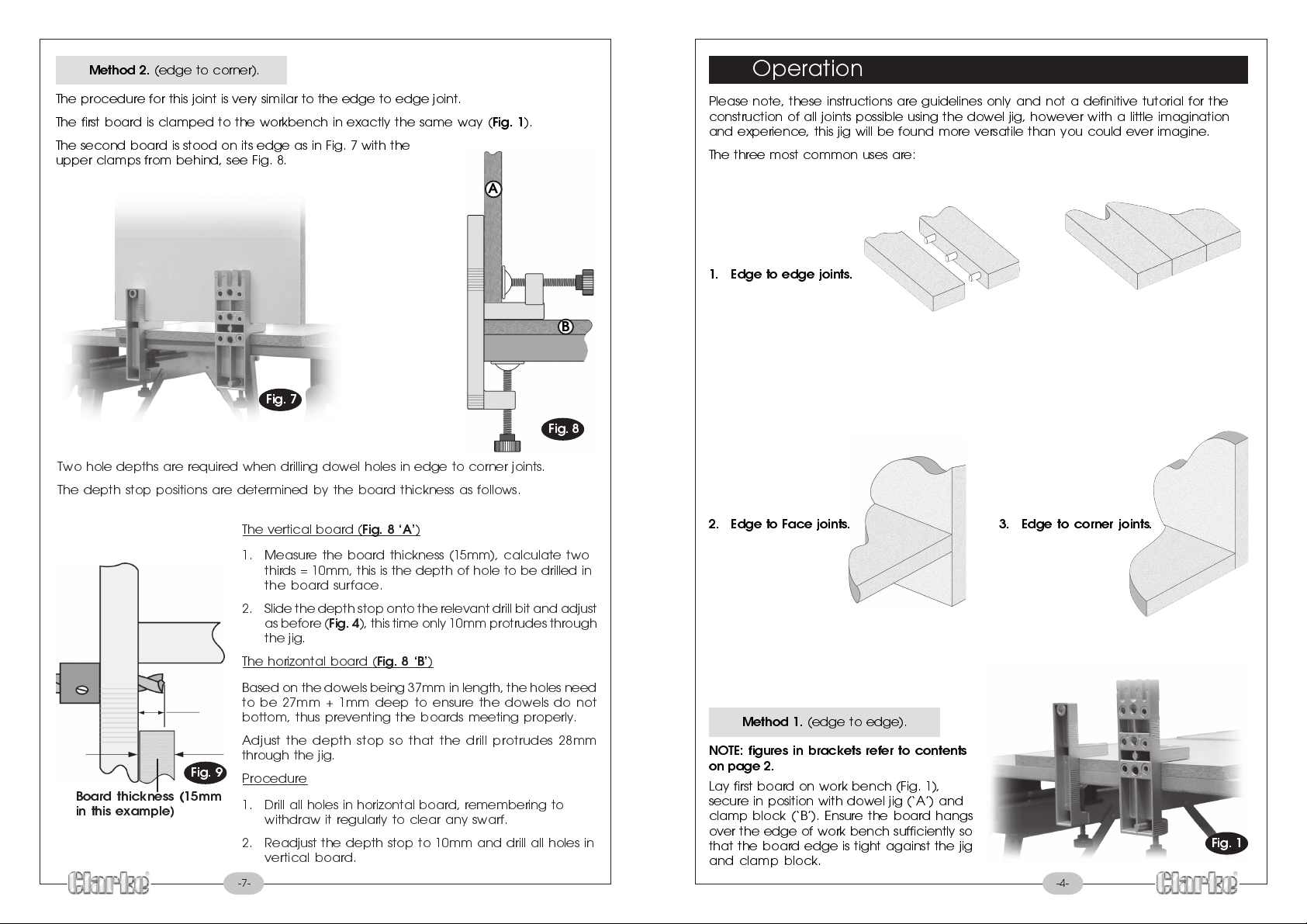

Method 2.
(edge to corner).
Operation
The procedure for this joint is very similar to the edge to edge joint.
The first board is clamped to the workbench in exactly the same way (
The second board is stood on its edge as in Fig. 7 with the
upper clamps from behind, see Fig. 8.
Fig. 1
).
A
Fig. 7
Two hole depths are required when drilling dowel holes in edge to corner joints.
The depth stop positions are determined by the board thickness as follows.
Fig. 9
Board thickness (15mm
in this example)
The vertical board (
1. Measure the board thickness (15mm), calculate two
thirds = 10mm, this is the depth of hole to be drilled in
the board surface.
2. Slide the depth stop onto the relevant drill bit and adjust
as before (
the jig.
The horizontal board (
Based on the dowels being 37mm in length, the holes need
to be 27mm + 1mm deep to ensure the dowels do not
bottom, thus preventing the boards meeting properly.
Adjust the depth stop so that the drill protrudes 28mm
through the jig.
Procedure
1. Drill all holes in horizontal board, remembering to
withdraw it regularly to clear any swarf.
2. Readjust the depth stop to 10mm and drill all holes in
vertical board.
-7-
Fig. 8 A
Fig. 4
), this time only 10mm protrudes through
)
Fig. 8 B
)
B
Fig. 8
Please note, these instructions are guidelines only and not a definitive tutorial for the
construction of all joints possible using the dowel jig, however with a little imagination
and experience, this jig will be found more versatile than you could ever imagine.
The three most common uses are:
1. Edge to edge joints.
2. Edge to Face joints. 3. Edge to corner joints.
Method 1.
NOTE: figures in brackets refer to contents
on page 2.
Lay first board on work bench (Fig. 1),
secure in position with dowel jig (A) and
clamp block (B). Ensure the board hangs
over the edge of work bench sufficiently so
that the board edge is tight against the jig
and clamp block.
(edge to edge).
Fig. 1
-4-
Fig. 2

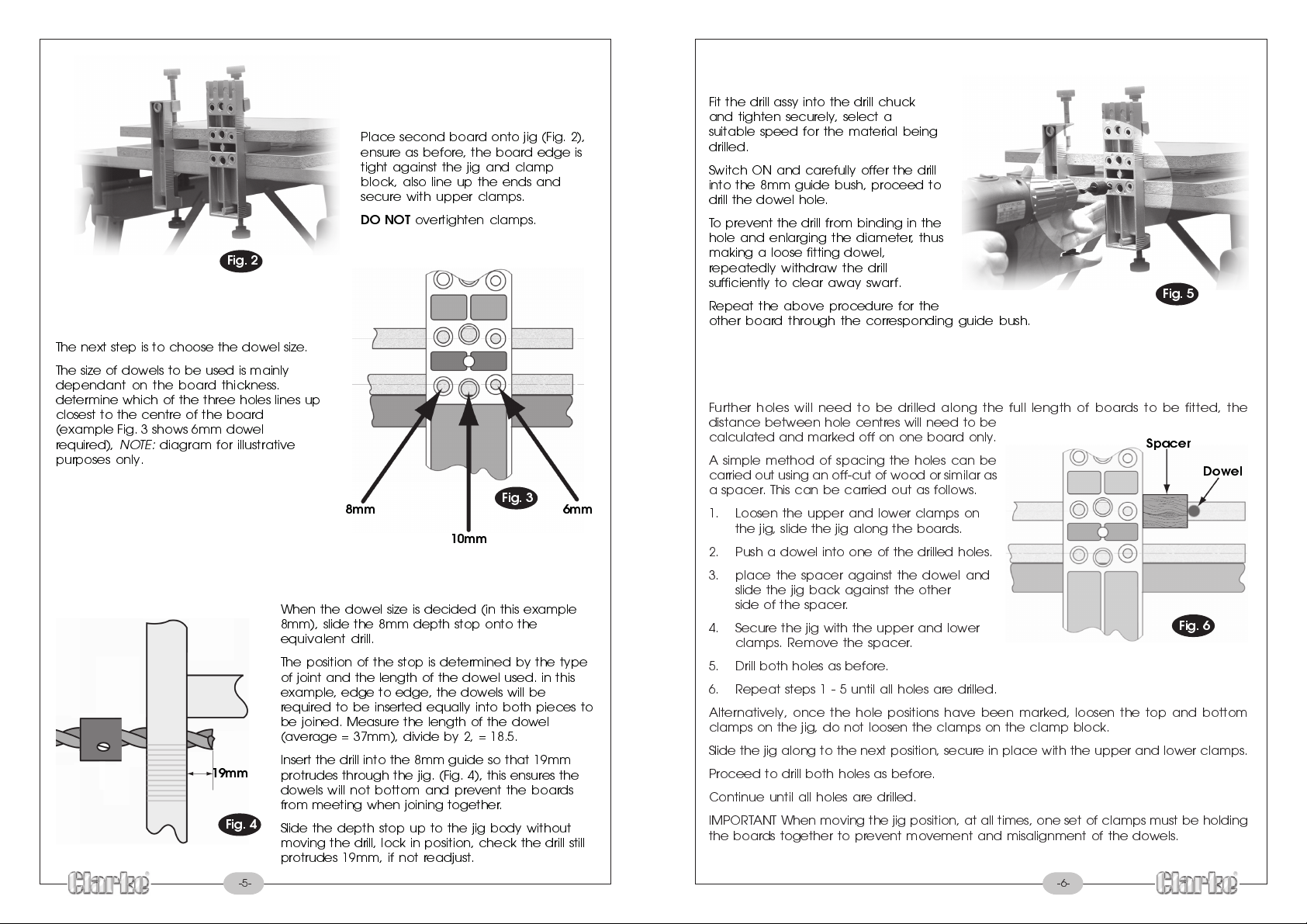

The next step is to choose the dowel size.
The size of dowels to be used is mainly
dependant on the board thickness.
determine which of the three holes lines up
closest to the centre of the board
(example Fig. 3 shows 6mm dowel
required),
NOTE:
diagram for illustrative
purposes only.
When the dowel size is decided (in this example
8mm), slide the 8mm depth stop onto the
equivalent drill.
The position of the stop is determined by the type
of joint and the length of the dowel used. in this
example, edge to edge, the dowels will be
required to be inserted equally into both pieces to
be joined. Measure the length of the dowel
(average = 37mm), divide by 2, = 18.5.
Insert the drill into the 8mm guide so that 19mm
19mm
protrudes through the jig. (Fig. 4), this ensures the
dowels will not bottom and prevent the boards
from meeting when joining together.
Fig. 4
Slide the depth stop up to the jig body without
moving the drill, lock in position, check the drill still
protrudes 19mm, if not readjust.
-5- -6-
Place second board onto jig (Fig. 2),
ensure as before, the board edge is
tight against the jig and clamp
block, also line up the ends and
secure with upper clamps.
DO NOT
8mm 6mm
overtighten clamps.
Fig. 3
10mm
Fit the drill assy into the drill chuck
and tighten securely, select a
suitable speed for the material being
drilled.
Switch ON and carefully offer the drill
into the 8mm guide bush, proceed to
drill the dowel hole.
To prevent the drill from binding in the
hole and enlarging the diameter, thus
making a loose fitting dowel,
repeatedly withdraw the drill
sufficiently to clear away swarf.
Repeat the above procedure for the
Fig. 5
other board through the corresponding guide bush.
Further holes will need to be drilled along the full length of boards to be fitted, the
distance between hole centres will need to be
calculated and marked off on one board only.
A simple method of spacing the holes can be
carried out using an off-cut of wood or similar as
Spacer
Dowel
a spacer. This can be carried out as follows.
1. Loosen the upper and lower clamps on
the jig, slide the jig along the boards.
2. Push a dowel into one of the drilled holes.
3. place the spacer against the dowel and
slide the jig back against the other
side of the spacer.
4. Secure the jig with the upper and lower
Fig. 6
clamps. Remove the spacer.
5. Drill both holes as before.
6. Repeat steps 1 - 5 until all holes are drilled.
Alternatively, once the hole positions have been marked, loosen the top and bottom
clamps on the jig, do not loosen the clamps on the clamp block.
Slide the jig along to the next position, secure in place with the upper and lower clamps.
Proceed to drill both holes as before.
Continue until all holes are drilled.
IMPORTANT When moving the jig position, at all times, one set of clamps must be holding
the boards together to prevent movement and misalignment of the dowels.
