Clarke CDE 85, 6471150 User guide

3HP Dust Extractor & Chip Collector

Model CDE85

Part No 6471150

OPERATING & MAINTENANCE

INSTRUCTIONS

12/08

INTRODUCTION

Thank you for purchasing this CLARKE Dust Extractor & Chip Collector

Before attempting to operate the machine, it is essential that you read this
manual thoroughly and carefully follow all instructions given. In doing so you
will ensure the safety of yourself and that of others around you, and you can
also look forward to the machine giving you long and satisfactory service.

GUARANTEE

This CLARKE product is guaranteed against faulty manufacture for a period of
12 months from the date of purchase. Please keep your receipt as proof of
purchase.

This guarantee is invalid if the product is found to have been abused or
tampered with in any way, or not used for its intended purpose.

Faulty goods should be returned to their place of purchase, no product can
be returned to us without prior permission.

This guarantee does not effect your statutory rights.

CONTENTS

Introduction ............................................................................................ 2

Guarantee .............................................................................................. 2

Environmental Protection ...................................................................... 2

Parts & Service Contacts ....................................................................... 2

Table of contents ................................................................................... 3

Technical Specification......................................................................... 3

Safety Precautions ................................................................................. 4

Electrical Connections .......................................................................... 6

Overview ................................................................................................ 7

Unpacking & Assembly ......................................................................... 8

Using the Dust Collector ...................................................................... 11

Maintenance ........................................................................................ 11

Troubleshooting.................................................................................... 12

Parts Lists and Diagrams ..................................................................... 13

Declaration of Conformity .................................................................. 15

2

TECHNICAL SPECIFICATION

erutaeF noitacificepS

egatloVzH05@caV032

gnitaRrewoPPH3

deepSrotoMmpr0592

leveLesioN)awL(bd58

sgaBretliF/tsuDfooN4

aBtsuDretlifdedloF

epyTg

eziSgaBtsuD)rtm/uc703.0(058x005

zH05@tuphguorhTriA)m/m.uc56(mfc0032

yticapaCtsuDsertil703

thgieWgk94

)HxWxL(snoisnemiD5491x5641x527

Please note that the details and specifications contained herein, are correct
at the time of going to print. However, CLARKE International reserve the right
to change specifications at any time without prior notice.

ENVIRONMENTAL PROTECTION

When disposing of this product, do not dispose of with general waste. It
must be disposed of according to the laws governing Waste Electrical
and Electronic Equipment, at a recognised disposal facility.

For parts & Servicing, please contact your nearest dealer, or

CLARKE International, on one of the following numbers.

PARTS & SERVICE TEL: [phone]

PARTS & SERVICE FAX: [phone]

or e-mail as follows:

PARTS: [e-mail]

SERVICE: [e-mail]

3

SAFETY PRECAUTIONS

WORK AREA

1. Keep the work area clean and well lit. Floors should always be kept clear.
Cluttered or dark areas invite accidents.

2. ALWAYS keep children away and keep visitors at a safe distance from the
work area, especially whilst operating the machine.

PERSONAL SAFETY

1. Stay alert, watch what your are doing and use common sense when
operating a power tool. Do not use a power tool while you are tired or
under the influence of medication, drugs or alcohol.

2. Do not over-reach. Keep your proper footing and balance at all times to
enable better control of the machine in unexpected situations.

3. ALWAYS wear safety goggles, manufactured to the latest European Safety
Standards. Everyday eyeglasses do not have impact resistant lenses, they
are not safety glasses.

4. Never wear loose clothing or jewellery which could be caught on moving
parts. Wear protective hair covering to contain long hair.

5. ALWAYS concentrate on the job in hand, no matter how trivial it may
seem. Be aware that accidents are caused by carelessness due to famili­arity.

6. ALWAYS keep your proper footing and balance at all times don’t over-
reach. For best footing, wear rubber soled footwear. Keep floor clear of
oil, scrap wood, etc.

GENERAL POWER TOOL USE AND CARE

1. Always maintain the tool with care. Keep it clean for best performance.

2. ALWAYS ensure that the machine cannot be started inadvertently by using
the ON/OFF switch whenever carrying out maintenance.

3. ALWAYS maintain machine in top condition. Keep tools/machines clean
for the best and safest performance. Follow maintenance instructions.

4. NEVER modify this tool in any way. Use it ONLY for the purpose for which it
isdesigned.

5. ALWAYS check for damage. Check for alignment of parts, breakages, or
any condition that may affect the machine’s operation. Any damage
should be properly repaired or the part replaced. If in doubt, DO NOT use
the machine. Consult your local dealer.

6. ALWAYS keep the mains cable well away from the machine and ensure an
adequate electrical supply is close to hand so that the operation is not
restricted by the length of cable.

4

7. Do not drag the machine by it’s electric cable, or yank the cable to
disconnect it from the power supply.

8. ALWAYS ensure the switch is off before plugging into mains. Avoid acci-
dental starting.

9. Do not use the machine if the ON/OFF switch does not turn it on and off.
Any power tool that cannot be controlled with the switch is dangerous
and must be repaired.

10. NEVER use power tools in damp or wet locations or expose them to rain.
Do not use in explosive atmosphere (around paint, flammable liquids etc).
Avoid a dangerous environment.

11. DO NOT allow the ventilation slots in the motor to become blocked.

12. EARTH ALL MACHINES. If the machine is equipped with a three-pin plug, it
should be plugged into a three-pin earthed socket. NEVER remove the
earth pin.

13. ALWAYS keep guards/covers in place and in a serviceable condition.

14. Store the tool out of reach of children and do not allow persons unfamiliar
with these instructions to operate this power tool.

DUST EXTRACTOR SAFETY INSTRUCTIONS

1. ALWAYS ensure that the machine is properly positioned where necessary
to prevent it from moving during operation, and that the immediate area
is kept clear.

2. ALWAYS use a face or dust mask if operation is particularly dusty such as
when disposing of the contents of the dust bags.

3. ALWAYS disconnect the machine from the power supply before servicing
and when changing accessories, or removing & emptying dust bags etc

4. NEVER leave machine running unattended. Turn power off and wait for
the machine to comes to a complete stop before leaving.

5. DO NOT pick up flammable or readily combustible material, hot ashes,
coals, burning cigarettes or other smoking substances etc. or use in the
presence of explosive liquids or vapour.

6. DO NOT use in enclosed areas where flammable, explosive or toxic
vapours are given off, by oil based paints, paint thinner, petrol etc.

7. DO NOT use if the electric cable, plug, collection bags or the motor is in
poor condition.

SERVICING

1. Have all power tools serviced by a qualified repair technician, using only
identical replacement parts. This will ensure the safety of the power tool is
maintained.

2. ALWAYS use only replacement parts supplied by the manufacturer. The use
of non standard parts could be hazardous.

5

ELECTRICAL CONNECTIONS

Connect this appliance to a 230 Volt, single phase 16 amp electrical supply
through a suitably fused isolator.

WARNING: DO NOT CONNECT TO A DOMESTIC 13 AMP SUPPLY VIA A
13 AMP PLUG.

WARNING! THIS APPLIANCE MUST BE EARTHED

IMPORTANT: The wires in the mains lead are coloured in accordance with the
following code.

Green & Yellow...................................Earth

Blue.......................................................Neutral

Brown...................................................Live

• Connect GREEN & YELLOW coloured cord to plug terminal marked

with a letter “E” or Earth symbol “ ” or coloured GREEN or GREEN
& YELLOW.

• Connect BROWN coloured cord to plug terminal marked with a

letter “L” or coloured RED.

• Connect BLUE coloured cord to plug terminal marked with a letter

“N” or coloured BLACK.

We recommend that this machine is connected to the mains supply via a

Residual Current Device (RCD)

If in any doubt, DO NOT attempt any connections or repairs yourself.
Consult a qualified electrician, your local Clarke dealer or Clarke Interna­tional on:

0208988 7400 or e-mail:[e-mail]

CABLE EXTENSION

Always use an approved extension cable suitable for the power rating of this
tool. The conductor size should be at least the same size as that on the
machine, or larger. When using cable reel always unwind the cable com­pletely.

If a cable extension is needed, it is essential to comply with the following data

Voltage Extension length Cable section

230v Up to 20m 2.5mm

230v From 20 to 50m 4mm

6

2

2

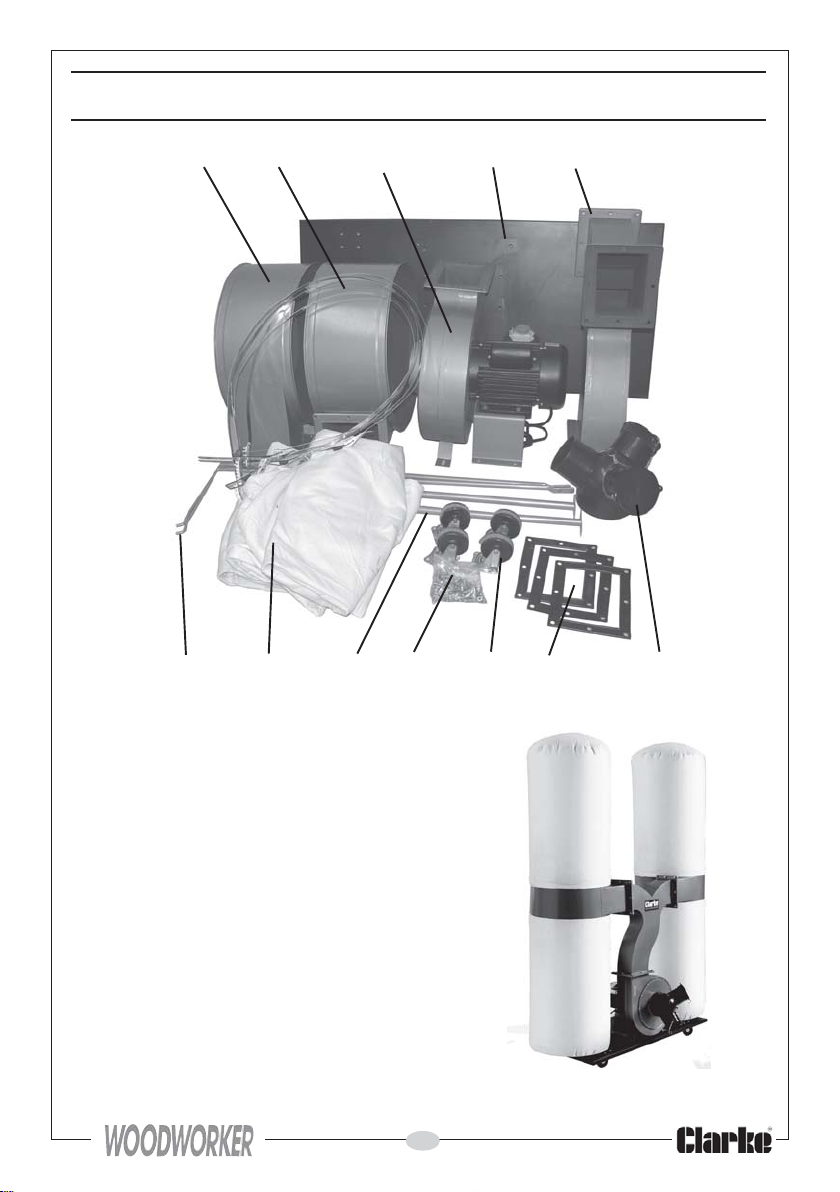

OVERVIEW

4 12 2 1 3

6 7 5 11

1. Base plate

2 Collector body c/w fan motor & switch

3. 2- way connecting duct

4. Side collectors

5. Collector support

6. Upper bag support

7. Dust and filter bags

8 3-way inlet shutter

9 Packing gaskets

10 Castor

11 Fixings pack

12 Bag clamping straps

7

10 9 8

UNPACKING & ASSEMBLY

IMPORTANT

Before commencing please check contents and advise immediately of any
shortages.

FIGURES IN BRACKETS REFER TO DIAGRAM & PARTS LIST ON PAGES 13 & 14

1 x Motor, Fan & Collector Body Assembly c/w switch assembly

1 x Base Plate (4)

1 x Connecting Duct (19)

2 x Side Collector Bodies (24 & 21)

2 x Upright Collector Supports (23)

2 x Upper Bag Supports (26)

4 x Bag Clamping straps (36)

2 x Collector Bags (22)

2 x Filter Bags (27)

1 x 3-Branch Inlet / Adaptor (29)

3 x Packing Gaskets (seals) (28)

4 x Castors (1)

1 x Fixings Pack Fixings pack comprising 16 x Philips screws & nuts, 34 x
short 13mm hex head, 4 x long 13mm hex head, 38 washers, 2 wrenches.

1 x Operating Instruction Manual (this document)

TOOLS REQUIRED

Philips Screwdriver

10 mm spanner

13mm spanner

ASSEMBLY

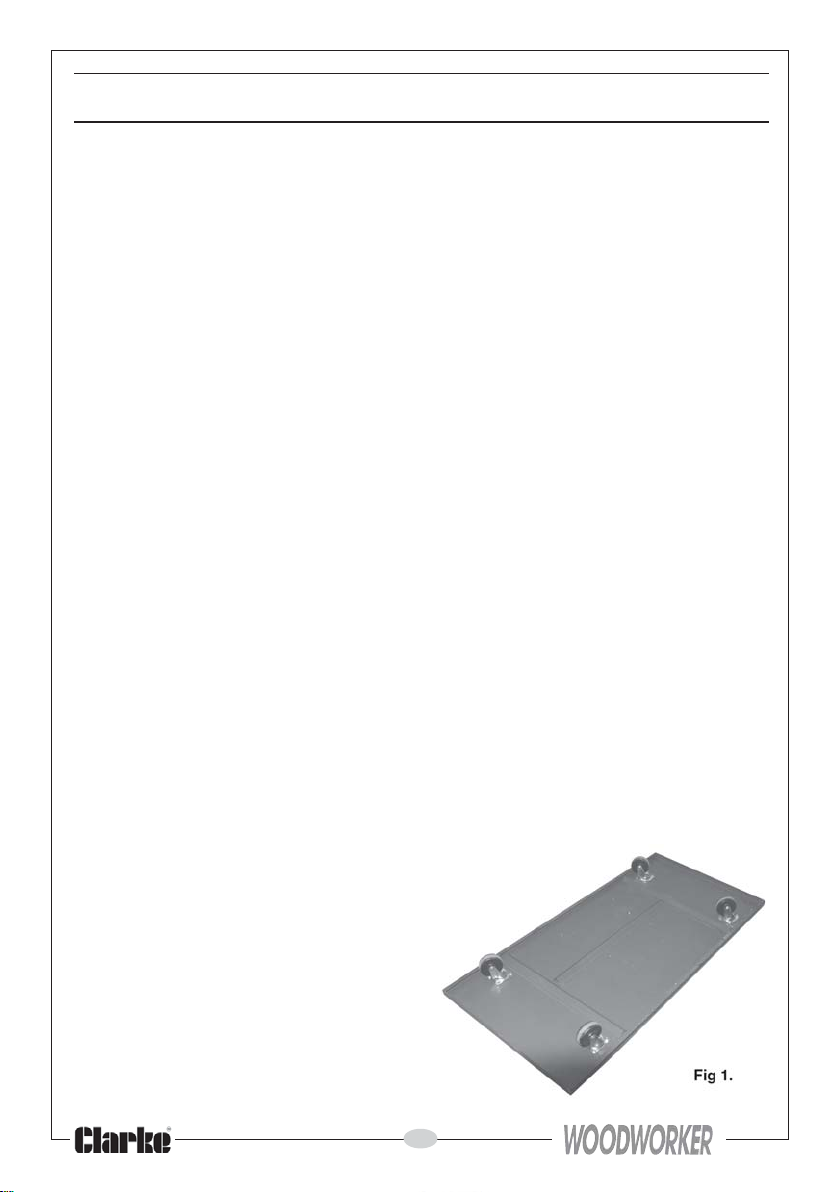

1. Attach the four castors to each

corner of baseplate with the
small bolts and cross headed
screws provided and tighten with
the 8mm spanner and phillips
screwdriver. Fig 1.

8

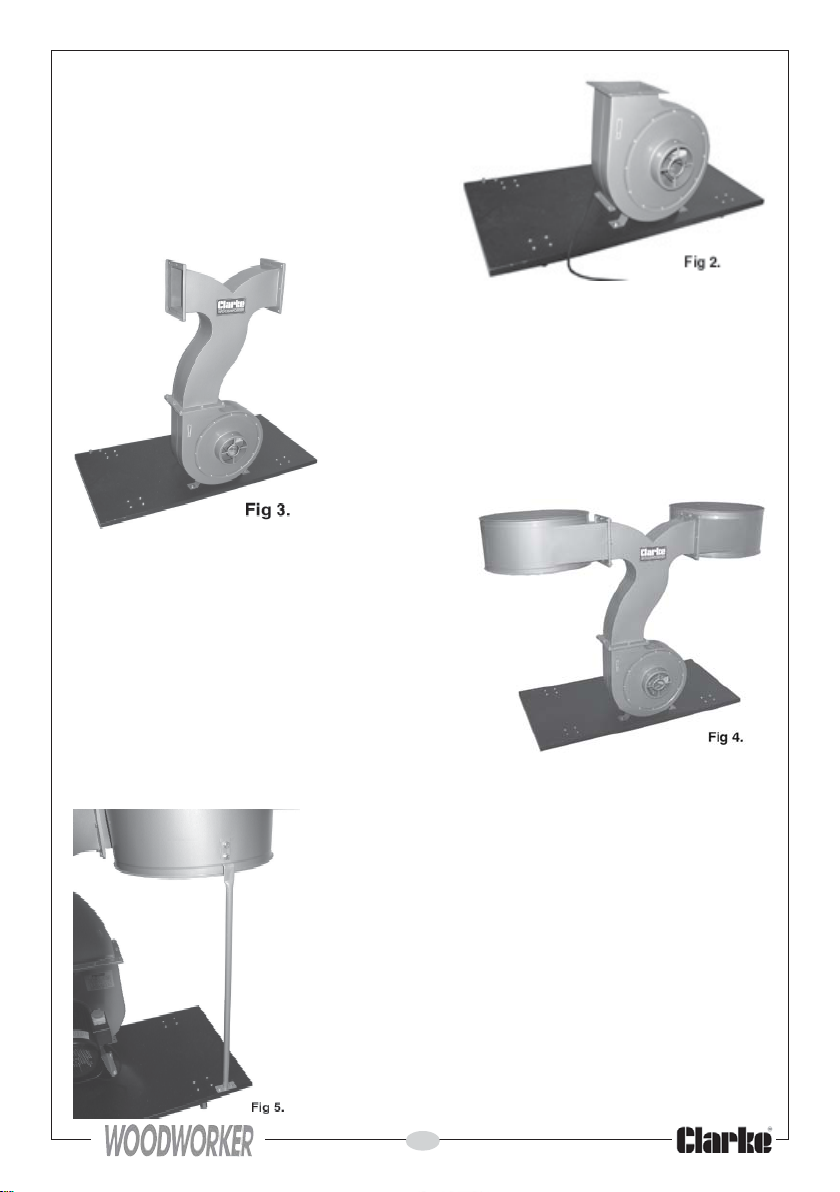

2. Turn the baseplate the right way up,
and with the collector body & fan/
motor assembly in the position
shown in Fig 2, secure it to the
baseplate using the hex head
screws and washers with the 13mm
spanner.

3. Place one packing gasket on the air outlet
flange and attach the connecting duct to the
collector body using eight hexagon headed
screws and washers supplied as shown in Fig 3.

4. Install the two side collectors to each
outlet of the connecting duct as
shown in Fig 4. The collectors are a left
and right hand pair and are assem­bled with the internal cone pointing
downwards. Position one packing
gasket on each air outlet flange and
attach each connecting duct to the
collector body using eight hexagon
headed screws and washers supplied.

Ensure the side fixing holes at the side of each
collector are directly above the fixing holes in the
base plate.

5. Install the two lower supports as shown in Fig 5,
using bolts/washers to secure them to the base
and checking that the top fixing holes line up with
the fixing holes in the collector bodies.

9

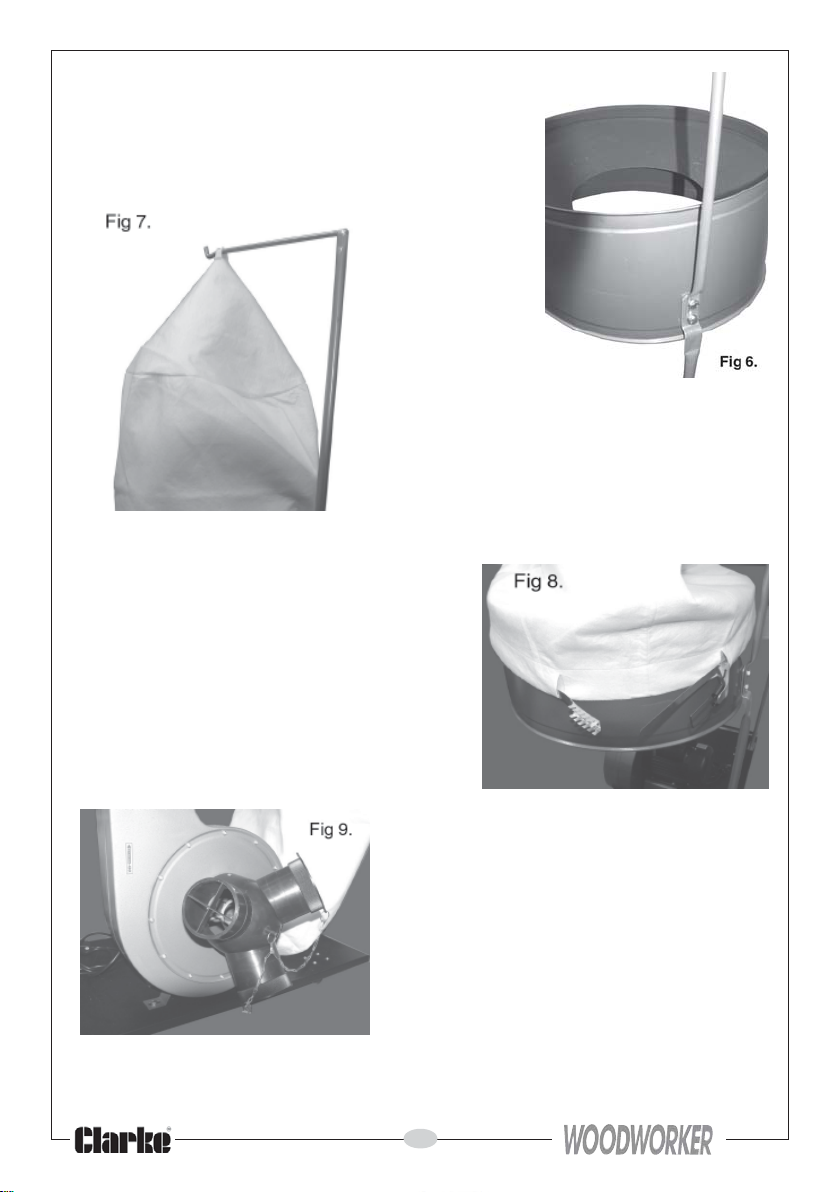

6. Fix the upper bag supports in position by
bolting through the holes in the lower bag
supports to secure both supports to the
collector body shown in Fig 6.

7. Hang the two upper dust bags from
the support rod arms as shown in Fig 7.

8. Slide the securing bands into the
sleeve around the opening of the
filter/collecting bags with the clasp
components of the band pointing
outwards.

9. Position the two filter bags and two
collection bags over the collector
bodies and secure in position with the
band clasps as shown in Fig 8.

10. Slide the 3-way shutter/adaptor onto
the intake opening of the fan/motor
assembly shown in Fig 9 and secure with
the single screw.

The dust collector unit is now assembled
and ready to use.

Before connecting to a power source, ensure the power supply to be used is
properly grounded and is of suitable voltage and amperage.

10

USING YOUR DUST COLLECTOR

OPERATION

DO NOT OPERATE WITHOUT ALL PARTS IN PLACE!

Do not attempt to clean, remove/attach dust bags or carry out any servicing
to the unit whilst it is in operation, ALWAYS ensure it is switched off and isolated
from the mains by removing the plug from the socket.

CAUTION : THE BLOWER HOUSING CONTAINS A HIGH SPEED FAN
BLADE THAT COULD AMPUTATE FINGERS, GRAB LOOSE CLOTHING AND
NECKTIES ETC, AND PROPEL DUST AT VERY HIGH VELOCITIES.

A suitable length of flexible hose can be fitted to the collector inlet using the
3-way adapter supplied, (item No 29 in the parts list on page 13). The collec­tor can also be connected directly to the woodworking machine being used,
using the appropriate hose and adapters which can be purchased sepa­rately from your nearest Clarke dealer.

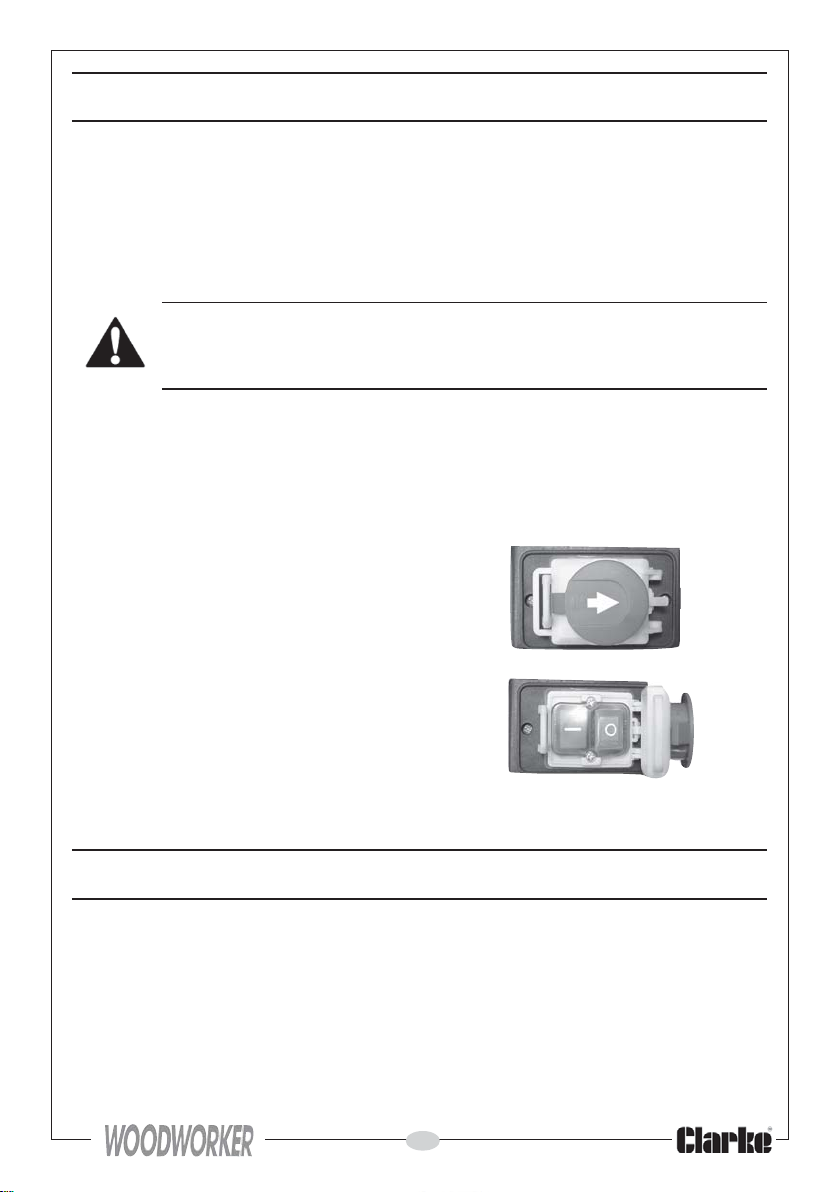

To switch ON, press the switch cover (see fig

10) down and slide in direction of arrow and

lift up, this will expose the ON/OFF buttons,
(see fig 11 ) Push the ON button, (green
button ‘I’). DO NOT close the cover as this will
switch the machine OFF again.

NOTE: In case of emergency, close the

switch cover quickly, cover will
latch down and motor will be
switched OFF. To switch OFF nor­mally, press OFF button, (red button
‘O’), always close cover to prevent
accidental starting.

Fig. 10

Fig. 11

MAINTENANCE

Always inspect the machine before use, and ensure it is in top condition.

Excessive dust in the motor can cause overheating, ensure all air vents are
clear, to avoid eye injury or adverse reaction to dust, clean the machine by
blowing out the air vents using low pressure compressed air where possible.

Check the power cable to ensure it is sound and free from cracks, bare wires
etc. Avoid using solvents when cleaning plastic parts, most plastics are
susceptible to damage from the various types of commercial solvents.

11

Occasionally it may be necessary to manually clean the fan, to do this
proceed as follows.

1. Switch OFF and isolate from the main electrical supply by removing the

plug from the socket, ensuring it is not possible to be plugged back in
accidentally.

2. Remove the 12 screws securing the inlet cover and remove the cover to

expose the fan.

3. Clean the fan using a brush, cleaning cloth, vacuum cleaner and/or low

pressure compressed air.

CAUTION: BEWARE OF SHARP EDGES. IF ANY SERVICING (OTHER THAN
THE ABOVE CLEANING) BECOMES NECESSARY, IT SHOULD BE CARRIED
OUT BY AN AUTHORISED SERVICE CENTRE.

TROUBLESHOOTING

Problem Probable Cause Suggested Remedy

Motor will not run.

1. Defective cable, switch
and / or motor.

1. Consult your nearest Clarke
dealer.

Excessive sawdust in the
air.

Excessive impeller noise.

Excessive noise. 1. Defective motor.

Motor fails to develop
full power.

Motor starts slowly fails to
reach full speed.

Motor does not start
when ON switch is
pressed.

1. Loose connectors.

2. Filter/dust bag worn or
damaged.

1. Impeller dirty. (dust buildup)

2. Loose or impeller rubbing.

2. Loose fan.

1. Circuit overloaded.

2. Extension lead undersize,
too long or not fully
unwound.

1. Low voltage.

2. Windings burned out or
open circuit.

1. Switch contacts burnt.

2. Start capacitor faulty.

12

1. Tighten connectors.

2. Replace bag.

1. Switch OFF and isolate from
mains. Clean impeller.

2. Consult your nearest Clarke
dealer.

1. Consult your nearest Clarke
dealer.

1. Use on separate circuit.

2. Change extension lead.

1. Request voltage check
from power company.

2. Have motor repaired or
replaced.

1. Have switch replaced.

2. Have capacitor replaced.

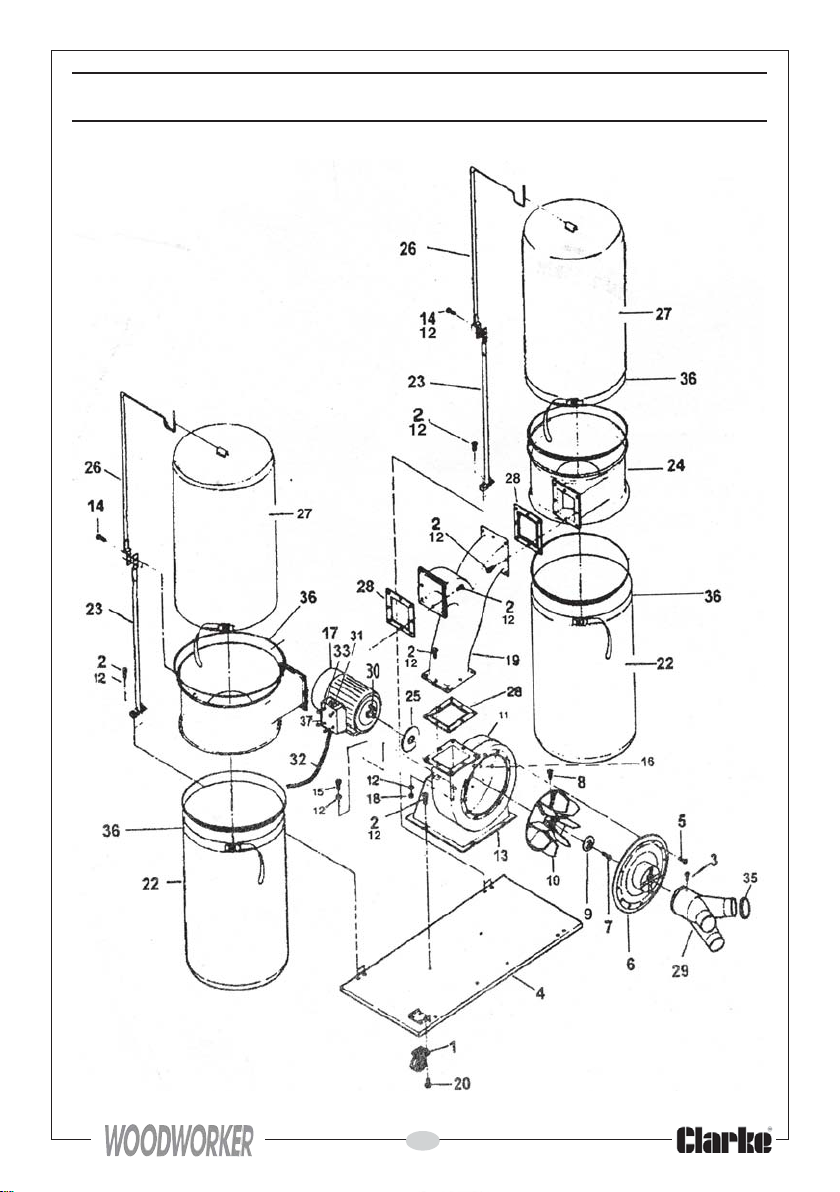

DUST COLLECTOR PARTS DIAGRAM

13

DUST COLLECTOR PARTS LIST

oN metI oNtraP ytQ oN metI oNtraP ytQ

1rotsaC10058EDCBQ402wercSdaeH-X02058EDCBQ61

2mm31wercSdhxeH20058EDCBQ4312rotcelloCH/L12058EDCBQ1

3wercS30058EDCBQ122gaBrot

4etalPesaB40058EDCBQ132troppuSrotcelloC32058EDCBQ2

5wercsdaeH-x50058EDCBQ2142rotcelloCH/R42058EDCBQ1

6r

7wercSdHtekcoSxeH70058EDCBQ162troppuSgaBreppU62058EDCBQ2

8wercSdaeHxeH80058EDC

9rehsaW90058EDCBQ182teksaGgnikcaP82058EDCBQ1

01naF01058EDCBQ192telnIyaW-392058EDCBQ1

11ydoBrotcell

oC11058EDCBQ103yeK03058EDCBQ1

21rehsaW21058EDCBQ4313hctiwSpotS/tratS13058EDCBQ1

31troppuSrotoM31058EDCBQ123elbaCrewoP23058

41mm81wercSdhxeH41058EDCBQ433wercS33058EDCBQ2

51wercSdhxeH51058EDCBQ643wercS43058EDCBQ4

61tloB61058EDCBQ453paC53058EDC

71rotoM71058EDCBQ163partSpmalCgaB63058EDCBQ4

81tuN81058EDCBQ4273xoBhctiwS73058EDCBQ1

evoCtelnI60058EDCBQ152recapS52058EDCBQ1

BQ172gaBretliF72058EDCBQ2

celloC22058EDCBQ2

EDCBQ1

BQ1

91tcuDteltuO91058EDCBQ183wercSdHdnu

oR83058EDCBQ4

IMPORTANT:

The use of parts other than CLARKE replacement parts may result in safely
hazards, decreased tool performance and will invalidate your warranty. In
the event of a situation requiring the dismantling and overhaul of the tool,,
contact your CLARKE International Service Department on 020-8988-7400.

14

DECLARATION OF CONFORMITY

DECLARATION OF CONFORMITY

This is an important document and should be retained.

We declare that this product complies with the following directives:

89/336/EEC Electromagnetic Compatibility directive, (amended 93/68/EEC).

73/23/EEC Low Voltage Equipment directive ( amended by 93/68/EEC).

The Following Standards have been applied to the product:

BS EN 55014-1:1993 +A1+A2

BS EN 61000-3-11:2000 BS EN 61000-3-2: 1995+A1+A2+A14

The technical documentation required to demonstrate that the products meet the
requirements of the Low Voltage Equipment directive has been compiled and is available
for inspection by the relevant enforcement authorities.

Product Description: 3hp Dust Collector

Model number(s): CDE85

Serial / batch Number: Current Manufacture.

Date of Issue: 15/05/2008

Signed

BS EN 55014-2:1997

The CE mark was first applied in: 2001

A.C. AIKEN

Senior Manager Clarke International.

Page 1 of 1

15
