Clarke CC 76, 7642030 User guide

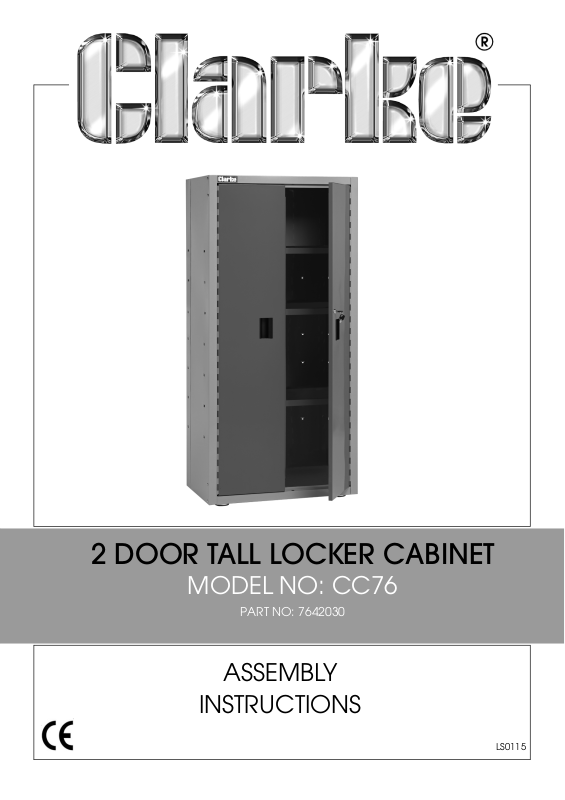

2 DOOR TALL LOCKER CABINET
MODEL NO: CC76
PART NO: 7642030
ASSEMBLY
INSTRUCTIONS
LS0115
Thank you for purchasing this CLARKE product.
Before attempting to use this product, please read this manual thoroughly and follow the instructions carefully. In doing so you will ensure the safety of yourself and that of others around you, and you can look forward to your purchase giving you long and satisfactory service.

GUARANTEE

This product is guaranteed against faulty manufacture for a period of 12 months from the date of purchase. Please keep your receipt which will be required as proof of purchase.
This guarantee is invalid if the product is found to have been abused or tampered with in any way, or not used for the purpose for which it was intended.
Faulty goods should be returned to their place of purchase, no product can be returned to us without prior permission.
This guarantee does not effect your statutory rights.

SPECIFICATION

Dimensions 762 x 460 x 1575 mm
Maximum Load Per Shelf 24 kg
Maximum Load Total 80 kg
2
Parts & Service: 020 8988 7400 / E-mail: Parts@clarkeinternational.com or Service@clarkeinternational.com

WHAT IS SUPPLIED

No Description Qty
1Main Frame 1
2Top Panel 1
3 Base Panel 1
4 Shelf 3
5Bracket 4
6 Shelf Locking Pins 18
7Bolts 16
8Key 2
9 Adjustable Foot 4
3
Parts & Service: 020 8988 7400 / E-mail: Parts@clarkeinternational.com or Service@clarkeinternational.com

ASSEMBLY

1. Open out the main frame as shown.
2. Screw the 4 adjustable feet into the bottom of the base
5. Join the main frame to the bottom panel using the brackets and bolts supplied.
• Insert the bolts from the outside.
3. Place the main frame over the base as shown.
4. You may need help doing this.
6. Repeat with the top panel.
• Note the position of the Clarke logo for orientaion.
4
Parts & Service: 020 8988 7400 / E-mail: Parts@clarkeinternational.com or Service@clarkeinternational.com
7. Insert the shelf at the required height.
• Make sure that all the tabs on the shelf locate into the slots in the main frame.
8. Lock the shelf into position using the locking pins provided.
• The locking pins are inserted from the outside.
9. Repeat with the remaining shelves.
•The maximum load for each shelf is 24 kg. Do not exceed the amount.
10. The cabinet is now ready to use.
11. Each foot can be screwed in or out to account for uneven floors, Make sure that the cabinet is level before use.
5
Parts & Service: 020 8988 7400 / E-mail: Parts@clarkeinternational.com or Service@clarkeinternational.com
6
Parts & Service: 020 8988 7400 / E-mail: Parts@clarkeinternational.com or Service@clarkeinternational.com

NOTES

7
Parts & Service: 020 8988 7400 / E-mail: Parts@clarkeinternational.com or Service@clarkeinternational.com
