Clarke CBS 1-5B, 6500432 User guide

BELT/DISC SANDER

MODEL NO: CBS1-5B

PART NO: 6500432

OPERATION & MAINTENANCE

INSTRUCTIONS

ORIGINAL INSTRUCTIONS DL1022 ISS 3

INTRODUCTION

This CLARKE Belt and Disc Sander is for DIY and light workshop use for sanding
wood and wood products.

Read the manual and follow the instructions carefully. In doing so you will
ensure the safety of yourself and that of others around you, and you can look
forward to your purchase giving you long and satisfactory service.

GUARANTEE

This product is guaranteed against faulty manufacture for a period of 12
months from the date of purchase. Please keep your receipt which will be
required as proof of purchase.

This guarantee is invalid if the product is found to have been abused or
tampered with in any way, or not used for the function for which it was
intended.

Faulty goods must be returned to their place of purchase, no product can be
returned to us without prior permission.

This guarantee does not effect your statutory rights.

GENERAL SAFETY RULES

WARNING: WHEN USING ELECTRIC TOOLS, BASIC SAFETY PRECAUTIONS
MUST BE FOLLOWED TO DECREASE THE RISK OF FIRE, ELECTRIC SHOCK
AND PERSONAL INJURY INCLUDING THE FOLLOWING. READ ALL THESE
INSTRUCTIONS BEFORE ATTEMPTING TO OPERATE THIS PRODUCT AND
SAVE THESE INSTRUCTIONS FOR FUTURE REFERENCE.

GENERAL SAFETY IN THE WORKPLACE

1. ALWAYS make sure that air can flow around the machine and that the air
vents are clear.

2. ALWAYS keep work area clean & tidy. Cluttered work areas and benches
invite accidents.

3. Do not over-reach. Keep proper footing and balance at all times.

4. Do not store equipment in a damp environment or expose to rain.

2

Parts & Service: 020 8988 7400 / E-mail: [email protected] or [email protected]

5. KEEP other persons away. Do not let persons, especially children, not
involved in the work, touch the tool or extension cable and keep them
away from the work area.

6. Do not operate a machine when under the influence of alcohol, drugs or
medication.

7. ALWAYS ensure the workplace is well lit. Ensure that lighting is placed so that
you will not be working in your own shadow.

8. Do not use tools in the presence of flammable liquids or gasses.

9. Stay alert, watch what you are doing, use common sense and do not
operate the tool when you are tired.

CARE OF POWER TOOLS

1. Read this manual carefully. Learn the machines applications and
limitations, as well as the specific potential hazards peculiar to it.

2. ALWAYS keep guards in place and in working order. A guard or other part
that is damaged should be properly repaired or replaced by an authorised
service centre, unless otherwise indicated in this instruction manual.

3. Don’t force the machine and use the correct tool. It will do the job better
and safer, at the rate for which it was intended.

4. ALWAYS disconnect the machine from the power supply before carrying
out any servicing or changing of accessories.

5. Before further use of the tool, it should be carefully checked to determine
that it will operate properly and perform its intended function. Check for
alignment of moving parts, binding of moving parts, breakage of parts,
mounting or other condition that may affect its operation.

6. Have defective switches repaired by an authorised service centre. Do not
use a tool if the switch does not turn it on and off.

7. ALWAYS check for any damage or any condition that could affect the
operation of the machine. Damaged parts should be properly repaired.

8. Have your tool repaired by a qualified person. This tool complies with the
relevant safety rules. Repairs should only be carried out by qualified
persons using original spare parts, otherwise this may result in considerable
danger to the user.

9. Do not use this product for any other purpose than that described in this
booklet.

10. Do not abuse the power cable by yanking the cable to disconnect it from
the socket. Keep the cable away from heat, oil or sharp edges.

11. Guard against electric shock. Avoid body contact with earthed or
grounded surfaces.

3

Parts & Service: 020 8988 7400 / E-mail: [email protected] or [email protected]

12. If the machine should be used outdoors, use only extension cables
intended for outdoor use and marked accordingly.

13. Avoid accidental starting by making sure the power switch is off before
plugging in the power cable.

ADDITIONAL PRECAUTIONS FOR BELT & DISC SANDERS

1. ALWAYS wear ear protectors/defenders when using this machine.

2. ALWAYS wear a dust mask when using this machine. Be aware of harmful or
toxic dust produced when sanding some woods, paint, etc.

3. ALWAYS use the sanding belt support or table to support the workpiece.

4. Always check to ensure that the table, belt support and attachments are
secure before starting.

5. ALWAYS maintain a clearance of 2.5-4 mm between the table and the
sanding belt or disc.

6. ALWAYS hold the workpiece firmly so that it cannot be pulled from your
hands.

7. ALWAYS feed the workpiece against the direction of rotation of the disc. i.e
the LEFT side of the disc.

8. ALWAYS keep the mains cable well away from the machine and ensure an
adequate electrical supply is close at hand so that the operation is not
restricted by the length of the cable.

9. ALWAYS use a dust extraction device, properly connected to the dust
extraction port.

10. ALWAYS ensure that nails or any foreign objects have been removed from a
workpiece beforehand. Nails etc., will destroy the belt or disc.

11. NEVER allow the ventilation slots in the motor to become blocked.

12. NEVER sand pieces which cannot be held firmly by hand.

WARNING: USE ONLY FOR SANDING WOOD. DO NOT USE FOR MATERIALS
CONTAINING ASBESTOS, PAINTED SURFACES OR MATERIALS WHICH EMIT TOXIC
PARTICLES.

DUST EXTRACTION

The sander is provided with a dust extraction facility. Please note however,
that this does not preclude the user from wearing a face mask to prevent the
inhalation of dust particles.

It is an EEC requirement that a dust extraction facility be provided on power
tools, however, due to the nature of the sander, some of the dust produced
will be forced into the surrounding atmosphere and will not be collected.

4

Parts & Service: 020 8988 7400 / E-mail: [email protected] or [email protected]

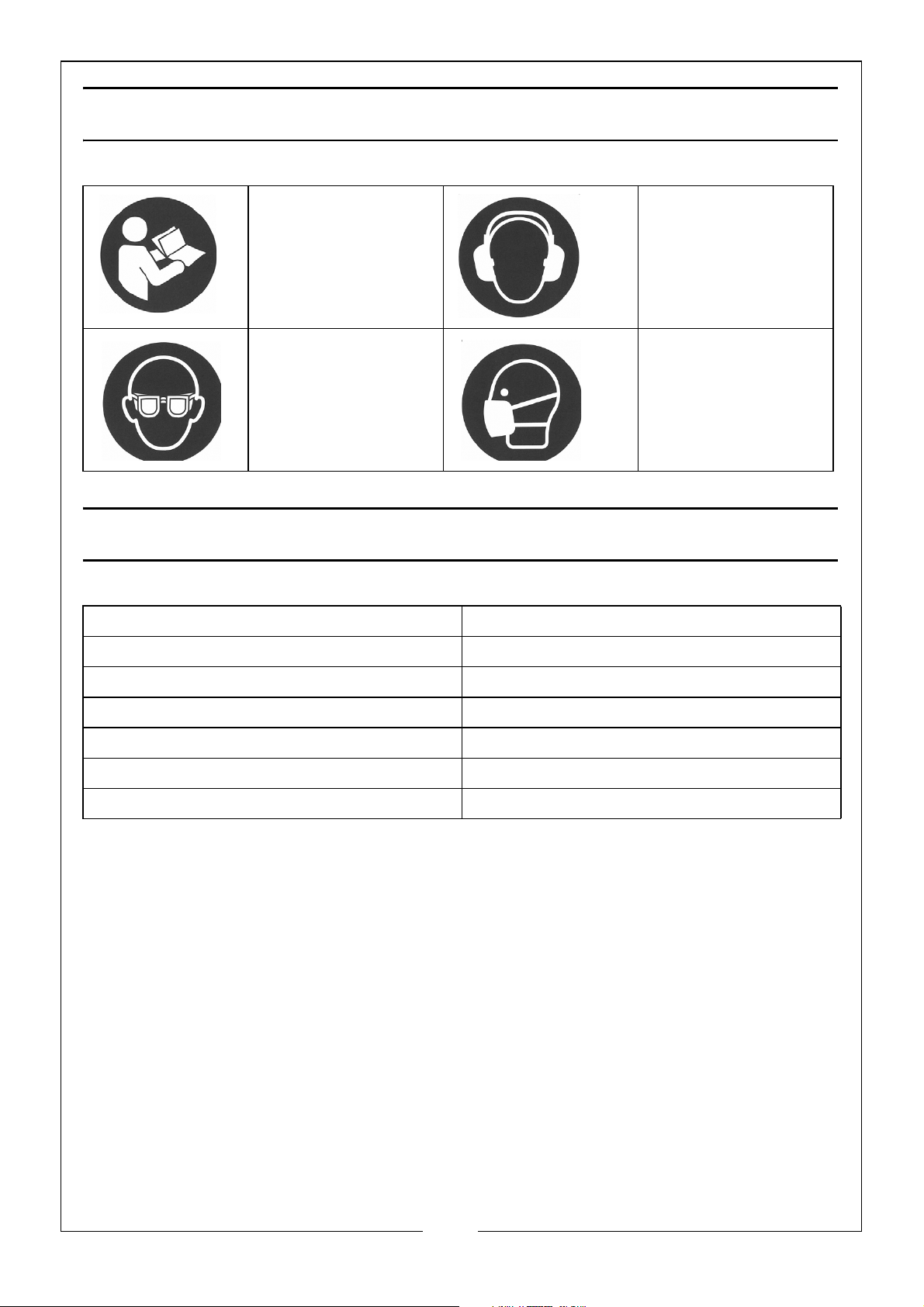

SAFETY SYMBOLS

Read this
instruction booklet
carefully.

Wear eye
protection.

REPLACEMENT DISCS AND BELTS

PART N UMBE R

Sanding Discs 60 grit (pack of 5) 6502345

Wear ear
protection.

Wear a dust mask
that is specially
designed to filter
microscopic
particles.

Sanding Discs 80 grit (pack of 5) 6502350

Sanding Discs 120 grit (pack of 5) 6502355

Sanding Belts 60 grit (pack of 5) 6502330

Sanding Belts 80 grit (pack of 5) 6502335

Sanding Belts 120 grit (pack of 5). 6502340

5

Parts & Service: 020 8988 7400 / E-mail: [email protected] or [email protected]

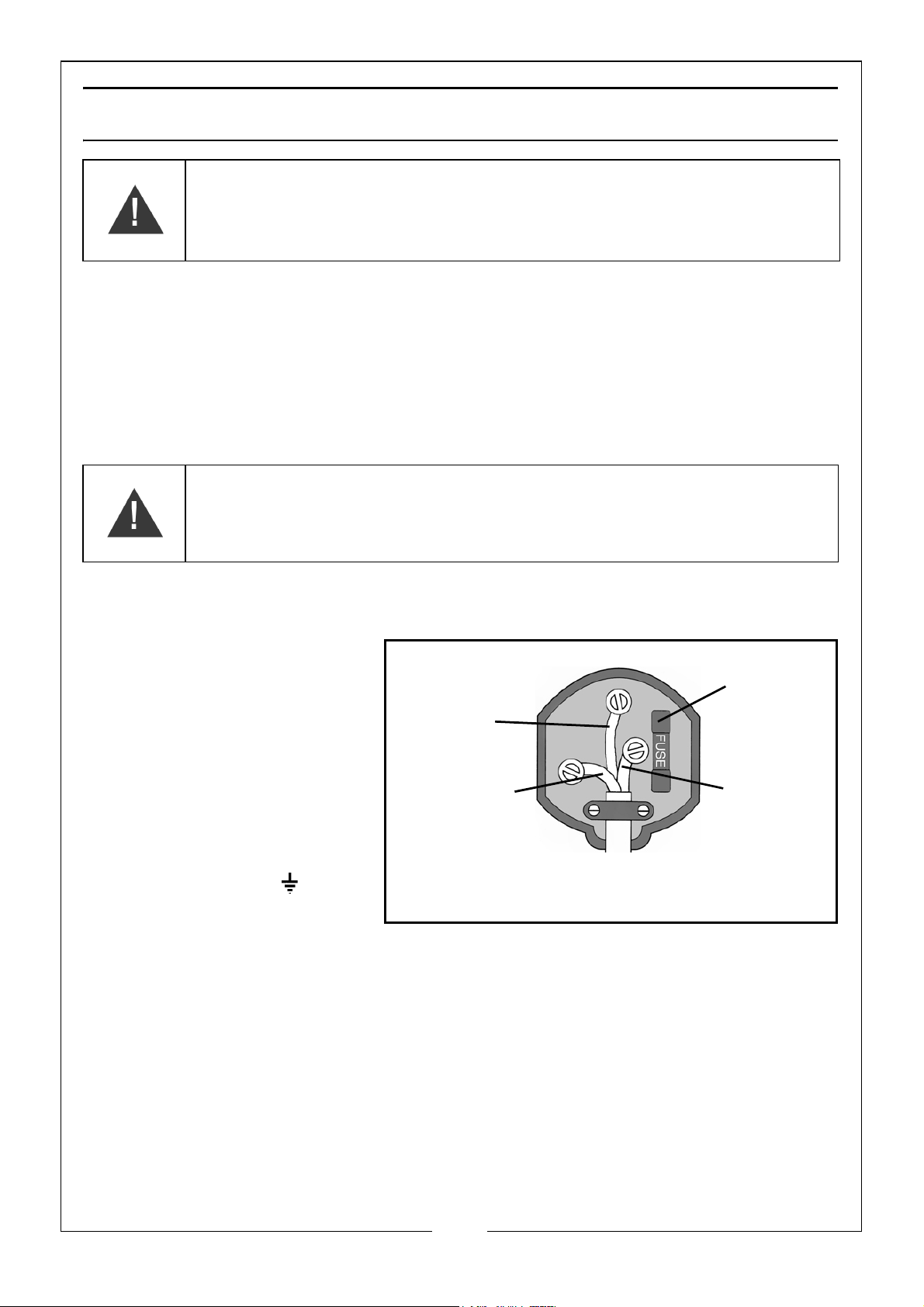

ELECTRICAL CONNECTIONS

Plug must be BS1363/A approved.

Always fit

make sure that that the outer sheath of

Neutral

(Blue)

Live

(Brown)

Earth

(Green and

a 5 Amp

the cable is firmly held by the clamp

fuse.

Yellow)

WARNING: READ THESE ELECTRICAL SAFETY INSTRUCTIONS FULLY
BEFORE CONNECTING TO THE MAINS SUPPLY.

Before switching the product on, make sure that the voltage of your electricity
supply is the same as that indicated on the rating plate. This product is
designed to operate on 230VAC 50Hz. Connecting it to any other power
source may cause damage

This product is provided with a standard 13 amp, 230 volt (50Hz), BS 1363 plug,
for connection to a standard, domestic electrical supply. Should the plug
need changing, make sure that a plug of identical specification is used.

WARNING: THE WIRES IN THE CABLE ARE COLOURED AS FOLLOWS:
BLUE = NEUTRAL BROWN = LIVE YELLOW AND GREEN = EARTH

.

If the colours of the wires in the power cable do not correspond with the
markings on the terminals of your plug, proceed as follows.

WE STRONGLY RECOMMEND THAT THIS MACHINE IS CONNECTED TO THE MAINS
SUPPLY VIA AN APPROVED RESIDUAL CURRENT DEVICE (RCD) WHICH HAS A
TRIPPING CURRENT OF LESS THAN 30mA.

If you are not sure, consult a qualified electrician. DO NOT try to do any
repairs.

•Connect the blue wire

to the terminal which
is marked N.

•Connect the brown

wire to the terminal
which is marked L.

•Connect the yellow

and green wire to the
terminal which is

marked E or .

6

Parts & Service: 020 8988 7400 / E-mail: [email protected] or [email protected]

ASSEMBLY

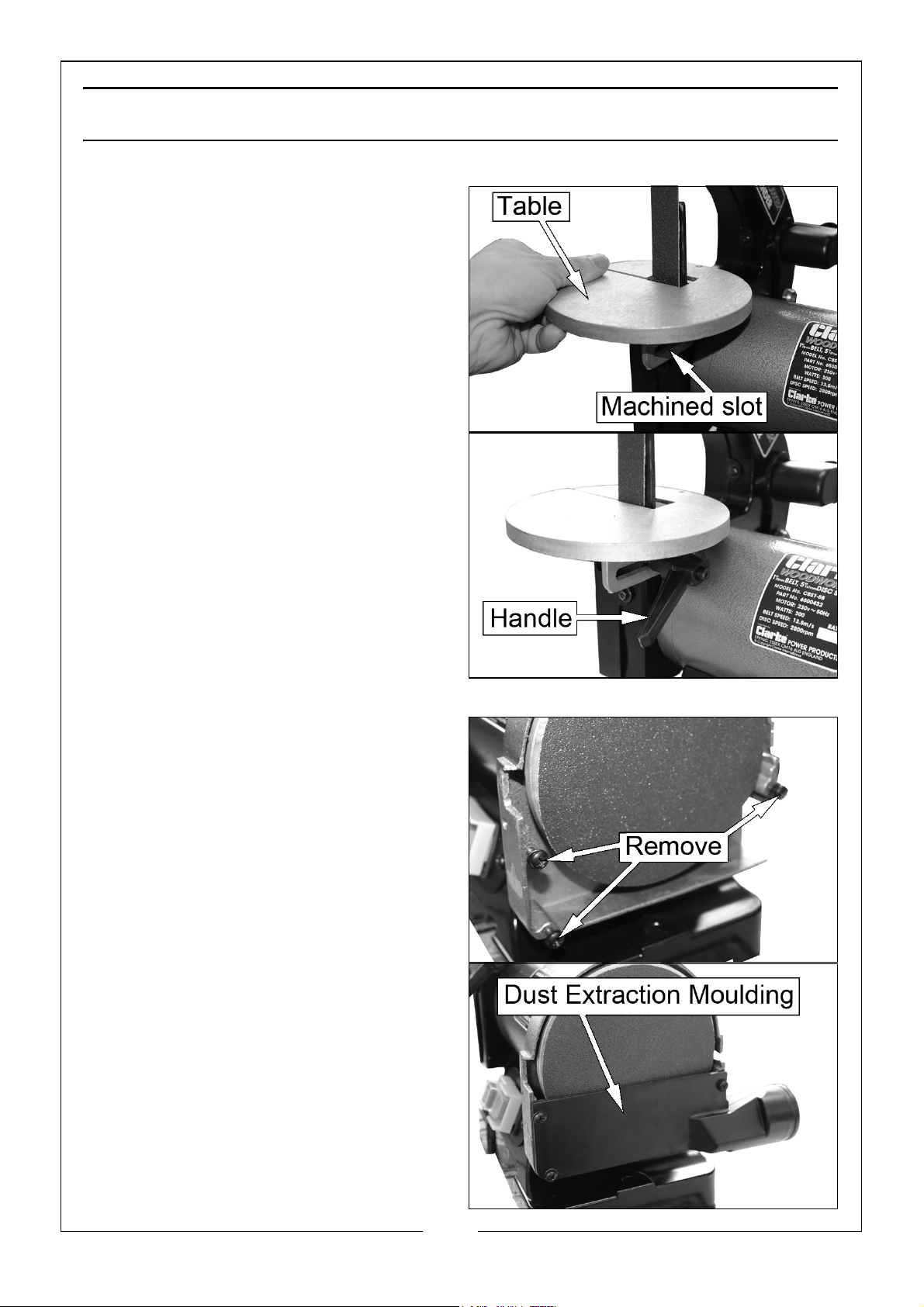

SANDING BELT TABLE

1. Slide the belt into the slot on the
table.

2. Position the table so that the
machined slot below lines up with
the hole in the casting.

3. Use the handle and washer
supplied to fix the table into
position.

NOTE: The distance between the

belt and the table must be
between 2.5-4 mm to
prevent small pieces slipping
down between the belt and
table.

DUST EXTRACTION MOULDING

1. Use a suitable screwdriver to
remove the 3 screws and washers.

2. Place the dust extraction
moulding into position.

3. Use the screws you removed in
step 1 to fix into place.

7

Parts & Service: 020 8988 7400 / E-mail: [email protected] or [email protected]

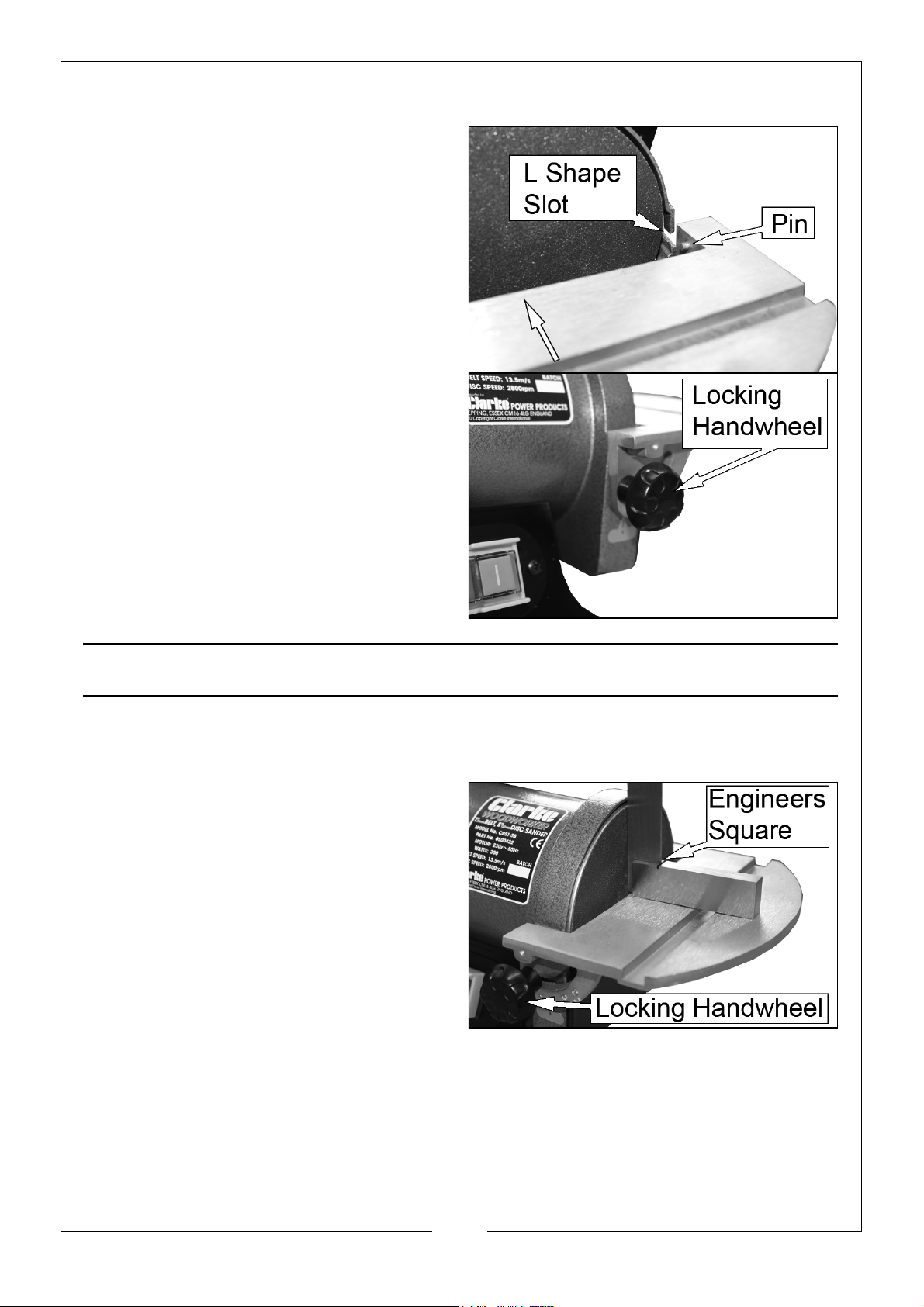

SANDING DISC TABLE

1. Line up the table pins with the L
shape slots on either side of the
sanding disc, push the table in as
far as possible.

2. Screw the locking handwheels
through the machined slots into
the pre-drilled hole until finger
tight.

ADJUSTMENTS BEFORE USE

DISC TABLE ADJUSTMENT

1. Put an engineers square on the
table and slacken the locking
handwheels slightly.

2. Adjust the table so it is at right
angles to the disc then tighten the
locking handwheels.

3. If a different angle is necessary
use an angle setting guage to
guarentee precision.

8

Parts & Service: 020 8988 7400 / E-mail: [email protected] or [email protected]

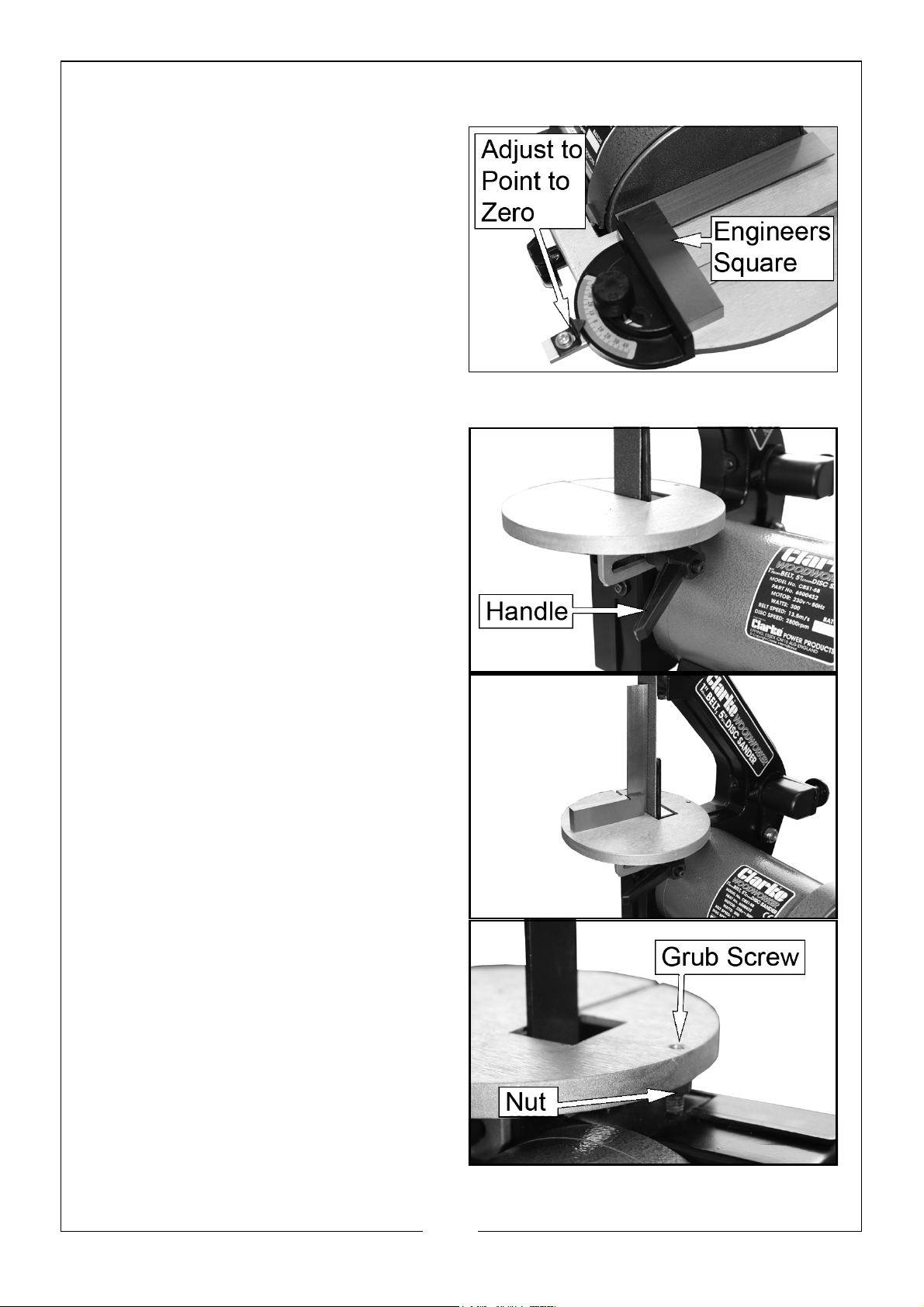

MITRE FENCE ADJUSTMENT

1. Check the mitre fence is
perpendicular to the disc and
adjust if required.

2. Set the pointer on the mitre fence
to 0° if required

• Once the pointer is set, you can

adjust the angle to whatever
angle you need.

BELT TABLE ADJUSTMENT

1. Loosen the handle.

2. Put an engineers square on the
table touching the belt

3. Adjust the table until it is at right
angles to the belt.

4. Tighten the handle.

5. For fine adjustments, adjust the
grub screw located at the rear of
the table. When correct, clamp
the grub screw in position using
the nut beneath the table.

9

Parts & Service: 020 8988 7400 / E-mail: [email protected] or [email protected]

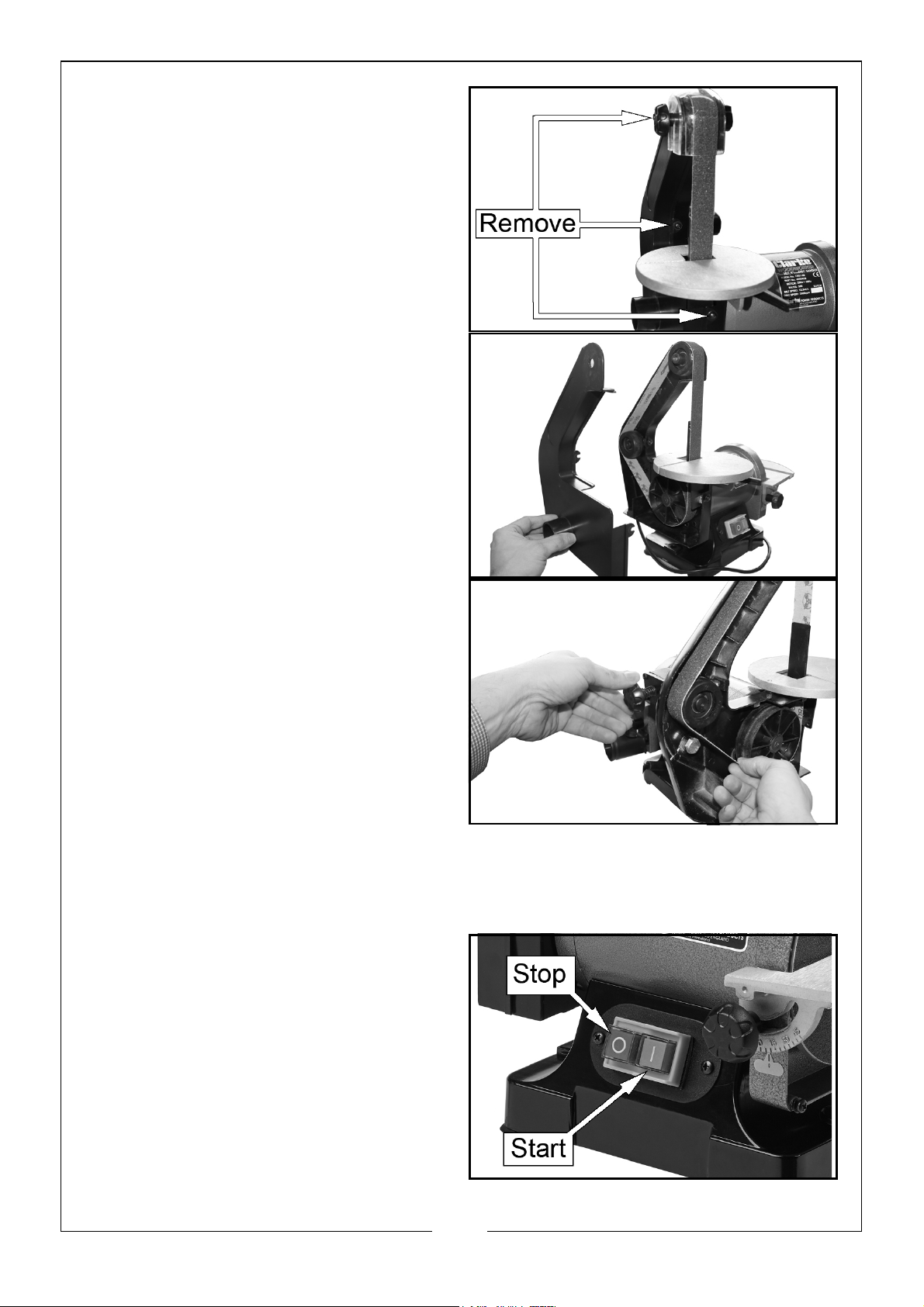

BELT TRACKING

1. Remove the screws and clamping
knob indicated.

2. Remove the belt cover.

3. Turn the belt by hand and adjust
the tracking knob until the belt is
tracking correctly.

• Clockwise to track the belt to

the right.

• Anti-clockwise to track the belt

to the left,

NOTE: You only need to make very

small adjustments.

4. Replace cover screws and clamping knob.

5. Remove any tools from the sander and connect the sander to the power
supply.

6. Push the START (I) button and let
the sander reach full speed.

• Check that the belt is tracking

correctly, if not, press the stop
button and disconnect the
sander from the power supply.
Then go back to step 1 and try
again.

• If everything is ok the sander is

ready to use.

10

Parts & Service: 020 8988 7400 / E-mail: [email protected] or [email protected]

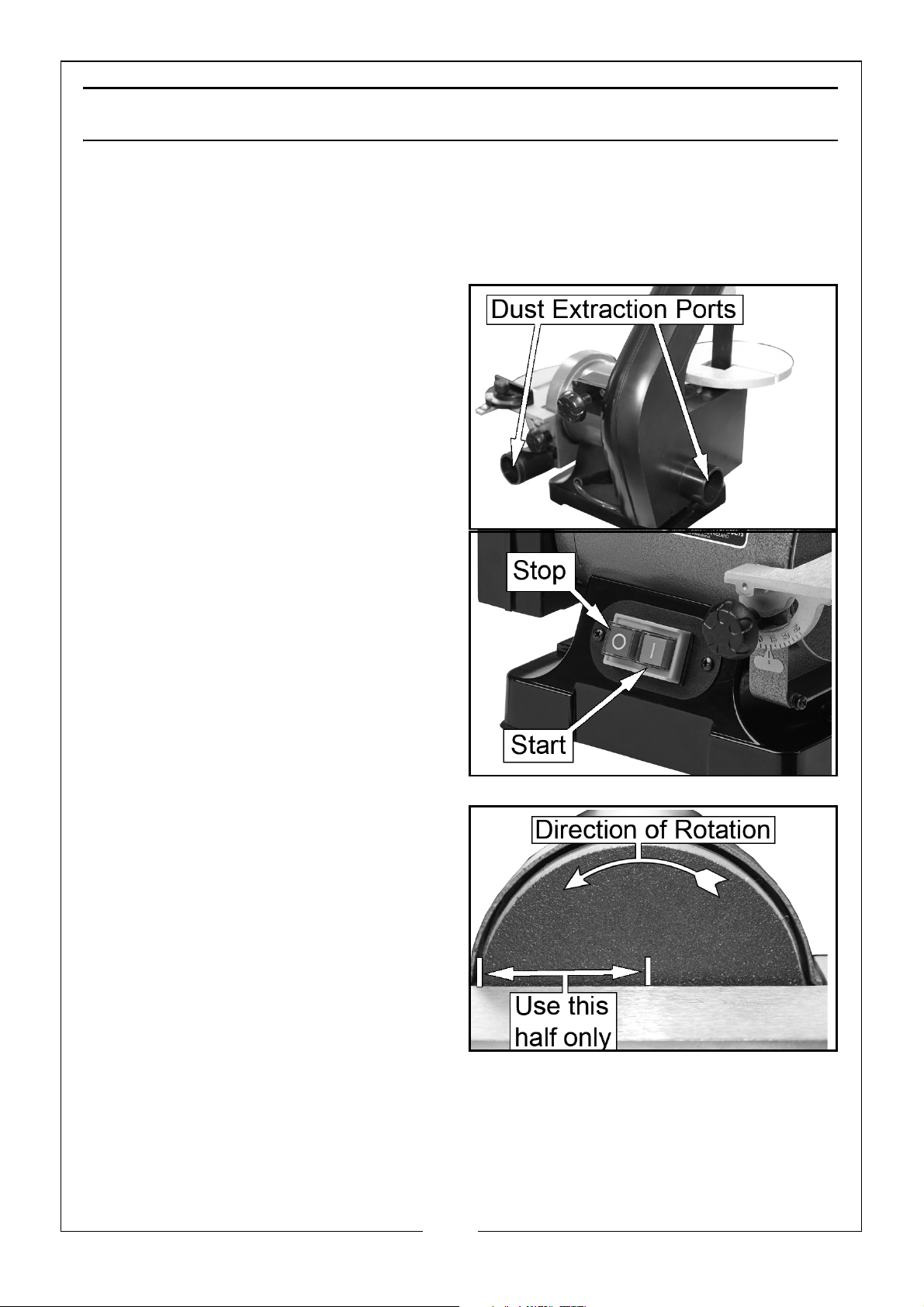

OPERATION

IMPORTANT: Ensure that ALL components are secure, ALL correct
adjustments have been carried out, and ALL safety precautions have been
observed BEFORE plugging the machine into the mains supply and
switching ON.

1. Attach a vacuum cleaner or
other dust extraction device to
the relevant extraction port.

2. Switch the machine ON by
pressing the green START (I)
button.

3. Make sure that the belt is tracking
properly...adjust if necessary.

4. Holding the workpiece firmly,
place it on the table and gently
slide it into contact with the belt or
disc. Do not force it, only a light
pressure is required.

IMPORTANT: When using the sanding
disc, ALWAYS use the left half of the
disc ONLY, i.e. that side where the
direction of rotation of the disc is
down towards the table.

11

Parts & Service: 020 8988 7400 / E-mail: [email protected] or [email protected]

MAINTENANCE

Always inspect the sander before use.

• Make sure that all air vents are clear.

Check the power cable to ensure it is sound and free from damage. Avoid
using solvents when cleaning plastic parts, (most plastics are susceptible to
damage from the various types of commercial solvents).

All bearings in this tool are lubricated for the machine’s lifetime under normal
operating conditions, therefore no further lubrication is required.

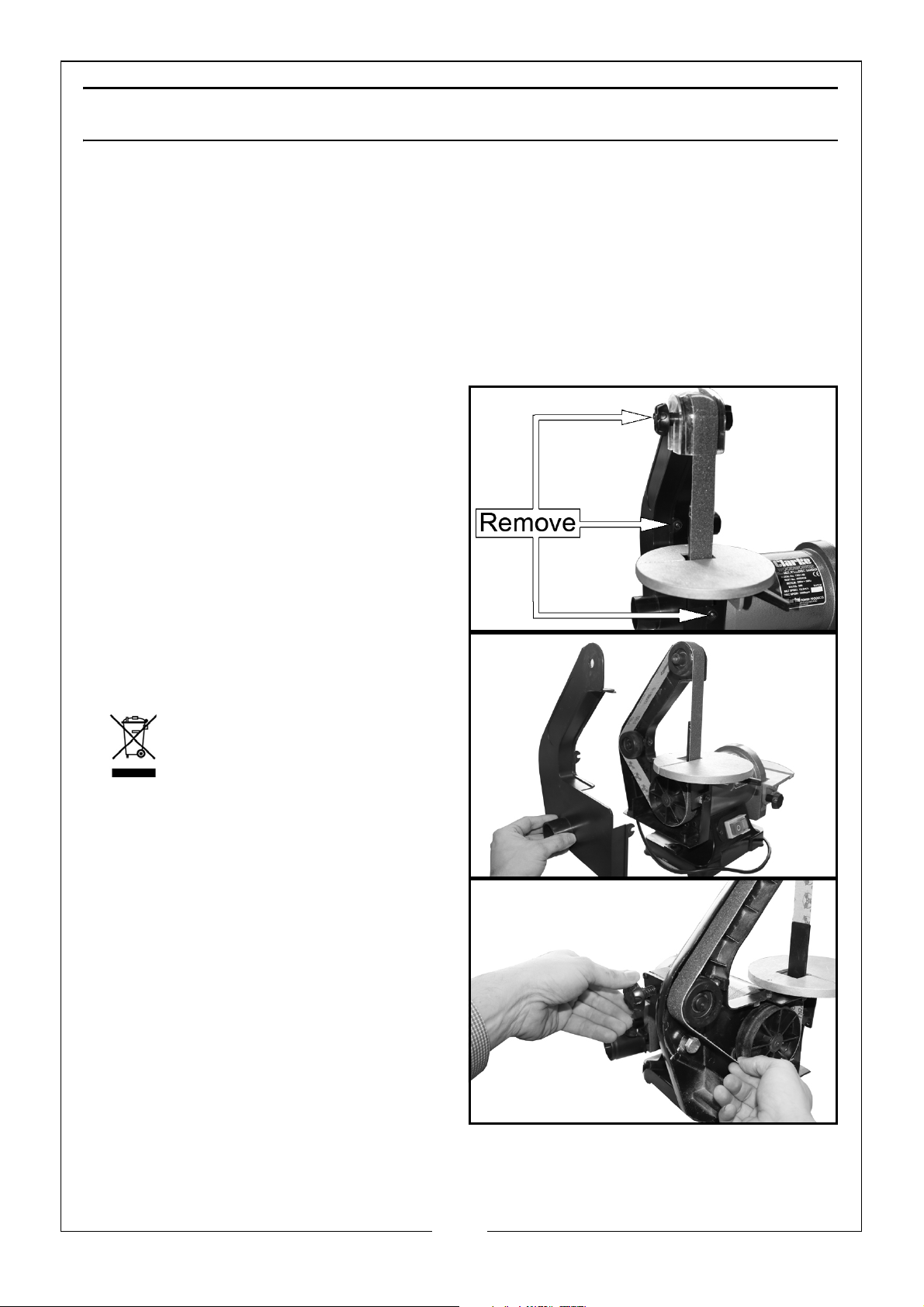

CHANGING THE SANDING BELT

1. Remove the screws and clamping
knob indicated

2. Remove the belt cover.

3. Replace the sanding belt ensuring

it sits centrally on the
rollers, and the arrow on
the rear of the belt is
pointing down towards
he table.

4. Turn the belt by hand and adjust
the tracking knob until the belt is
tracking correctly.

• Clockwise to track the belt to

the right

• Anti-clockwise to track the belt

to the left,

5. Replace the cover screws and
clamping knob.

12

Parts & Service: 020 8988 7400 / E-mail: [email protected] or [email protected]

CHANGING THE DISC

1. Remove the disc table and dust extraction moulding.

2. Using a sharp instrument, tease off a portion of the sanding disc, sufficient
for it to be grasped by hand and peeled off.

3. Remove all residual adhesive and finally clean the disc with solvent.

4. Peel the backing from the replacement sanding disc and fix to the disc
ensuring it is central. Press it firmly to ensure it is secure.

5. Replace the table and dust extraction moulding.

ENVIRONMENTAL RECYCLING POLICY

Through purchase of this product, the customer is taking on the obligation to
deal with the WEEE in accordance with the WEEE regulations in relation to the
treatment, recycling & recovery and environmentally sound disposal of the
WEEE.

In effect, this means that this product must not be disposed of with general
household waste. It must be disposed of according to the laws governing
Waste Electrical and Electronic Equipment (WEEE) at a recognised disposal
facility.

13

Parts & Service: 020 8988 7400 / E-mail: [email protected] or [email protected]

SPECIFICATION

Model CBS1-5B

Part Number 6500432

Electrical Supply 230V 50Hz 1 ph

Fuse rating 5 Amp

Power 250W

Belt Size 25.4 x 762 mm

Diameter of Disc 125 mm / 5 inch

Table Size Belt Ø 148 mm

Table Size Disc 184 x 98 mm

Dust Extraction Outlet Inner diameter - 38mm / External diameter = 45mm

Overall L x W x H 360 x 300 x 395 mm

Weight 7.5 kg

14

Parts & Service: 020 8988 7400 / E-mail: [email protected] or [email protected]

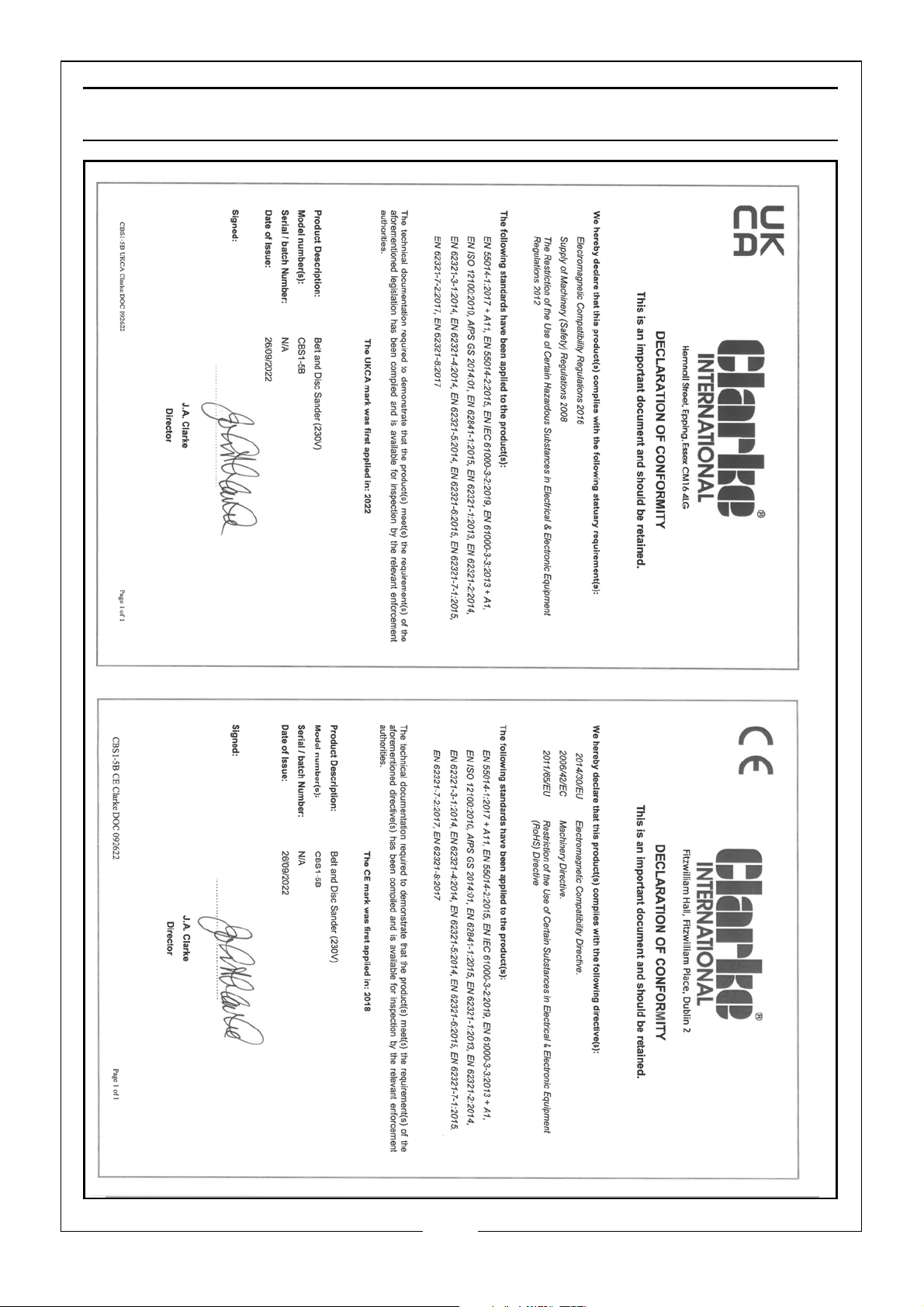

DECLARATION OF CONFORMITY

15

Parts & Service: 020 8988 7400 / E-mail: [email protected] or [email protected]
