Clarke CBG 6SC, 6502130 User guide

BENCH GRINDER WITH SANDING BELT

MODEL NO: CBG6SC

PART NO: 6502130

OPERATING & MAINTENANCE

INSTRUCTIONS

ORIGINAL INSTRUCTIONS GC08/22

INTRODUCTION

Thank you for purchasing this CLARKE Bench Grinder with sanding belt.

Before attempting to use this product, please read this manual thoroughly and
follow the instructions carefully. In doing so you will ensure the safety of yourself
and that of others around you, and you can look forward to your purchase
giving you long and satisfactory service.

GUARANTEE

This product is guaranteed against faulty manufacture for a period of 12
months from the date of purchase. Please keep your receipt which will be
required as proof of purchase.

This guarantee is invalid if the product is found to have been abused or
tampered with in any way, or not used for the purpose for which it was
intended.

Faulty goods should be returned to their place of purchase, no product can
be returned to us without prior permission.

This guarantee does not effect your statutory rights.

ENVIRONMENTAL PROTECTION

Do not dispose of this product with general household waste. All
tools, accessories and packaging should be sorted, taken to a
recycling centre and disposed of according to the laws governing
Waste Electrical and Electronic Equipment.

Through the purchase of this product, the customer is taking on the obligation
to deal with the WEEE in accordance with the WEEE regulations in relation to
the treatment, recycling & recovery and environmentally sound disposal of
the WEEE.

In effect, this means that this product must not be disposed of with general
household waste. It must be disposed of according to the laws governing
Waste Electrical and Electronic Equipment (WEEE) at a recognised disposal
facility.

2

Parts & Service: 020 8988 7400 / E-mail: [e-mail] or [e-mail]

GENERAL SAFETY RULES

CAUTION: FAILURE TO FOLLOW THESE PRECAUTIONS COULD RESULT IN
PERSONAL INJURY, AND/OR DAMAGE TO PROPERTY. PLEASE KEEP THESE
INSTRUCTIONS IN A SAFE PLACE FOR FUTURE REFERENCE.

WORK ENVIRONMENT

1. Keep the work area clean, tidy and well lit. Cluttered and dark areas invite
accidents

2. DO NOT operate power tools in explosive atmospheres, such as in the
presence of flammable liquids, gases or dust. Power tools create sparks
which may ignite the dust or fumes.

3. Keep children and bystanders away while operating a power tool.
Distractions can cause you to lose control.

PERSONAL SAFETY

1. Stay alert, watch what you are doing and use common sense when
operating a power tool. DO NOT use a power tool while you are tired or
under the influence of drugs, alcohol or medication. A moment of
inattention while operating power tools may result in personal injury.

2. AVOID accidental starting. Ensure the switch is in the off position before
plugging in. Plugging in power tools that have the switch on invites
accidents.

3. DO NOT overreach. Keep proper footing and balance at all times. This
enables better control of the power tool in unexpected situations.

4. Dress properly. DO NOT wear loose clothing or jewellery. Keep your hair,
clothing and gloves away from moving parts. Loose clothes, jewellery or
long hair can be caught in moving parts.

5. Eye protection manufactured to the current European safety standards
should be worn when operating grinding equipment. Eye protectors must
provide protection from flying particles from the front and the side.

GENERAL USE AND CARE OF POWER TOOLS

1. ALWAYS check for any damage or condition that could affect the
grinder’s operation. Any damaged part should be properly repaired.

2. NEVER use the grinder if it is defective or operating abnormally.

3. NEVER abuse the mains cable. Never yank the cable to disconnect it from
the socket. Keep the cable away from sharp edges/hot surfaces.

3

Parts & Service: 020 8988 7400 / E-mail: [e-mail] or [e-mail]

4. NEVER carry out any alterations or modifications to this product.

5. NEVER wipe the machine clean with solvents. Wipe plastic parts with a soft
cloth, slightly dampened with soapy water.

6. NEVER attempt any repairs yourself. If you have a problem with this product
contact your local CLARKE dealer.

7. DO NOT use the tool for any purpose than that described in this manual.

8. ALWAYS maintain the tool with care. Keep it clean for the best and safest
performance.

9. DO NOT force the power tool. Use the correct power tool for your
application. The correct power tool will do the job better and safer at the
rate which it was designed.

10. DO NOT use the power tool if the switch does not turn it on and off. Any
power tool that cannot be controlled with the switch is dangerous and
must be repaired.

11. Store idle tools out of the reach of children and DO NOT allow persons
unfamiliar with the power tool or these instructions to operate the power
tool. Power tools are dangerous in the hands of untrained users.

12. Maintain power tools. Check for misalignment or binding of moving parts,
breakage of parts and any other condition that may affect the power
tools operation. If damaged, have the power tool repaired before use.
Many accidents are caused by poorly maintained power tools.

13. Use the power tool and accessories in accordance with these instructions
and in the manner intended for the particular type of power tool, taking
into account the working conditions and the work to be performed. Use of
the power tool for operations different from intended could result in a
hazardous situation.

ELECTRICAL SAFETY

1. Power tool plugs must match the outlet. NEVER modify the plug in any way.
DO NOT use adapter plugs with earthed (grounded) power tools. Correct
plugs and matching outlets will reduce the risk of electric shock.

2. DO NOT abuse the cable. NEVER use it for carrying, pulling or unplugging
the power tool. Keep the cable away from heat, oil, sharp edges or
moving parts. Damaged or entangled cables increase the risk of electric
shock.

3. DO NOT expose power tools to rain or wet conditions. Water entering a
power tool will increase the risk of electric shock. If operating the power
tool in a damp location is unavoidable, use a residual current device
(RCD) protected supply.

4

Parts & Service: 020 8988 7400 / E-mail: [e-mail] or [e-mail]

4. When operating a power tool outdoors, use an extension cable suitable for
outdoor use. Use of a cable suitable for outdoor use reduces the risk of
electric shock.

BELT/DISC SANDER SAFETY

1. ALWAYS wear a dust mask when using this machine. Be aware that harmful
or toxic dusts could be produced when sanding some woods.

2. ALWAYS use the table to support the workpiece.

3. ALWAYS check to ensure the attachments are secure before starting.

4. ALWAYS maintain a suitable clearance between table and sanding belt.

5. ALWAYS hold the workpiece firmly so that it cannot be torn from your hands

6. ALWAYS ensure that nails or foreign objects have been removed from a
workpiece beforehand. Nails etc. will destroy the belt.

7. NEVER sand pieces which cannot be held firmly by hand.

GRINDING STONE SAFETY

1. Check the speed of the grindstone before fitting to your grinder. NEVER use
a stone with a rpm speed less than the rpm speed of your grinder.

2. The outside diameter and thickness of your accessories must be within the
capacity rating of the power tool. The correct size accessories can be
correctly guarded and controlled.

3. NEVER use a stone that is chipped, cracked or damaged. Fragments from
a broken or damaged grinding stone can cause serious injury. Make sure
that defective stones are destroyed and not used.

4. Bonded abrasive products are breakable and shall therefore be handled
with utmost care. The use of damaged or improperly mounted or used
abrasive products is dangerous and can cause serious injuries.

5. ALWAYS refer to the label for specified usage and observe the safety
information. DO NOT use for purposes other than specified.

6. ALWAYS use the correct stone for it’s intended task. Using the incorrect
stone can cause serious injury.

7. Allow the stone and tool to do the work. NEVER force the workpiece
against the stone as this could cause kickback and/or shatter the stone
causing serious injury.

8. NEVER use a damaged grinding stone. Inspect the stone before each use
for chips, cracks or excess wear. If the tool or accessory is dropped, inspect
for damage or install a new accessory. After fitting the accessory, position
yourself away from the plane of the rotating accessory and run the tool at
full speed. Damaged stones may break apart during this test.

5

Parts & Service: 020 8988 7400 / E-mail: [e-mail] or [e-mail]

9. Abrasive products shall be handled and transported with care. Abrasive
products shall be stored in such a manner that they are not subjected to
mechanical damage and harmful environmental influences.

10. DO NOT use separate reducing bushes or adapters to adapt large hole
abrasive wheels. DO NOT force a stone onto a machine or alter the size of
the arbor hole.

BENCH GRINDER SAFETY WARNINGS

1. Hold aNY tool or blade being sharpened firmly to prevent loss of control.

2. NEVER install a abrasive flap wheel or sanding disc on this grinder.

3. ALWAYS replace a cracked grinding wheel immediately.

4. NEVER use damaged or incorrect grindstones. The stone and retaining
fixtures were specially designed for your grinder, for optimum performance
and safety of operation. Inspect the condition of the grinding stone before
use and do not use if any damage is found.

5. ALWAYS use the tool rests to steady the workpiece, the torque of the
spinning grinding wheel may pull the workpiece from your hands.

6. ALWAYS check for damaged parts. Before further use any part that is
damaged should be carefully checked to determine if it would operate
properly and perform its intended function. Check for misalignment or
binding of moving parts, breakage of parts and any other condition that
may affect the tool's operation. A part that is damaged should be properly
repaired or replaced at an authorised service center. Following this rule will
reduce the risk of electric shock, fire or serious injury.

NOTE: Bench grinders used in industrial environments may be subject to

the The Provision and Use of Work Equipment regulations 1992
and/or the training requirement of The Abrasive Wheels
Regulations 1970), or other legislation. If in doubt seek advice

SAFETY SYMBOLS

The meanings of the markings and symbols on the product are shown below

Read this manual
before use and keep
in a safe place for
future reference

Wear ear protection Wear dust mask.

6

Parts & Service: 020 8988 7400 / E-mail: [e-mail] or [e-mail]

Wear eye protection
when using this tool.

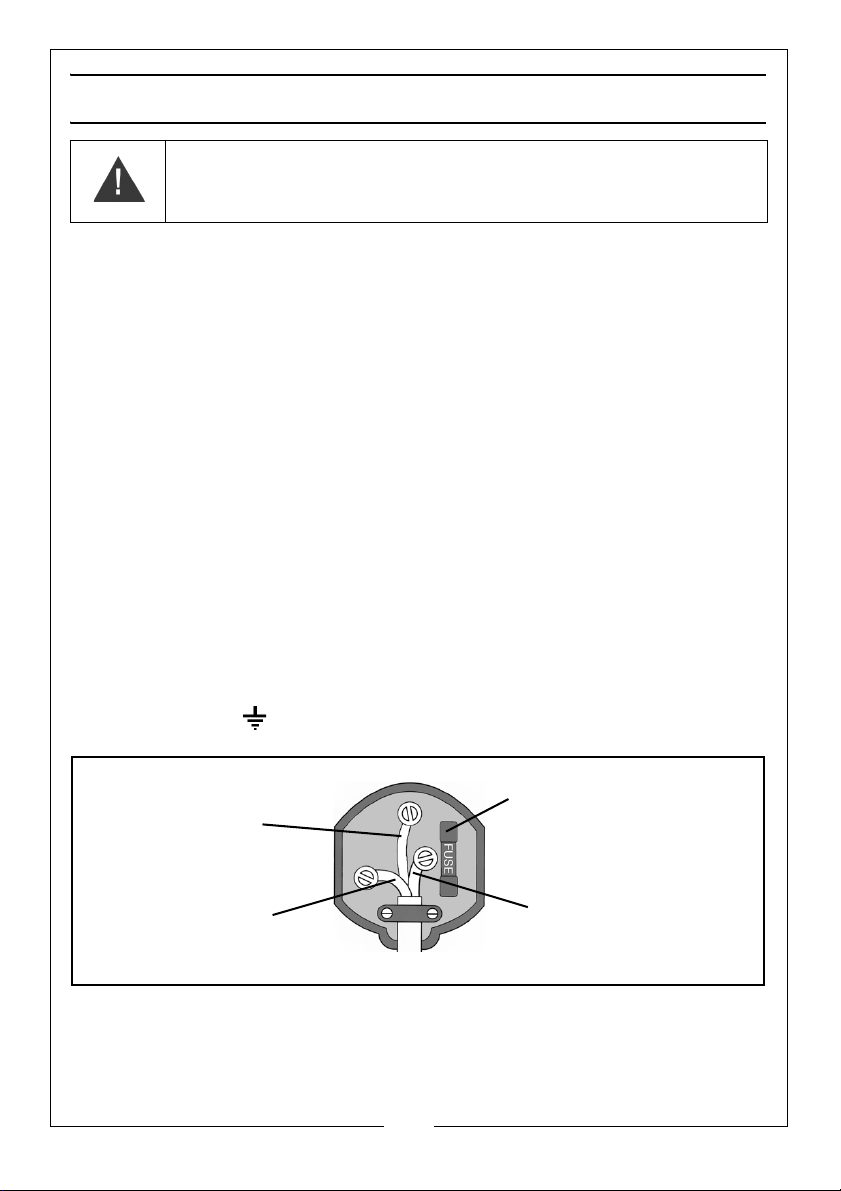

ELECTRICAL CONNECTIONS

Plug must be BS1363/A approved.

Always fit a 5 Amp fuse.

Ensure that the outer sheath of the cable is firmly held by the clamp

Neutral

(Blue)

Live

(Brown)

Earth

(Green and Yellow)

WARNING! READ THESE ELECTRICAL SAFETY INSTRUCTIONS
THOROUGHLY BEFORE CONNECTING THE PRODUCT TO THE
MAINS SUPPLY.

Before switching the product on, make sure that the voltage of your electricity
supply is the same as that indicated on the rating plate. This product is
designed to operate on 230VAC 50Hz. Connecting it to any other power
source may cause damage.

This product may be fitted with a non-rewireable plug. If it is necessary to
change the fuse in the plug, the fuse cover must be refitted. If the fuse cover
becomes lost or damaged, the plug must not be used until a suitable
replacement is obtained.

If the plug has to be changed because it is not suitable for your socket, or due
to damage, it should be cut off and a replacement fitted, following the wiring
instructions shown below. The old plug must be disposed of safely, as insertion
into a mains socket could cause an electrical hazard

If the colours of the wires in the power cable of this product do not correspond
with the markings on the terminals of your plug, proceed as follows.

•The Blue wire must be connected to the terminal marked N or

coloured Black.

•The Brown wire must be connected to the terminal marked L or

coloured Red.

•The Yellow and Green wire must be connected to the terminal

marked E or or coloured Green.

.

.

We strongly recommend that this machine is connected to the mains supply
via a Residual Current Device (RCD). If in any doubt, consult a qualified
electrician. DO NOT attempt any repairs yourself.

Parts & Service: 020 8988 7400 / E-mail: [e-mail] or [e-mail]

7

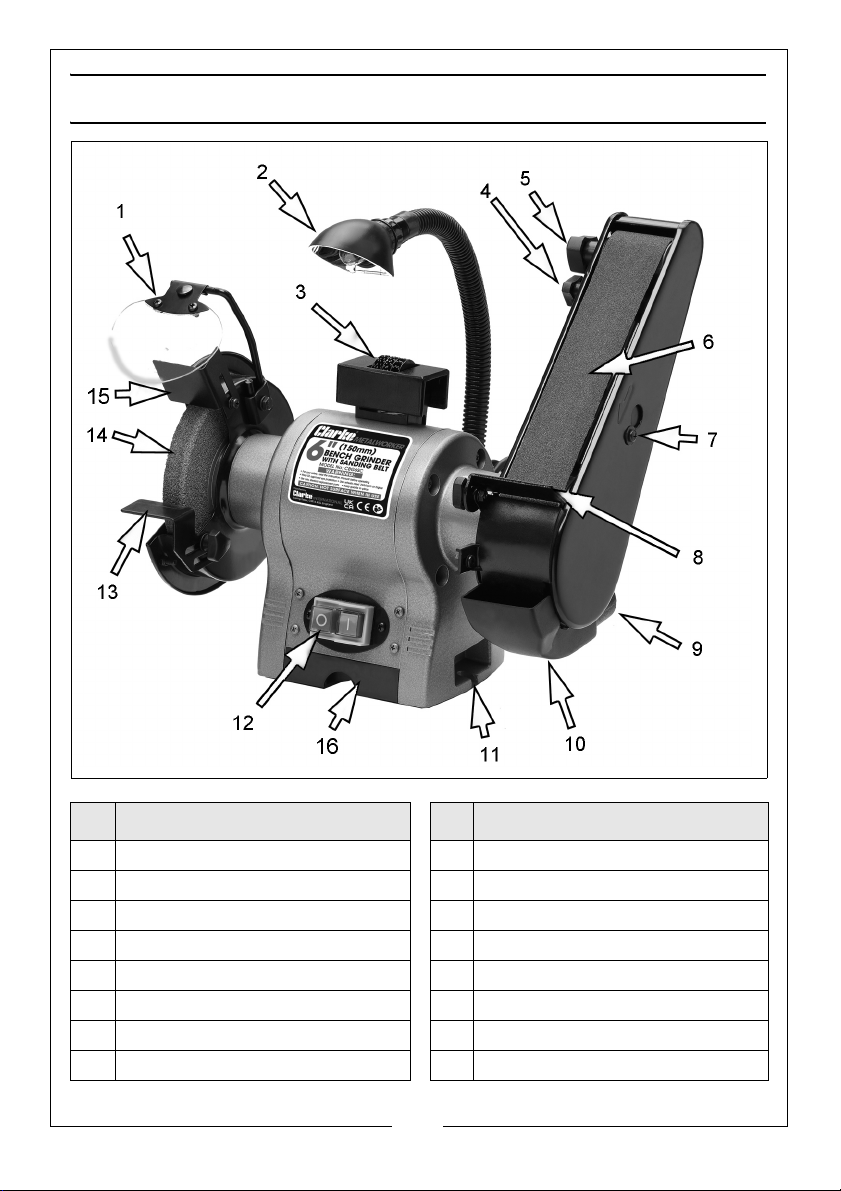

OVERVIEW

No Description No Description

1 Eye Shield 9 Dust Extract Port

2 Flexible Lamp 10 Dust Collector/Belt guard

3 Grinding Wheel Dresser 11 Mounting Bolt Location

4 Belt Tracking Adjustment Knob 12 On/Off Switch

5 Belt Tension Knob 13 Tool Rest

6 Sanding Belt 14 Grinding Wheel

7 Side Guard Release Screw 15 Spark Deflector

8 Sanding Workpiece Rest

8

Parts & Service: 020 8988 7400 / E-mail: [e-mail] or [e-mail]

ASSEMBLY

INVENTORY

The machine is supplied with the following items. If any items are missing or
damaged, please contact the dealer where you purchased the product.

• 1 x Eye Guard

• 2 x Tool Rests (1x grinding/ 1 x sanding)

• 1 x Spark Deflector

• 1 x Grinding Wheel (fitted)

• 1 x Sanding Belt (fitted)

• 1 x Wheel Dresser

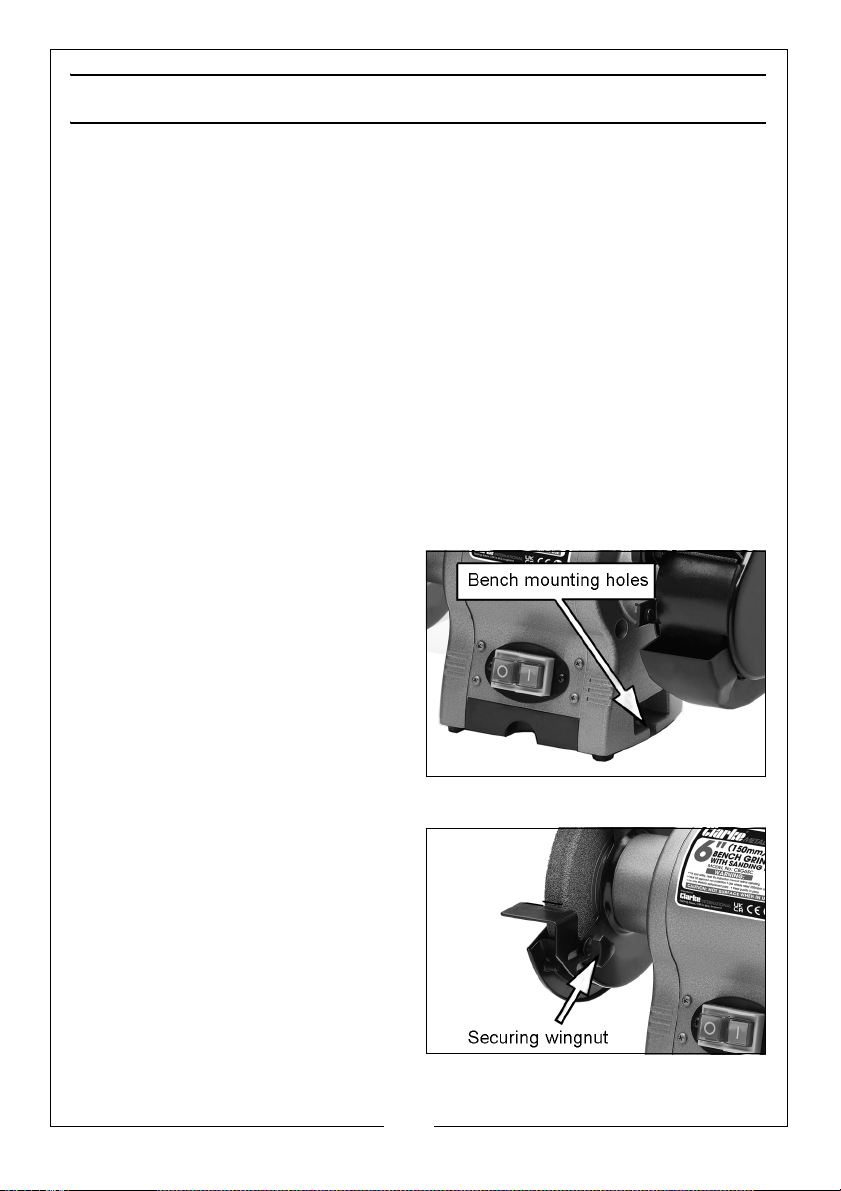

MOUNTING THE MACHINE ON A WORKBENCH

NOTE: We highly recommend that you bolt this machine securely to a

workbench to gain maximum stability.

1. Using the base of the machine as
a template, mark and drill the
workbench at the positions of the
mounting holes in the base.

2. Bolt the bench grinder to the
bench with suitable bolts, washers
and nuts (not supplied).

FITTING THE GRINDING WHEEL TOOL REST

1. Fix the tool rest to the bench
grinder with the wingnut as shown.

• The tool rest is adjustable and

should be positioned as close as
practical to the grinding wheel.

• Ensure that the tool rest is firmly

fixed and horizontal.

9

Parts & Service: 020 8988 7400 / E-mail: [e-mail] or [e-mail]

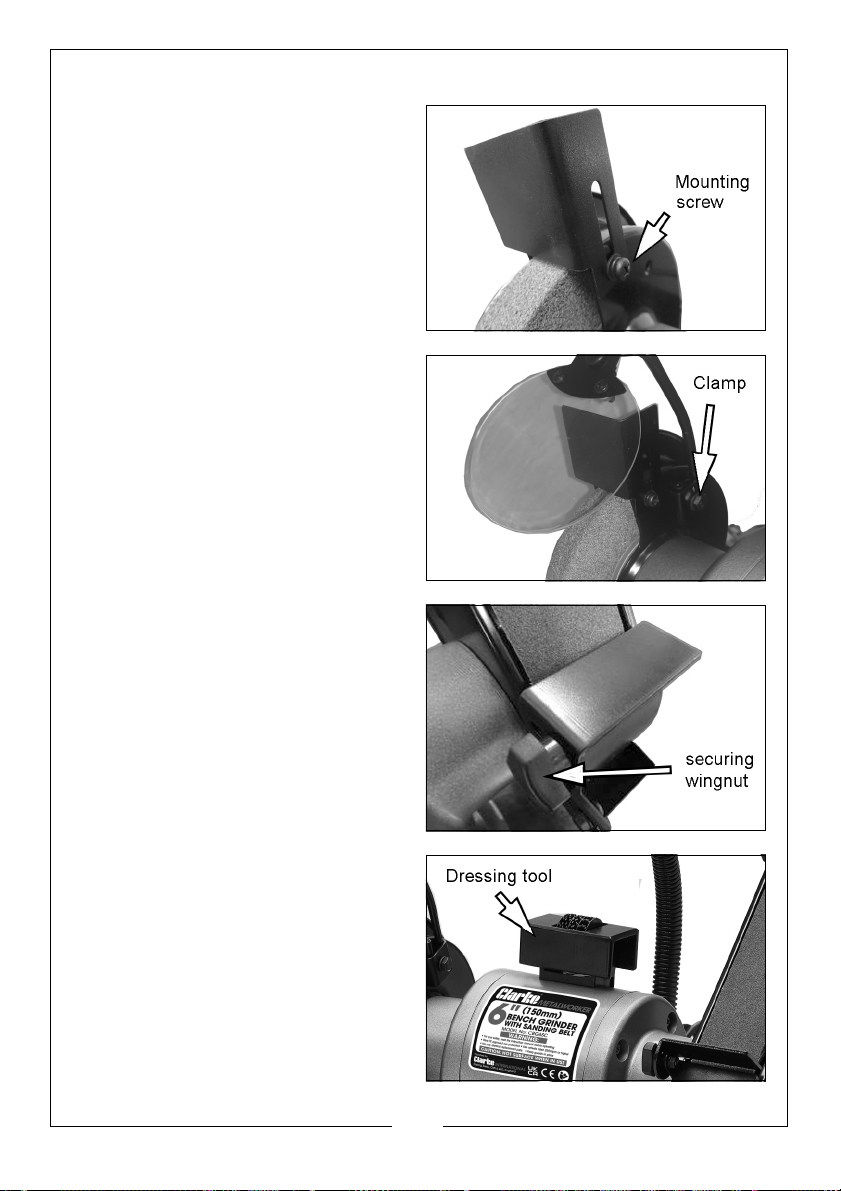

FITTING THE SPARK DEFLECTOR

Fit the spark deflector to the grinding
wheel guard using the screw and
washers provided.

FITTING THE EYESHIELD

Fit the eyeshield to the grinding wheel
guard using the clamp, bolt and
washers provided.

FITTING THE SANDING WORK REST

Fit the work rest to the sanding belt
guard using the plastic wingnut, nut
and washer provided.

FITTING THE DRESSING TOOL

Mount the dressing wheel on the
bracket on top of the machine.

10

Parts & Service: 020 8988 7400 / E-mail: [e-mail] or [e-mail]

USING THE MACHINE FOR GRINDING

WARNING: FRAGMENTS FROM A BROKEN/DETACHED GRINDING WHEEL
CAN CAUSE INJURY.

WARNING: ENSURE THAT THE WORKING POSITION ADOPTED DOES NOT
CAUSE OPERATOR FATIGUE WHICH MAY LEAD TO LOSS OF CONTROL OF
THE TOOL BEING GROUND.

WARNING: THE GRINDING WHEEL WILL CONTINUE TO ROTATE BRIEFLY
AFTER THE OFF SWITCH HAS BEEN PRESSED.

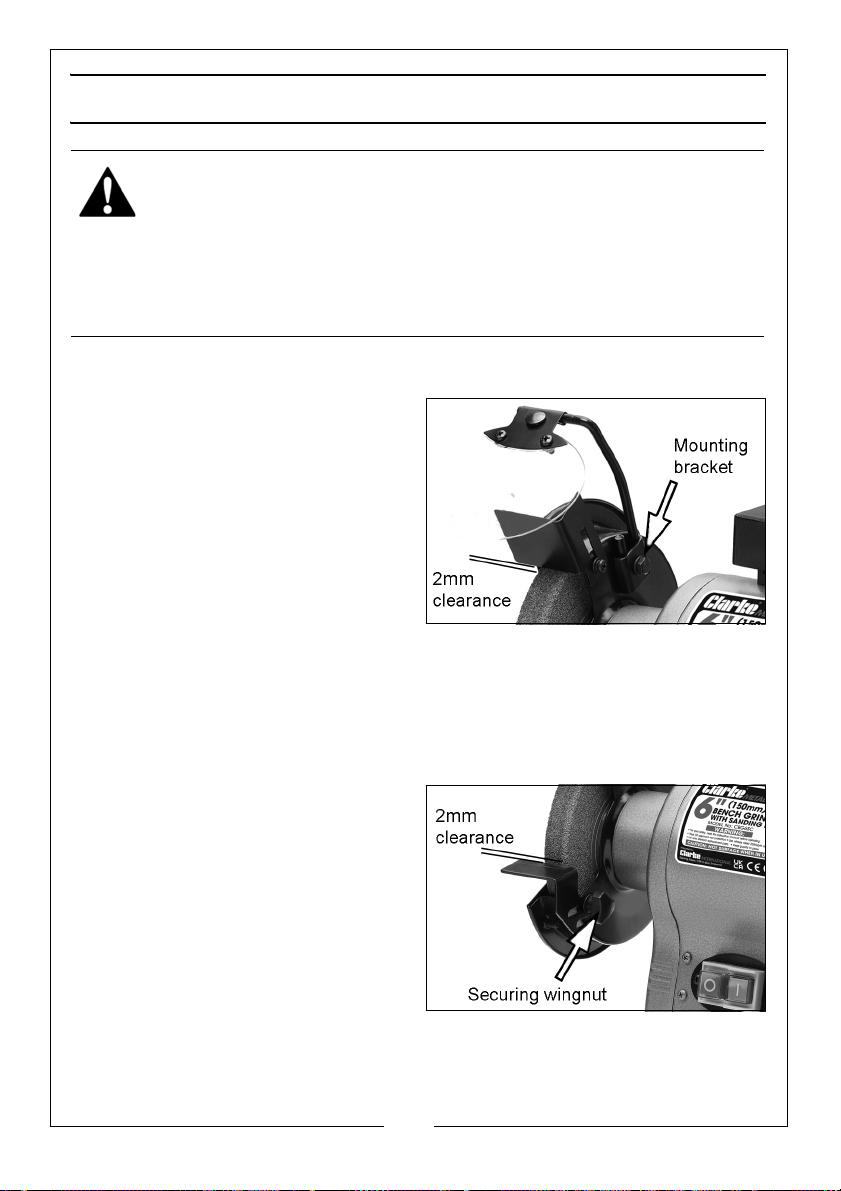

SETTING THE SPARK DEFLECTOR AND EYE SHIELD

1. Slacken the spark arrestor
securing screw and position the
arrester so that the bottom edge
is adjacent to the wheel with a
clearance of approximately
2 mm. Tighten the screw to secure
in position.

2. Set the plastic eye shield
mounting in position. It should be
tight enough so that it does not
move under operational
vibration, but loose enough so that it may easily be positioned by hand.

3. Check the grinding wheel guard and make any adjustments necessary
before use.

SETTING THE TOOLREST

1. Slacken the tool rest securing
knob and position the rest so that
it is adjacent to the grinding
wheel with a clearance of
approximately 2 mm. Tighten the
bolt to secure in position.

• NEVER attempt to grind a

piece of metal that is thinner
than the gap between the tool
rest and the grinding wheel.

11

Parts & Service: 020 8988 7400 / E-mail: [e-mail] or [e-mail]

USING THE GRINDING WHEEL

WARNING: APPLYIING EXCESSIVE FORCE TO THE GRINDING WHEEL CAN
BE DANGEROUS AND COULD CAUSE DAMAGE TO THE MACHINE. NEVER
ATTEMPT TO USE THE SIDE OF THE GRINDING WHEEL.

1. Turn the grinding wheel by hand to ensure it is free, then switch ON by
pushing the switch so that the “I“is depressed. To switch OFF push the
switch so that the “0” is depressed.

2. Press the workpiece to be ground, evenly onto the grinding stone and
move the workpiece sideways across the stone. Make sure that at least
half the width of the workpiece always presses on the grinding stone at any
time to avoid damage to the stone.

3. Allow the machine to do the work. DO NOT apply excessive pressure on
the tool when grinding or to the belt when sanding

4. The clearance between the grinding wheel and tool rest should be
maintained. If the clearance gap is greater than the thickness of the metal
being ground there is a danger that the force of grinding will cause the
work piece to be pulled into the gap and is potentially dangerous. An
incorrect gap could also cause “chatter” which could result in damage to
the wheel.

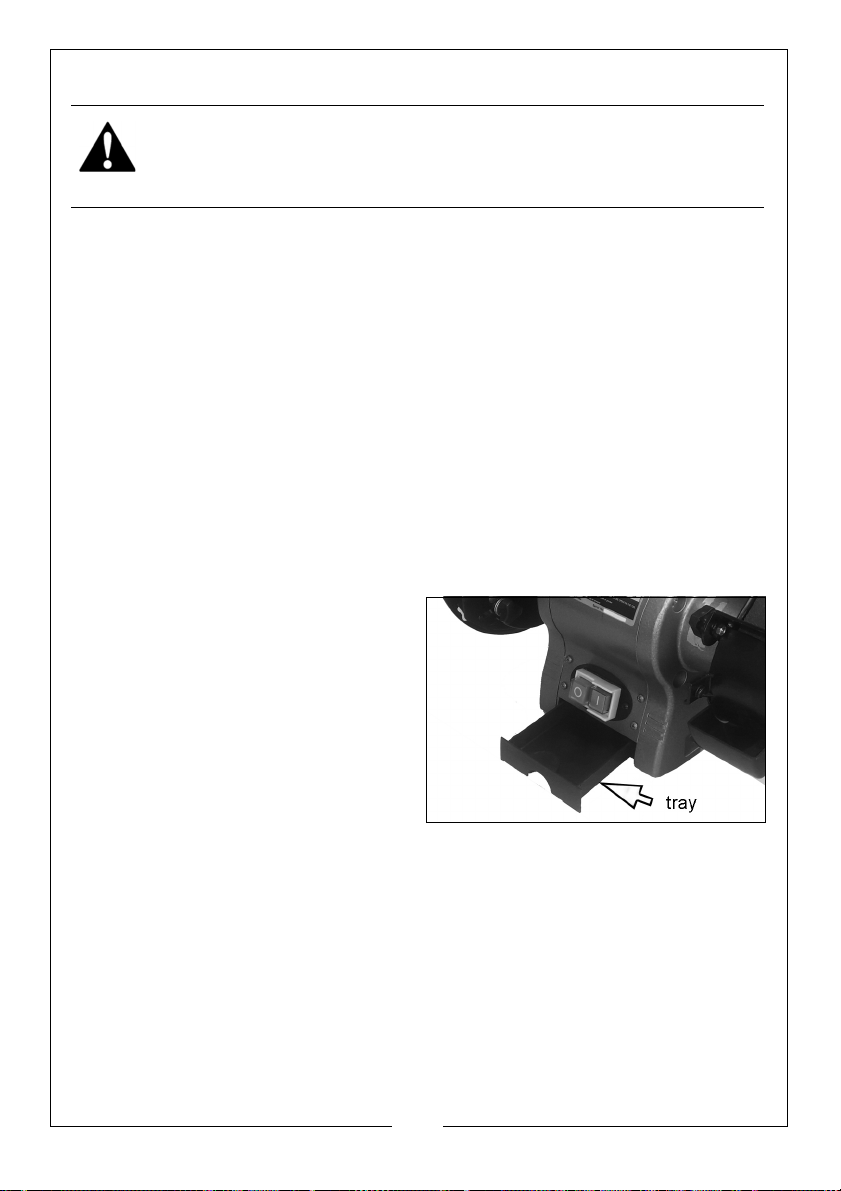

5. The plastic tray can be used to
contain coolant for use during
grinding.

SHARPENING TIPS

SCISSORS

If possible, take the scissors apart to
make the sharpening operation
easier and safer. Remove material
only from the outside surface and
work from the handle end of the blade towards the tip.

KNIVES

Remove metal equally from both faces, working from the handle end of the
blade towards the tip.

USING THE BUILT IN LIGHT

The built in light will come on whenever the machine is switched on.

The arm can be adjusted to set the light in the most suitable position.

12

Parts & Service: 020 8988 7400 / E-mail: [e-mail] or [e-mail]

USING THE MACHINE FOR SANDING

WARNING: ENSURE THAT THE WORKING POSITION ADOPTED DOES NOT
CAUSE OPERATOR FATIGUE WHICH MAY LEAD TO LOSS OF CONTROL OF
THE WORKPIECE BEING SANDED.

WARNING: THE SANDING BELT WILL CONTINUE TO ROTATE BRIEFLY AFTER
THE OFF SWITCH HAS BEEN PRESSED.

SETTING THE SANDER WORK REST

Slacken the wingnut that secures the
work rest in place and position the
rest so that it is adjacent to the belt
edge and at 90 degrees to the belts
surface with approximately 2 mm
clearance. Tighten the wingnut to
secure in position.

USING THE SANDING BELT

1. Switch the motor ON by pushing
the switch so that the “I” is
depressed, and allow the machine to reach full speed. To switch the motor
OFF push the switch so that the “0” is depressed.

2. Hold the workpiece firmly on the work rest and apply slight pressure to the
sanding belt, allowing the machine to do the work.

MAINTENANCE

GENERAL MAINTENANCE

Make sure that all components are tight and secure. ALWAYS have any
damaged or worn parts repaired or replaced by qualified service personnel.
DO NOT attempt to repair the bench grinder unless you are qualified to do so.

The drive motor and bearings are sealed units and require no regular
maintenance. Should you require assistance, contact your service agent.

The grinding stone will wear down with use and may well go out of true. Use
the dressing wheel or stone grader to correct the trueness and to remove
worn, glazed areas from the stone.

The stone will have a finite life expectancy dependant upon the nature of the
work being done. Periodically, make a note of the wheel diameter and
replace the (150mm dia) wheel if it reduces to as little as (130mm) in diameter.

13

Parts & Service: 020 8988 7400 / E-mail: [e-mail] or [e-mail]

INSTALLING A NEW GRINDING WHEEL

WARNING: NEVER OPERATE THE GRINDING WHEEL WITHOUT THE GUARD
FITTED IN POSITION.

To renew or change the grinding wheels, proceed as follows.

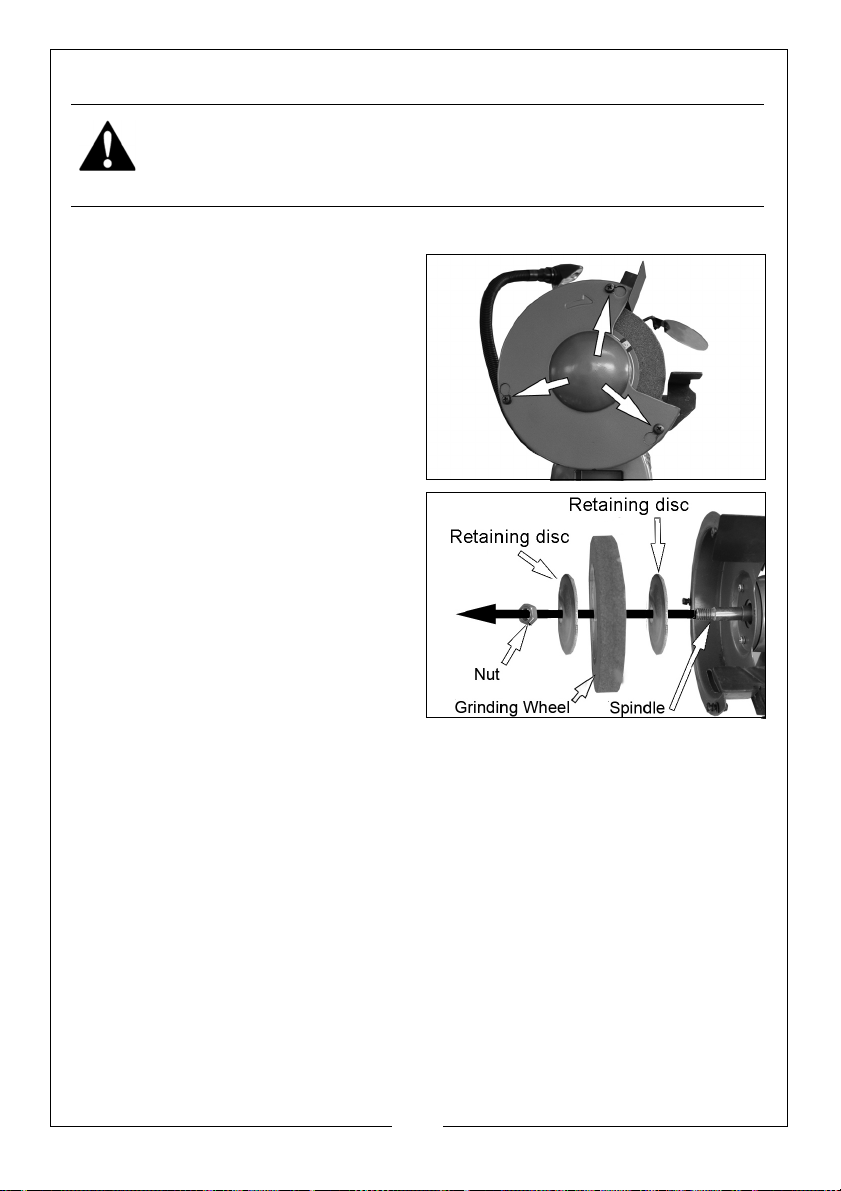

1. Switch off and un-plug from
power supply. Remove the
grinding wheel cover by
loosening the three retaining
screws and twisting the guard
anti-clockwise to disengage it
from the machine.

2. Hold or jam the sanding belt roller
to stop the drive shaft rotating and
remove the nut and retaining disc
securing the grinding wheel,
remembering that the nut has a
LEFT HAND THREAD.

3. Remove the used wheel and
replace with a new one.

• DO NOT overtighten the wheel

retaining nut.

4. Refit the grinding wheel cover and re-adjust the tool rest and spark arrester
brackets to suit the new wheel.

5. Switch the machine on and allow it to rotate freely for at least one minute

DRESSING A NEW STONE

New grinding stones are frequently not true, or in time can become grooved,
glazed (built-up), out of round, or otherwise mis-shapen. To correct these
defects, a grinding stone dresser is supplied with the machine. Further items
are available from your CLARKE dealer.

• ET125 Grinding Wheel Dresser - Part No:1700225

• ET154 ½ Carat Diamond Tip Wheel Dresser - Part No:1700329

1. If the grinding stone is new, allow it to spin for a minute with no load. Check
that it is spinning straight and true. If not, it will require dressing before use.

14

Parts & Service: 020 8988 7400 / E-mail: [e-mail] or [e-mail]

2. Stand to the side of the stone and hold the dresser handle firmly. Place the
dresser on the tool support so that its wheels can move freely (i.e, the
exposed part of the wheel should be facing up). Run the stone and apply
the dresser to the surface of the stone.

3. When the abrasive wheel starts to become clogged with debris, use the
dresser tool supplied to clean (dress) it

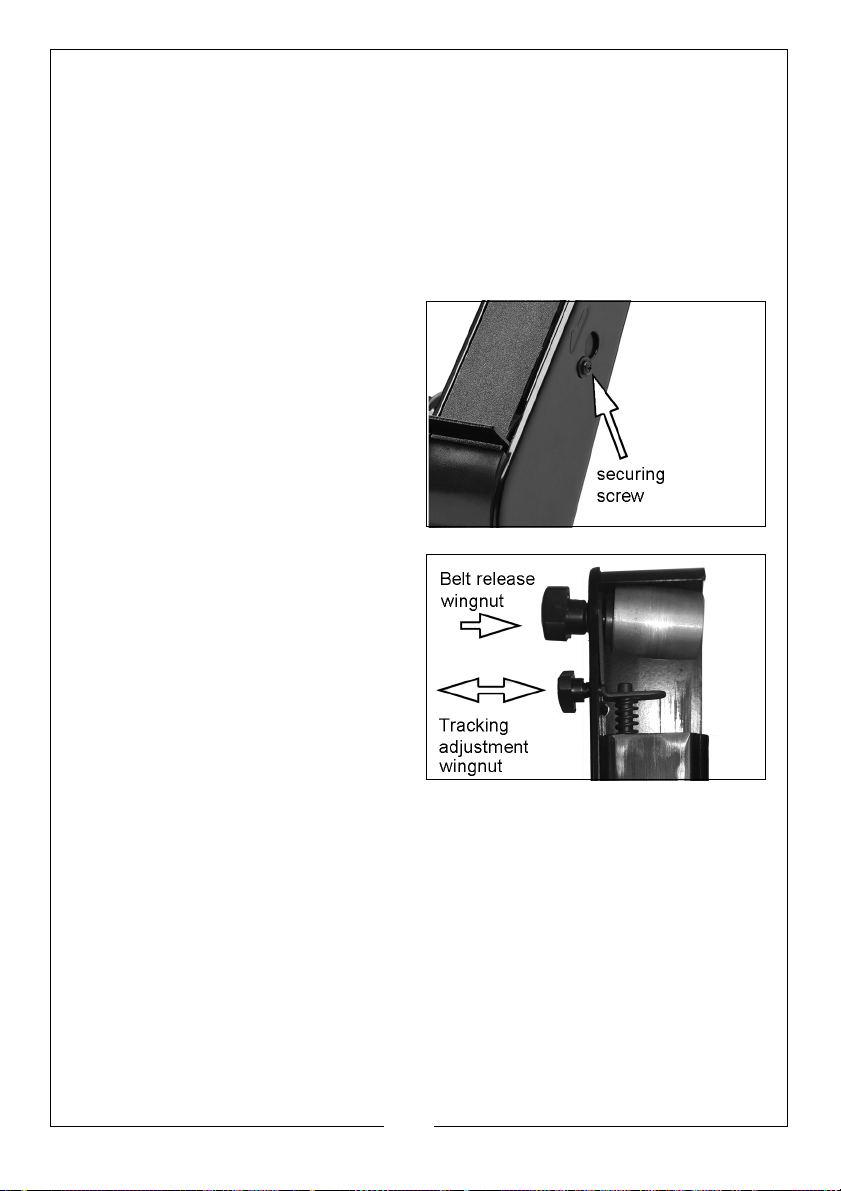

CHANGING THE SANDING BELT

To renew or change the sanding belt proceed as follows:

1. Unplug from the power supply.
Remove the sander side cover by
unscrewing the securing screw.

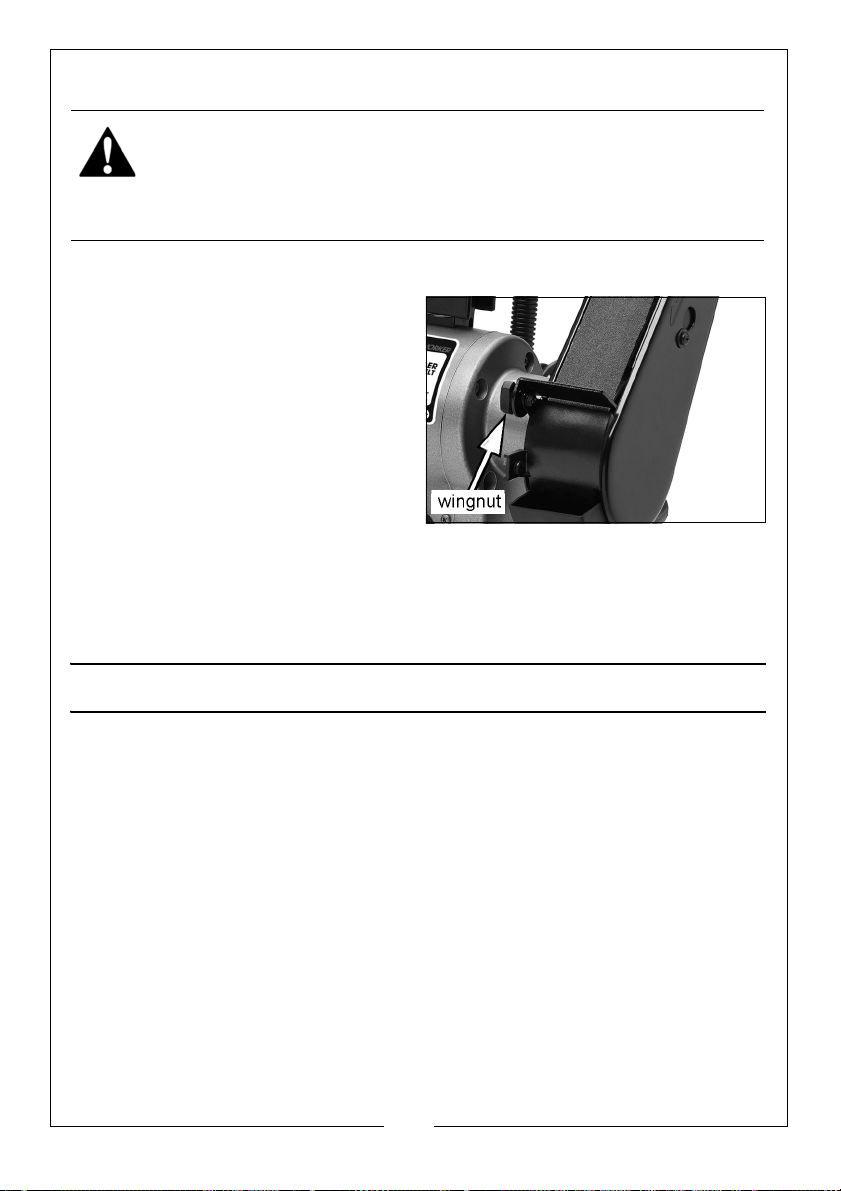

2. Slacken the top roller securing
wingnut, allowing the top roller to
move slightly off its axis as shown.

3. Slide the belt off and replace with
a new one, ensuring it lies
centrally on the top and bottom
rollers

4. Retighten the top roller securing
wingnut till it becomes firm but
NOT too tight. The belt should now
be fairly taught and positioned
centrally on the rollers.

IMPORTANT: The belt needs just
enough tension to ensure that it does
not slip on the rollers whilst under
load, however too much tension will
shorten the working life of the belt
and the machine.

5. Replace the sanding belt cover.

6. Rotate the belt by hand whilst screwing the Tracking Adjustment screw in or
out to ensure the belt runs centrally on the rollers. Turn the screw
anticlockwise to move the belt outwards (towards the outer cover), or
clockwise to move inwards.

7. When satisfied, plug the machine into the power supply and switch on.
Make fine adjustments with the Tracking Adjustment screw if necessary.

CLEANING & STORAGE

Clean the exterior of the machine if required using a mild detergent or mild
solvent. NEVER immerse the machine in water. To reduce any fire hazard, keep

15

Parts & Service: 020 8988 7400 / E-mail: [e-mail] or [e-mail]

any cooling vents clear. If not bolted to a workbench, store the grinder in a
clean, dry location, out of reach of children.

ACCESSORIES

Description Part No

Grinding Wheel - Fine (1/2” bore) 6501043

Grinding Wheel - Medium (1/2” bore) 6501044

Grinding Wheel - Coarse (1/2” bore) 6501045

Grinding Wheel Dressing Tool - GWD1 6501120

Sanding Belts - Fine (pack of 5) 6502115

Sanding Belts - Medium (pack of 5) 6502120

Sanding Belts - Coarse (pack of 5) 6502125

Bench Grinder Stand CBGS2 6501142

TROUBLESHOOTING

Problem Possible Cause Action

Motor doesn't start a) ON/OFF switch

damaged
b) Switch cable damaged
c) ON/Off relay damaged
d) Fuse blown
e) Motor burnt out

Machine gets
slower during work

Sanding belt comes
off drive pulleys

Wood gets burnt
during sanding

Too much pressure on the
workpiece

Belt does not run straight Reset the tracking and

a) Sanding belt dirty
b) excessive pressure on
the workpiece

a-d) Replace all damaged
parts before using the
machine.
e) Contact your service
centre to have machine
repaired by a skilled
technician

Reduce pressure on the
workpiece

tensioner

a) Replace belt
b) Reduce pressure on work
piece

16

Parts & Service: 020 8988 7400 / E-mail: [e-mail] or [e-mail]

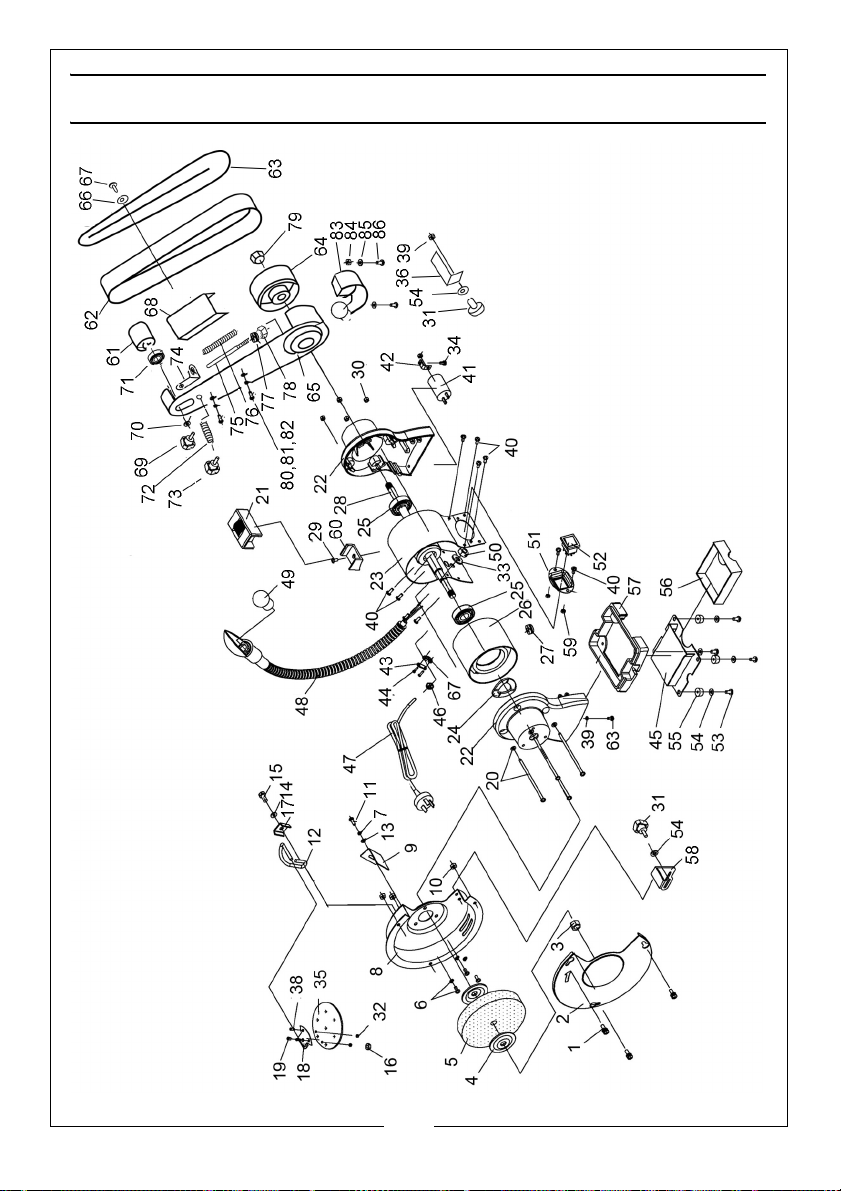

COMPONENT PARTS

17

Parts & Service: 020 8988 7400 / E-mail: [e-mail] or [e-mail]

COMPONENT PARTS

No Description No Description

1 Screw 31 Wingnut

2Outer Guard 32Washer

Locking nut 33 Flat Washer

3

4 Retaining Disc 34 Screw

5 Grinding Wheel 35

6 Bolt 36 Work Support

7 Spring Washer 37 Flat Washer

8Rear Guard

9Spark Deflector 39Nut

10 Nut 40

11 Screw 41

12 Eyeshield Support Bracket 42

Washer 43 Cable Clamp

13

Flat Washer 44 Screw

14

15 Bolt 45 Plastic Base Plate

16 Nut 46 Cable Gland

Clamp 47 Power Cable

17

18 Support Plate 48 Lamp Assembly

19 Coachbolt

20 Stud and Nut

21 Dressing Wheel Unit

22 End Housing

23 Motor Cover

24 End Seal

25 Bearing

26 Stator

27 Cable Gland

28 Rotor

29 Screw

30 Nut

Eyeshield

38 Screw

Screw

Capacitor

Capacitor Bracket

49 Lightbulb

50 Nut

51 Switch Housing

52 ON/Off Switch

53 Screw

54 Washer

55 Rubber Foot

56 Plastic Coolant Tray

57 Base Plate

58 Tool Rest

59 Nut

60 Dresser Mounting

18

Parts & Service: 020 8988 7400 / E-mail: [e-mail] or [e-mail]

COMPONENT PARTS

No Description No Description

61 Top Roller Assembly 74 Tensioning Bracket

62 Belt (5-pack) 75 Tensioning Rod

63 Outer cover 76

Drive Roller Screw 77 Locking Nut

64

65 Main Housing Spring Washer 78 Nut

66 Washer 79 Retaining Nut

67 Screw

68 Belt Support Platen 81

69 Large Tensioning Wingnut 82

70 Flat Washer 83

71 Spacer 84

72 Spring 85

73 Tracking Wingnut 86

Tensioning Spring

80 Screw

Spring washer

Flat Washer

Extract Duct

Cap Nut

Screw

Flat Washer

PRODUCT SPECIFICATIONS

Feature Value

Overall Dimensions (mm) 390 (H) x 290 (W) x 350 (D)

Weight 10.25 kg

Grinding Stone Dimensions 150 dia x 20 mm thickness (12.7 mm bore)

Rated Voltage / Frequency 230 V / 50 Hz

Motor Wattage 250 W

No Load Speed 2850 rpm

Duty Cycle Classification S2 (30 minutes on in any 60 minutes)

No load belt speed 15.6 m/s

Belt Length 686 mm

Belt Width 50 mm

19

Parts & Service: 020 8988 7400 / E-mail: [e-mail] or [e-mail]

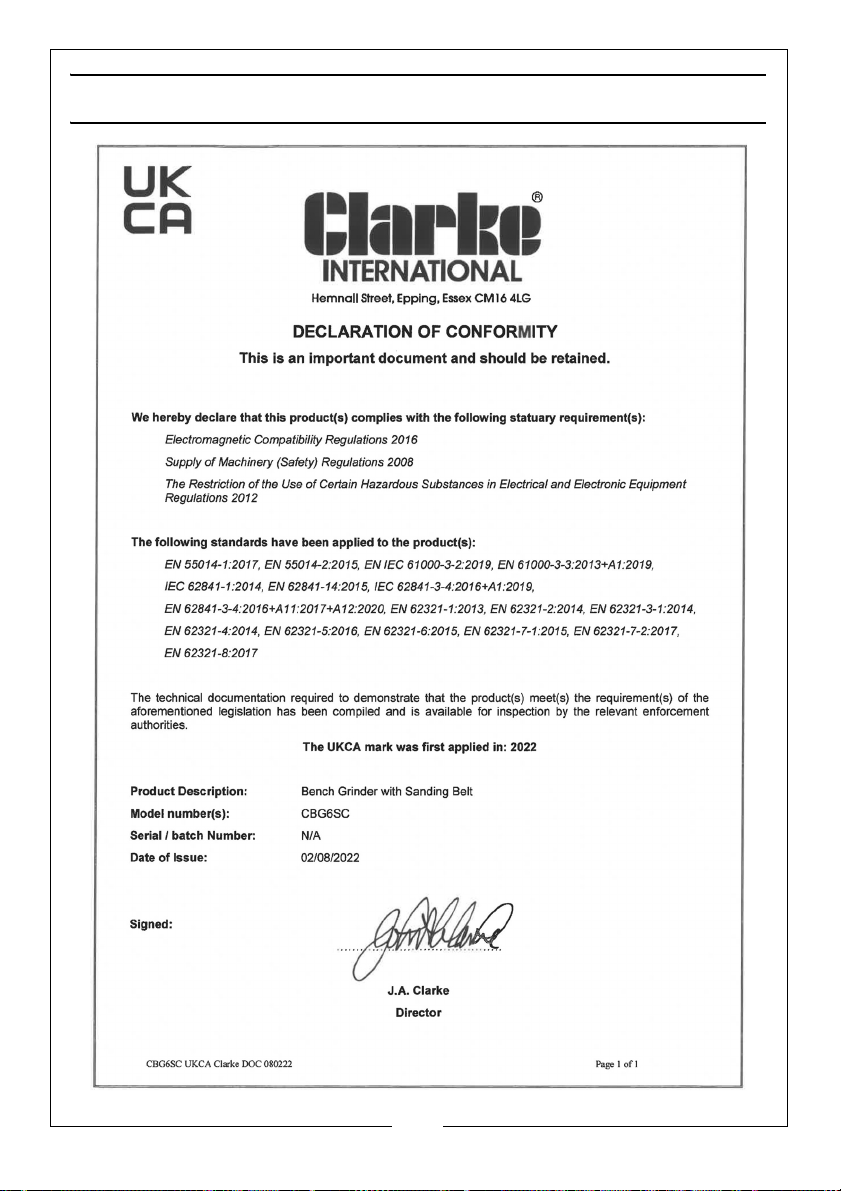

DECLARATION OF CONFORMITY-UK

20

Parts & Service: 020 8988 7400 / E-mail: [e-mail] or [e-mail]

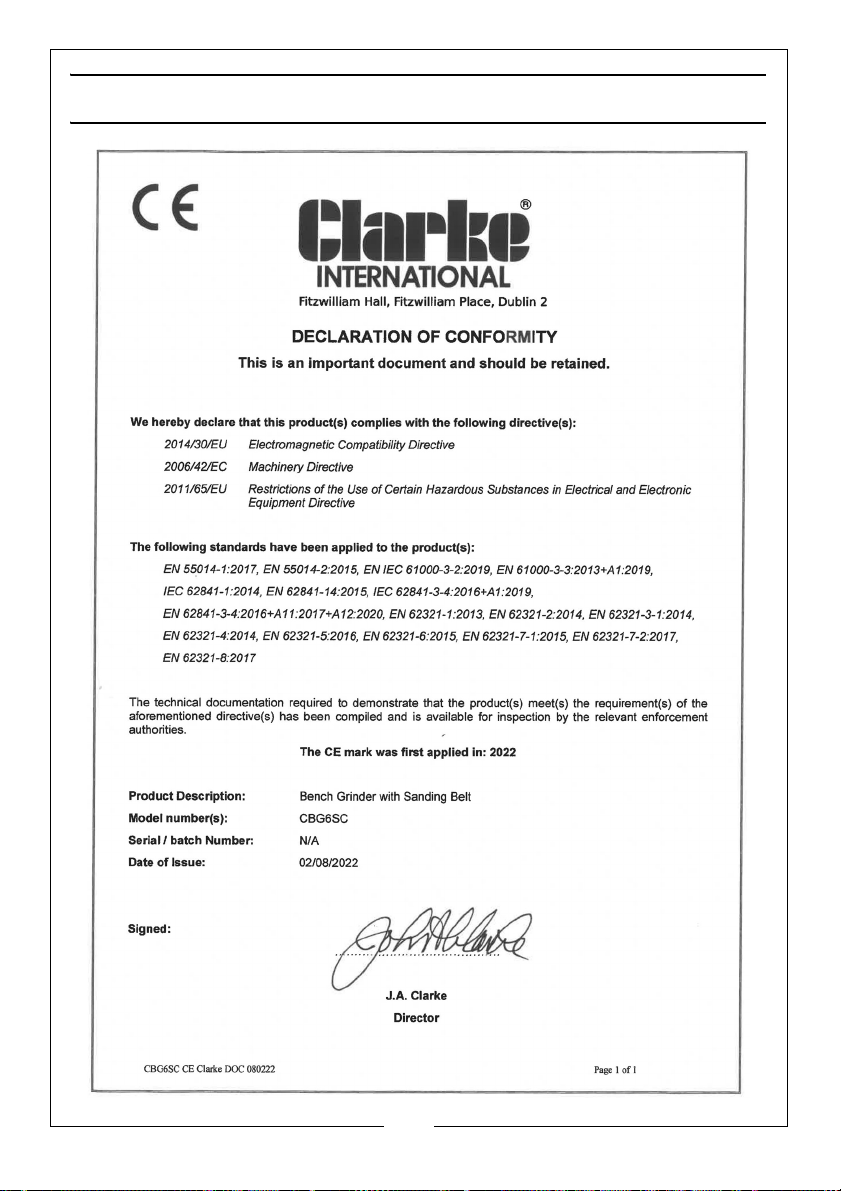

DECLARATION OF CONFORMITY-CE

21

Parts & Service: 020 8988 7400 / E-mail: [e-mail] or [e-mail]

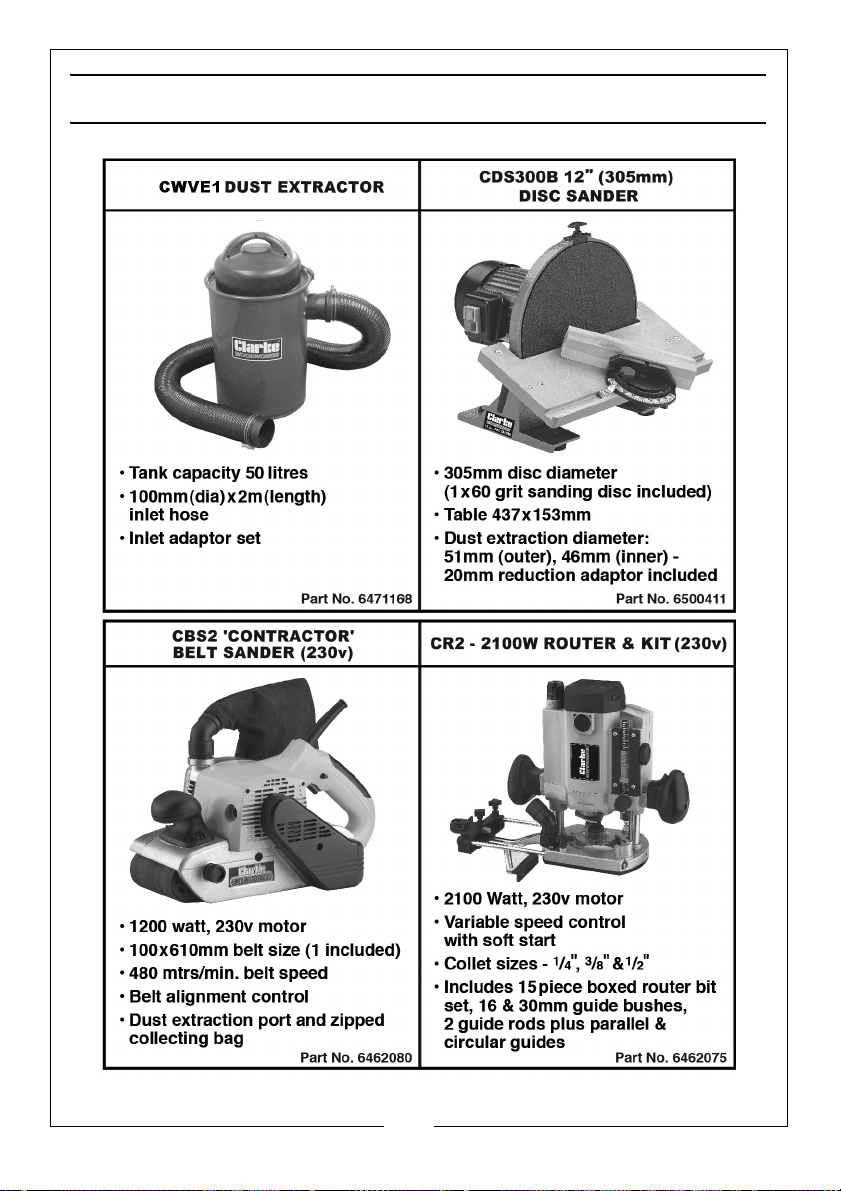

USEFUL CLARKE PRODUCTS

22

Parts & Service: 020 8988 7400 / E-mail: [e-mail] or [e-mail]

USEFUL CLARKE PRODUCTS

23

Parts & Service: 020 8988 7400 / E-mail: [e-mail] or [e-mail]
