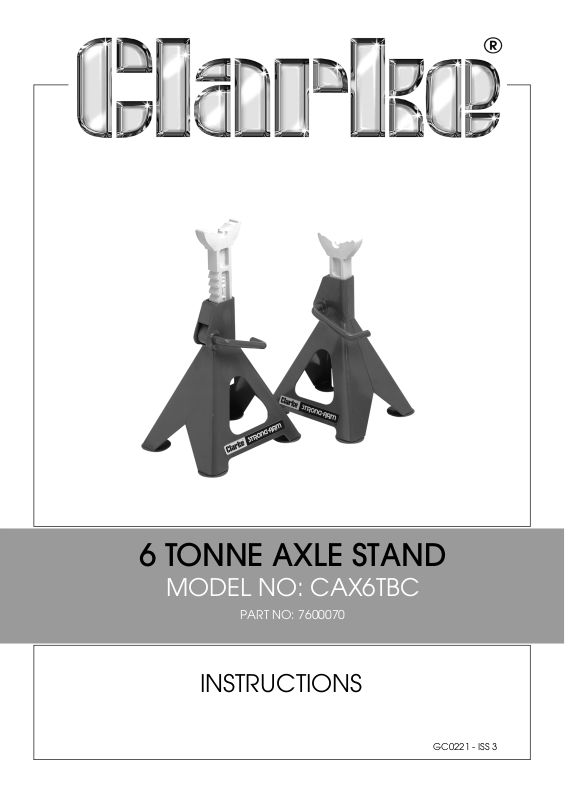

Clarke CAX 6TBC, 7600070 User guide

6 TONNE AXLE STAND

MODEL NO: CAX6TBC

PART NO: 7600070

INSTRUCTIONS

GC0221 - ISS 3

2

Parts & Service: 020 8988 7400 / E-mail: [e-mail] or [e-mail]

GUARANTEE

This product is guaranteed against faulty manufacture for a period of 12
months from the date of purchase. Please keep your receipt which will be
required as proof of purchase.

This guarantee is invalid if the product is found to have been abused or
tampered with in any way, or not used for the purpose for which it was
intended.

Faulty goods should be returned to their place of purchase, no product can
be returned to us without prior permission.

This guarantee does not effect your statutory rights

WARNING LABELS

The following WARNING label is attached to each stand and should be
replaced if it becomes damaged

SPECIFICATION

Maximum Height 615 mm

Minimum Height 400 mm

Number Of Height Increments 13

Maximum Load 6000 kg per pair or 3000 kg per stand

Product Weight 14 kg per pair

3

Parts & Service: 020 8988 7400 / E-mail: [e-mail] or [e-mail]

SAFETY WARNINGS

• Read these instructions carefully before use.

• Do not exceed the axle stands maximum
load (3000 kg each / 6000 kg per pair), The
vehicle weight will be stated in the owners
manual.

• Use only as specified in this manual.

• NEVER let children play in or around a vehicle
that is on axle stands.

• ALWAYS make sure that before you work
below the vehicle, a responsible person is
aware in case of injury or accident.

• Do not use more than one pair of axle stands.

• Replace the warning label if it becomes
unreadable.

• Use only on a hard, flat surface, for example
concrete.

• Make sure that you chock all the wheels that
remain on the ground.

• Make sure that the supported vehicle cannot
move.

• Set each axle stand below an appropriate
point on the vehicle - See your vehicle
owners manual for advice.

• Take care when using the axle stands on a
three-wheeled vehicle or trailer.

• Use stands as a matched pair to support one
end of a vehicle only.

• For your safety, do not modify these axle stands.

WARNING: NEVER WORK UNDER A VEHICLE SUPPORTED ONLY BY A JACK.

WARNING: AFTER LIFTING THE VEHICLE, SUPPORT IMMEDIATELY WITH
PROPERLY RATED AXLE STANDS

4

Parts & Service: 020 8988 7400 / E-mail: [e-mail] or [e-mail]

ASSEMBLY

FIG. 1

FIG. 2

FIG. 3

1. Insert the adjustable axle support
into the body of the stand as
shown. To do this, simply raise the
handle as far as possible and
slowly lower the support into the
body with the teeth facing away
from the handle.

2. To prevent the support from
coming out off the stand each
time the stand is picked up by the
support, the tab (Fig. 1 Inset)
requires reforming. This can be
carried out as follows.

• Lay the axle stand on a firm
surface with the tab facing
upwards.

• Insert a suitable flat bladed
screwdriver into the aperture as
shown in Fig.2. Carefully apply a
firm downwards pressure, bending
the tab inwards.

• Only bend the tab sufficiently to
act as a stop for the support.

3. If the tab requires further bending
use an open ended spanner
(13mm approx) as shown in Fig. 3.

4. Again push down on the spanner
until the tab is sufficiently formed.

5. The axle stand is now complete
and ready to be used.

NOTE: When forming the tab, DO

NOT OVERBEND it, bending
the tab too much could
cause it to foul the axle support and prevent it from functioning
correctly.

5

Parts & Service: 020 8988 7400 / E-mail: [e-mail] or [e-mail]

USING THE AXLE STANDS

WARNING: BEFORE USE, MAKE SURE THAT THERE IS NO DAMAGE TO ANY
PART OF THE AXLE STAND, IF THERE IS, DO NOT USE.

WARNING: IT MUST BE ENSURED THAT THE VEHICLE/LOAD IS CAREFULLY
LOCATED ONTO THE CENTRE OF THE AXLE STAND SADDLE. FAILURE TO DO
THIS CAN RESULT IN DAMAGE TO THE AXLE STANDS, LOSS OF SUPPORT TO
THE LOAD, SERIOUS PERSONAL INJURY OR LOSS OF LIFE.

WARNING: DO NOT EXCEED THE RATED LOAD OF 6000 KG PER PAIR OR
3000 KG PER STAND.

WARNING: USE ONLY ON A HARD, FLAT SURFACE, E.G. CONCRETE.

1. Refer to the vehicle handbook for
the correct jacking procedure and
location of the support points.

2. Raise the vehicle using a suitable
lifting jack.

ADJUSTING THE AXLE STAND

1. Raise the saddle on the axle stand
to the required height.

• Make sure the ratchet mechanism
is fully engaged.

2. Position the axle stand under a
suitable supporting point. See your
vehicle manual for the location.

LOWERING THE VEHICLE

1. Slowly lower the vehicle onto the centre of the saddle.

WARNING: DO NOT LOAD THE STANDS OFF CENTRE. FAILURE TO HEED THIS
WARNING MAY CAUSE DAMAGE, INJURY OR LOSS OF LIFE.

REMOVING THE AXLE STANDS

1. Raise the vehicle clear of the axle stands.

2. Remove stands.

3. Ensure that all tools, equipment and personnel are clear before carefully
lowering the vehicle to the ground.
