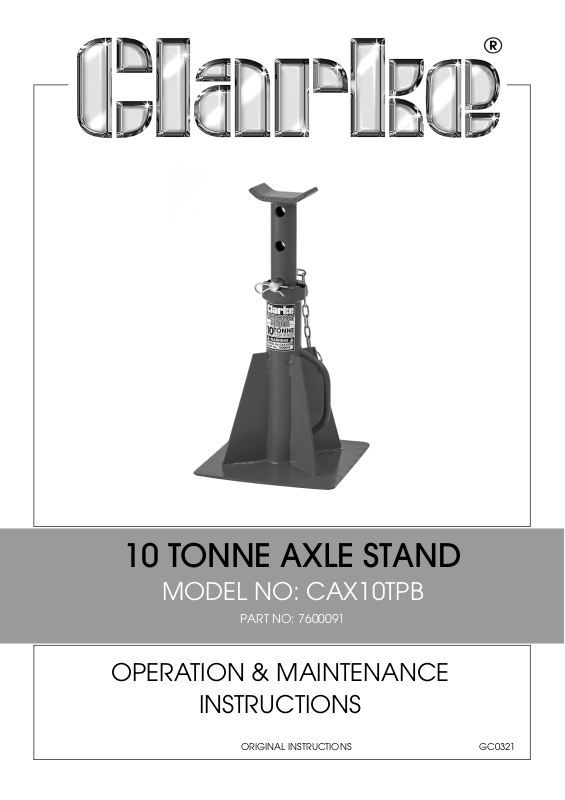

10 TONNE AXLE STAND
MODEL NO: CAX10TPB
PART NO: 7600091
OPERATION & MAINTENANCE
INSTRUCTIONS
ORIGINAL INSTRUCTIONS GC0321

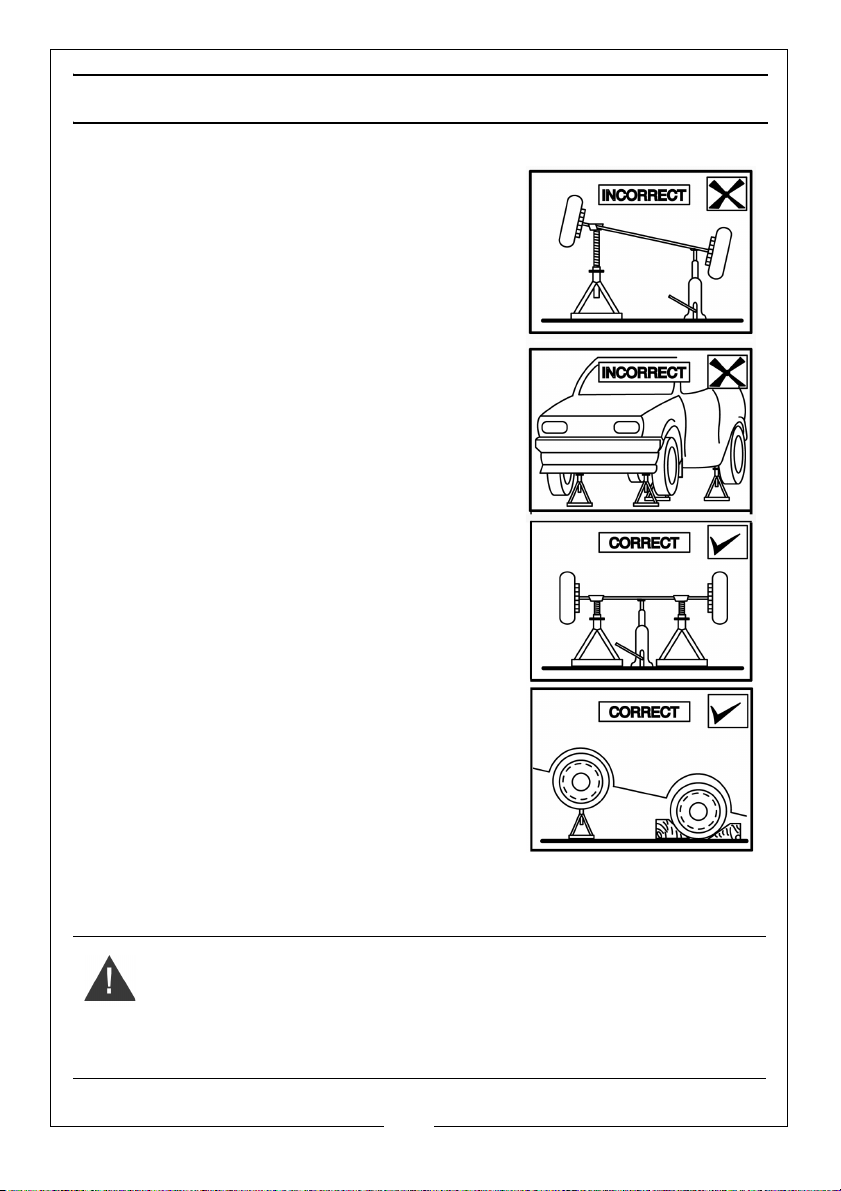

SAFETY WARNINGS - ALWAYS READ BEFORE USE
• Read these instructions carefully before use.
• Do not exceed the axle stands maximum
load (10 tonnes), The vehicle weight will be
stated in the owners manual.
• Use only as specified in this manual.
• NEVER let children play in or around a vehicle
that is on axle stands.
• ALWAYS make sure that before you work
below the vehicle, a responsible person is
aware in case of injury or accident.
• Do not use more than one pair of axle stands.
• Replace the warning label if it becomes
unreadable.
• Use only on a hard, flat surface for example
concrete.
• Make sure that you chock all the wheels that
remain on the ground.
• Make sure that the supported vehicle cannot
move.
• Set each axle stand below an appropriate
point on the vehicle - See your vehicle
owners manual for advice.
• Take care when using the axle stands on a
three-wheeled vehicle or trailer.
• Upper and lower columns are to be used as a
pair.
• Use stands as a matched pair to support one end of a vehicle only.
• For your safety, do not modify any axle stands.
WARNING: USE ONLY ON A HARD, FLAT SURFACE FOR EXAMPLE
CONCRETE.
WARNING: NEVER WORK UNDER A VEHICLE SUPPORTED ONLY BY A JACK.
WARNING: AFTER LIFTING THE VEHICLE, SUPPORT IMMEDIATELY WITH
YOUR AXLE STAND(S)
2
Parts & Service: 020 8988 7400 / E-mail: Parts@clarkeinternational.com or Service@clarkeinternational.com

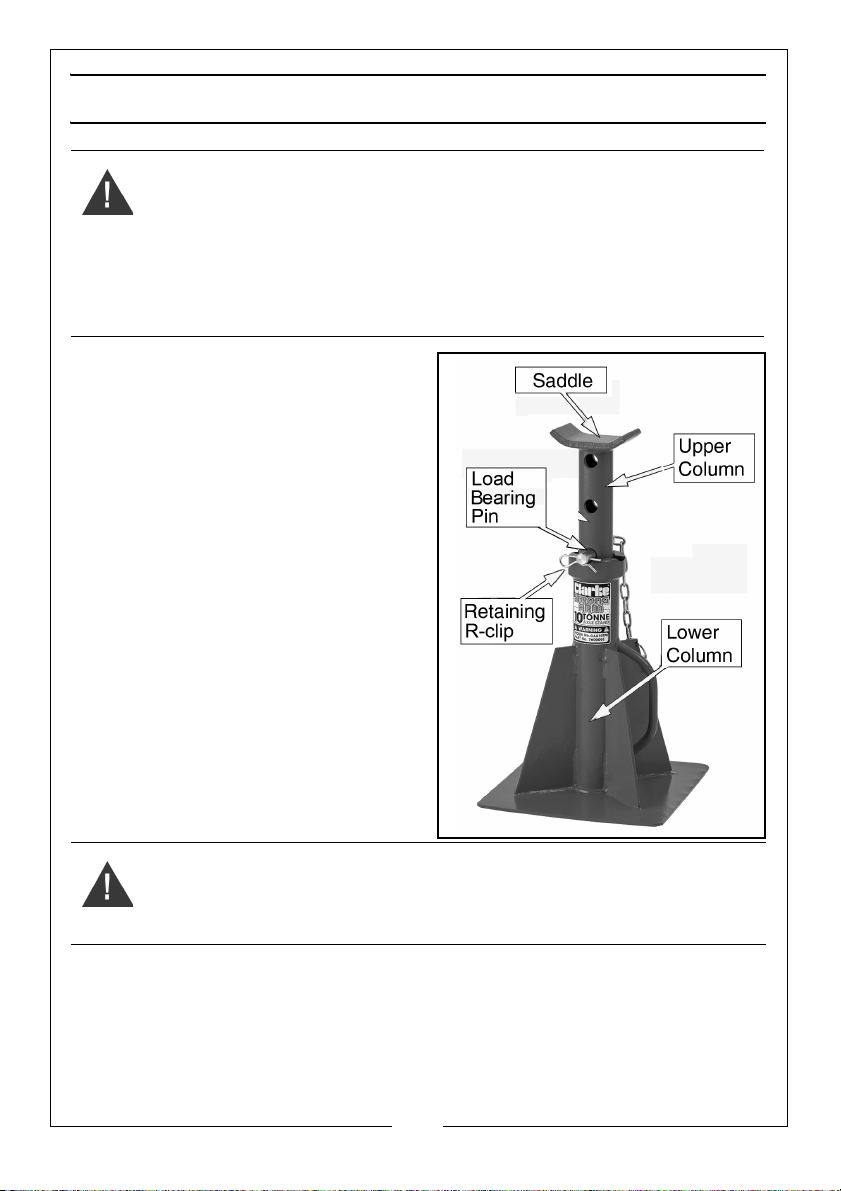

USING THE AXLE STAND
WARNING: BEFORE USE, MAKE SURE THAT THERE IS NO DAMAGE TO ANY
PART OF THE AXLE STAND, IF THERE IS, DO NOT USE THE AXLE STAND.
WARNING: IT MUST BE ENSURED THAT THE VEHICLE/LOAD IS CAREFULLY
LOCATED ONTO THE CENTRE OF THE AXLE STAND SADDLE. FAILURE TO DO
THIS CAN RESULT IN DAMAGE TO THE AXLE STANDS, LOSS OF SUPPORT TO
THE LOAD, SERIOUS PERSONAL INJURY OR LOSS OF LIFE.
WARNING: DO NOT EXCEED THE RATED LOAD OF 10 TONNES.
1. Refer to the vehicle handbook for
the correct jacking procedure and
location of support points.
ADJUST THE AXLE STAND
1. Remove the locating pin (if fitted).
2. Raise the upper column to the
required height and fit the locating
pin into the lowest hole visable.
3. Fit the retaining pin into the end of
the locating pin to secure it in place.
4. Position the axle stand under a
suitable supporting point. See your
vehicle manual for the location.
LOWERING THE VEHICLE
1. Slowly lower the vehicle onto the
centre of the saddle.
WARNING: DO NOT LOAD THE STANDS OFF CENTRE. FAILURE TO HEED THIS
WARNING MAY CAUSE DAMAGE, INJURY OR LOSS OF LIFE.
REMOVE THE AXLE STAND(S)
1. Raise the vehicle clear of the axle stand(s) and remove the stand(s).Ensure
that all tools, equipment and personnel are clear before carefully lowering
the vehicle to the ground.
3
Parts & Service: 020 8988 7400 / E-mail: Parts@clarkeinternational.com or Service@clarkeinternational.com
GUARANTEE
This product is guaranteed against faulty manufacture for a period of 12
months from the date of purchase. Please keep your receipt which will be
required as proof of purchase.
This guarantee is invalid if the product is found to have been abused or
tampered with in any way, or not used for the purpose for which it was
intended.
Faulty goods should be returned to their place of purchase, no product can
be returned to us without prior permission. This guarantee does not effect your
statutory rights.
SPECIFICATION
Maximum Height 700 mm
Minimum Height 450 mm
Maximum Load 10 Tonnes per stand
Product Weight 19.45 kg
Number of Height Positions 5
4
