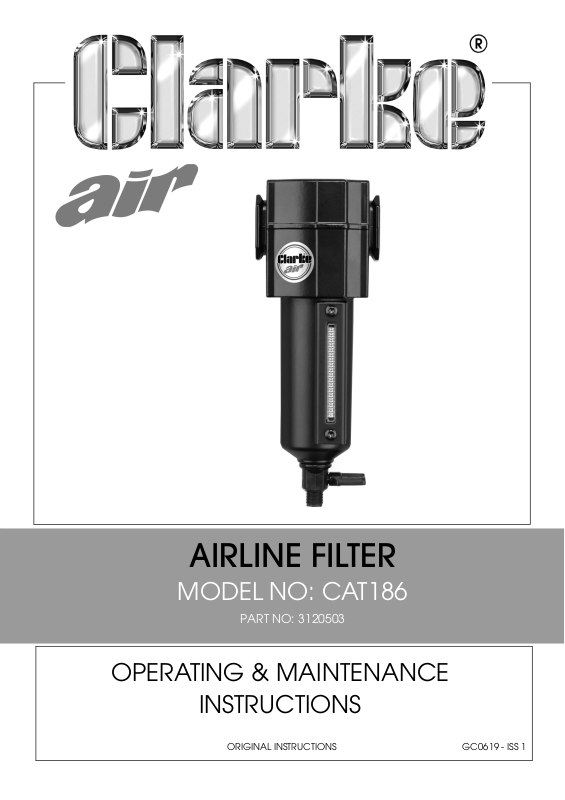

Clarke CAT 186, 3120503 User guide

AIRLINE FILTER

MODEL NO: CAT186

PART NO: 3120503

OPERATING & MAINTENANCE

INSTRUCTIONS

ORIGINAL INSTRUCTIONS GC0 619 - ISS 1

INTRODUCTION

Thank you for purchasing this CLARKE Air Filter.

Before attempting to use this product, please read this manual thoroughly and
follow the instructions carefully. In doing so you will ensure the safety of yourself
and that of others around you, and you can look forward to your purchase
giving you long and satisfactory service.

Your filter has been designed to give long and trouble free service. If, however,
having followed the instructions in this booklet carefully, you encounter
problems, take the unit to your local CLARKE dealer.

SPECIFICATIONS

CAT186

Dimensions (D x W x H) 60 x 68 x 182 mm

Air Inlet /Outlet Size 3/8” BSP (female)

Max Flow 65 CFM

Max Inlet Pressure 250 psi

Element Micron Rating

Max working Temperature 175 deg F

5

μ

GENERAL SAFETY RULES

CAUTION: FAILURE TO FOLLOW THESE PRECAUTIONS COULD RESULT IN
PERSONAL INJURY, AND/OR DAMAGE TO PROPERTY.

WORK ENVIRONMENT

1. Keep the work area clean and tidy.

2. Dress appropriately - do not wear loose clothing or jewellery. Tie long hair
out of the way.

3. Keep children and visitors away - do not let children handle the tools.

2

Parts & Service: 020 8988 7400 / E-mail: [e-mail] or [e-mail]

4. Do not operate air tools where there are flammable liquids or gases.

USE OF AIRLINE EQUIPMENT

1. Stay alert and use common sense - do not operate an air tool when you
are tired or under the influence of alcohol, drugs or medication.

2. Do not overreach - Keep proper footing and balance at all times.

3. Never use oxygen, CO
source of power for air tools.

4. Do not exceed the maximum pressure for the airline component stated in
the specification.

5. Check airline hoses for leaks or worn condition before use and ensure that
all connections are secure.

6. Keep the air supply hose away from heat, oil and sharp edges.

7. Avoid damaging the component for example by applying excessive force
of any kind.

8. Always maintain the air tool with care. Keep it clean for the best and safest
performance.

, combustible gases or any type of bottled gas as a

2

COMPRESSED AIRLINE REQUIREMENTS

WARNING: COMPRESSED AIR CAN BE DANGEROUS. ENSURE THAT YOU
ARE FAMILIAR WITH ALL PRECAUTIONS RELATING TO THE USE OF
COMPRESSORS AND COMPRESSED AIR SUPPLY.

1. Use only clean, dry, regulated compressed air as a power source.

2. Air compressors must comply with the appropriate European Community
Safety Directives.

3. A build-up of moisture in the air compressor will accelerate wear and
corrosion in the air tool. Ensure any moisture is drained from the compressor
daily and the airline filter is kept clean.

4. If an unusually long air hose is required, (over 8 metres), the line pressure or
the hose inside diameter may need to be increased.

5. The air hose must be rated at least 150% of the maximum operating
pressure of the air tool

3

Parts & Service: 020 8988 7400 / E-mail: [e-mail] or [e-mail]

.

6. A typical air line layout is shown above. If an automatic in-line filter/
regulator is used it will keep the tool in good condition. The lubricator
should be adjusted to approx 2 drops per minute and SAE 10 oil should be
used.

7. Never exceed the maximum operating pressure for the air tool. Ensure that
air pressure does not exceed that stated in the specification for the tool
when running. Higher pressures and contaminated air will shorten the life of
the air tool due to faster wear and is a possible safety hazard.

INSTALLATION

1. Ensure the compressor is turned off. Before using the airline, drain water
from the air reservoir at the compressor.

2. The filter should be installed with reasonable accessibility for service
whenever possible.

3. The filter should be installed upstream of regulator(s), lubricator(s), and
cycling valve(s) in the air line, and should be as close as possible to the air
tool(s) when used as a main line filter and/or as a final filter.

4. Keep pipe or tubing lengths to a minimum with the inside clean and free of
dirt. Pipe joint compound should be used sparingly and applied only to the
male pipe — never into the female port.

5. Do not use PTFE tape to seal pipe joints — pieces have a tendency to
break off and lodge inside the unit, possibly causing malfunction.

6. Install the filter so that air flows as marked by the arrow on the filter body.

7. Installation should be downstream of the regulator but upstream of any
lubricator.

4

Parts & Service: 020 8988 7400 / E-mail: [e-mail] or [e-mail]

8. Install the filter vertically with the bowl drain mechanism at the bottom.
ensuring there is sufficient free space below the filter for future access.

9. Remove the blanking plugs from the connection ports and connect to the
supply and delivery hoses.

10. A drain hose can be screwed to the drain port or the filter bowl drained
manually.

11. Your filter is now ready for use.

USE AND CARE IN SERVICE

1. Let the filter run with the air supply on. Ensure that the pressure to the air
inlet of the filter from the air line does not exceed the maximum pressure
specified.

2. The filter is equipped with a manual drain. Turn manual drain valve to drain
accumulated liquids inside the bowl. Take care to drain the liquids from the
bowl whenever necessary and always keep the liquids below the baffle.

3. The filter element should be replaced when the pressure drop across the
element exceeds 15 psi. When an excessive pressure drop across a
saturated but uncontaminated element occurs, it may indicate that the
tool being operated exceeds the maximum flow rate (CFM) of the filter
(See Specifications). Refer to the maximum flow rate of your filter and
make sure that the required CFM of the air tool is within the maximum flow
rate of your filter for best air tool operation.

MAINTENANCE

DISASSEMBLY

1. The filter can be disassembled without removal from the air line.

2. Shut OFF the inlet pressure. Reduce
the pressure in inlet and outlet lines
to zero.

3. Remove the bowl. Push into the
body and turn counterclockwise.

4. Disassemble in general
accordance with the parts
illustrated on page 7. Do not
remove the drain unless
replacement is necessary. Remove

5

Parts & Service: 020 8988 7400 / E-mail: [e-mail] or [e-mail]

and replace only if the drain malfunctions or is being replaced with the
optional automatic drain.

CLEANING

1. Clean the polycarbonate bowl with warm water only. Clean other parts
with warm water and soap.

CAUTION: Some components may be made from polycarbonate which can
be severely damaged if it comes into contact with some chemicals. These
include acetone, benzene, carbon tetrachloride, ethylene di-chloride,
gasolene or synthetic fire resistant lubricants.

2. Rinse and dry all parts. Blow out internal passages in the body with clean,
dry, compressed air. Blow air through the filter element from inside to
outside to remove surface contaminants.

3. Inspect and replace any parts found to be damaged.

ASSEMBLY

1. Lubricate the o-rings, the portion of the manual drain body that contacts
the bowl, and the hole in the manual drain body that accommodates the
stem of the drain valve with o-ring grease.

2. Assemble the filter as shown on page 7.

3. Torque items listed in the Torque Table.

Torque Settings

Part Inch Pounds (N-m)

Screw 15 to 30 (1.7 to 3.4)

Baffle 10 to 20 (1.1 to 1.2)

Centre post 10 to 20 (1.1 to 1.2)

Nut 20 to 25 (2.3 to 2.8)

4. Push the bowl into the body and turn fully clockwise

ACCESSORIES

A wide range of accessories is available including filter/regulators, lubricators,
high-pressure hoses (5 to 50 metres) etc.

Contact your CLARKE dealer for further information or CLARKE International
Service Department.

6

Parts & Service: 020 8988 7400 / E-mail: [e-mail] or [e-mail]

PARTS LIST & DIAGRAM

No Description No Description

1 Plastic bowl & guard assembly 6 Sight glass kit

2 Metal bowl and O-ring 7 O-ring for polycarbonate bowl

3 Service indicator assembly 8 O-ring for metal bowl

4 Auto drain conversion 9 Manual drain kit

5 Universal wall bracket 10 Filter element
