MINI DIE GRINDER

MODEL NO: CAT146

PART NO: 3120160

OPERATING & MAINTENANCE

INSTRUCTIONS

ORIGINAL INSTRUCTIONS DL0522 - ISS 3

INTRODUCTION

Thank you for purchasing this CLARKE Die Grinder which is ideal for light tasks
such as porting & polishing of automotive components.

Before attempting to use this product, please read this manual thoroughly and
follow the instructions carefully. In doing so you will ensure the safety of yourself
and that of others around you, and you can look forward to your purchase
giving you long and satisfactory service.

Your Die Grinder has been designed to give long and trouble free service. If,
however, having followed the instructions in this booklet carefully, you
encounter problems, take the unit to your local CLARKE dealer.

SAFETY SYMBOLS

Please read all of the safety and operating instructions carefully before using
this product. The following safety symbols are to be found on the machine.

Read this instruction
booklet carefully
before use.

Wear eye protection. Wear dust mask.

Wear ear protection.

GUARANTEE

This product is guaranteed against faulty manufacture for a period of 12
months from the date of purchase. Please keep your receipt which will be
required as proof of purchase.

This guarantee is invalid if the product is found to have been abused or
tampered with in any way, or not used for the purpose for which it was
intended.

Faulty goods should be returned to their place of purchase, no product can
be returned to us without prior permission.

This guarantee does not effect your statutory rights.

2

Parts & Service: 020 8988 7400 / E-mail: [email protected] or [email protected]

GENERAL SAFETY RULES

CAUTION: FAILURE TO FOLLOW THESE PRECAUTIONS COULD RESULT IN
PERSONAL INJURY, AND/OR DAMAGE TO PROPERTY.

WORK ENVIRONMENT

1. Keep the work area clean and tidy.

2. Dress appropriately - Do not wear loose clothing or jewellery. Tie long hair
out of the way.

3. Keep children and visitors away - Do not let children handle the tool.

4. Do not operate the tool where there are flammable liquids or gases.

USE OF POWER TOOLS

1. Stay alert and use common sense - do not operate the air tool when you
are tired or under the influence of alcohol, drugs or medication.

2. Always wear eye protectors when using the tool - Eye protectors must
provide protection from flying particles from the front and the side.

3. Always wear ear protectors and a dust mask when using the air tool.

4. Do not overreach - Keep proper footing and balance at all times.

5. Never use oxygen, CO
source of power for the tool.

6. Do not connect the air supply hose with your finger on the trigger.

7. Do not exceed the maximum pressure for the tool of 90 psi / 6.2 bar.

8. Check hoses for leaks or worn condition before use, and ensure that all
connections are secure.

9. Do not use the tool for any other purpose than that described in this
manual.

10. Keep the air supply hose away from heat, oil and sharp edges.

11. Do not fit the tool to any stand or clamping device that may damage it.

2

, combustible gases or any type of bottled gas as a

12. Do not carry out any alterations or modifications to the tool.

13. Always disconnect from the air supply when:

• Performing any maintenance.

• The tool is not in use.

3

Parts & Service: 020 8988 7400 / E-mail: [email protected] or [email protected]

• The tool will be left unattended.

• Moving to another work area.

• Passing the tool to another person.

14. Never use the tool if it is defective or operating abnormally.

15. The tool should be serviced at regular intervals by qualified service
personnel.

16. Avoid damaging the tool for example by applying excessive force of any
kind.

17. Always maintain the tool with care. Keep it clean for the best and safest
performance.

18. Quick change couplings should not be located at the tool. They add
weight and could fail due to vibration.

19. Do not force or misuse the tool. It will do a better and safer job at the rate
for which it was designed.

20. Do not remove any labels. Damaged labels should be replaced.

21. This tool vibrates with use. Vibration may be harmful to your hands or arms.
Stop using the tool if discomfort, a tingling feeling or pain occurs. Seek
medical advice before resuming use.

TRANSPORT AND STORAGE

1. Never carry the tool by the air supply hose.

2. Never carry the tool with your finger on the trigger.

3. When not in use the tool should be disconnected from the air supply and
stored in a dry place out of the reach of children (preferably in a locked
cabinet).

4. Avoid storing the tool in environments where the temperature is below 0

o

C.

4

Parts & Service: 020 8988 7400 / E-mail: [email protected] or [email protected]

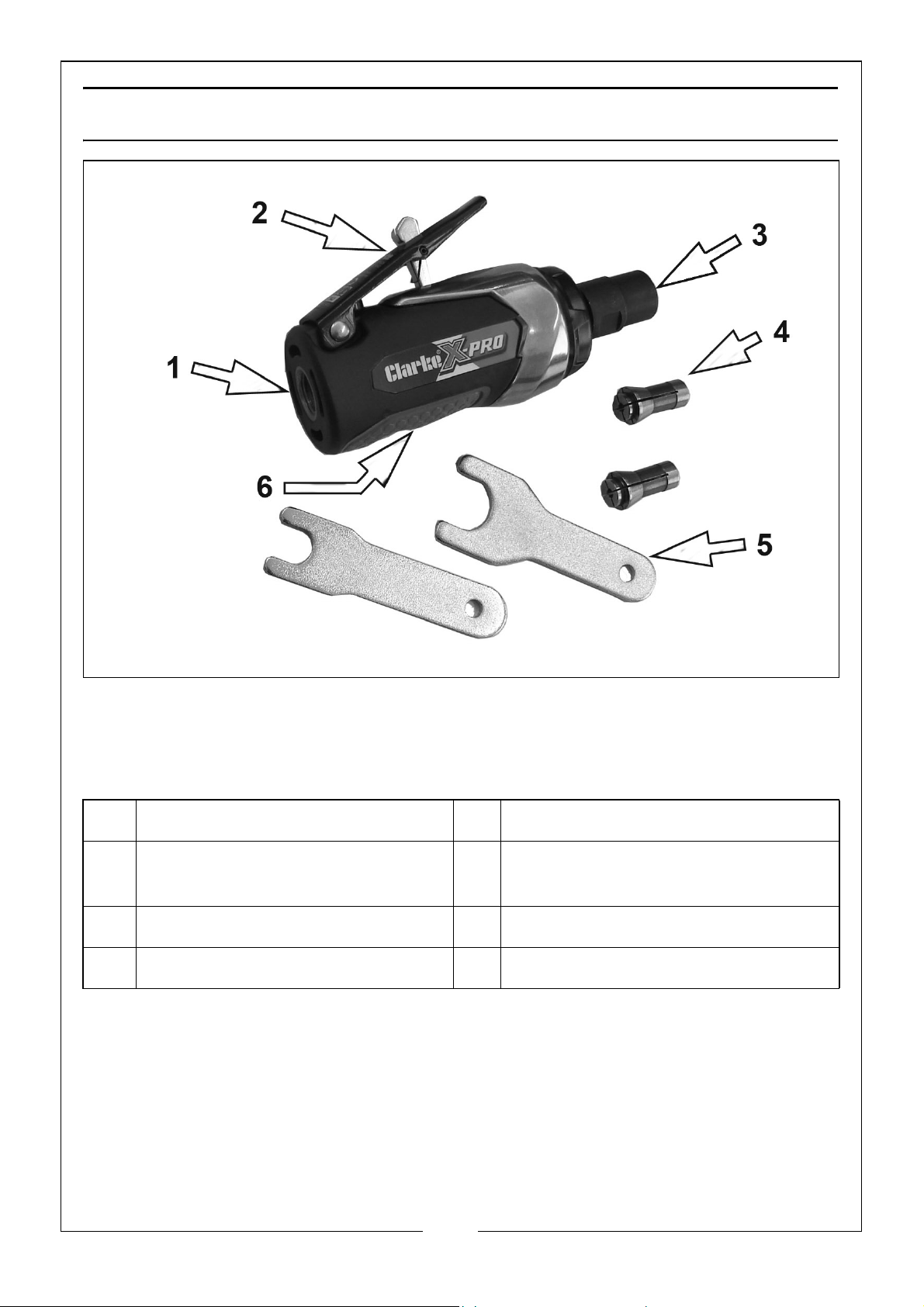

OVERVIEW

The CAT146 Die Grinder is supplied with the items shown. When opening the
carton for the first time, check against the following list that all the items are
present. Any damage or deficiency should be reported to your CLARKE dealer
immediately.

NO DESCRIPTION NO DESCRIPTION

1 Air Inlet Port 4 3 x Collets (1 already fitted to tool)

Sizes ⅛, ¼”, 6mm

2 Throttle 5 2 x Collet Wrenches

3 Collet Chuck 6 Regulator

5

Parts & Service: 020 8988 7400 / E-mail: [email protected] or [email protected]

COMPRESSED AIR REQUIREMENTS

WARNING: COMPRESSED AIR CAN BE DANGEROUS. ENSURE THAT YOU
ARE FAMILIAR WITH ALL PRECAUTIONS RELATING TO THE USE OF
COMPRESSORS AND COMPRESSED AIR SUPPLY.

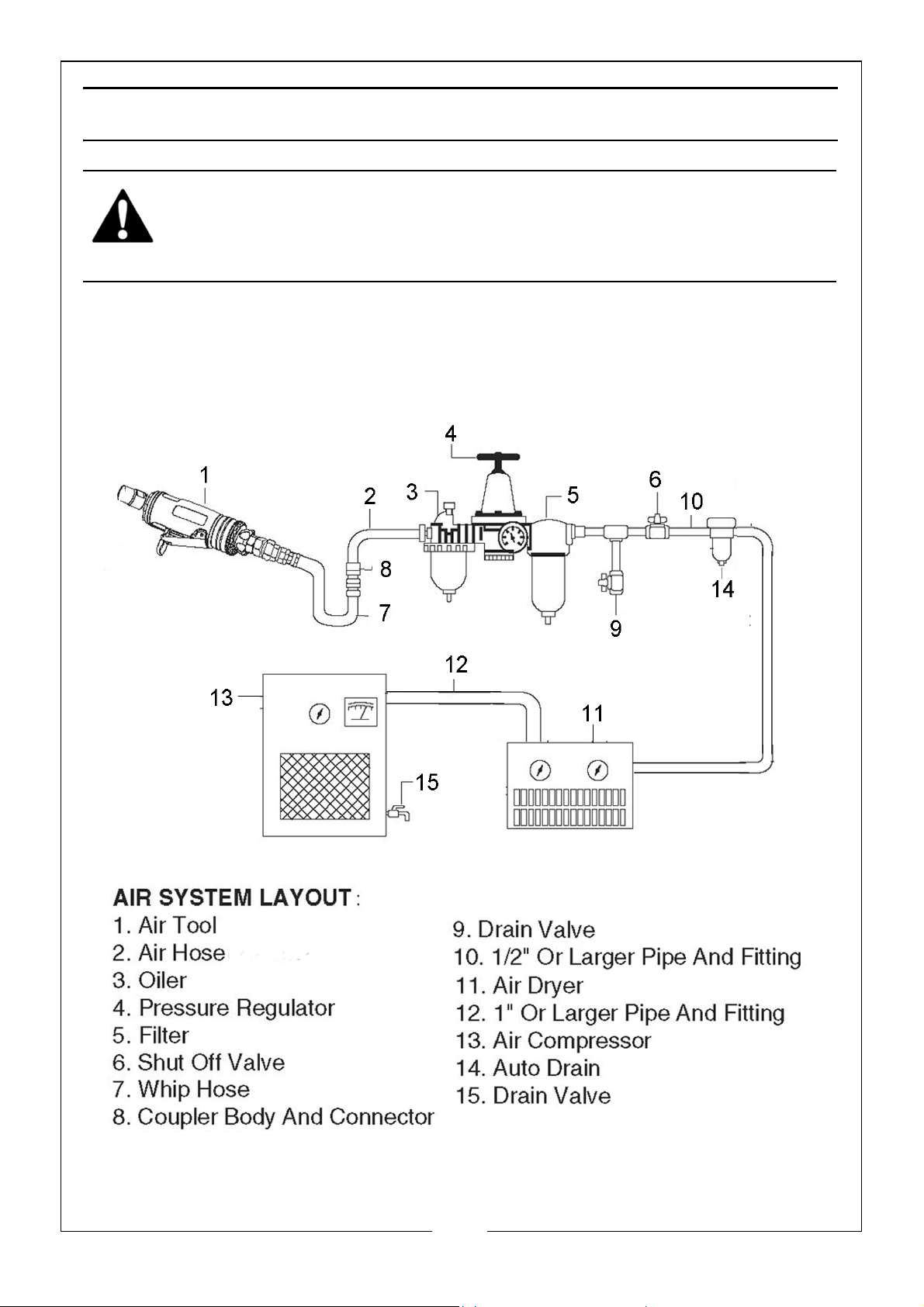

A typical air line layout is shown below. If an automatic in-line filter/regulator is
used it will keep the tool in good condition, but should be regularly checked
and topped up with oil. SAE 10 oil should be used and the lubricator adjusted
to approx 2 drops per minute.

.

Use only clean, dry, regulated compressed air as a power source.

6

Parts & Service: 020 8988 7400 / E-mail: [email protected] or [email protected]

Air compressors used with the tool must comply with the appropriate
European Community Safety Directives.

A build-up of moisture or oil in the air compressor will accelerate wear and
corrosion in the tool. ensure any moisture is drained from the compressor daily
and the inlet filter is kept clean.

If an unusually long air hose is required, (over 8 metres), the line pressure or the
hose inside diameter may need to be increased. The air hose must be rated at
least 150% of the maximum operating pressure of the air tool.

Never exceed the maximum operating pressure for the tool. It is
recommended that air pressure to this tool does not exceed 90 psi at the tool
when running. Higher pressures and unclean air will shorten the life of the tool
due to faster wear and is a possible safety hazard.

7

Parts & Service: 020 8988 7400 / E-mail: [email protected] or [email protected]

BEFORE USE

WARNING: COMPRESSED AIR CAN BE DANGEROUS. ENSURE THAT YOU
ARE FAMILIAR WITH ALL PRECAUTIONS RELATING TO THE USE OF AIR
COMPRESSORS AND COMPRESSED AIR SUPPLY.

NOTE: Ensure the compressor is turned off.

1. Remove the blanking plug from the inlet port of the tool.

2. If required, connect an in-line mini oiler to the tool.

• A mini oiler helps to prolong the life of the air tool.

3. If a mini-oiler is not being used, run
a few drops of oil through the tool
before use. It can be entered
through the air inlet or via the hose
at the nearest connection to the
air supply.

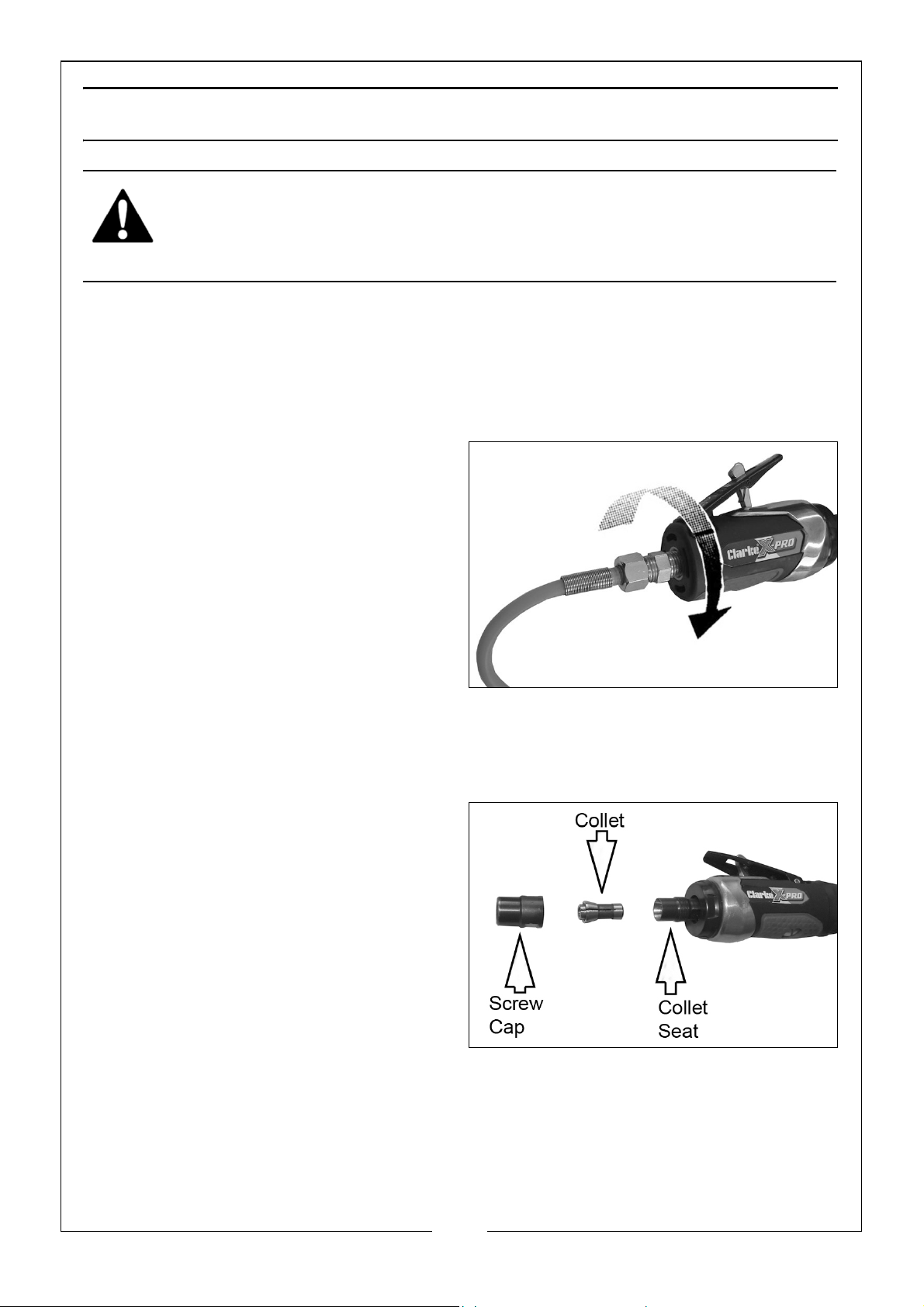

4. Connect a suitable hose to the air
inlet as shown.

5. Connect the other end of the hose
to the compressor.

Your air tool is now ready for use.

INSTALLING THE COLLET

1. Select the grinding stone you
require.

2. Three collets of different sizes are
provided. Select whichever fits
the shank of the stone you have
chosen.

• The larger collet is probably

already installed in the grinder.

3. If a different collet is to be used,
undo the screw cap completely
and pull out the collet from the collet seat. Replace it with the new collet
and screw the cap loosely back on.

8

Parts & Service: 020 8988 7400 / E-mail: [email protected] or [email protected]

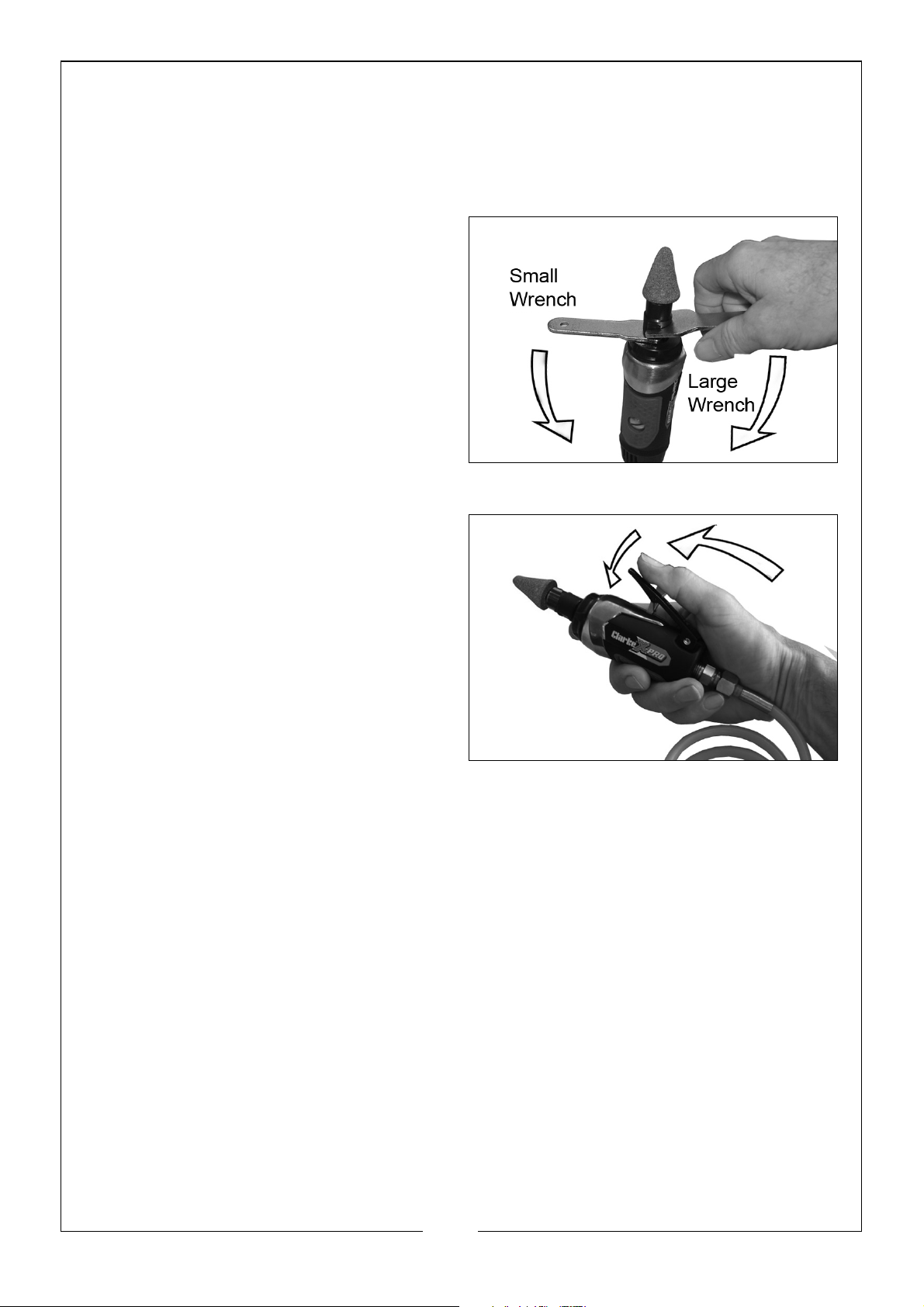

FITTING THE GRINDING STONE

IMPORTANT: Never use chipped or cracked grindstones. Only use
grindstones rated to operate at a speed equal to, or greater than, the full
operating speed of the air tool.

1. Slip the shank of the chosen stone
into the collet and tighten the
screw cap finger tight.

2. Place the smaller of the two
wrenches over the collet seat to
stop the tool from rotating.

3. Use the larger wrench to fully
tighten the collet and grip the
stone in position as shown.

OPERATING THE DIE GRINDER

1. Use your thumb to slide the
throttle locking lever forward while
squeezing the trigger against the
body of the tool.

2. The speed is dependant upon
how hard the trigger is depressed.
The trigger cannot be locked on
and has a lock-off device to
prevent accidental starting.

3. Do not use excess pressure on the
grinding stone as this will shorten its life.

4. Release the trigger to stop the grinder.

• The tool will continue to rotate very briefly after the trigger has been

released.

5. Always ensure the grinder has stopped before putting it down.

DISCONNECTING THE AIR SUPPLY

1. Do not disconnect the air supply hose until the compressor has been shut
down and the compressed air released.

2. Refer to the compressor instruction manual for the procedure to shut down
and release the compressed air.

3. Once the pressure has been released, disconnect the air supply hose from
the tool.

9

Parts & Service: 020 8988 7400 / E-mail: [email protected] or [email protected]

TROUBLESHOOTING

SYMPTOM PROBLEM SOLUTION

Tool runs at normal
speed but slows down
under any load.

Tool runs slowly. Air flows
weakly from exhaust.

Tool will not run. Air flows
freely from exhaust.

1. Excessive pressure on
tool.

2. Motor parts worn.

3. Worn or sticking
mechanism due to
lack of lubricant.

1. Motor parts jammed
with gum/dirt.

2. Regulator in closed
position.

3. General airflow
blocked by dirt.

1. Motor vanes stuck
due to buildup of
foreign material.

1. Reduce the force
applied to the tool.

2. Return to Clarke dealer
for repair.

3. Drip air tool lubricating
oil into air inlet. Allow oil
to soak moving parts
before using.

1. Examine inlet air filter for
cleanliness.

2. Adjust regulator to open
position.

3. Operate tool in short
bursts.

1. Disconnect air supply
and rotate tool assembly
manually.

2. Try operating tool in
short bursts.

3. Drip a few drops of air
tool lubricating oil into air
inlet to soak moving
parts.

Tool will not shut off. 1. Throttle O-rings

damaged or ill-fitting
in seat.

1. Return to Clarke dealer
for repair.

STORAGE

If the tool is to be stored, or is idle for longer than 24 hours, run a few drops of
Clarke air line oil into the air inlet, and run the tool for 5 seconds in order to
lubricate the internal parts.

When not in use, disconnect from air supply, clean tool and store in a safe, dry
place. When storing, ensure the blanking plug is replaced on the airline
connector once the airline is disconnected.

10

Parts & Service: 020 8988 7400 / E-mail: [email protected] or [email protected]

MAINTENANCE

WARNING: MAKE SURE THAT THE AIR TOOL IS DISCONNECTED FROM THE
AIR SUPPLY BEFORE STARTING ANY CLEANING, OR MAINTENANCE
PROCEDURES.

DAILY

1. Before use, drain water from the air tank, air line and compressor.

2. Pour a few drops of CLARKE airline oil, into the air inlet. This should be
carried out regardless of whether or not an in-line mini oiler is used. If an in­line mini oiler is not used, this procedure should be repeated after every
two to three hours of use.

CLEANING

1. Keep the body of the tool clean and free from debris.

2. Grit or gum deposits inside the tool may also reduce its efficiency. This
condition can be corrected by cleaning out the air strainer and flushing
out the tool with gum solvent or oil, or failing this, the motor may require
dismantling. This is better left to your Clarke dealer.

SERVICE AND REPAIR

If the tool runs erratically or becomes inefficient although the air supply is in
good order, it may be necessary to dismantle the air motor and replace any
worn or damaged parts. Such servicing and repair work should be carried out
by a qualified service technician.

PERFORMANCE

Please note that factors other than the tool may effect its operation and
efficiency such as reduced compressor output, excessive drain on the airline
moisture or restrictions in the air-line, or the use of connectors of improper size
or poor condition which will reduce air supply.

**Clarke Air Line Oil (part no. 3050825) is available from your CLARKE dealer.

ACCESSORIES

A wide range of accessories is available including filter/regulators, lubricators,
high-pressure hoses (5 to 50 metres) etc.

Contact your CLARKE dealer for further information or CLARKE International
Service Department.

11

Parts & Service: 020 8988 7400 / E-mail: [email protected] or [email protected]

SPECIFICATIONS

Model Number CAT146

Tool Dimensions (L x W x H) 125 x 67 x 45 mm

Tool Weight 0.5 kg

Air Inlet Size 1/4“BSP (female)

Operating Pressure 90 psi (6.2 bar)

Air Consumption 4.5 cfm average/ 16 cfm at max load

No Load Speed 25000 rpm @ 90psi

Sound Pressure Level (LpA dB) 88 dB(A)

Sound Power Level (LwA dB) 99 dB(A)

Vibration Levels

Please note that the details and specifications contained herein are correct at
the time of going to print. However CLARKE International reserve the right to
change specifications at any time without prior notice. Always consult the
machine’s data plate.

2.9 m/s

2

12

Parts & Service: 020 8988 7400 / E-mail: [email protected] or [email protected]

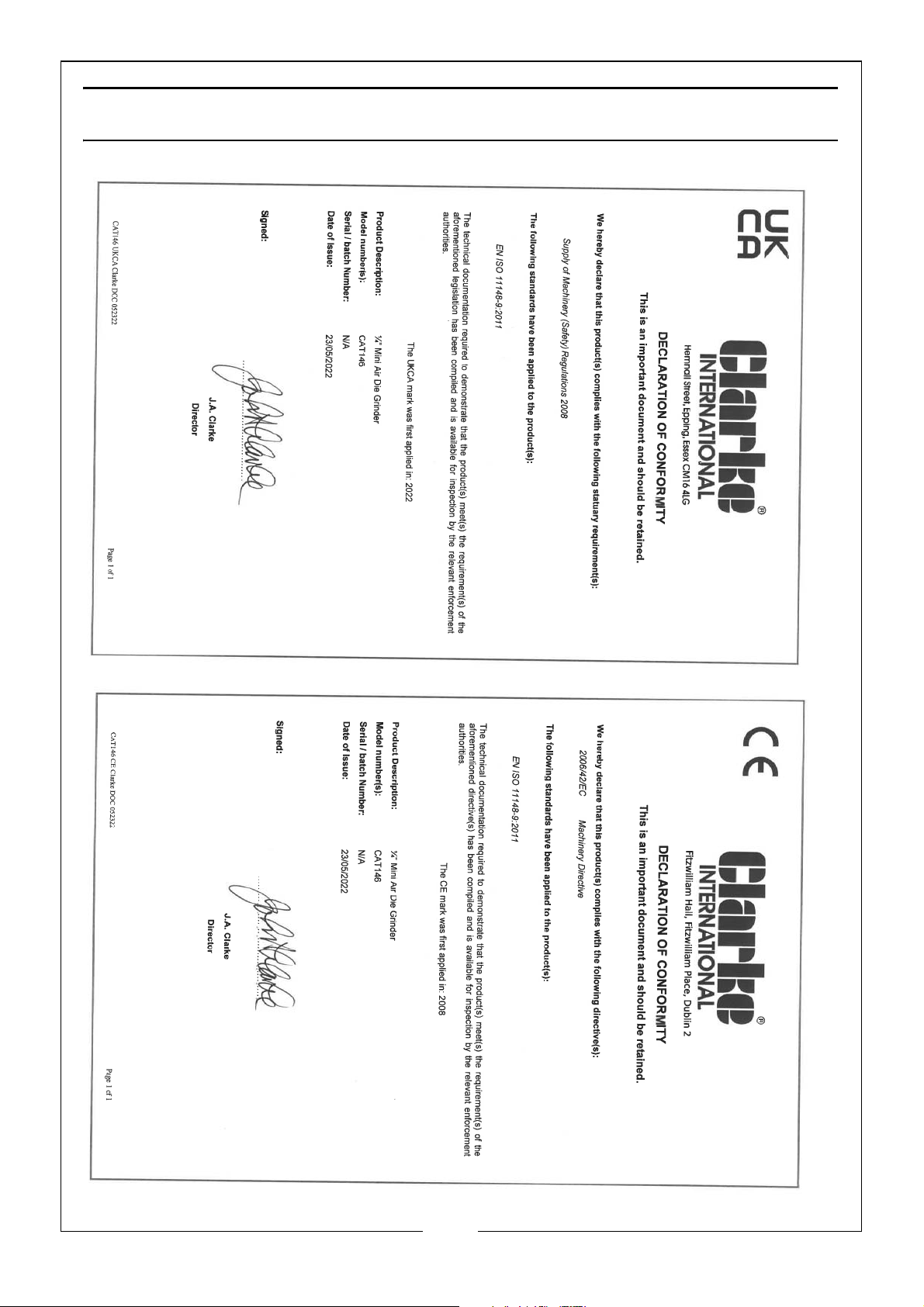

DECLARATION OF CONFORMITY

13

Parts & Service: 020 8988 7400 / E-mail: [email protected] or [email protected]

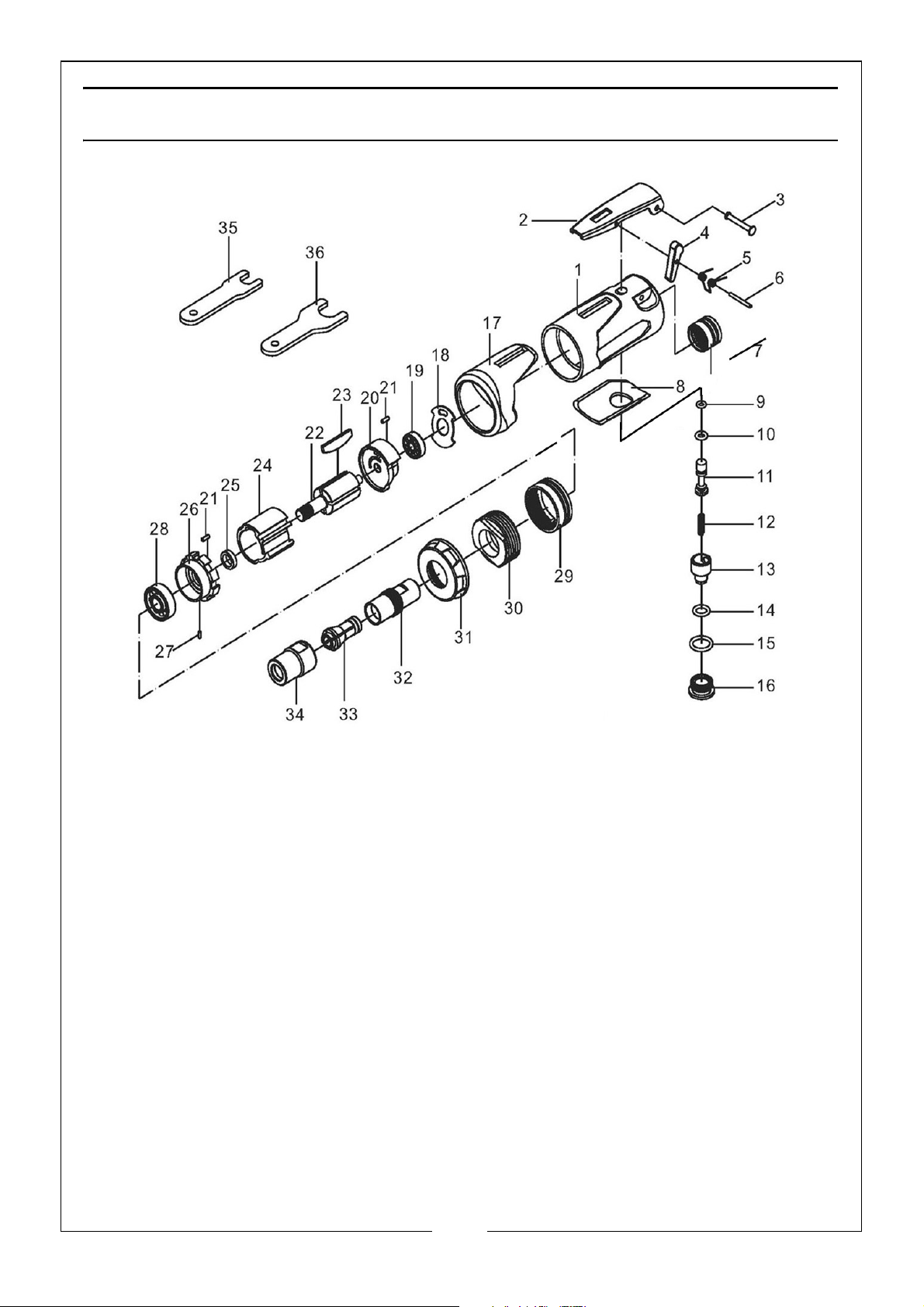

PARTS DIAGRAM

14

Parts & Service: 020 8988 7400 / E-mail: [email protected] or [email protected]

PARTS LIST

No Description No Description

1 Housing 19 Bearing

2Trigger 20End Plate

3Trigger Pin 21Pin

4Lever 22Rotor

5 Spring 23 Rotor Blade

6 Trigger Pin 24 Cylinder

7 Air Inlet 25 Rotor Collar

8 Soft Grip 26 Front Plate

9 O-Ring 27 Pin

10 O-Ring 28 Bearing

11 Valve Stem 29 Valve Bushing

12 Valve Spring 30 Retainer

13 Air Regulator 31 Housing Cap

14 O-Ring 32 Collet Holder

15 O-Ring 33 Collet

16 Valve Plug 34 Collet Jacket

17 Front Cover 35 Small Wrench

18 Gasket 36 Large Wrench

15

Parts & Service: 020 8988 7400 / E-mail: [email protected] or [email protected]
