30 INCH DRUM FAN
MODEL NO: CAM30110V
PART NO: 3231569
OPERATION & MAINTENANCE
INSTRUCTIONS
ORIGINAL INSTRUCTIONS GC11/25-Rev 1
Page 2
INTRODUCTION
Thank you for purchasing this CLARKE 30” Drum Fan.
Before attempting to use this product, please read this manual thoroughly and follow
the instructions carefully. In doing so you will ensure the safety of yourself and that of
others around you, and you can look forward to your purchase giving you long and
satisfactory service.
SPECIFICATIONS
MODEL CAM30110V
Part No: 3231569
Voltage: 110 V~ (50Hz)
Ingress Protection Rating IP20
Insulation Class 1
Fan Power Input 123 W
Duty Cycle S1 (continuous)
Fan Speeds
Position 1 850 rpm
Position 2 922 rpm
Standby Power Consumption N/A
Fan Sound Power Level 77 dB(A) LWa
Sound Power Measured 83.3 dB(A) LWa
Guaranteed Sound Level 85.8 dB(A) Lwa
Maximum Fan Flow Rate
Maximum Air Velocity 2.3 m/sec
Service Value
284.8 m3/m
2.5 m3/m/W
Measurement Standard for Service Value EU 206/2012
Dimensions (D x W x H) mm 835 x 300 x 845
Weight: 19 kg
2
Parts & Service: 020 8988 7400 / E-mail: [email protected] or [email protected]
Page 3
ELECTRICAL CONNECTIONS
WARNING! READ THESE ELECTRICAL SAFETY INSTRUCTIONS
THOROUGHLY BEFORE CONNECTING THE PRODUCT TO THE
POWER SUPPLY.
Before switching the product on, make sure that the voltage of your electricity supply
is the same as that indicated on the rating plate. Connecting it to any other power
source may cause damage.
If the plug has to be changed due to damage, a replacement should be fitted,
following the wiring instructions shown below. The old plug must be disposed of as
insertion into a 110v socket could cause an electrical hazard.
WARNING: THE WIRES IN THE POWER CABLE OF THIS PRODUCT
ARE COLOURED IN ACCORDANCE WITH THE FOLLOWING
CODE:
BLUE = NEUTRAL BROWN = LIVE YELLOW = EARTH
If the colours of the wires in the power cable of this product do not correspond with
the markings on the terminals of your plug, proceed as follows.

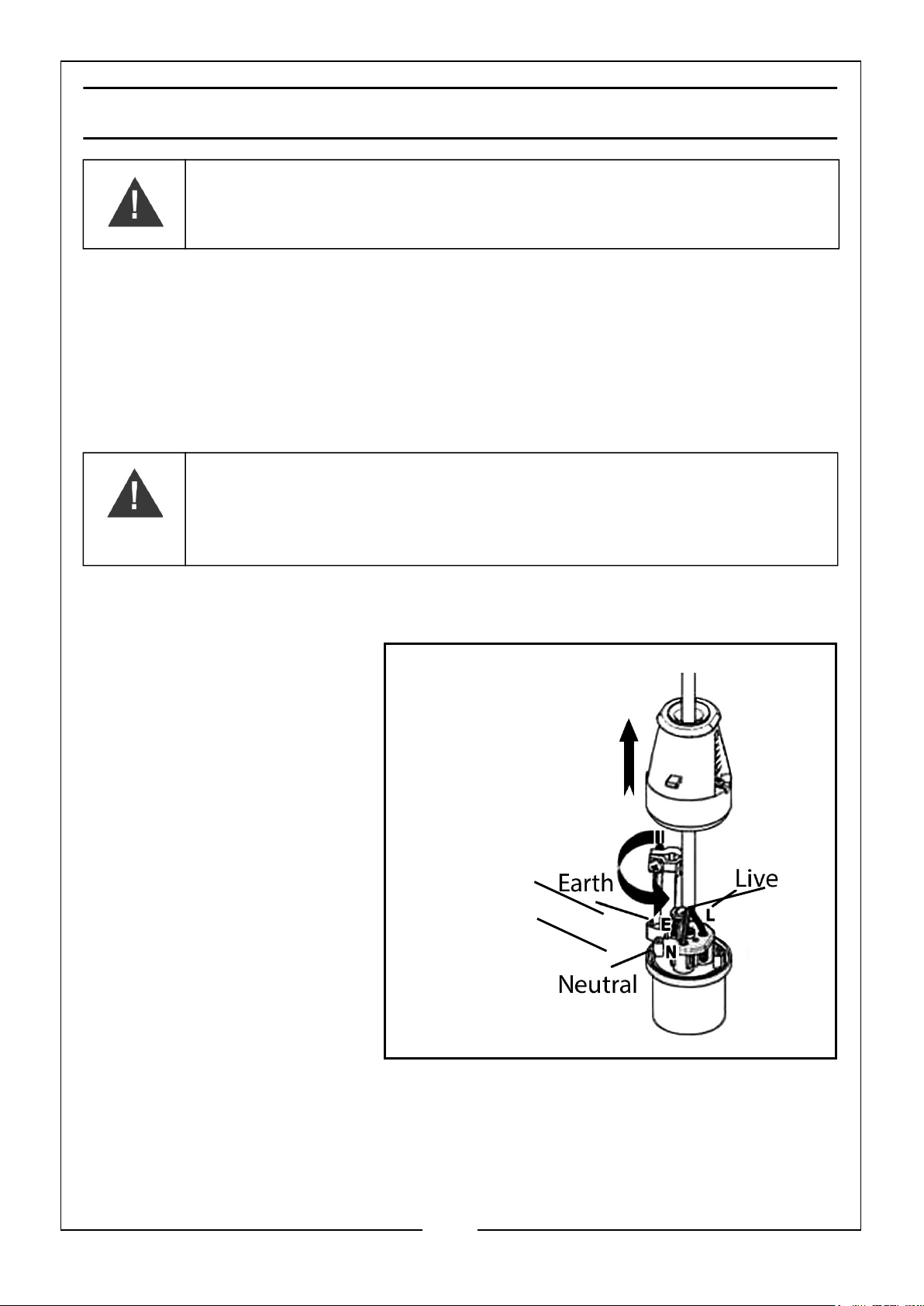

• The Blue wire must be
connected to the
terminal which is
marked N or Neutral.
• The Brown wire must
be connected to the
terminal which is
marked L or Live.
• The Yellow wire must
be connected to the
terminal which is
marked E or Earth.
If in any doubt, consult a
qualified electrician. DO NOT
attempt any repairs yourself.
Plug must be BS60309 approved.
Earth
Neutral
Live
3
Parts & Service: 020 8988 7400 / E-mail: [email protected] or [email protected]
Page 4
SAFETY PRECAUTIONS
1. ALWAYS read the manual before use.
2. Suitable for indoor use only.
3. Avoid using in dusty environments.
4. DO NOT use in environments containing chemical fumes etc.
5. DO NOT use as an extractor fan.
6. DO NOT use in areas of high humidity/water vapour, i.e. bathrooms etc.
7. DO NOT connect the fan to duct system.
8. DO NOT cover the fan with clothing or any material that will restrict free airflow
through the fan.
9. NEVER touch the blades with your hand or any loose object.
10. ALWAYS unplug the fan before moving it or performing maintenance.
11. DO NOT touch the fan when your hands are wet.
12. ALWAYS unplug the fan when it is not in use.
13. NEVER unplug the fan by holding the cable. Unplug by holding the plug.
14. NEVER use the fan if the cable or plug are damaged.
15. NEVER use the fan close to fires.
16. DO NOT use this fan with any solid-state speed control device to reduce the risk
of fire or electric shock.
17. Those who are not qualified electricians should not disassemble or repair this
product.
ENVIRONMENTAL RECYCLING POLICY
Through purchase of this product, the customer is taking on the obligation to
deal with the WEEE in accordance with the WEEE regulations in relation to
the treatment, recycling & recovery and environmentally sound disposal of
the WEEE.
In effect, this means that this product must not be disposed of with general
household waste. It must be disposed of according to the laws governing Waste
Electrical and Electronic Equipment (WEEE) at a recognised disposal facility.
4
Parts & Service: 020 8988 7400 / E-mail: [email protected] or [email protected]
Page 5
OPERATION

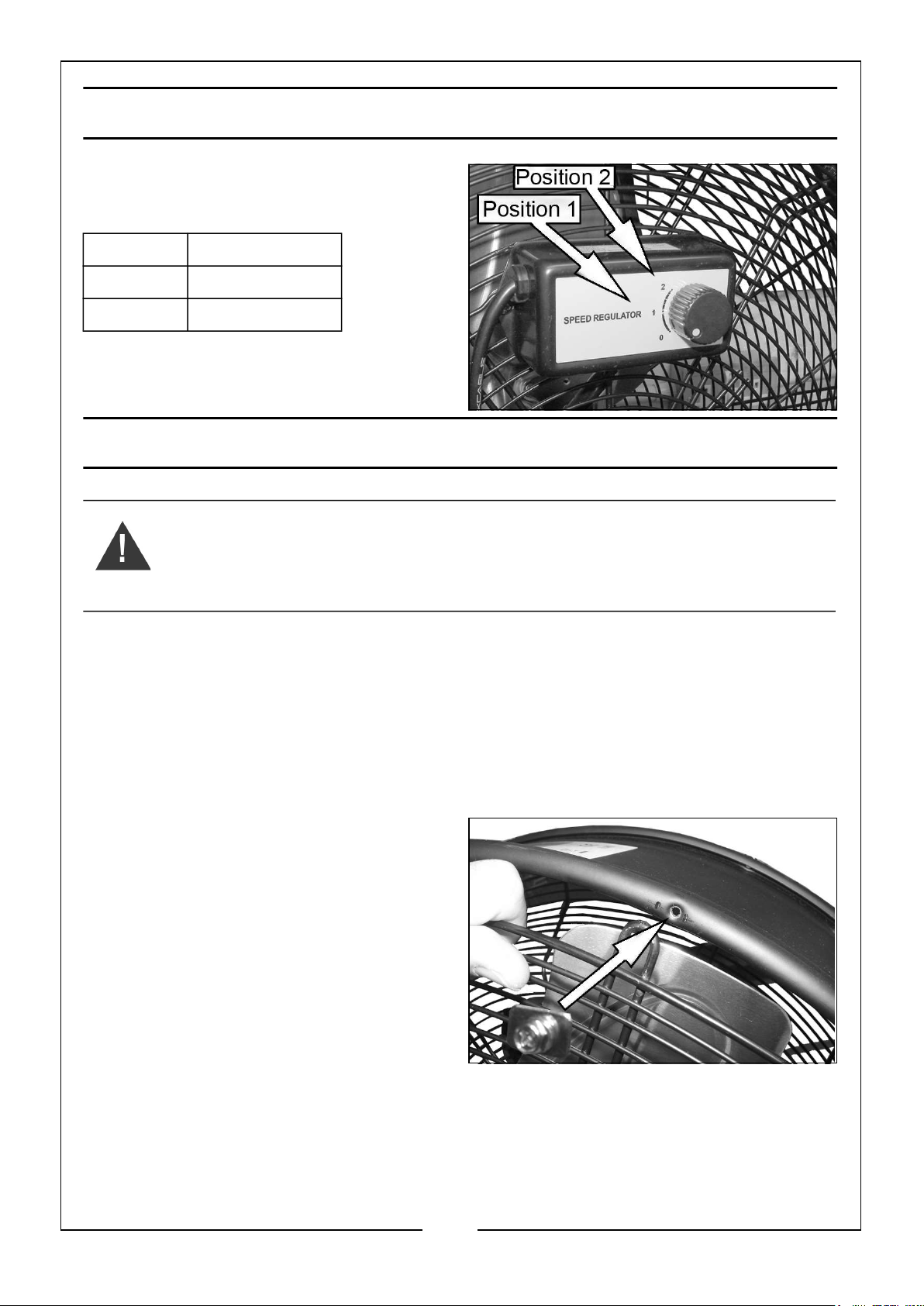

Turn the switch on the speed regulator
to select the fan speed required.
CAM30110v
Position 1 850 RPM
Position 2 922 RPM
MAINTENANCE
WARNING: NEVER OPERATE THE FAN WITH THE FRONT OR REAR
GUARDS REMOVED.
Have any repairs carried out by a suitably qualified person.
• The motor bearings are permanently sealed for life and do not require any
additional lubrication.
If the fan has been operating for long periods in a very dusty environment, the blades
and motor assembly may eventually require cleaning.
1. Disconnect the power cable from the power supply.
2. Unscrew the front guard and lift it
away carefully.
3. Wipe the fan blades with dry cloth
and remove any dust from the motor
assembly with a soft paintbrush,
vacuum cleaner or jet of compressed
air.
• Always wear suitable eye
protection when using compressed
air.
• Never use polish or any corrosive liquid that will damage the surface finish.
4. Replace the guard securely before use.
5
Parts & Service: 020 8988 7400 / E-mail: [email protected] or [email protected]
Page 6

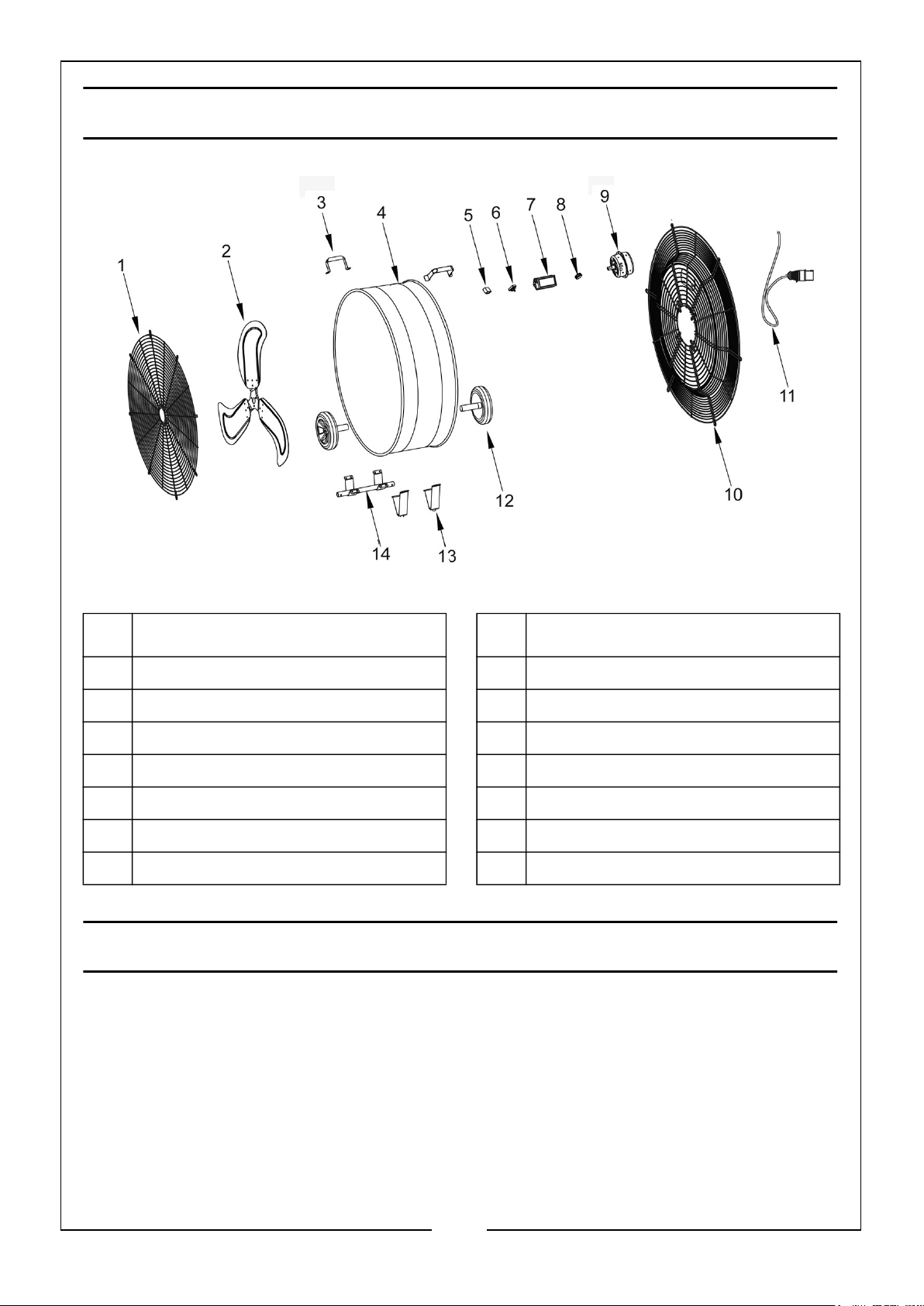

PARTS LIST AND DIAGRAM
NO
1 Front Grill 8 Switch Knob
2 Blade Assembly 9 Fan Motor
3 Handle 10 Rear Grill
4. Drum Body 11 Power Cable
5 Capacitor 12 Wheel & Stub Axle
6 Switch 13 Feet
7 Switch Box 14 Axle Support
DESCRIPTION
NO
DESCRIPTION
GUARANTEE
This product is guaranteed against faulty manufacture for a period of 12 months from
the date of purchase. Please keep your receipt which will be required as proof of
purchase.
This guarantee is invalid if the product is found to have been abused or tampered
with in any way, or not used for its intended purpose.
Faulty goods should be returned to their place of purchase, no product can be
returned to us without prior permission. This guarantee does not effect your statutory
rights.
6
Parts & Service: 020 8988 7400 / E-mail: [email protected] or [email protected]
Page 7

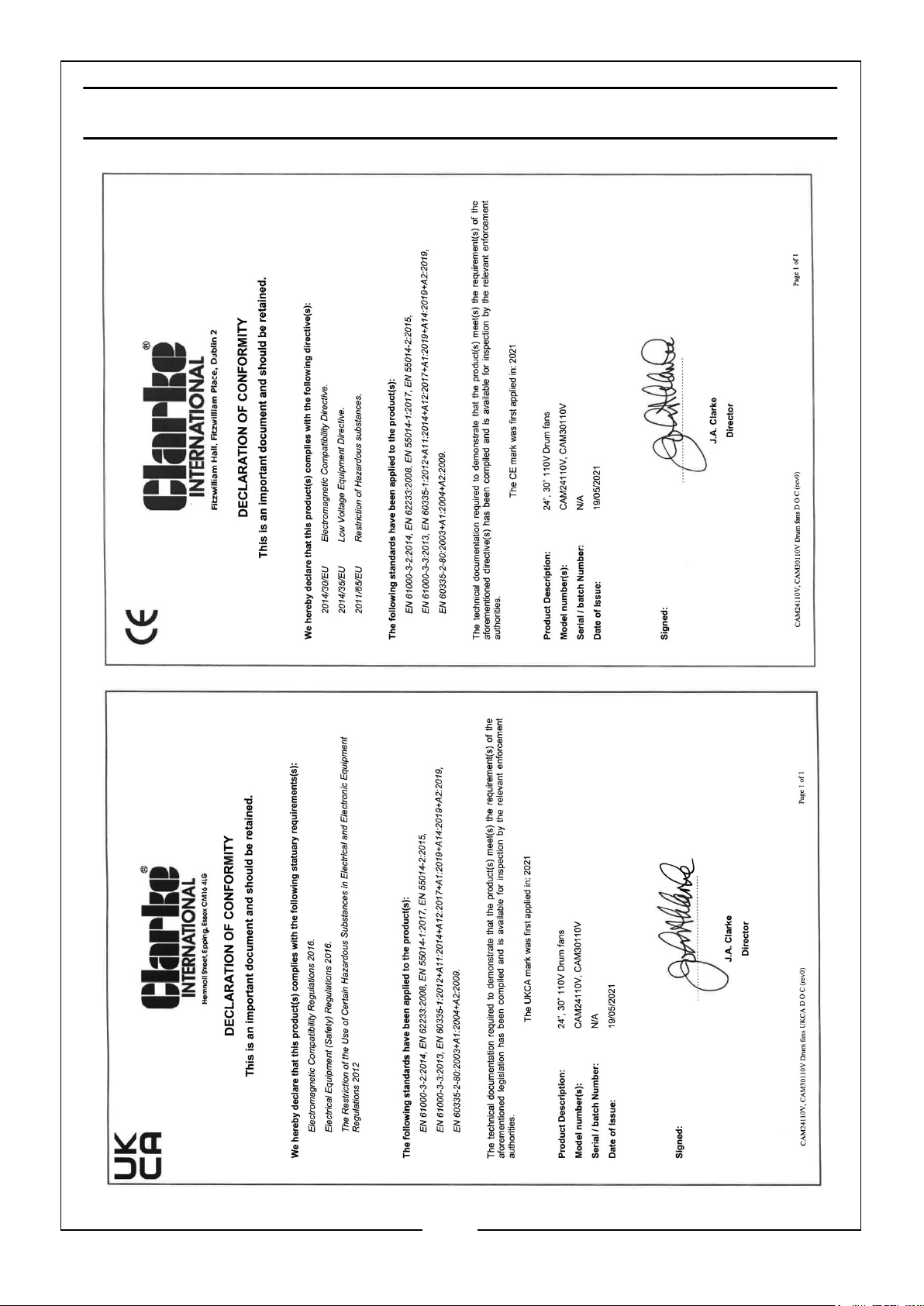

DECLARATIONS OF CONFORMITY
7
Parts & Service: 020 8988 7400 / E-mail: [email protected] or [email protected]
